Brewing Chamber - Prototype

An Arduino controlled beer experimenting chamber.

It brews 2.5 litres of beer at a time, which is good for testing recipes, and only been a small batch you can go a bit crazy in flavour combinations. It has a water proof thermometer so you can monitor its exact temperature of the fermentation. The pressure of the carboy is regulated by a Pressure Sensor and a Solenoid Valve, a desired maximum pressure can be set that will trigger the solenoid valve to open and the let the pressure release back down to the desired minimum pressure. The purpose to this would be to firstly control the pressure at which the fermentation occurs. There has been small amount of research looking at the effects of brewing under a pressurised system and the effects that has on the fermentation and potentially resulting in a cleaner yeast attenuation, as some of the theories talk about how it could potentially decrease esters.

which I found in an article that talked about how brewing under pressure could actually reduce the amount of esters and other undesired flavours to be produced as a result of the cleaner yeast attenuation.

There's a good run down of brewing under pressure on Homebrew Stack Exchange: http://homebrew.stackexchange.com/questions/9750/w...

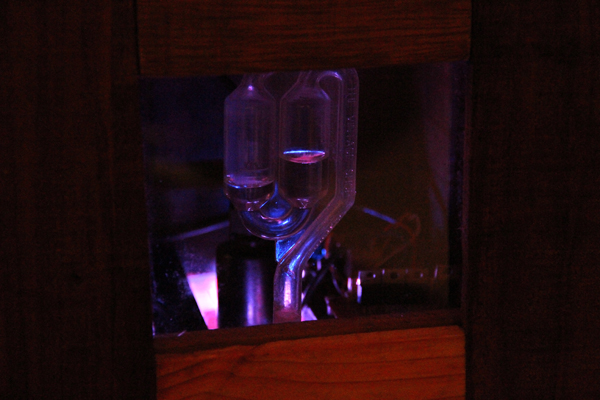

At this point I am collecting the data of the rate at which the pressure increases, it get's released at a safe 15 psi as I don't trust my set-up to handle much pressure, but it doesn't really matter too much as I am wanting to measure the speed at which it reaches the desired maximum pressure, and with the intention to maintain a relative pressure range.

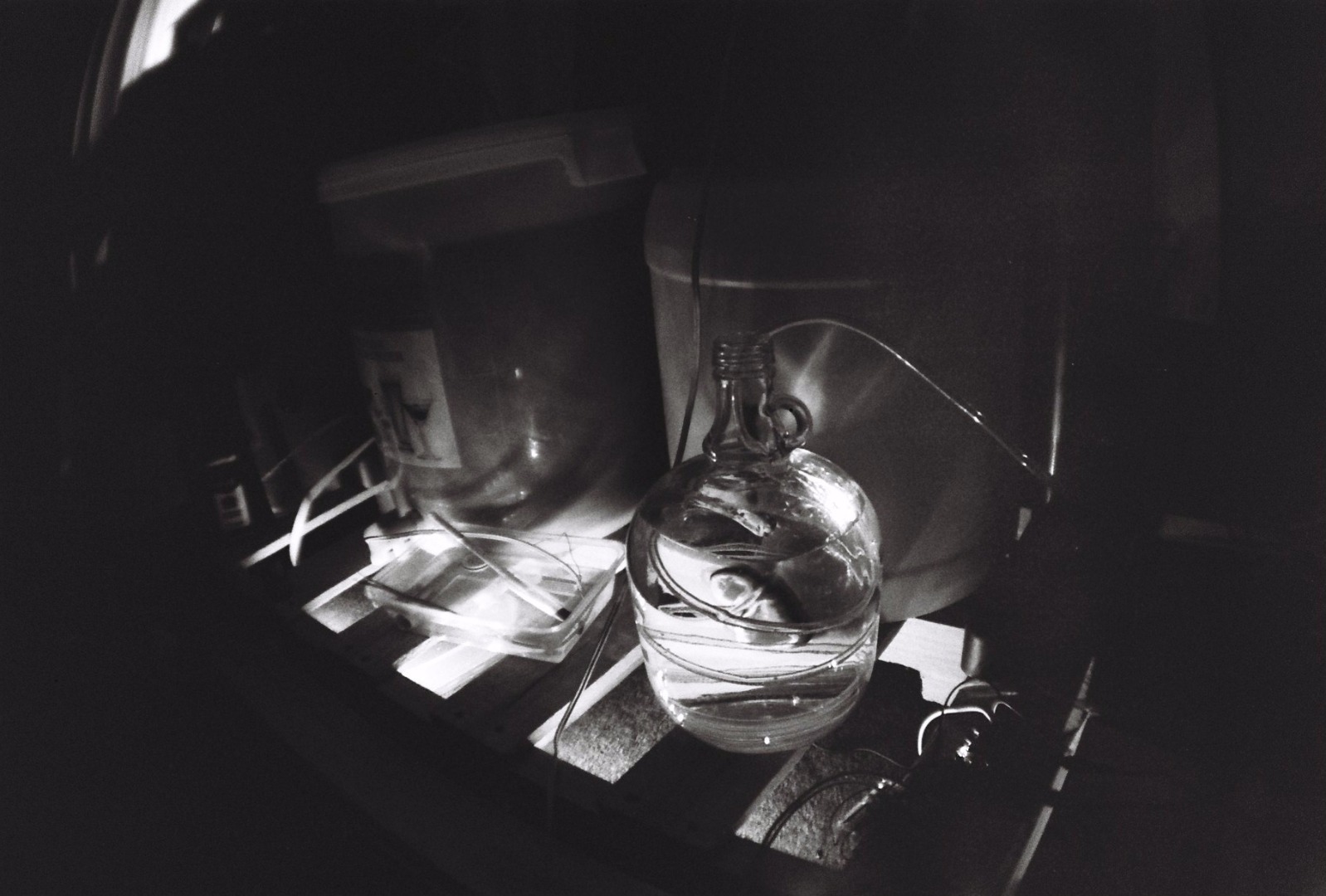

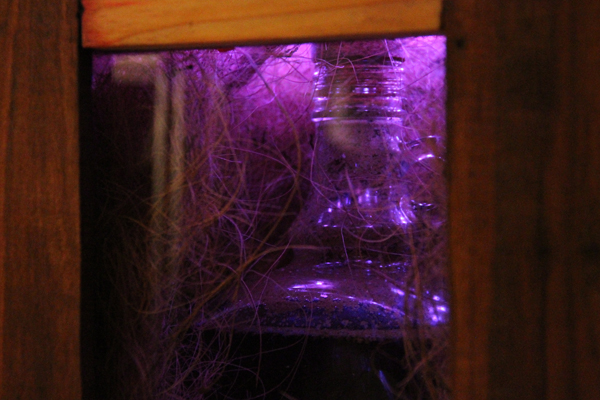

The fermentor is in the wooden box so that a more consistent temperature can be reached. The potential to heat or cool the brew could later easily be included into the project.

I actually used a Freetronics Eleven, the Arduino Uno equivalent. I find them easier to source in New Zealand and they have the preferred/common Micro-B USB.

Parts for the Electronics:
1x Arduino Uno

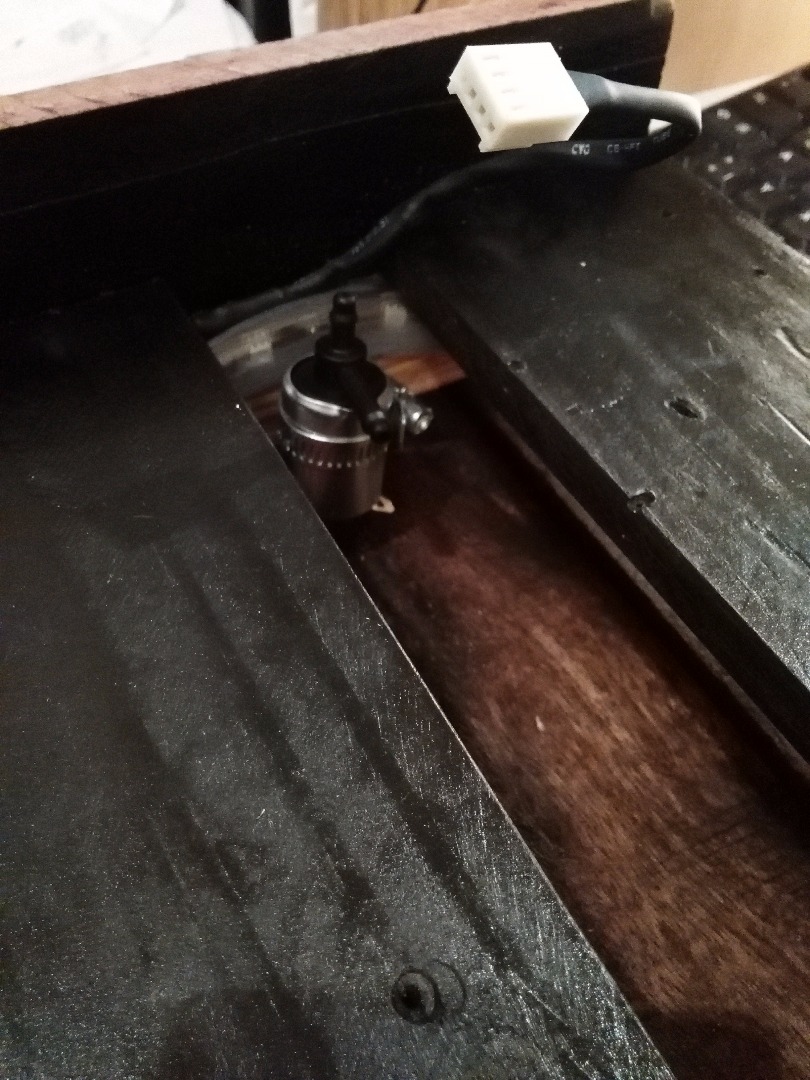

1x 12v DC Solenoid Valve

1x RGB LED Stripe (approx. 30cm)

1x Dallas Waterproof Thermometer DS18B20

1x Push Button

3x Transistors TIP31CG (RGB LEDs) (TIP120 would work here too)

1x Transistor TIP22G (Solenoid)

1x Resistor 1k (Solenoid)

1x Resistor 5k (Dallas)

1x Resistor 10k (Button)

1x Diode IN5404, IN4004 also works. (Solenoid)

3x Connector plugs: 3pin; 4pin; 6pin (or 5pin).

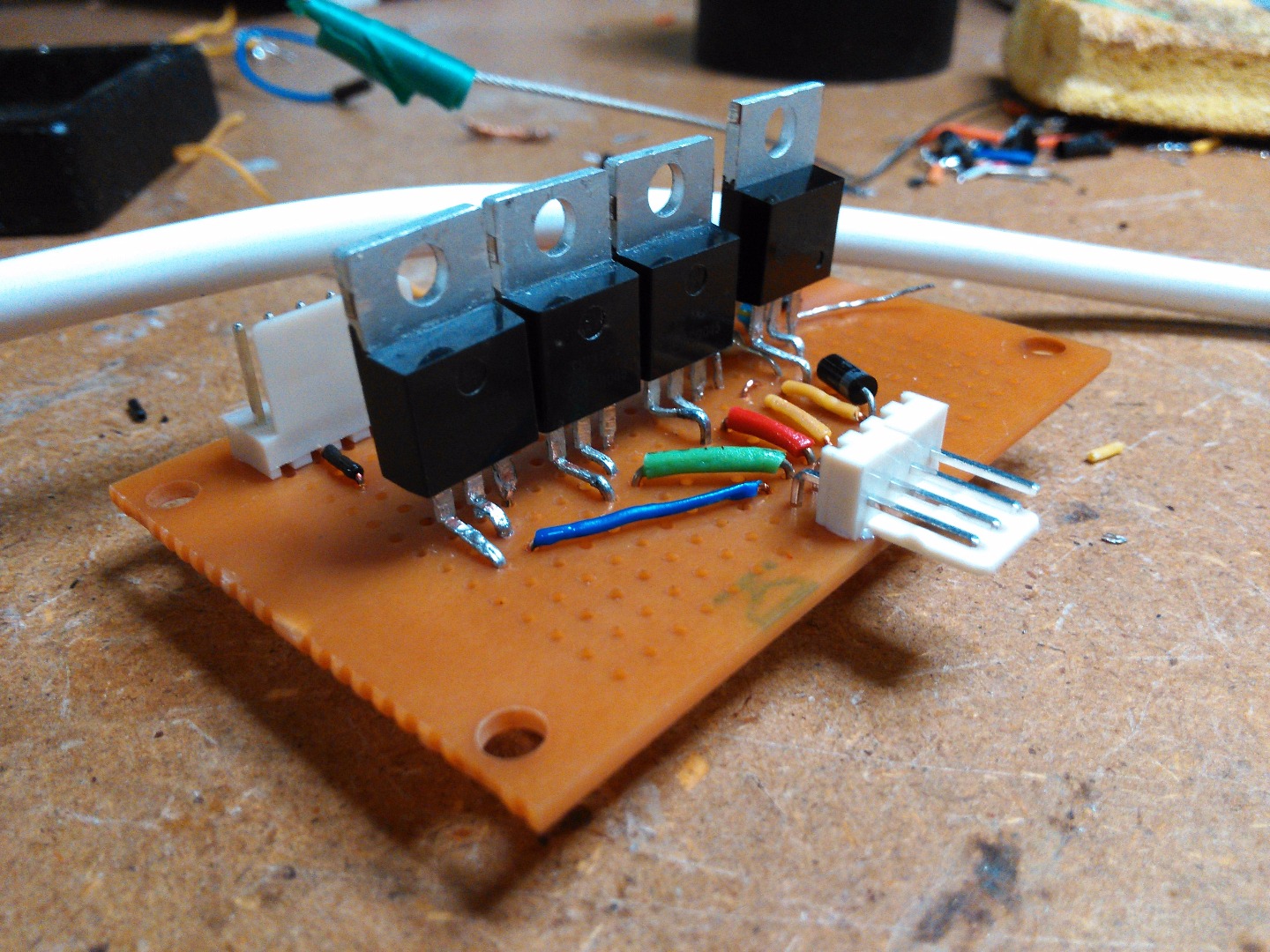

1x 5cm by 4cm Prototyping Board

1x Food Safe Heat Shrink (Dallas)

Parts for the Chamber:

2x "Found crates"

1x Linseed Oil

1x Black spray paint

1x Coconut Fibre

1x Glass Sheet

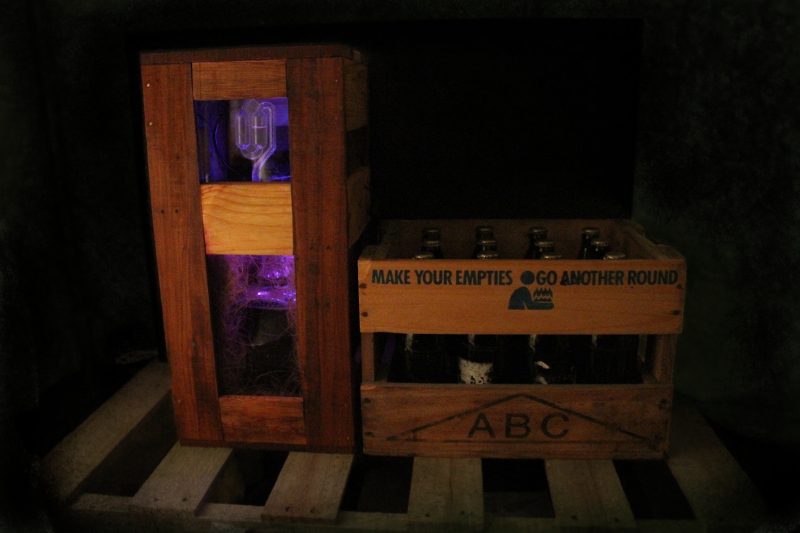

I used what materials I could get for the budget I was limited to. I got the 3 litre carboy for $5, the crates I acquired...for free. So I just made a simple box to house everything.

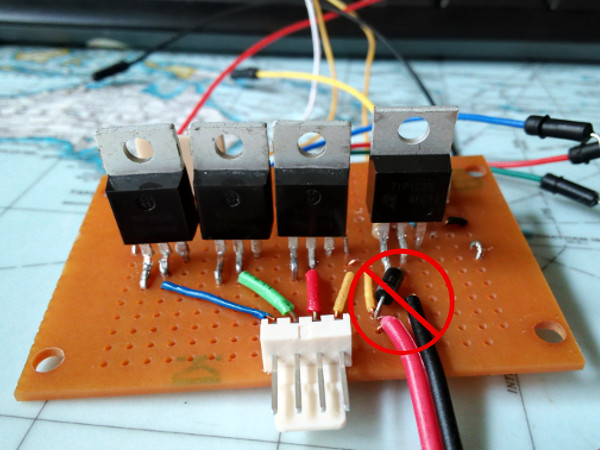

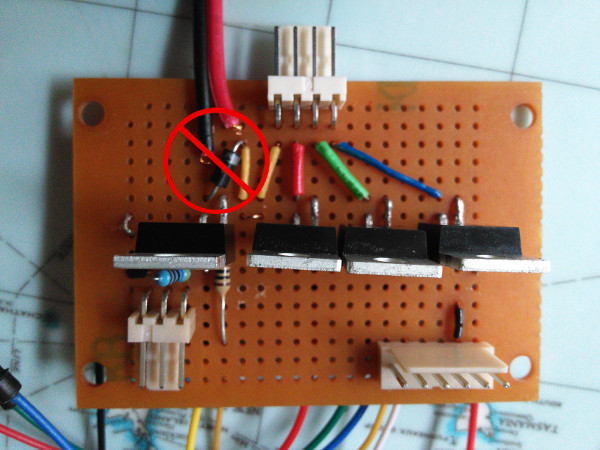

I made a mistake on here, I accidentally soldered the negative of the solenoid directly to ground instead of going to the transistor, that's what happens when you work late at night. The diode was technically in the right place, but I just figured it would be safer, easier and out of the way if it was directly on the solenoid.

Schematics will be posted soon.

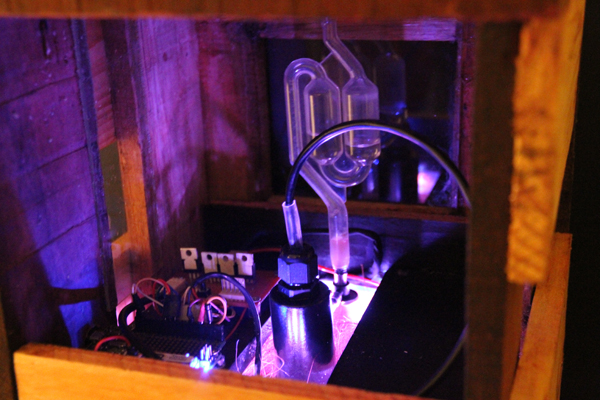

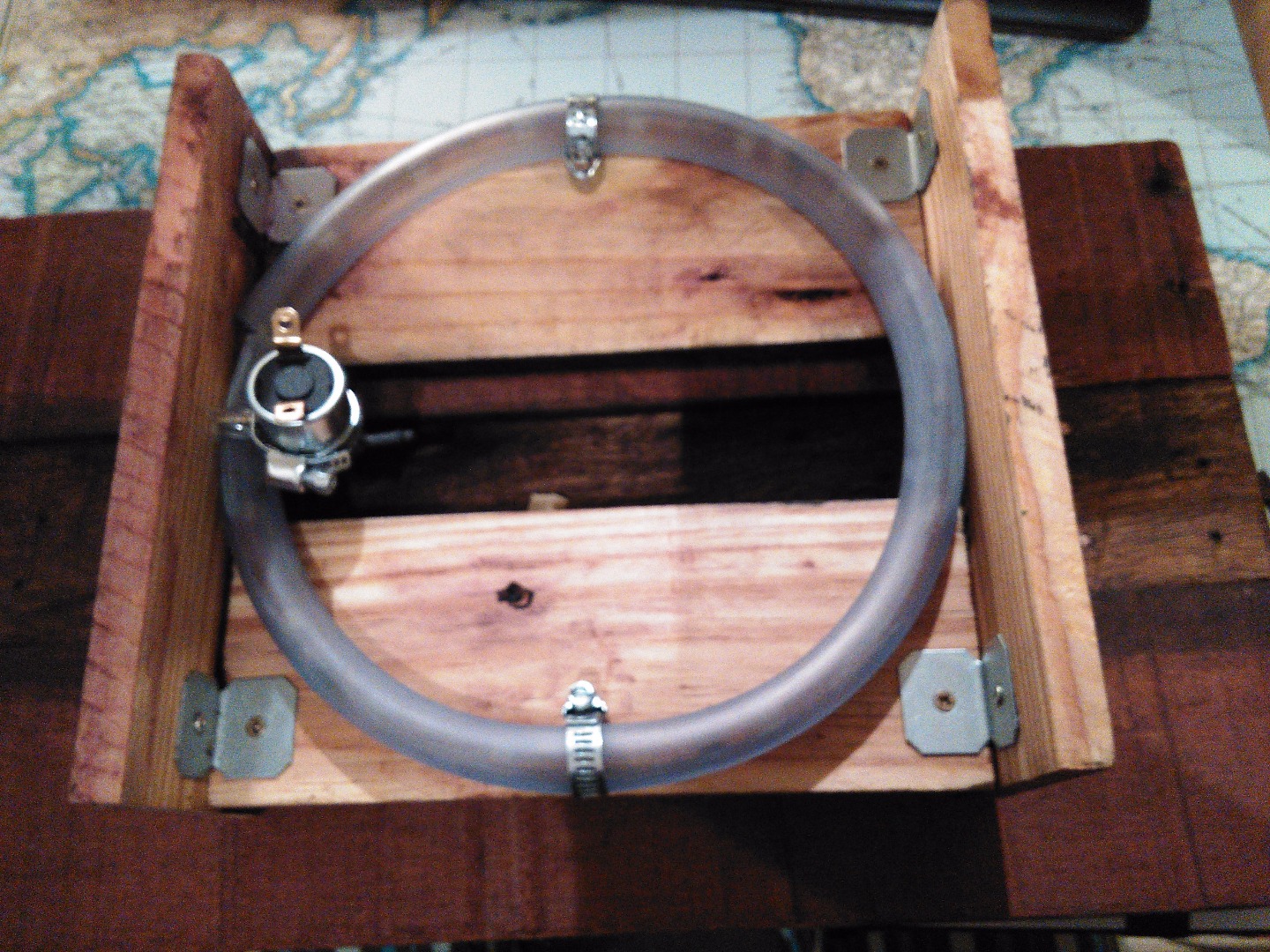

Here I spray painted the interior black, this was only where the electronics will sit. Underneath I have attached the RGB LEDs, they will be just out of sight whilst giving ambient light onto the brew bottle. I placed the RGD LEDs into a loop of clear plastic tubing, it wasn't so much to protect it rather to diffuse the the light, I even frosted it up by using some fine sand paper on it.

I linked the Arduino to Processing via the Serial, with the intention of having the Processing sketch show the data over time so we can see how the beer is progressing.

This can interface with a Processing sketch via serial communication.

#include <OneWire.h>

#include <DallasTemperature.h>

#include <Wire.h>

#include <Adafruit_MPL3115A2.h>

// //// Power by connecting Vin to 3-5V, GND to GND

//// Uses I2C - connect SCL to the SCL pin, SDA to SDA pin

//// See the Wire tutorial for pinouts for each Arduino

//// http://arduino.cc/en/reference/wire

Adafruit_MPL3115A2 baro = Adafruit_MPL3115A2();

float pascals;

float altm;

float chamberTemp;

float pressure = 0;

float idealPressure = 14.45; //This case PSI. depends on which measurement of pressure, i.e. pascals; psi; etc float maxPressure = 14.81; // psi int clicks = 0;

// Data wire is plugged into port 2 on the Arduino

#define ONE_WIRE_BUS 2

#define TEMPERATURE_PRECISION 9

// Setup a oneWire instance to communicate with any OneWire devices (not just Maxim/Dallas temperature ICs) OneWire oneWire(ONE_WIRE_BUS); // Pass our oneWire reference to Dallas Temperature.

DallasTemperature sensors(&oneWire);

int numberOfDevices; // Number of temperature devices found

DeviceAddress tempDeviceAddress; // We'll use this variable to store a found device address

float yeastTemp;

float idealTemp = 24;

float tempTol = 1.1;

boolean heating = false;

boolean lastHeatState;

// ************* PINS 'n Wires *************

// SCL is on White Wire

// SDA is on faint Yellow Wire

// Dallas Temperature Sensor is on Pin 2. Yellow Wire

const int solenoid = 4; // Solenoid on Pin 4. Brown wire

const int buttonPin = 6; // Push Button Pin. Purple Wire

const int bluePin = 9; // Blue Wire

const int greenPin = 10; // Green Wire

const int redPin = 11; // Red Wire

// Other:

// +5v is on long Red Wire

// Gnd is on long Black Wire

// Vin (input 12vDC) is on long faint Yellow Wire

// *********************************

int redValue;

int greenValue;

int blueValue = 0;

int endTime;

void setup() { Serial.begin(9600);

baro.begin(); // Initiate barometric pressure sensor, which also has on board temperature sensor

Wire.begin(); // Initiate OneWire library, required for communication with the barometric pressure sensor.

dallasSetup(); // This initiated the Dallas Waterproof Digital Thermometer

pinMode(solenoid, OUTPUT);

pinMode(buttonPin, INPUT);

pinMode(redPin, OUTPUT);

pinMode(greenPin, OUTPUT);

pinMode(bluePin, OUTPUT);

// Serial.print("Initiated*");

}

void loop() {

int startTime = millis();

baroRun();

// Barometric Pressure/Altimeter

dallasRun();

Serial.print("send"); // Start of signal, 'send' will be excluded, it will act as a buffer

Serial.print(pascals);

Serial.print("a");

Serial.print(chamberTemp);

Serial.print("b");

Serial.print(yeastTemp);

Serial.print("c");

String rgb_s = String(redValue) + ", " + String(greenValue) + ", " + String(blueValue);

Serial.print(rgb_s);

Serial.print("_"); // End of signal '_' redValue = 33; greenValue = 16; blueValue = 100; setRGB(redValue, greenValue, blueValue);

}

void control() {

if (pressure >= maxPressure) { // was idealPressure

digitalWrite(solenoid, HIGH); // releases the solenoid valve allowing gas(CO2) to escape through the Airlock setRGB(redValue, greenValue, blueValue);

}

if (pressure <= idealPressure) {

// alternative code to using releaseCount. May replace minPressure as it may never get there, testing required. digitalWrite(solenoid, LOW);

// Closes solenoid valve

setRGB(0, 0, 0); } }

void testControl() {

if (clicks < 10) {

digitalWrite(solenoid, HIGH);

// Serial.println("Solenoid has opened");

setRGB(redValue, greenValue, blueValue);

}

else if (clicks > 10) {

digitalWrite(solenoid, LOW);

// Serial.println("Solenoid has closed");

setRGB(0, 0, 0);

}

clicks++; if (clicks >= 20) clicks = 0;

}

void baroRun() {

if (! baro.begin()) {

Serial.print("Couldnt find sensor.");

digitalWrite(solenoid, HIGH);

// Serial.println("Solenoid has opened");

return;

}

pascals = baro.getPressure(); // returns pascals

pressure = pascals / 6894.75729; //pressurePSI = pascals / 6894.75729; // Converts Pascals to PSI

pascals = round(pascals); // Rounds number so there is no decimal when it gets sent to processing via the Serial chamberTemp = baro.getTemperature(); // returns celcius

}

void setRGB(int r, int g, int b) {

analogWrite(redPin, r);

analogWrite(greenPin, g);

analogWrite(bluePin, b);

}

void dallasRun() {

// call sensors.requestTemperatures() to issue a global temperature

// request to all devices on the bus

// Serial.print("Requesting temperatures...");

sensors.requestTemperatures(); // Send the command to get temperatures

// Serial.println("DONE");

// It responds almost immediately. Let's print out the data

//printTemperature(tempDeviceAddress);

// Use a simple function to print out the data

yeastTemp = sensors.getTempC(tempDeviceAddress);

//Serial.print(yeastTemp);

}

void dallasSetup() {

// Start up the library

sensors.begin();

// Grab a count of devices on the wire

numberOfDevices = sensors.getDeviceCount();

// locate devices on the bus

//Serial.print("Locating devices...");

//Serial.print("Found ");

//Serial.print(numberOfDevices, DEC);

//Serial.print(" devices.");

// report parasite power requirements

// Serial.print("Parasite power is: ");

//if (sensors.isParasitePowerMode()) //Serial.println("ON");

//else //Serial.print(" OFF");

// Loop through each device, print out address

for (int i = 0; i < numberOfDevices; i++) {

// Search the wire for address

if (sensors.getAddress(tempDeviceAddress, i)) {

//Serial.print("Found device ");

// Serial.print(i, DEC);

//Serial.print(" with address: ");

//printAddress(tempDeviceAddress);

//Serial.println();

//Serial.print("Setting resolution to "); //Serial.print(TEMPERATURE_PRECISION, DEC);

// set the resolution to TEMPERATURE_PRECISION bit (Each Dallas/Maxim device is capable of several different resolutions)

sensors.setResolution(tempDeviceAddress, TEMPERATURE_PRECISION);

//Serial.print("Resolution actually set to: ");

//Serial.print(sensors.getResolution(tempDeviceAddress), DEC); //Serial.println(); } else { // Serial.print("Found ghost device at "); // Serial.print(i, DEC); // Serial.print(" but could not detect address. Check power and cabling"); } }

}

// function to print a device address void printAddress(DeviceAddress deviceAddress) { for (uint8_t i = 0; i < 8; i++) { if (deviceAddress[i] < 16) Serial.print("0"); Serial.print(deviceAddress[i], HEX); } }
