Brake Light and Turn Signals for Backpacks

Accelerometer autodetects Braking. The Turn signals are commanded by a 315MHz module. 78 neopixels. Based on Adafruit CPX.

Purchase your kit at tindie.

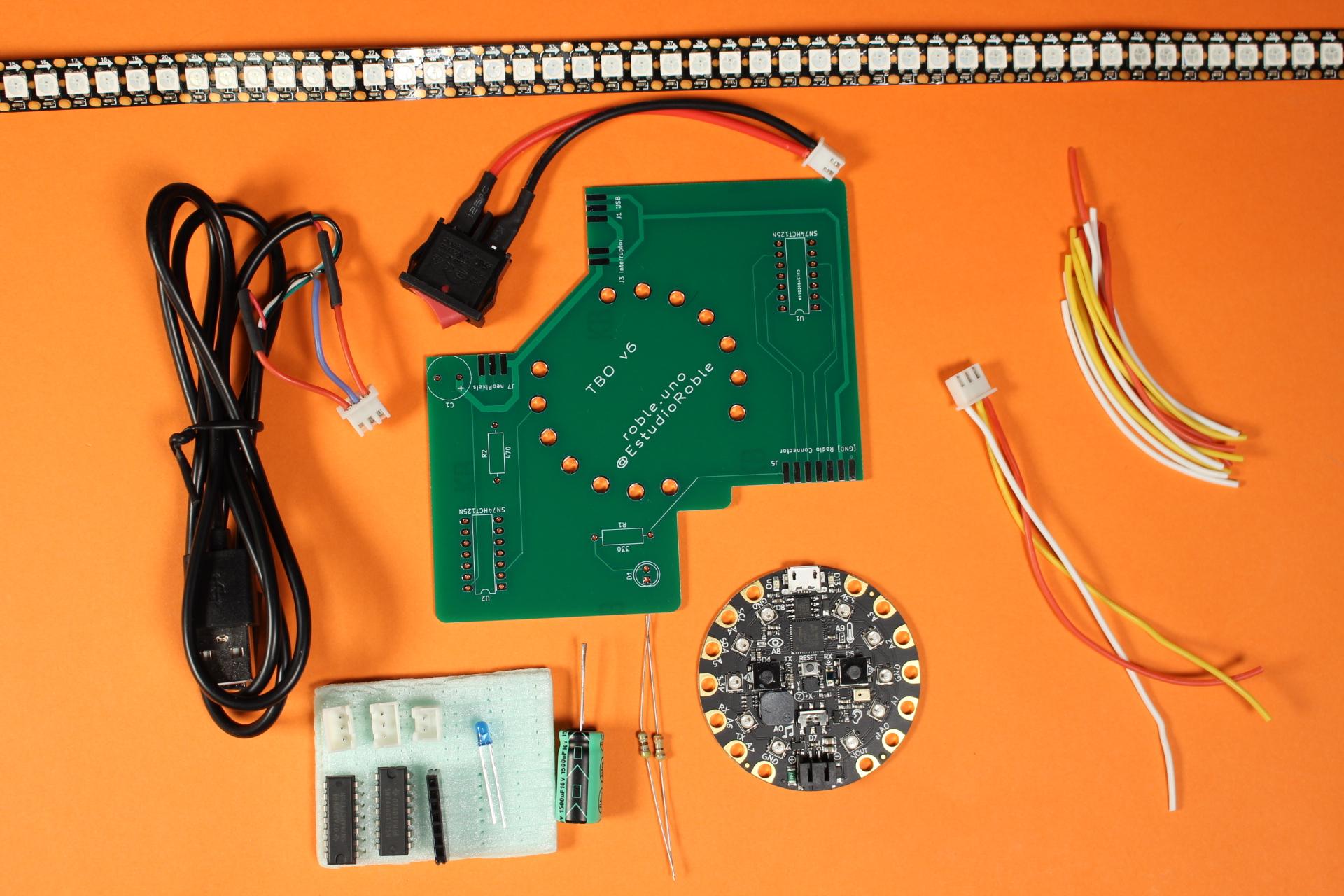

1 × PCB custom

1 × Resistors, Led, Capacitor, and conectors following scheme

2 × Level Shifter 74AHCT125

1 × Remote and Receiver 315MHz

1 × USB cable modified

1 × adafruit's Circuit PlayGround Express

1 × Panel Switch

78 × Neopixels 144/m

1 × Acrylic EyeBull

1 × 3M Reflective Adhesive Tape

2 × m band

1 × Carabiner

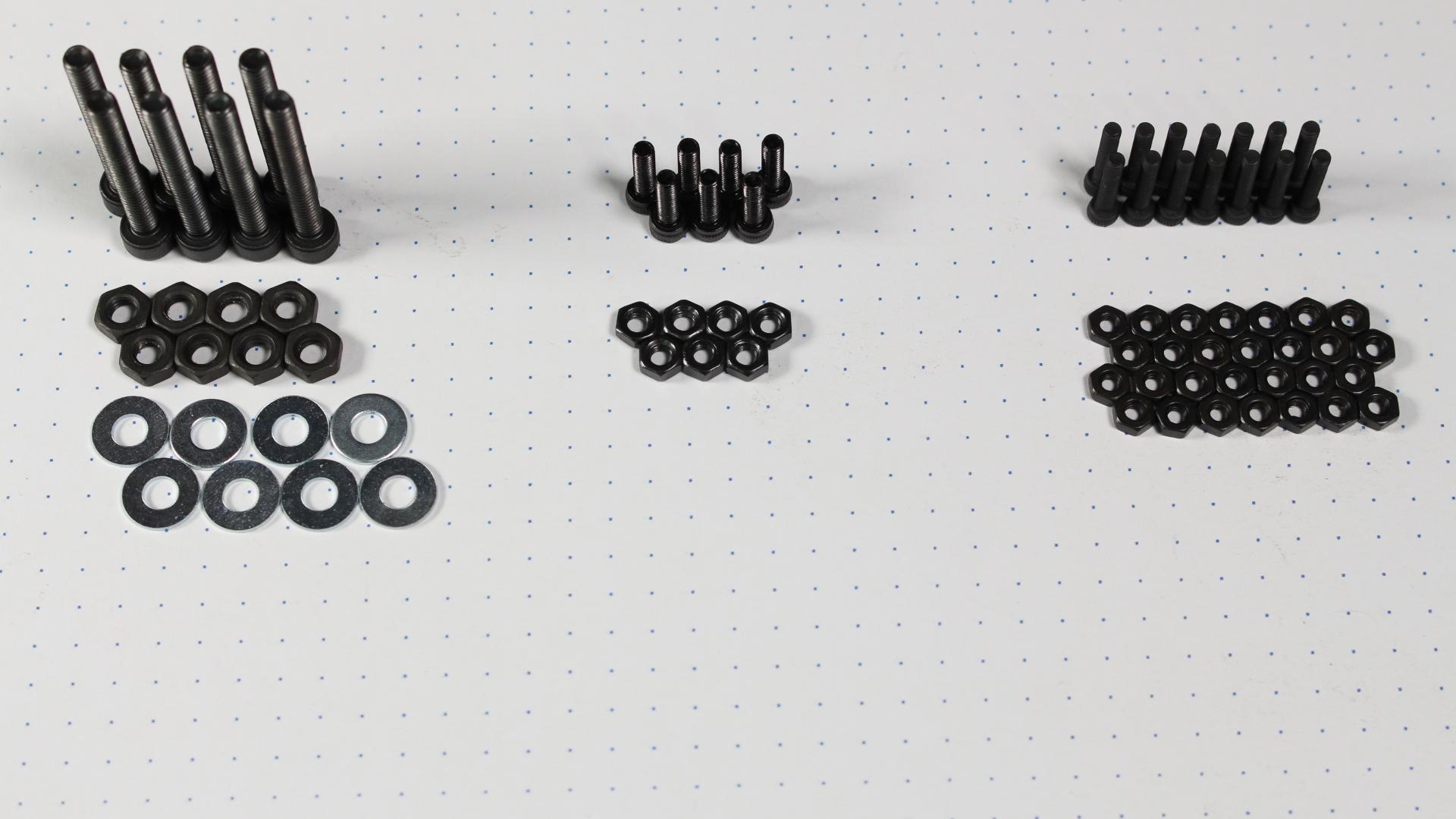

14 × M2,5 x 12 DIN 912

28 × M2,5 Tuerca DIN 934

8 × M4 x 30 DIN 912

8 × M4 Tuerca DIN 934

7 × M3 x 10 DIN 912

7 × M3 Tuerca DIN 934

3 × Neodimio Magnets

1 × 3D printed parts

Watch the complete process:

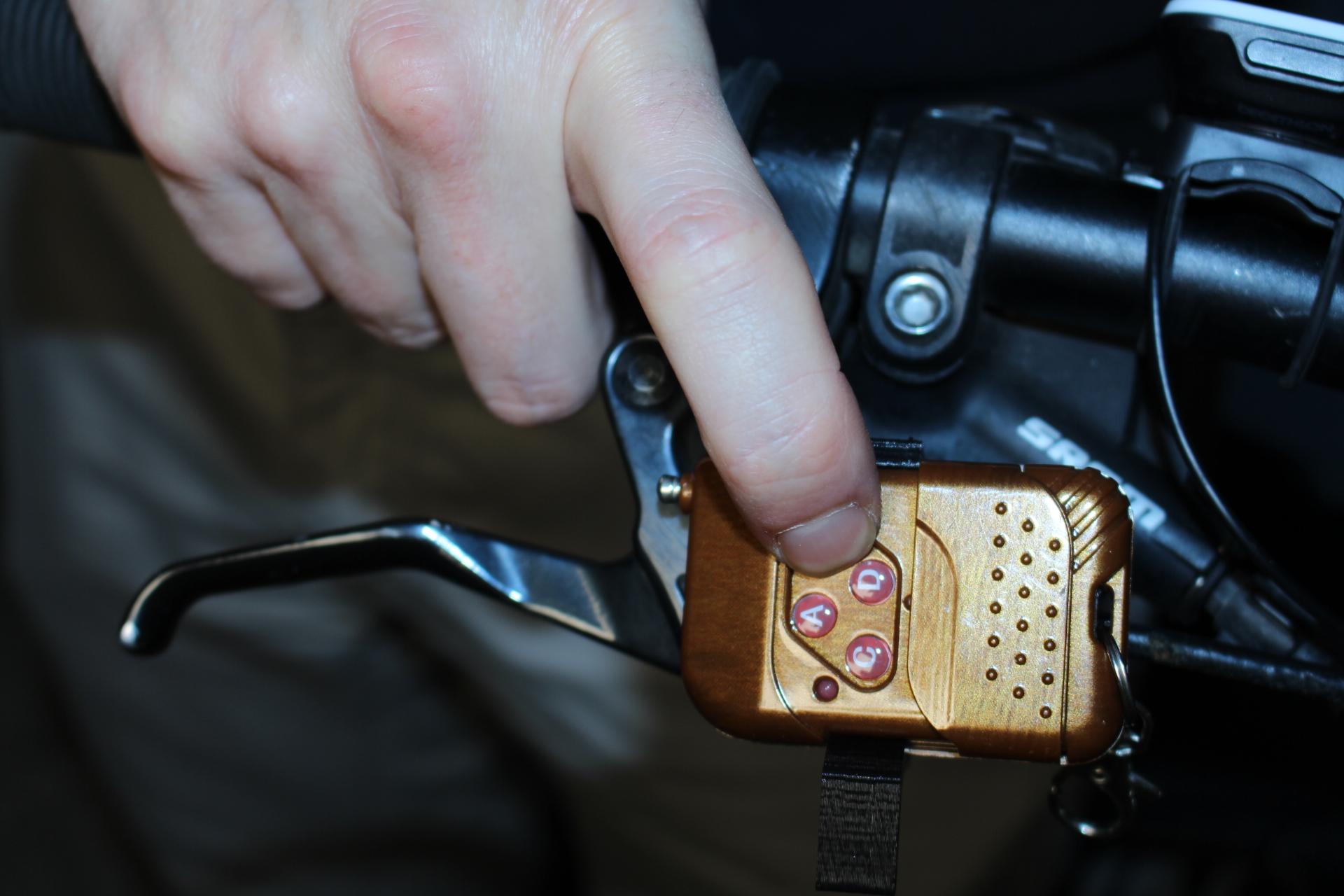

The remote of the radiolink is installed on the handlebar. By pressing buttons of one side or another, the turn signals are light up. They remains blinking as you keep the button pressed and 3 seconds after you released it.

An accelerometer autodetects the braking and change the default blue light by the red during half a second.

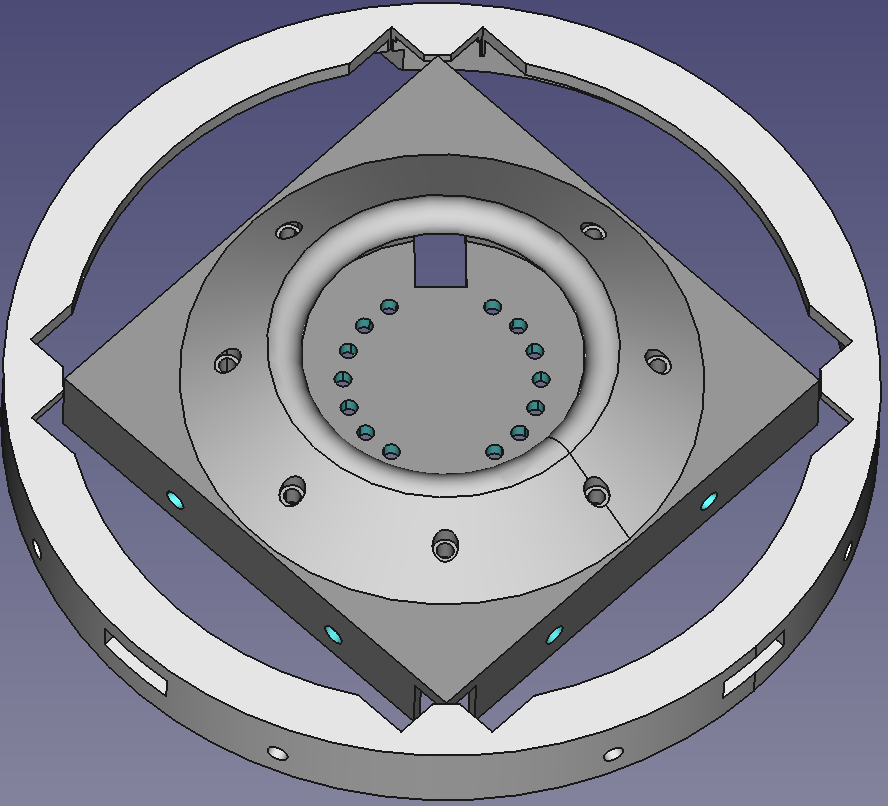

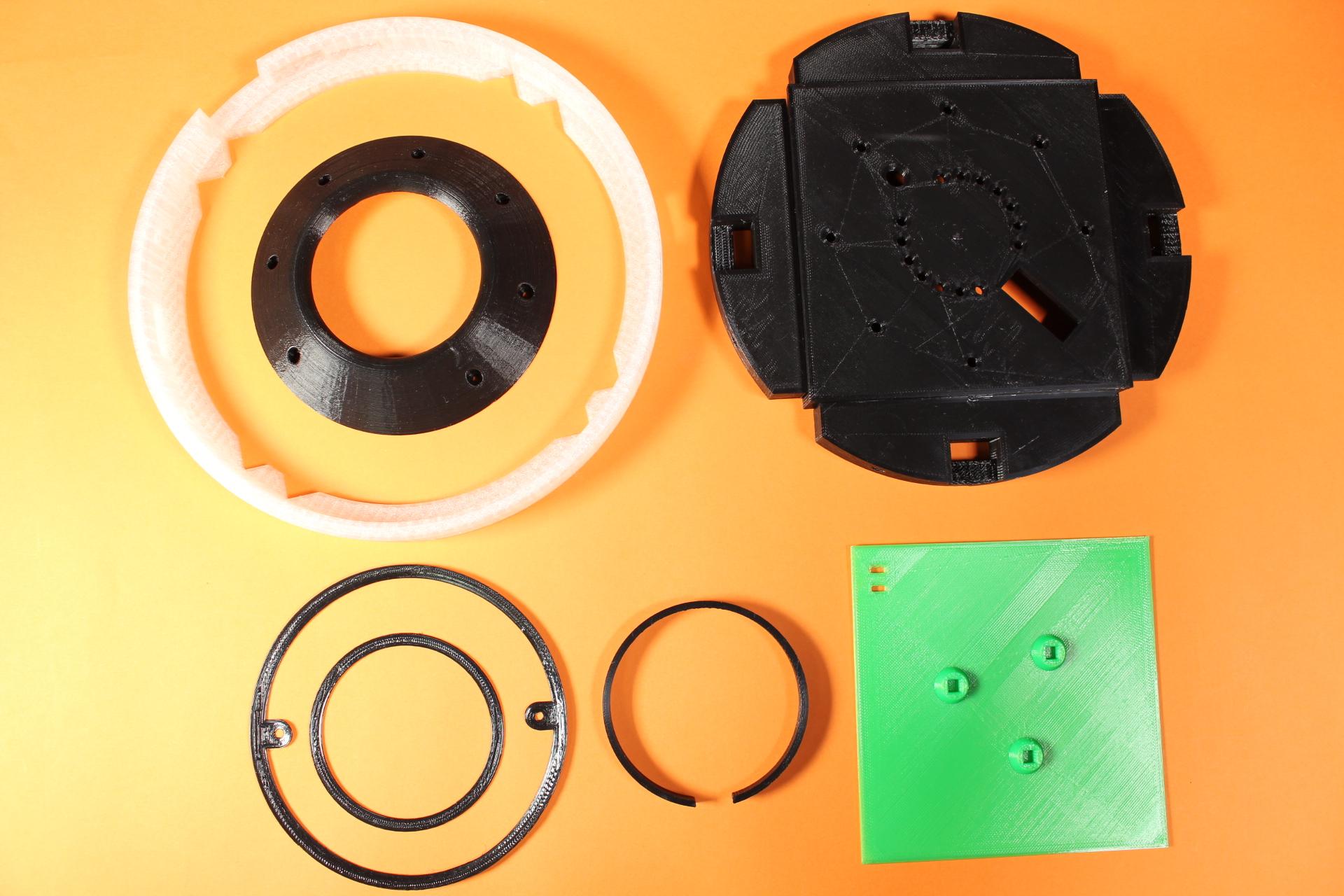

The whole enclosure is 3D printed. The .stl files can be found attached.

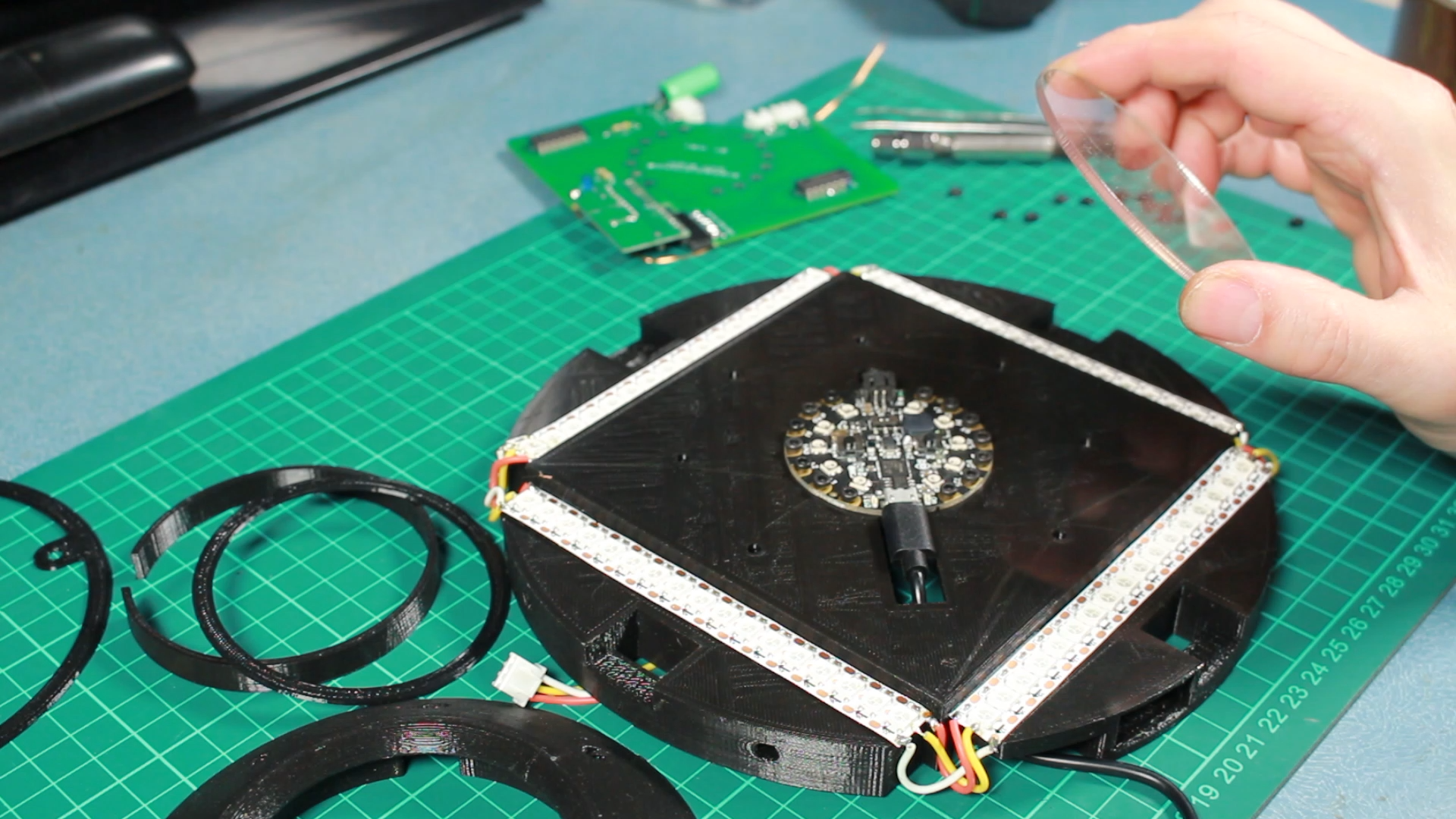

The adafruit's Circuit Playground Express [CPX] (https://learn.adafruit.com/adafruit-circuit-playground-express) is installed in the front side and fixed with 14 screws that serve as connection to the PCB in the inside. It is protected with a 3" transparent acrylic part in a bullseye style.

The neopixels are wet protected with nails coat. There is 17 of them in each side. Added to the 10 of the CPX sums 78 neopixel ultrabright light.

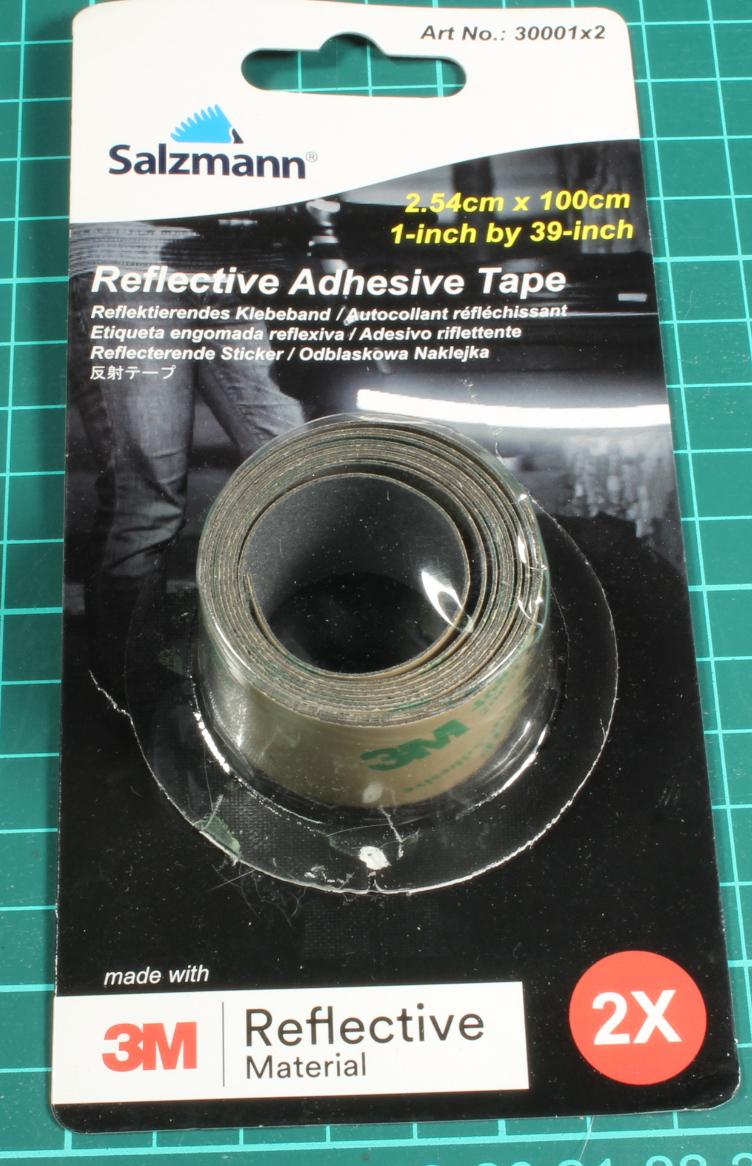

The outer ring is covered with "3M™ Scotchlite™ Reflective Material" which adds an extravisibility at night.

The heart of the system is the CPX. It is powered by the USB wire that has been modified to interleave a power switch. The power is supplied by a power bank located in the inside of the backpack.

Proudly manufactured by https://www.pcbway.com/

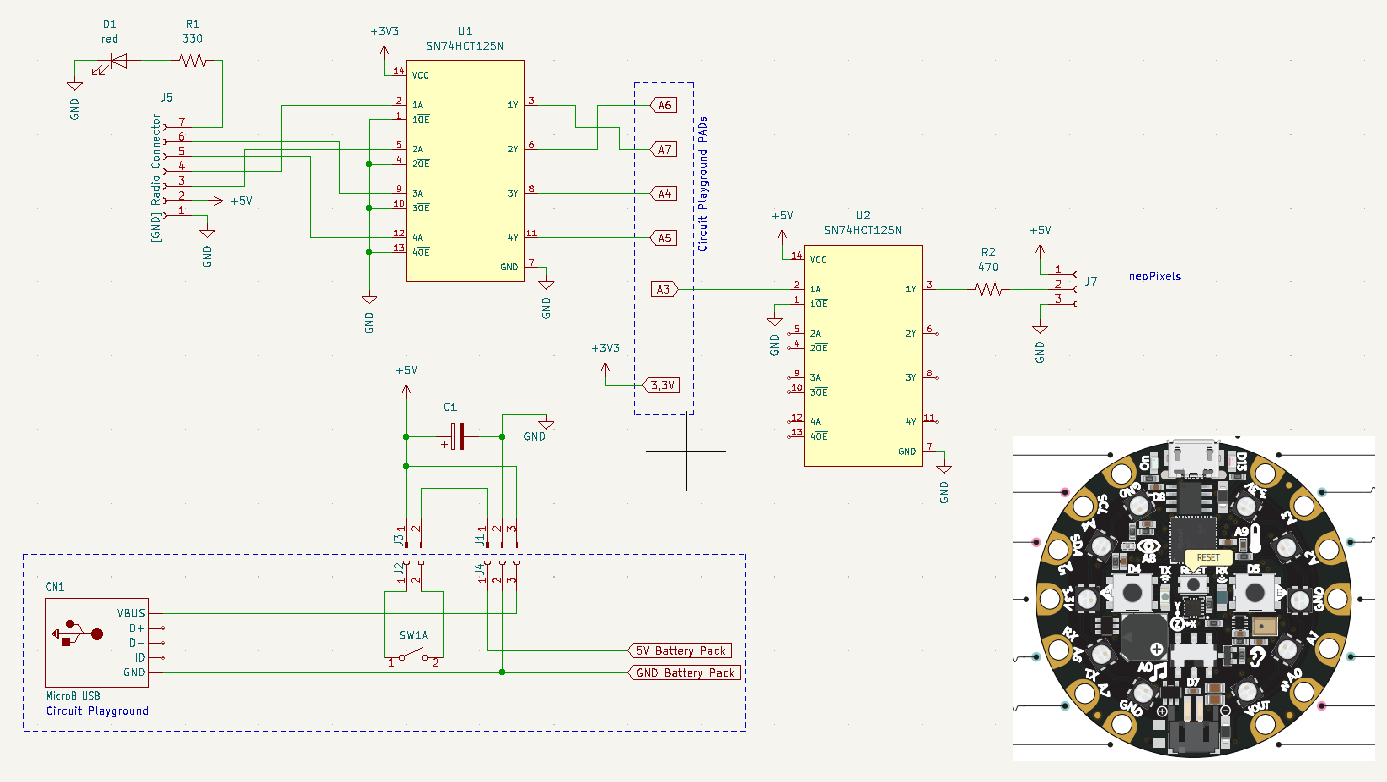

The 10x10cm custom PCB receives the pads of the CPX through 14 screws in a screw - CPX - 3D part - nut - PCB - nut form. Interface the miniPCB radio receptor with a 7 pin connector. Shows when radio signal has been received lighting up a led. Contains the 470 ohm resistor and a fat cap to buffer sudden changes in the current drawn by the neopixel strip.

Radio and neopixels are at 5V level whereas the CPX logic is 3V3. Two 74AHCT125 are added to interface.

The antenna wire is long enough (95 cm: An entire 315 MHz wave) to reach the front part of the bakcpack. The city is surprisingly RF noisy!

The CPX runs CircuitPython, the adafruit's implementation of MicroPython. The code structure is a State Machine:

while RUN:
    while mST == 0:

We can access the LIS3DH triple-axis accelerometer data easily simply:

    x, y, z = cp.acceleration
    acceleration = z

We will use the z-axis only which, the most significant when braking.

As usual, we have some work to do in order to convert the noisy accelerometer raw data in something useful.

We are going to follow the aproach shared by Eva Herrada (https://github.com/evaherrada) at https://learn.adafruit.com/circuit-playground-bluefruit-brake-light

We will swap the lists for the moving average with kalman filters. One fast, other slow:

k_alman_fast = 0.3
k_alman_slow = 0.1
    acc_fast = k_alman_fast * acceleration + (1 - k_alman_fast) * acc_fast
    acc_slow= k_alman_slow * acceleration + (1 - k_alman_slow) * acc_slow

    shakiness =  acc_slow - acc_fast

We further filter the shakiness, as Eva does, waiting to 3 consecutive_triggers, and the lack of "shake signal" from the accelerometer. This signal directly from the LIS3DH use to mean a bump in the road.

        if shakiness  > 0.8:
            if consecutive_triggers > 3:
                if not cp.shake(shake_threshold=10):
                    start_brake = time.monotonic()
                    mST = 3
                    rojo()
                    cp.start_tone(800)
            consecutive_triggers += 1

Reaching the cut value of the shakiness has been the tricky part of this project. Too high (less sensitive) and only works with the harder braking. Too low (more sensitive) and it will be light up with each bump of the road. I am quite happy with the value of '0.8' having the kalman constants fast and slow at 0.3 and 0.1.
