Brain Board

The Brain Board is a cork bulletin board shaped like a brain for helping you remember. Sure, you may have an actual brain that accomplishes these feats, but sometimes it is just not quite up to the task. Whether it be used for small to-do items, important appointments, or for sentimental keepsakes, these items will always be on the top of your mind. This is a painless way to embed something deep into your brain.

You will need:

(x1) 12" x 8" x 3/8" black acrylic (at minimum)
(x1) 12" x 8" 3/8" cork (at minimum)
(x1) 12" x 8" x 3/16" plywood (at minimum)
(x1) Brain vector file
(x1) 3M 30-NF contact adhesive

Scale the brain vector file to whatever size you like and cut it out of 3/8" acrylic.

Delete the outer perimeter line from the vector brain file.

Once completed, cut the file out of 3/8" cork.

Remove any protective coating from the acrylic.

Insert the cut cork pieces into the acrylic frame.

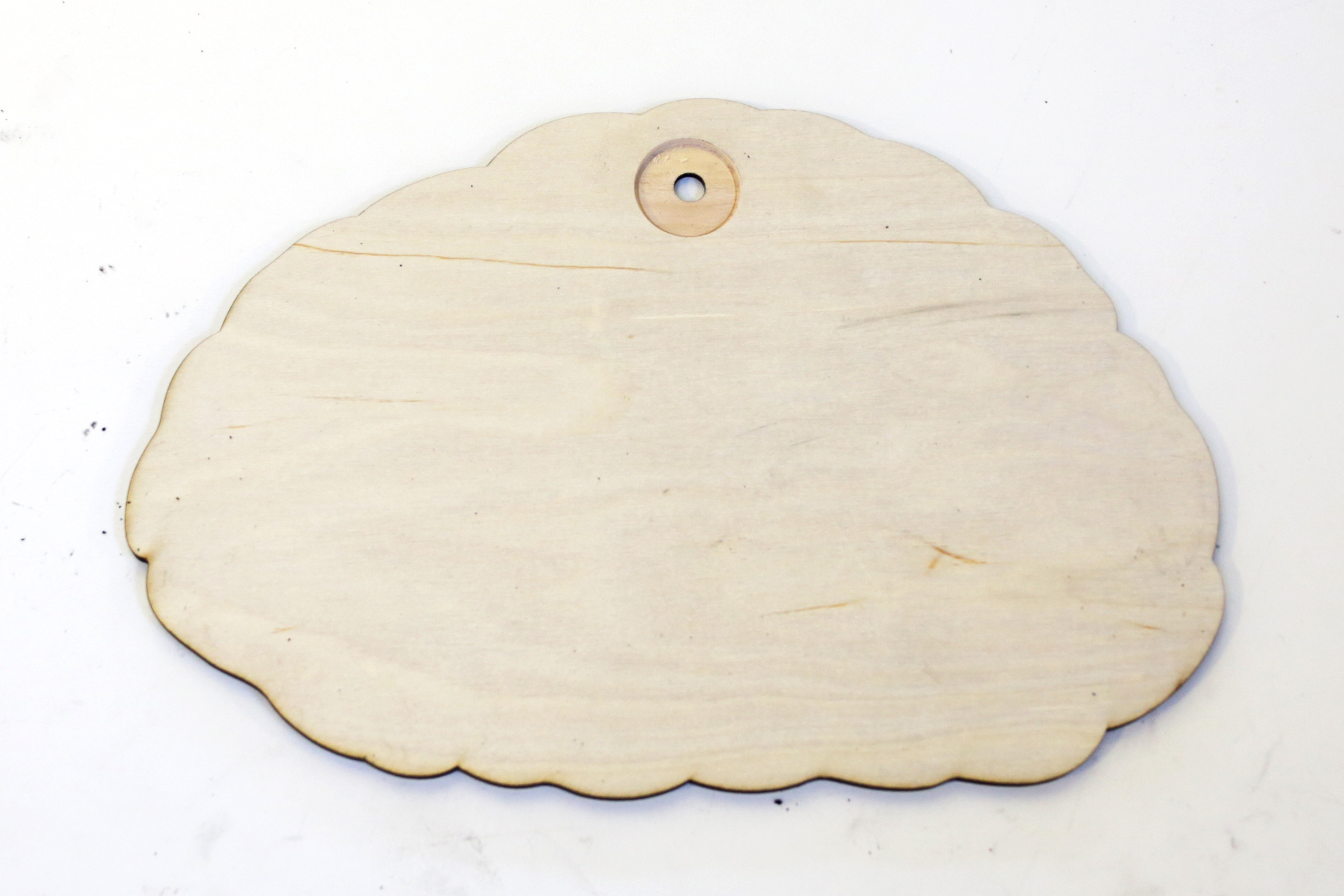

Now delete everything but the outer perimeter line from the brain file and scale it to be a tiny bit smaller.

Add a 0.3" circle to the top center of the brain.

Cut this shape out of 3/16" plywood.

For an added touch, route halfway down through the front side of the plywood shape with a 1" bit. This will later provide an inner lip for hanging.

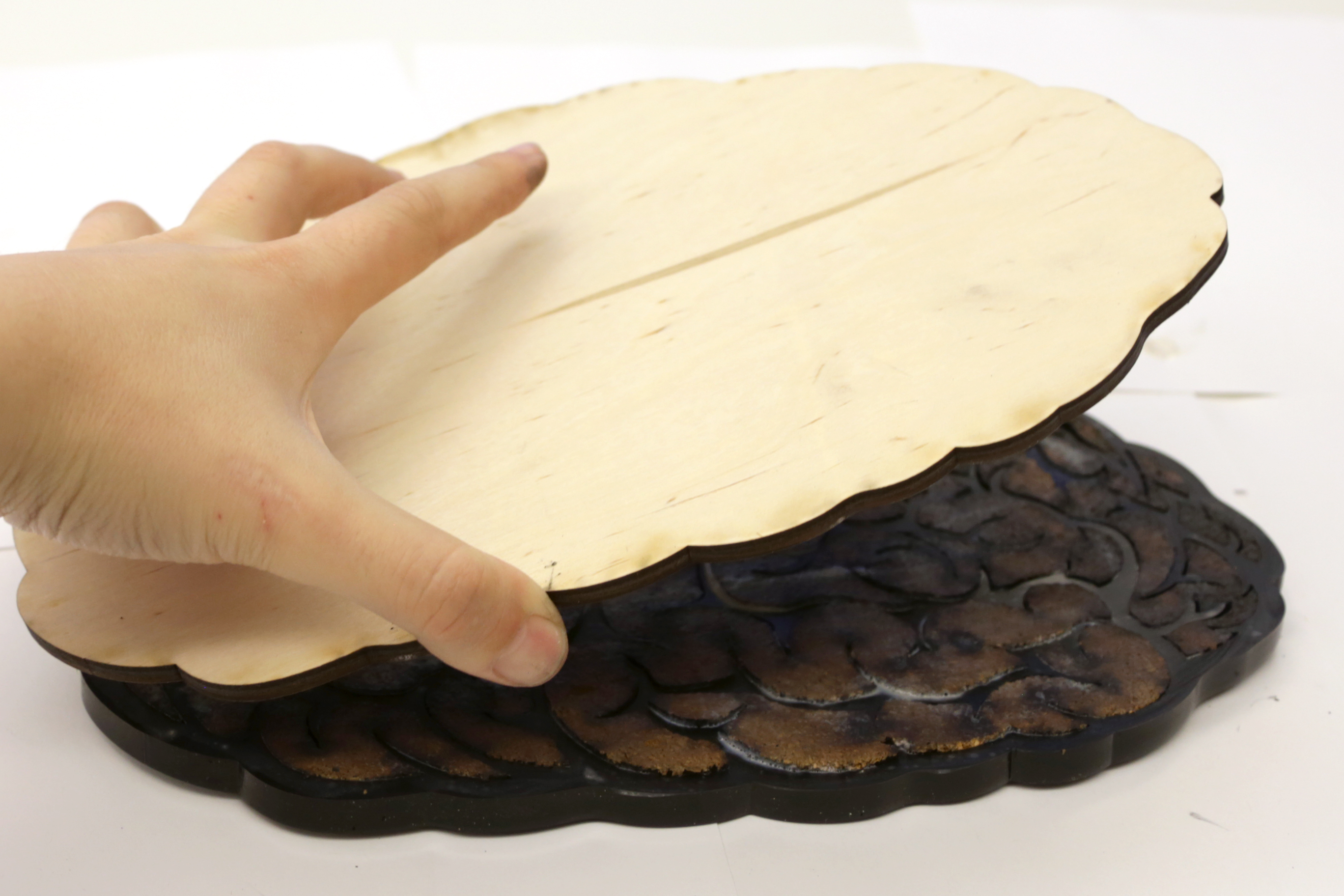

Apply contact adhesive to the back of the brain and the front side of the plywood.

Stick both surfaces firmly together once the adhesive has dried on both surfaces.

If your actual brain is not working quite right, let this one lend you some help.
