Bottle Lamp 2
![IMG_20181214_104033.jpg](/proxy/?url=https://content.instructables.com/FKM/IV29/JPN3M5R7/FKMIV29JPN3M5R7.jpg&filename=IMG_20181214_104033.jpg)
It is Christmas time, time to decorate home... In this instructable I will share how i recycled old Whisky bottle and transformed it into a simple bottle lamp
It you have the right tools, the build is simple enough to be completed in 4 to 6 hrs of lazy efforts
What Do We Need ?
![IMG_20181212_174854.jpg](/proxy/?url=https://content.instructables.com/F5R/AVD8/JPN3M6VQ/F5RAVD8JPN3M6VQ.jpg&filename=IMG_20181212_174854.jpg)
![IMG_20181213_211557.jpg](/proxy/?url=https://content.instructables.com/F6O/0HM2/JPN3M66L/F6O0HM2JPN3M66L.jpg&filename=IMG_20181213_211557.jpg)
![Holesaw.jpg](/proxy/?url=https://content.instructables.com/FKV/5WNO/JPN3MPE9/FKV5WNOJPN3MPE9.jpg&filename=Holesaw.jpg)
Material
- an nice shaped Whisky bottle
- 3/4" plywood plank ( we need 2 squares 3" x 3" )
- LED copper string lights (5 mtrs)
Tools
- Drilling machine
- 6 mm drill bit for wood
- Hole saw 35mm and 62mm
- G clamps
- PVA glue / fevicol
- Wood polish
Base
![IMG_20181212_182124.jpg](/proxy/?url=https://content.instructables.com/F5G/E5V3/JPN3M6SW/F5GE5V3JPN3M6SW.jpg&filename=IMG_20181212_182124.jpg)
![IMG_20181212_182518.jpg](/proxy/?url=https://content.instructables.com/FGO/M66K/JPN3M6MF/FGOM66KJPN3M6MF.jpg&filename=IMG_20181212_182518.jpg)
![IMG_20181213_211425.jpg](/proxy/?url=https://content.instructables.com/F43/6AQG/JPN3M6IE/F436AQGJPN3M6IE.jpg&filename=IMG_20181213_211425.jpg)
![IMG_20181212_192441.jpg](/proxy/?url=https://content.instructables.com/FPD/J56C/JPN3M6FN/FPDJ56CJPN3M6FN.jpg&filename=IMG_20181212_192441.jpg)
![IMG_20181212_193112.jpg](/proxy/?url=https://content.instructables.com/F10/RMHV/JPN3M6FB/F10RMHVJPN3M6FB.jpg&filename=IMG_20181212_193112.jpg)

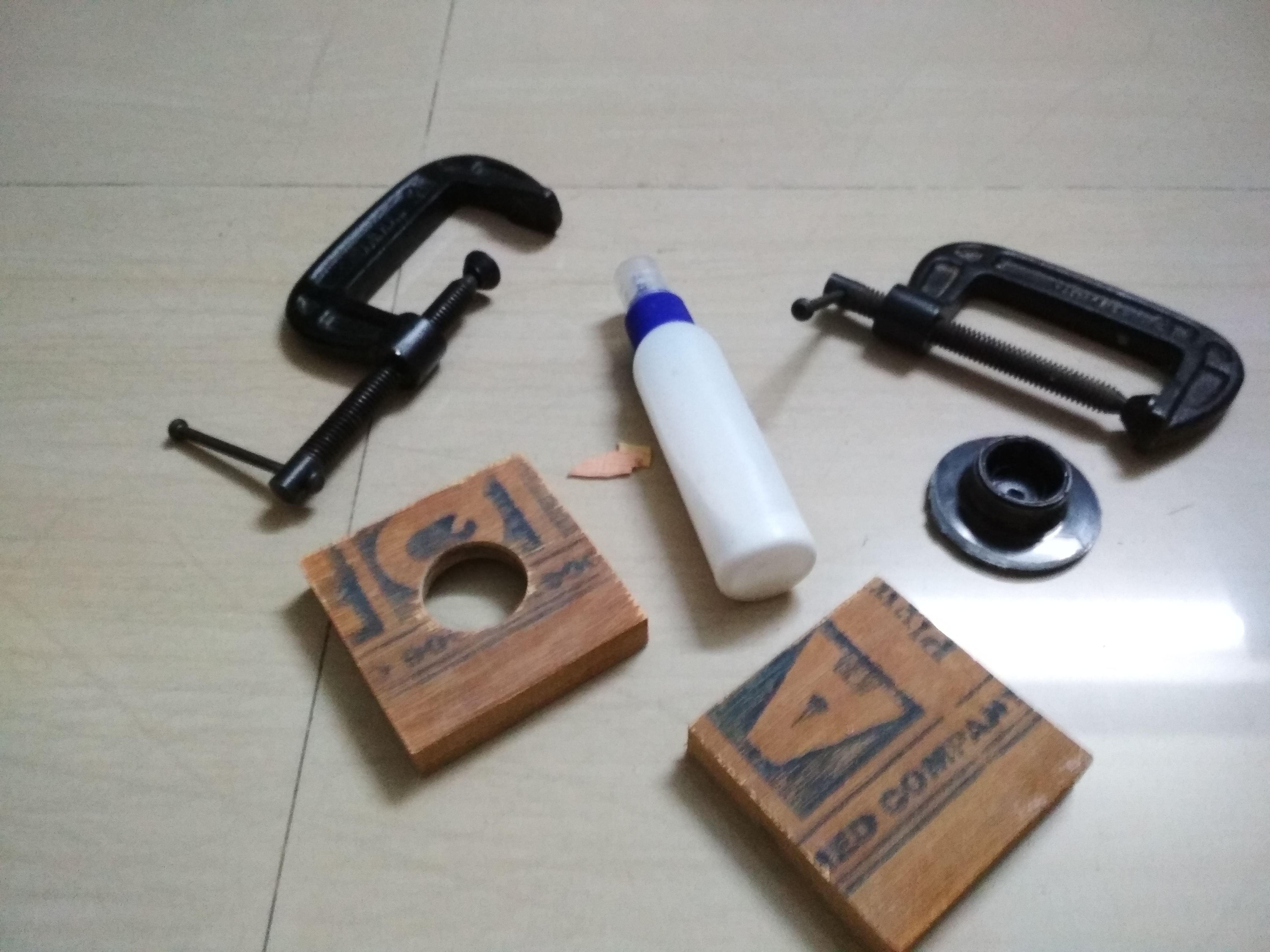

- The whisky bottle came with a cap. I wanted to sandwich this in between two wooden pieces
- Before we cut the wood, we must make the holes, this is more safe and easier
- I am using "Stanleys hole saw", I first drilled few mm with the 62 mm and then through hole with 35mm diameter
- Make sure the cap fits, mine was bit bigger, so I cut it using the 62mm hole saw
- Now cut this piece into a 3" x 3" square and another of same size but without any hole
- Sandwich the cap between two squares and glue it
- Hold the wooden pieces in position using clamps for 2 hours
Finishing Base
![IMG_20181212_214130.jpg](/proxy/?url=https://content.instructables.com/FSG/8VMF/JPN3M6F0/FSG8VMFJPN3M6F0.jpg&filename=IMG_20181212_214130.jpg)
Sanding
- Since wooden pieces were cut using a jigsaw, the edges are not aligned
- I used a 60 grit sand paper and got all the edges aligned
- Then used 180 and 220 grit to smoothen it further
- I used natural wood polish to coat the base
Bottle
![IMG_20181213_211027.jpg](/proxy/?url=https://content.instructables.com/FAB/QX9D/JPN3M6YF/FABQX9DJPN3M6YF.jpg&filename=IMG_20181213_211027.jpg)
![IMG_20181213_211200.jpg](/proxy/?url=https://content.instructables.com/F7P/7CWV/JPN3M6XG/F7P7CWVJPN3M6XG.jpg&filename=IMG_20181213_211200.jpg)
![IMG_20181212_220019.jpg](/proxy/?url=https://content.instructables.com/FDI/AR9W/JPN3M6CU/FDIAR9WJPN3M6CU.jpg&filename=IMG_20181212_220019.jpg)

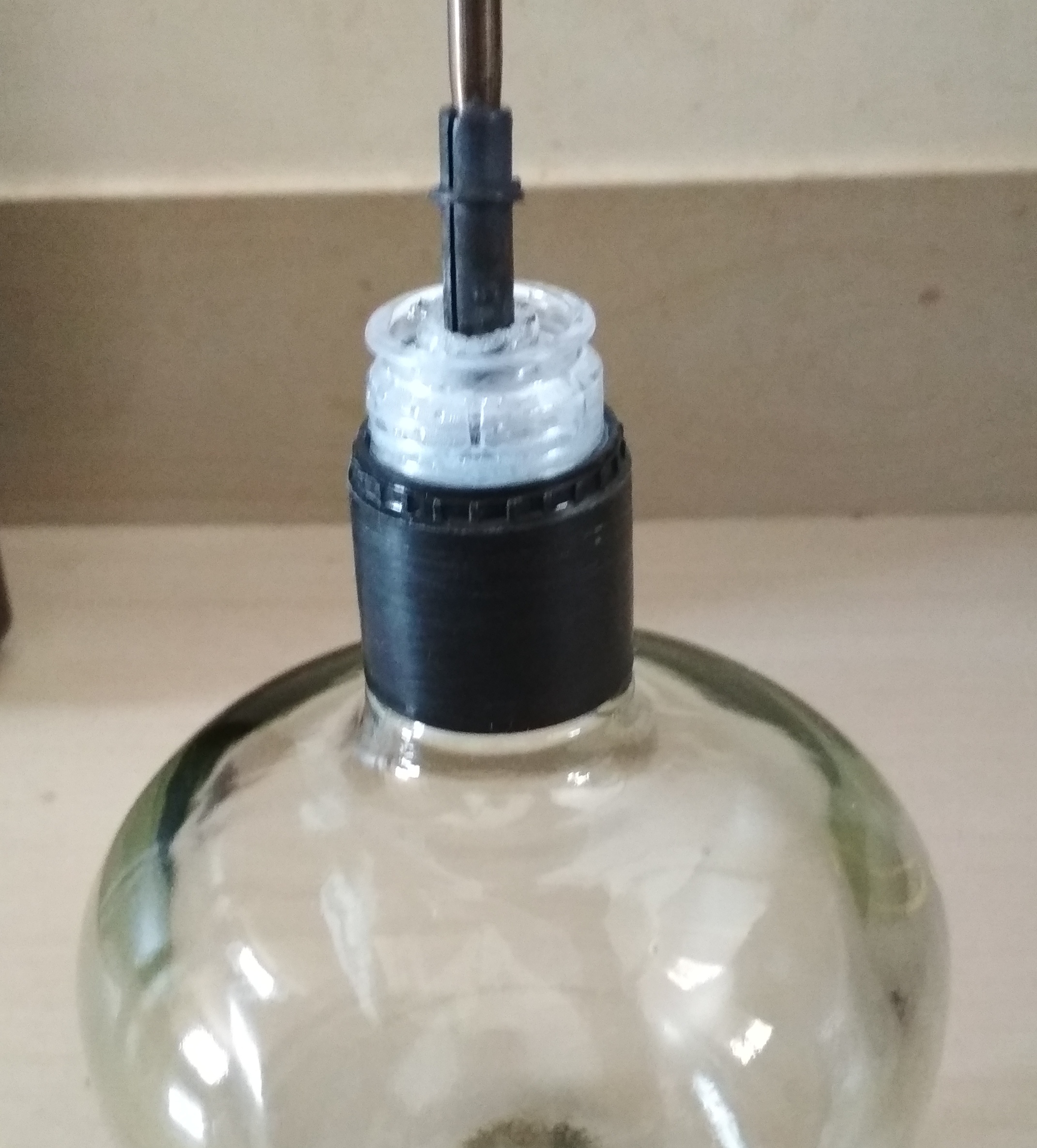

- The bottle did not have wide enough hole for the led string to enter, so used a soldering iron to make a wider hole
- I did not want to remove the plastic as the cap would not fit and the neck wold become too small
- At every stage, I tested that the bottle still can fit the cap
Wiring
![IMG_20181214_104205.jpg](/proxy/?url=https://content.instructables.com/FJ9/9PBD/JPN3M656/FJ99PBDJPN3M656.jpg&filename=IMG_20181214_104205.jpg)
![IMG_20181213_210042.jpg](/proxy/?url=https://content.instructables.com/FYZ/TN1W/JPN3M62L/FYZTN1WJPN3M62L.jpg&filename=IMG_20181213_210042.jpg)
![IMG_20181213_210145.jpg](/proxy/?url=https://content.instructables.com/F27/V0D2/JPN3M5XG/F27V0D2JPN3M5XG.jpg&filename=IMG_20181213_210145.jpg)
![IMG_20181213_210523.jpg](/proxy/?url=https://content.instructables.com/FA9/8C1W/JPN3M5W5/FA98C1WJPN3M5W5.jpg&filename=IMG_20181213_210523.jpg)
![IMG_20181214_070001.jpg](/proxy/?url=https://content.instructables.com/FP5/814K/JPN3M5TO/FP5814KJPN3M5TO.jpg&filename=IMG_20181214_070001.jpg)

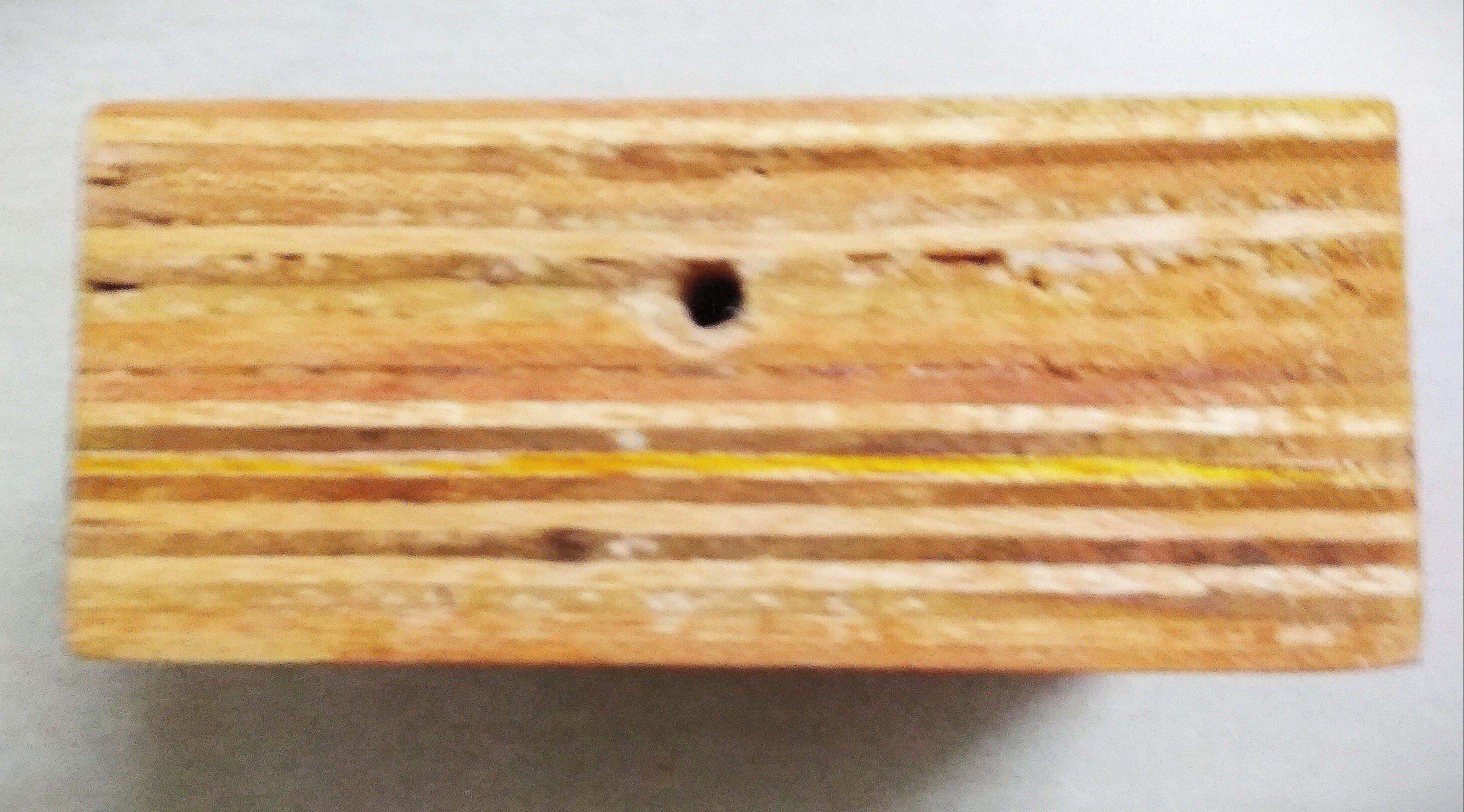

- I drilled a 6mm hole from on of the edge till the cap
- I had a 10 mtrs les string light, which had required register to limit current, so I just cut the led string light at 5mtrs length and save rest for another project in future
- Do test LED string is still working
- Pass the led string holes the base and the cap
- Randomly fill in the bottle with the led string light

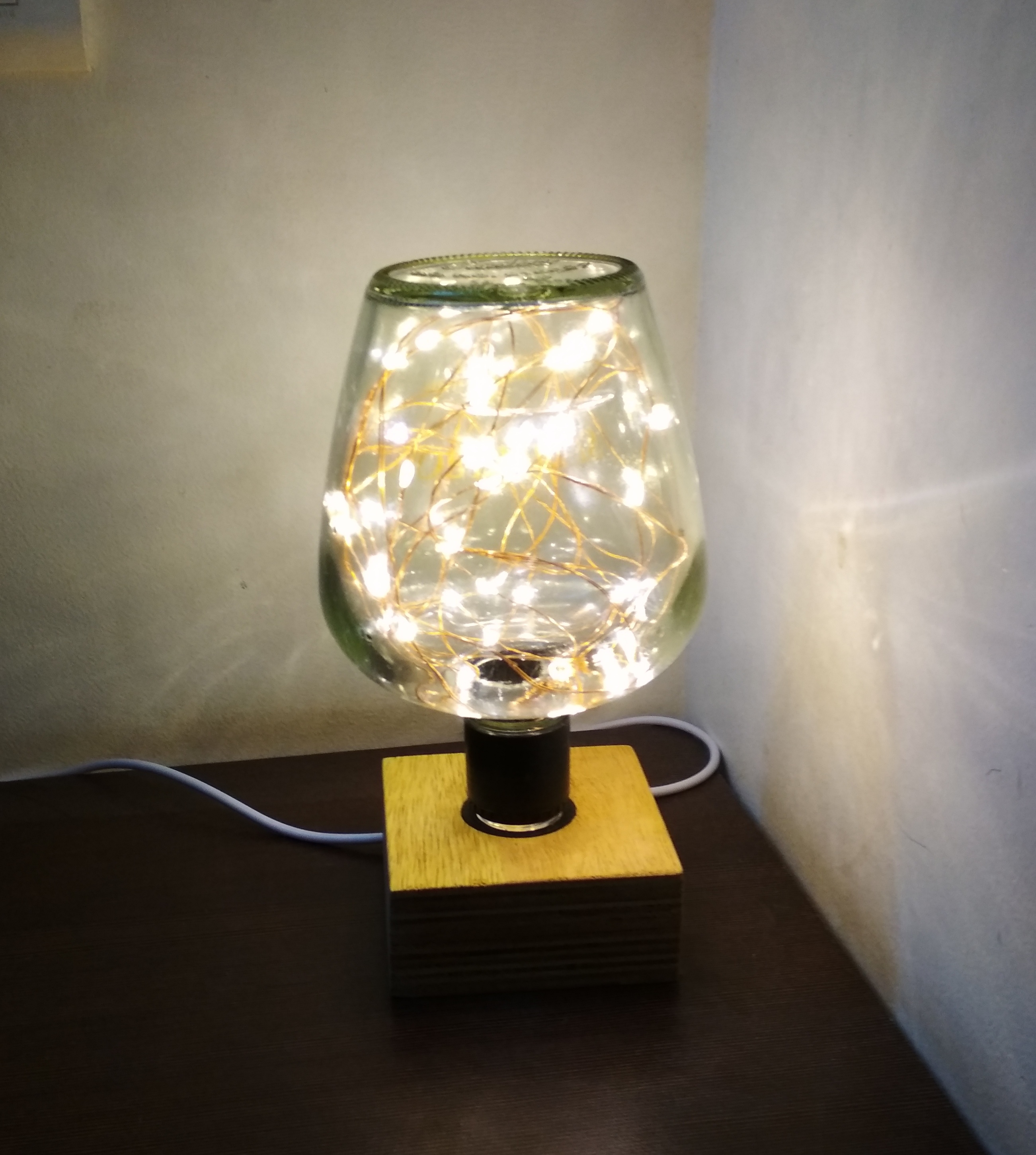

Light it up !!
I hope you liked the instruable and share your comments
