Bottle Assist


Hi there,

This instructable is a guide to create a tool to assist people with arthrosis to get a better grip on soda bottles so filling up a glass of water is more easy.

BOM


Materials needed :

* 1 meter of aliminium profiles 20x2mm (2 pieces)

* O ring 23mm

* Bolt M6x25 (2 pieces) hex

* nut M6 (2 pieces)

Tools needed :

* drilling machine

* vise

* metal drill 6 mm

Bend the Aliminium Profiles

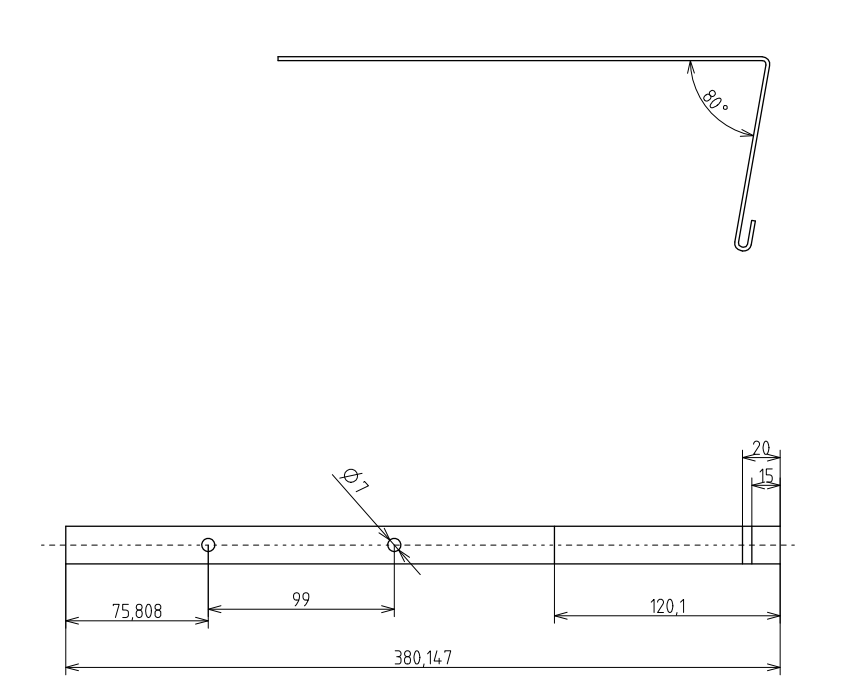

Cut and fold the aluminium profiles.

Drill the holes in the correct positions.

Assemble

render exploded.png

Final Result !!!

Bottle assist 2018

PRO VERSION

For the pro version, here are the steps to take :

Requierments :

Siemens NX

Required files :

Manual for Editing CAD Files

These Are the Step Files of the Handle That You Need to 3d Print or Mill
