Bot Pot With Drainage Plate and Movable Arms!
![Screen Shot 2020-04-26 at 10.37.36 PM.png](/proxy/?url=https://content.instructables.com/FY7/PAUK/K9G9JK2T/FY7PAUKK9G9JK2T.png&filename=Screen Shot 2020-04-26 at 10.37.36 PM.png)
Here is a guide on how to make your own 3D printable Instructables bot flower pot! I mean, who doesn't love this iconic mascot? I've included the .stl file if you would like to skip to the printing part, but where's the fun in that?
Downloads
Supplies
- Tinkercad
- 3D printer
The Body
![Screen Shot 2020-04-26 at 8.40.08 PM.png](/proxy/?url=https://content.instructables.com/F31/280I/K9G9JK8X/F31280IK9G9JK8X.png&filename=Screen Shot 2020-04-26 at 8.40.08 PM.png)
![Screen Shot 2020-04-26 at 8.40.20 PM.png](/proxy/?url=https://content.instructables.com/FS0/OLYJ/K9G9JK8Z/FS0OLYJK9G9JK8Z.png&filename=Screen Shot 2020-04-26 at 8.40.20 PM.png)
![Screen Shot 2020-04-26 at 8.41.20 PM.png](/proxy/?url=https://content.instructables.com/FRT/MPXL/K9G9JK90/FRTMPXLK9G9JK90.png&filename=Screen Shot 2020-04-26 at 8.41.20 PM.png)

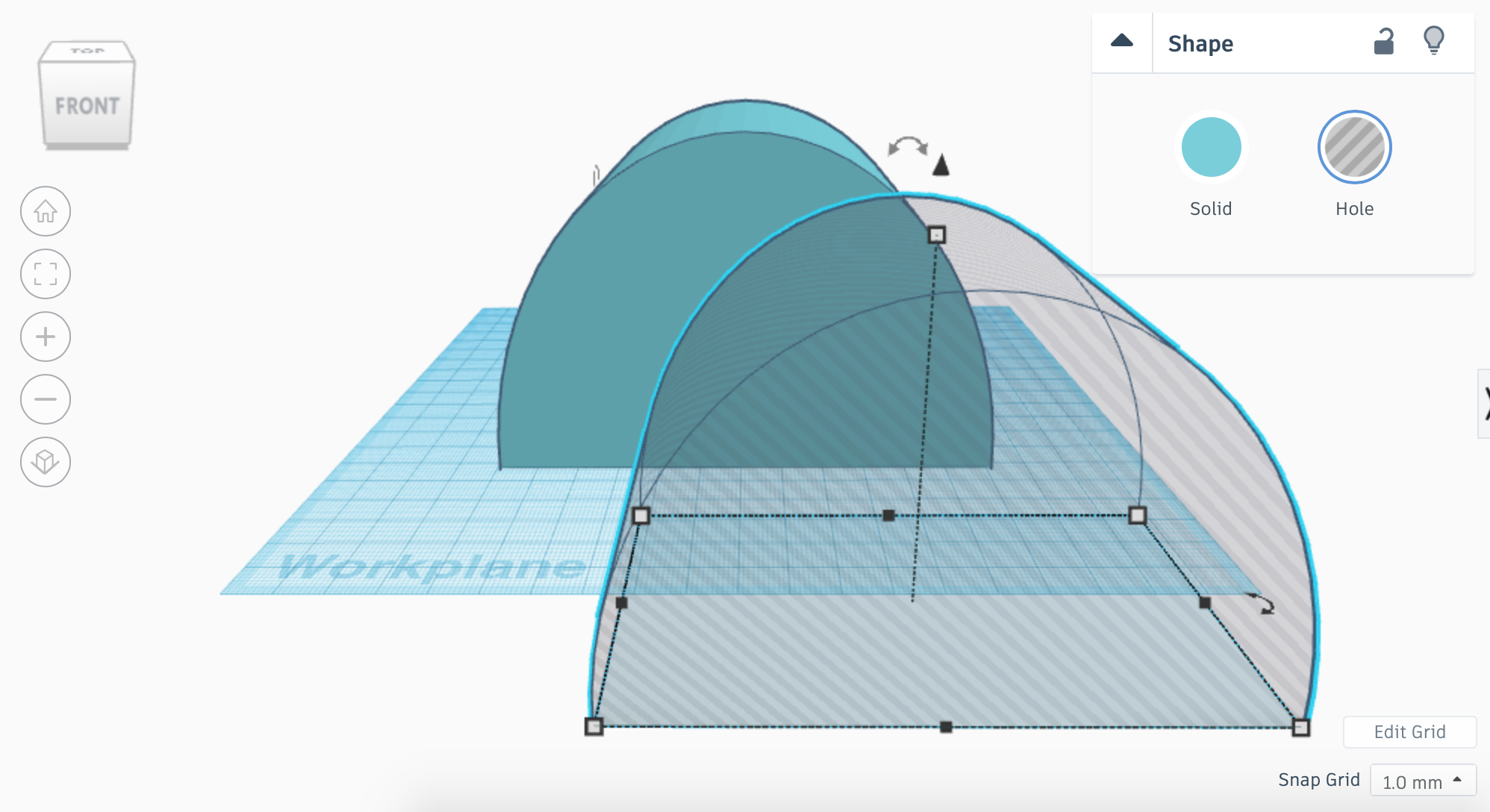

Grab a half cylinder and merge a slightly smaller half cylinder hole inside of the first one. You won't be able to see any openings!
Head
![Screen Shot 2020-04-26 at 8.56.40 PM.png](/proxy/?url=https://content.instructables.com/FQL/KT4K/K9G9JKC9/FQLKT4KK9G9JKC9.png&filename=Screen Shot 2020-04-26 at 8.56.40 PM.png)

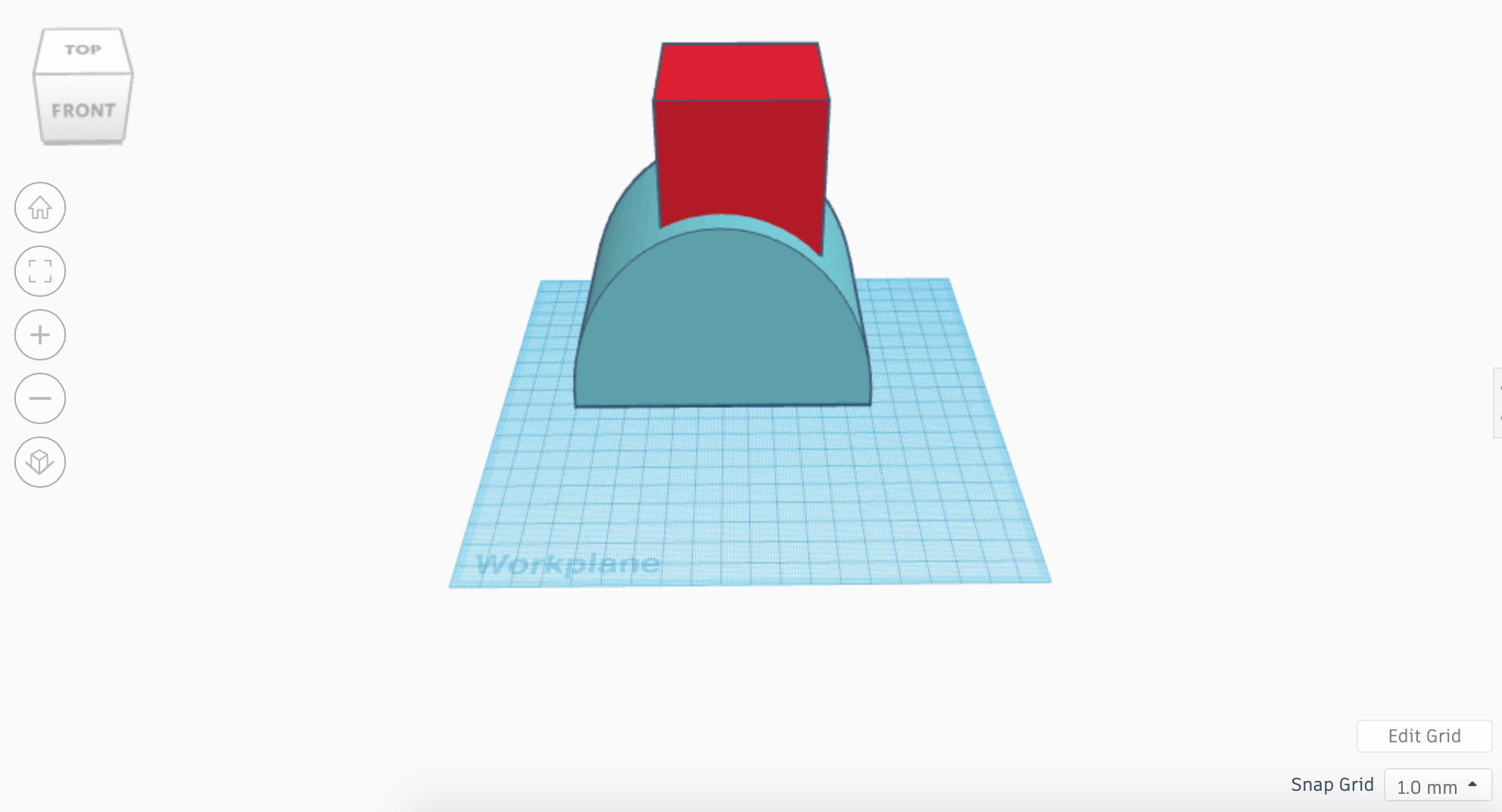

A cube for the head!
Arm Joints
![Screen Shot 2020-04-26 at 9.18.20 PM.png](/proxy/?url=https://content.instructables.com/F7K/C0XX/K9G9JKLR/F7KC0XXK9G9JKLR.png&filename=Screen Shot 2020-04-26 at 9.18.20 PM.png)
![Screen Shot 2020-04-26 at 9.49.46 PM.png](/proxy/?url=https://content.instructables.com/FYA/G8HQ/K9G9JMI5/FYAG8HQK9G9JMI5.png&filename=Screen Shot 2020-04-26 at 9.49.46 PM.png)

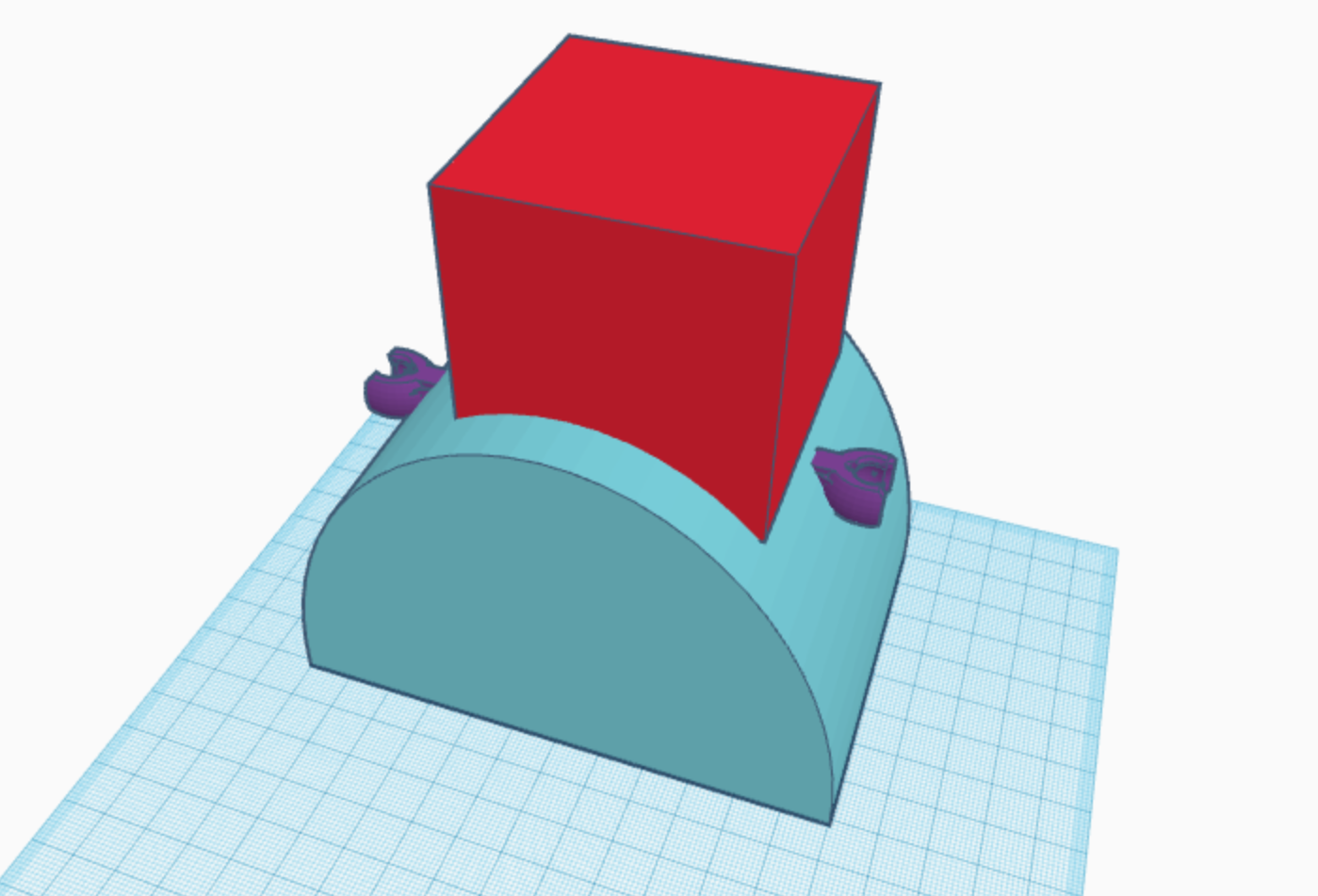

Add two sockets to the sides of the body (the sockets can be found under "connectors"). After that, place a hollow cube inside of the head and merge the entire thing.
Arms
![Screen Shot 2020-04-26 at 9.45.21 PM.png](/proxy/?url=https://content.instructables.com/FEQ/1LV4/K9G9JLAP/FEQ1LV4K9G9JLAP.png&filename=Screen Shot 2020-04-26 at 9.45.21 PM.png)
![Screen Shot 2020-04-26 at 9.38.46 PM.png](/proxy/?url=https://content.instructables.com/F3Z/5HXP/K9G9JKLS/F3Z5HXPK9G9JKLS.png&filename=Screen Shot 2020-04-26 at 9.38.46 PM.png)
![Screen Shot 2020-04-26 at 9.39.07 PM.png](/proxy/?url=https://content.instructables.com/FX5/ZW0F/K9G9JKM8/FX5ZW0FK9G9JKM8.png&filename=Screen Shot 2020-04-26 at 9.39.07 PM.png)
![Screen Shot 2020-04-26 at 9.39.43 PM.png](/proxy/?url=https://content.instructables.com/FNK/3VN1/K9G9JKMX/FNK3VN1K9G9JKMX.png&filename=Screen Shot 2020-04-26 at 9.39.43 PM.png)

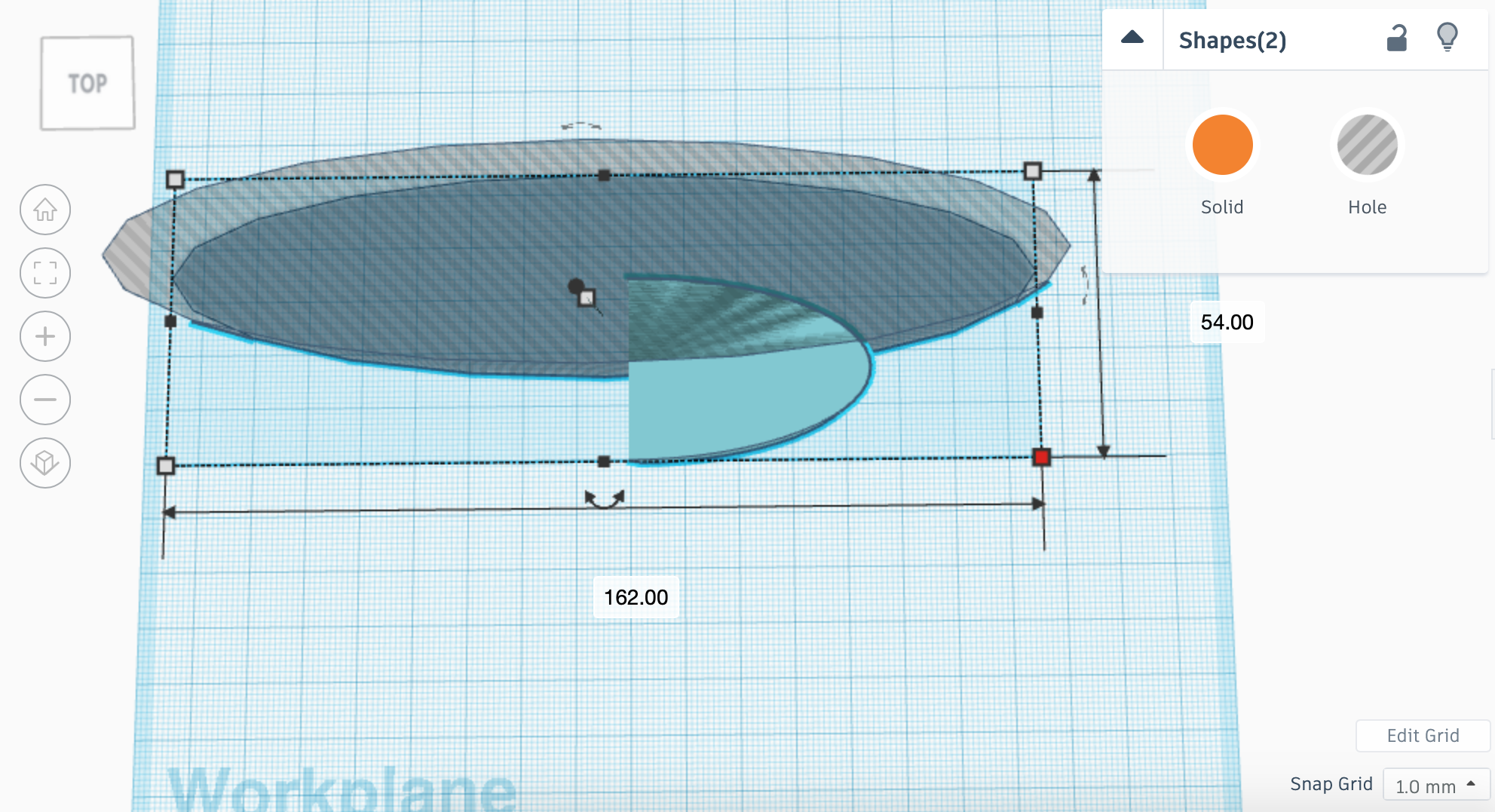

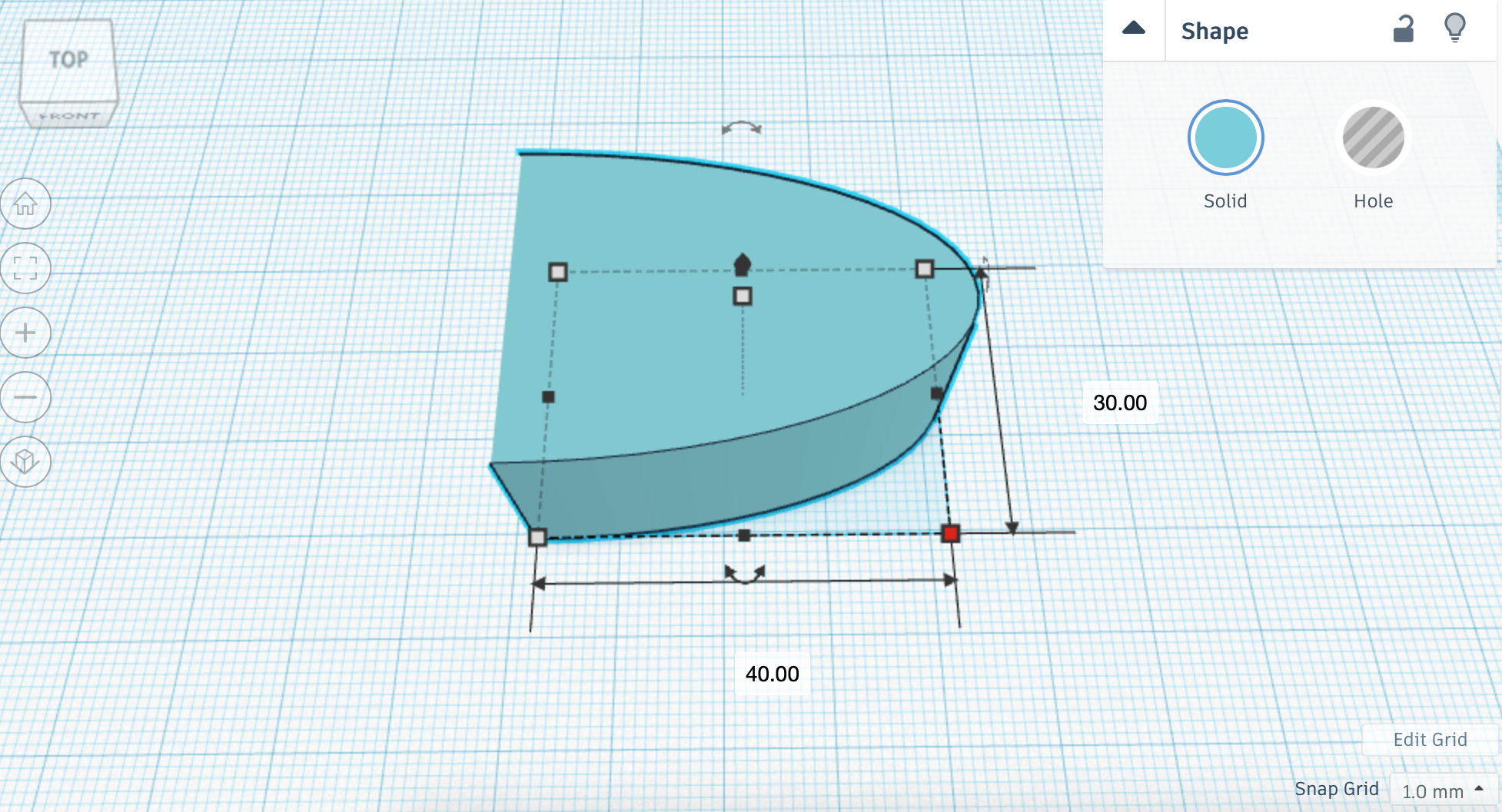

Slice off some of a half-cylinder to get an arm shape, and add a seated ball to the arm. Merge, and then copy and paste for the second arm.
Drainage Holes
![Screen Shot 2020-04-26 at 9.56.13 PM.png](/proxy/?url=https://content.instructables.com/FFE/97S6/K9G9JLB3/FFE97S6K9G9JLB3.png&filename=Screen Shot 2020-04-26 at 9.56.13 PM.png)
![Screen Shot 2020-04-26 at 9.56.30 PM.png](/proxy/?url=https://content.instructables.com/FPI/Q8R5/K9G9JLB7/FPIQ8R5K9G9JLB7.png&filename=Screen Shot 2020-04-26 at 9.56.30 PM.png)

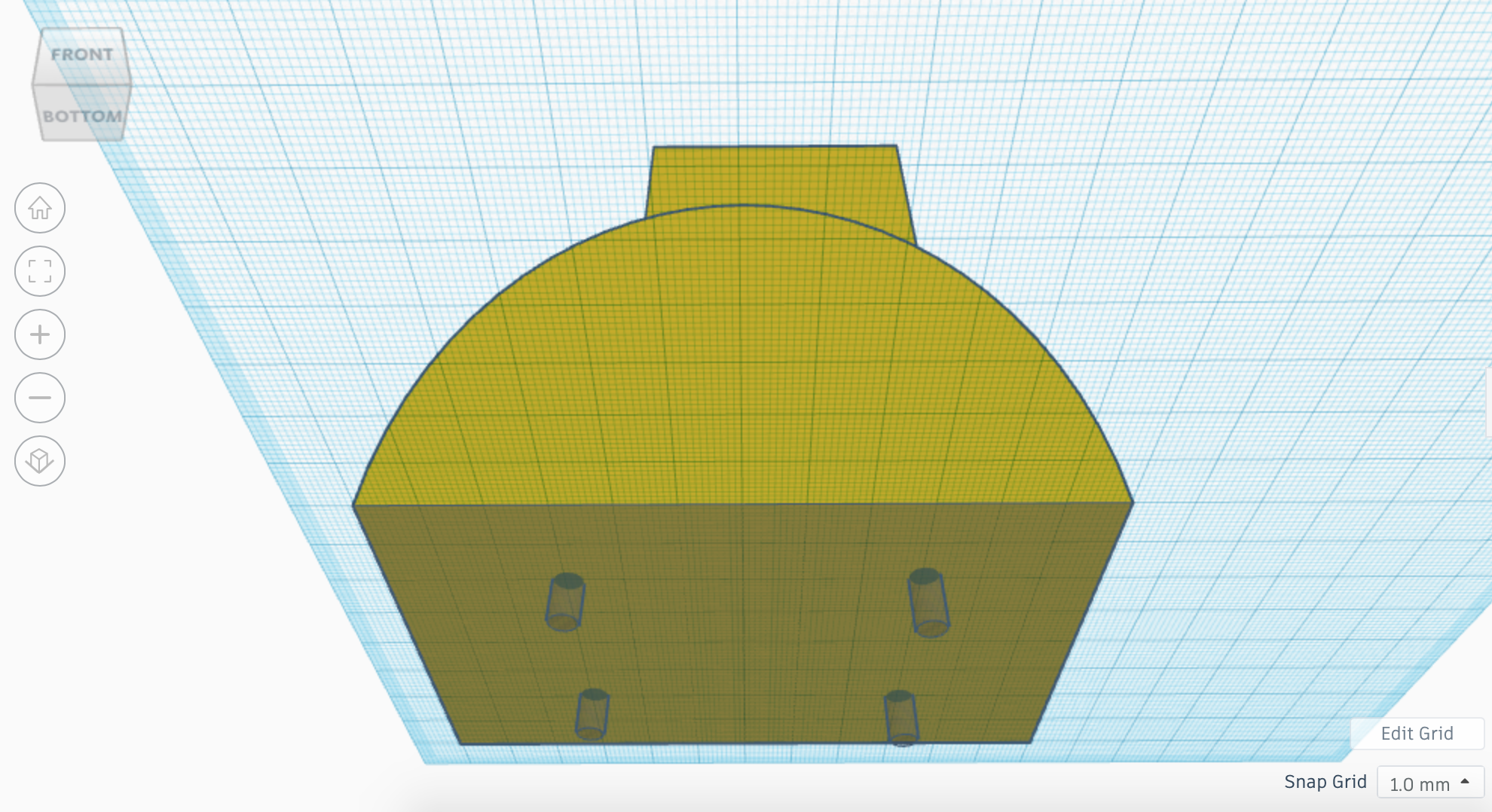

Add drainage holes to the bottom.
Drainage Plate Connectors
![Screen Shot 2020-04-26 at 9.51.59 PM.png](/proxy/?url=https://content.instructables.com/F4U/ALDV/K9G9JLAY/F4UALDVK9G9JLAY.png&filename=Screen Shot 2020-04-26 at 9.51.59 PM.png)
![Screen Shot 2020-04-26 at 9.52.40 PM.png](/proxy/?url=https://content.instructables.com/FO7/31WZ/K9G9JLAZ/FO731WZK9G9JLAZ.png&filename=Screen Shot 2020-04-26 at 9.52.40 PM.png)
![Screen Shot 2020-04-26 at 9.58.22 PM.png](/proxy/?url=https://content.instructables.com/F01/M1O6/K9G9JLBY/F01M1O6K9G9JLBY.png&filename=Screen Shot 2020-04-26 at 9.58.22 PM.png)
![Screen Shot 2020-04-26 at 9.59.05 PM.png](/proxy/?url=https://content.instructables.com/FF8/1E2R/K9G9JLCS/FF81E2RK9G9JLCS.png&filename=Screen Shot 2020-04-26 at 9.59.05 PM.png)

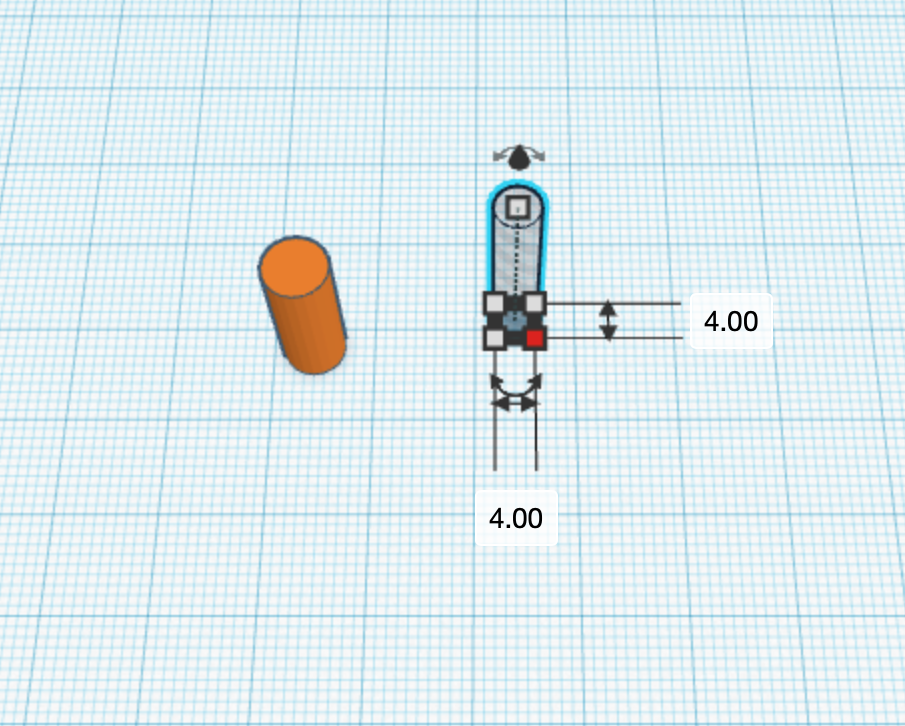

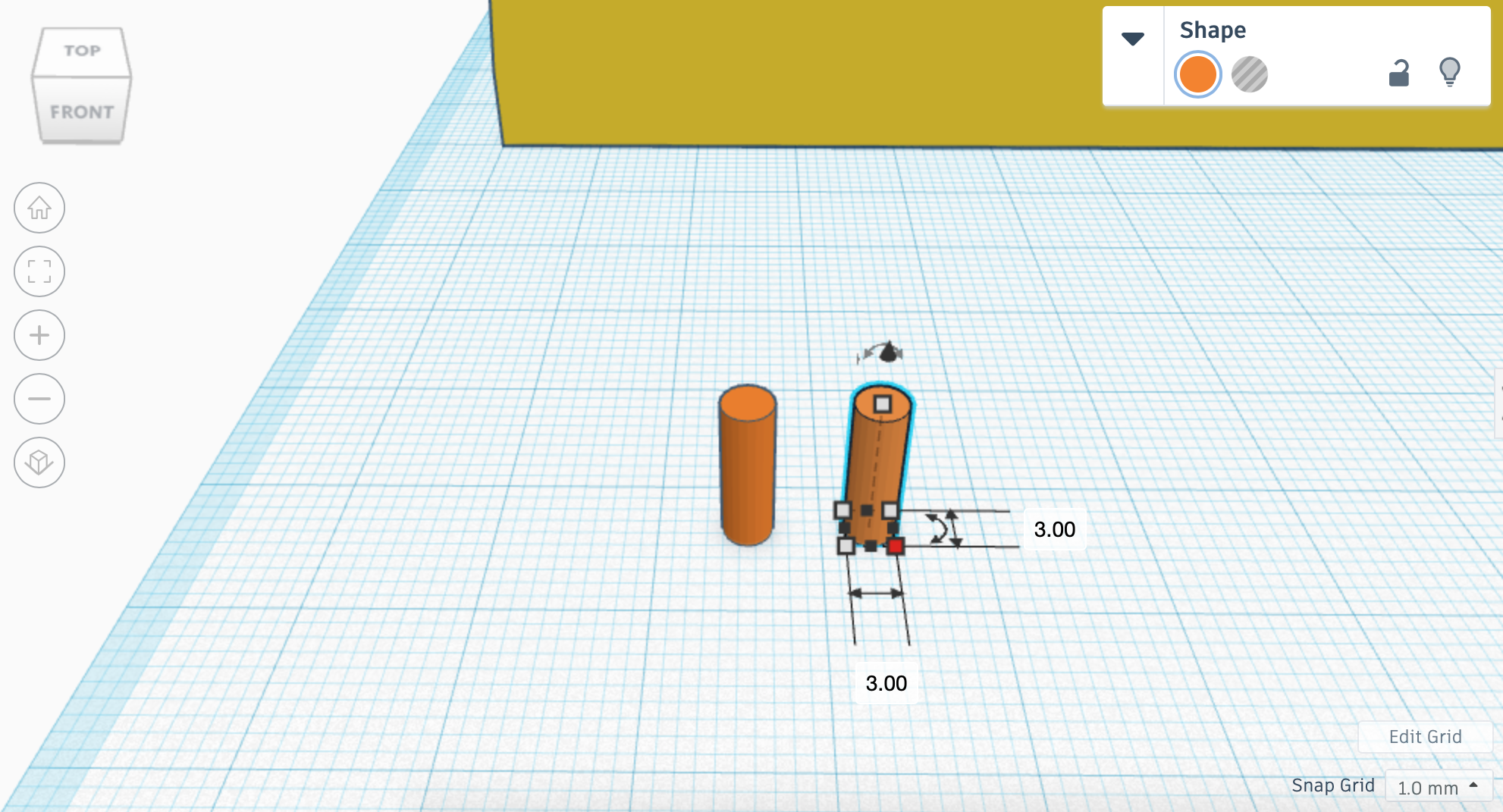

Grab two cylinders and change the dimensions to 3 mm in diameter. Lift the body 5 mm above the surface, and move the cylinders underneath. Merge.
Drainage Plate
![Screen Shot 2020-04-26 at 10.00.06 PM.png](/proxy/?url=https://content.instructables.com/FLU/F536/K9G9JLDT/FLUF536K9G9JLDT.png&filename=Screen Shot 2020-04-26 at 10.00.06 PM.png)
![Screen Shot 2020-04-26 at 10.01.01 PM.png](/proxy/?url=https://content.instructables.com/FHJ/35LI/K9G9JLDZ/FHJ35LIK9G9JLDZ.png&filename=Screen Shot 2020-04-26 at 10.01.01 PM.png)

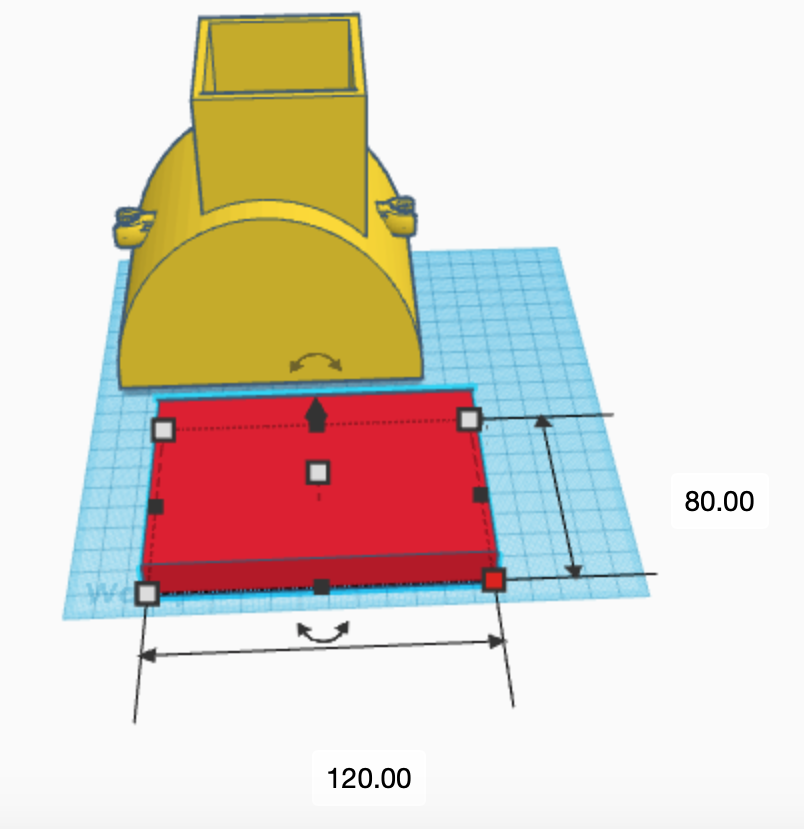

Get a rectangle with the same dimensions as the bottom of the body. Add a slightly smaller rectangle to create an open box - don't merge yet!
Legs
![Screen Shot 2020-04-26 at 10.03.04 PM.png](/proxy/?url=https://content.instructables.com/FFB/NPL5/K9G9JLE0/FFBNPL5K9G9JLE0.png&filename=Screen Shot 2020-04-26 at 10.03.04 PM.png)
![Screen Shot 2020-04-26 at 10.04.18 PM.png](/proxy/?url=https://content.instructables.com/FVY/WEOI/K9G9JLE1/FVYWEOIK9G9JLE1.png&filename=Screen Shot 2020-04-26 at 10.04.18 PM.png)
![Screen Shot 2020-04-26 at 10.04.33 PM.png](/proxy/?url=https://content.instructables.com/FNY/31WS/K9G9JLE3/FNY31WSK9G9JLE3.png&filename=Screen Shot 2020-04-26 at 10.04.33 PM.png)

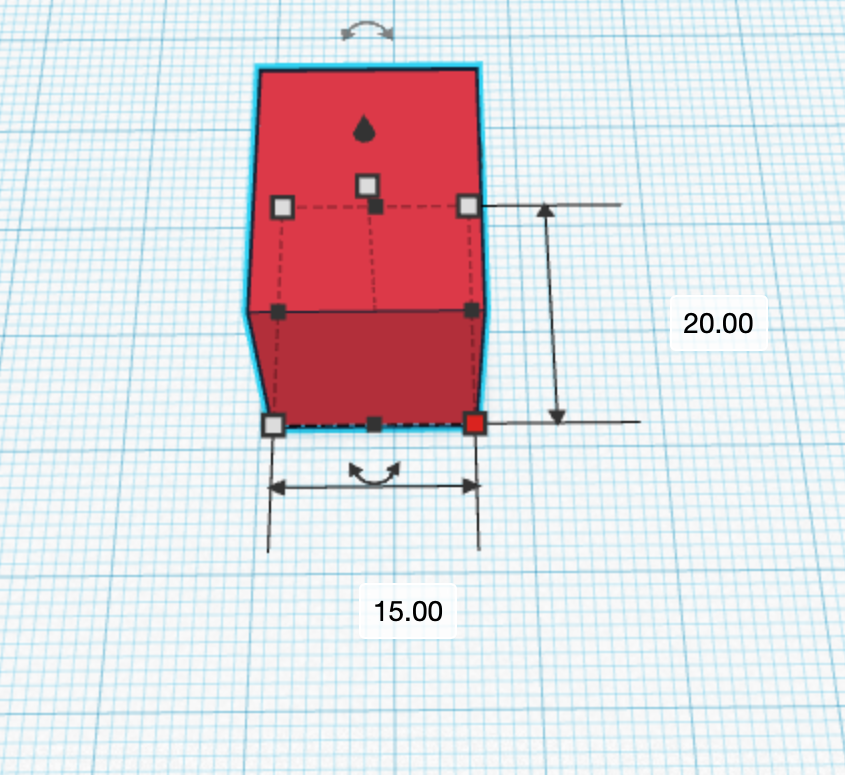

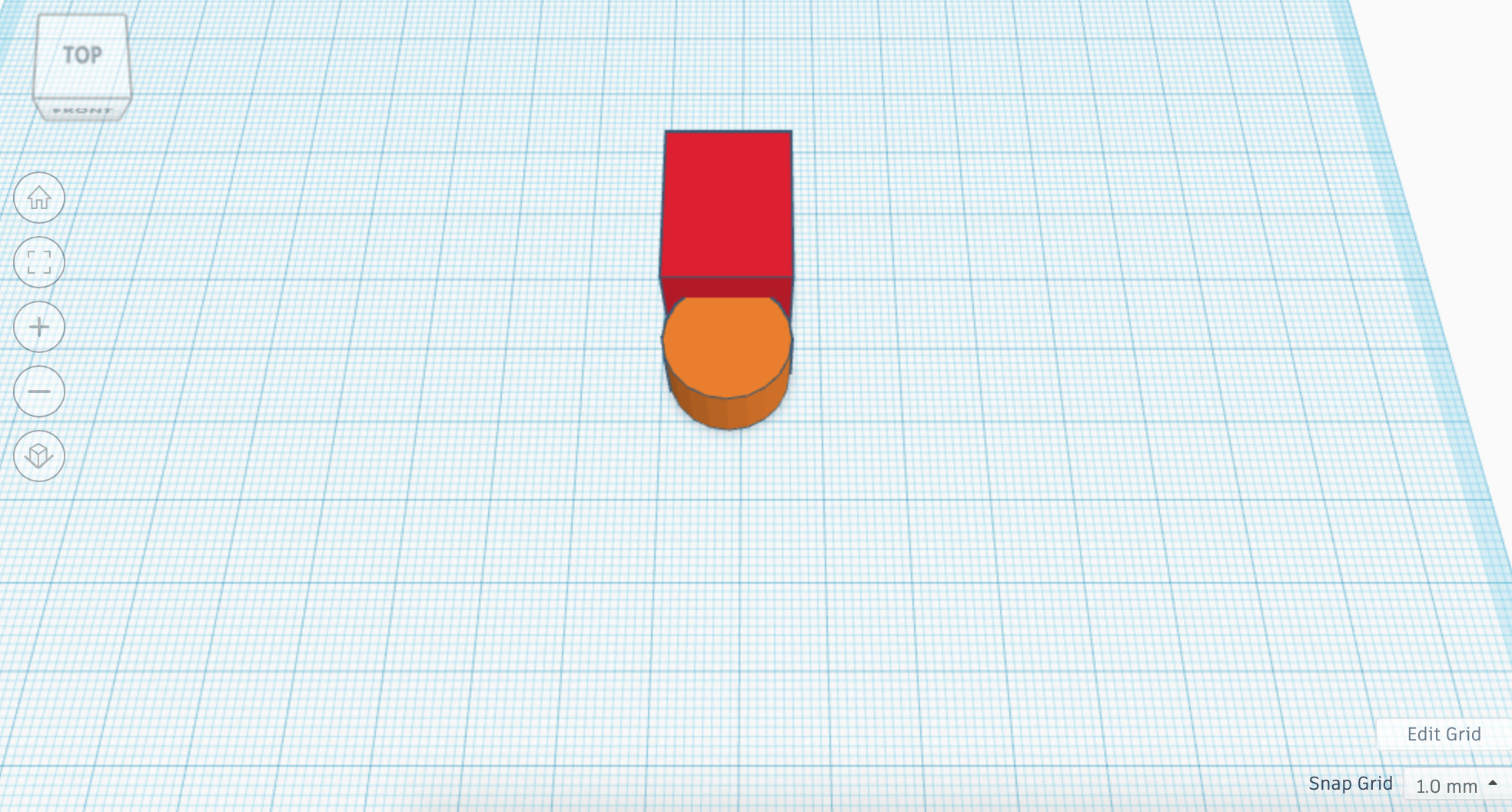

Make a leg from a rectangle and a cylinder. Merge and duplicate.
Adding the Legs
![Screen Shot 2020-04-26 at 10.07.08 PM.png](/proxy/?url=https://content.instructables.com/FGF/7O4G/K9G9JLE4/FGF7O4GK9G9JLE4.png&filename=Screen Shot 2020-04-26 at 10.07.08 PM.png)

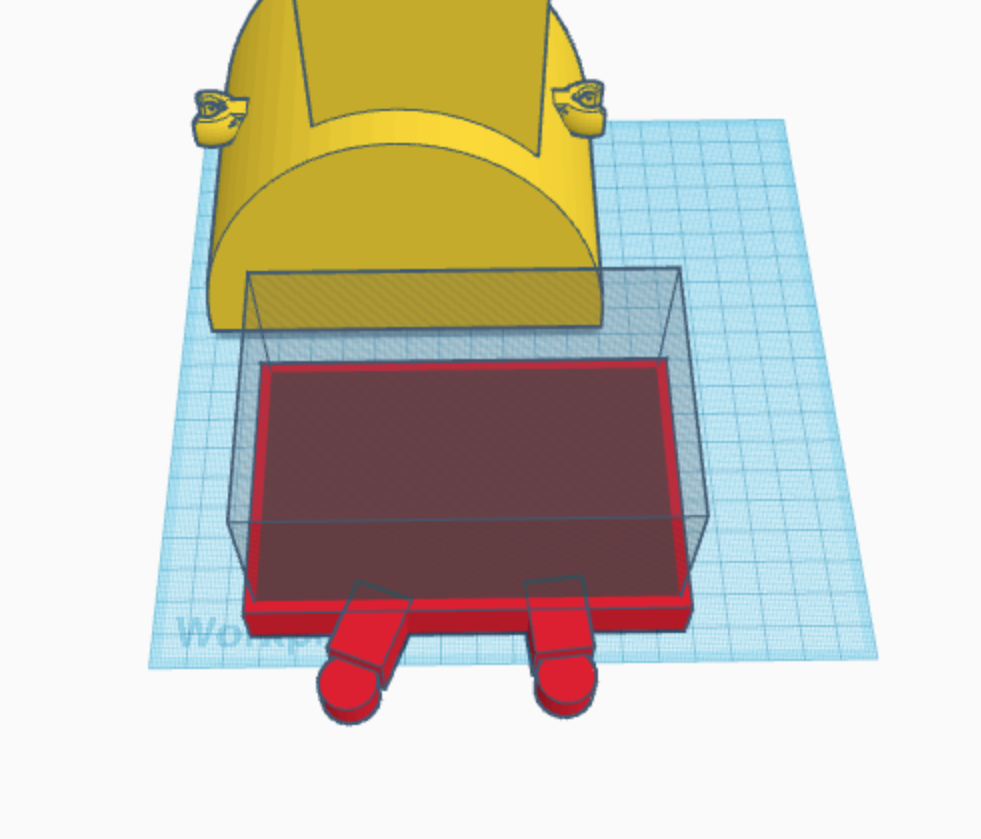

Position the legs and merge the drainage plate.
Drainage Plate Connectors
![Screen Shot 2020-04-26 at 10.08.18 PM.png](/proxy/?url=https://content.instructables.com/F1N/JHWJ/K9G9JLE5/F1NJHWJK9G9JLE5.png&filename=Screen Shot 2020-04-26 at 10.08.18 PM.png)
![Screen Shot 2020-04-26 at 10.08.39 PM.png](/proxy/?url=https://content.instructables.com/FLU/YCZS/K9G9JLE6/FLUYCZSK9G9JLE6.png&filename=Screen Shot 2020-04-26 at 10.08.39 PM.png)
![Screen Shot 2020-04-26 at 10.09.06 PM.png](/proxy/?url=https://content.instructables.com/FH7/PAWR/K9G9JLEA/FH7PAWRK9G9JLEA.png&filename=Screen Shot 2020-04-26 at 10.09.06 PM.png)

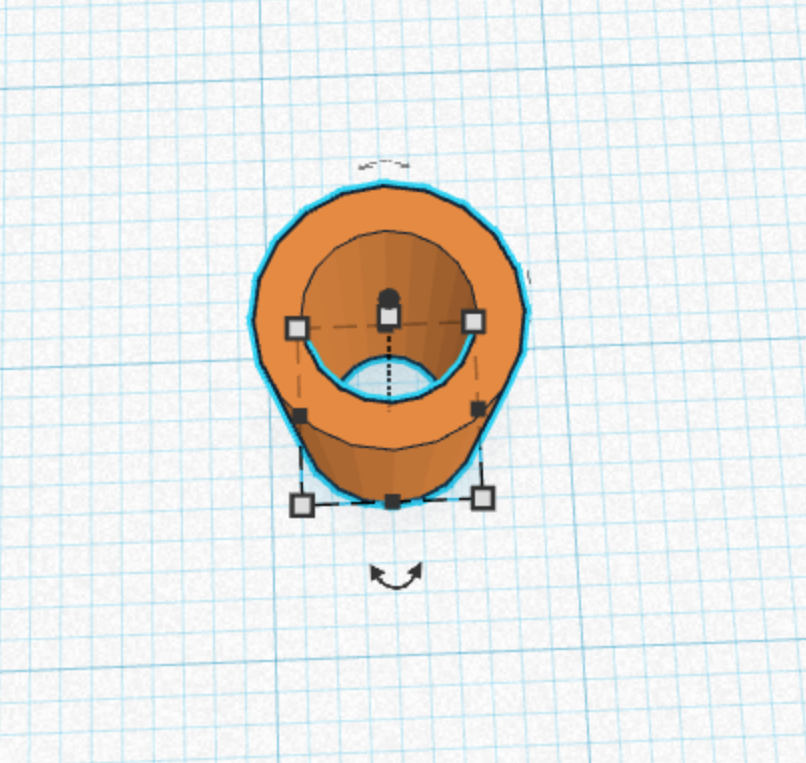

Get another cylinder and change to 6 mm in diameter. Add a hole in the middle with diameter 4 mm and merge.
Almost Done...
![Screen Shot 2020-04-26 at 10.11.21 PM.png](/proxy/?url=https://content.instructables.com/FSZ/TPBT/K9G9JLEE/FSZTPBTK9G9JLEE.png&filename=Screen Shot 2020-04-26 at 10.11.21 PM.png)
![Screen Shot 2020-04-26 at 10.11.57 PM.png](/proxy/?url=https://content.instructables.com/F2O/IK9T/K9G9JRCL/F2OIK9TK9G9JRCL.png&filename=Screen Shot 2020-04-26 at 10.11.57 PM.png)

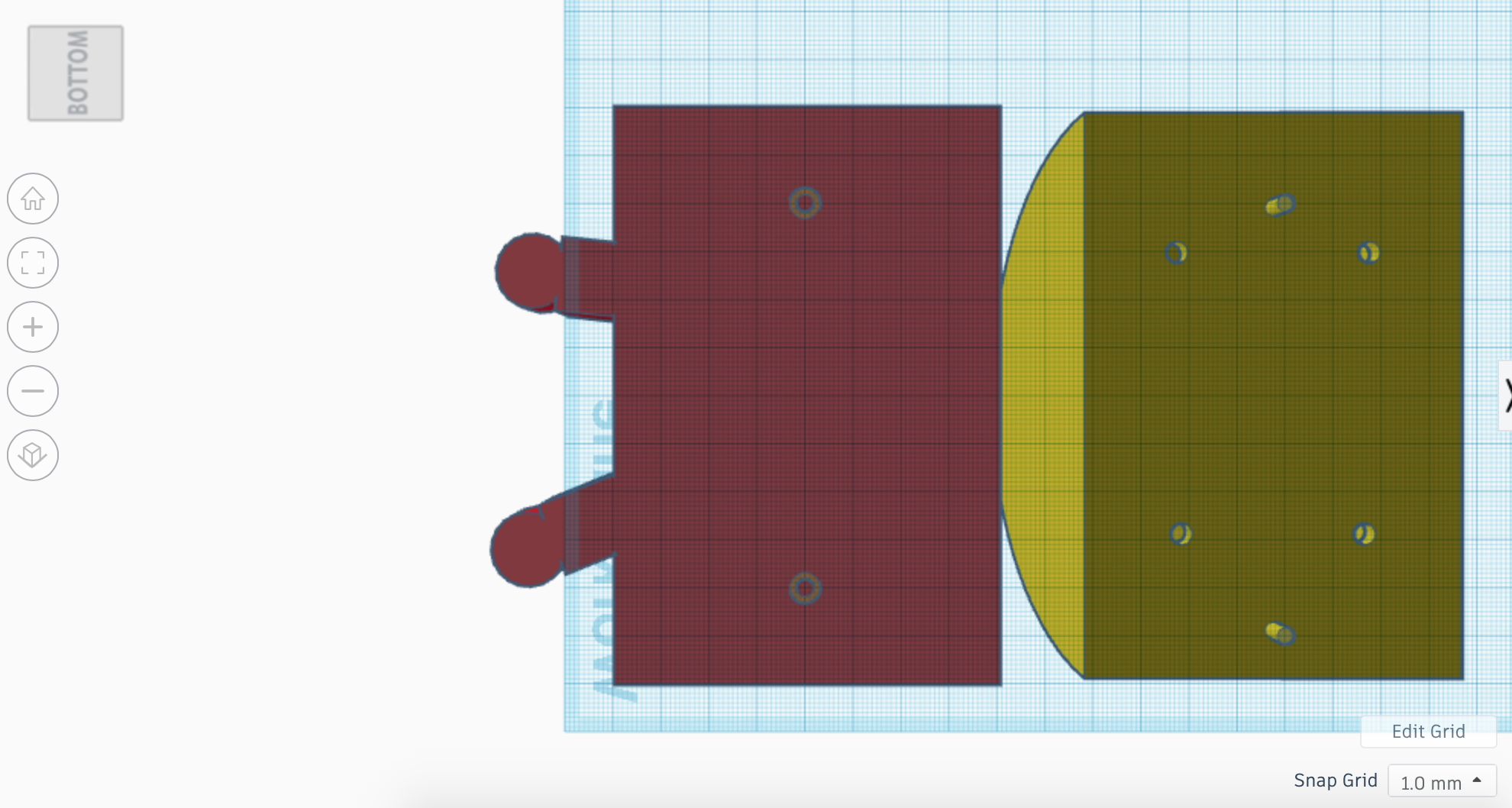

Place the centre of these hollow cylinders so that they correspond with the centers of the drainage plate connectors on the body piece. Merge the drainage plate!
Decorate
![Screen Shot 2020-04-26 at 10.31.45 PM.png](/proxy/?url=https://content.instructables.com/FTQ/ZQF3/K9G9JLF1/FTQZQF3K9G9JLF1.png&filename=Screen Shot 2020-04-26 at 10.31.45 PM.png)

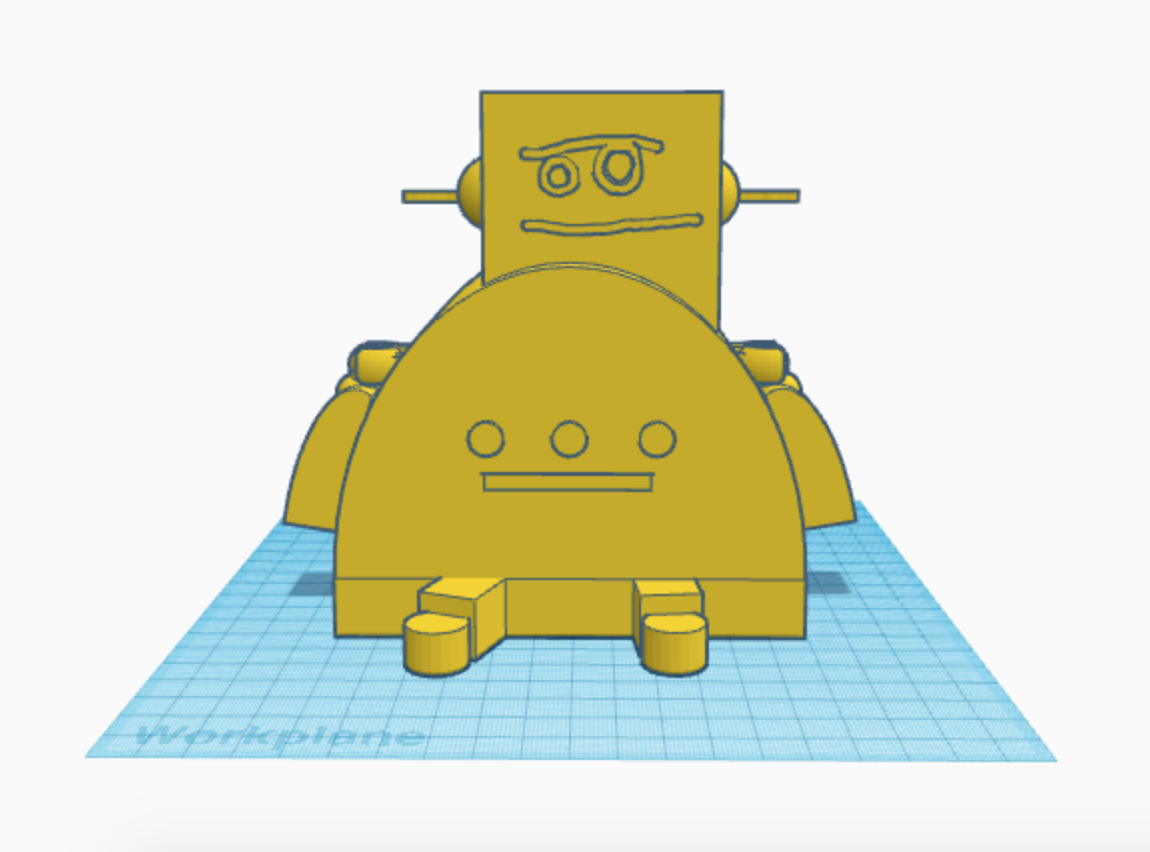

Decorate the bot! Use the scribble feature to draw a face.
Done!
![Screen Shot 2020-04-26 at 10.37.45 PM.png](/proxy/?url=https://content.instructables.com/FEV/CC14/K9G9JLFR/FEVCC14K9G9JLFR.png&filename=Screen Shot 2020-04-26 at 10.37.45 PM.png)
![Screen Shot 2020-04-26 at 10.37.22 PM.png](/proxy/?url=https://content.instructables.com/FSD/MQTN/K9G9JLFM/FSDMQTNK9G9JLFM.png&filename=Screen Shot 2020-04-26 at 10.37.22 PM.png)
![Screen Shot 2020-04-26 at 10.37.53 PM.png](/proxy/?url=https://content.instructables.com/FJB/RVHP/K9G9JLFV/FJBRVHPK9G9JLFV.png&filename=Screen Shot 2020-04-26 at 10.37.53 PM.png)
This is what the bot pot should look like after it has been printed and assembled. Remember, the arm joints snap on after you print them. Enjoy!
