Bookshelf Speaker | Bluetooth Speaker | Build

by Steve Willson Kujur in Circuits > Speakers

17634 Views, 137 Favorites, 0 Comments

Bookshelf Speaker | Bluetooth Speaker | Build


Hey! everyone My name is Steve 19 year old from India .

Today i'm going to show you How to Build a Bookshelf Speaker or a Bluetooth Speaker .

I'm Really impressed with the Sound Quality .

Click Here to See The Video

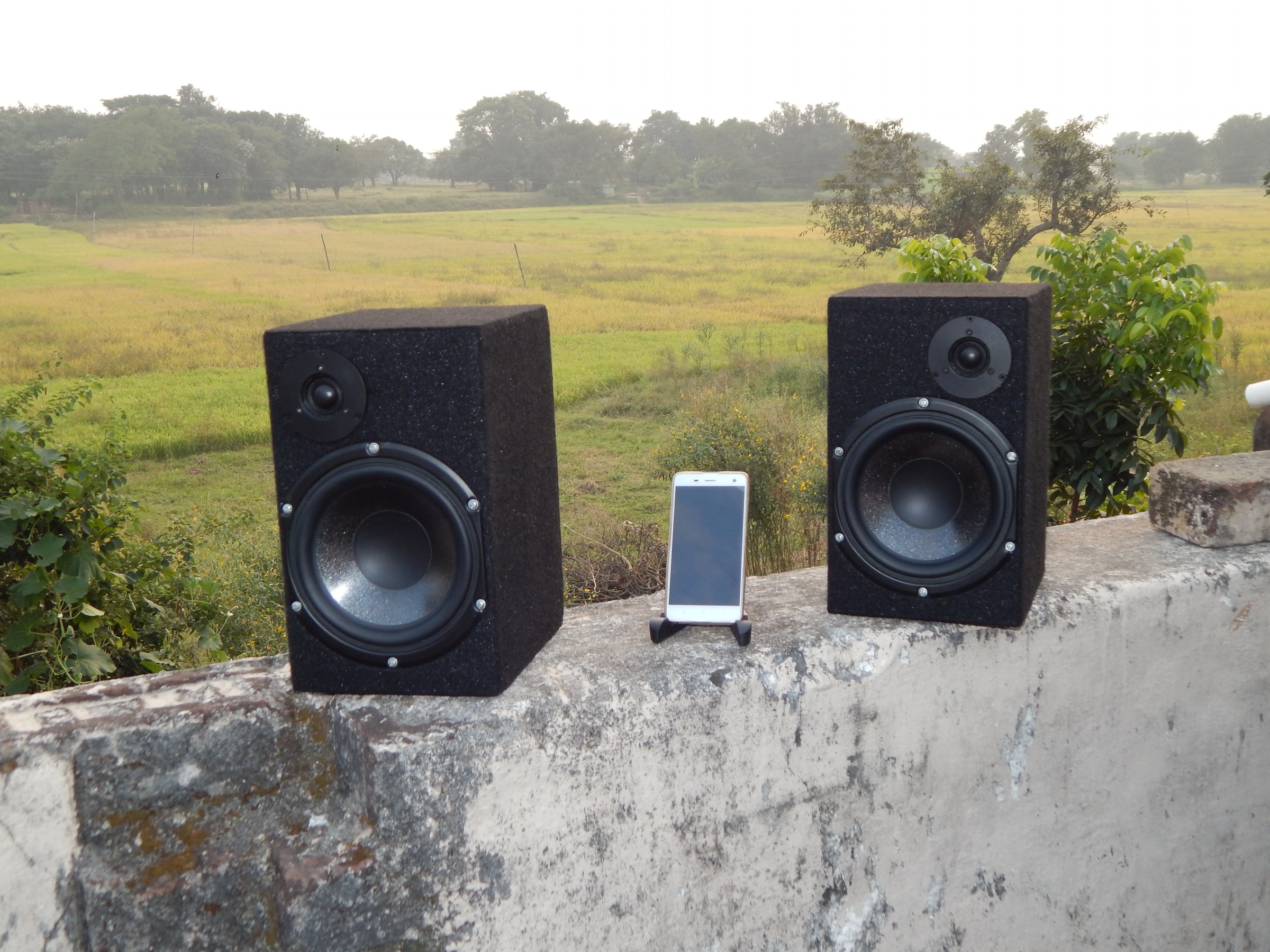

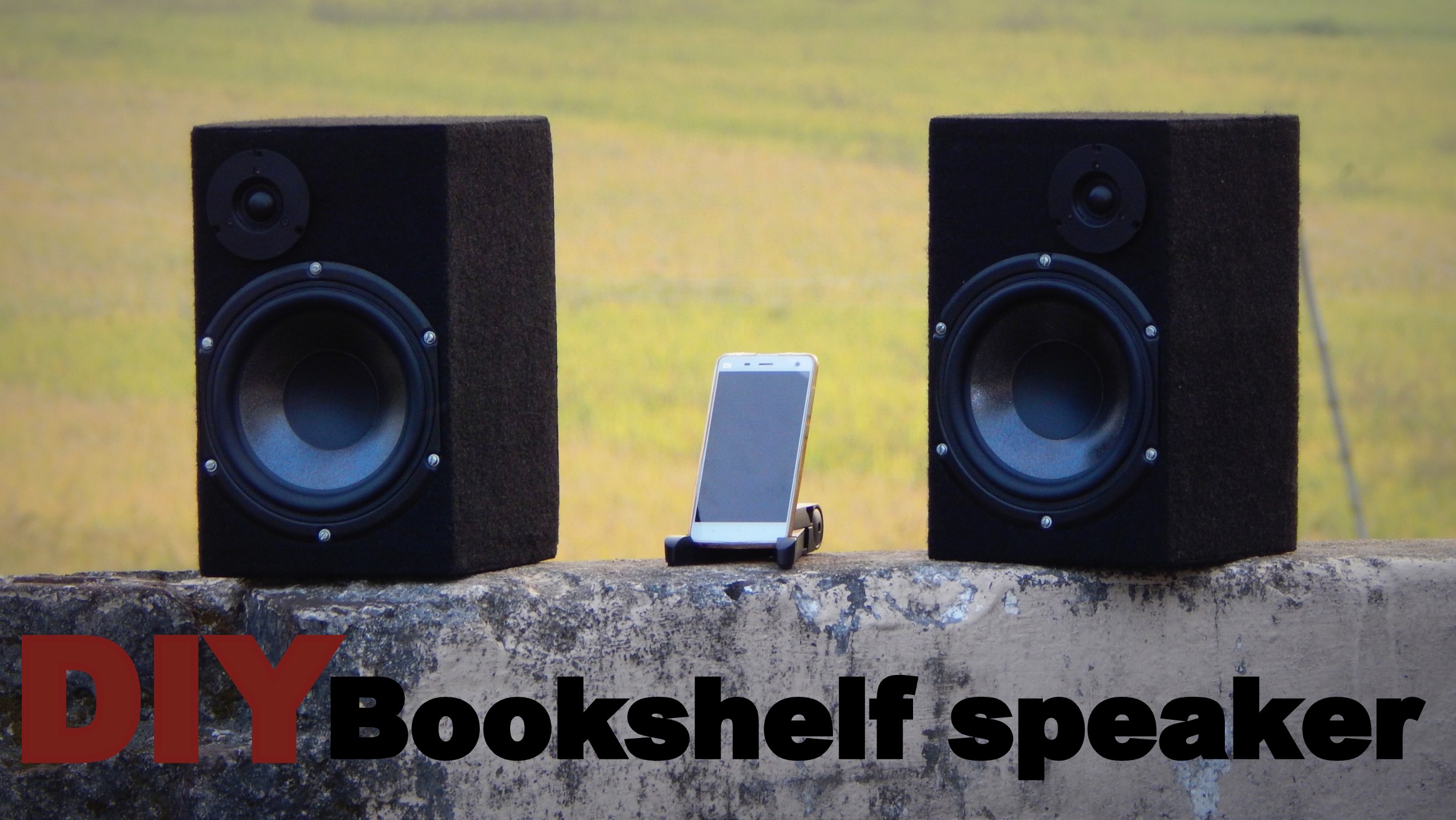

Speaker Photos


Click Here to See The Video

What I Used


1. MDF - 18 mm

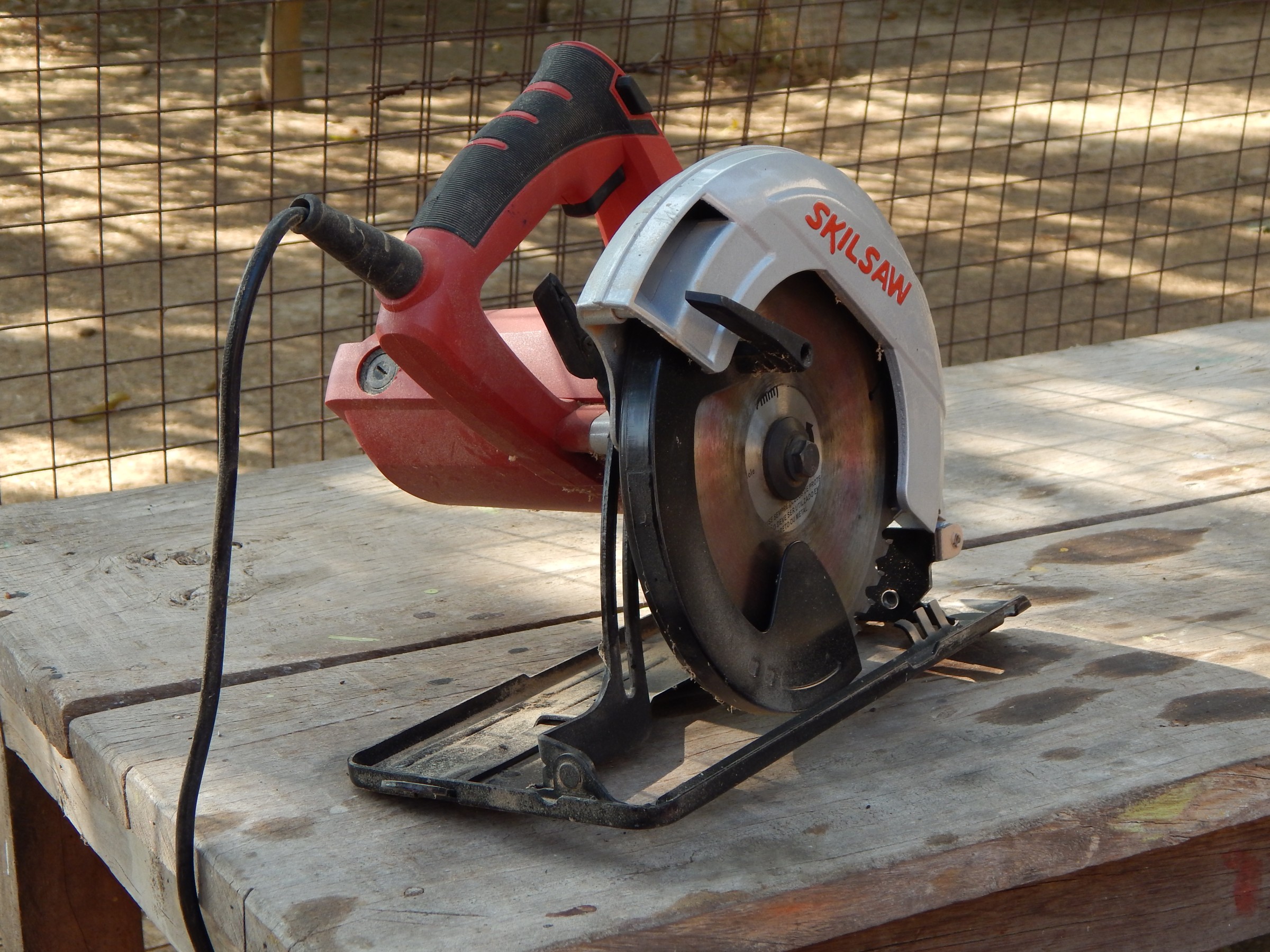

2. Circular Saw

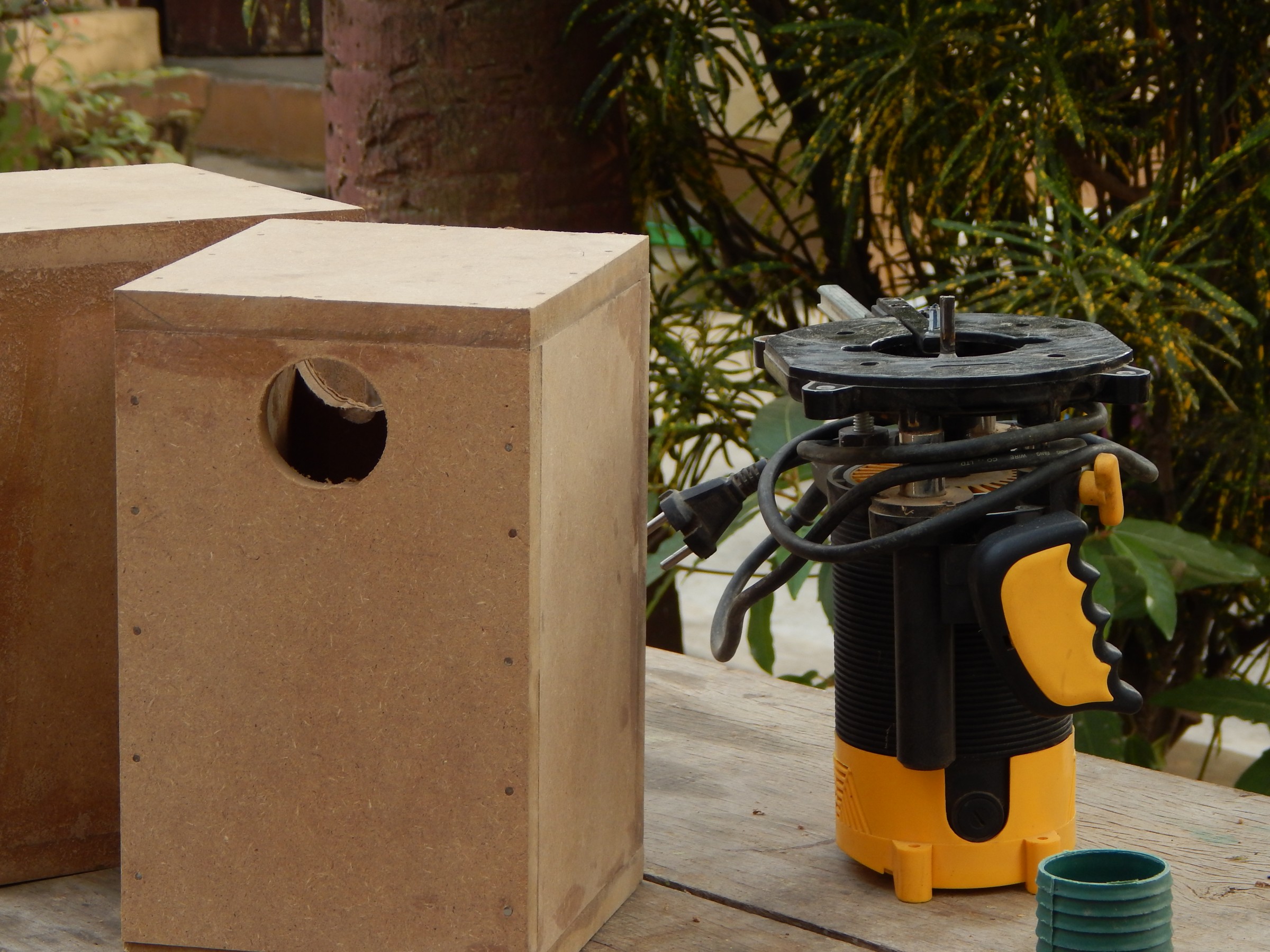

3. Wood Router

4. Hand Drill

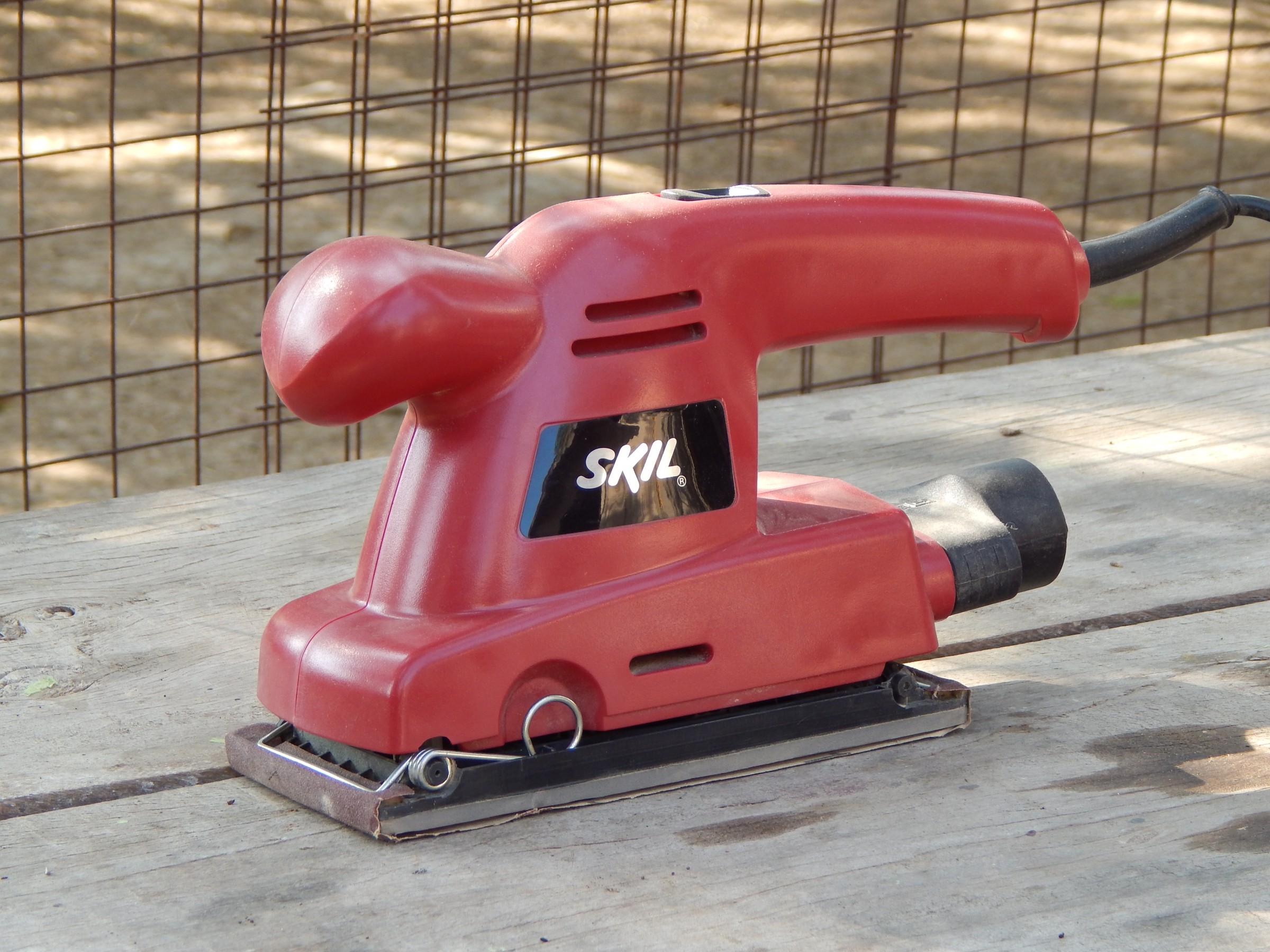

5. Sander

6. Wood Glue

Drivers

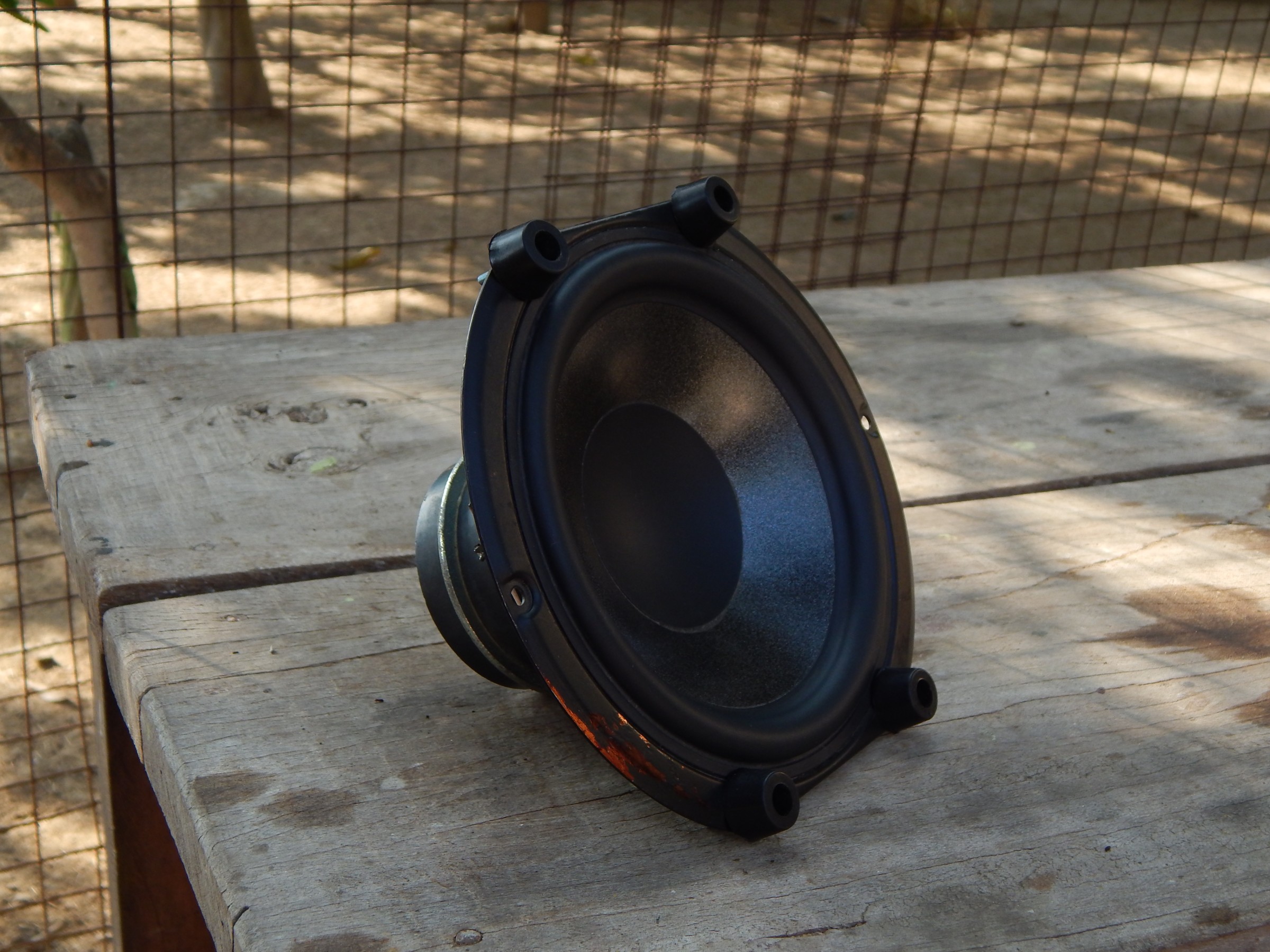

1. 6" Pearless MidBass

2. 3" Dome Tweeter

Measurements


Height - 28 cm

breadth - 17 cm

Depth - 20 cm

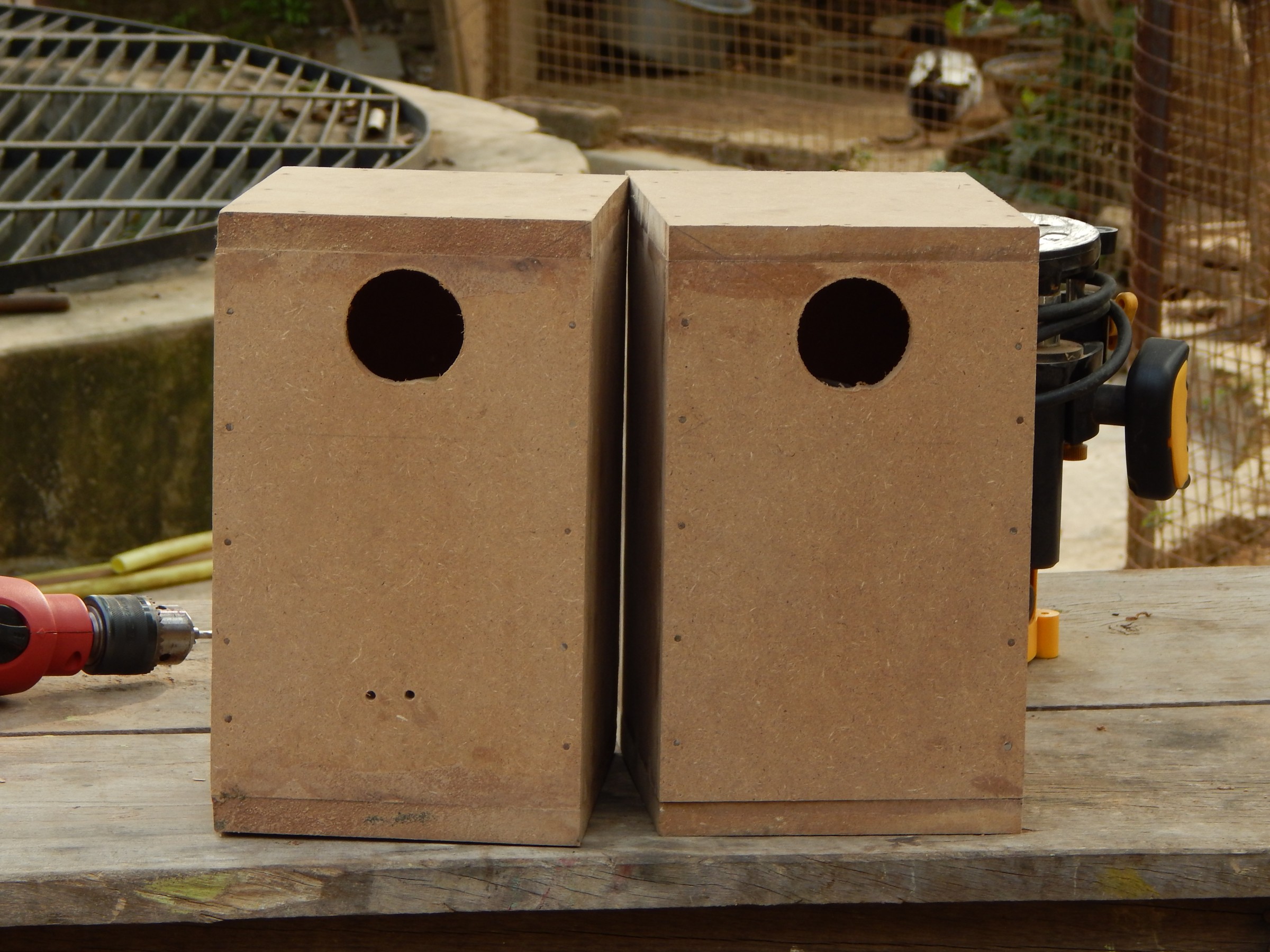

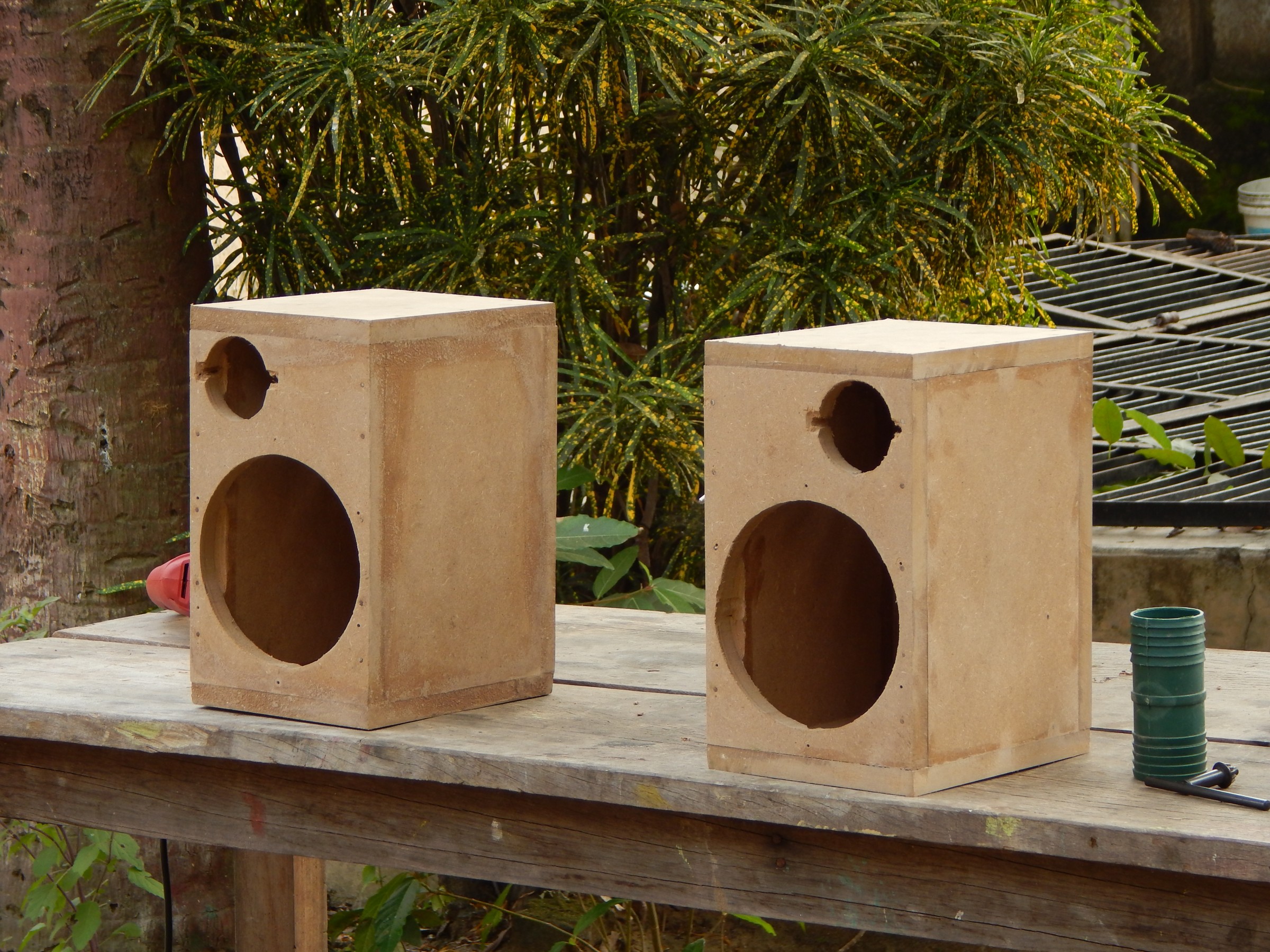

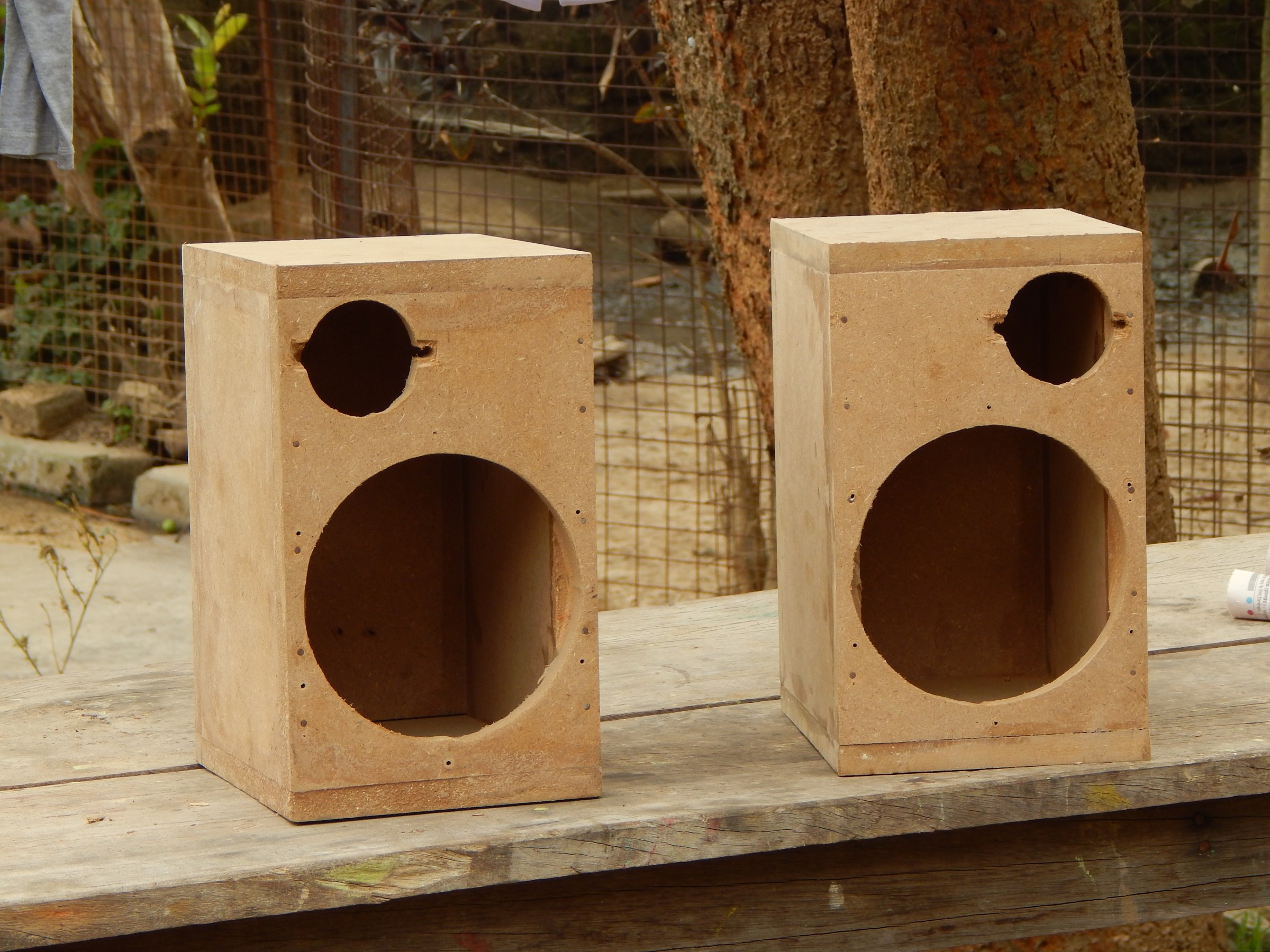

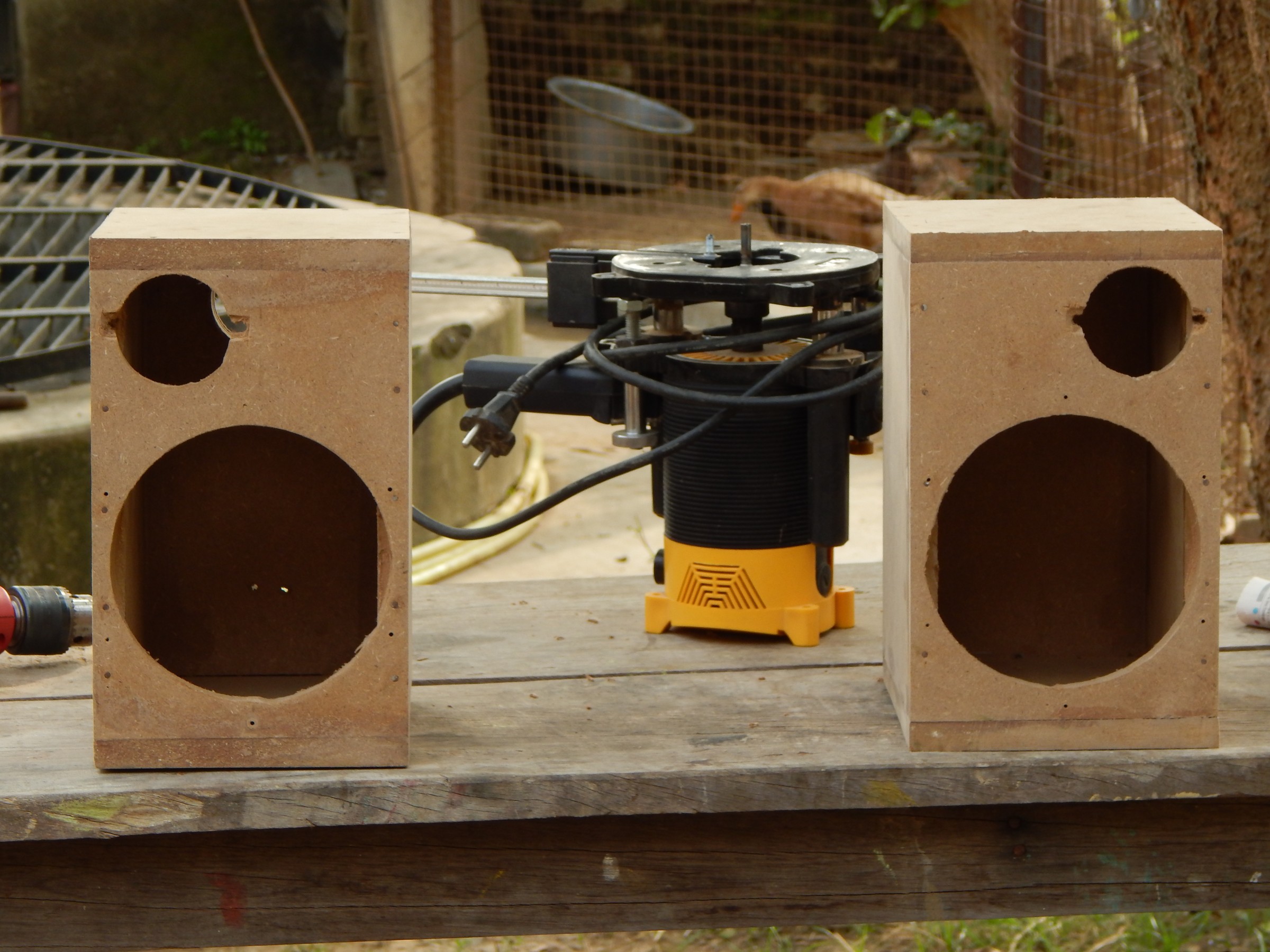

Assembled All the Things


assembled all the wood pics with wood glue and nails

Black Skin


i used a black skin for cover

Amplifier

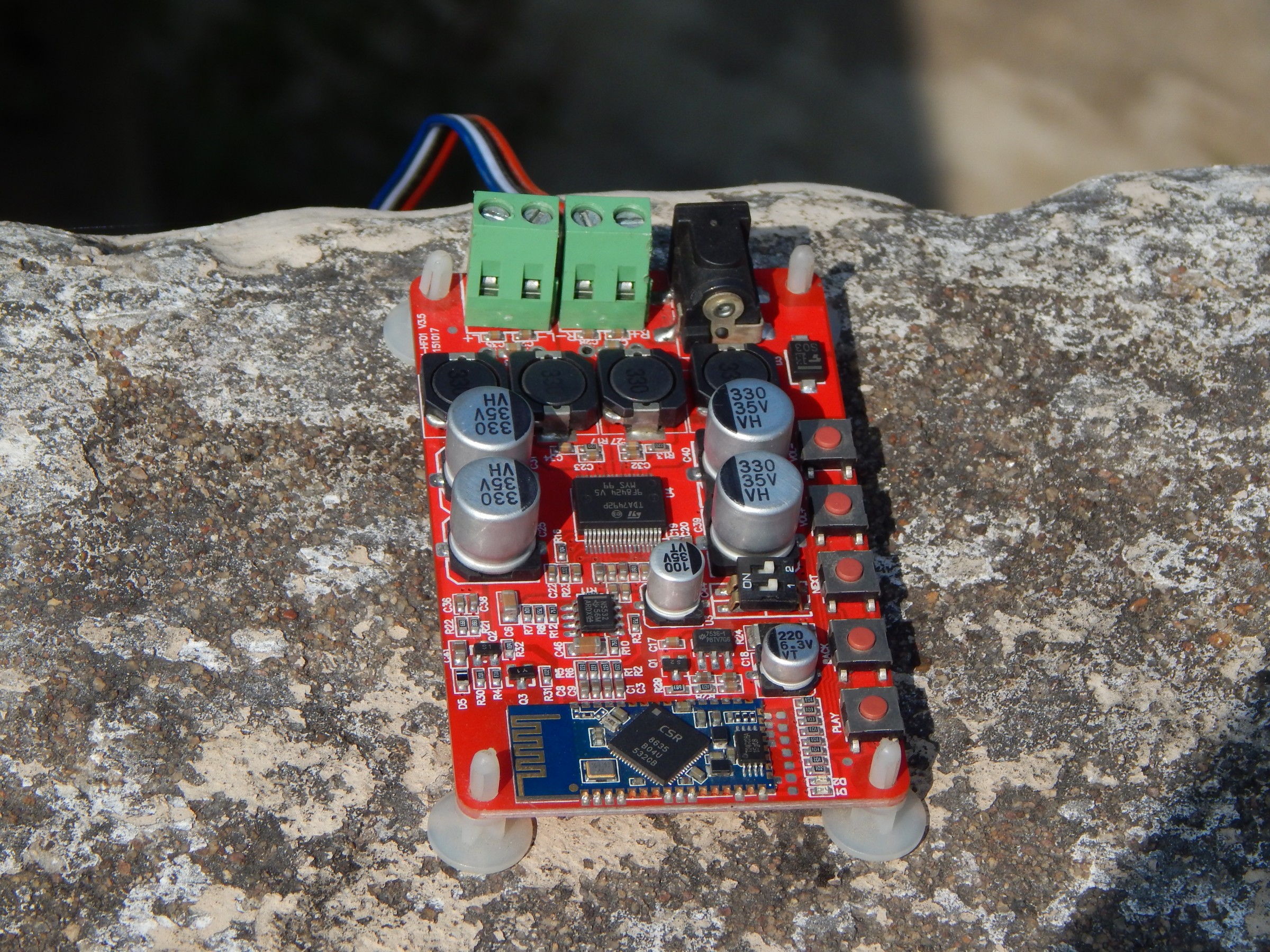

i used a TDA7492p Bluetooth Amplifier

Where To Buy "Cheapest"

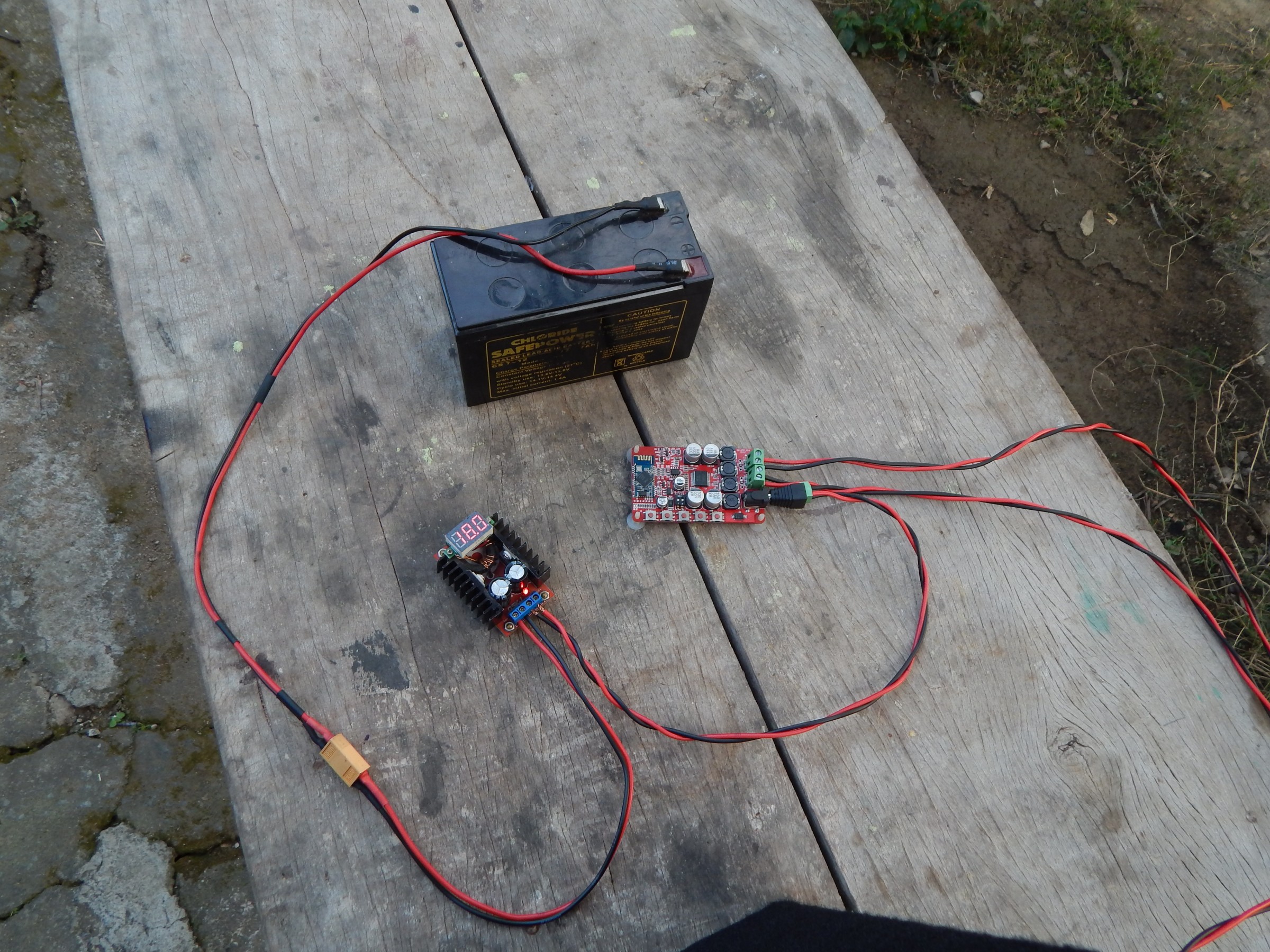

TDA7492P Bluetooth Board - click

150 Watt DC to DC Converter - click

Click Here to See The Video
