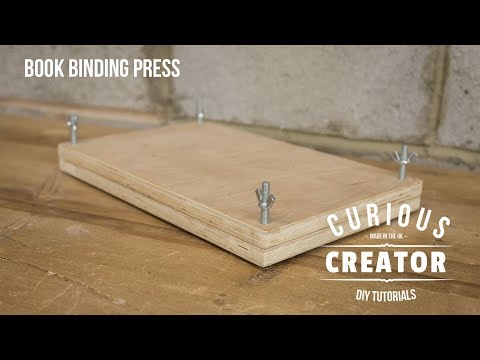

Booking Binding Press
In this guide, I show how I made this bookbinding press. It's a super easy project, so it's also quite a short video. I wanted to make a few notebooks for a while now, I usually have a few different ones and was fed up with buying them, so thought I would learn how to make them. This is a first part video, the next one I'll show how I make my notebooks. This should only take a couple of hours tops, and can also be used as a flower press or anything that needs pressing!
For this project you will need;
I also have an Instructables on how to make your own Perfect Bound Paperback Notebook with this press. Make sure to go check it out!
Measure
I started off with a sheet of 18mm thick plywood. I went for the thickest that is easy to get in the UK as I wanted something strong that will take a lot of pressure when bookbinding, but something that will also flex a little instead of splintering.

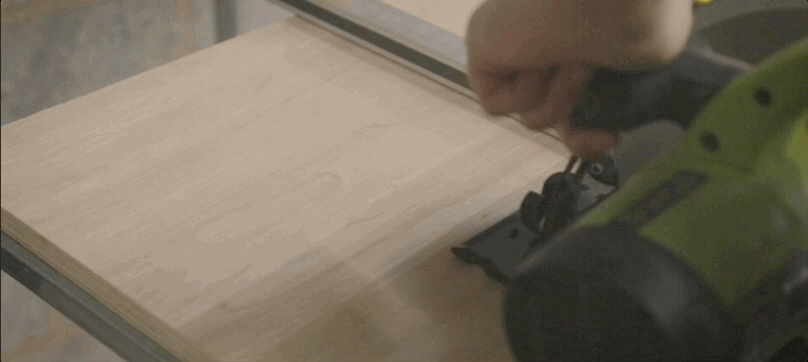

The board had already been cut down in width to 60cm (from my Steel + Coffee Sack Footstool project) so I marked and cut it down to 40cm long. This might be a bit too big, but basically, I made it big enough that I could make any books right up to and including full-size A4 notebooks. It's also a quick and simple enough project to make a smaller one if needed at any point. I like the idea of being able to use this as a flower press or something as well so I went big with it. I set up a metal clamp as a guide and cut down with the circular saw.
Clamp + Sand

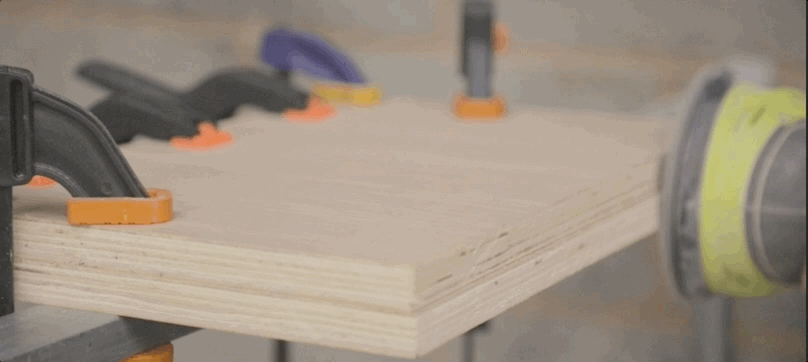

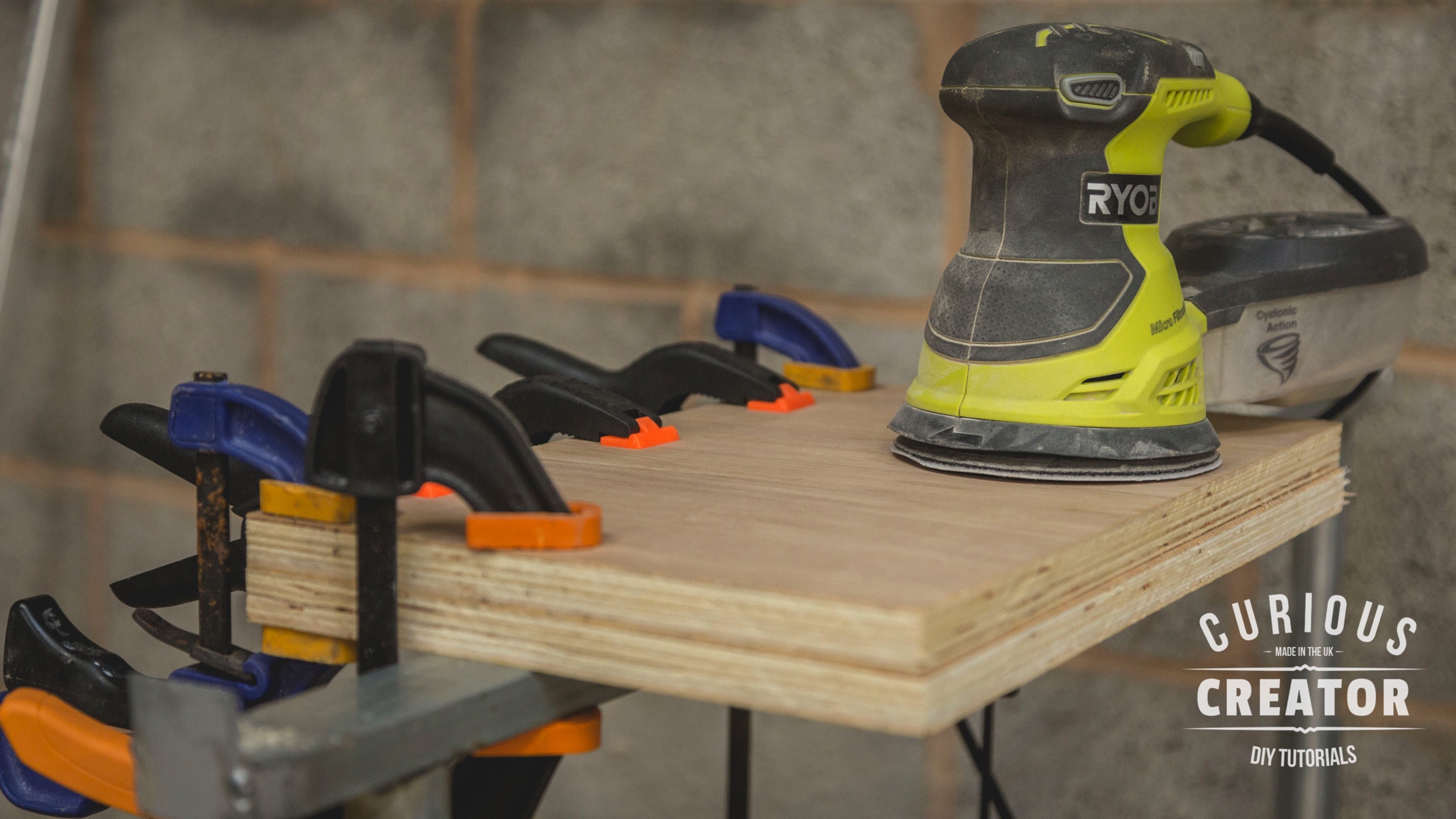

I then added a load of clamps and strong clips to hold the two bits of wood together. It's important to do step as it will make everything a bit easier the further on we go. Everything needs to stay lined up. Once it was clamped up together I sanded the whole thing all over to make it smooth to the touch. I only went up to 120 grit sandpaper.
Corner Drills

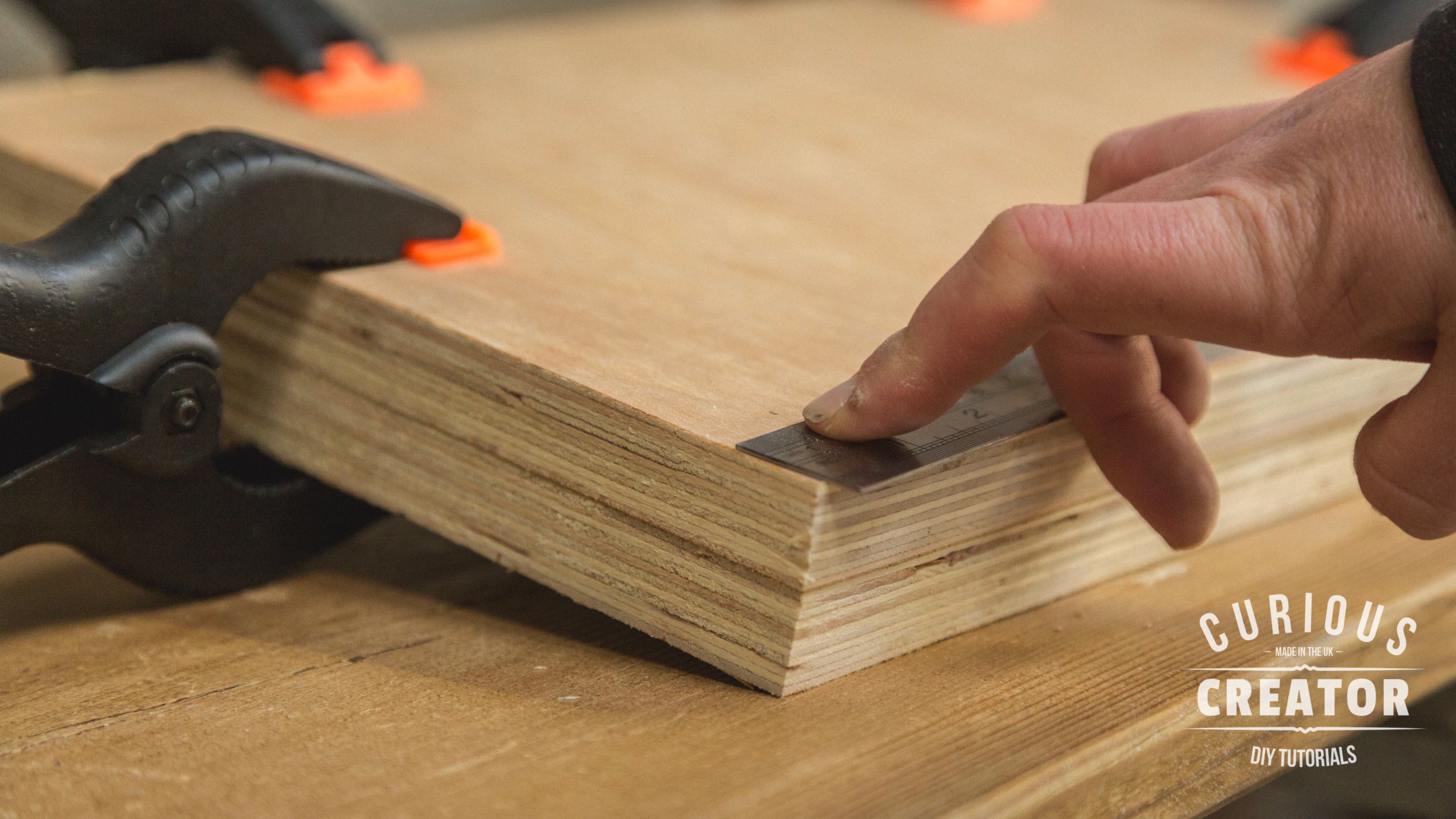

Still leaving the 2 bits of wood clamped together, I used a ruler to mark 1cm in from each corner. This is to mark the hole for the bolts. I did this on each corner.
I then took it over to the drill press and started by drilling 2mm pilot holes. This will stop the plywood from splitting as I widen the holes to suit the books. I then went up to 6mm drill bit to make sure my M6 bolts would fit through. I also widened the holes a little more to give them a bit of space, it doesn't have to be a perfect tight fit.
Bolt

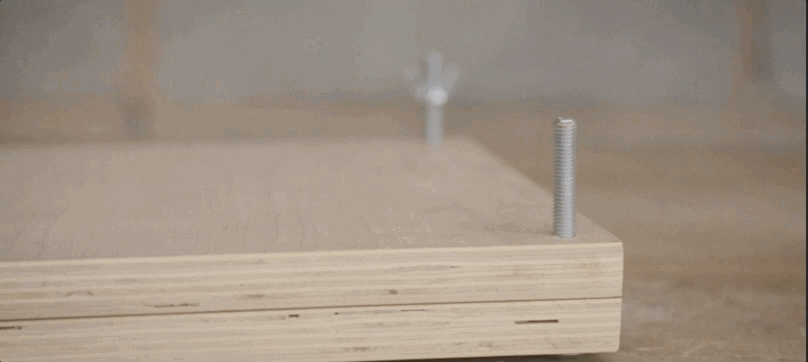

I then put all the bolts through. I was using some quite long M6 bolts, this meant that I can make thick books. I also put on some Wing Nuts to make them easier to tighten and clamp down. I can make them smaller to speed it up if I'm working on a smaller book.
Final Images
Here are the final images. It's a super quick and easy project, and is probably overkill for most people but might as well make it overkill once than have to make 2!
I will be putting a guide and video up in the next few days to show how to make a notebook. Be sure to subscribe to my Instructables or YouTube Channel to make sure you don't miss it.
