Puzzle Design With the Engineering Process

This instructable covers how I followed the engineering process to develop a 3D printed puzzle. This process can be used anytime a design is being developed to ensure the final product is something useful and will meet your design requirements.

The following steps of the engineering process will ensure that you focus your time and effort into iterating a design until your requirements are met:

• Ask - Define the design. What needs to be made and what requirements does it need to have?
• Imagine - Brainstorm solutions to the presented requirements. Research what solutions others have come up with.
• Plan - Select two or three ideas that can be refined. This can be done on paper or in a CAD software package.
• Create - Build a prototype based on the plan previously defined.
• Test - Find strengths and weaknesses in the design. If available, have others offer feedback on your prototype.
• Improve - Based on feedback from yourself and others, brainstorm ways to improve your design and create a new prototype to test. Once you are satisfied with your design, your final product can be made.

If you are interested in purchasing a bolt puzzle instead of printing and finishing your own, you can visit my Etsy Shop where they are for sale.

Materials:

• 1/8 in. Metal Rod
• .035" Metal Stock
• 1 Magnet
• 5 Minute Epoxy
• Mineral Oil

Tools:

• 3D Printer
• 1"-8 Die
• 1"-8 Tap
• Disk Sander
• Socket Adapter
• Drill

Ask:

When thinking of designing this puzzle, I gave myself the following requirements:

• Made from 1 in. bolt
• Coupling nut must hide seam between bolts
• Coupling nut must spin freely between both bolts
• Must stay locked until purposefully unlocked

After researching the difficulty of finding (and expense) of metal 1 in. bolts, a 3D printed solution was the only result I could come up with. So my first requirement was no longer a requirement.

Imagine:

Brainstorm possible ways to lock the puzzle. Write down a list of ideas and draw some sketches of your ideas. Research other existing puzzles for possible locking mechanisms.

Plan:

Select two or three designs to refine. Draw new pictures and include some rough measurements so you know what scale you are working with.

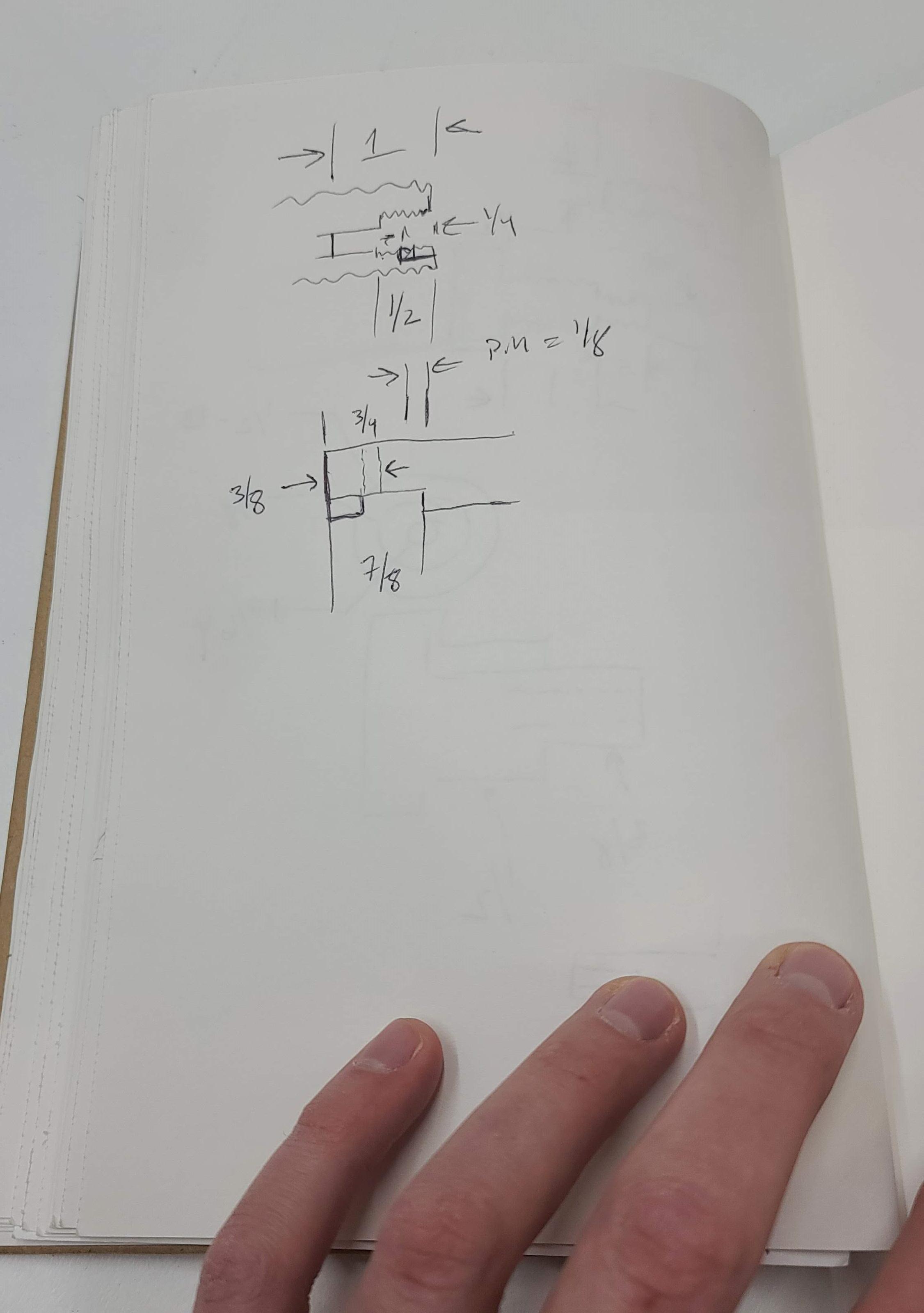

Shown are a couple sketches of my first design that didn't work in the end.

Create:

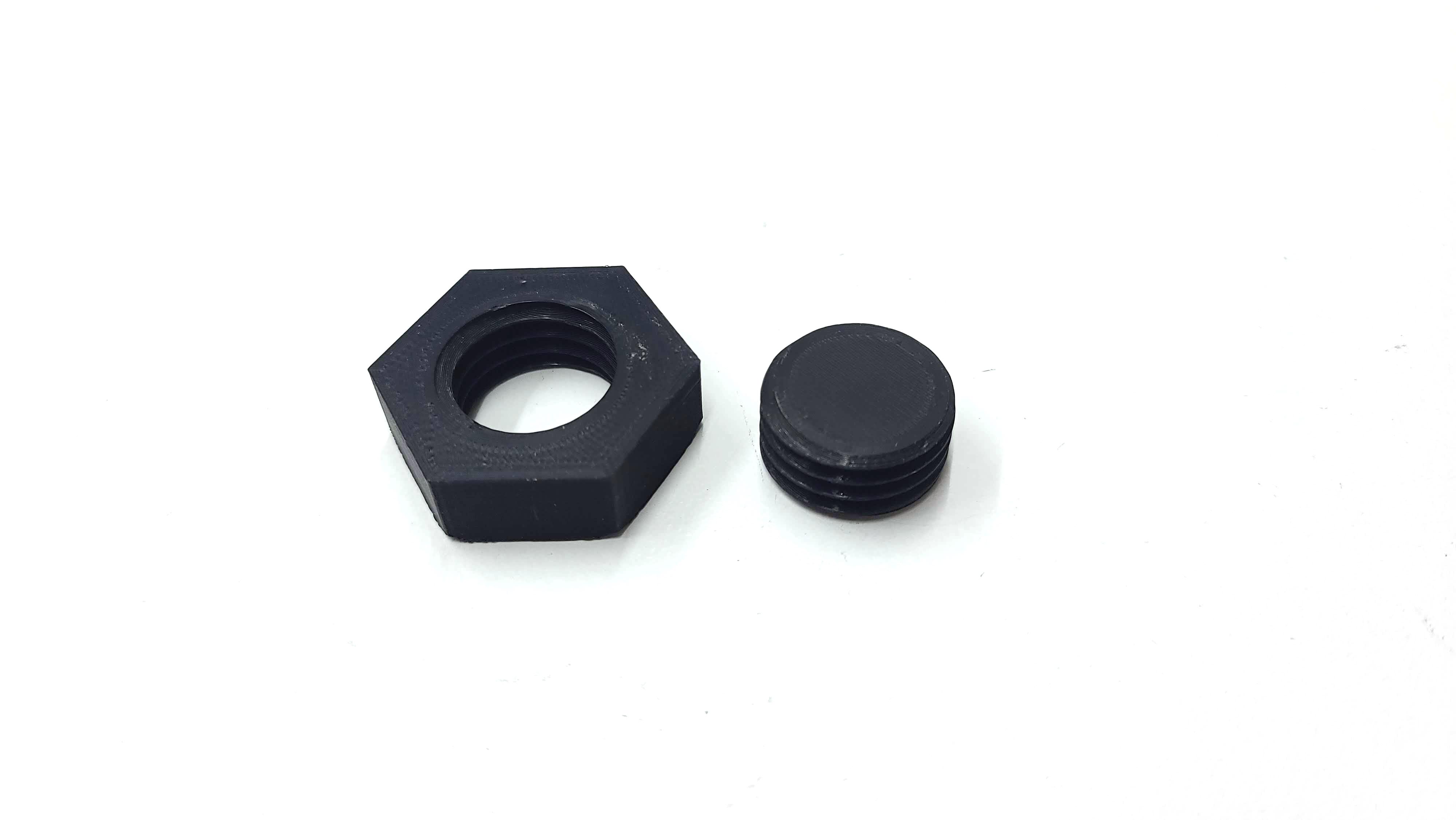

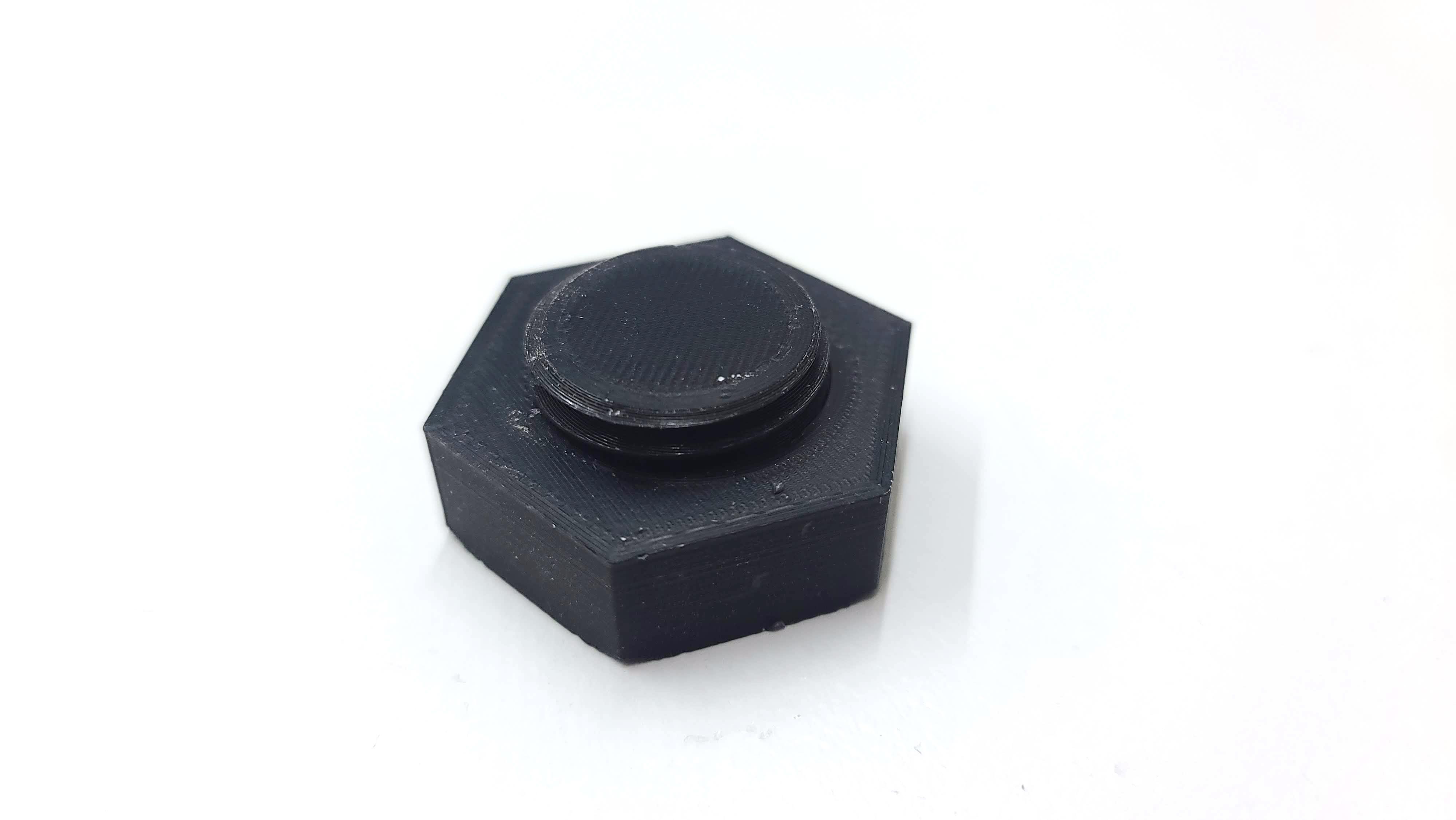

Test your idea by making smaller parts of the design you haven't made before. I have never designed or printed threads before so I made a small test specimen to verify my design before printing the whole part.

Test 1:

My first design utilized a horizontal locking pin to engage the puzzle. This failed my first test for a few reasons. The cross-sectional area of the smaller inner threads were not strong enough to prevent the layers from separating when unlocking the puzzle. Additionally, the locking pin needed to be short in order to fit in the available area. This caused the magnetic force to be too strong to easily dislodge the pin contributing to the likelihood of breaking as shown above.

Test 2:

This change was promising as it exchanged the horizontal locking pin to an axial locking plate. This strengthened the locking mechanism by spreading any torsional forces through a larger surface area. In testing among my engineering coworkers, a weak link was discovered. The inner threads are left handed to prevent the two bolts from being able to be unscrewed until the coupling nut is moved to one of the ends. Unfortunately, the two half threaded sections weren't strong enough to hold off a determined engineer trying to figure out a new puzzle, they broke off when rotated the wrong direction.

Improve:

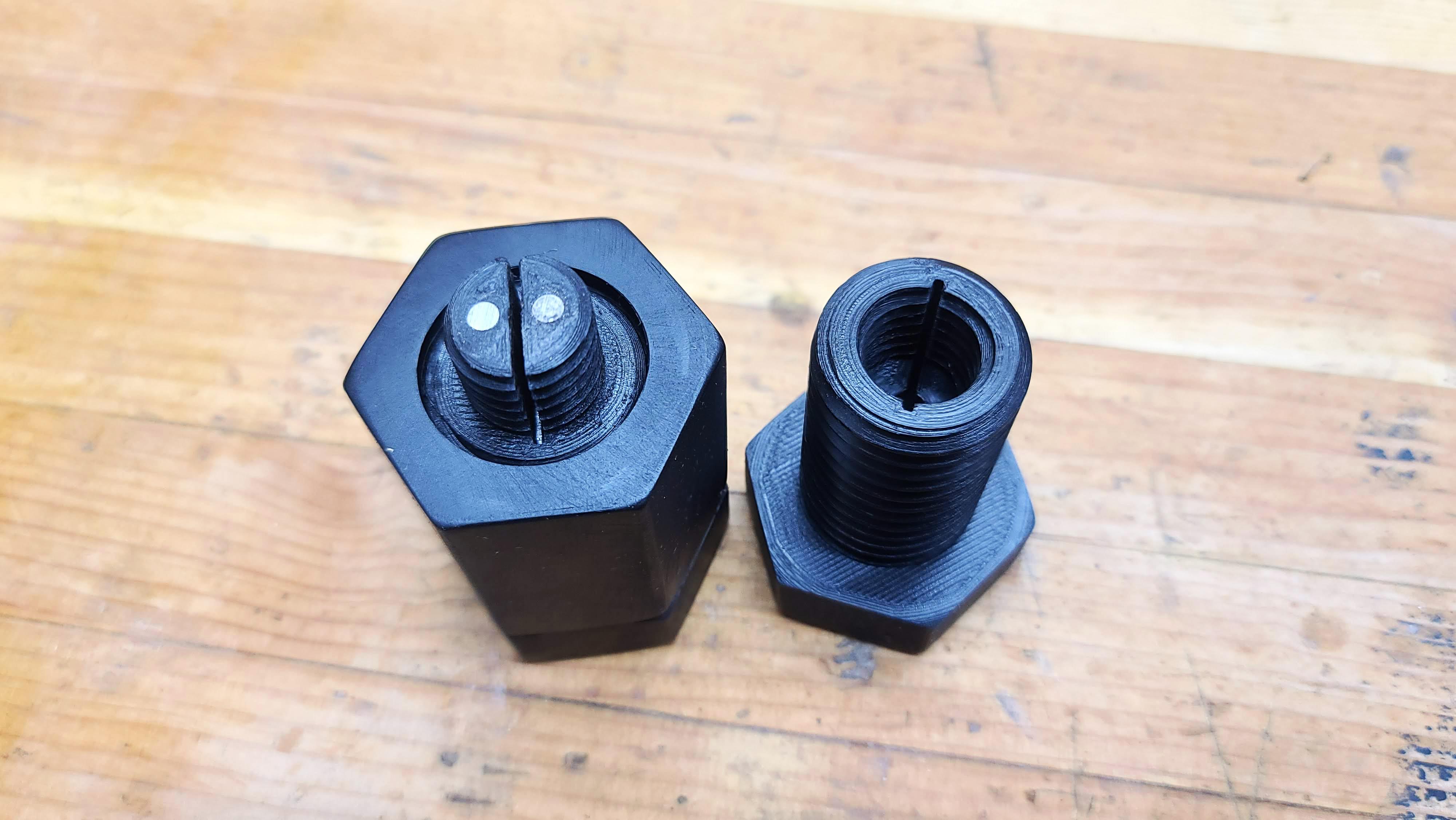

The final design consisted of increasing the inner threads of the locking mechanism allowing for two 1/8 in. rods to be epoxied into place to stiffen up the locking threads. This design has so far proven to be engineer proof among my coworkers.

Lock:

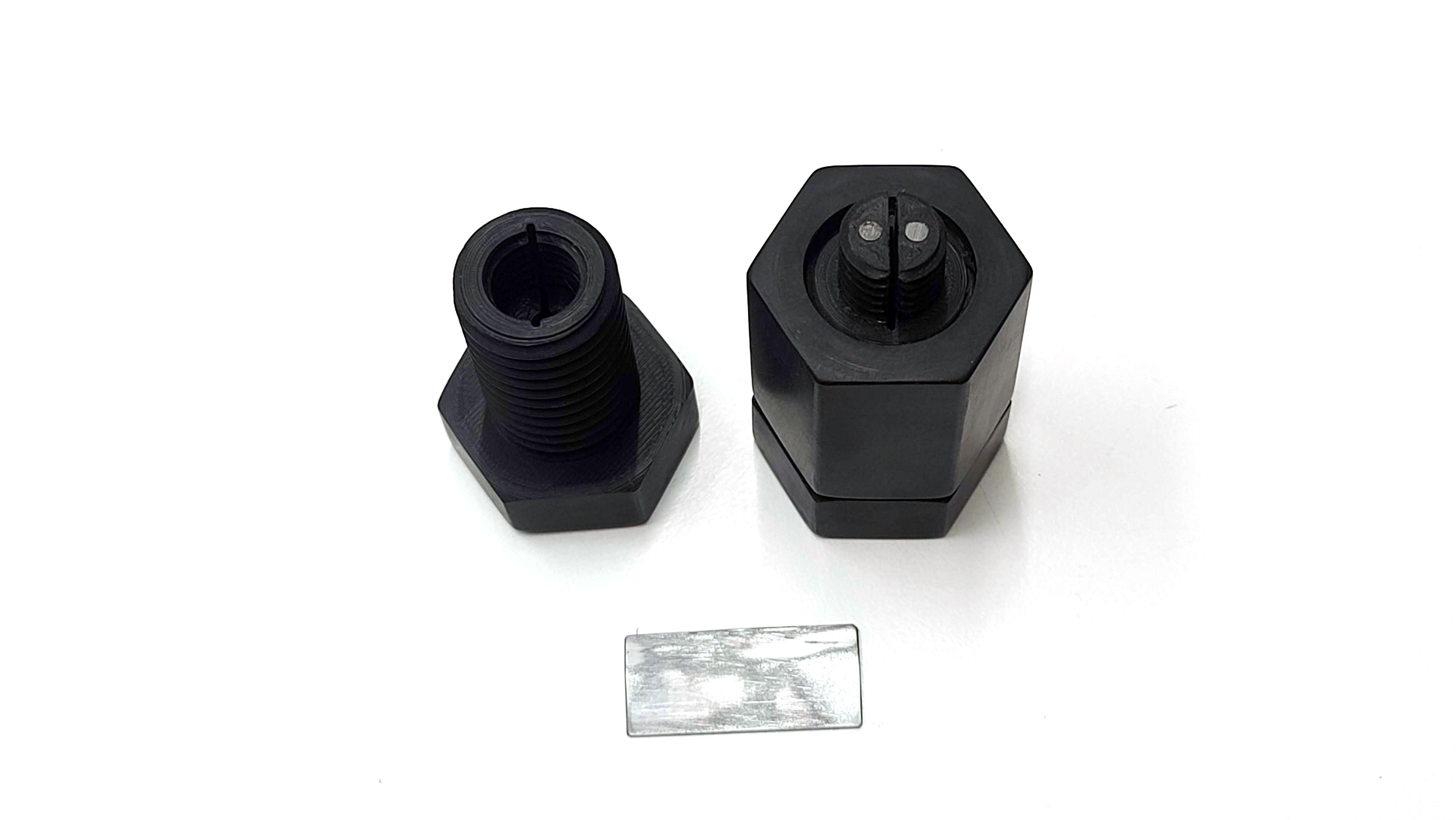

• Insert the locking plate into the half of the puzzle with the metal pins.
• Secure the second half of the puzzle through the left hand threads.
• Tip the puzzle so the locking plate slides against the magnet. You will hear a click when engaged.
• Rotate the coupling nut to any position on the puzzle.

Unlock:

• Rotate the coupling nut to the end of the puzzle with the metal rods.
• Tap the puzzle against your palm until you hear a click.
• Turn the bolt clock-wise until the two halves separate.

Print the four attached stl's:

• Locking Bolt
• Latching Bolt
• Coupling Nut
• 1 in. Socket

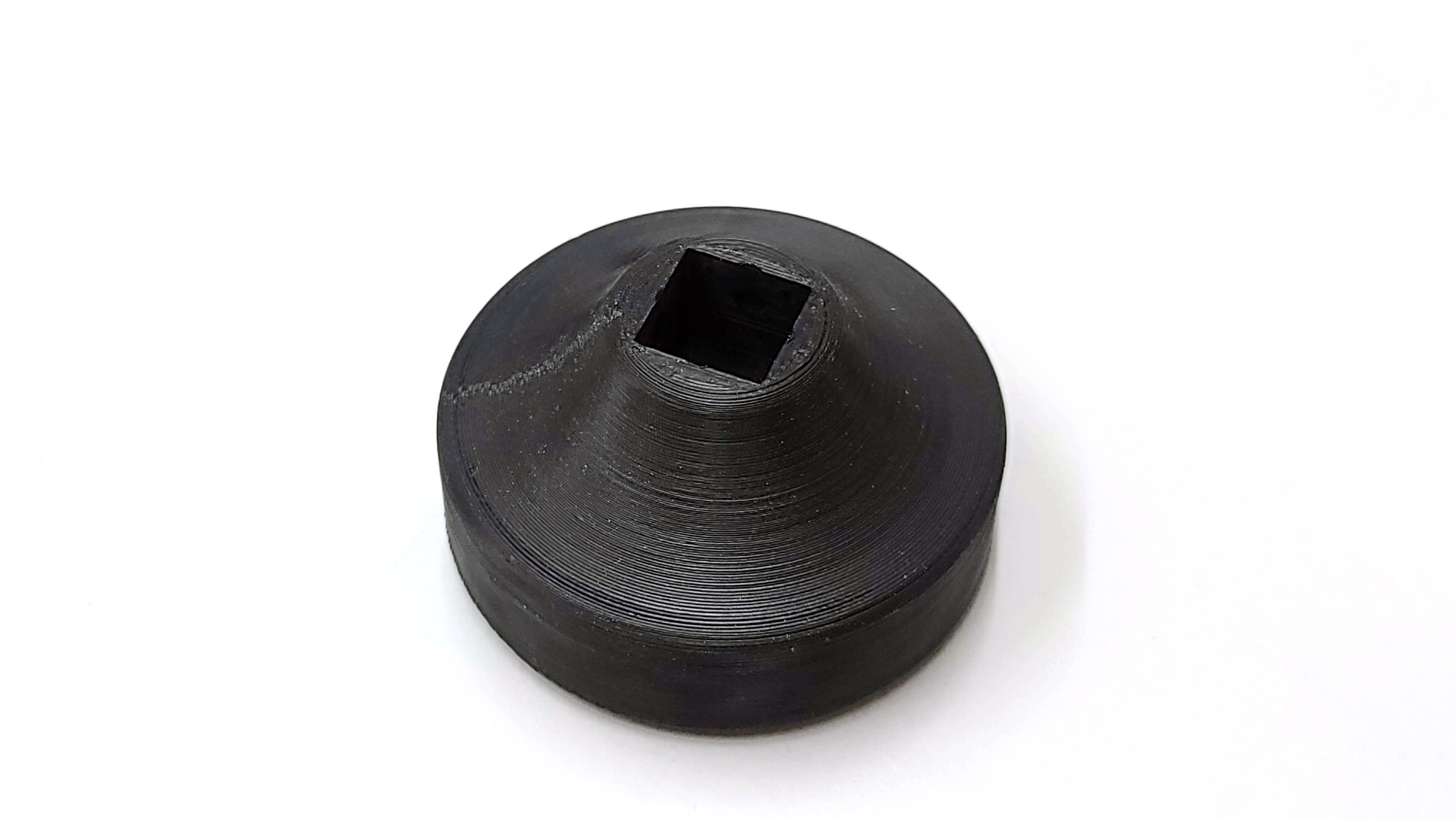

I didn't own a 1 in. socket so I simply printed my own that would fit on a 1/2 in. socket adapter.

Secure the 1 in. die in a vise. With the socket adapter, cut the threads to improve the look of them. This will also bring the threads into ASME standard specifications. Using mineral oil as a lubricant will result in something that has a nice matte finish and is safe to handle.

Holding the coupling nut in a vise, chase the threads using a 1 in. tap in a drill. Be sure to lubricate the tap with mineral oil.

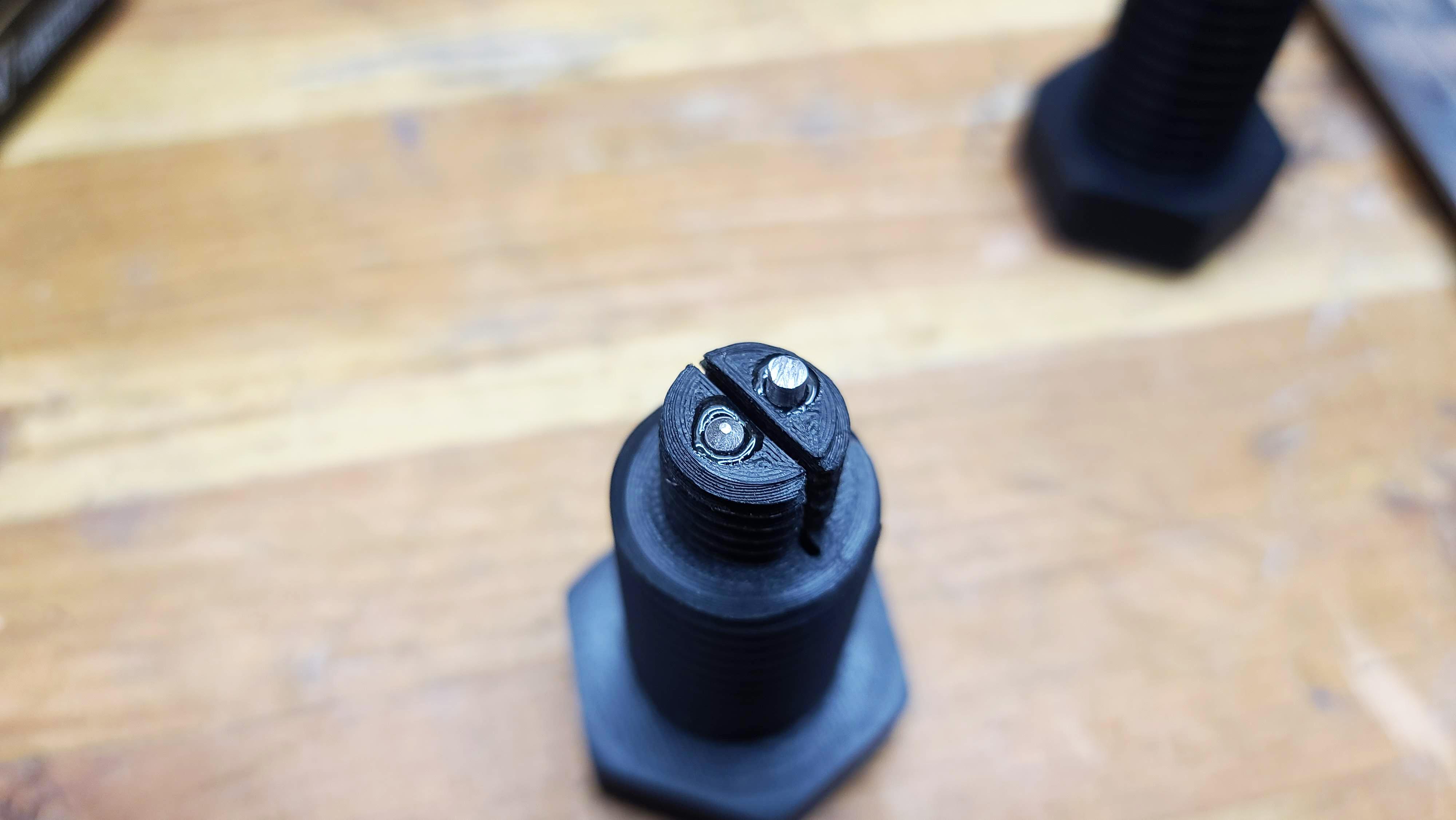

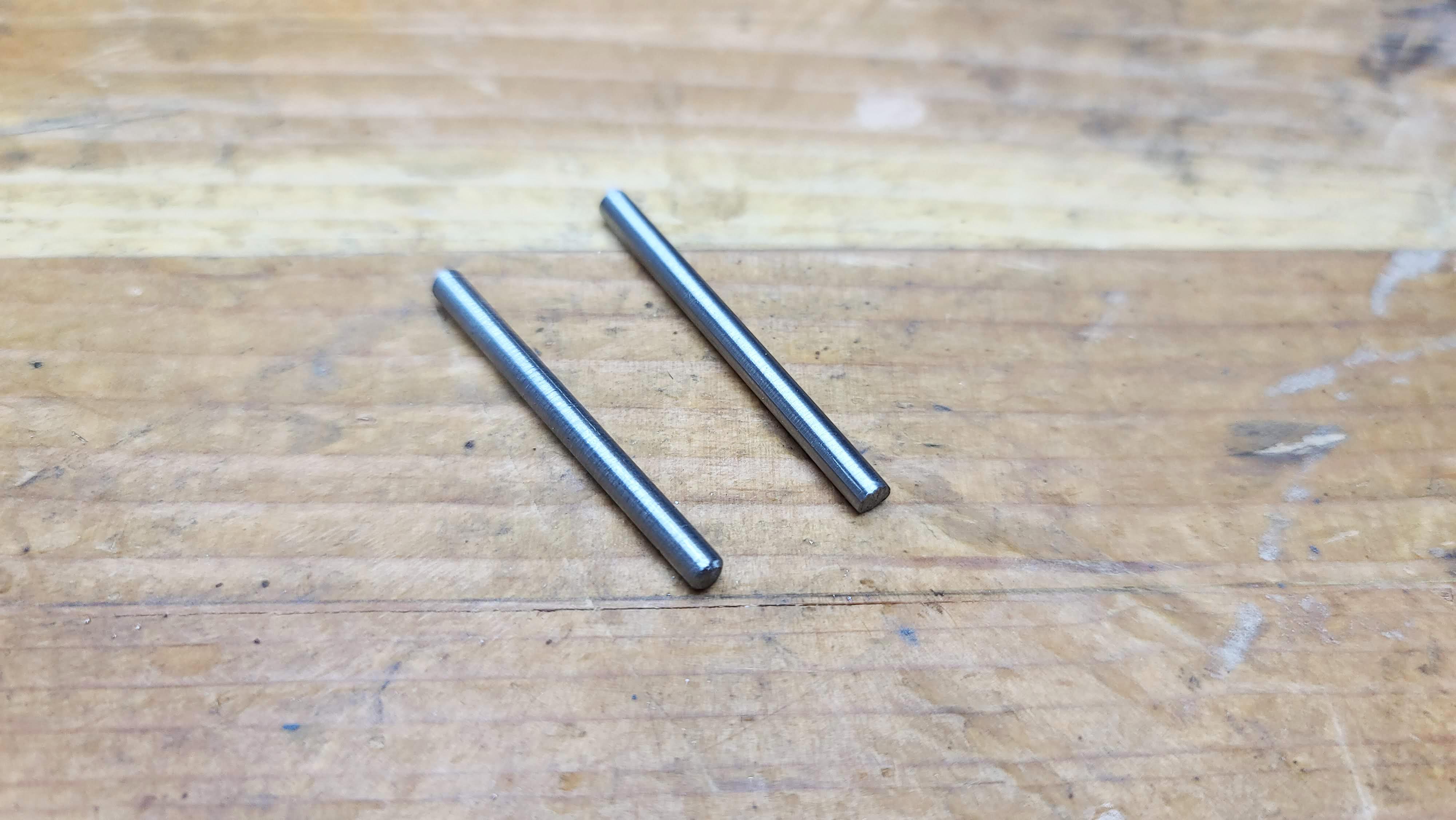

Cut two 1/8 in. rods to 1.75 in. in length. Apply epoxy to the rods and insert into the holes. Allow to dry.

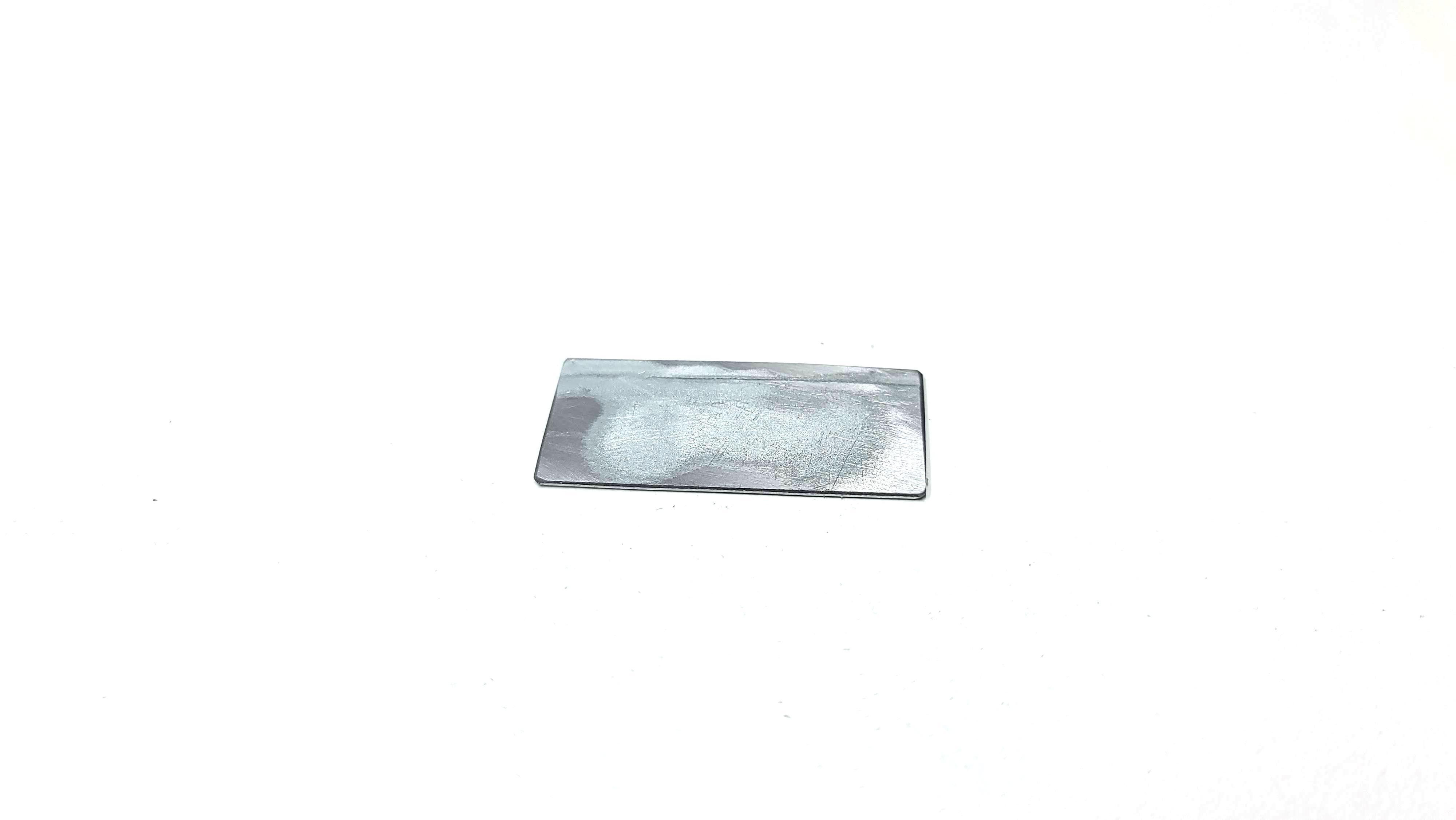

Cut the locking plate from roughly .035 in. thick metal. Anything from .030 to .040 should work. I cut my locking plate from a piece of thin angle iron. The angle iron was left over from installing a new garage door opener. The dimensions are 0.700 x 1.500 in.

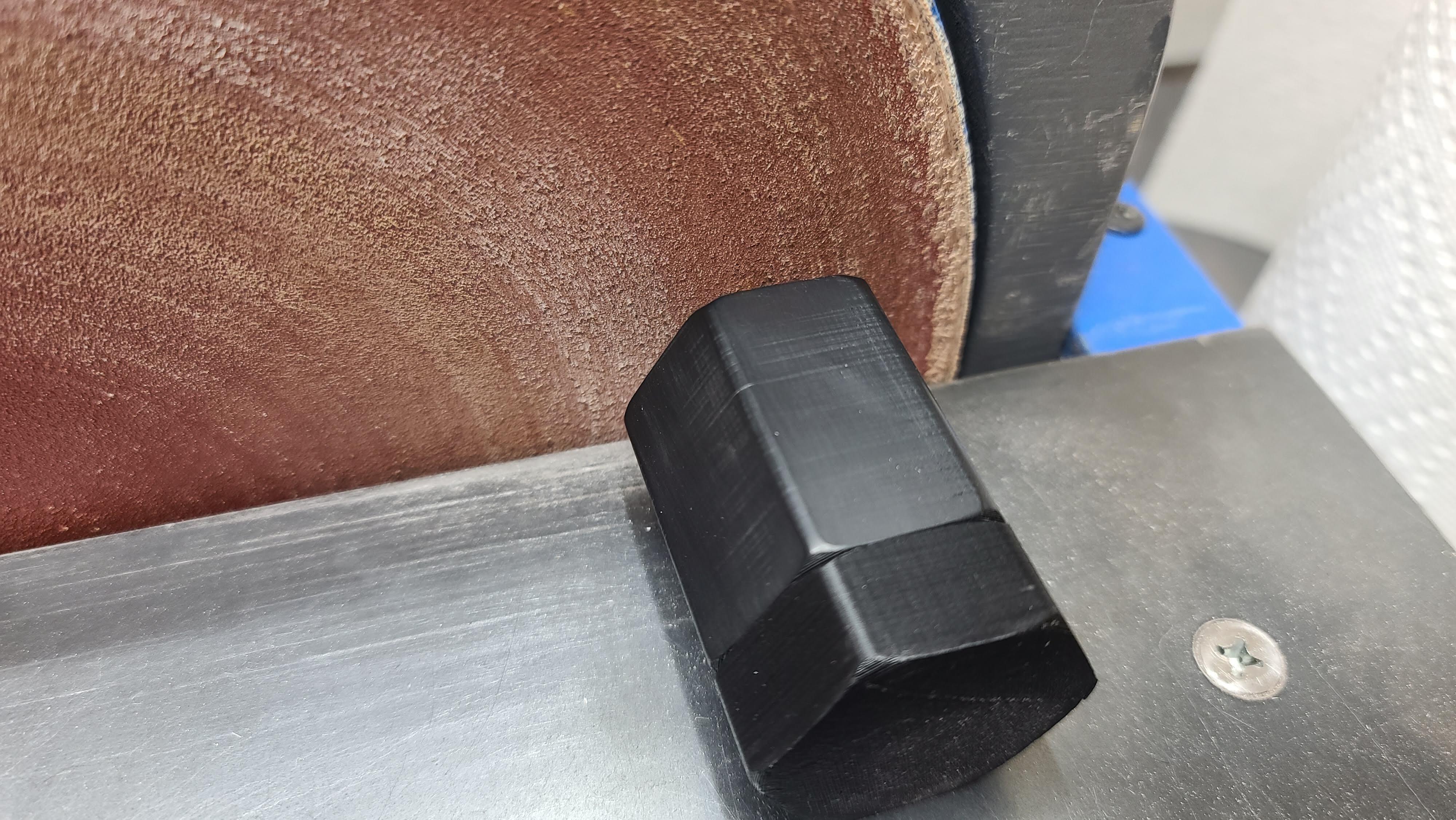

Using the coupling nut to stabilize the bolt, trim the excess rods with a disk sander. Be careful not to take off too much at a time to keep the part cool.

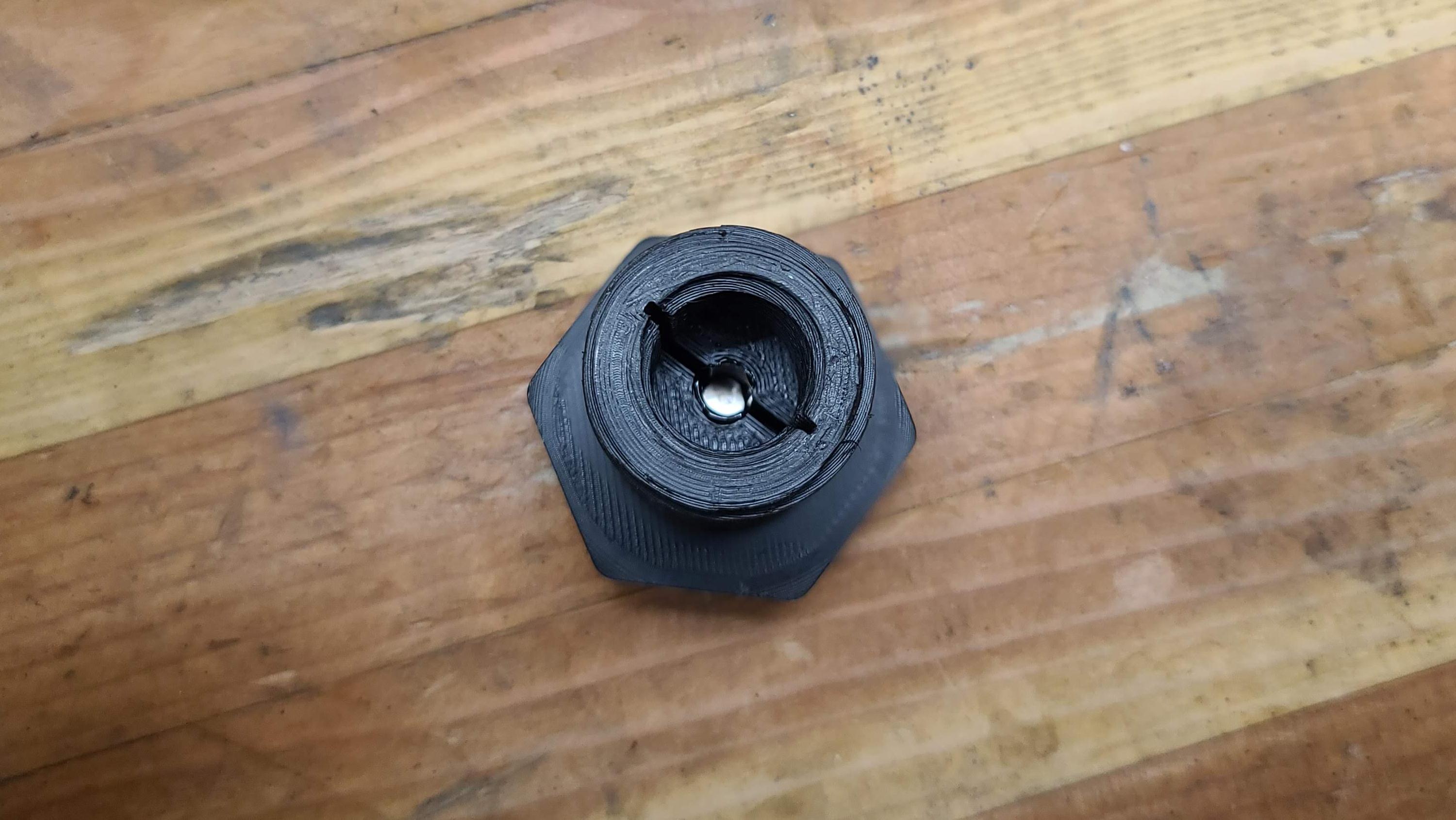

Epoxy the magnet into the other bolt and allow to dry. A small round metal rod (old bicycle spoke) was helpful for me to reach down into the hole to glue it in place.

I finished my puzzle using sandpaper (400-1200 grit) and mineral oil. This resulted in a wonderful matte finish that is smooth to the touch.

Take some time to admire your work. Now apply the engineering process to other designs and projects.
