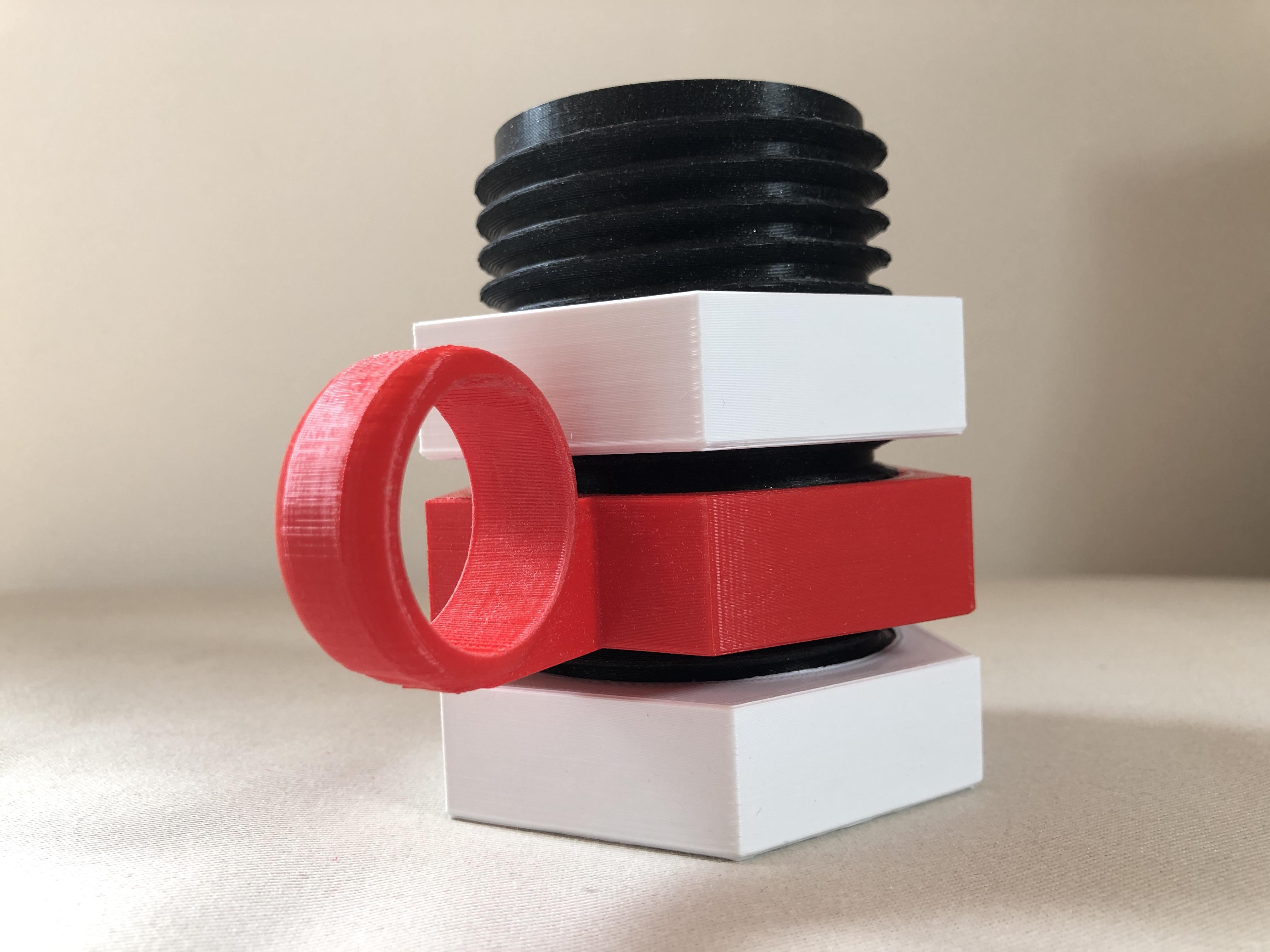

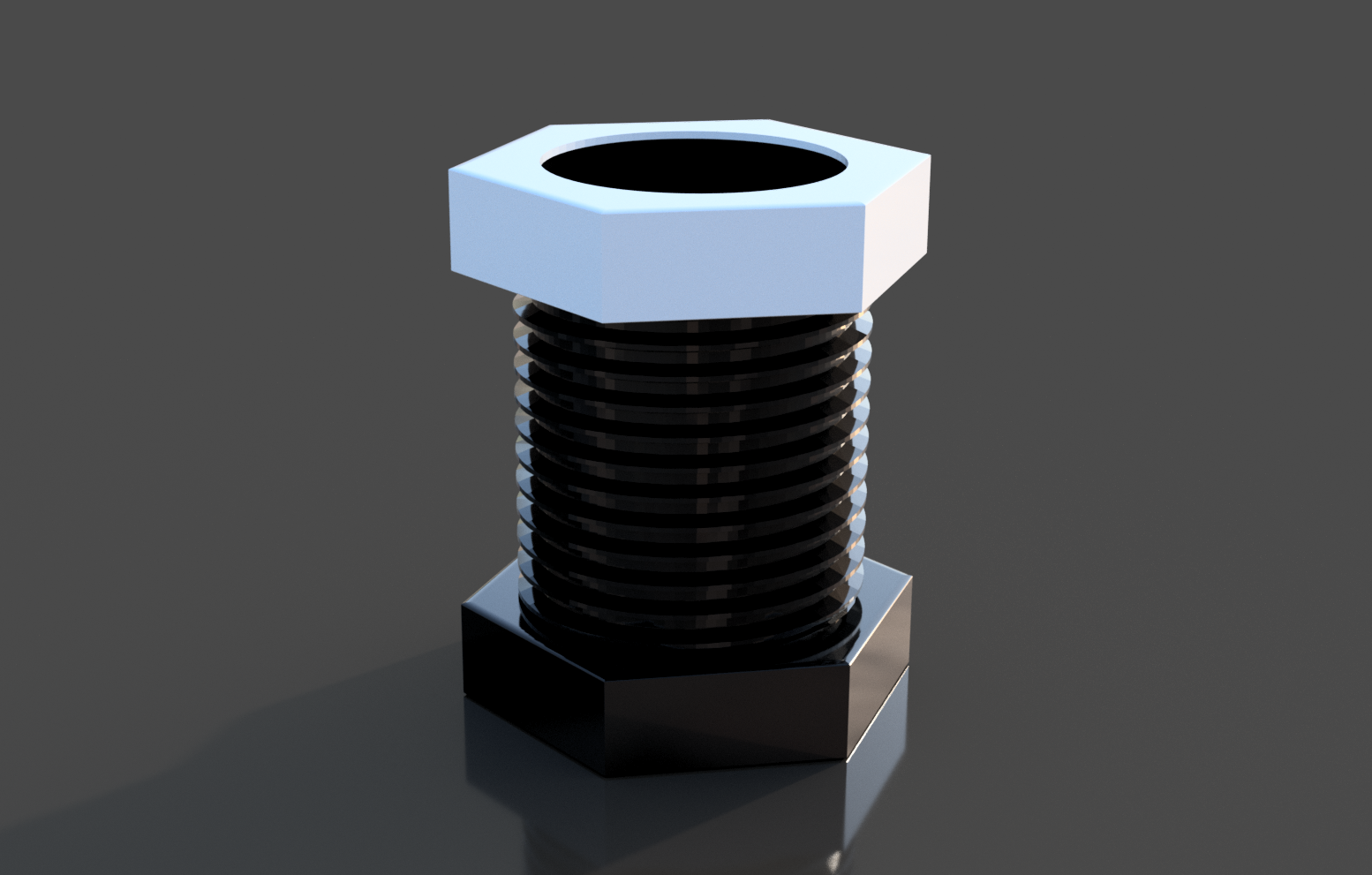

For a change something less complicated: No screws, no glue and no electrical wiring ... simply choose a colour combination from the available filaments and print out the desired parts!

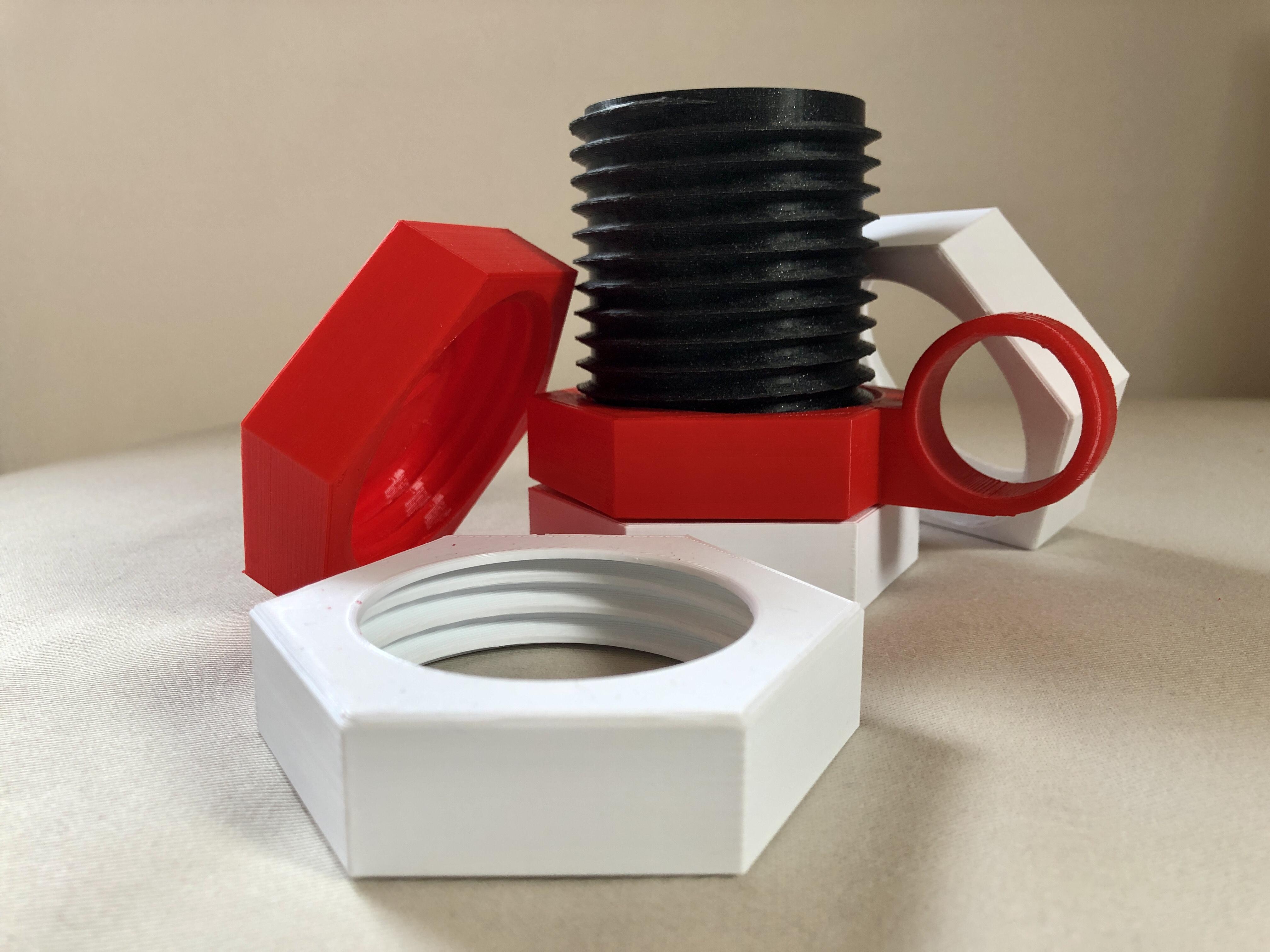

The set consists of a total of 7 individual parts. These parts can be combined and screwed together individually:
- Bolt - Cup
- Nut
- Nut - Bottom
- Nut - Top (closed lid)
- Nut - Handle
- Nut - Utensilo (open end without thread)
- Nut - Money Box
Regarding this project as a drinking utensil, it doesn't really want to be taken seriously … it's more something for the section curiosity or funny things.
Supplies
The following files for 3D printing are available:
BN_cup.stl
BN_nut_moneybox.stl
BN_nut_topbottom.stl
BN_nut_utensilo.stl
BN_nut.stl
BN_nuthandle.stl
After you have printed your parts ...
Remark: As all parts are designed to fit very precisely, it may happen that you have to rework one or the other part a bit with sandpaper and/or cutter due to different dimensional accuracy of the printers and the different behavior of the filaments.
Starter Set
![CT_cup.png](/proxy/?url=https://content.instructables.com/FRD/VXSE/KPV769PG/FRDVXSEKPV769PG.png&filename=CT_cup.png)
![CT_Steps_01.png](/proxy/?url=https://content.instructables.com/F1U/JJUJ/KPV76670/F1UJJUJKPV76670.png&filename=CT_Steps_01.png)
![CT_Steps_01a.png](/proxy/?url=https://content.instructables.com/F78/3J91/KPV7667M/F783J91KPV7667M.png&filename=CT_Steps_01a.png)
Starter set consisting of "CT_cup.stl" and "CT_nut_topbottom.stl". As an additional "decoration" you can add "CT_nut.stl" - as for all other variations.
Container With Closed Lid
![CT_Steps_02.png](/proxy/?url=https://content.instructables.com/FEK/DJVF/KPV76678/FEKDJVFKPV76678.png&filename=CT_Steps_02.png)
![CT_Steps_02a.png](/proxy/?url=https://content.instructables.com/F35/72BN/KPV7667O/F3572BNKPV7667O.png&filename=CT_Steps_02a.png)
As container to close, consisting of "CT_cup.stl" and 2x "CT_nut_topbottom.stl".
Cup With Handle
![CT_Steps_03.png](/proxy/?url=https://content.instructables.com/FAG/P57E/KPV7667L/FAGP57EKPV7667L.png&filename=CT_Steps_03.png)
![CT_Steps_03a.png](/proxy/?url=https://content.instructables.com/F1T/ZFGB/KPV7667P/F1TZFGBKPV7667P.png&filename=CT_Steps_03a.png)
![IMG_3293.JPG](/proxy/?url=https://content.instructables.com/F9A/XFIB/KPV768MR/F9AXFIBKPV768MR.jpg&filename=IMG_3293.JPG)
![IMG_3294.JPG](/proxy/?url=https://content.instructables.com/FSU/GJHH/KPV768MS/FSUGJHHKPV768MS.jpg&filename=IMG_3294.JPG)
As a cup (for drinking, if the filament is waterproof, heat resistant and harmless to health) or just as a gag, consisting of "CT_cup.stl", "CT_nut_topbottom.stl" and "CT_nuthandle.stl". You can also close the cup with another "CT_nut_topbottom.stl".
Money Box
![CT_Steps_04.png](/proxy/?url=https://content.instructables.com/F8E/ST47/KPV7667Y/F8EST47KPV7667Y.png&filename=CT_Steps_04.png)
![CT_Steps_04a.png](/proxy/?url=https://content.instructables.com/F61/SPWR/KPV7667Z/F61SPWRKPV7667Z.png&filename=CT_Steps_04a.png)
![IMG_3289.JPG](/proxy/?url=https://content.instructables.com/FJL/HI45/KPV768M6/FJLHI45KPV768M6.jpg&filename=IMG_3289.JPG)
As money box, consisting of "CT_cup.stl", "CT_nut_topbottom.stl" and "CT_nut_moneybox.stl".
Desk Organizer
![CT_Steps_05.png](/proxy/?url=https://content.instructables.com/F4J/QKFS/KPV7667N/F4JQKFSKPV7667N.png&filename=CT_Steps_05.png)
![CT_Steps_05a.png](/proxy/?url=https://content.instructables.com/F07/RVDH/KPV7667V/F07RVDHKPV7667V.png&filename=CT_Steps_05a.png)
![IMG_3288.JPG](/proxy/?url=https://content.instructables.com/FY5/U79H/KPV768M4/FY5U79HKPV768M4.jpg&filename=IMG_3288.JPG)
As desk organizer, consisting of "CT_cup.stl", "CT_nut_topbottom.stl" and "CT_nut_utensilo.stl".
Have fun printing and screwing!
