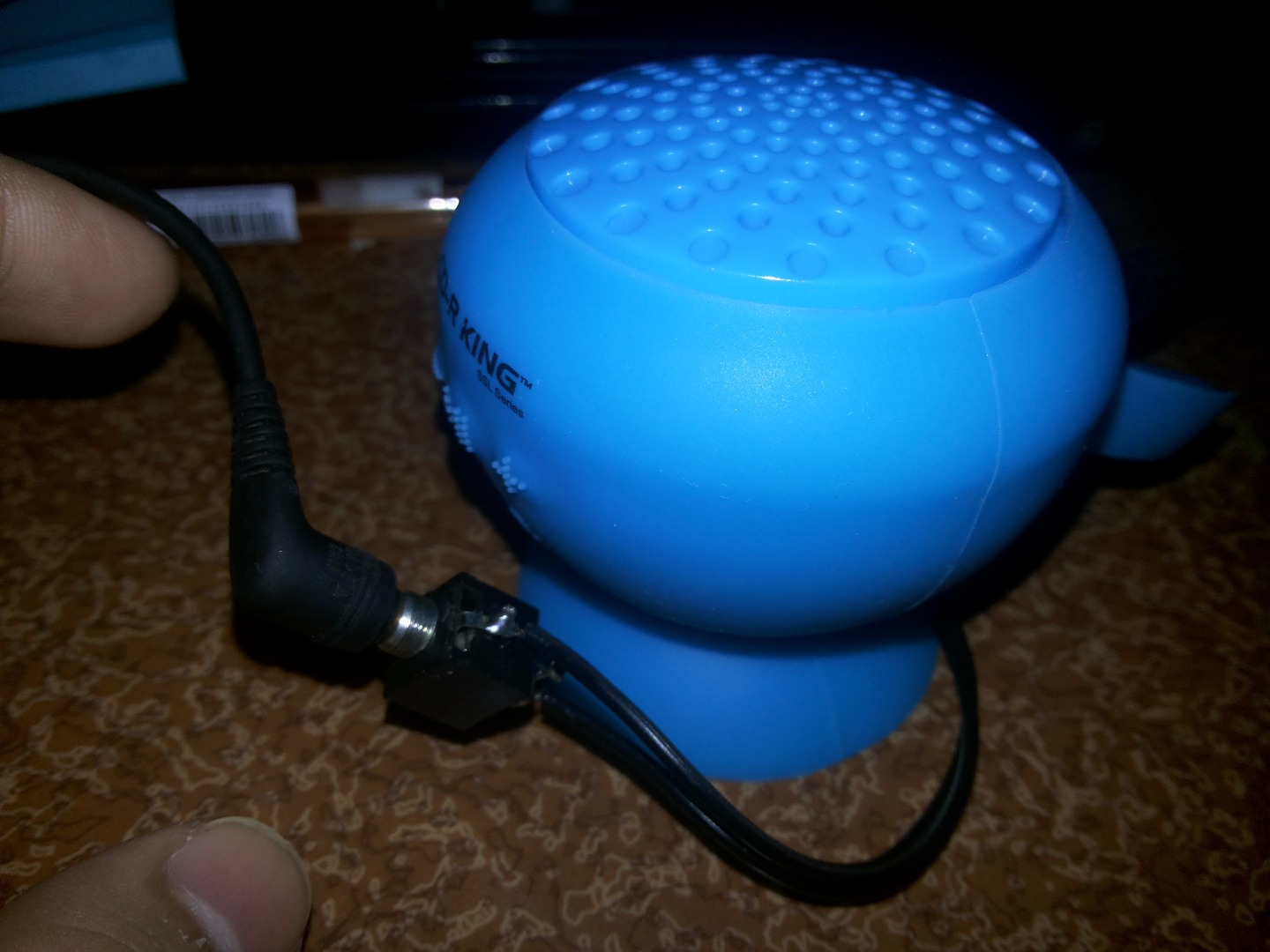

Bluetooth Mod - Line Out for EXTERNAL AMPLIFIER

You Probably have a old bulky speaker or a ordinary speaker that has AUXILIARY PORT.

You want to stream to SPOTIFY OR PANDORA or watch NETFLIX with your SMARTPHONE or LAPTOP Wirelessly Without Thinking Much of Wires.

OR YOU JUST WANT TO WIRELESSLY PRANK OR SCARE YOUR FRIEND IN A ROOM W/ YOUR AMPLIFIER.

I Have a cheap solution for you.

EVERYONE LOVE MUSIC!!!

Materials

• Any Cheap Bluetooth Speaker or Earpiece - 300 PHP or 7$
• Some Wires - FREE - Salvage
• Inline 3.5mm Female Audio Socket or RCA-FREE -SALVAGE

Tools

• Soldering Iron
• Multimeter
• ScrewDriver
• EYES!!!!!!!

Open the Enclosure

use your Screwdriver loose all the screw you see.

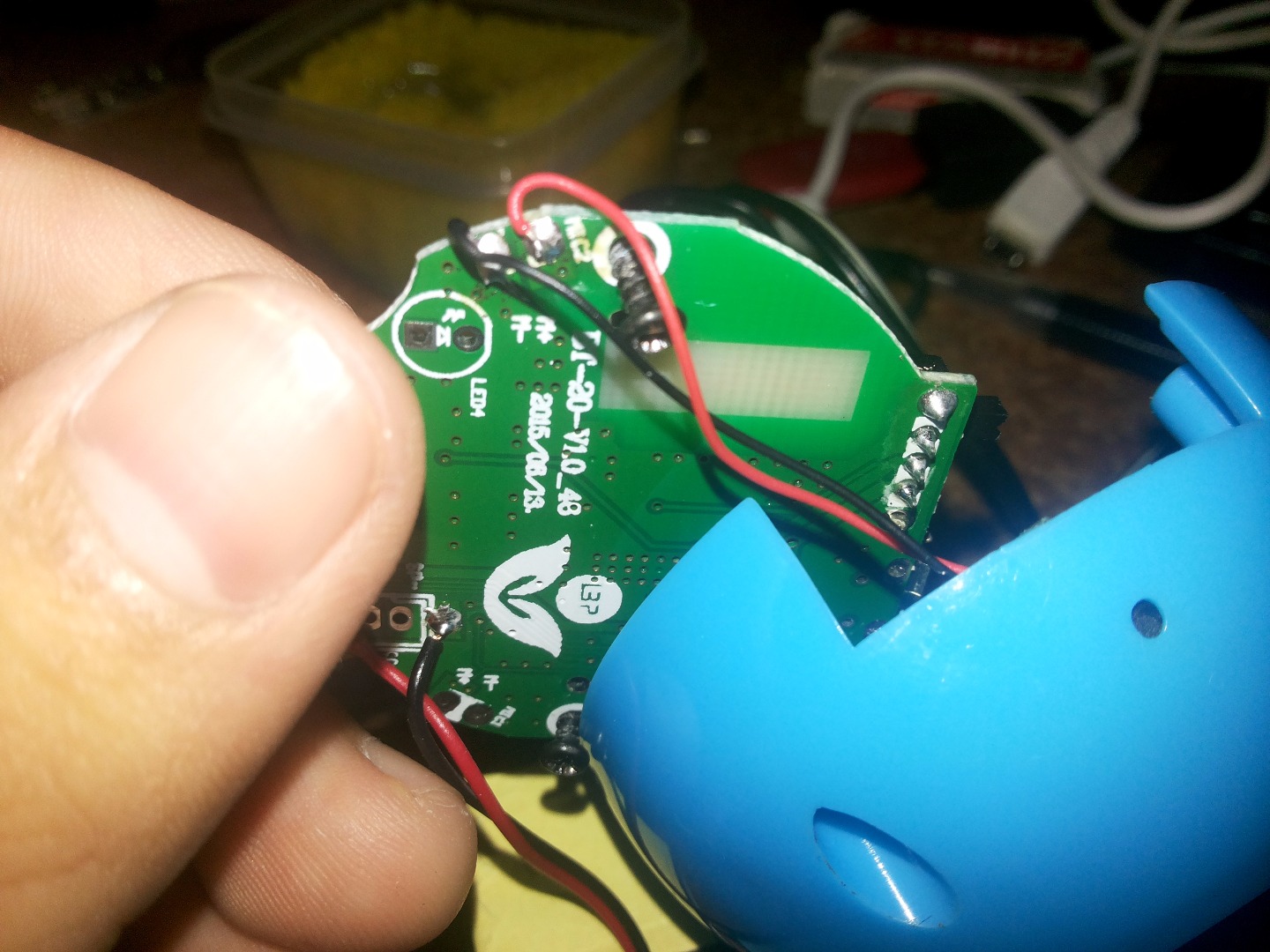

Identify the Audio Output of the Bluetooth Module

All Bluetooth Speaker or earpiece has A Bluetooth Module and Amplifier Module.

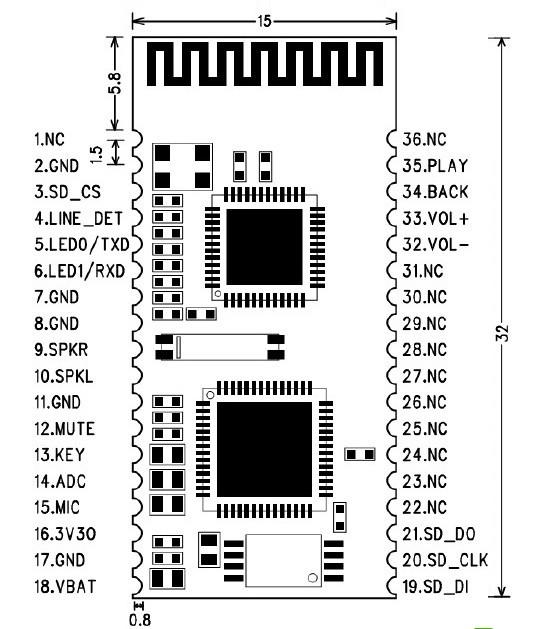

SOMETIMES IT'S A STEREO TYPE BLUETOOTH MODULE LIKE Blk-MD-SPK-D BUT IT'S JUST THE SAME PROCEDURE.

you must find it's datasheet to identify Where are the trace of Audio out of the Bluetooth Module and the Audio in of the Amplifier.

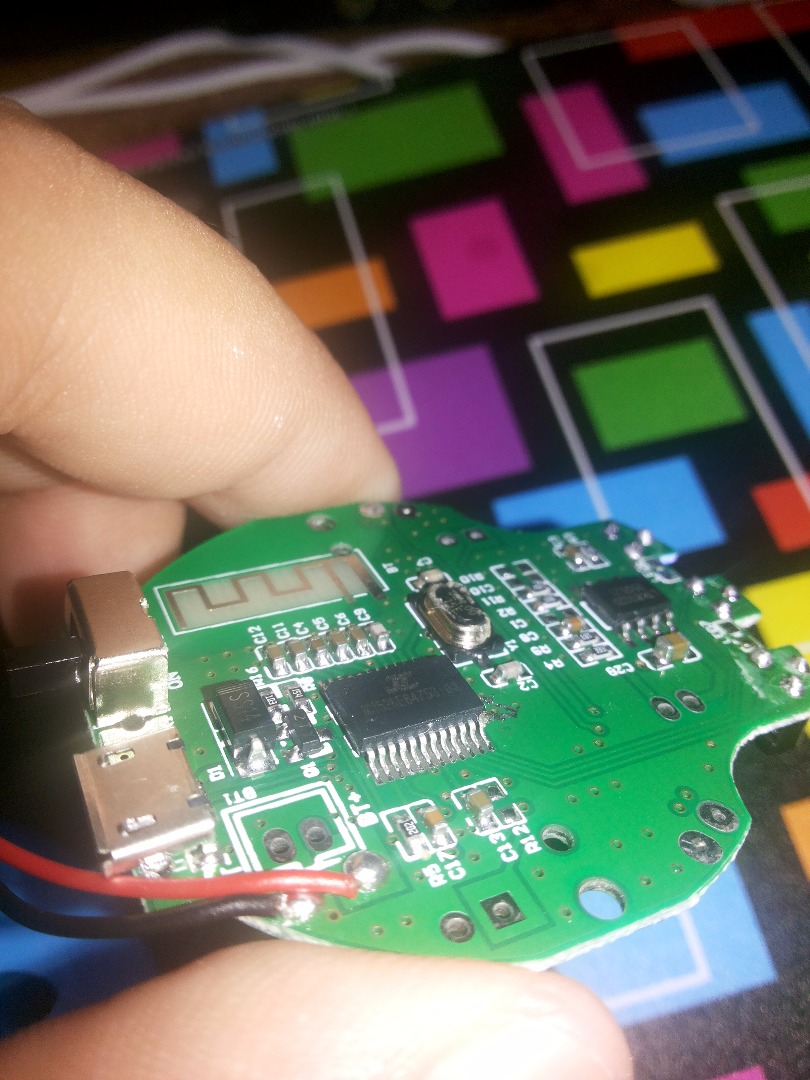

Example in my case i Have a AC1526E64753 Bluetooth Module Which i couldnt Find it.

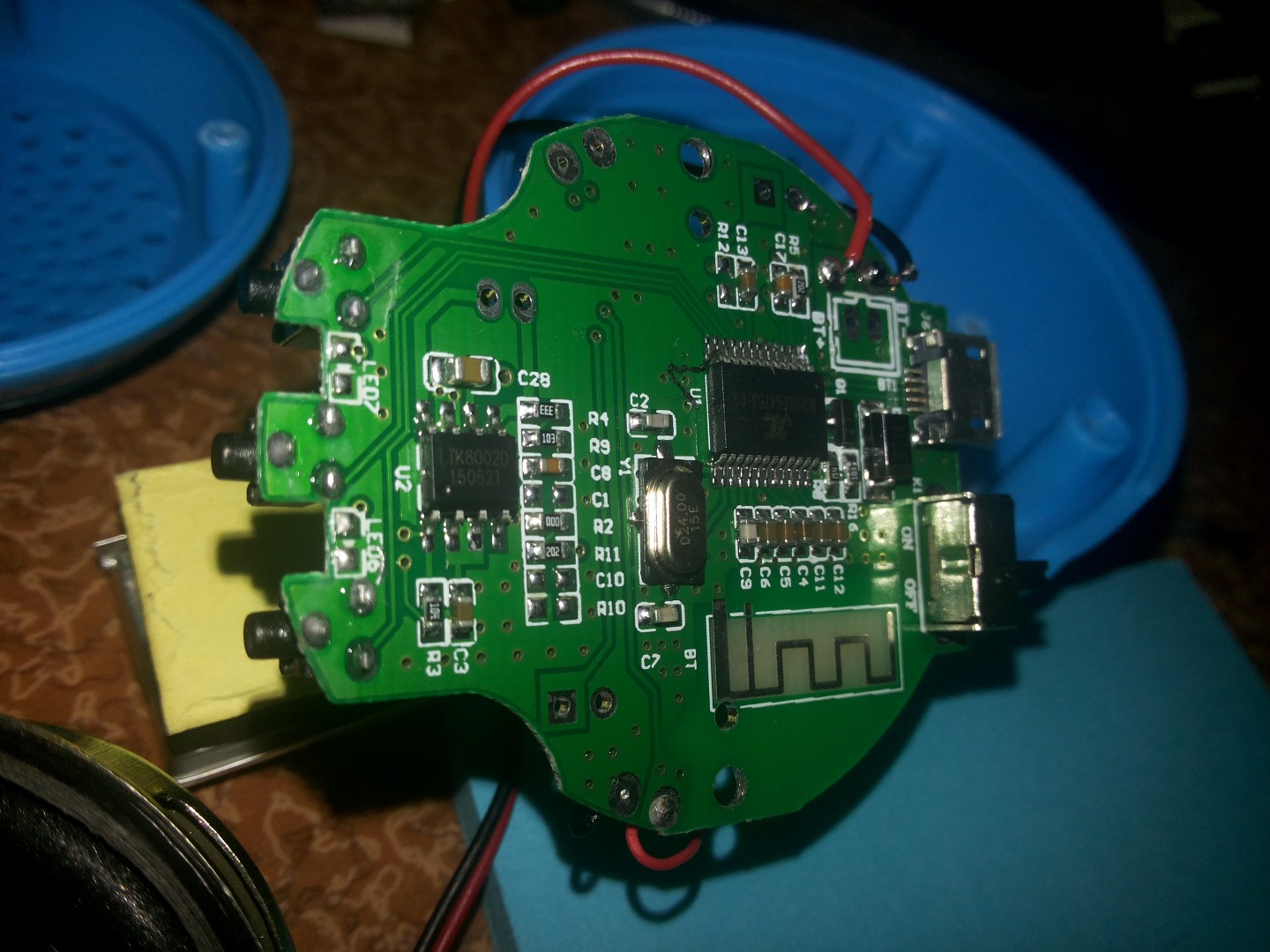

So Second option Find the Audio input of the Amplifier in my case Ltk8002 a Class ab Amplifier that has audio input in pin 4 so you need to trace it back to the BLUETOOTH MODULE to get the RAW SOUND W/O Filtered by the resistor and capacitor in Amplifier USING YOUR MULTIMETER.
