Bluetooth Cocktail Mixer

This is a cheap cocktail mixer to solve you party problems the Arduino way

The setup basically consists of a nano, two water pumps, HC 05 BLE device and a bit of coding ! So lets jump right into it !

1. air pump x 2

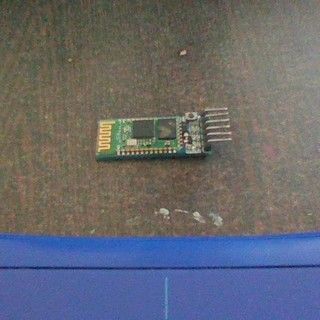

2. hc 05 (BLE)

3. prototype board

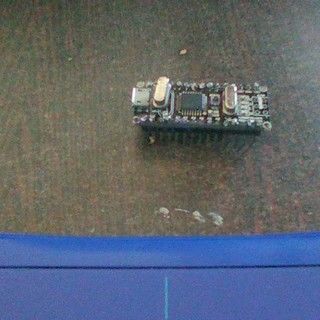

4. arduino nano v3 5. screw headers

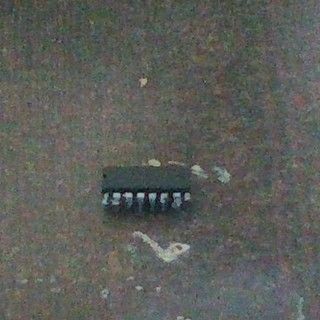

6. l293d H bridge motor driver

7. silicone tubing or a metal tube

8. L joints and screws

9. thermocol

10. glue gun

11.2 usb cables

12.cardboard

13. computer(to run arduino)

14.scissors and cutter

15. L joints (for pipe)

16.power bank(to power the arduino 17.breadbord

18. 2 9v battery

19. air pump x 2

20. male to male jumper cables

This is a Bluetooth controlled mocktail mixer.The app that I will be using is RemoteXY

I couldn't find peristaltic pumps for cheap in amazon so, I went with the cheaper submersible water pump

* WORKING*

1. When a Bluetooth command is sent to the HC 05, the arduino processes it and sends a command to the H bridge motor driver to activate the pump for a certain duration.

2. Then the second beverage is added by the same method

* The arduino can be programmed to make different mocktails

So I , planned to use cardboard available at my local craft supply store you could 3d print it or even use thermocol or other types of foam.

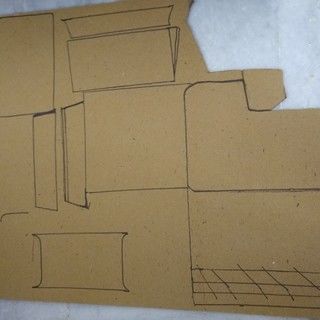

you can also make your own housing that fits your needs.... the template is too big to print so i have attached the markings on the chart paper

Remotexy is a wonderful app that will solve all your arduino and wireless connectivity needs.the website provides you the source code, provides you with a personalized app and helps you understand Bluetooth connectivity.

Download the app RemoteXY on the play store or app store for free, turn on Bluetooth an add HC 05 (P.S. It takes at least 2 minutes for the app to recognize the module ).

click the ' +' sign on the top right corner of the remotexy home screen an click add 'bluetooth devices' and choose HC-05

here's the link to the editor: http://remotexy.com/en/editor/

bluetooth ---> arduino

tx ----> rx

rx ----> tx

gnd ----> gnd

vcc ----> 3.3v

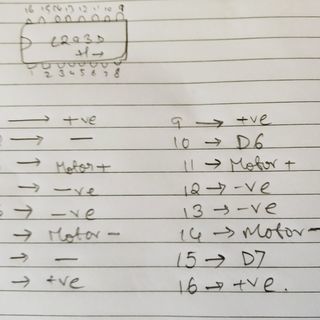

The l293d pins are defined based on the picture above (pins 1- 16)

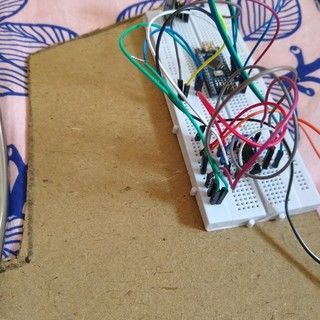

Now as the we are done with the hardware and wiring, lets get started with the programming

download the code given below and upload it into your arduino nano/uno

download it and go to sketch > include library >add zip library and choose remotexy.

youll need winRAR to open this type of file so.....download winRAR.

They have a free 60 day unlimited trial pack ;-)

http://remotexy.com/en/library/ (THE LINK)

Wiring was like a breeze, but the housing was difficult to make as I do not own a 3D printer and the cardboard I used was pretty difficult to cut

Nevertheless, it was done and please watch the you tube video and don't forget to subscribe to my channel I also threw in a Bluetooth speaker into the housing for an enhanced party experience!
