Bluetoot Speaker Boombox With HM-M18 Bluetooth Audio Module

In this tutorial I would like to show you how to make a simple Bluetooth Boombox with HM-M18 bluetooth module. HM-M18 is the cheapest bluetooth audio module with a nice feautres. Also this module is well known by the diy network.

• HM-M18 Bluetooth Module

• Amplifier Module PAM8403 2x3W

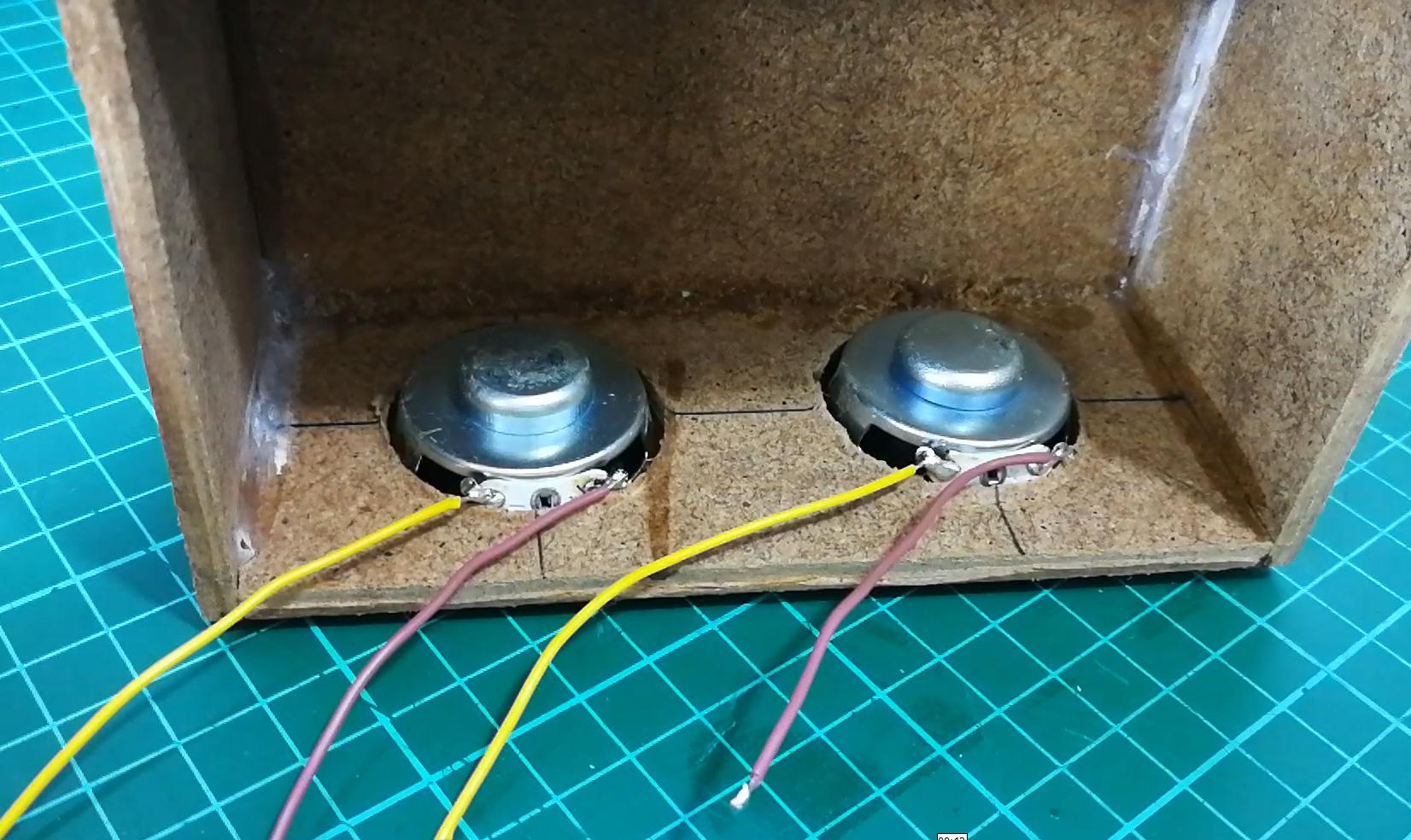

• 2x Speaker 3W 4Ohm

• Push/Push On/Off Switch

• 4mm MDF Sheet

• 5V 18650 Power UPS + 18650 Battery

• Eva Foam Coating

You may cut MDF Plate with a utility knife and glue with double component adhesive. You can apply your own model in the dimensions you want.

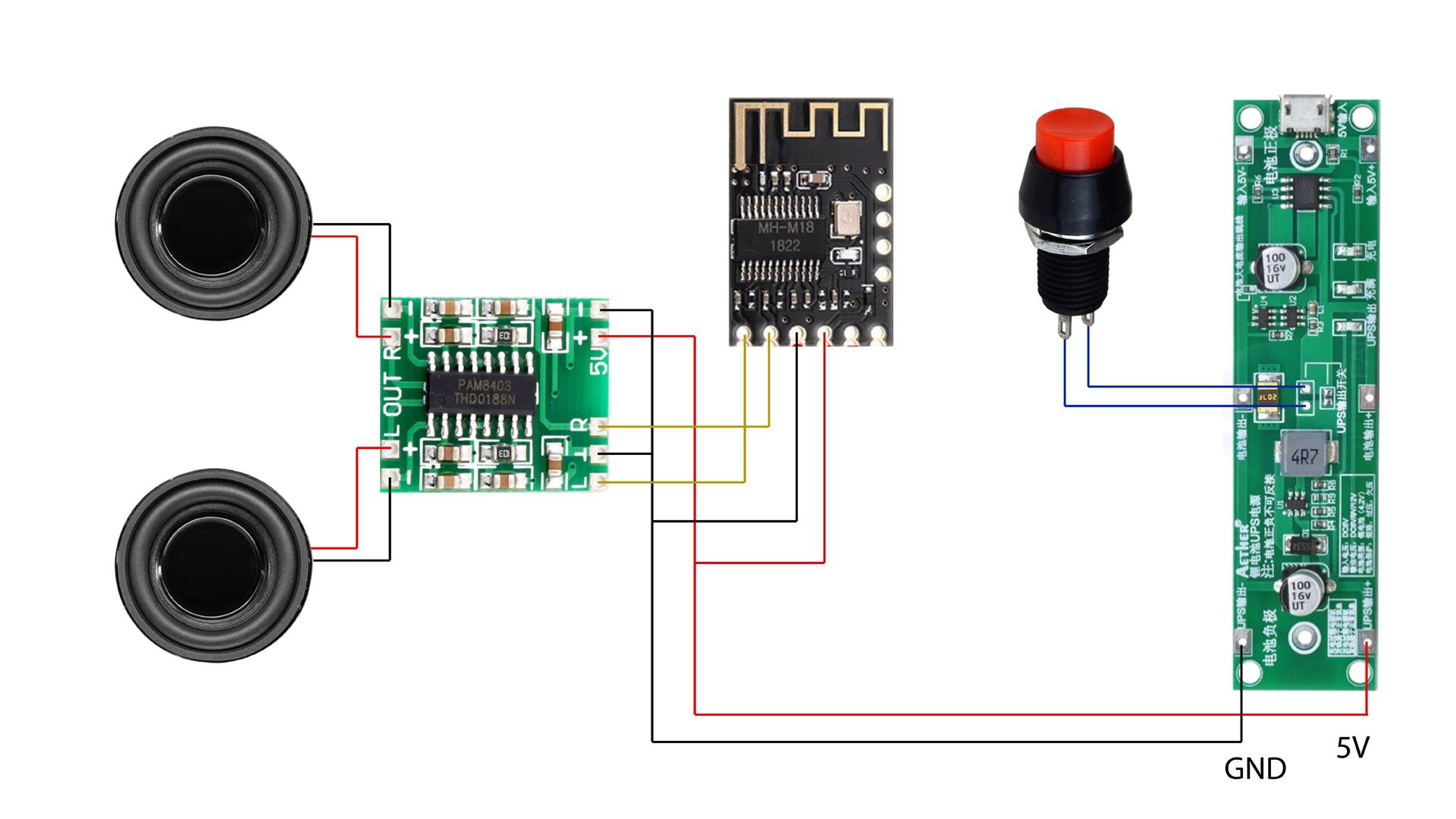

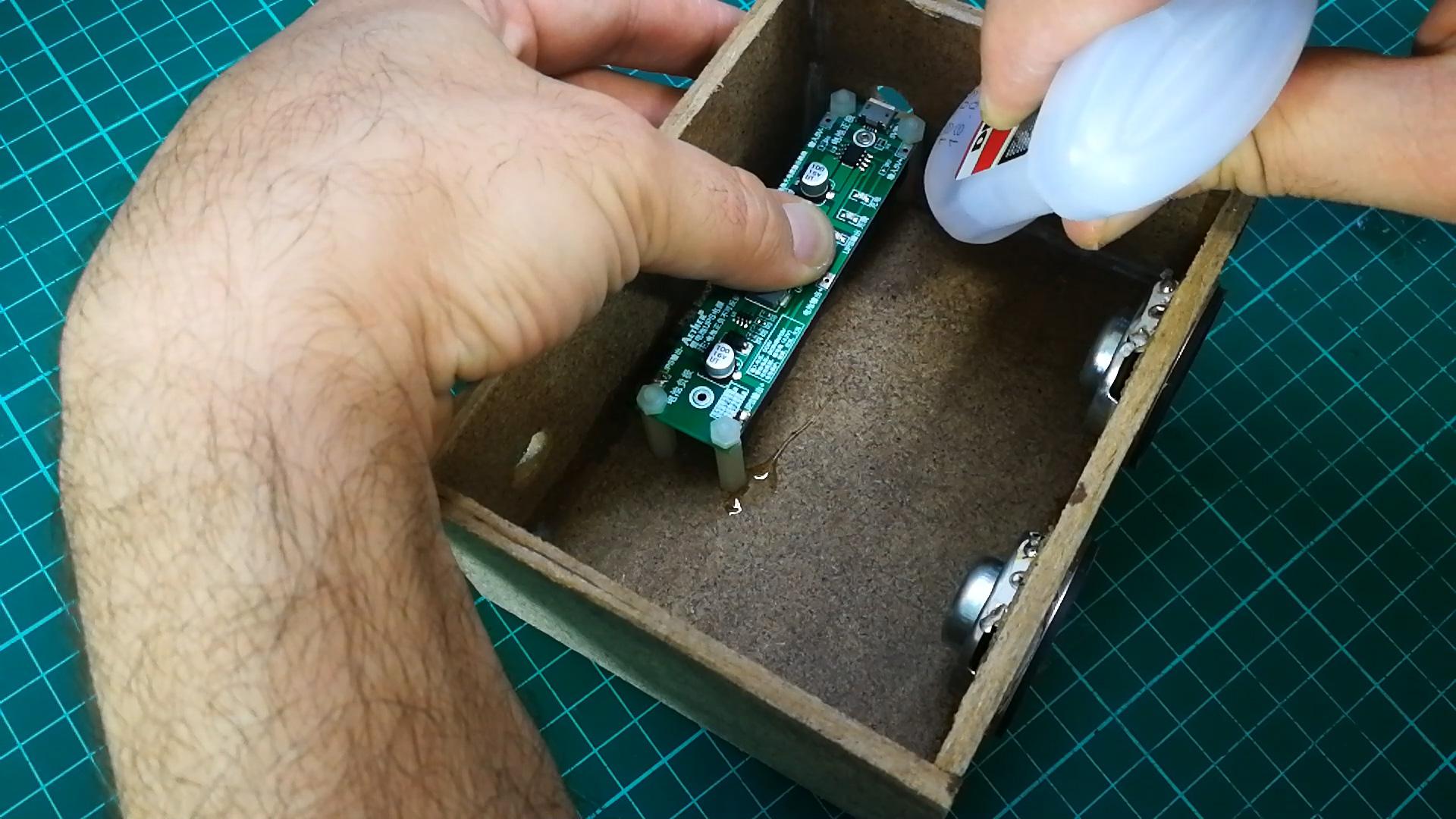

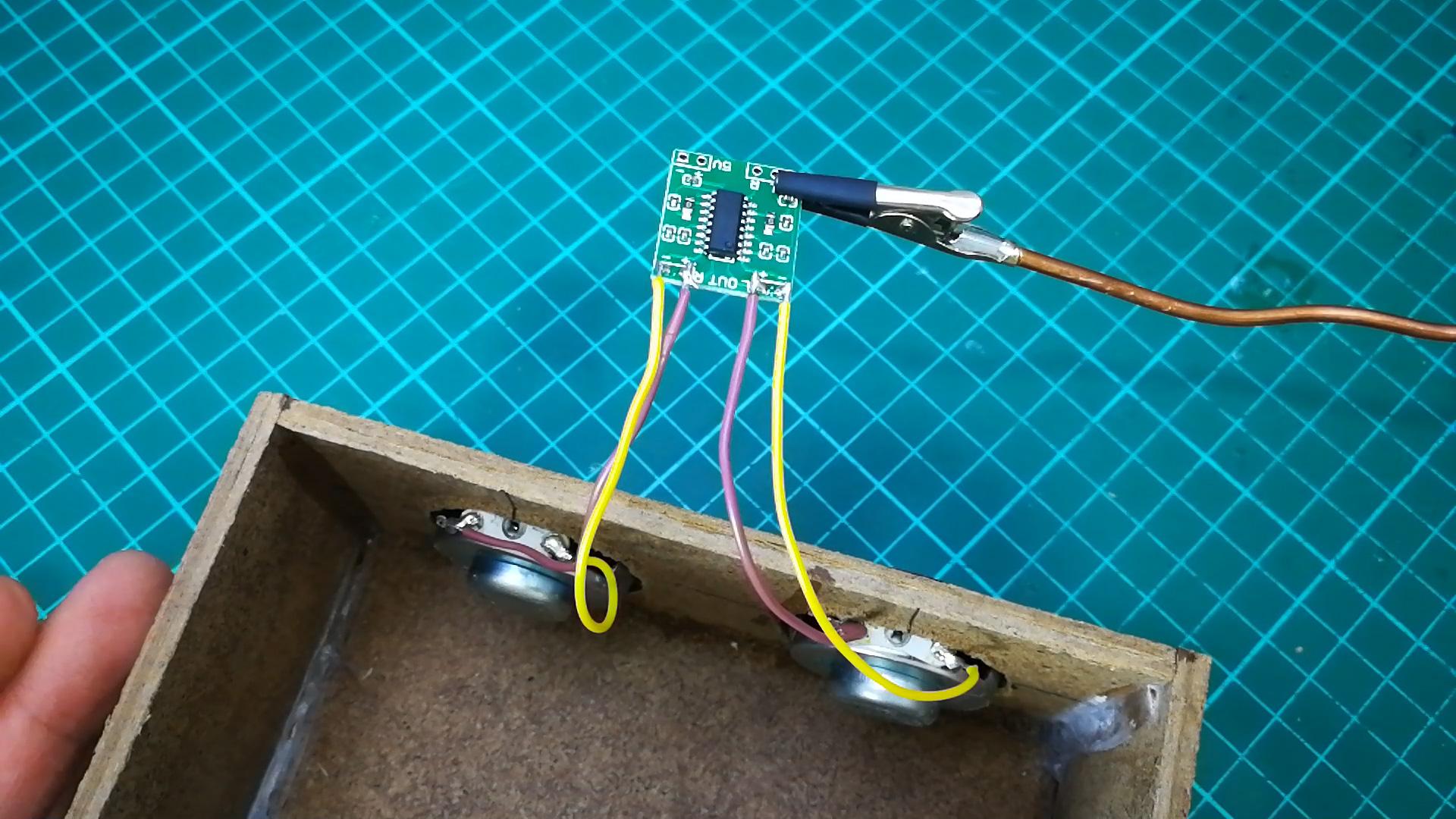

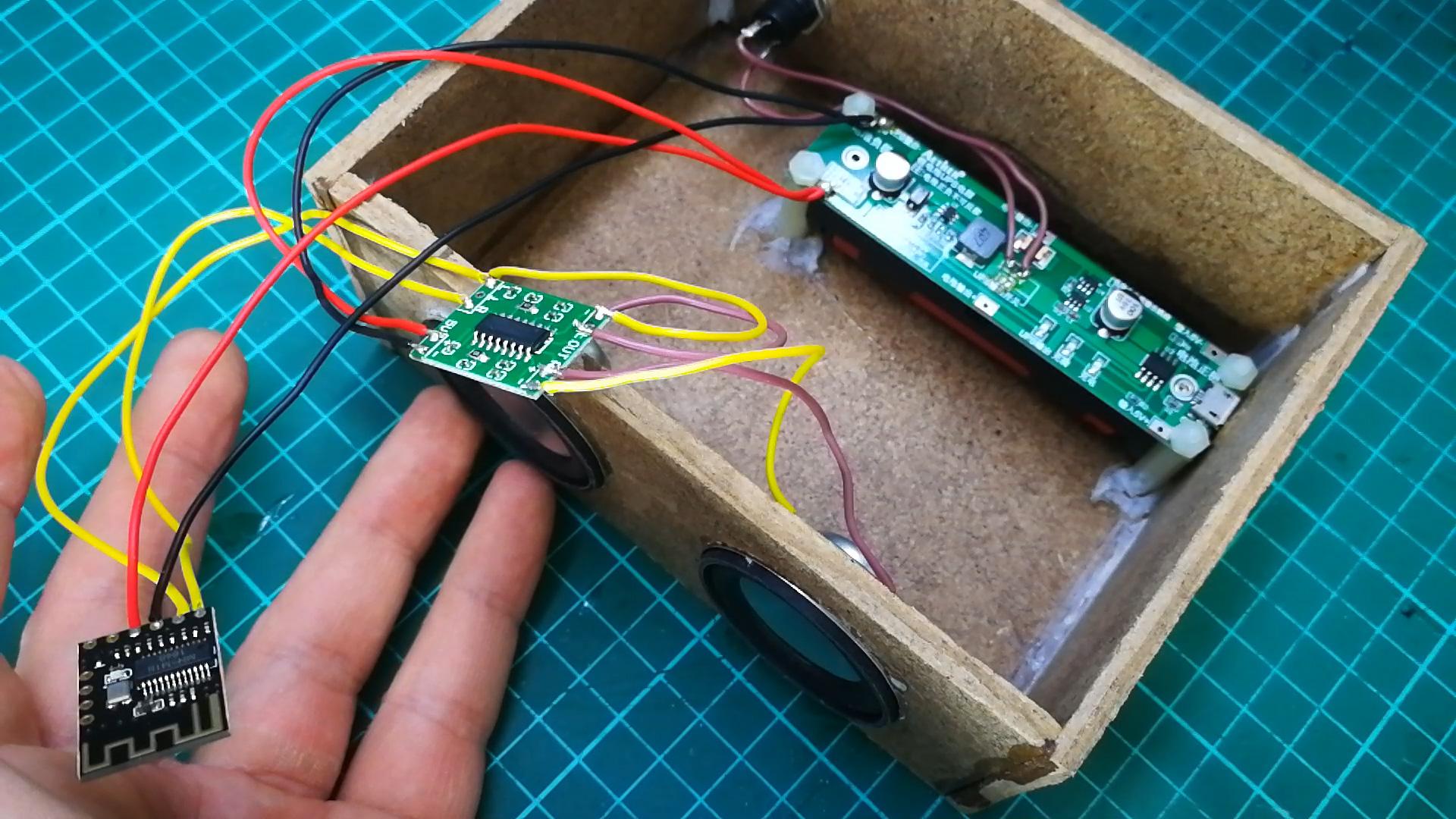

Assembling to modules according to schematic diagram.

Cut eva foam and glue on enclosure.
