Blinkytile Flower Backbag

led back bag - 9.jpg

What you can make with Blinkytile Expansion Pack?

I made a flower for my orange back bag.

Materials

led back bag - 1.jpg

led back bag - 3.jpg

Screen Shot 2016-02-23 at 12.50.55 AM.png

Screen Shot 2016-02-23 at 12.55.38 AM.png

1. back bag

2. some lanyard buckle clips

3. Blinkytile : need 31 tiles (WS2822 addressable leds)

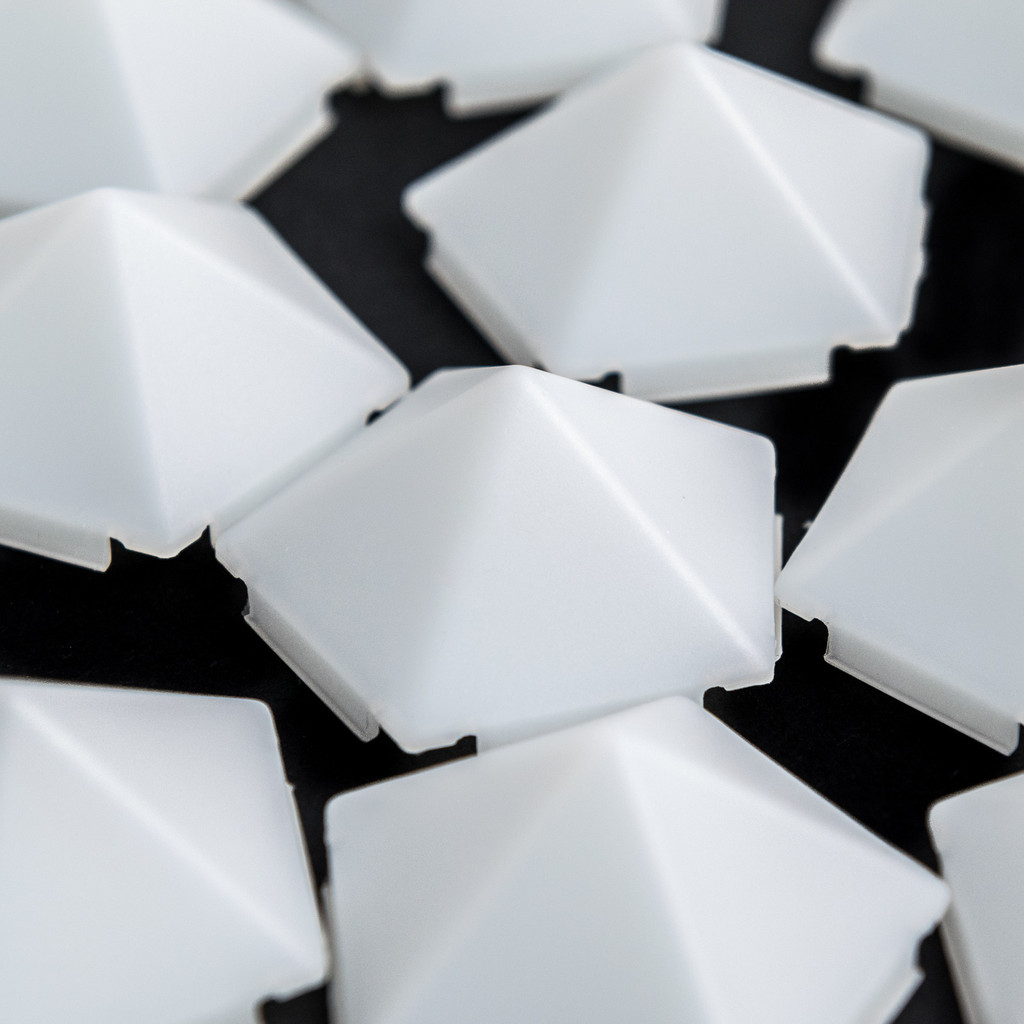

4. diffussers: 31 pces

5. Lightbuddy LED controller, from BlinkyTile Light Sculpture Kit

6. data cables

7. USB power bank

8. micro usb cable

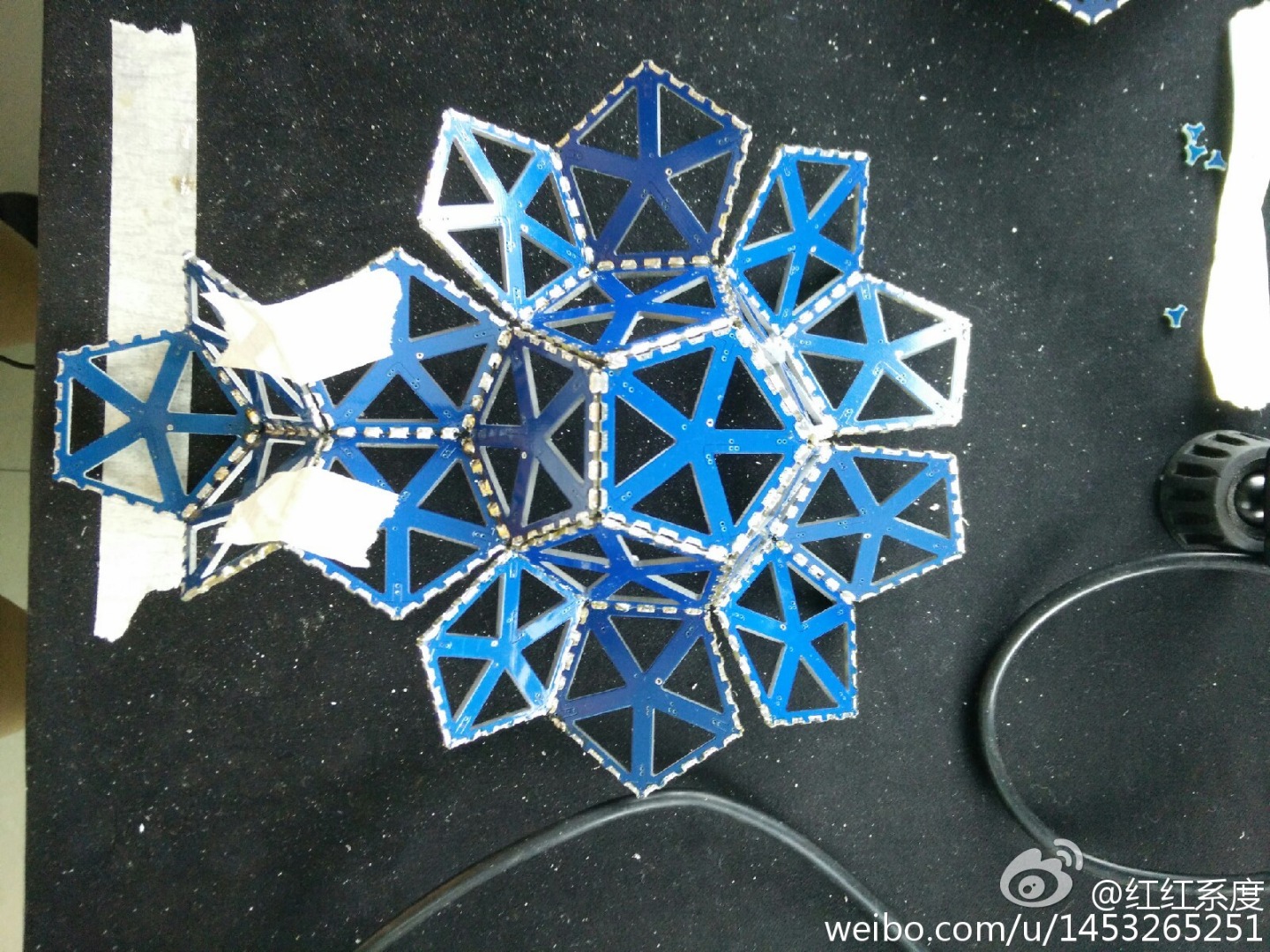

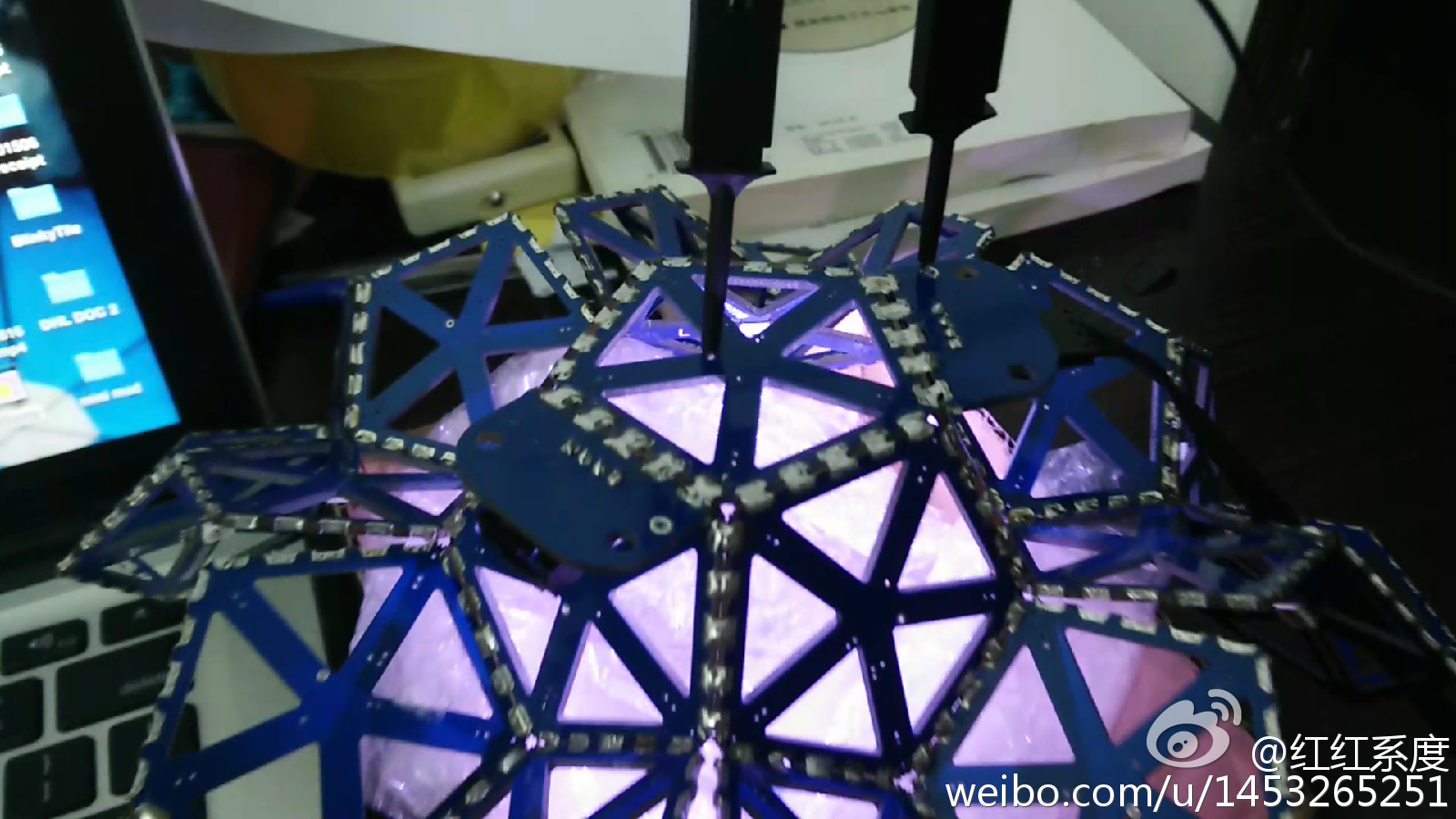

Solder the Blinkytile and Reprogram the Address If It Is Needed

Attach the Lanyard Buckle Clips to the Back Bag

led back bag - 2.jpg

Attach the Blinkytile Flower to the Back Bag and Assemble the Diffusers to the Blinkytile Flower

led back bag - 4.jpg

led back bag - 5.jpg

led back bag - 6.jpg

Connect to the Usb Power Bank and Draw Your Own Pattern.

led back bag - 7.jpg

blinkytile flower back bag

blinkytile flower back bag

Screen Shot 2016-03-01 at 11.10.43 AM.png

software: Pattern Paint from Blinkinlabs, no programming experiment is needed. just draw your own pattern and upload to the light buddy controller. And the software is free!. You can download it from Blinkinlabs website.

I Connected the Flower to a Rotary Connector and a Gear Box. Then It Looked a Little Funny.

rotating led flower
