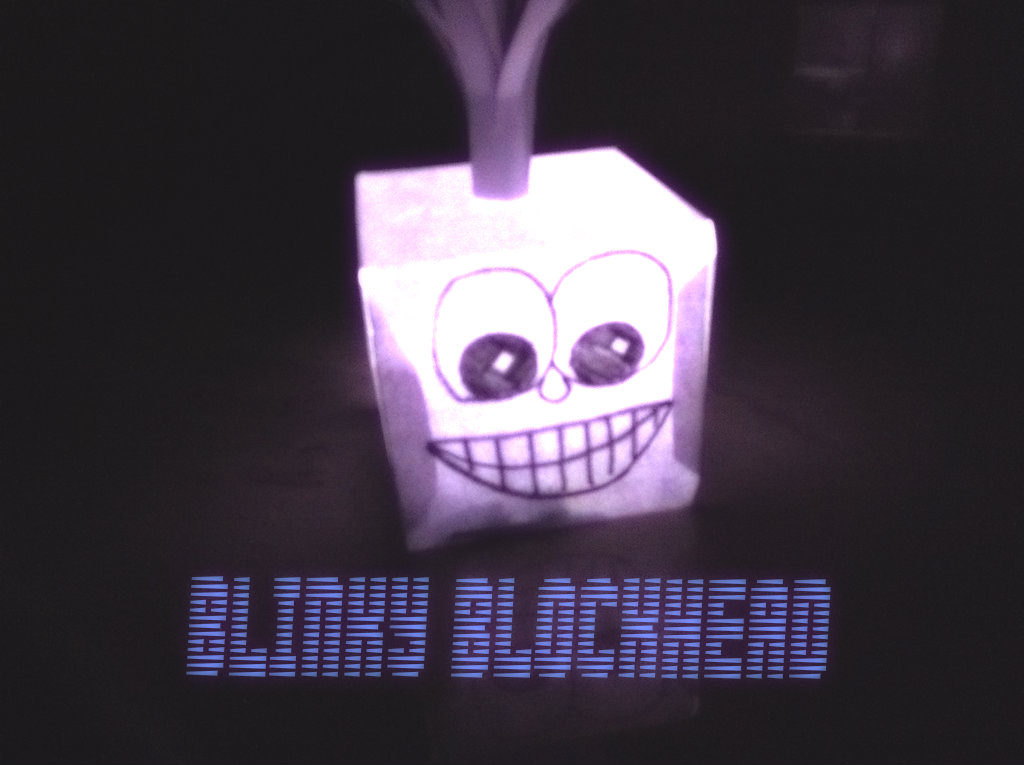

Blinky Blockhead (beginner Arduino Project)

This is just a fun little addition to your desk.

Thanks to my sister for making the paper cube and hair!

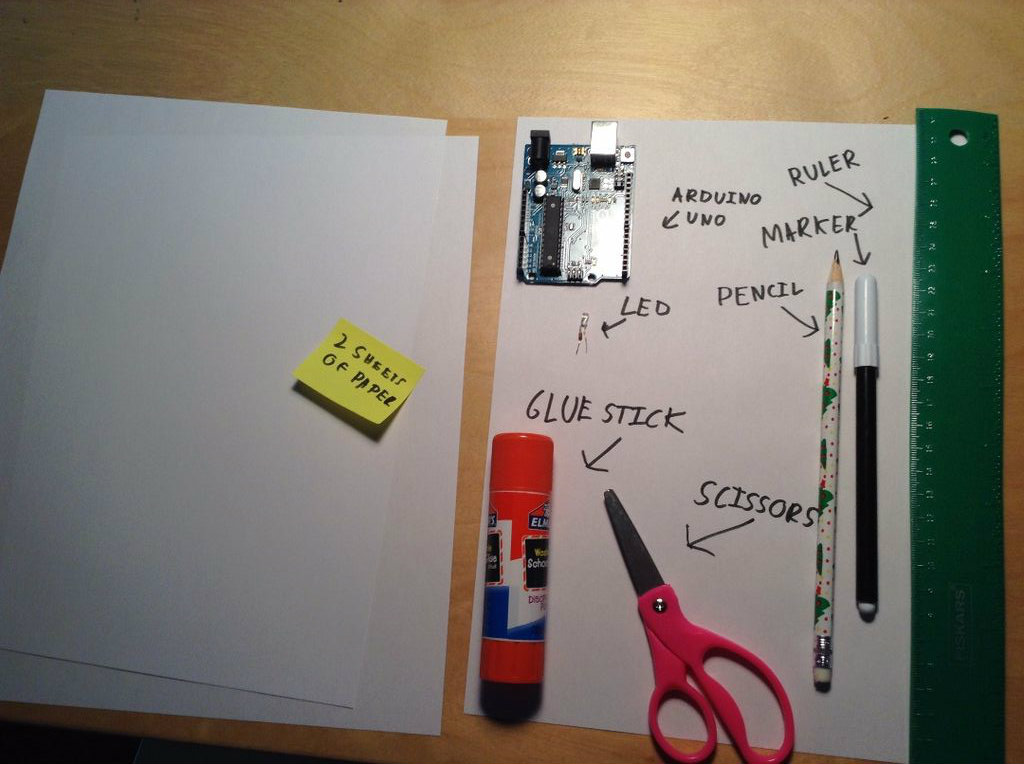

Gather Your Supplies.

Draw a Rectangle That Is 2 1/2 X 10"

Draw Lines That Are 2 1/2 Apart.

Draw 2 More Squares and Add Tabs Where Indicated.

Cut It Out.

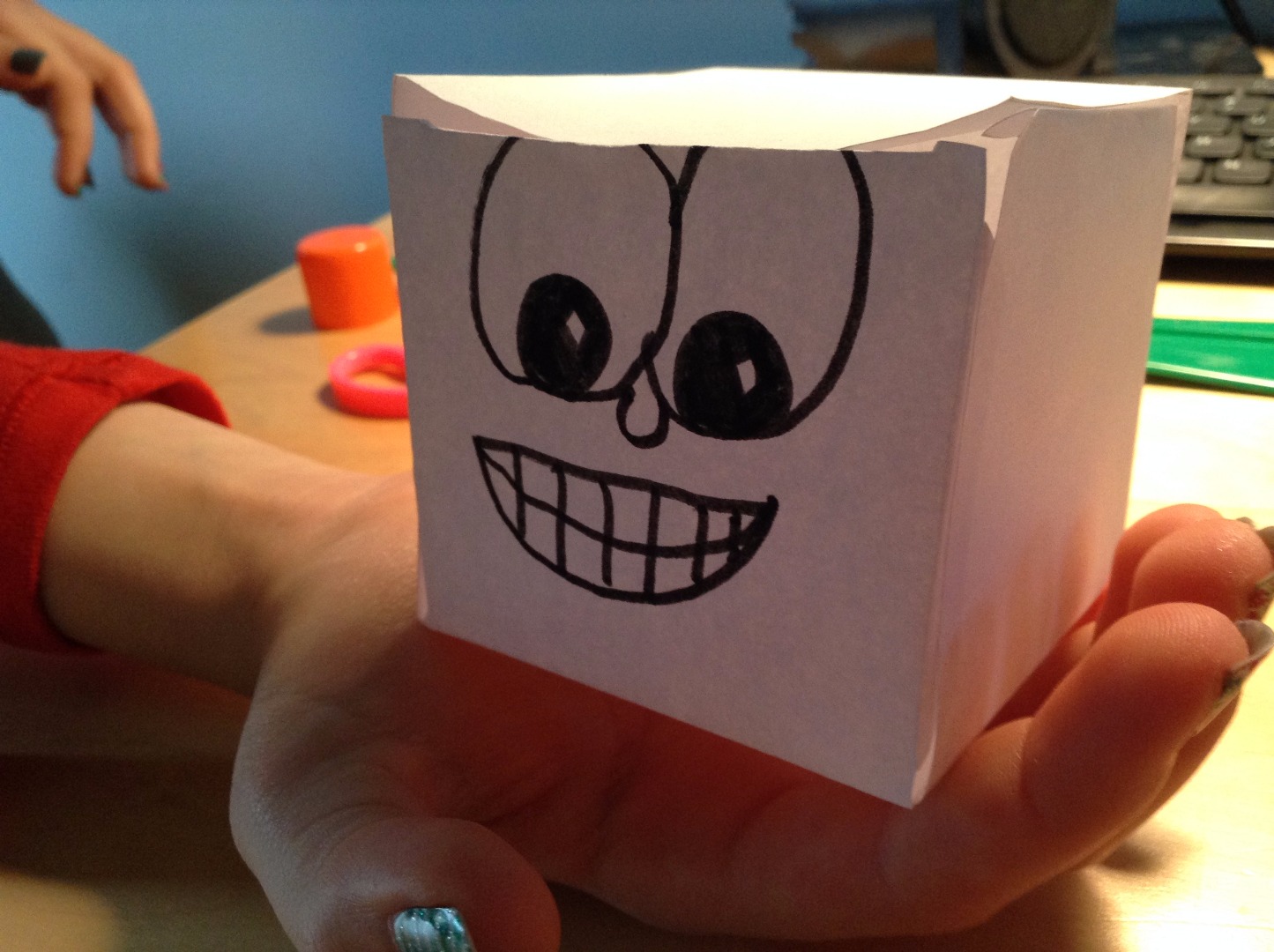

Glue It Together.

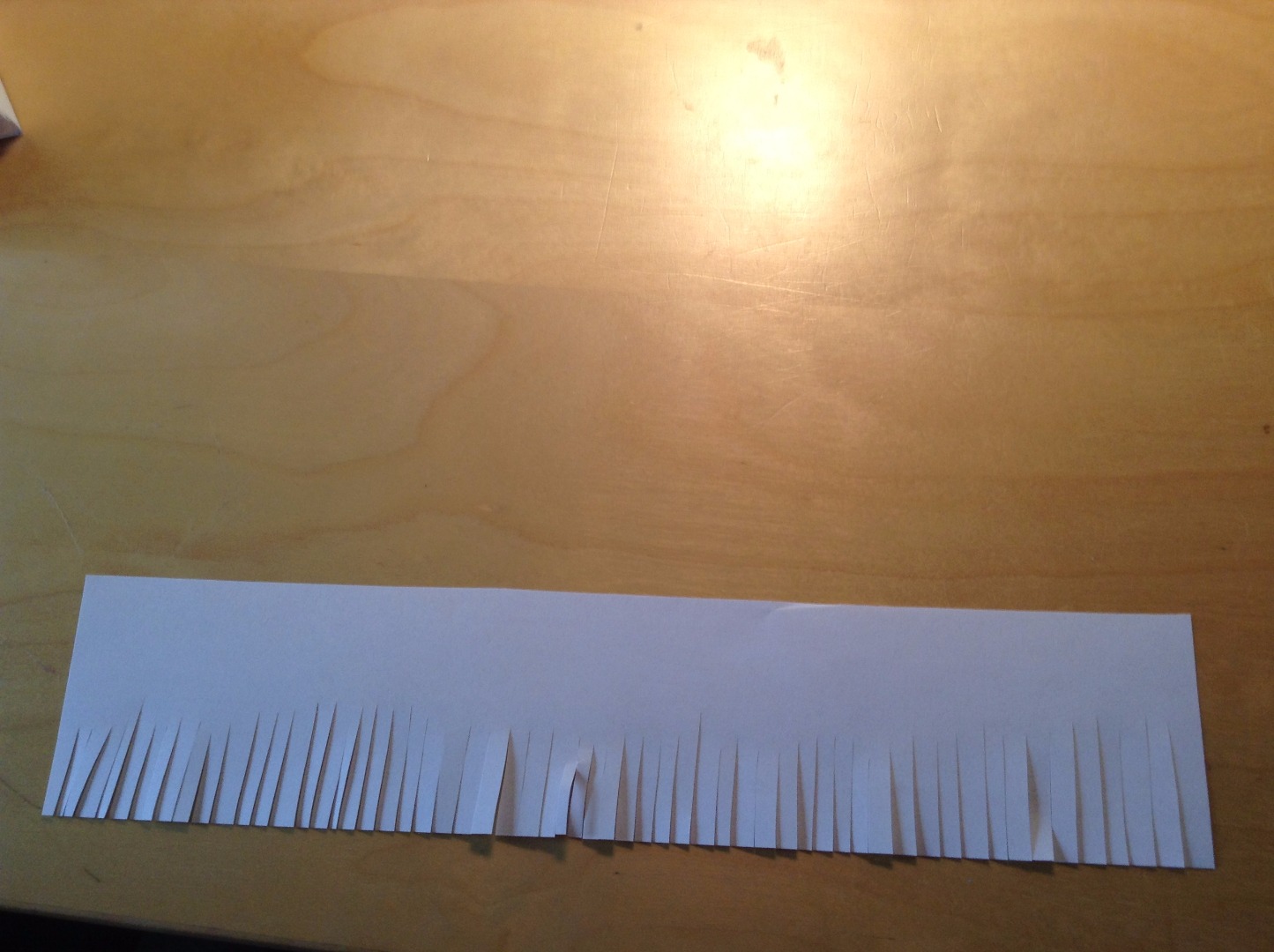

Cut a Long Strip of Paper and Cut Slits in It.

Glue the Hair on Top of the Head.

Cut a Slot in the Back of the Head. (Ignore the Face, We Made a Mistake)

Put the LED in Pin 13, Then Install the Board in the Paper Box.

Upload This to Your Arduino.

Blink Turns on an LED on for one second, then off for one second, repeatedly. This example code is in the public domain. */ // Pin 13 has an LED connected on most Arduino boards. // give it a name: int led = 13;

// the setup routine runs once when you press reset: void setup() { // initialize the digital pin as an output. pinMode(led, OUTPUT); }

// the loop routine runs over and over again forever: void loop() { digitalWrite(led, HIGH); // turn the LED on (HIGH is the voltage level) delay(1000); // wait for a second digitalWrite(led, LOW); // turn the LED off by making the voltage LOW delay(1000); // wait for a second }
