Blinds Management According Current Weather Data
by horvath slavo in Circuits > Wireless
1136 Views, 4 Favorites, 0 Comments
Blinds Management According Current Weather Data
![proj1.png](/proxy/?url=https://content.instructables.com/FOH/S06J/KVI3S7CC/FOHS06JKVI3S7CC.png&filename=proj1.png)
This project is about usage of Personal Weather Station data for intelligent blinds management:
- Wind Gust value for securing blinds in case it exceeds a safety limit
- Solar Radiation value for smart blinds management
Supplies
Shelly 2.5 - CE + UL (3x)
Shelly Plus 1
GoGEN ME 3900 WiFi
Shelly Installation
![proj2.png](/proxy/?url=https://content.instructables.com/FFS/B8UH/KVI3S7EE/FFSB8UHKVI3S7EE.png&filename=proj2.png)
- Install three Shelly 2.5 in a standard way for blinds control and one Shelly Plus 1
- Connect them on shelly cloud service
- Set static IP addresses

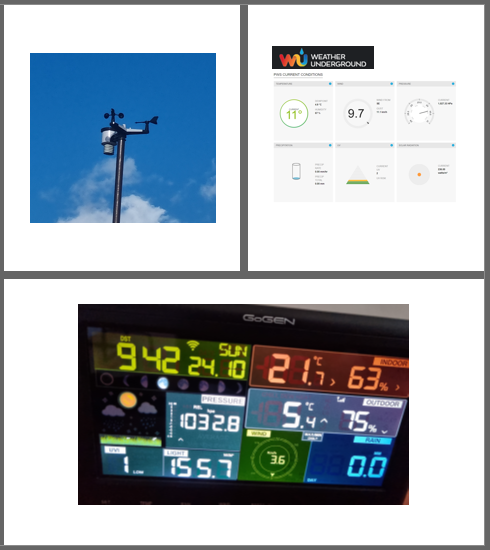

Personal Weather Station Installation
![proj3.png](/proxy/?url=https://content.instructables.com/F4Y/25XT/KVI3S7G3/F4Y25XTKVI3S7G3.png&filename=proj3.png)
- Installation of Personal Weather Station (PWS) GoGEN ME 3900 WiFi
- Register it on Weather Underground service
- Get API key for my device from the service

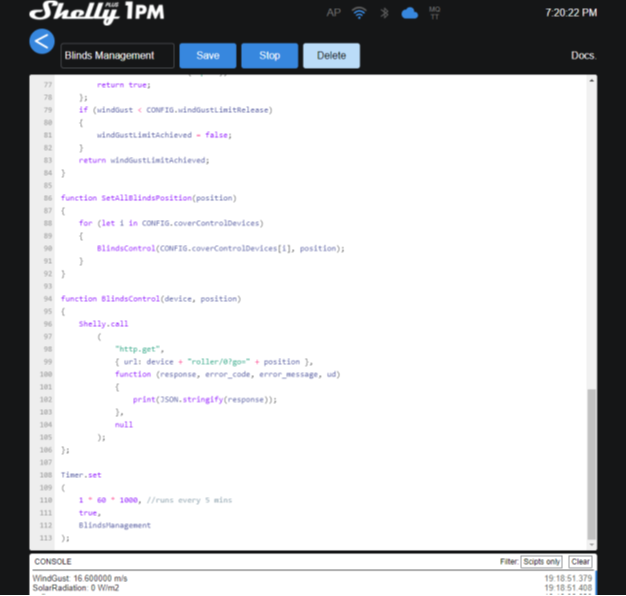

Shelly Script Set Up
![proj4.png](/proxy/?url=https://content.instructables.com/FRB/WI1B/KVI3S7NI/FRBWI1BKVI3S7NI.png&filename=proj4.png)
- Update Shelly Plus 1 to the latest beta firmware version
- Save and Run Shelly script (attached) on Shelly Plus 1:
- It reads weather data through APIs for Personal Weather Station Contributors from Weather Underground service
- Sends commands to Shelly’s 2.5:
– open blinds fully in case the wind gust exceeds a safety limit
– close them during night or in “Sunny” weather
– open them partly (turn) in “Cloudy” conditions
