Blackintosh
![macblack3.jpg](/proxy/?url=https://content.instructables.com/F5Q/HFDL/IMJECZ3V/F5QHFDLIMJECZ3V.jpg&filename=macblack3.jpg)
![macblack1.jpg](/proxy/?url=https://content.instructables.com/FRJ/FN33/IMJECZ2Y/FRJFN33IMJECZ2Y.jpg&filename=macblack1.jpg)
![macblack5.jpg](/proxy/?url=https://content.instructables.com/F94/ROXW/IMJECZ5W/F94ROXWIMJECZ5W.jpg&filename=macblack5.jpg)

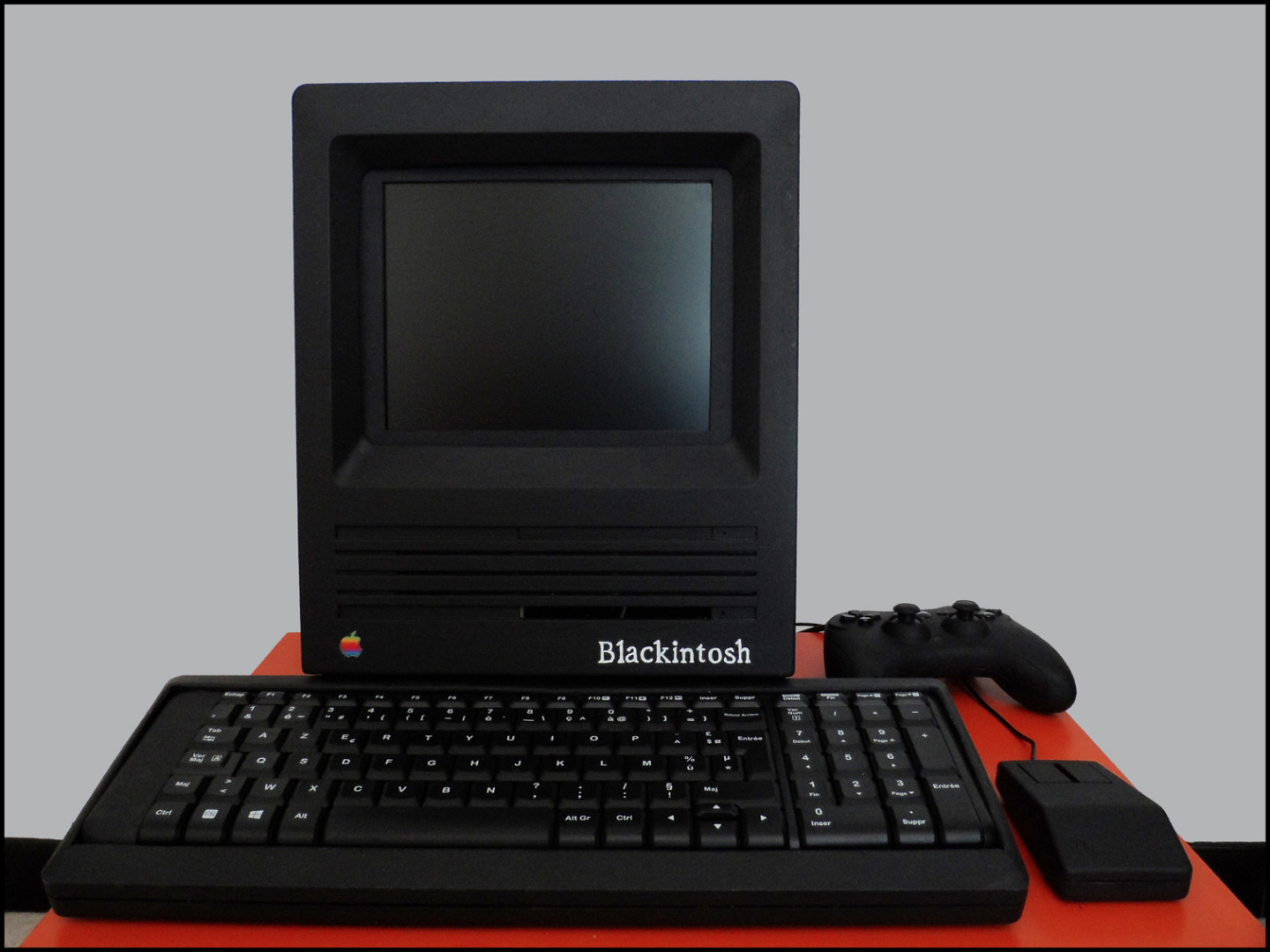

1987 Mac SE with a new screen lcd, a new system and a new look, ready
for 2016' tasks , computer, mediacenter (Kodi) & gamecenter.
I had an old broken Mac SE in my cellar, I kept it because I love
computers and It's nice, I'm owner of single boards (raspberry, odroid), so I had the idea to make it working.I used the Odroid C1+ cause it had gigabit ethernet and It's a very good board for the price and the use I wanted.
Components
![SAM_3418.jpg](/proxy/?url=https://content.instructables.com/FUM/FSR5/IMJED25P/FUMFSR5IMJED25P.jpg&filename=SAM_3418.jpg)
![SAM_3420.jpg](/proxy/?url=https://content.instructables.com/FQV/EBXR/IMJED28E/FQVEBXRIMJED28E.jpg&filename=SAM_3420.jpg)
Components :
1 Hardkernel Odroid C1+ single board ARM
1 LCD 800*600 hdmi screen
1 HDMI to HDMI+Audio extractor the board doesn't have audio exit and the screen no audio exit either, so I used it to plug the speakers.
1 USB speakers
1 Sandisk mico SD 16 giga
1 Paint bucket & marker pen for deco
1 O.S Gamestation Turbo for Odroid debian jessie modified or others O.S compatibles of you choice
1 A black Gamepad 1 × cheap laser mouse
1 logitech MK 220 wireless keyboard
1wifi dongle
Wires & plugs.

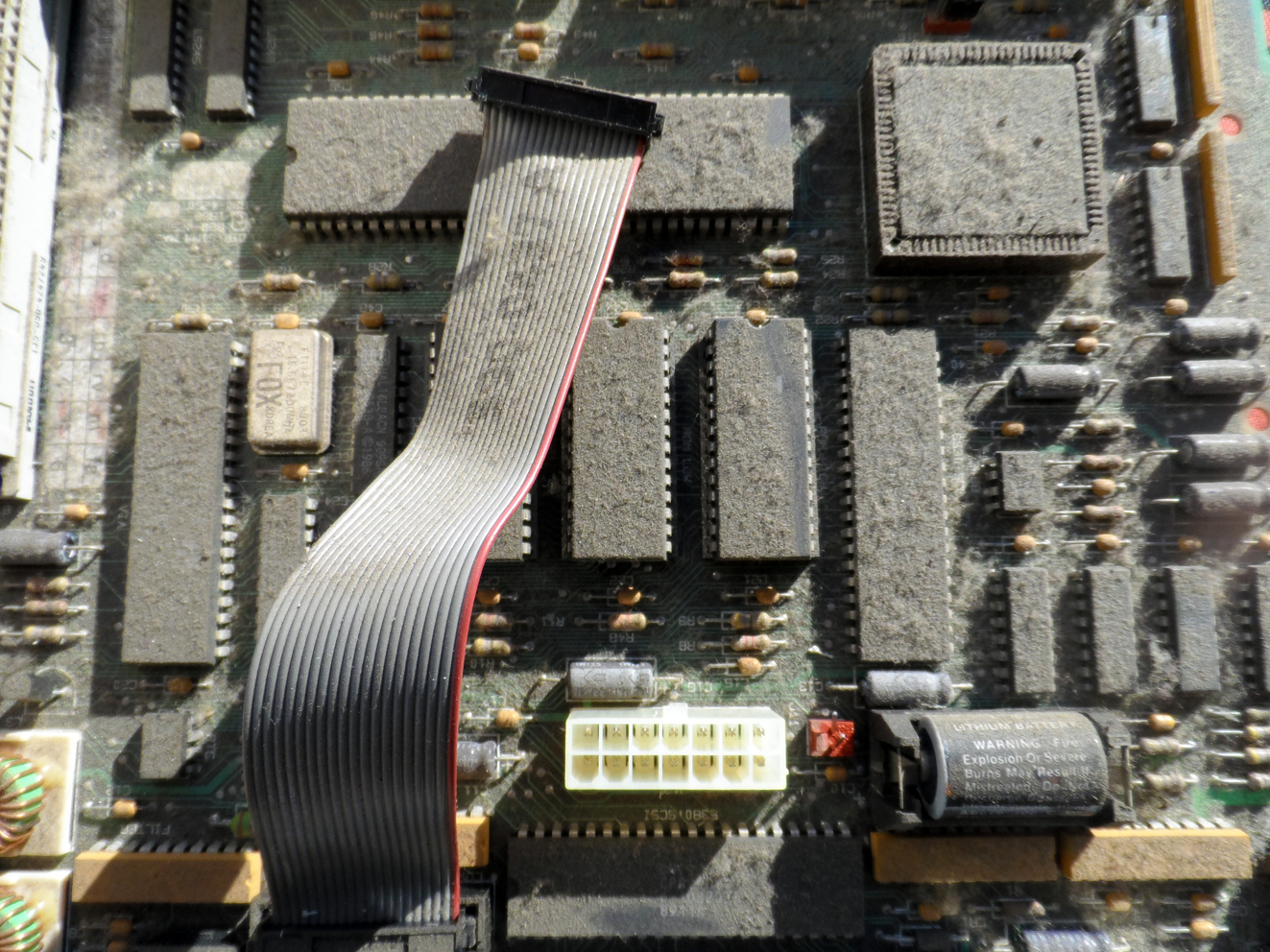

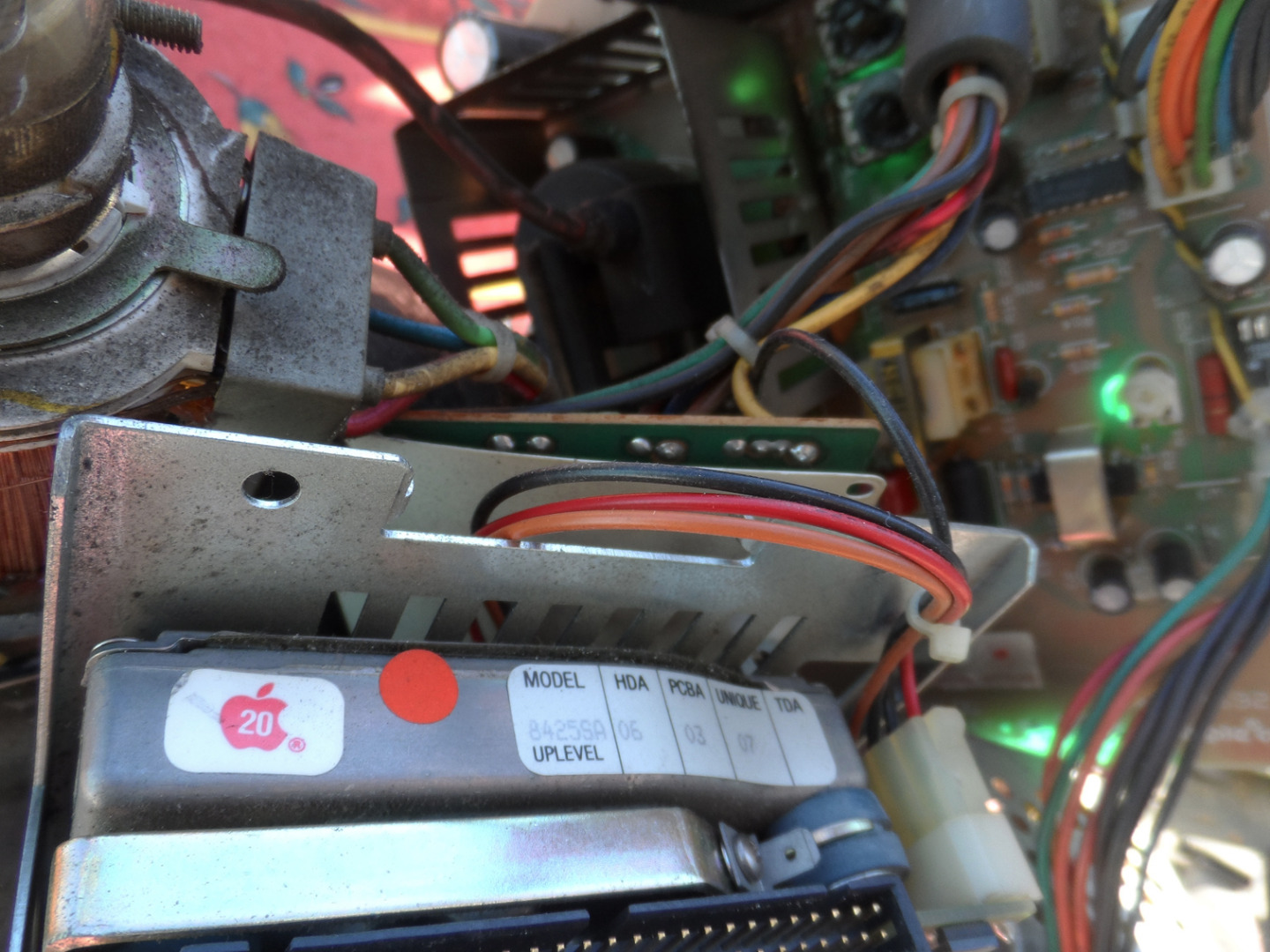

Disassembling
![SAM_2408.jpg](/proxy/?url=https://content.instructables.com/FV3/UIKE/IMJECZC8/FV3UIKEIMJECZC8.jpg&filename=SAM_2408.jpg)
![SAM_2433.jpg](/proxy/?url=https://content.instructables.com/FKC/8X9Z/IMJECZIV/FKC8X9ZIMJECZIV.jpg&filename=SAM_2433.jpg)
![SAM_2420.jpg](/proxy/?url=https://content.instructables.com/FG1/EW3E/IMJECZFE/FG1EW3EIMJECZFE.jpg&filename=SAM_2420.jpg)
![SAM_2411.jpg](/proxy/?url=https://content.instructables.com/F0I/AX7U/IMJECZCF/F0IAX7UIMJECZCF.jpg&filename=SAM_2411.jpg)
![SAM_2429.jpg](/proxy/?url=https://content.instructables.com/FZB/FBDO/IMJECZGY/FZBFBDOIMJECZGY.jpg&filename=SAM_2429.jpg)
![SAM_2414.jpg](/proxy/?url=https://content.instructables.com/FK9/G09D/IMJECZEF/FK9G09DIMJECZEF.jpg&filename=SAM_2414.jpg)
I didn't have the famous "Tox" screwdriver so I had to destroy the top with tools and remade it later with plastic paste.
WARNING : Be extremly careful for the disasembling as the CRT is very dangerous (high voltage), I searched and find instructions on the web to do that.
http://www.jagshouse.com/classicrepair.html for exemple.
I trashed all components...
Tests, Contruction
![SAM_2814.jpg](/proxy/?url=https://content.instructables.com/F88/Z05W/IMJECZIX/F88Z05WIMJECZIX.jpg&filename=SAM_2814.jpg)
![SAM_2425.jpg](/proxy/?url=https://content.instructables.com/F93/KWKF/IMJECZFQ/F93KWKFIMJECZFQ.jpg&filename=SAM_2425.jpg)
![SAM_2427.jpg](/proxy/?url=https://content.instructables.com/FXA/Y6DR/IMJECZG0/FXAY6DRIMJECZG0.jpg&filename=SAM_2427.jpg)
![SAM_2421.jpg](/proxy/?url=https://content.instructables.com/FV8/9PRN/IMJECZFL/FV89PRNIMJECZFL.jpg&filename=SAM_2421.jpg)
![SAM_3167.jpg](/proxy/?url=https://content.instructables.com/FQ3/6X5B/IMJED9JV/FQ36X5BIMJED9JV.jpg&filename=SAM_3167.jpg)
![SAM_3161.jpg](/proxy/?url=https://content.instructables.com/F0P/XY8S/IMJED9JJ/F0PXY8SIMJED9JJ.jpg&filename=SAM_3161.jpg)
![SAM_2857.jpg](/proxy/?url=https://content.instructables.com/FGQ/TW3F/IMJECZ99/FGQTW3FIMJECZ99.jpg&filename=SAM_2857.jpg)
![SAM_3215.jpg](/proxy/?url=https://content.instructables.com/FIP/57TC/IMJECZK7/FIP57TCIMJECZK7.jpg&filename=SAM_3215.jpg)
![SAM_3423.jpg](/proxy/?url=https://content.instructables.com/FJJ/VFXF/IMJED28Z/FJJVFXFIMJED28Z.jpg&filename=SAM_3423.jpg)
![macblack4.jpg](/proxy/?url=https://content.instructables.com/FB6/ICA3/IMJECZ4V/FB6ICA3IMJECZ4V.jpg&filename=macblack4.jpg)
![clementinemuisc.png](/proxy/?url=https://content.instructables.com/FHS/5V10/IMJECZ76/FHS5V10IMJECZ76.png&filename=clementinemuisc.png)
![youtube3.png](/proxy/?url=https://content.instructables.com/F5X/R66J/IMJECZ8A/F5XR66JIMJECZ8A.png&filename=youtube3.png)
![copying.png](/proxy/?url=https://content.instructables.com/F9G/T3S7/IMJECZ83/F9GT3S7IMJECZ83.png&filename=copying.png)
![Screenshot-5.png](/proxy/?url=https://content.instructables.com/F0H/MD27/IMJGCQW2/F0HMD27IMJGCQW2.png&filename=Screenshot-5.png)
![gimp.png](/proxy/?url=https://content.instructables.com/FUW/8R4X/IMJECZ88/FUW8R4XIMJECZ88.png&filename=gimp.png)
![Screenshot-14.png](/proxy/?url=https://content.instructables.com/FAC/LKSN/IMJGCQV6/FACLKSNIMJGCQV6.png&filename=Screenshot-14.png)
![Blackintosh Odroid C1+ Gamestation Turbo. Apple 40th Birthday](/proxy/?url=https://content.instructables.com/FO1/UYB1/IMJGCS6T/FO1UYB1IMJGCS6T.jpg&filename=Blackintosh Odroid C1+ Gamestation Turbo. Apple 40th Birthday)

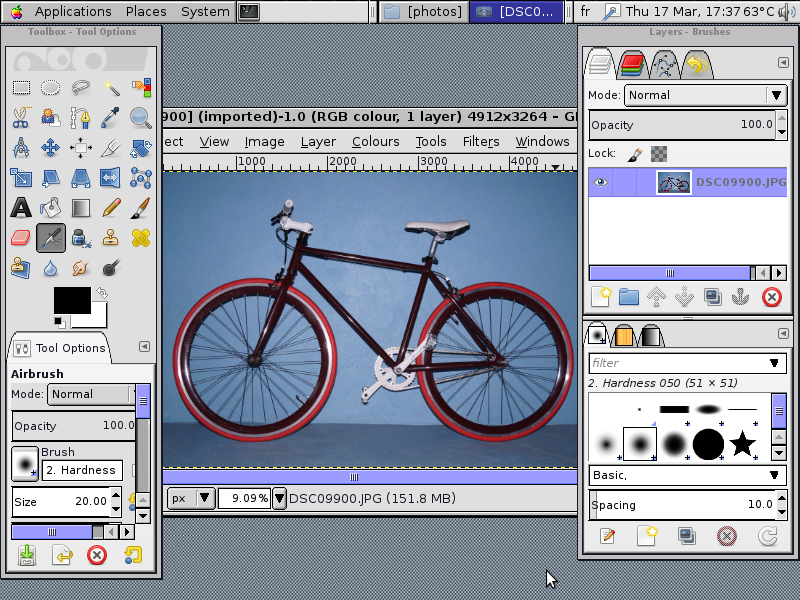

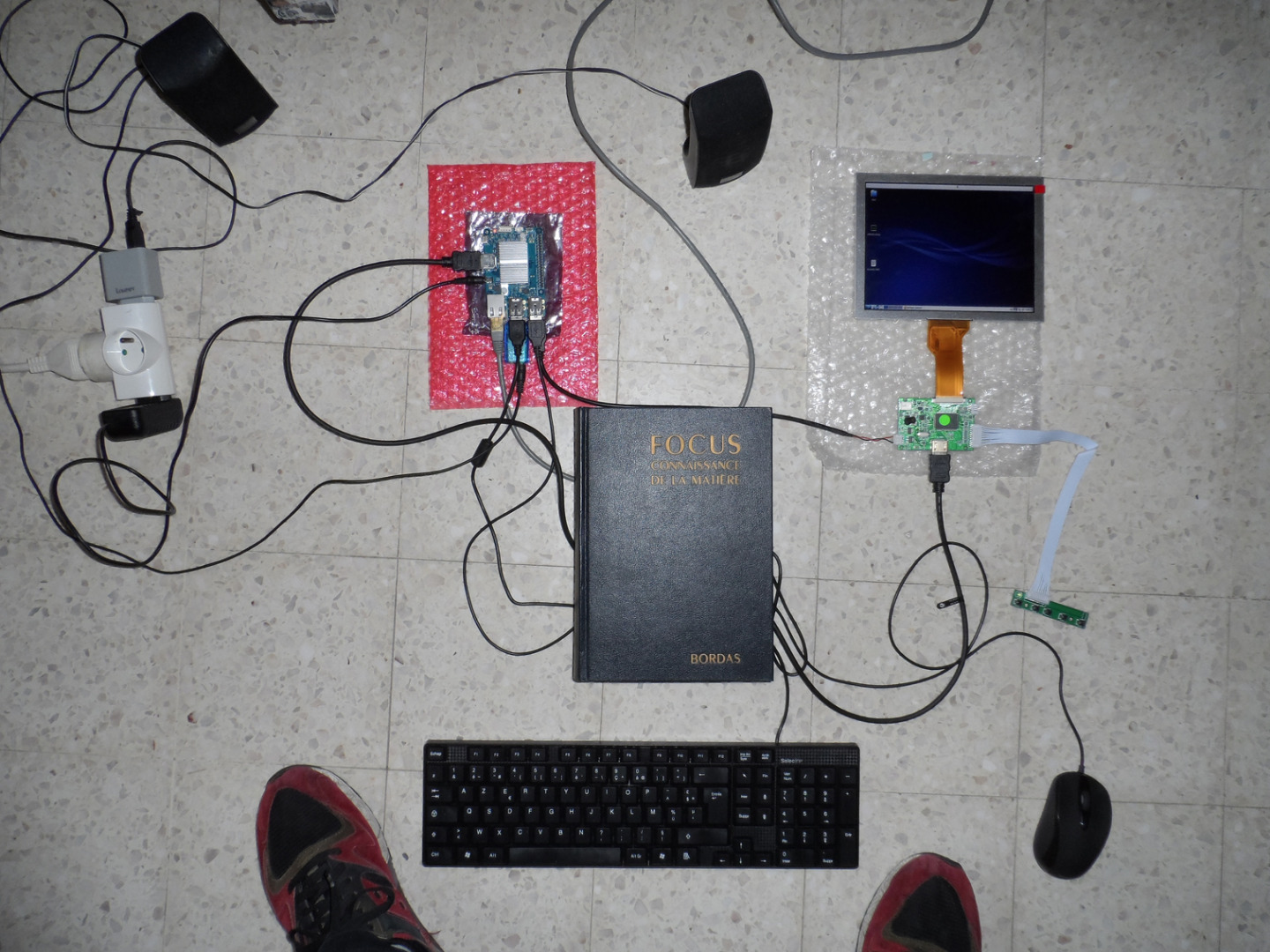

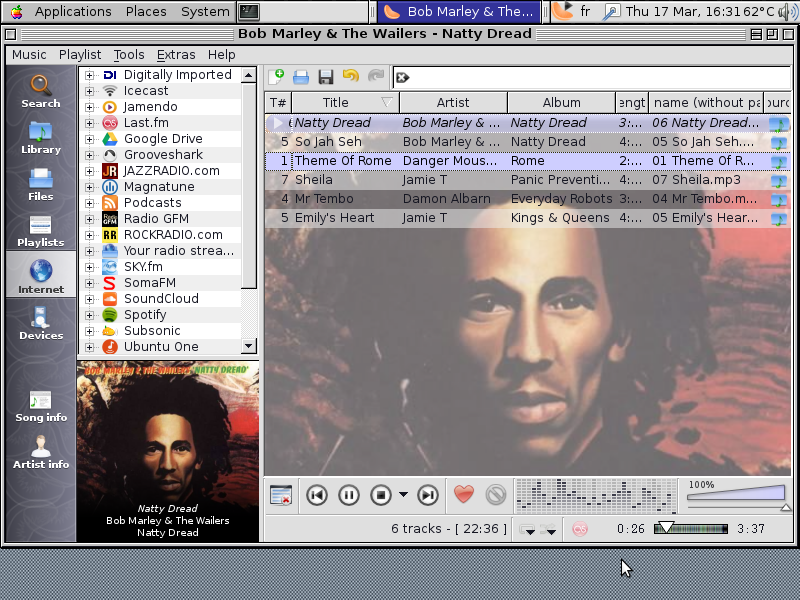

After that I made tests outside the case.I installed a fast and fully functional O.S (Gamestation turbo from
Meveric) for common tasks (web, music, photos), Kodi media center and retrogaming.
I destroy the old mouse but I keep the case and I put a new cheap laser mouse in it.
I made a little modification on the top of the old case to have two buttons for right click.
I made the same thing for the keyboard and I put the MK220 wireless keyboard in the case which almost fit in (little sand the plastic.)

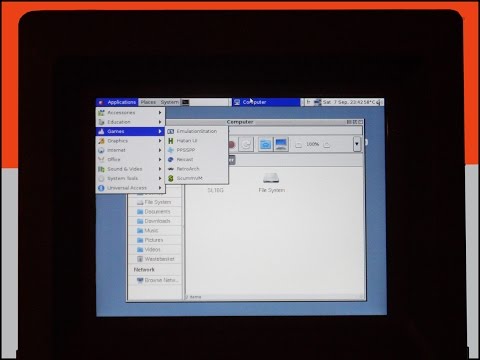

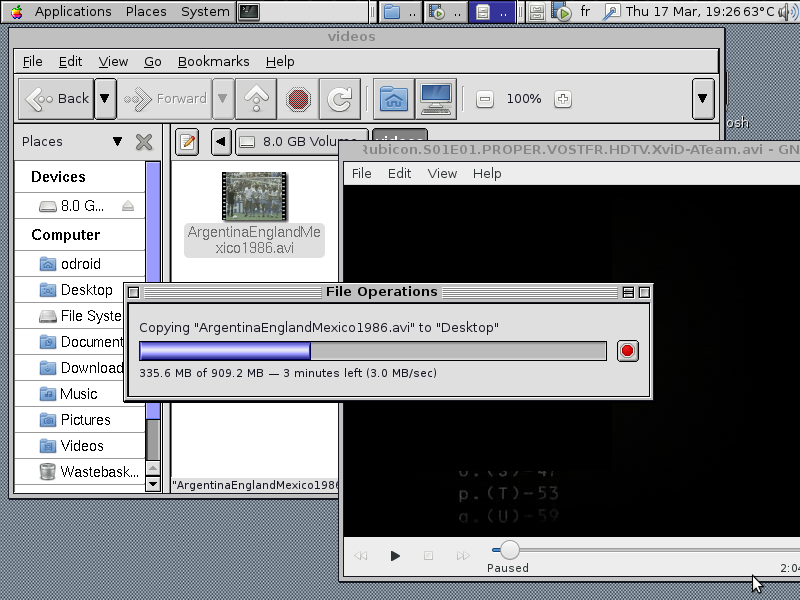

Installed the new system "Gamesation Turbo" from Meveric for odroid, after that I perzonalised the desktop and the icons to look like an old Mac.
http://forum.odroid.com/viewtopic.php?f=11&t=2684
Like I said I clean up all the old hardware (not working),
so I had an empty case, I found place to integrate all my new components, plug screen, wires, etc.
Paint, decoration, have fun, that's all.

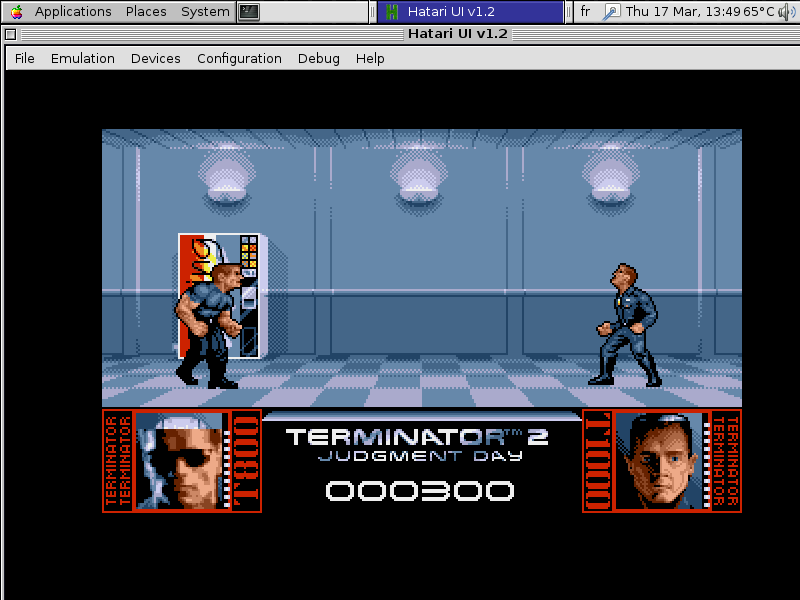

It emulate old computers (Amiga & Atari ST), video game consoles and arcade games.
I finished it few days ago and it was pure coincidence the 40th birthday of Apple computers, so...
You can watch the demo video.
