Birthday Gift Sewing Box

by LuisJ37 in Workshop > Furniture

9553 Views, 165 Favorites, 0 Comments

Birthday Gift Sewing Box

sewing box 1.jpeg
sewing box opened.jpeg
13 de octubre de 2020

I hand made a sewing box for my wife´s aniversary with poplar, ebony and some brass hinges and screws.

I hope you enjoy it.

Milling and Preparing the Stock List

sewing box squaring stock.jpeg
sewing box japanese sawing the log.jpeg
sewing box squared log.jpeg

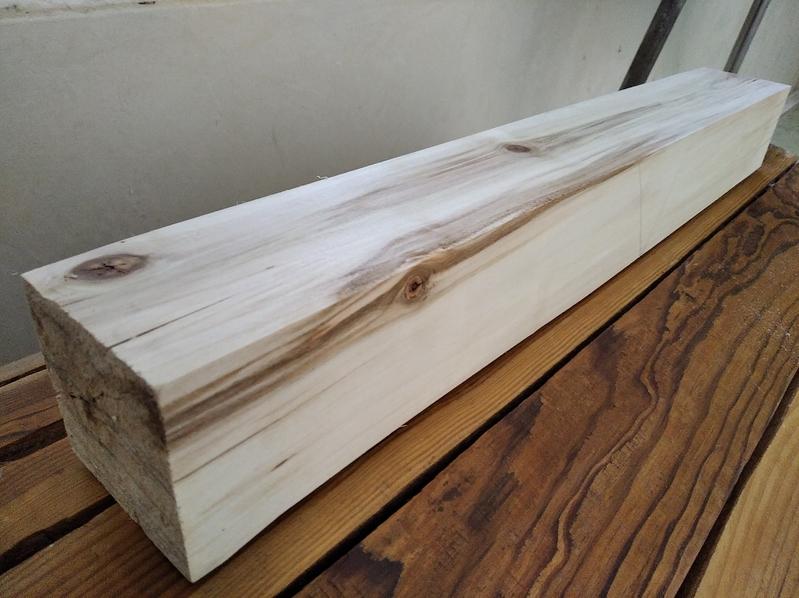

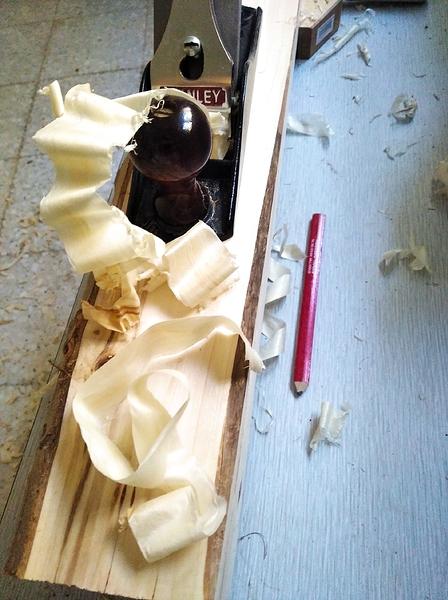

A poplar log from a fallen tree and a cut list. Size the pieces with a Stanley #4 and a ryoba japanese saw to rip and crosscut

Dovetails Layout and Shooting Board

sewing box dovetail layout.jpeg
sewing box shooting board.jpeg

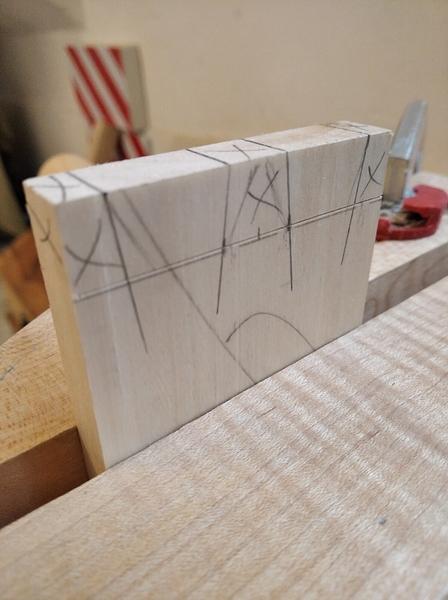

Dovetails first, guys!

Square the edges at the shooting board with a Stanley #5 jackplane

Plane Plowing the Grooves

sewing box plow planing.jpeg

Grooving with a Stanley #50 rabbet plane. Help you with a bar clamp to keep safe

Hand Routing the Bottom

sewing box hand routing.jpeg

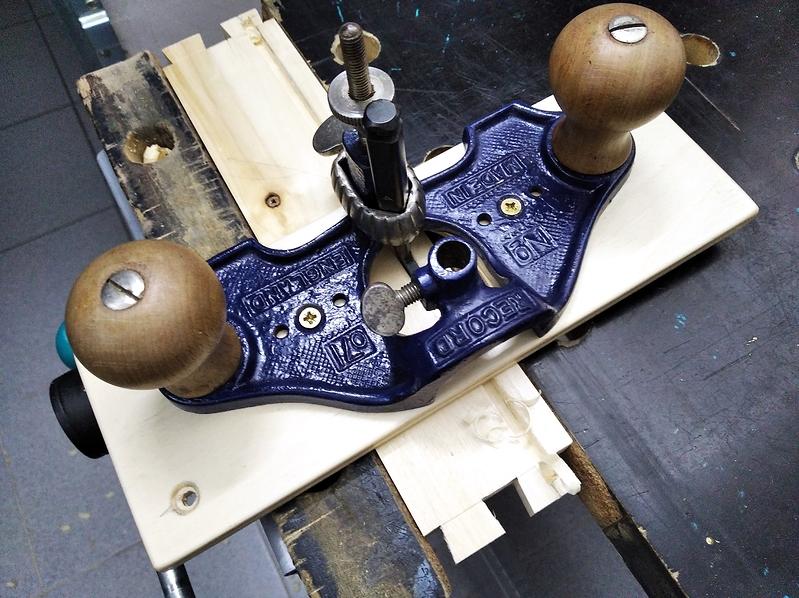

Routing the grooves for the bottom with a Record #71 router hand plane. Install a 4mm blade. Use a hand made jig sole for stability.

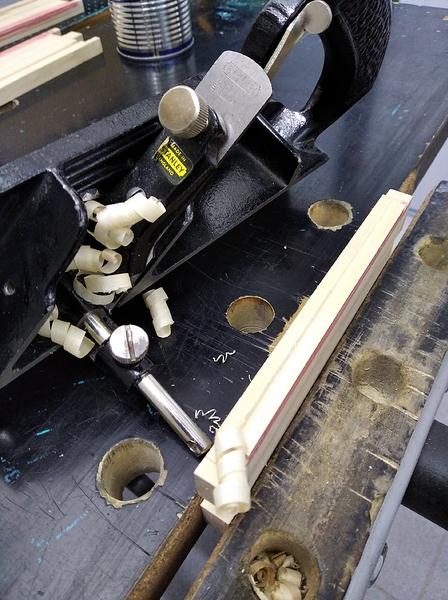

Rabbeting the Top

sewing box rabbet planing.jpeg

Make the top recess with a Stanley #78

Fitting and Smoothing the Top

sewing box block planing.jpeg

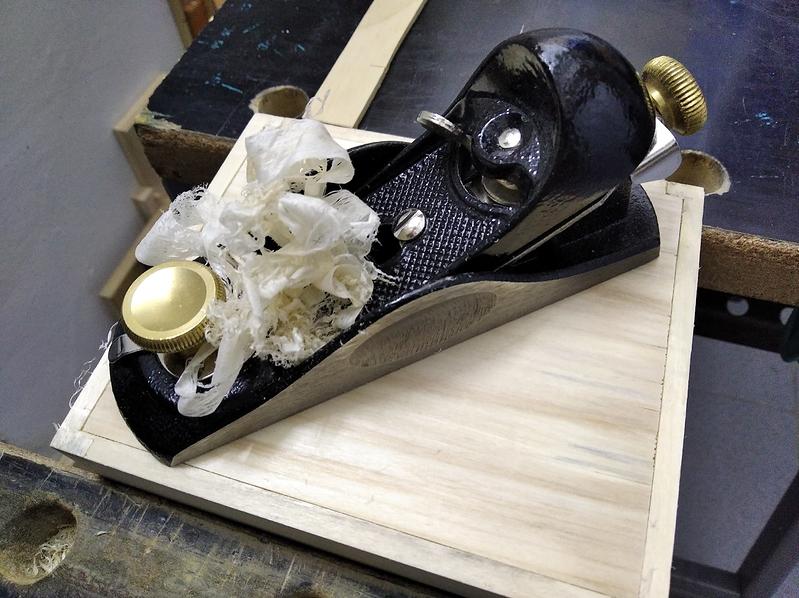

Use a Stanley #9 1/2 block plane to fit and smooth the top surface

Gauge Marking

sewing box marking gauge.jpeg

Marking the cutting line with a Veritas marking gauge

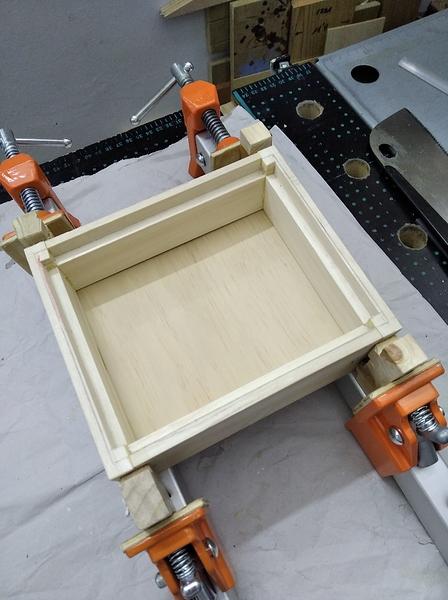

Gluing Up

sewing box gluing up.jpeg
sewing box dry feet assembly.jpeg

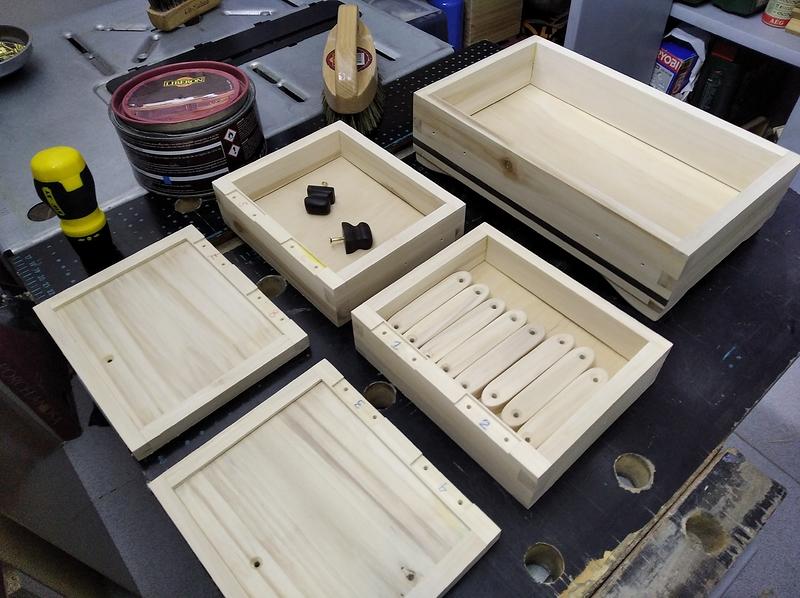

Assemble the set. Clamp it all the night.

Cutting the Lid

sewing box japanese sawing.jpeg

After dry, separate the lid from the body with a dozuki japanese saw

Chiseling the Hinges

sewing box hinges chiseling.jpeg

Adding the hinges for the lid. Making the recess with a sharp chisel

Fitting the Hinges

sewing box hinges routing.jpeg

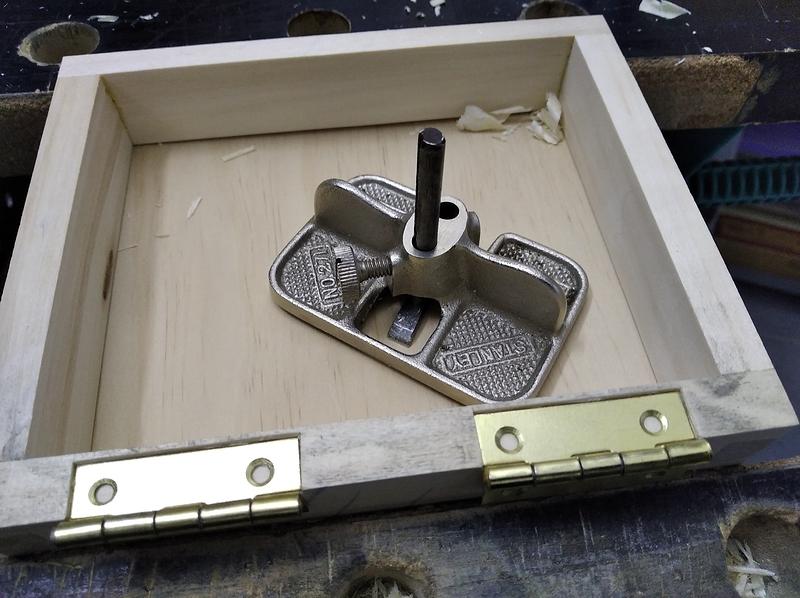

Hand routing with a Stanley #271 small hand router plane

Spokeshaving the Feet

sewing box feet spokeshaving.jpeg
sewing box feet.jpeg

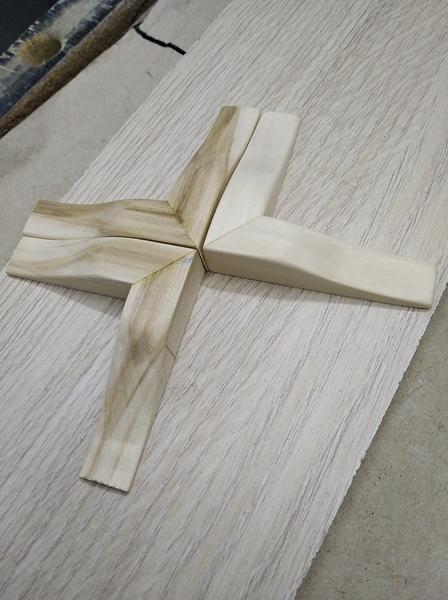

Shaping the feet with a Veritas flat sole spokeshave

Adding Some Ebony Knobs

sewing box ebony knobs.jpeg

Shaping with the rasp and the files

Final Assembly

sewing box ebony assembling.jpeg

At least, all the pieces together
