Birdhouse From an Old PVC Pipe

Spring is coming up and I'm planing on adding new birdhouses to our garden. I've found and old PVC sewer pipe in my workshop which would be just perfect for this project. I've seen something similar in a garden center, but I'd rather build it on my own and I can recycle the old PVC pipe as well. I'm planing to build two different kind of houses. There will be two similar ones, which are shaped like a mail box for newspaper (horizontal pipe) and one which looks like common birdhouse (vertical pipe with a small roof).

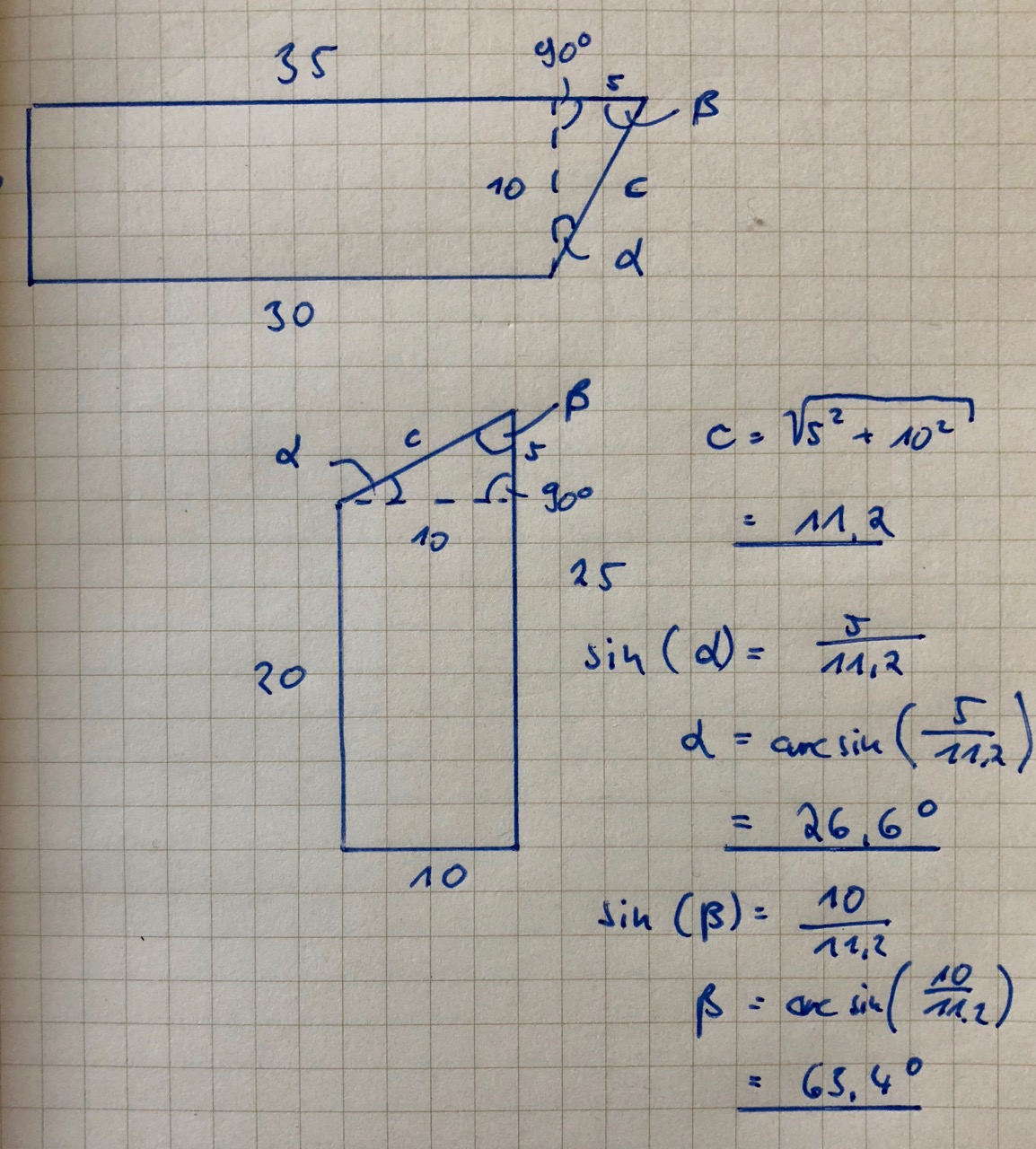

I need three pieces from my pipe to build the bodies of the houses. The two horizontal houses have a length of each 35cm (30cm due to the angular cut) and the vertical house a height of 25cm (20cm due to the angular cut). The pipe has a inner diameter of ~10cm. Please see the picture for all dimensions.

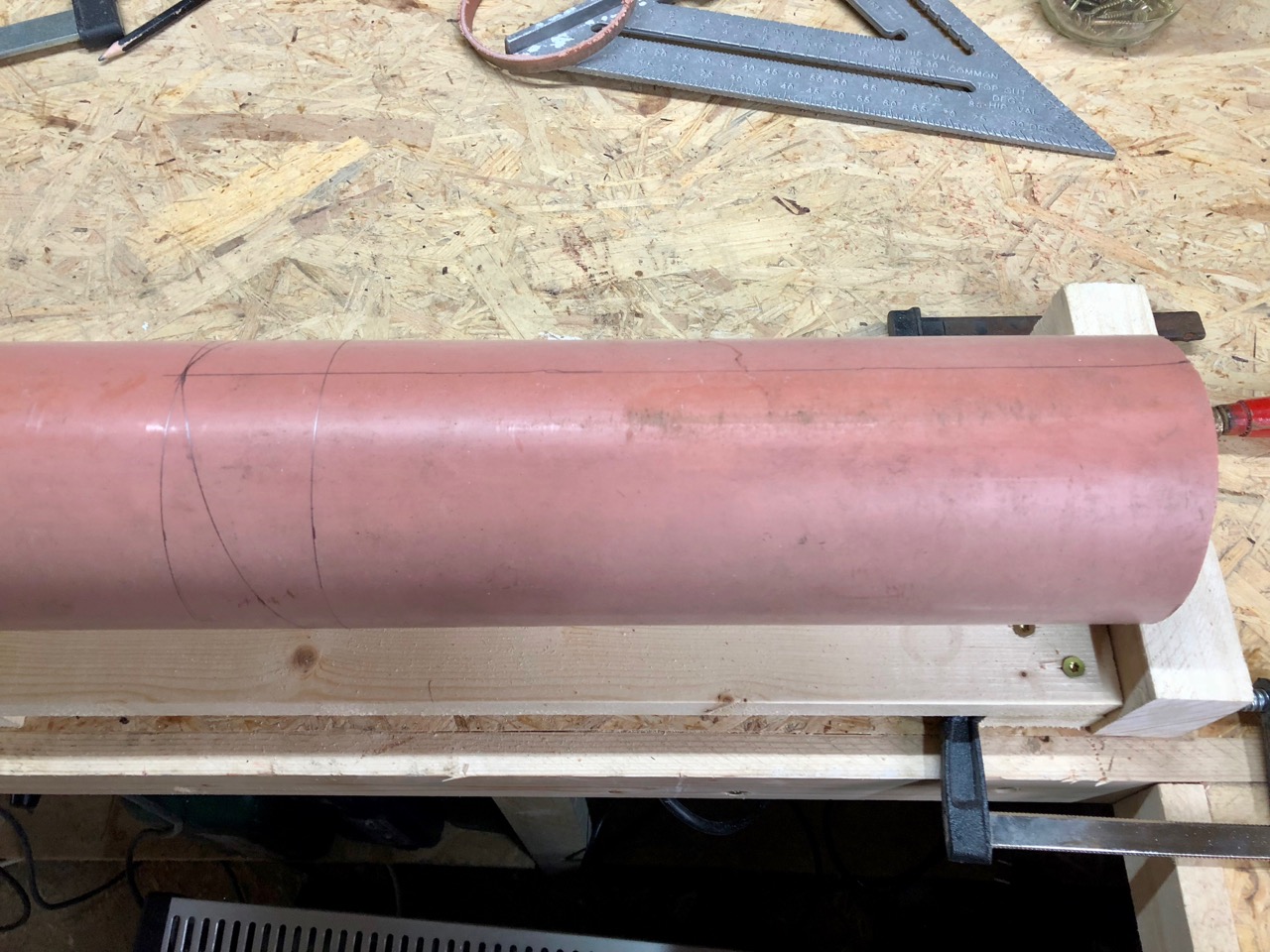

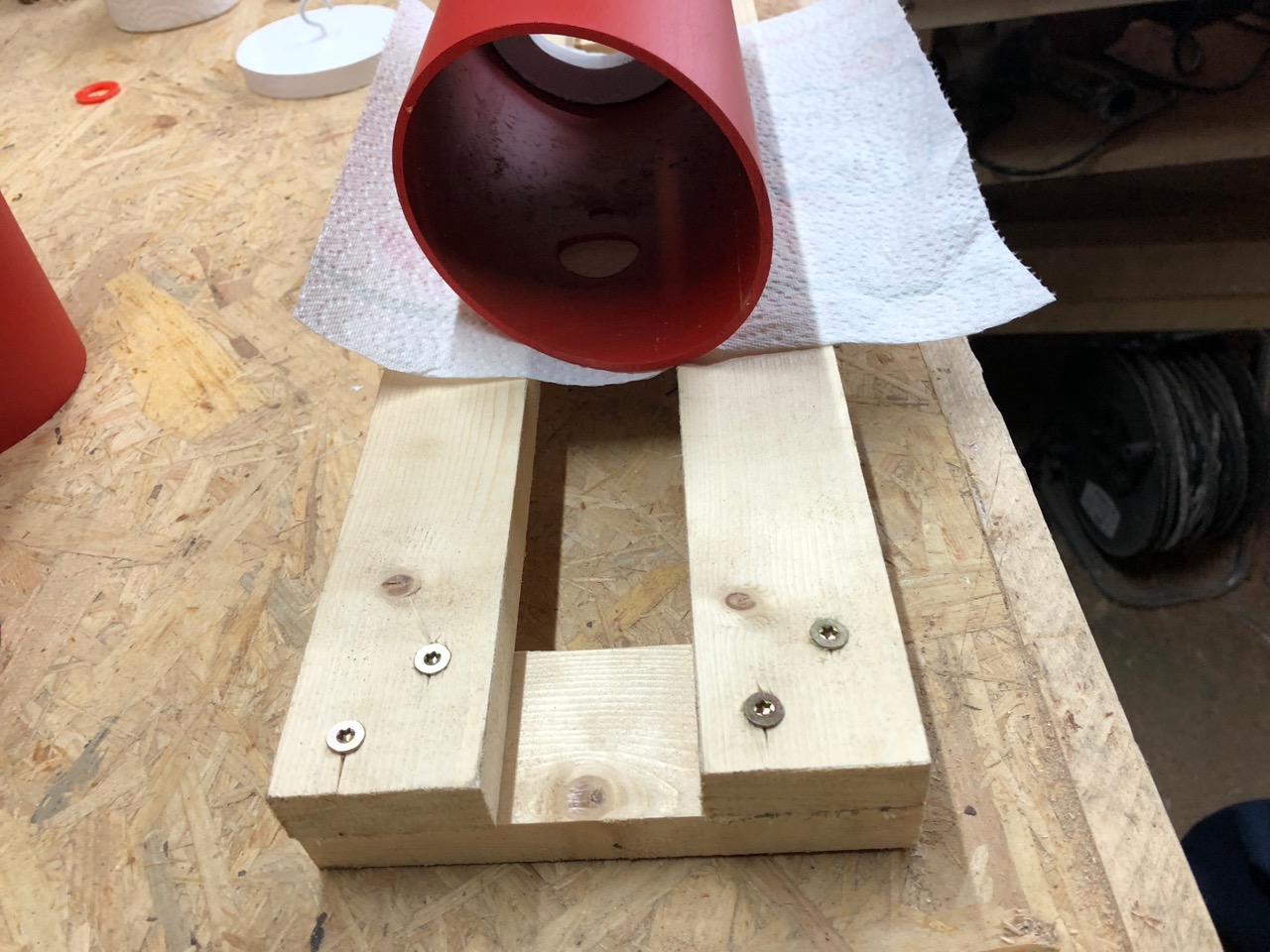

I use two parallel wooden strips as a jig, which helps me cutting. I use a saw to cut the pipe. I can use one angular cut for two bodies.

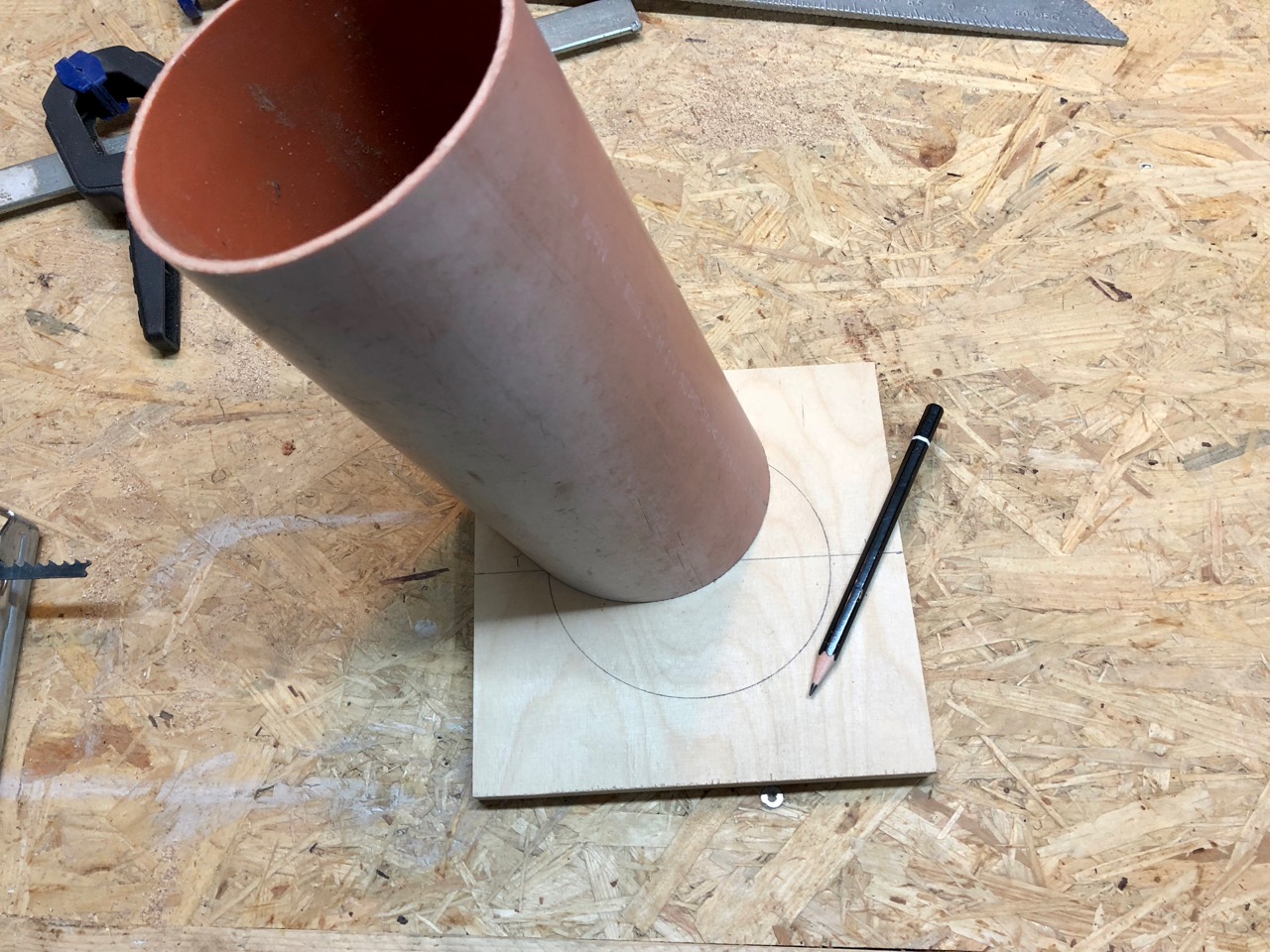

I use a piece of plywood for the back and front. I need two circular pieces and one ring-shaped piece for one birdhouse (two for the vertical house). The diameter equals the inner diameter of the pipe. I use a compass to draw three equal circles, one with a smaller inner circle (the ring should have a thickness of 1-2cm).

I drill a hole into the inner circle and use it to cut it out with a jigsaw. Now I cut out the outer circles.

I repeat this process once for the second birdhouse. The vertical house needs just one circular and one ring-shaped piece.

The front needs an entrance hole and a perch. The diameter of the entrance is very important and defines the type of bird which might be using the house. I've found a nice list of typical diameters for some species: https://www.thespruce.com/bird-house-hole-sizes-386641

• American Kestrel - 3 inches (7.6 cm)
• Ash-Throated Flycatcher - 1 1/2 inches (3.8 cm)
• Barn Owl - 6 inches (15.2 cm)
• Black-Capped Chickadee - 1 1/8 inches / 2.85 cm)
• Carolina Chickadee - 1 1/8 inches (2.85 cm)
• Carolina Wren - 1 1/2 inches (3.8 cm)
• Downy Woodpecker - 1 1/4 inches (3.2 cm)
• Eastern Bluebird - 1 1/2 inches (3.8 cm)
• Eastern Screech-Owl - 3 inches (7.6 cm)
• House Finch - 2 inches (5.1 cm)
• House Wren - 1 1/4 inches (3.2 cm)
• Northern Flicker - 2 1/2 inches (6.35 cm)
• Prothonotary Warbler - 1 1/8 inches (2.85 cm)
• Purple Martin - 2 1/2 inches (6.35 cm)
• Tree Swallow - 1 3/8 inches (3.5 cm)
• Tufted Titmouse - 1 1/4 inches (3.2 cm)
• Violet-Green Swallow - 1 1/2 inches (3.8 cm)
• Western Screech-Owl - 3 inches (7.6 cm)
• White-Breasted Nuthatch - 1 1/4 inches (3.2 cm)
• Wood Duck - 4 inches (10.2 cm)

You might need a bigger pipe for the big birds :D

I use a foster drill to cut the entrance hole and a normal wood drill for the perch. The perch is a simple round-shaped wooden beam. I use wood glue to mount it to the front panel. I add a stainless hook to the back panel, which makes it easier to remove it later on for cleaning purposes.

The vertical house needs a roof. Therefore I cut a square out of the plywood using my jigsaw. You can use a straight lath as a guidance. I use a edge length of 18cm.

To mount the roof to the pipe I use a router to mill a a small groove into the roof part. Therefore I mark the pipe using a pencil. I fixate the part with my clamp and use my router freehanded to mill the groove. The groove is not perfect, but it's enough for this project. The groove will be later filled with glue and silicone so nobody will notice it :D.

I want to cover the roof with a sheet of metal. I had some spare from building a carport. I cut a square out of the sheet, which is 2cm wider on each site than the roof (22cm). There might be condensed water between the wooden sheet and the metal sheet. Therefore I use a small piece of roofing paper to protect the wood from moulding. I just nail it to the plywood using galvanized nails.

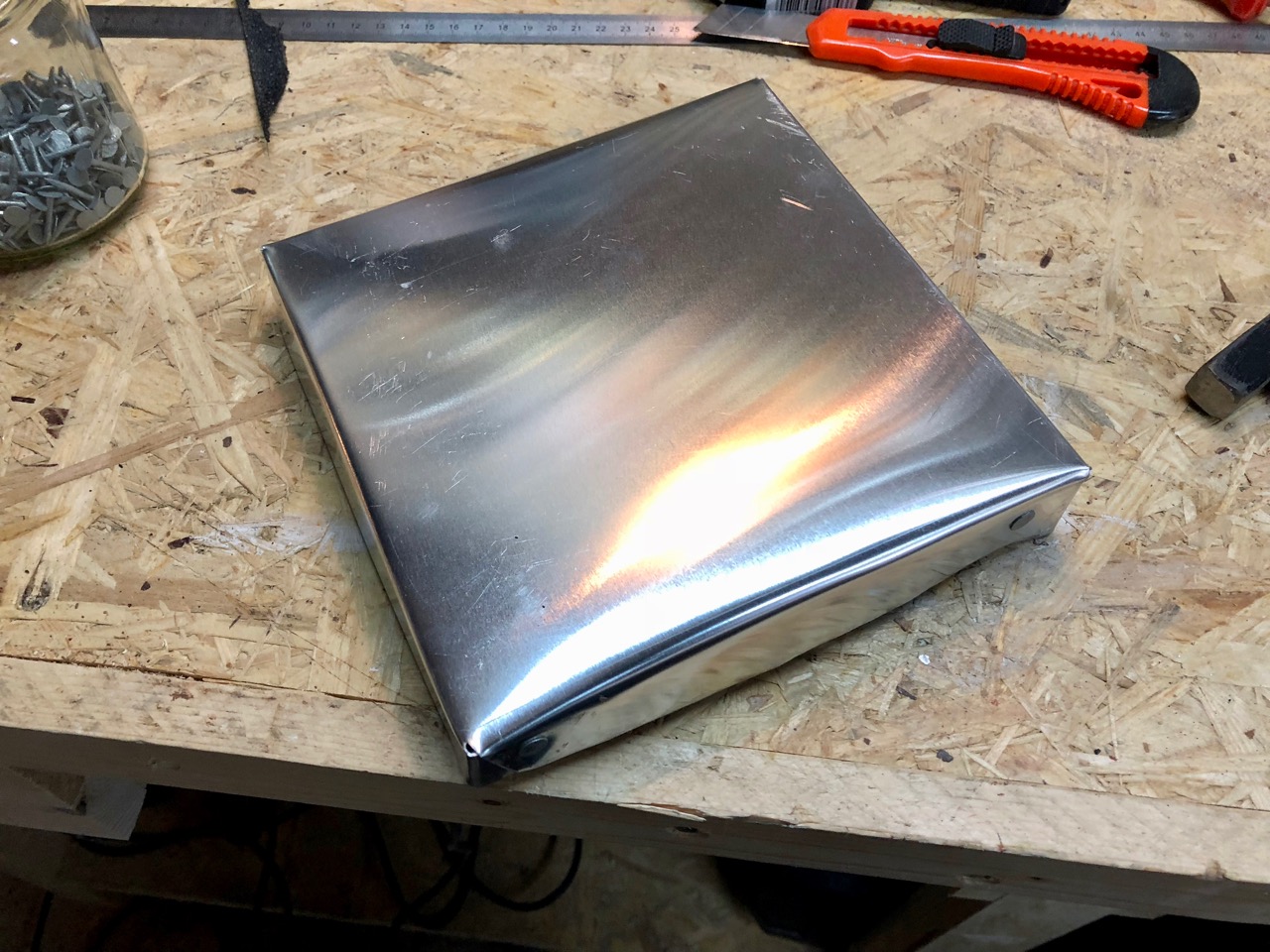

I wrap the metal sheet around the wood, fold it at the edges and use the same nails to fixate it.

The vertical house has no front made of wood. The body itself has the entrance and the perch. Therefore I use a foster drill to cut the entrance and a wood drill to cut two holes for the perch (one on each site). The perch goes direct through the whole body.

I will cover the bodies with spry paint. Therefore I use grinding paper to roughen the surfaces and water to clean it up afterwards.

Let's get some color, shall we? I hang the bodies on a rope and start painting the inner surfaces and edges. While the parts are drying, I build a small rack, which will help me during the painting process.

The parts are dry and I mount them to my rack. I can rotate the parts just by rotating the rack. During the rotation I can apply the paint evenly.

The wooden parts need a coating as well. I use three layers of white paint, which is suitable for the outdoors. The perch is going to be red as a nice eye-catcher :).

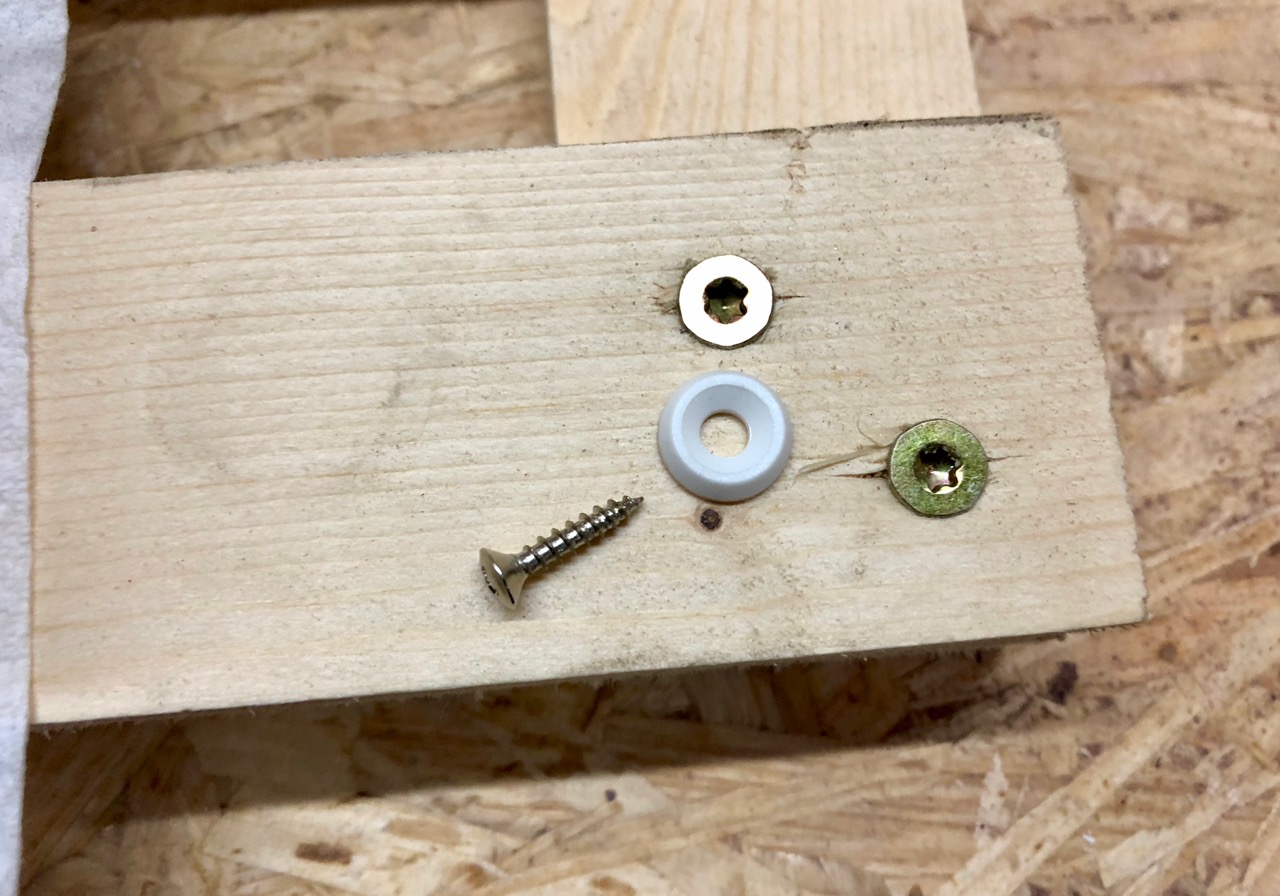

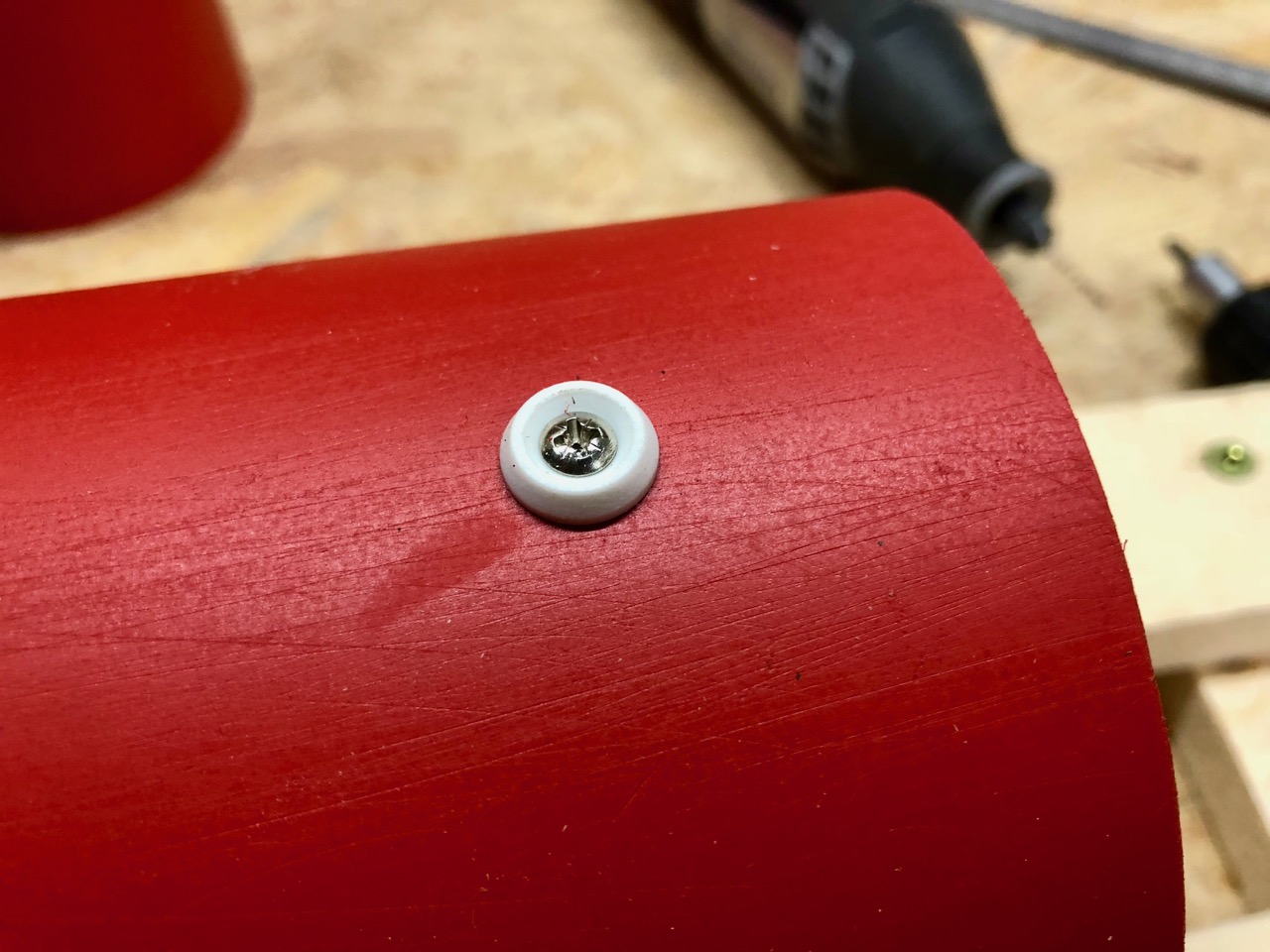

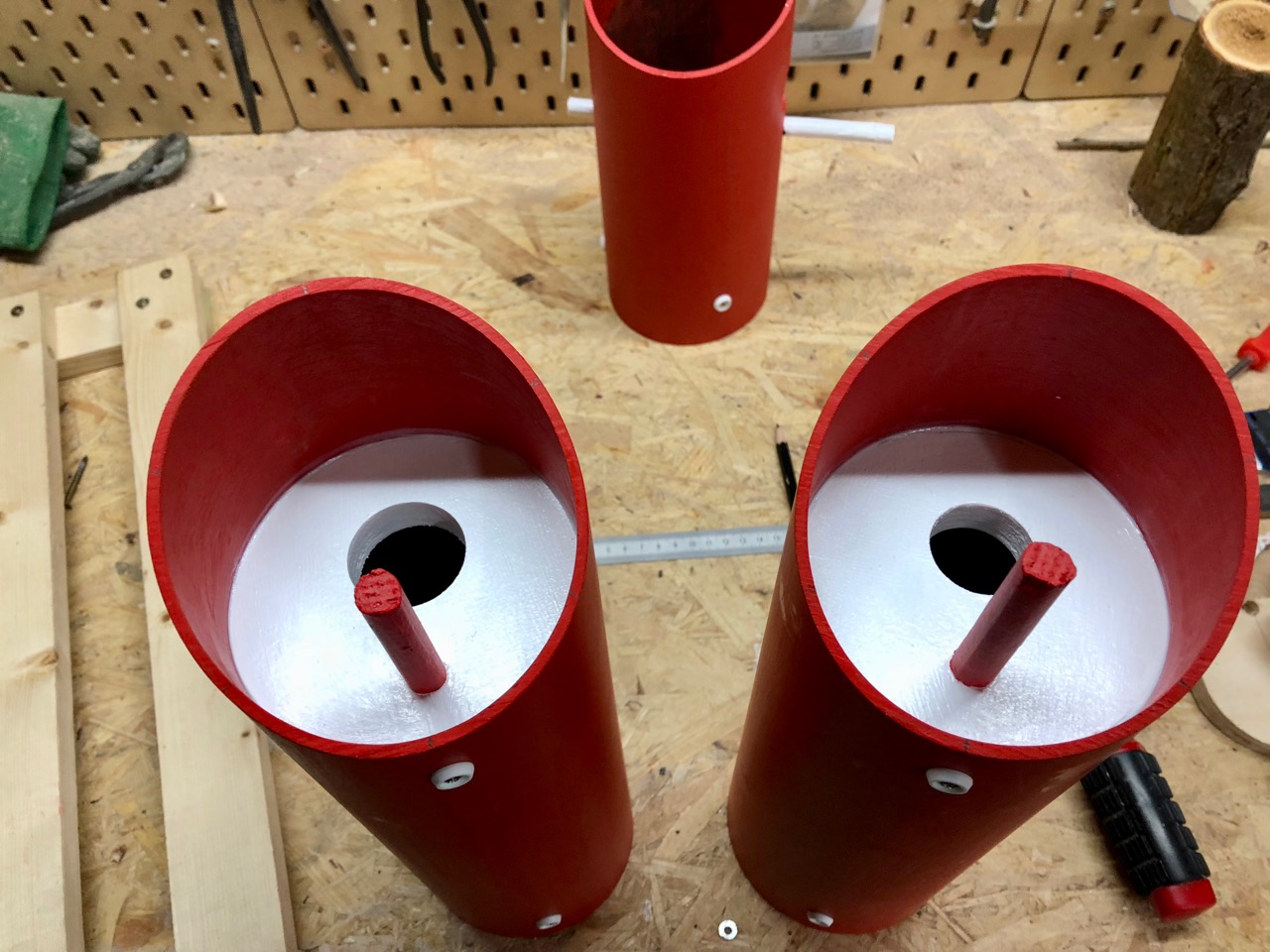

Now I can mount the front and the ring-shaped parts to the bodies. I use three stainless screws and three plastic washer for each part. The plastic washer will seal the hole and will keep the water outside. I mark three spots equally around the pipe and drill small holes with a thin drill. I fasten the screws using a screwdriver. Be careful and do not apply to much force.

The perch for the vertical house goes right through the body. I use a small screw on the back to fixate it.

I glue the roof to the body using waterproofed glue. Well that's it almost :)

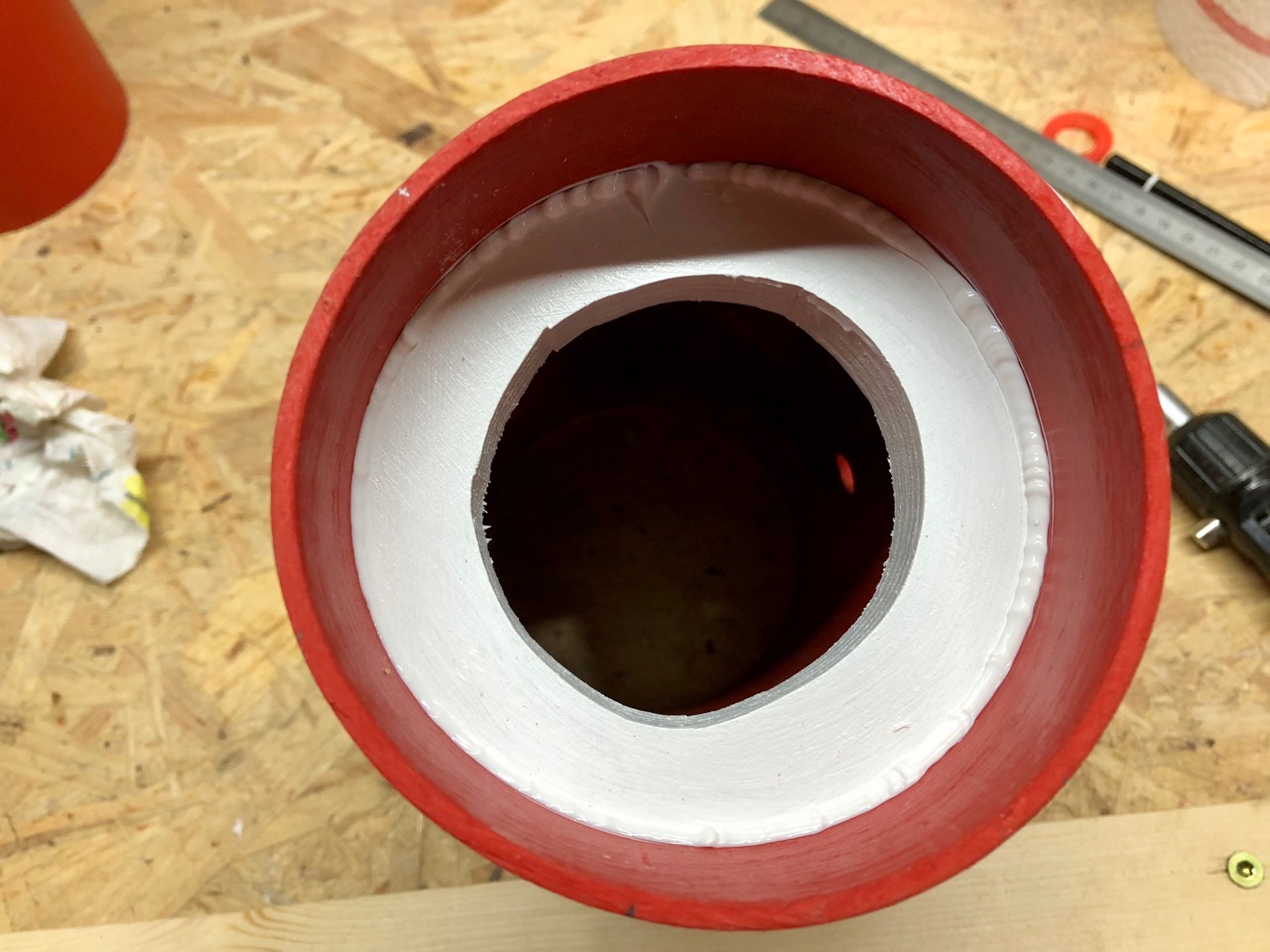

My jigsaw, ok, well I did a poor job with cutting out the round shaped parts. To fix that and to make the house waterproof I add a small amount of silicone to the gap between the wood and the "house wall". I'll do that with all front and back panels and the roof.

The birdhouses will hopefully house some birdies over the spring and summer. To clean them in fall, I add a simple hatch to the back. It's just a lid fixated with screws. The lid covers the ring-shaped part.

Congratulations, everything is done and you are hopefully a proud owner of some new birdhouses. Let's take them outside for a foto shooting in the wilderness :D

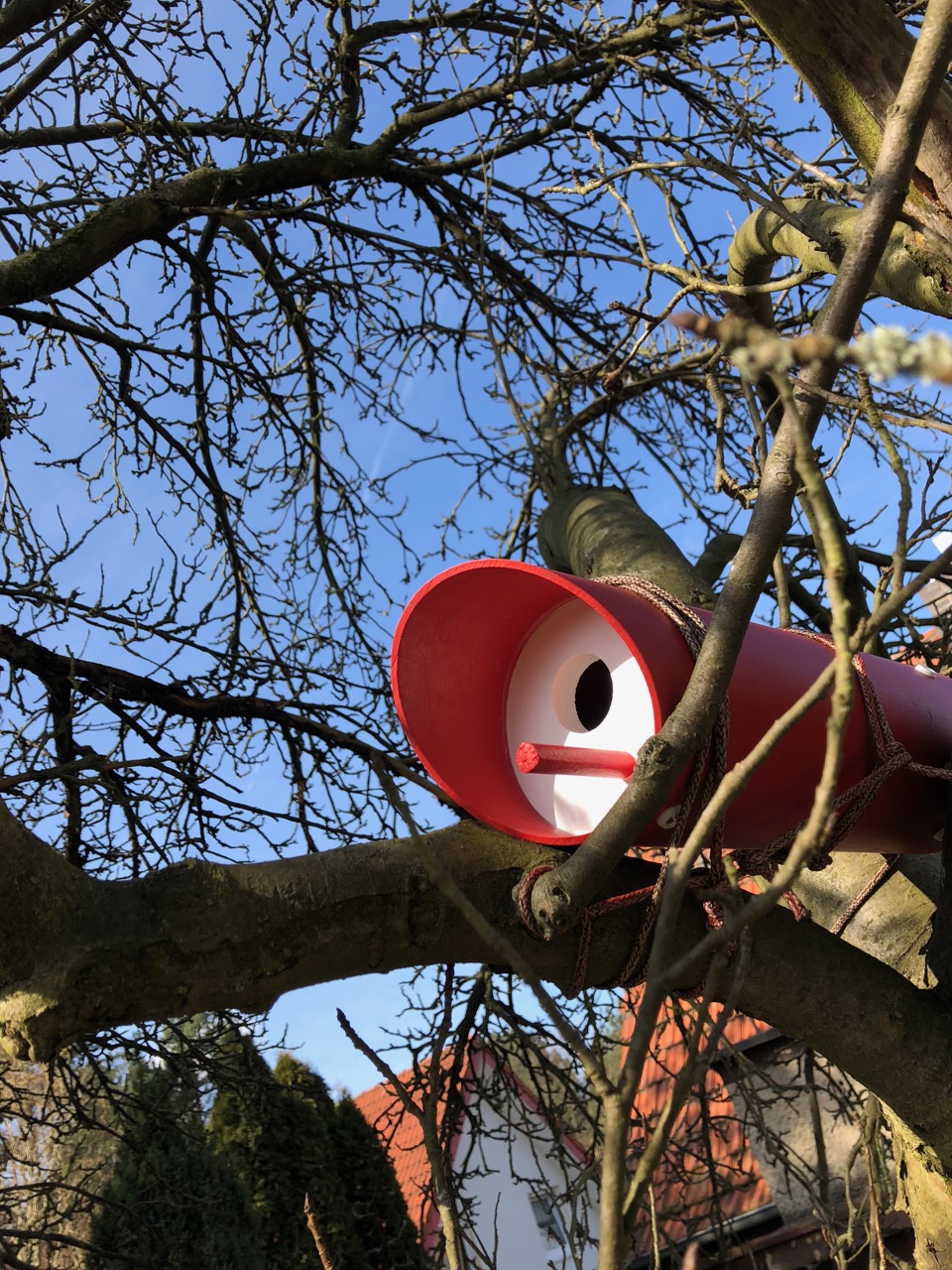

I use two different methods of mounting the houses. Method one is just a nylon rope within a tree. Method two are pipe clamps mounted to a shed or carport. It's important to face the entrance to the right direction. As far as I know, the birdies like their doors pointed to east/east-south direction (opposing the weather face).

I hope you will enjoy building this. Please let me know your experiences and improvements. Please put photos in the comments. :)
