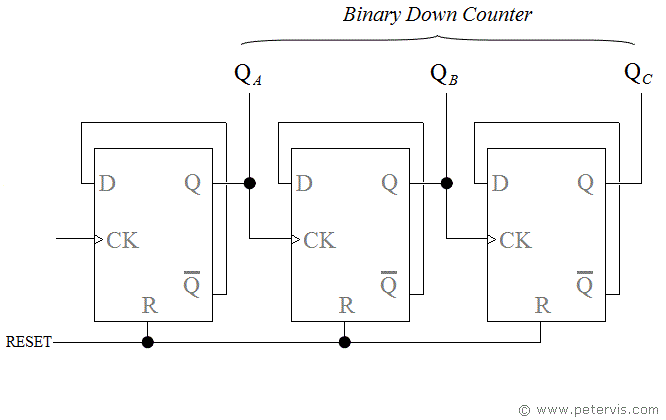

Binary Counter Circuit Using Flip-flop


A binary counter is a digital circuit that counts from 0 to a maximum value (usually 2^n-1) and then wraps around to 0. You can build a binary counter using flip-flops.

Supplies

Materials:

  • Breadboard
  • Flip flops (e.g., D flip flops)
  • Logic gates (e.g., NAND gates)
  • LEDs
  • Resistors
  • Wires
  • Power supply

Instructions

  1. Connect the power supply to the breadboard.
  2. Connect the clock input of the first flip flop to a clock signal (e.g., a 555 timer circuit).
  3. Connect the Q output of the first flip flop to the D input of the second flip flop.
  4. Connect the Q output of the second flip flop to the D input of the third flip flop.
  5. Continue connecting the Q output of each flip flop to the D input of the next flip flop until you reach the last flip flop.
  6. Connect the outputs of each flip flop to the input of a NAND gate.
  7. Connect the output of the NAND gate to the reset input of the first flip flop.
  8. Connect LEDs to the outputs of each flip flop.
  9. Connect resistors to the LEDs and to ground.
  10. Test the circuit by applying a clock signal and observing the LED outputs. The LEDs should count from 0 to the maximum value and then wrap around to 0.

Note: You can modify this project to count in other sequences (e.g., Gray code) or to add additional features (e.g., manual reset).
