Binary Converter in Minecraft

by Steel Slide in Circuits > Microcontrollers

931 Views, 3 Favorites, 0 Comments

Binary Converter in Minecraft

Screenshot 2023-01-25 3.54.05 PM.png

This is a binary converter that converts binary code to a base 10 system it has 3 binary inputs and 8 outputs (0-7). It can be used in redstone displays calculators and other circuits in minecraft.

Supplies

A World in minecraft. Creative and Superflat.

Create a Triple AND Gate

Screenshot 2023-01-24 7.25.26 PM.png
Screenshot 2023-01-24 7.27.05 PM.png
Screenshot 2023-01-24 7.35.11 PM.png

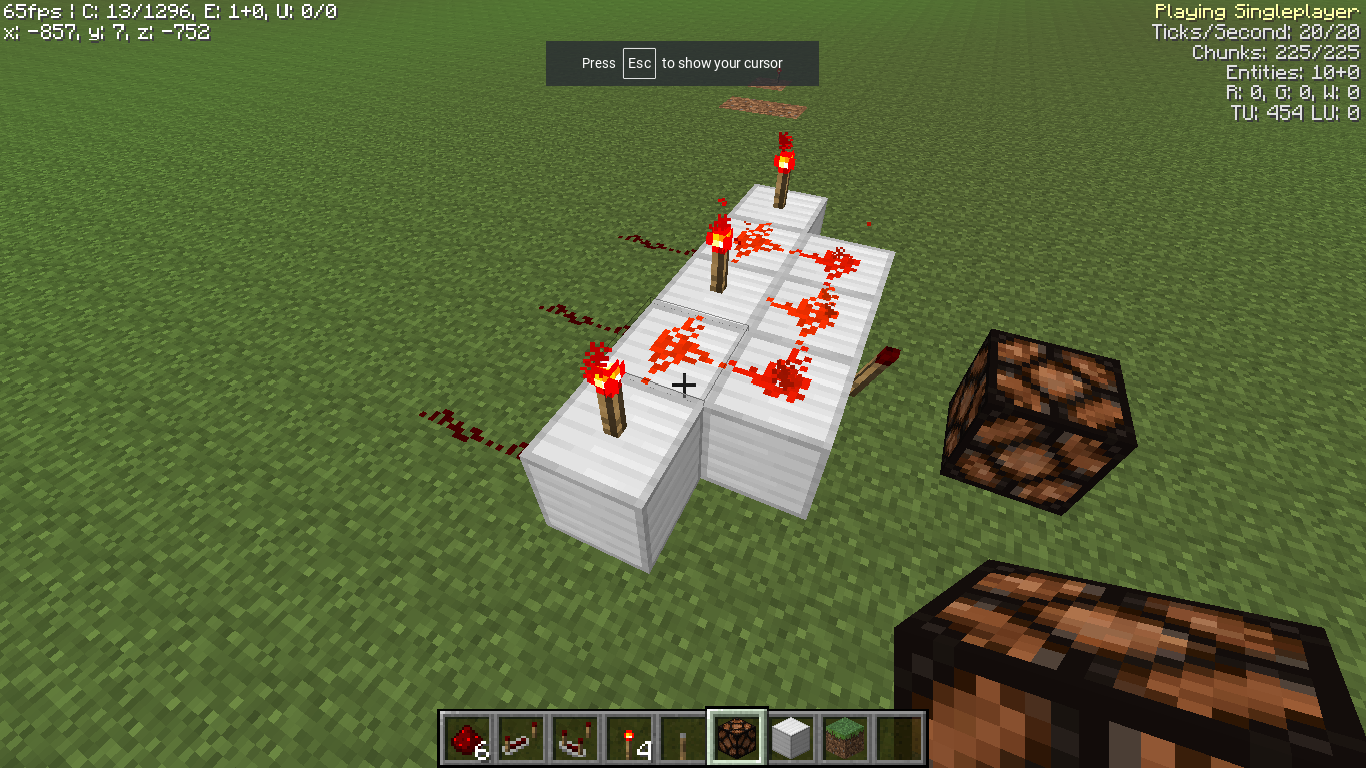

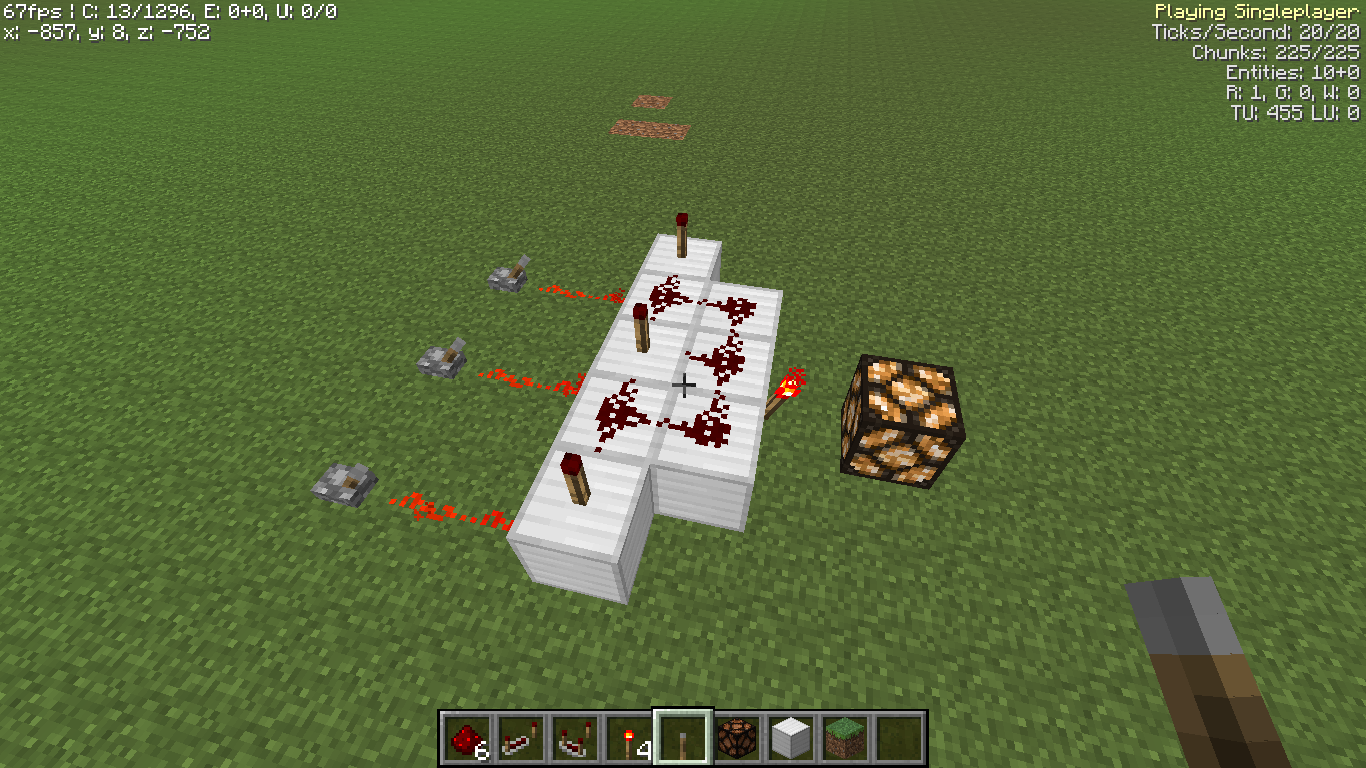

Place 5 blocks in a row with 3 on the side. Place 4 redstone torches and 11 Red Stone dust in the configuration shown. The redstone lamp is there for reference, you do not have to add this yet. A triple AND Gate turns on the output (redstone lamp) when all three inputs are on.

Place 8 Triple ALL Gates

Screenshot 2023-01-24 7.43.43 PM.png
Screenshot 2023-01-24 7.45.48 PM.png

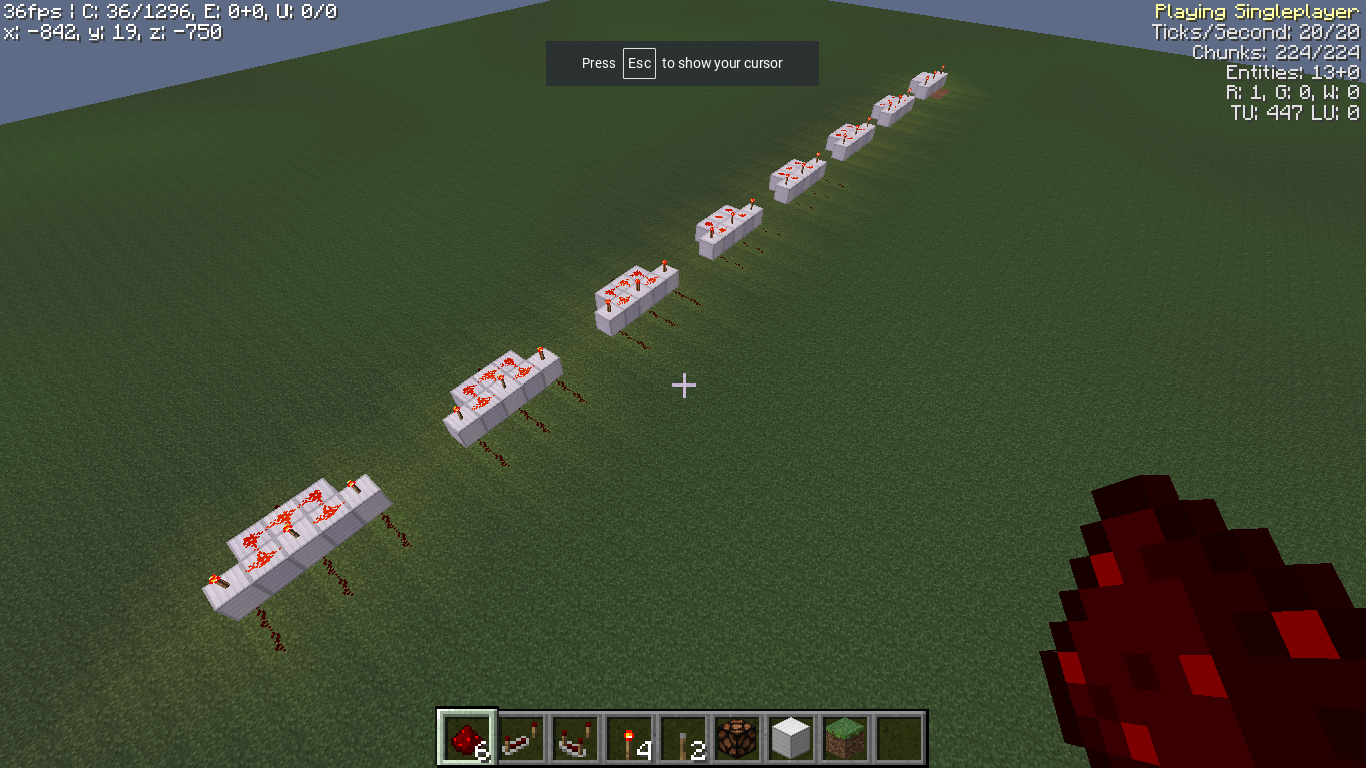

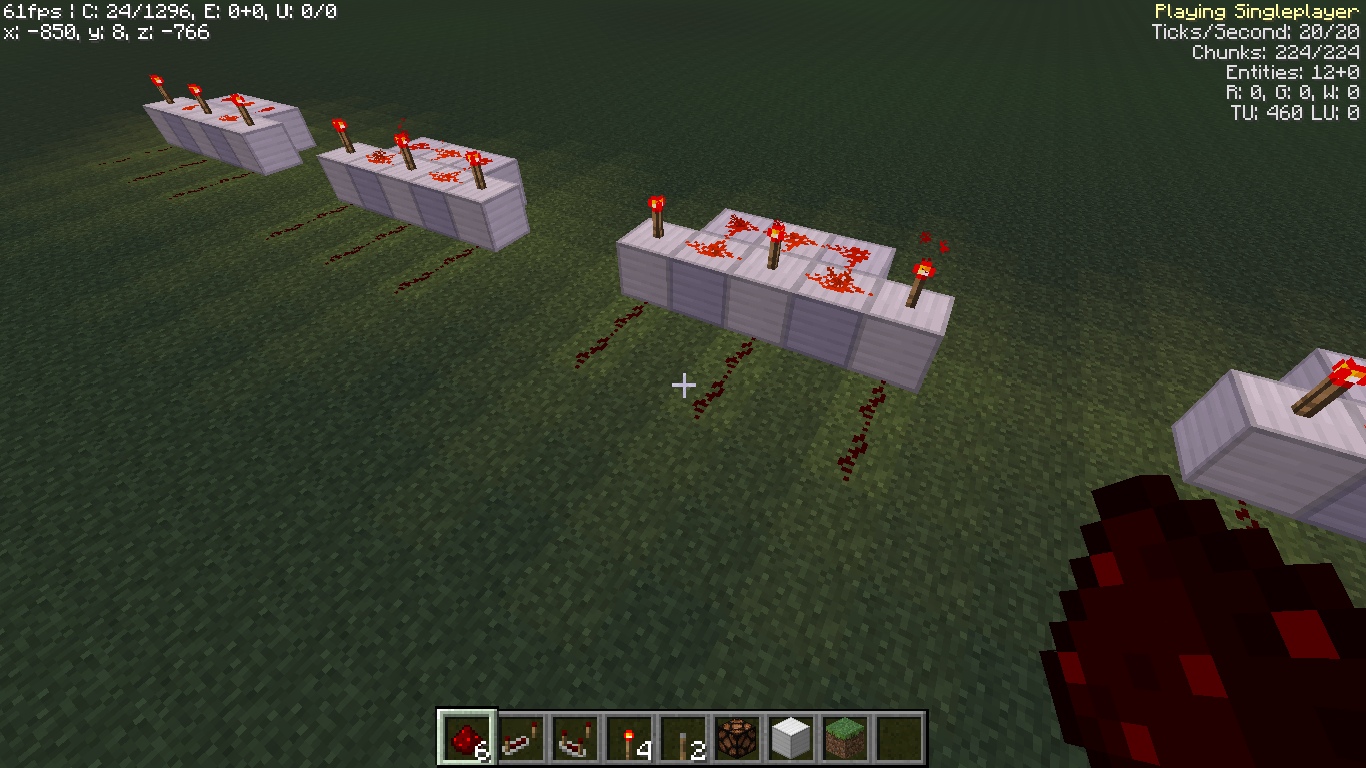

Place 8 AND Gates in a row with 3 block spaces in between

Create 6 Rows of Blocks

Screenshot 2023-01-24 7.51.49 PM.png
Screenshot 2023-01-24 7.54.48 PM.png

Place 6 rows of blocks as shown in the picture 5 spaces out from the AND Gates. Make sure there is 3 spaces in between the rows and that the rows extend 2 blocks past the AND Gates at the top and 1 at the bottom.

Place Blocks Toward the Top of the Rows

Screenshot 2023-01-24 8.01.23 PM.png
Screenshot 2023-01-24 8.03.24 PM.png

Place blocks toward the top of the rows in this configuration.

Add NOT Gates (Inverters)

Screenshot 2023-01-24 8.08.29 PM.png
Screenshot 2023-01-24 8.09.40 PM.png

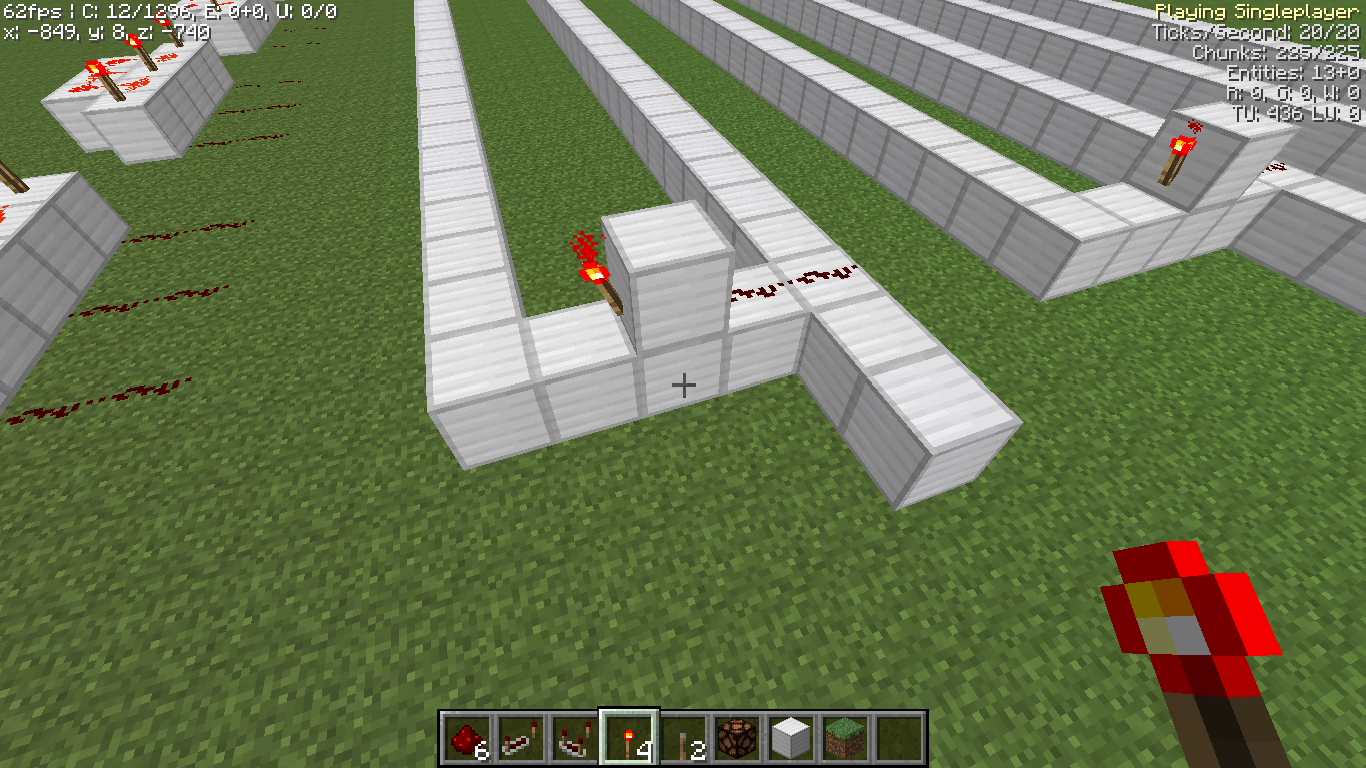

Add one block, a redstone torch, and 2 redstone dust in this configuration

Connecting Rows to the ALL Gates


The top has 3 inputs and the inverter make the inverted line next to the input line opposite to the input line

Continued

Screenshot 2023-01-24 8.20.51 PM.png
Screenshot 2023-01-24 8.25.07 PM.png
Screenshot 2023-01-24 8.29.19 PM.png

The inputs to the ALL Gate are connected to the inverter lines resembling the schematic in step 6. Place redstone on the ¨bridges¨.

Repeat for ALL Gates 1-7

Screenshot 2023-01-24 8.54.59 PM.png
Screenshot 2023-01-24 8.56.17 PM.png
Screenshot 2023-01-24 8.57.14 PM.png

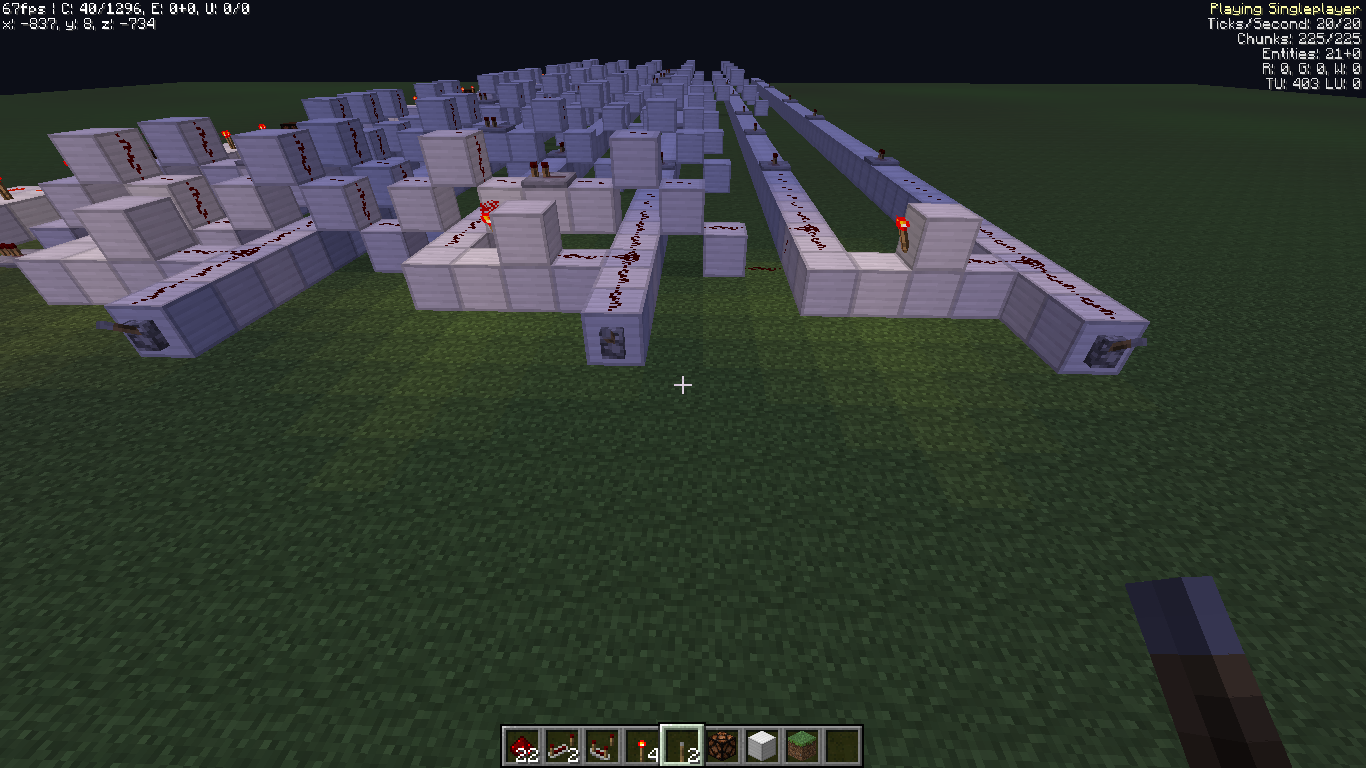

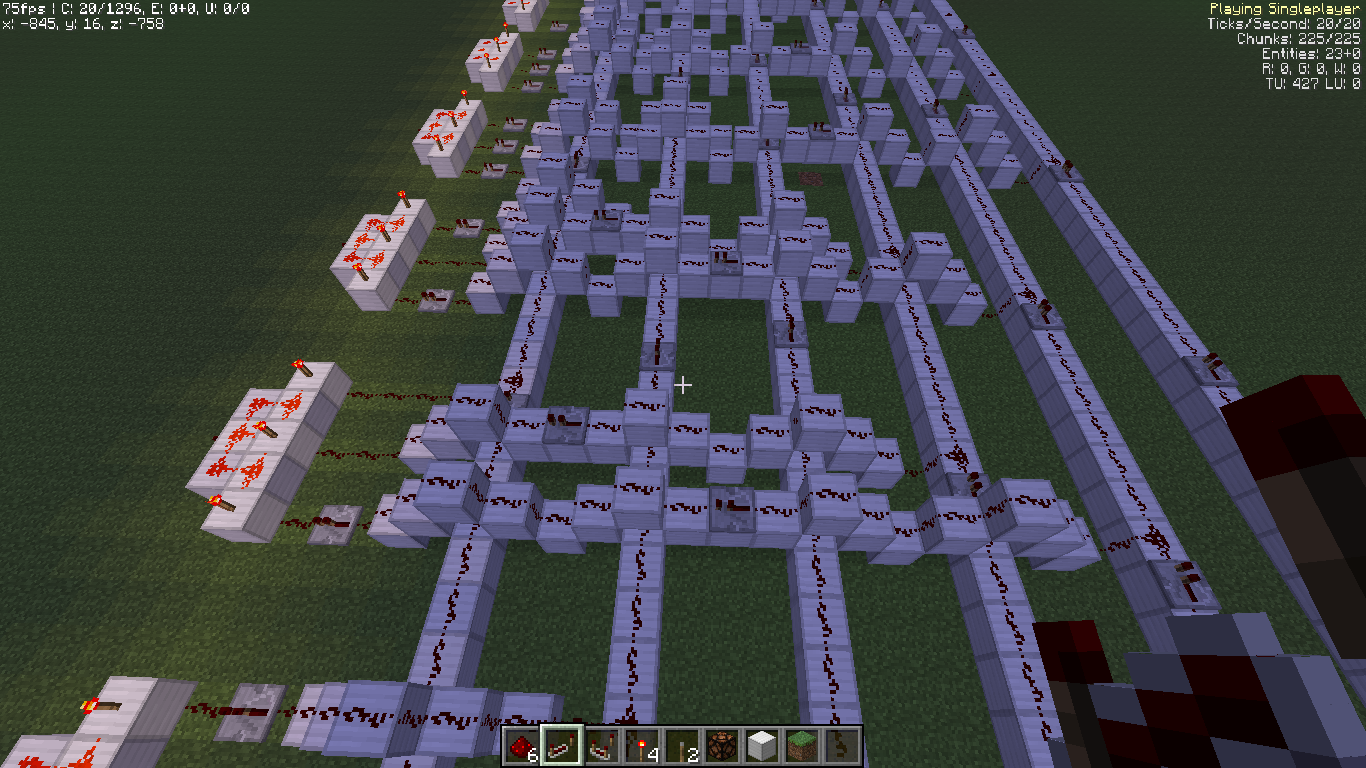

Once this step is finished your circuit should look something like this.

Add Redstone Down the Rows

Screenshot 2023-01-24 9.11.10 PM.png
Screenshot 2023-01-25 3.11.15 PM.png
Screenshot 2023-01-25 3.14.51 PM.png

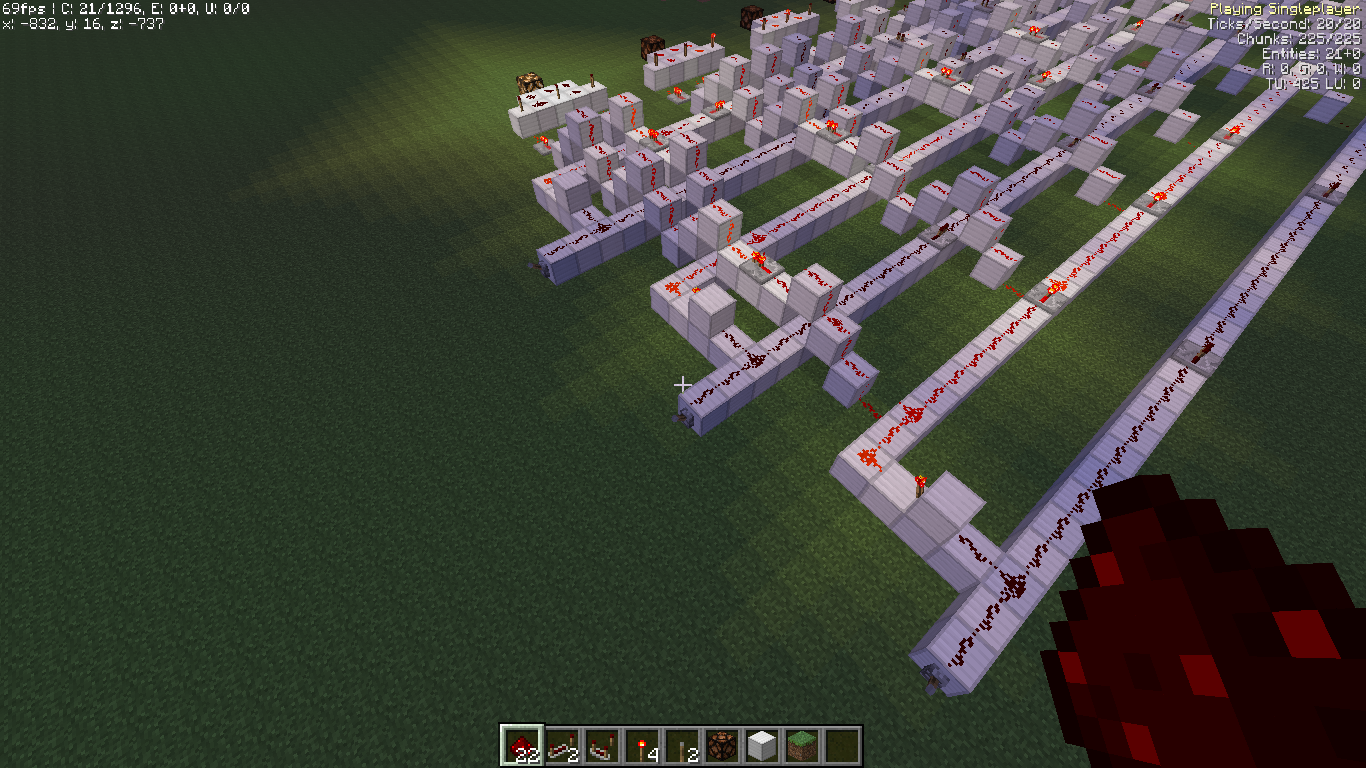

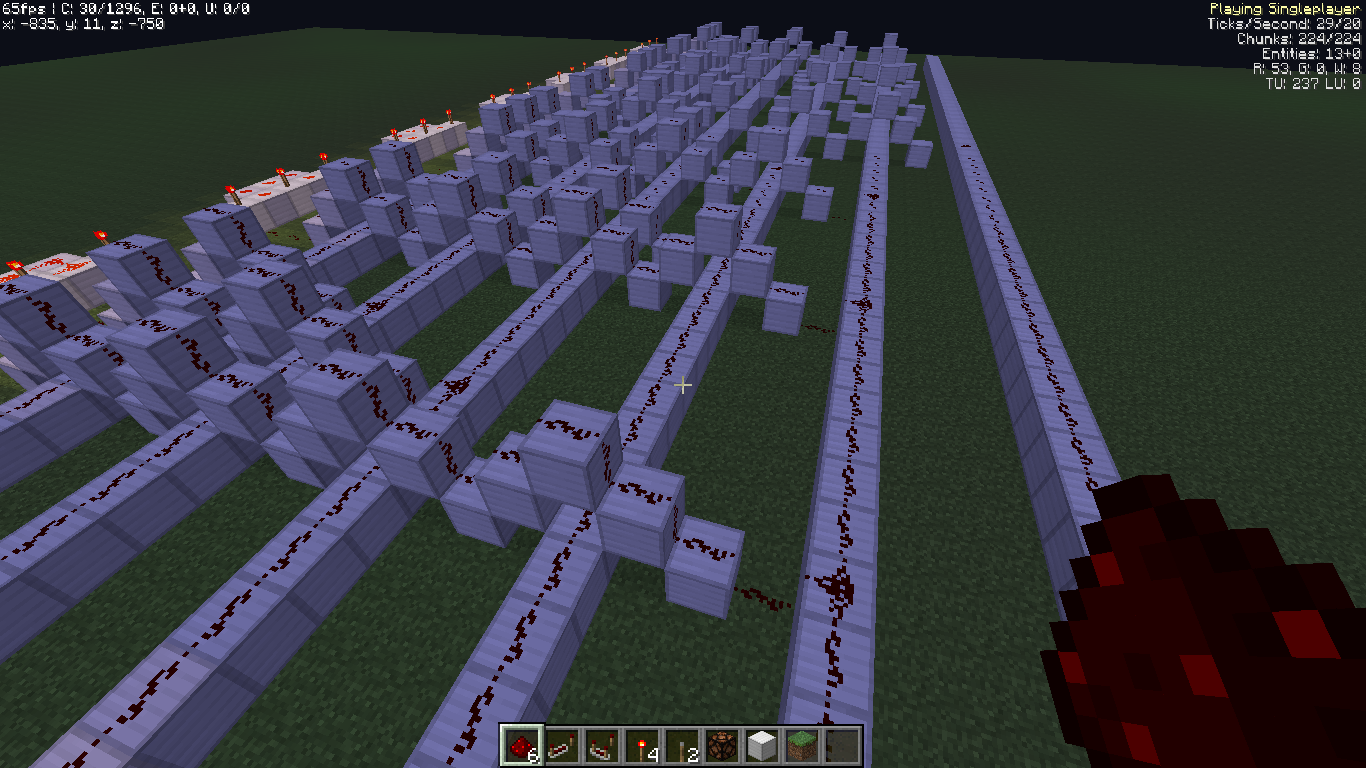

Add redstone down the rows. Make sure to place it under the "bridges" and not to miss any spaces. Leave 1 space open right after the inverter so it does not light up.

Add Redstone Comparators Down the Rows

Screenshot 2023-01-25 3.26.23 PM.png
Screenshot 2023-01-25 3.28.17 PM.png

Add redstone comparators down the rows at about every 13 spaces. The limit is 15. Try to add them just before a trail of redstone goes of to the side. The less comparators you use the faster it will be.

Place Redstone Comparators on the "bridges"

Screenshot 2023-01-25 3.41.39 PM.png
Screenshot 2023-01-25 3.44.42 PM.png

Place redstone comparators on the "bridges" in this configuration. Remember: 15 spaces is the limit for how far redstone travels.


Place Redstone Lamps by the ALL Gates

Screenshot 2023-01-25 3.49.50 PM.png

Place redstone lamps as shown in the picture.

Add Levers and Redstone

Screenshot 2023-01-25 3.51.45 PM.png
Screenshot 2023-01-25 3.52.57 PM.png

Place levers at each binary input. place redstone at the inverters. and the 0 lamp should come on. Enter binary codes in the inputs and you should have different lamps light up 0-7. If it does not work check your comparitors for backward ones and ones longer than 15 spaces apart
