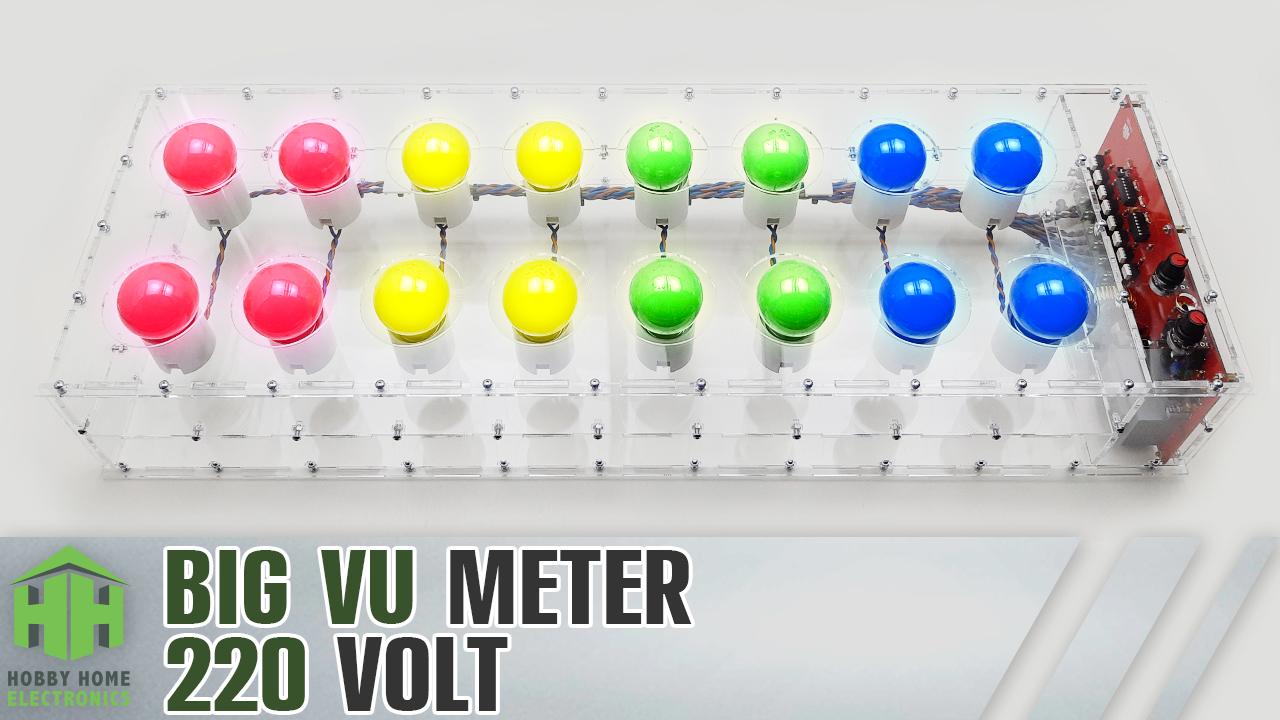

Big VU Meter on Incandescent Lamps 220 Volt.

Good afternoon, dear viewers and readers. Today I will tell you about the audio level indicator on 220 volt incandescent lamps.

Link to this video:

• https://youtu.be/CqnK-5PQ00U

Please support me on Patreon to create a new projects.

You can find all the necessary information for repeating this device by clicking on the link to Patreon:

• https://www.patreon.com/HOBBYHOMEELECTRONICS

Links to radio components:

Radio parts store:

• http://ali.pub/3a5caa

Microchip LM324:

• http://ali.pub/39zdo1

Microchip LM311:

• http://ali.pub/55dw9s

Microchip LM358:

• http://alii.pub/694vj2

Triak BT137-600E:

• http://ali.pub/55dwy3

Optothyristor MOC3021:

• http://alii.pub/696ahg

Transformator 230В/9В/5VA 1:

• http://ali.pub/55e3ix

Transformator 230В/9В/5VA 2:

• http://ali.pub/55e3ok

Mounting racks:

• http://ali.pub/55dw3k

The schematic diagram of the audio indicator consists of three parts, such as: a microphone amplifier, a power unit and adjustment, a linear indicator with power amplifier stages.

This device operates in such a way that after amplification and smoothing the microphone signal is converted into a voltage with a level proportional to the signal amplitude. This voltage is applied to a number of comparators each of which drives a symistor.

The main unit of the regulator is a sawtooth generator which is synchronous with the mains voltage. With its help a command to turn on the symistor is generated, and if there is a comparator signal, power is applied to the lamp of the column.

Now let’s manufacture an antijam choke.

We need an enamelled copper wire with a diameter of 1 mm, a length of about 1.350 mm and a toroidal core made of powdered iron with an outer diameter of 30 mm and an inner diameter of 20 mm.

We need to wind 38 turns of copper wire around the toroidal core.

We can apply the load up to 1000 watts with the help of such a choke.

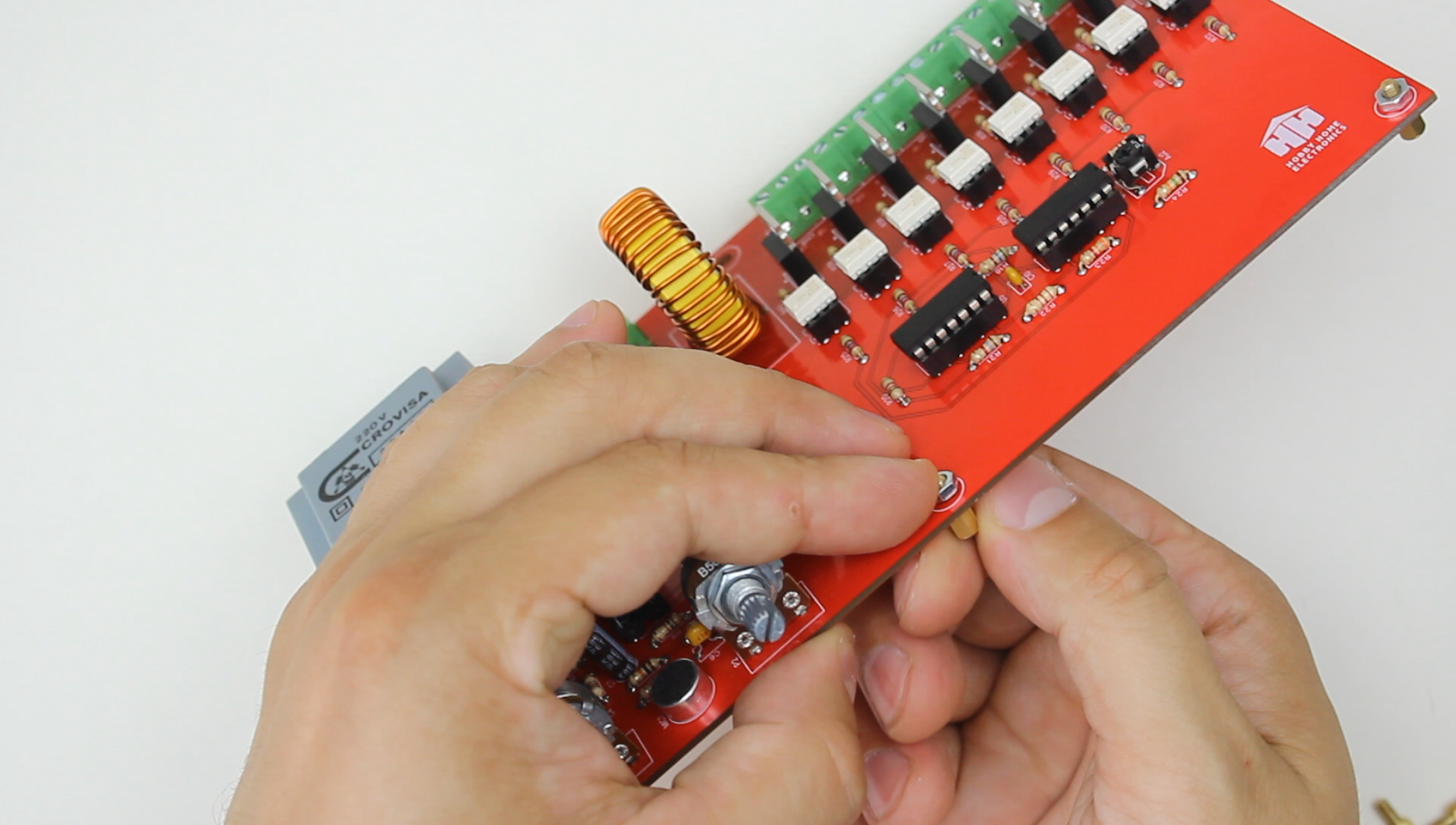

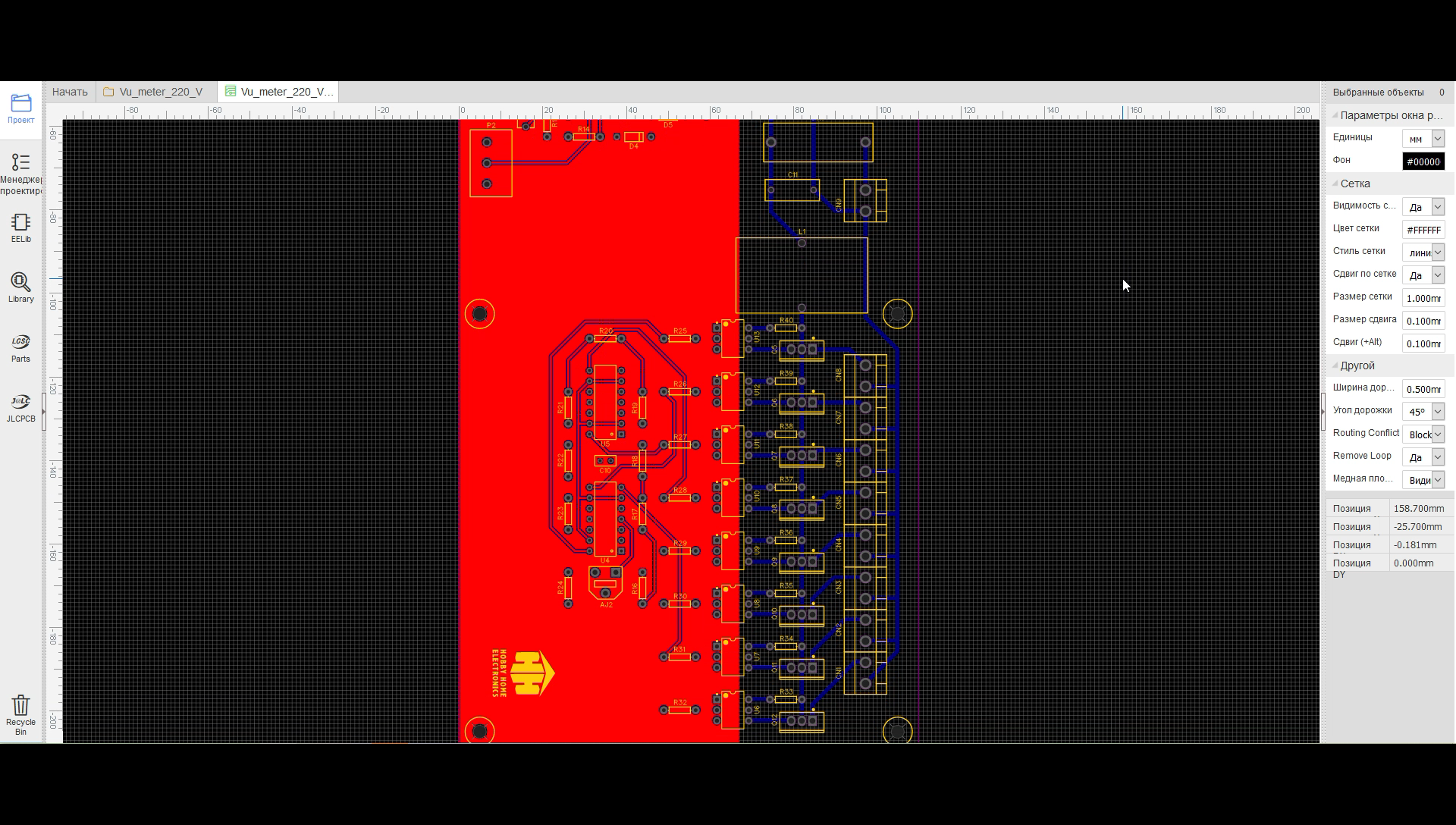

Next, let’s proceed to the installation of radio components on the control circuit board.

After installing all the radio components, you need to configure the control circuit board.

Using a digital multimeter with limits of measurement of 20 V (DCV), adjust the variable resistor Aj1 so that the voltage measured on the capacitor C3 is about 2.9 volts.

Next, using the variable resistor Aj2 you need to set the maximum actuation level of the upper lamps so that they light up at the maximum sound level.

To create 3D visualization and drawings of the audio indicator body, the KOMPAS 3D program was used. The body of the device consists of 8 parts. 3 mm transparent organic glass was used to manufacture them. All drawing files were converted to DXF format and sent to a sheet cutting company.

Insert brass posts M3 6 mm long into the holes of the control circuit board and fix them using nuts.

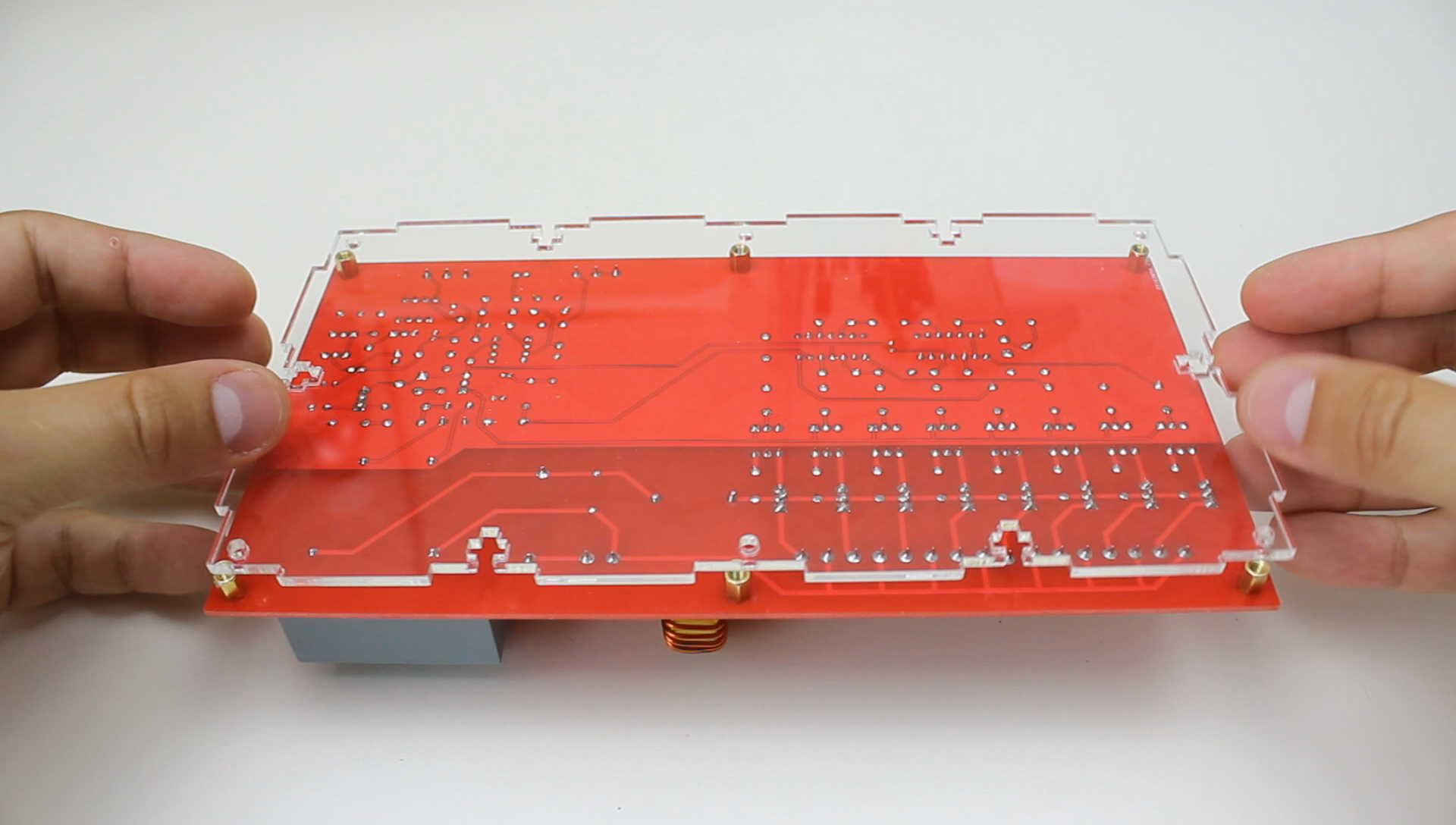

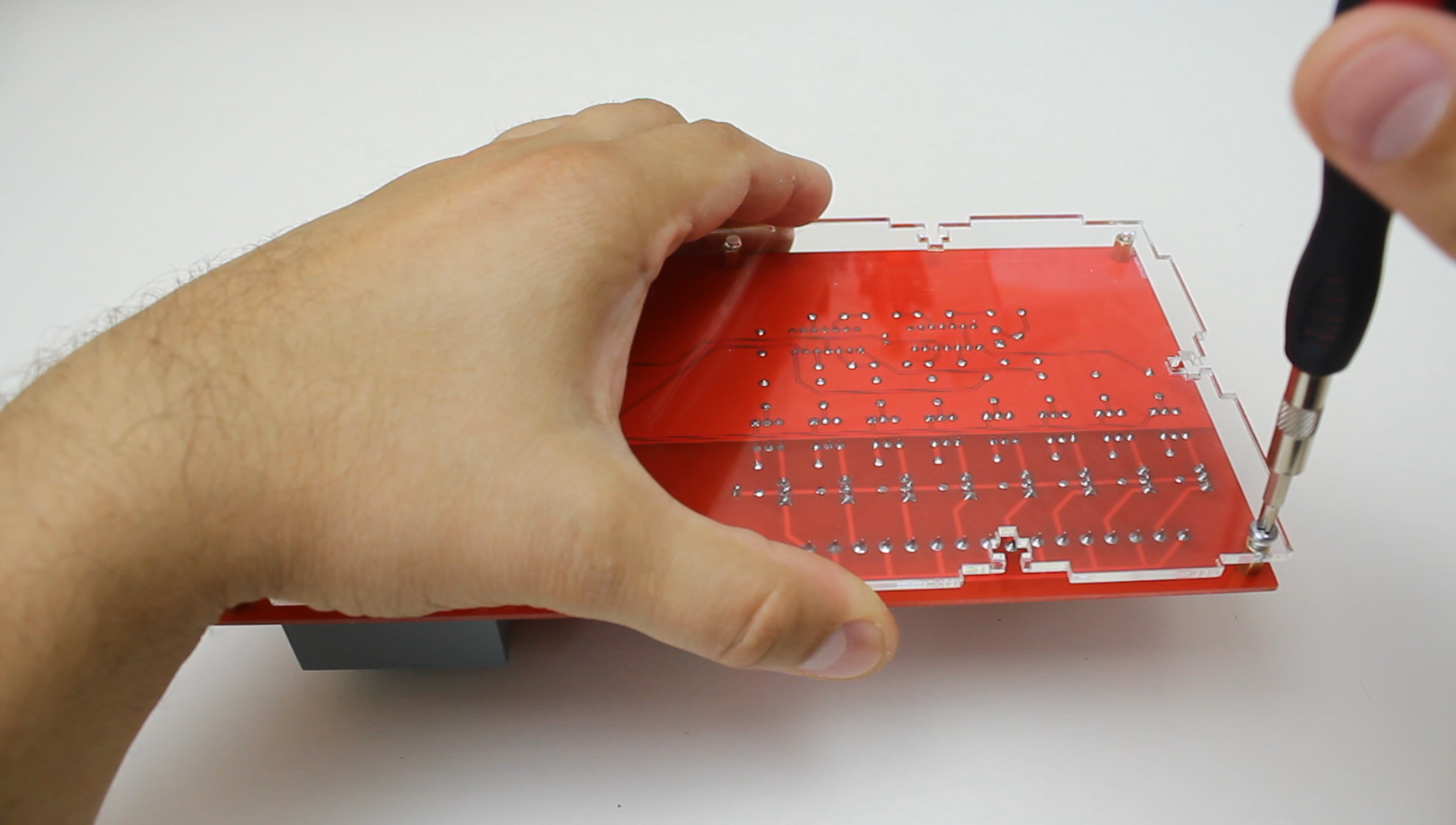

After that, put the control circuit board and the bottom body panel together using screws M3.

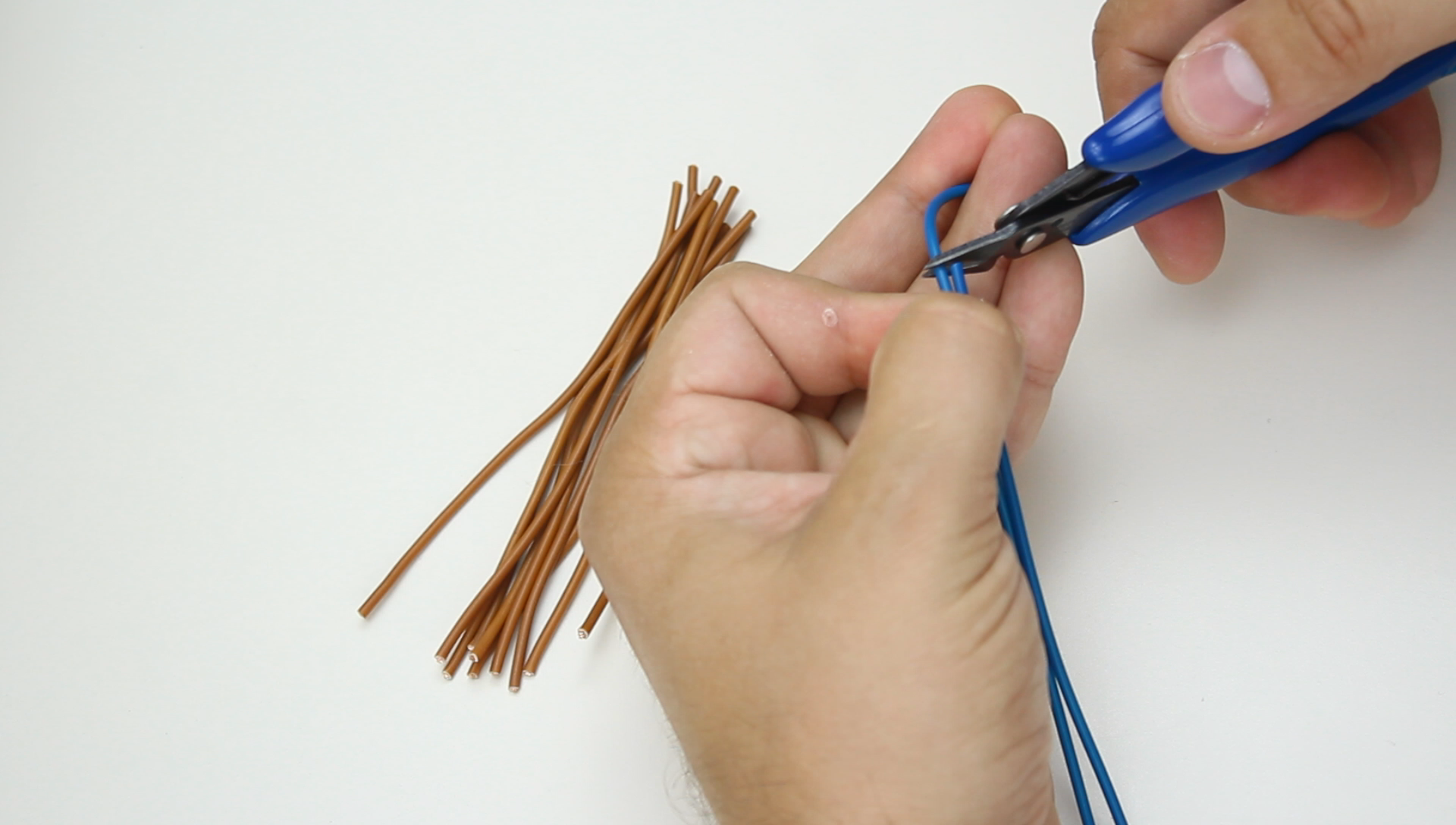

Next, prepare the wires for the further connection of the incandescent lamps with the control circuit board.

Before soldering, you need to remove all excess insulation and tin the wires.

To install incandescent lamps we will use a common holder with an adapter plug of European standard E27 made of heat-resistant white plastic.

Before installing the holders on the inner edge of the body, you need to remove the top protective cover.

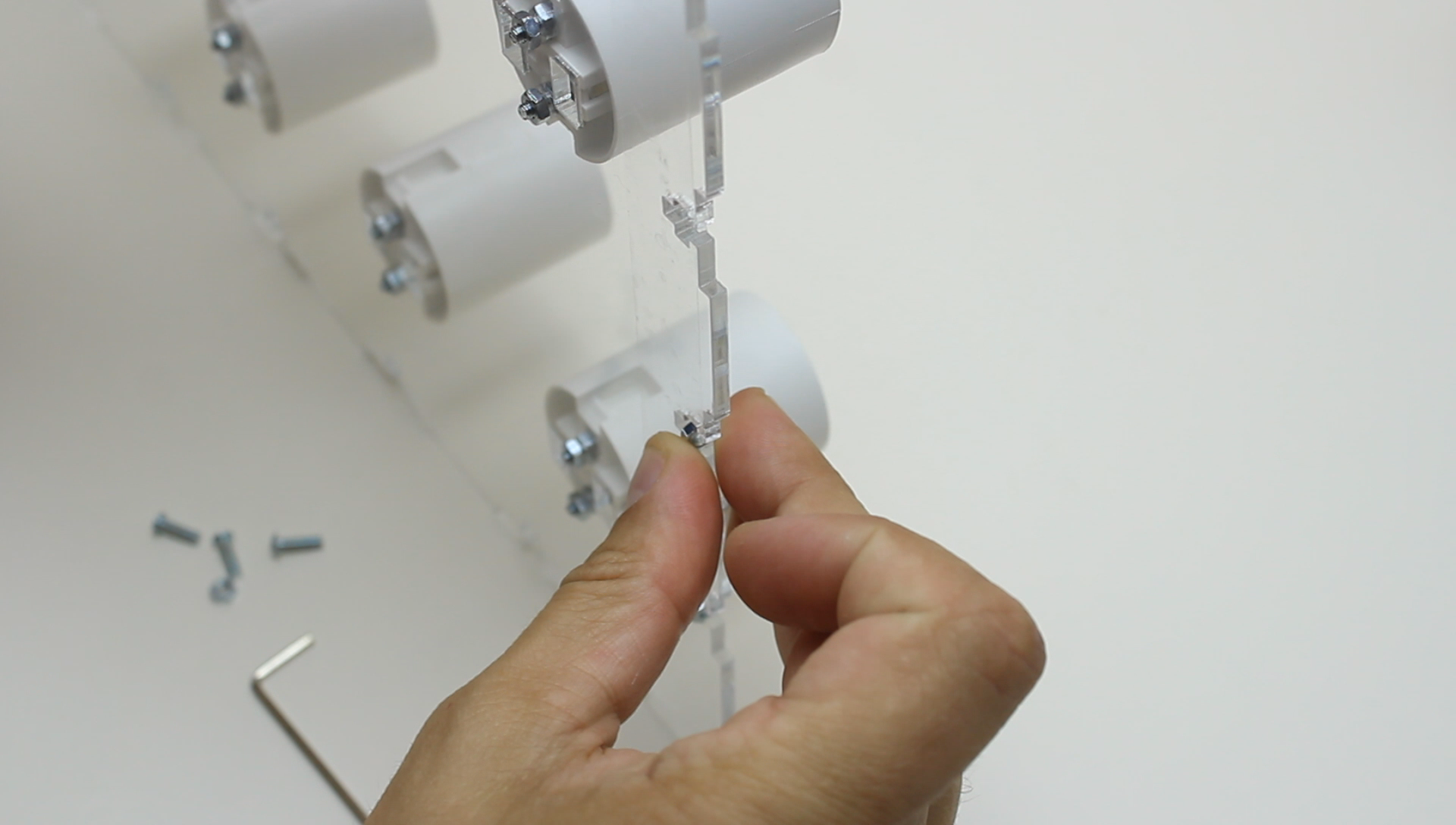

Insert the screws M3 into the through holes of the holders for incandescent lamps and fasten them from the back side using nuts.

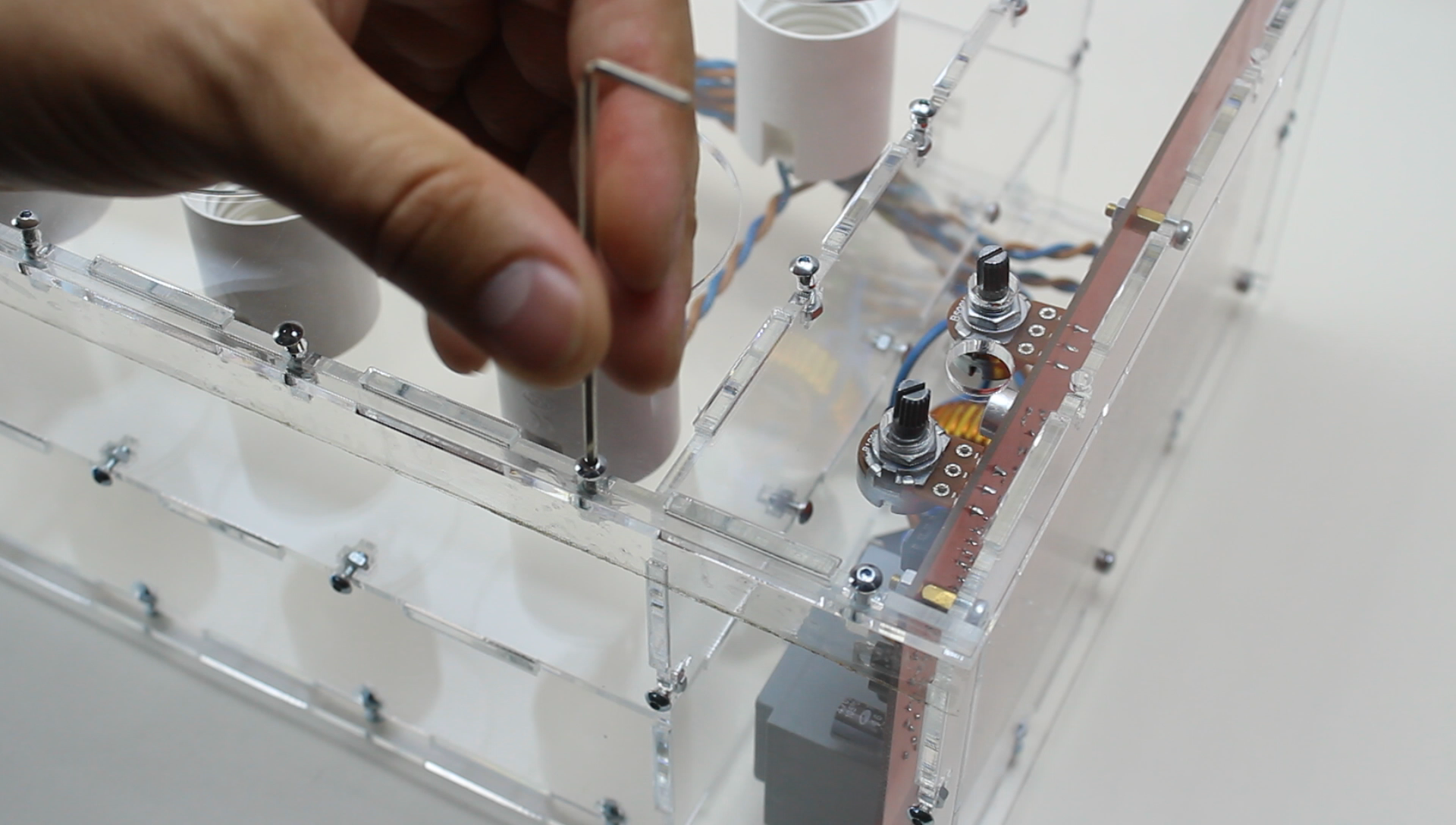

Install the middle and upper body panels on the inner edge. Insert the nuts into rectangular holes from the end sides. After that, put the parts together using screws M3.

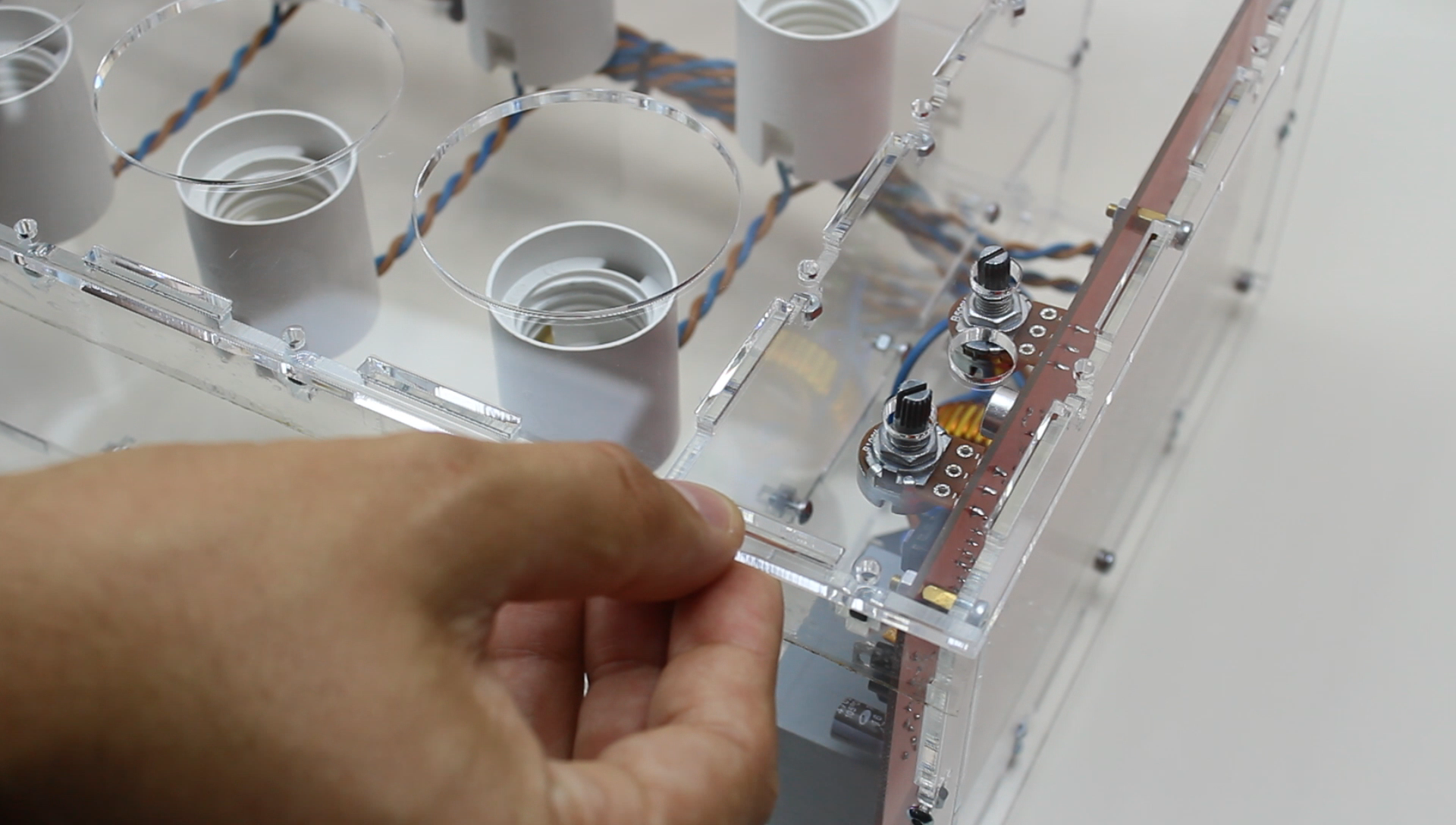

Next, mount one of the side panels on the middle edge.

Insert the assembly of the control circuit board and the lower part of the body in the through rectangular grooves on the side panel.

After that, install the second side panel.

Mount the wires into the spring contacts of the lamp holders through the holes on the inner edge of the body.

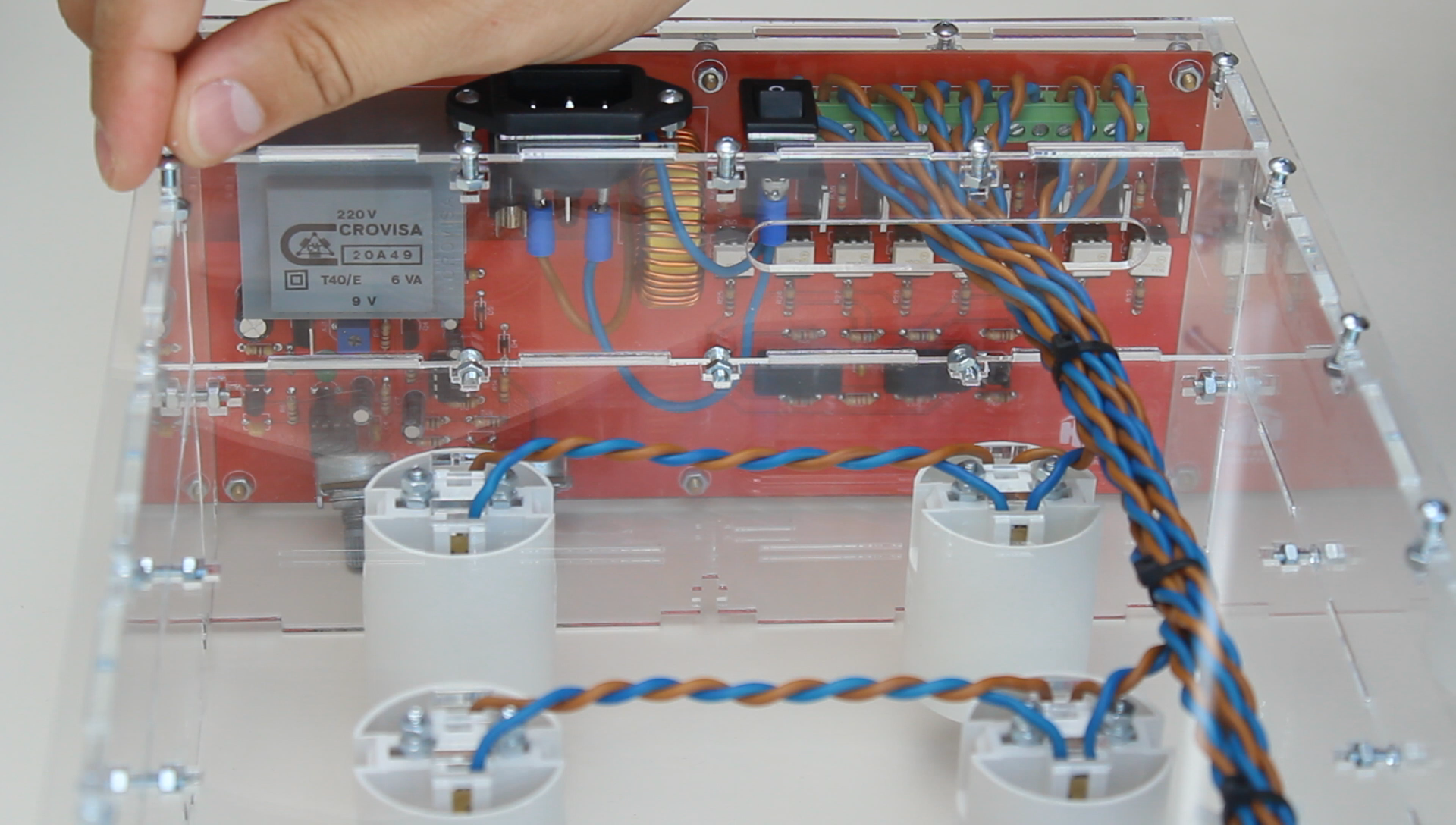

Insert the wires from each individual level of the audio indicator into the terminal holes on the control circuit board fixing them with screws.

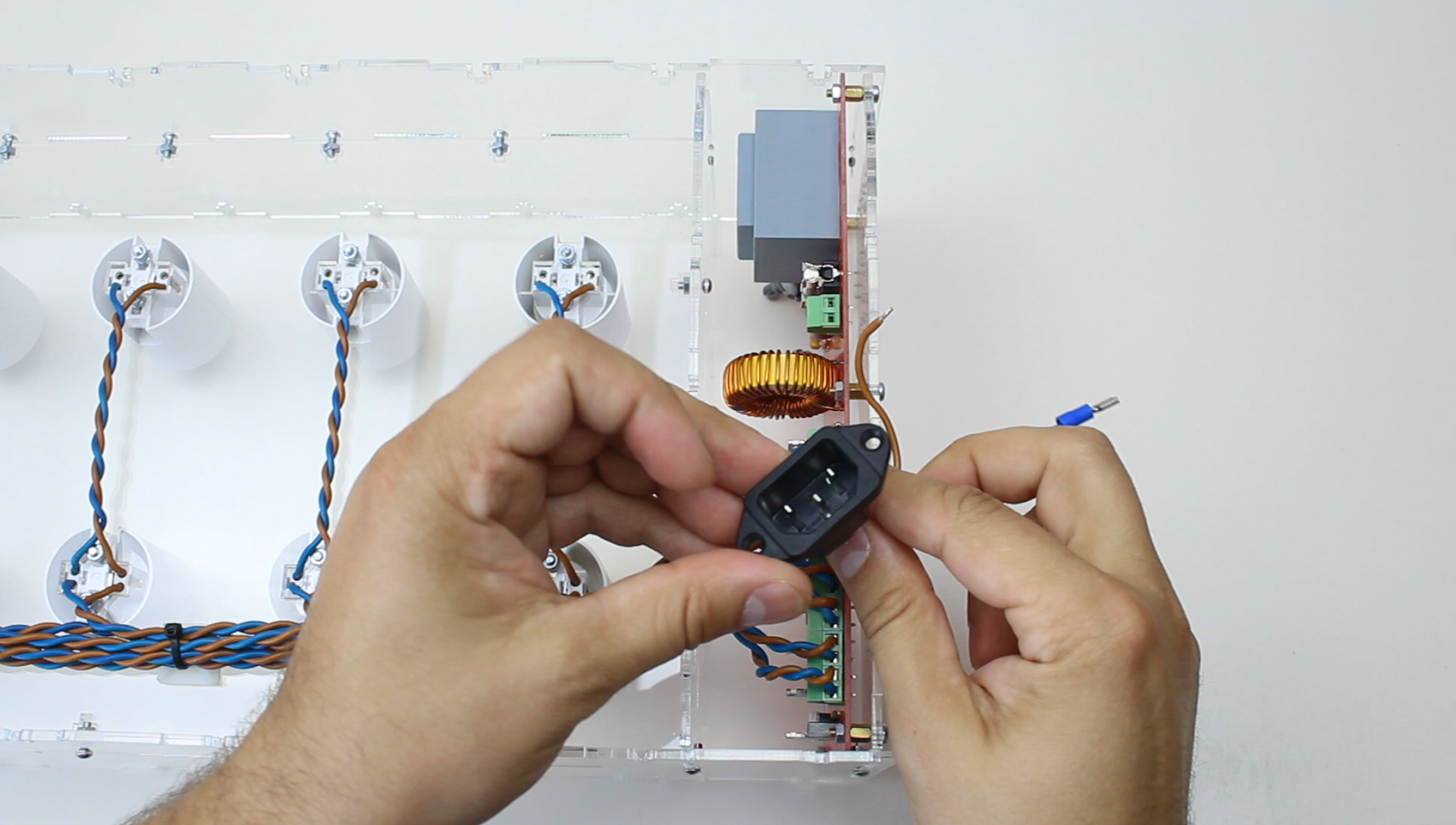

Connect the power socket to the rocker switch using wires and install it into the holes on the back side of the body.

After that, let’s fix the back panel.

Next, mount and fasten the front panel with other body parts.

Place decorative handles with an inner diameter of the axis of 6 mm on potentiometers.

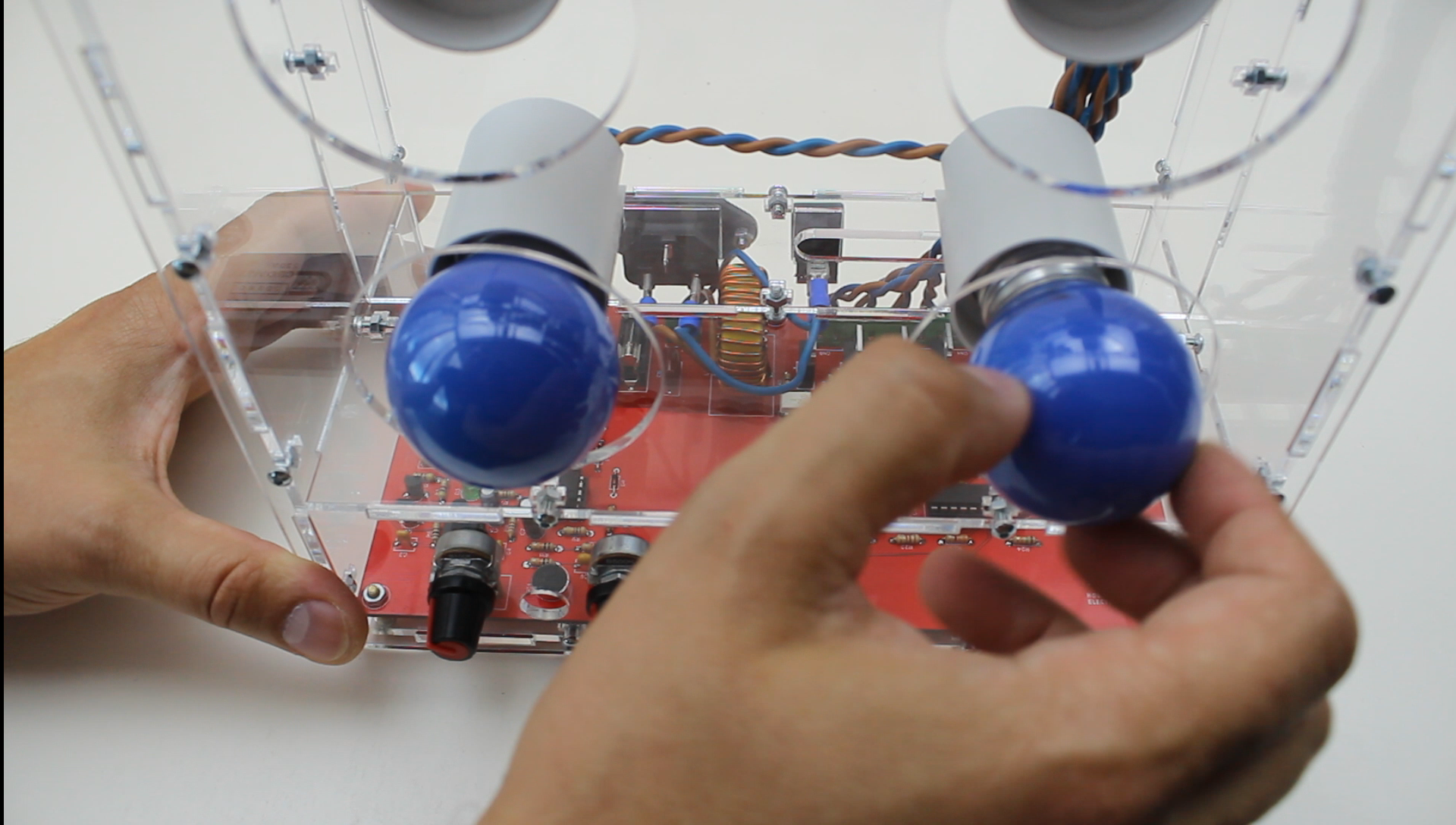

Next, screw 25-watt colored incandescent lamps into the holders. Take into account the total load power when choosing the fuse F1.

Then turn the wipers of potentiometers P1 and P2 to the right until they stop. After power supply connection, several lamps should light up, especially if the ambient noise is significant.

If the brightness of the lamps decreases when you slowly turn the potentiometer handles P1, the regulator operates properly.

Then you need to adjust the sensitivity of the microphone using the potentiometer P2.

Thank you all for watching the video and reading the article. Don’t forget to like it and subscribe to the “Hobby Home Electronics” channel. Share it with friends. Further there will be even more interesting articles and videos.
