Bicycle Seat Post Skateboard Rack

The good skatepark is about 5 miles from my house. That's a lot of pushing on 54mm wheels. I did some shopping around and found other racks to be either out of my price range or not well suited to carrying a skateboard.

What follows is a design for a simple seat post skateboard rack for any bicycle. It was about $5 to build.

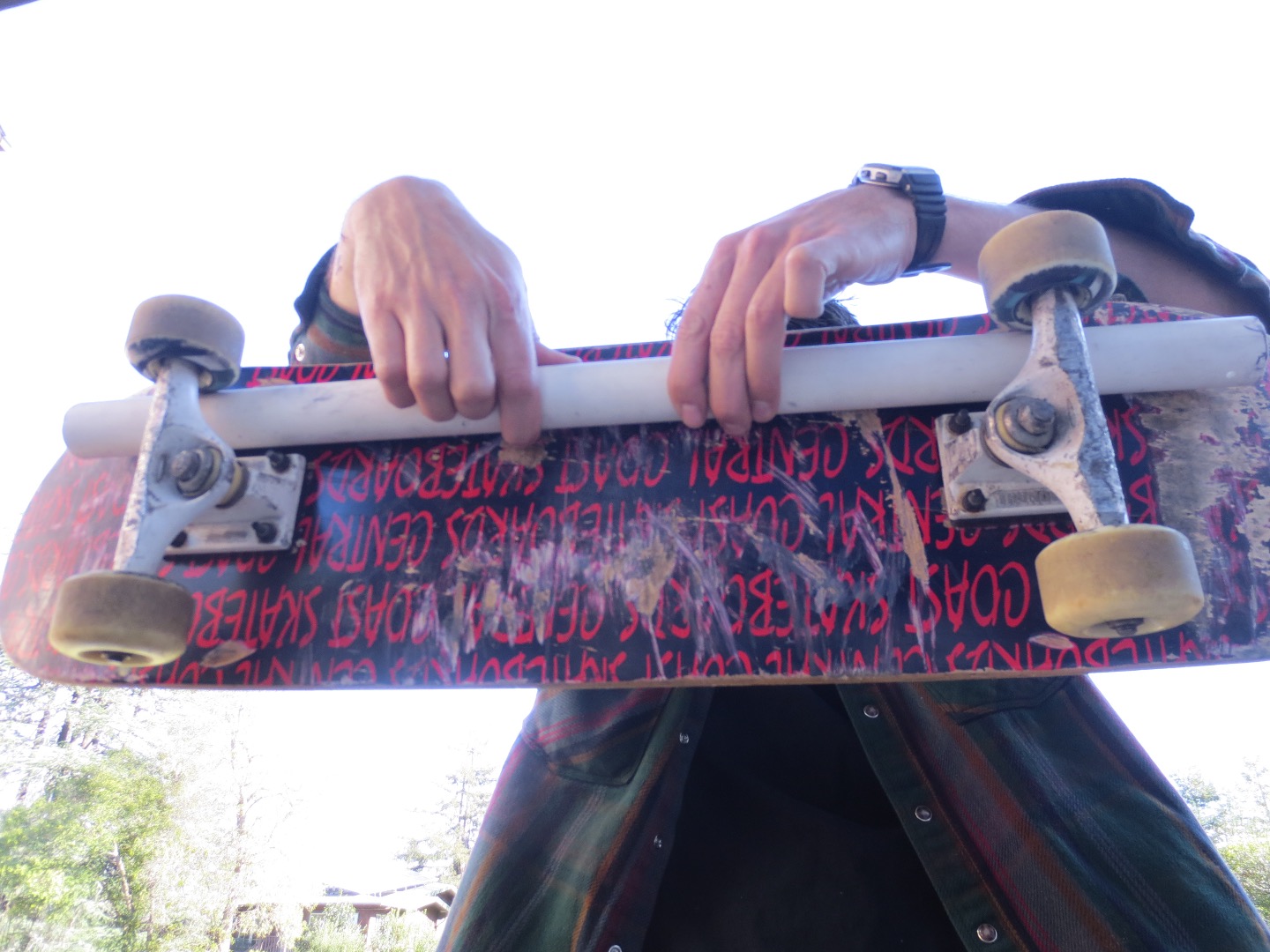

I found that 1" PVC pipe slid easily into the gap between the trucks and the inside of my wheels but was too big to slide out between the wheels and the deck.

Parts $5:

• 2 Hose Clamps, $2
• T-pipe, inner diameter = 1", $0.50
• Elbow Pipe, I.D. = 1 1/8", $1.00
• Pipe, length = ~ 24 inches, I.D. 1", $1.00
• Bolt, $0.25
• 2 nuts $0.25

Tools:

• Saw to cut PVC
• Flathead screwdriver

Unfortunately, the PVC pipe inner diameter is too small to slide onto the standard seat post diameter (1 1/8" / 28.6 mm) no matter how much you pound on it.

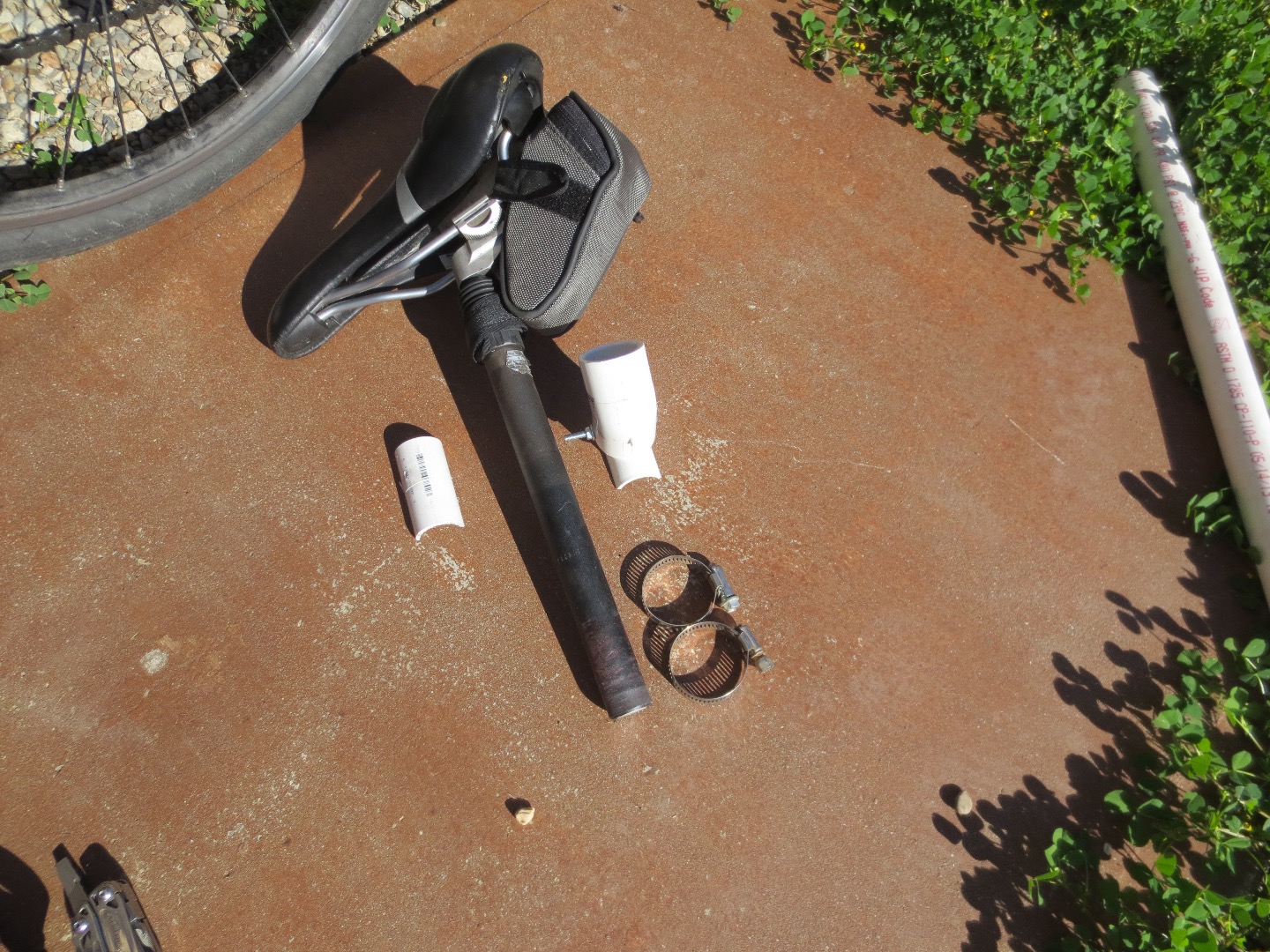

Instead of boring the T-pipe out to the seat post's inner diameter, I decided to split it into 2 hemispheres which I would secure with hose clamps.

Mark your T-pipe and load it in a vice for steady cutting. In a pinch, the human foot has been known to function as a vice.

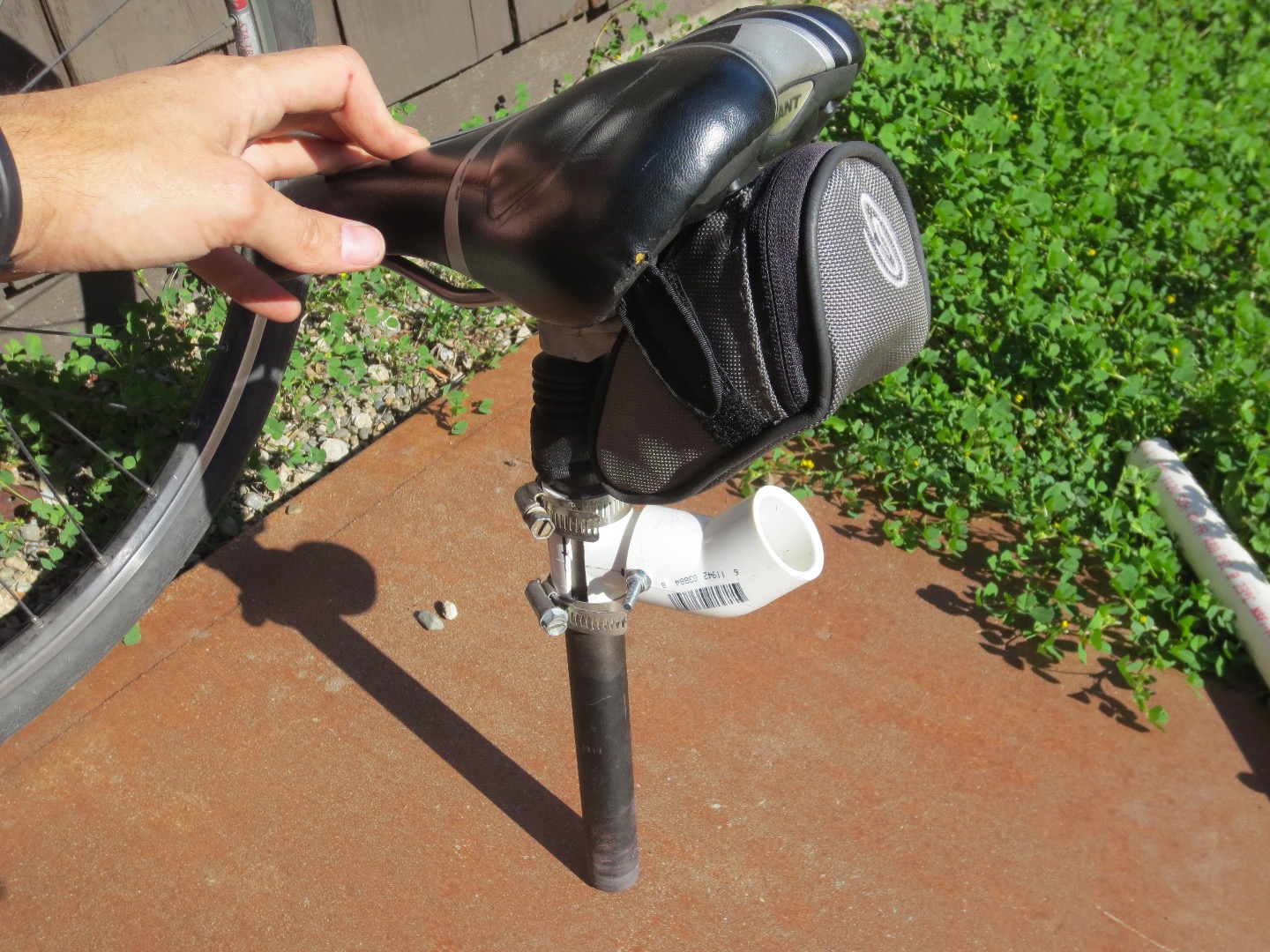

Here you can see the seat post assembly mocked up with hose clamps.

To counteract the weight of a skateboard the T-pipe/elbow pipe junction needed extra support.

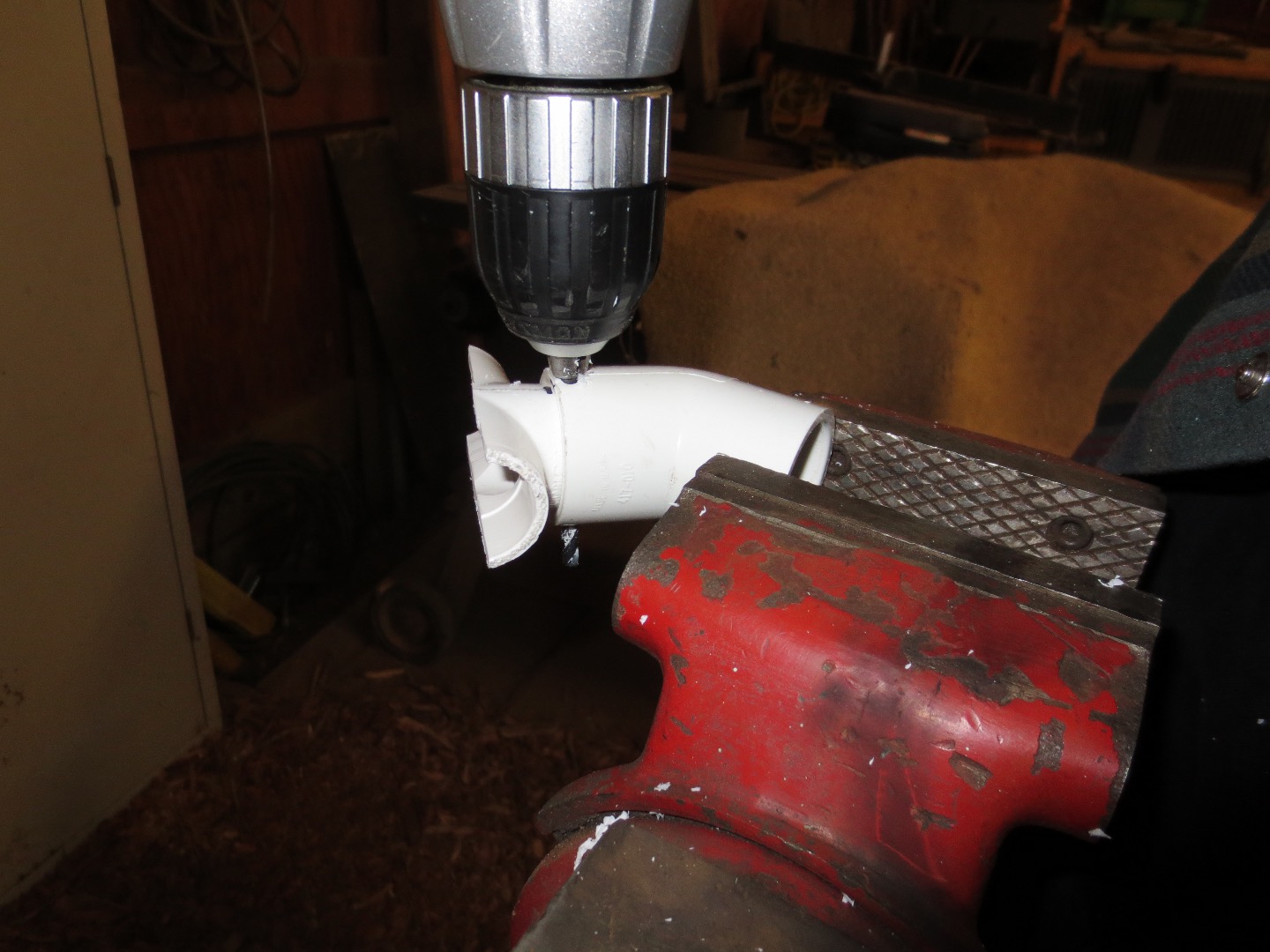

I drilled through both the T-pipe and elbow pipe then added a through bolt with a nut on one end.

You could probably substitute PVC cement for the through bolt but I did not try it.

With the elbow pipe bolted to the T-pipe, we're ready for install.

I chose to take the seat post off the bike but it isn't totally necessary.

The T-pipe hemispheres fit so snug they clip onto the seat post. The hose clamps brace the hemispheres together.

The moment you've all been waiting for...slide the rail pipe into the elbow.

I chose not to bolt the elbow to rail pipe because

1. it could support the board without the bolt

and

2. the lack of a bolt would make it easier to take on and off.

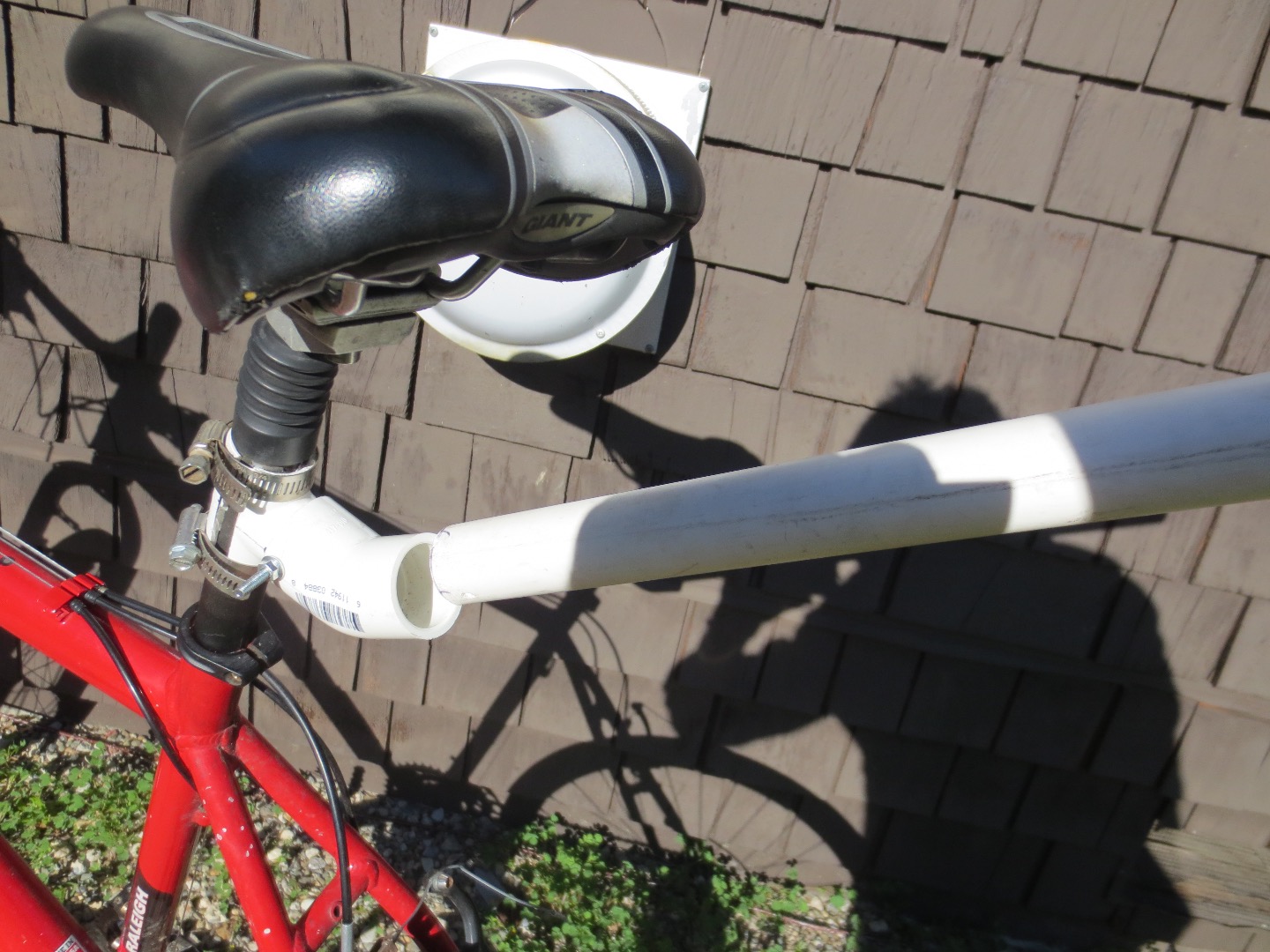

Done and ...done!

You've got yourself a rail rack.

Saddle up and imagine you are aboard the Zombie Ducati!

Go Skateboarding Day is June 21st
