Bernoulli's Principle

Please Rate this Instructable and follow me for more cool step by step guides.

Made by Manish Kumar.

"Look down at the veins tracing their way up your fingers. They are made of stardust. This is a truth rooted purely in science, one of the many that make the subject beautiful to me. However, it is a shame most science students will not realise this during the course of their studies. What could have been a passion for astrophysics becomes instead distaste for formulae of elliptical orbits students are unable to fully comprehend. Were I to change the way science is taught in institutes, I would encourage appreciation for the implicit over memorisation of the explicit, nurture understanding and curiosity for derivations over worship of formulae, and demonstrate practical applications to clarify ambiguous theory." - Sahr Jalil 2011

My friend Sahr, wrote this for our team's evaluation form to LUMS PSIFI 2012. The question was, "How would you change the way science is being taught in institutes?"

Science cannot be taught just based on theory, but it needs to be taught based on observation, something formula and rote-learning cannot teach. And this example, is perfect to reflect over this thesis.

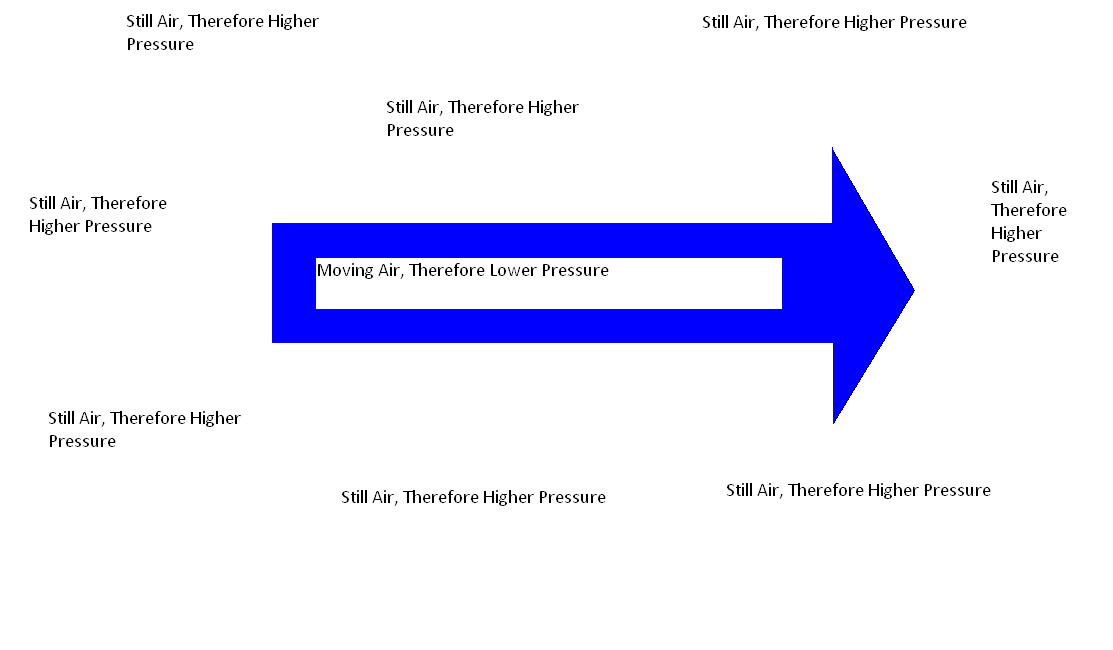

The Bernoulli's Principle was a physics principle formulated by Daniel Bernoulli that an increase in the speed of a fluid produces a decrease in pressure and that a decrease in the speed of a fluid produces an increase in pressure. The principle states that the total energy of a moving fluid remains constant at all times. Therefore fluid pressure is inversely proportional to fluid velocity.

Practical Applications:

An Aeroplane relies on Bernoulli's Principle to generate lift on its wings.
A Helicopter uses the same method to generate lift on its wings.
A Race-car uses Bernoulli's principle to stay on the ground (down force).
An Insecticide Spray also uses Bernoulli's Principle to spread out the spray over a larger area.
A Bunsen Burner

Simple Demonstrations:

Envelope Experiment
Ping Pong Ball Experiments
Balloon Experiment
Paper Experiment
Boomerang

Lets first look over one practical application and then demonstrations and then more practical applications. :)

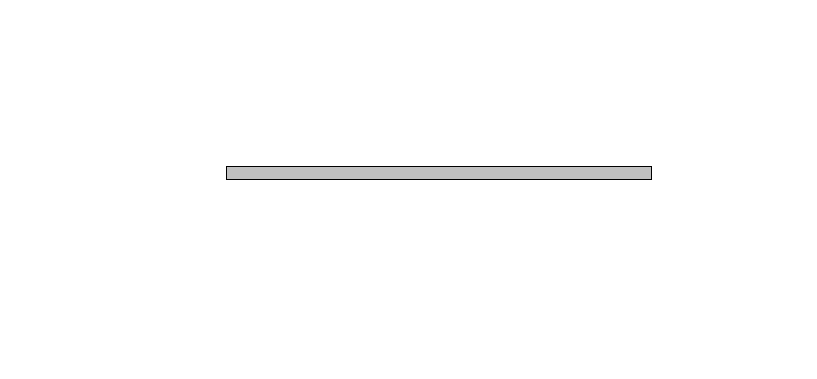

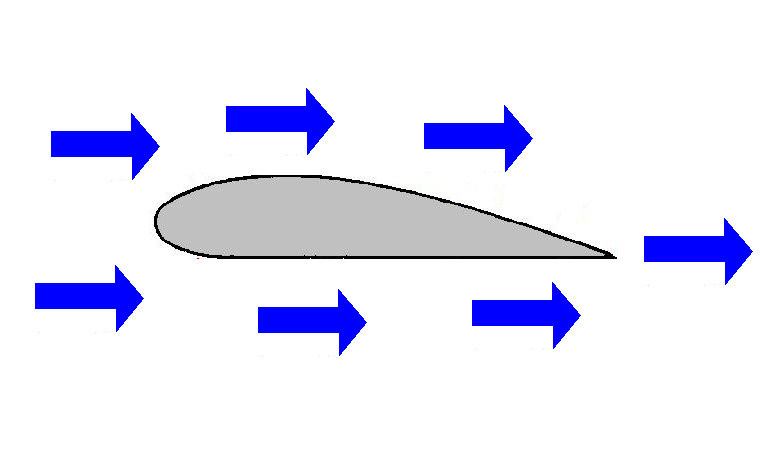

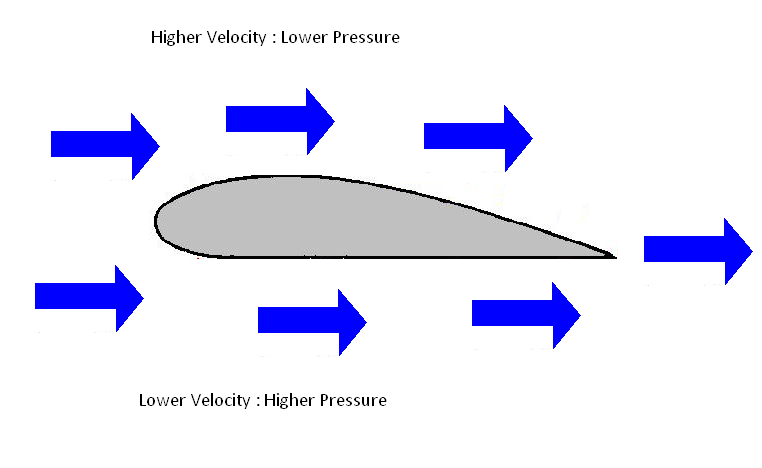

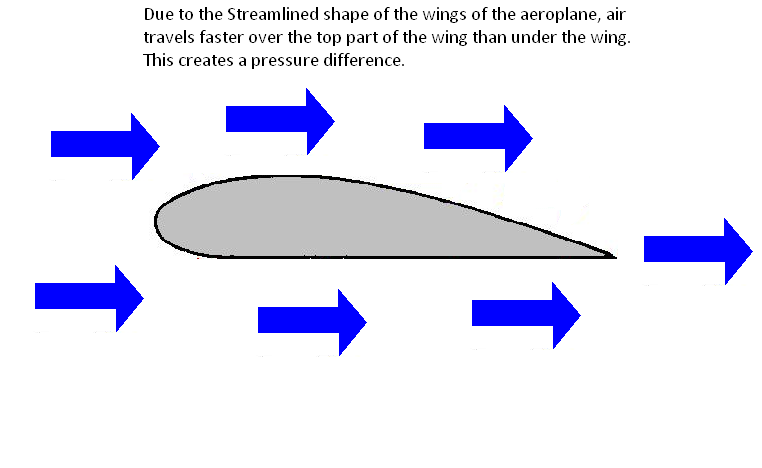

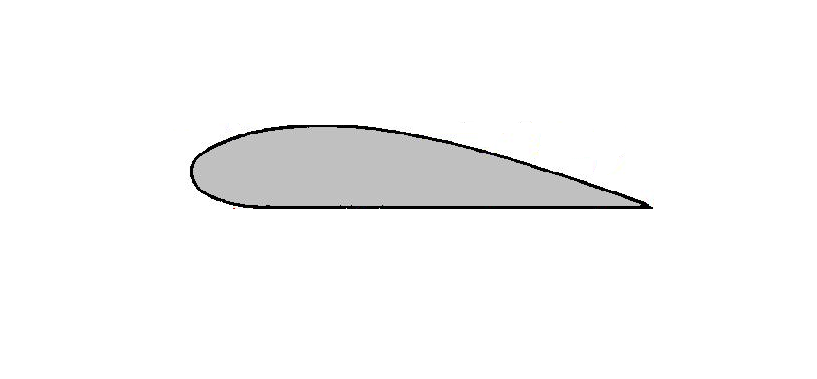

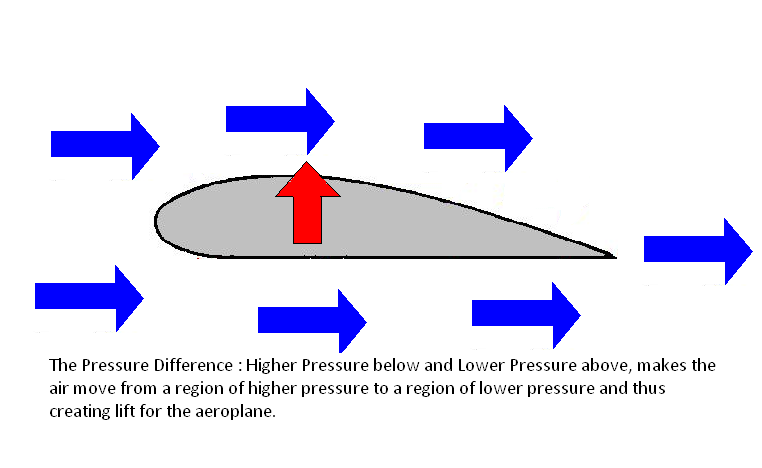

An airplane is designed in such a way so that it can be lifted easily while take off. The wings of the plane are designed in a streamlined shape. While taking off, air travels with a greater velocity over the wings than under the wings. The greater velocity creates a lower pressure area over the wings. A lower velocity creates a higher pressure under the wings. This pressure difference, makes the airplane climb higher and higher. The Pictures explain the same principle. Therefore Airplanes and helicopters use Bernoulli's Principle to climb.

Materials Needed: Paper, Scissors

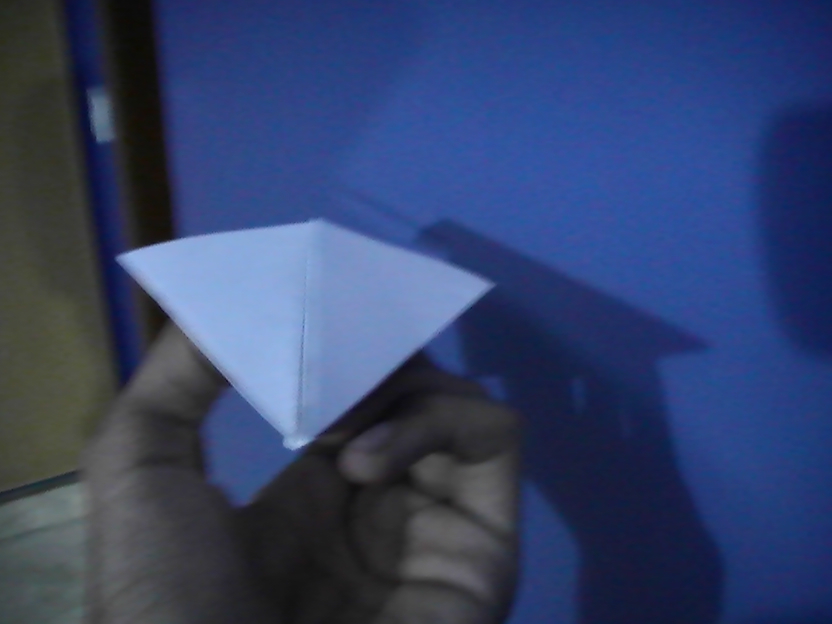

Everyday, someone designs a new paper airplane but not every plane is able to fly properly and go higher using Bernoulli's Principle. After bending a piece of paper into the respective folds, we are supposed to get a plane that it thicker from the front and thinner from the end. This helps to give the paper plane better lift.

Another Way of demonstrating this experiment is to make two paper airplanes of the same paper and structure and then cutting one from the ends as shown in the pictures.

Airplane 1 : No cutting.
Airplane 2 : Cutting

We notice that Airplane 2 actually lifts and then lands showing a parabolic curve. Airplane 1 just shows a downward movement.

Materials Needed : Paper, Scissors

A stream of air over the paper creates a low pressure zone which lifts the paper due to the pressure difference: higher pressure under the paper and lower pressure over the paper. This levitates the paper in the air.

Materials Needed: Tissue Paper Roll, Blow Dryer, Metal Rod

Slip a thin rod through the hole in a toilet tissue paper role. Have one person hold the rod by placing a hand on each side of the toilet paper roll. Then switch on the blow dryer and watch the magic. This is Bernoulli's Principle which lets the tissue paper fly high up in the air without falling.

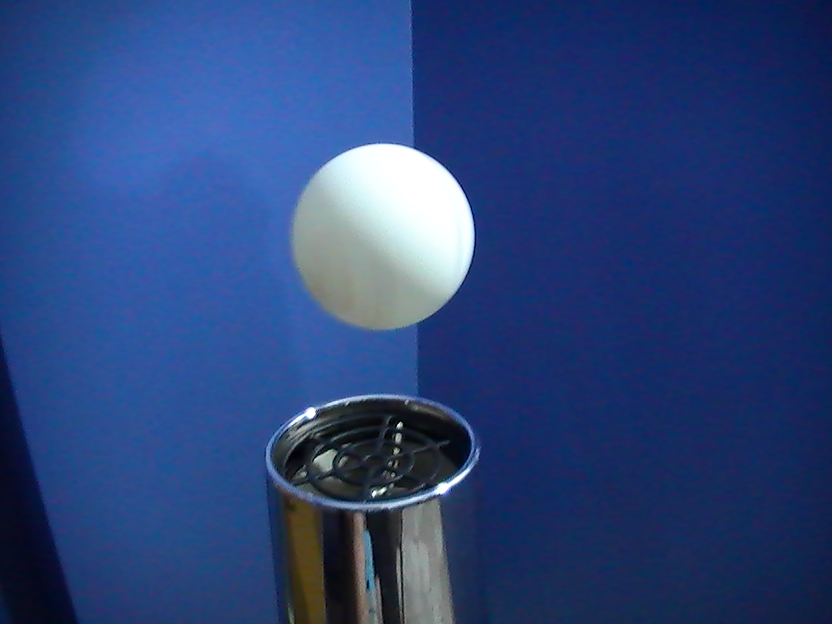

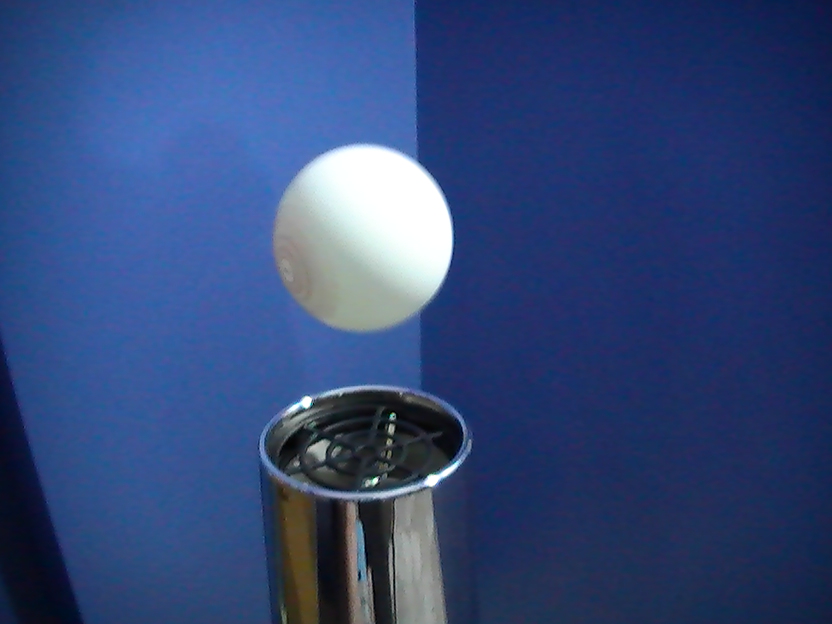

Materials Needed: Ping Pong Ball, Blow Dryer

A ping pong ball can be "floated" on a stream of air. The air rushing around the ball creates a pressure low enough to lift and support the ball. Even when the ball is not exactly over the air source! As long as the low pressure spot is under the center of mass of the ball, it will stay "afloat". And the high pressure regions around the ball push the ball in if it tries to escape the low pressure zone.




We can repeat the same experiment using a balloon using a lower blow dryer power.

Materials Needed : Ping Pong ball, Paper, Tape

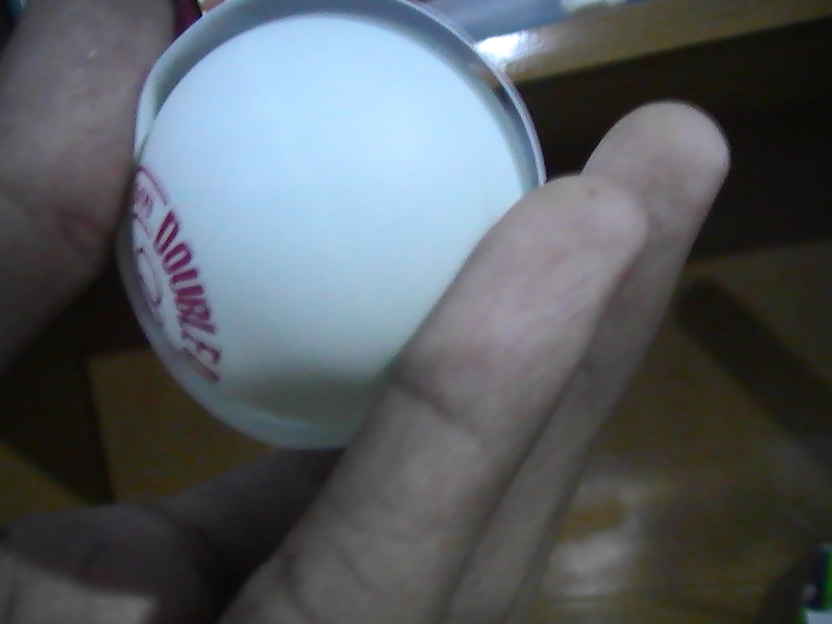

In this experiment, we need to create two types of funnels. One will be a cylinder of the exact same radius of the ping pong ball itself and the other will be made in a cone shape. We now need to place the ping pong ball in both funnels and blow out from one end. The ping pong ball shoots out from the cylinder but not the cone shaped funnel.

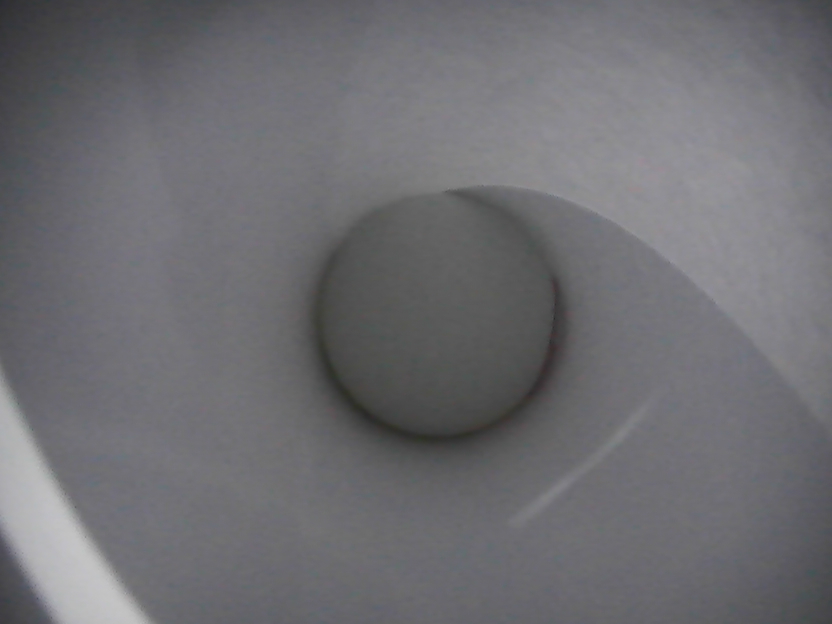

When the ping pong ball is placed in the cone shaped funnel with the air blowing out, the ball won't fall out of the funnel. The rushing air creates an area of low pressure that holds the ball in place.

Most boomerangs are designed in a shape which helps them to stay in the air without falling and come back to the place from where thrown.  A boomerang has “arms” shaped like airplane wings which create lift. The boomerang is moving forward and the boomerang is spinning thus creating an uneven lift. The uneven lift created by the spinning boomerang makes it turn (like leaning on a bicycle)—and keep turning until it makes a circle and comes back to you.

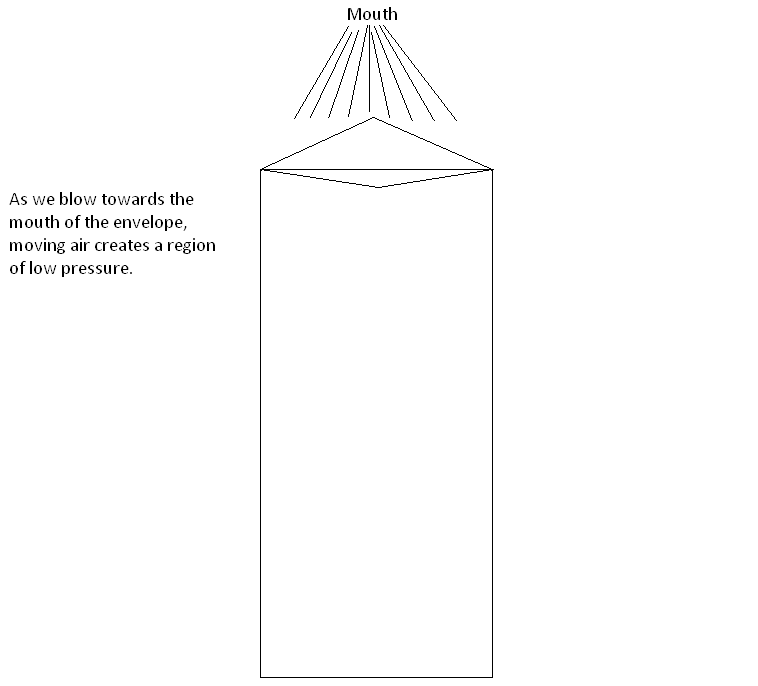

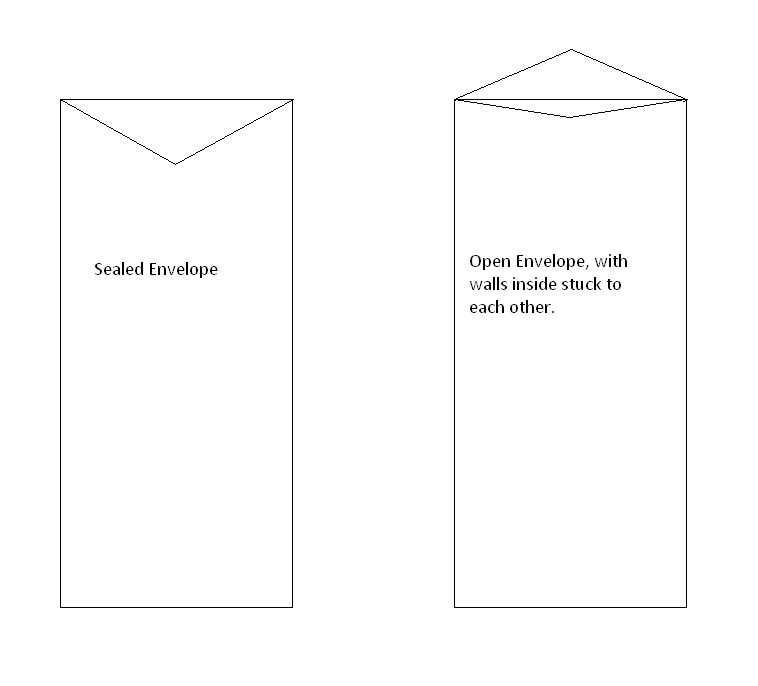

Blowing air over the open end of an envelope causes the two sides to separate due to the lower pressure of the flowing air. This happens because air from the high pressure regions surrounding the envelope rushes towards the lower pressure area thus opening the envelope and temporarily inflating it.

A Race Car, in fact almost all cars are designed in a way to avoid lift and stick to the ground at all times. We wouldn't want cars just suddenly rising up due to high velocity. So keeping in mind the Bernoulli Principle scientists designed cars in a way completely opposite to that of an airplane. A race car employs Bernoulli's principle to keep its rear wheels on the ground at all times while travelling at high speeds. A race car's spoiler—shaped like an upside-down wing, with the curved surface at the bottom—produces a net downward force, thus keeping the car to the ground.

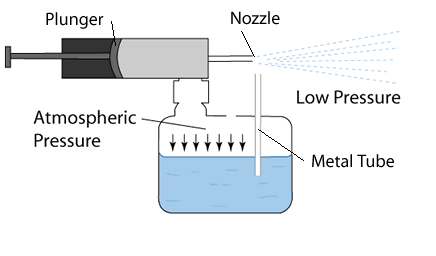

When the plunger is pushed in, the air flows at a high velocity through a nozzle. The flow of air at high velocity creates a region of low pressure above the metal tube. The higher pressure of the atmospheric air acts on the surface of the liquid insecticide causing it to rise up the metal tube. The insecticide leaves the top of the metal tube through the nozzle as a fine spray.

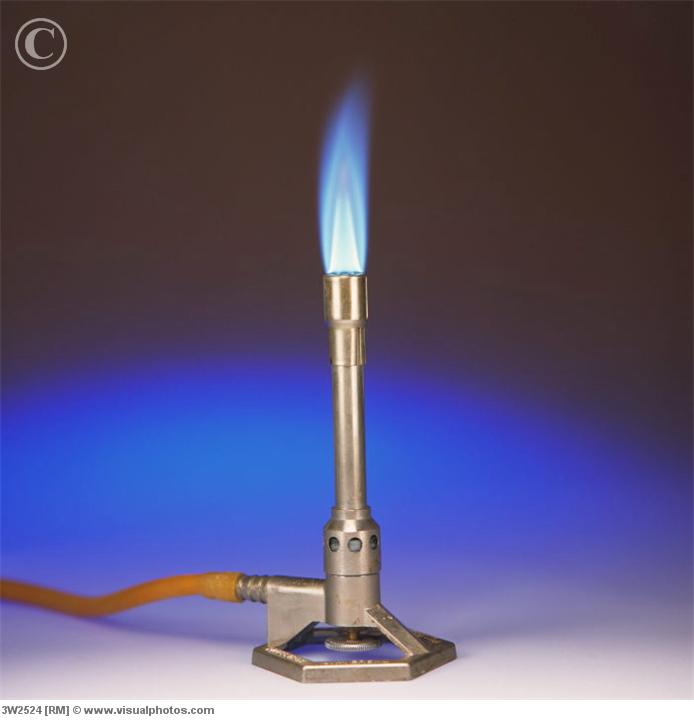

When the Bunsen Burner is connected to a gas supply, the gas flows at high velocity through a narrow passage in the burner, creating a region of low pressure. The outside air, which is at atmospheric pressure, is drawn in and mixes with the gas.
The mixture of gas and air enables the gas to burn completely to produce a clean, hot, and smokeless flame.

So, there we have it; Bernoulli's Principle. It is quite surprising that such a small and simple physics principle is used almost every second in our daily lives. I hope the videos helped. :)
