Bench Type Power Supply Cables From Salvaged Parts
by hacknmake in Circuits > Soldering
1063 Views, 12 Favorites, 0 Comments
Bench Type Power Supply Cables From Salvaged Parts

This is a simple soldering project for those who have broken or damaged power supply cables. for prototyping applications.
Parts

1. Two same lenght cables (thick enough to handle the current and voltage that produced from the supply)
2.Alligator clips (from broken helping hands )
3.Bullet connector
4.Heat shrink tube (red for anode black for cathode)

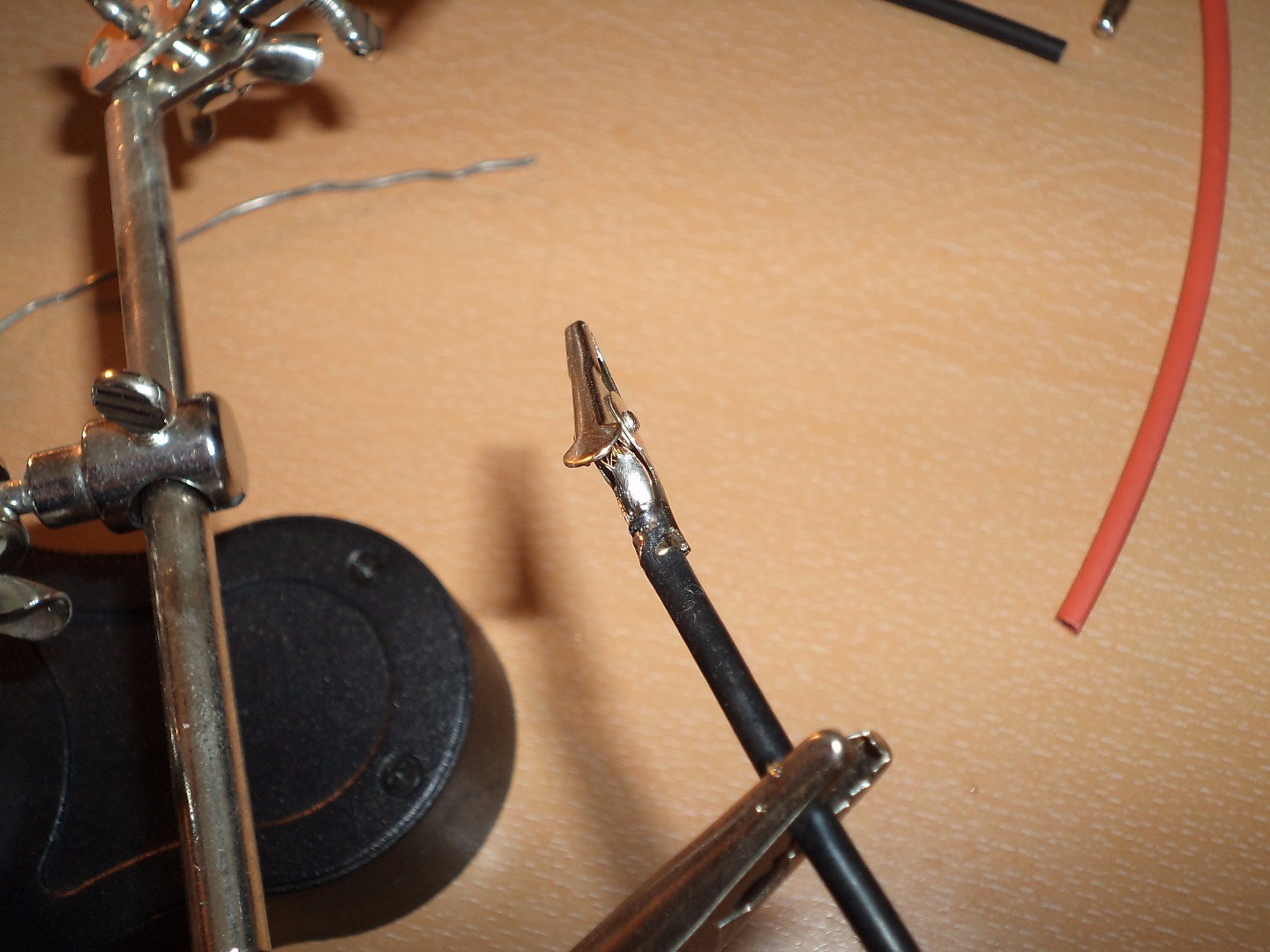

Strip Wire and Solder the Alligator Clip

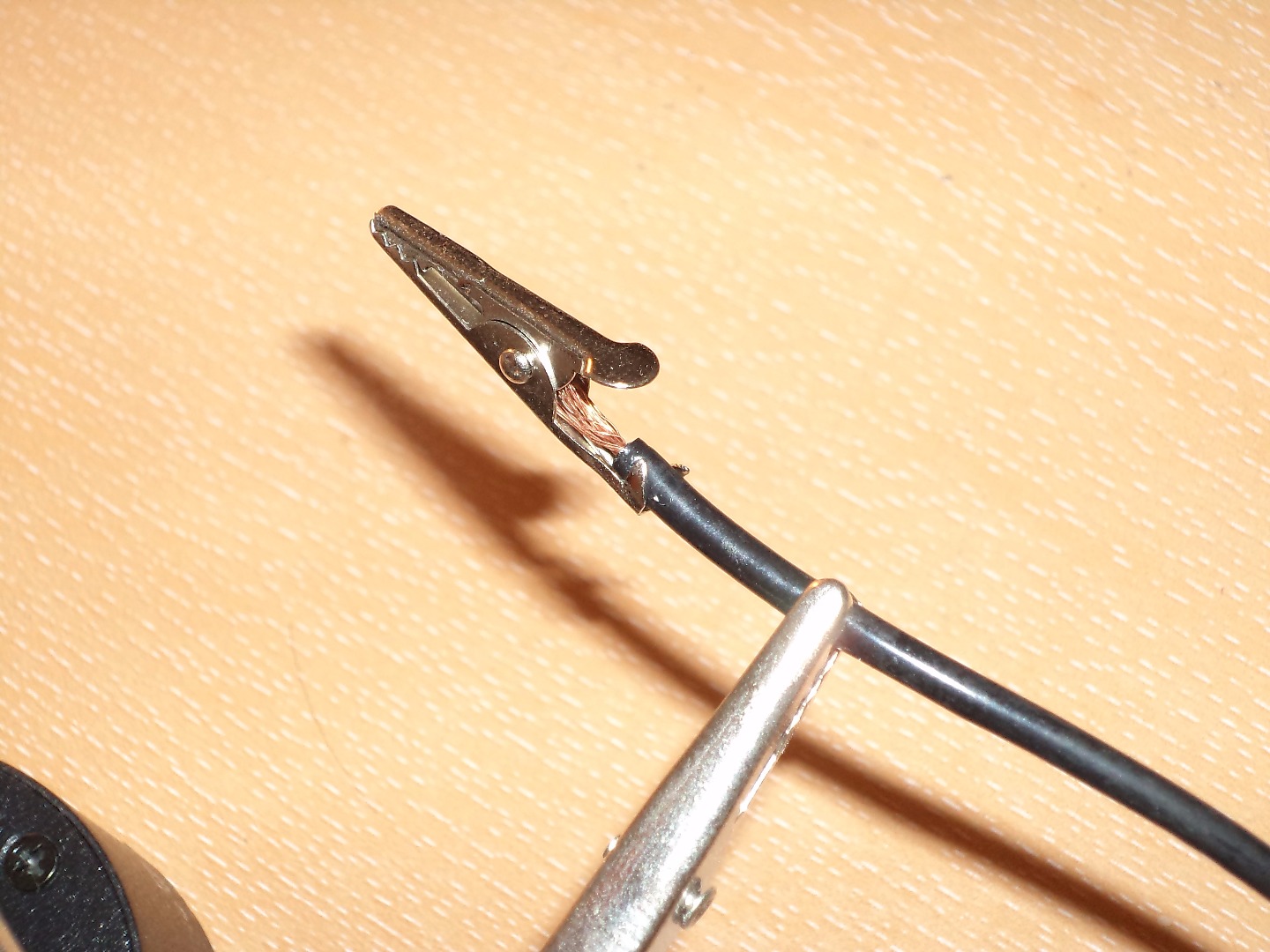

Place the Heat Shrink Tubes for Both Ends

In my case I was using black wire so I had to use red tube to indicate anode. If you use red wire you can skip this part(for anode of course)

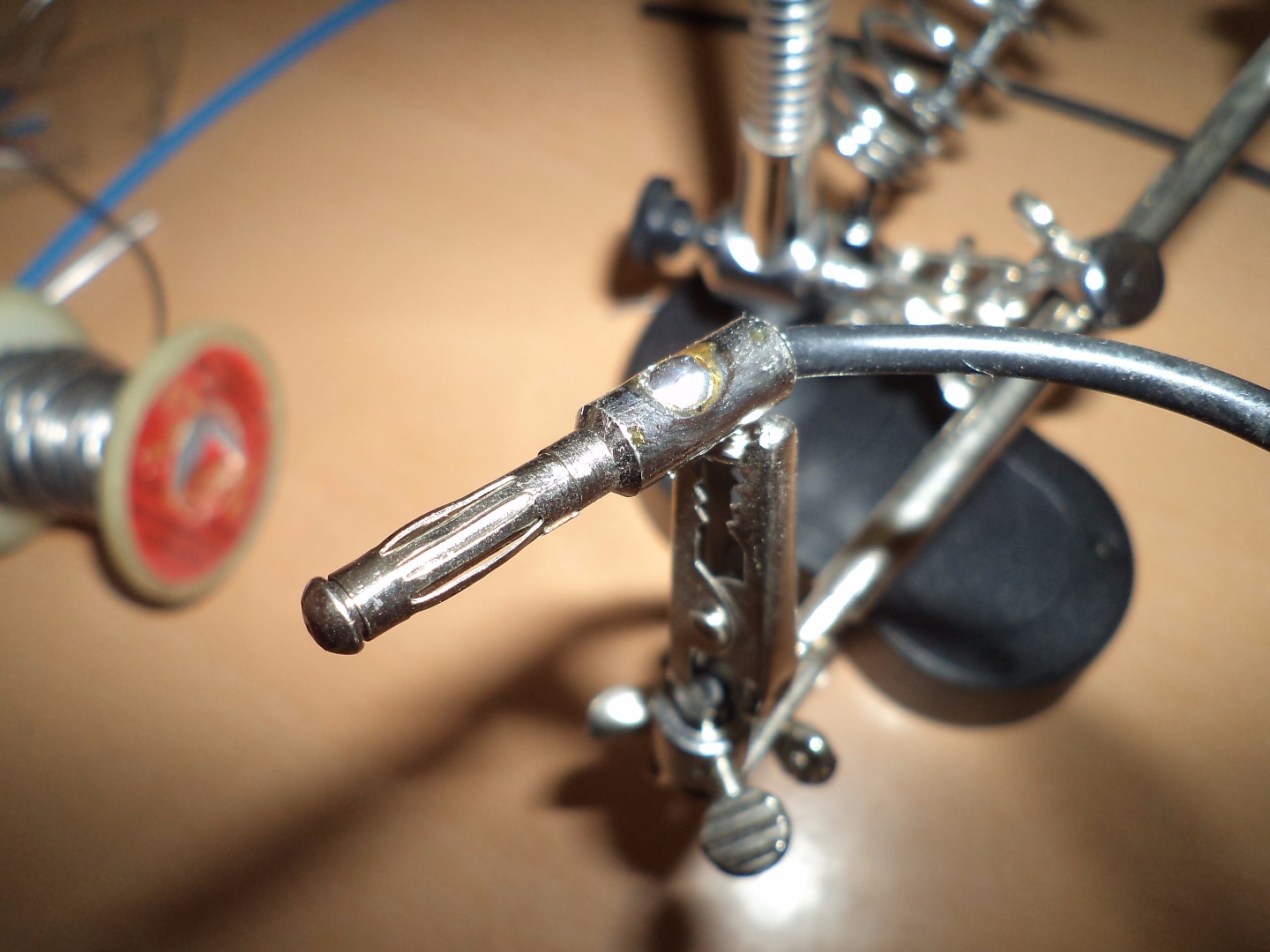

Solder the Bullet Connector


Dont forget to tighten the screw

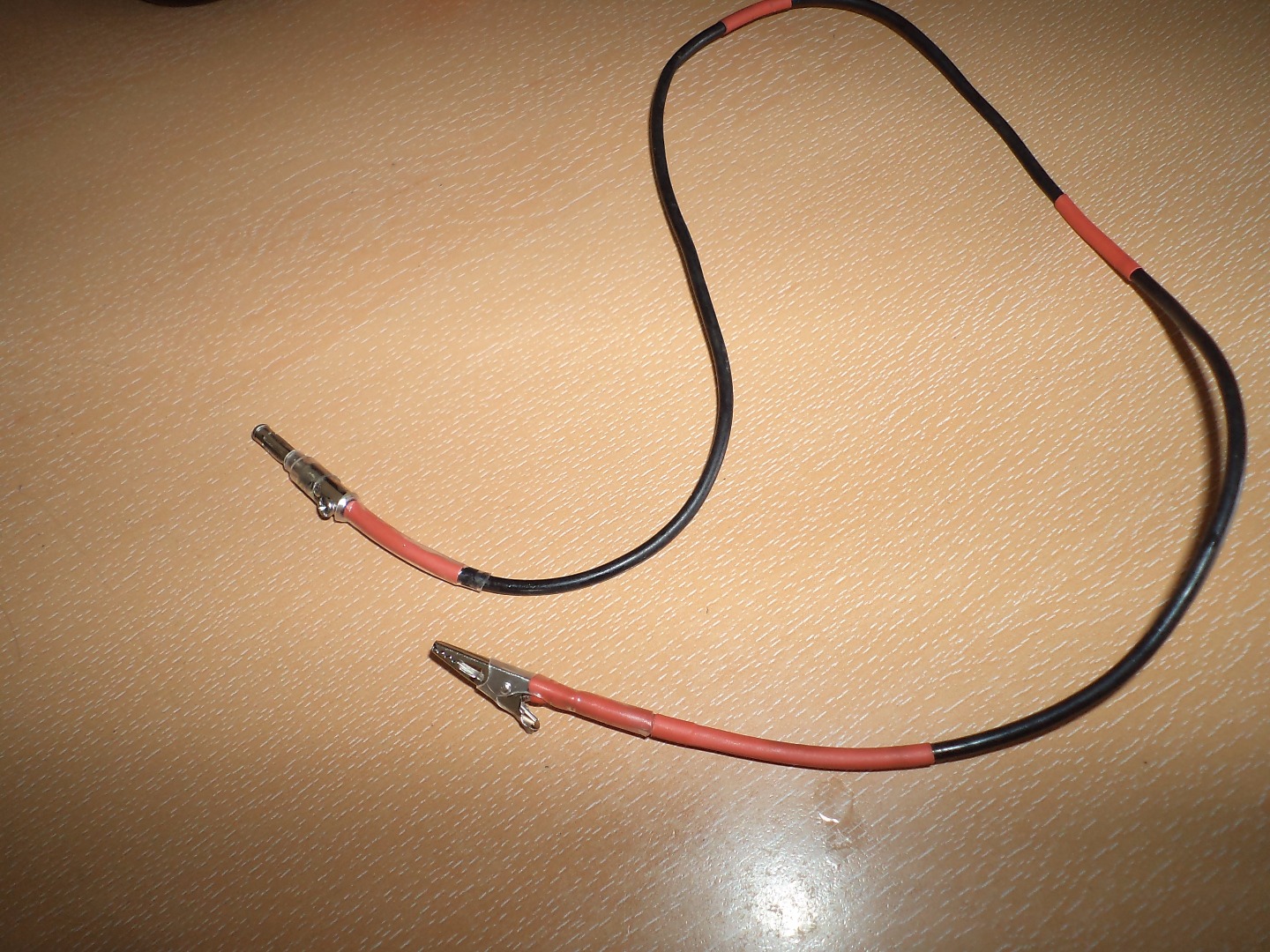

All Done!

If you have a multimeter with a continuity mode, make sure the wire is operational.
