Beer Can Spinner

by BevCanTech in Cooking > Beverages

427 Views, 0 Favorites, 0 Comments

Beer Can Spinner


Placing drinks in iced salt water is an effective way to cool them down but this is made even faster using a Beer Can Spinner.

It has environmental benefits as it reuses the packaging the beer cans came in (clip-on top).

An aluminum beverage can, rotated in icy water with a Beer Can Spinner will be cooled to 5 c in less than 5 minutes.

Supplies

Clip-on top packaging

Roofing bolt and nut

Sheet of grade 240 sandpaper

Clip on Pack

Cut out one of the circular disks from a beer clip-on pack using a pair of scissors.

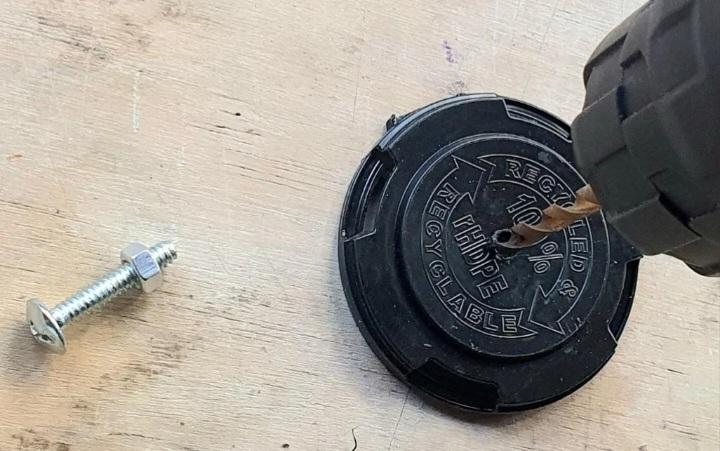

Fix the Shaft


Drill a hole in the center of the clip-on disk.

Fix a roofing bolt though this hole and attach a nut to secure.

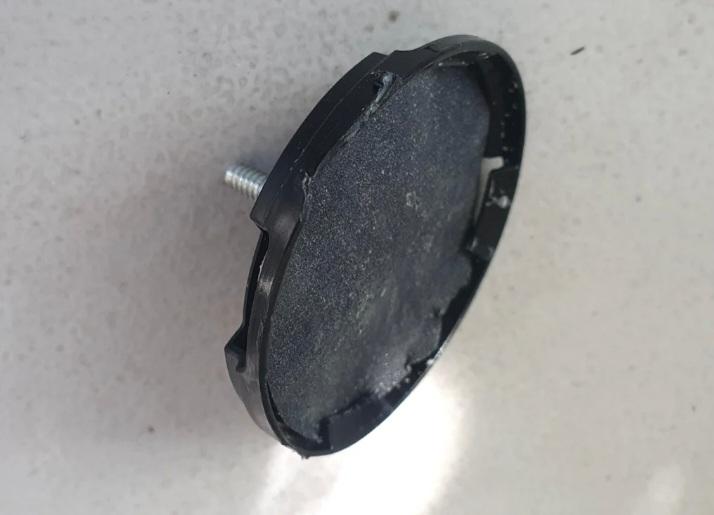

Sandpaper


Place the plastic disk on top of a sheet of 240 grit wet and dry sandpaper and draw a circle around the circumstance.

Cut out the disk of sandpaper.

Trim the disk so it will just fit into the underside of the clip-on disk and remain there.

The sandpaper is to give move grip to the aluminium can.

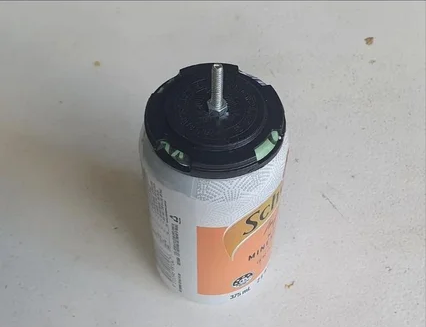

Attach to an Electric Drill

Attach the clip on attachment to a battery powered drill and select the drill setting .

Salt Water Bath

Some salt water was made by adding 260g of salt to 500 mil of warm water.

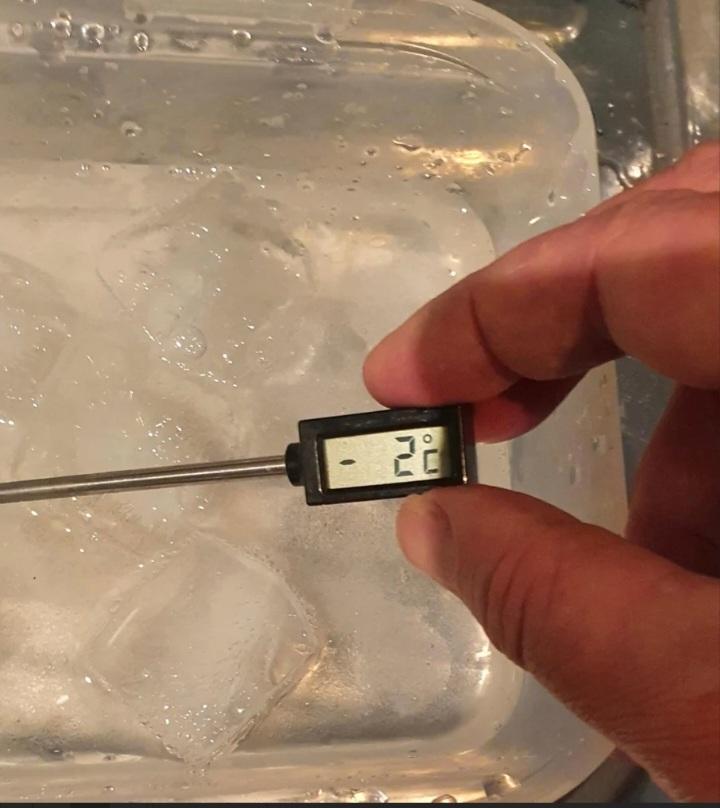

Add in Ice

A 400mil tray of ice cubes was added to the salt water. After 1min it had cooled to 1degee C and after 2 min it was down to -2 degrees C.

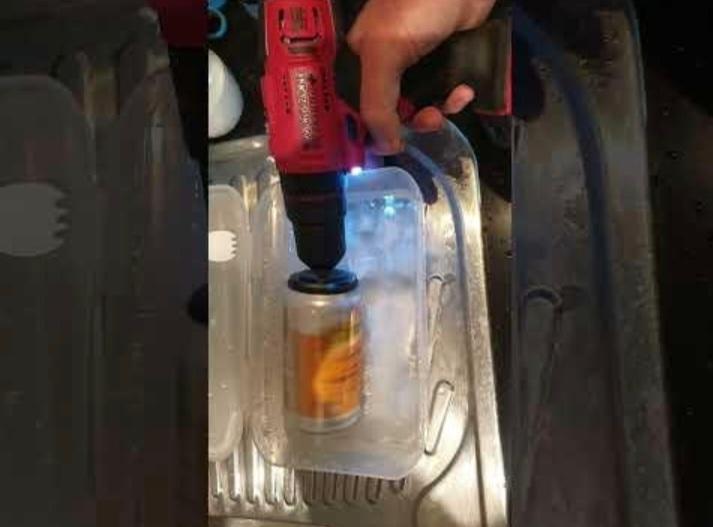

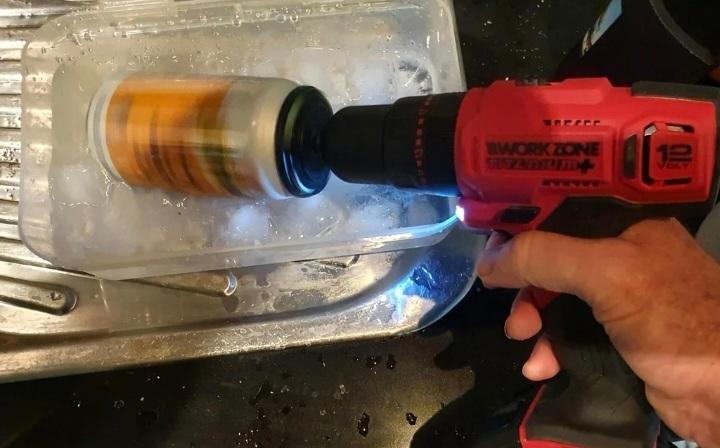

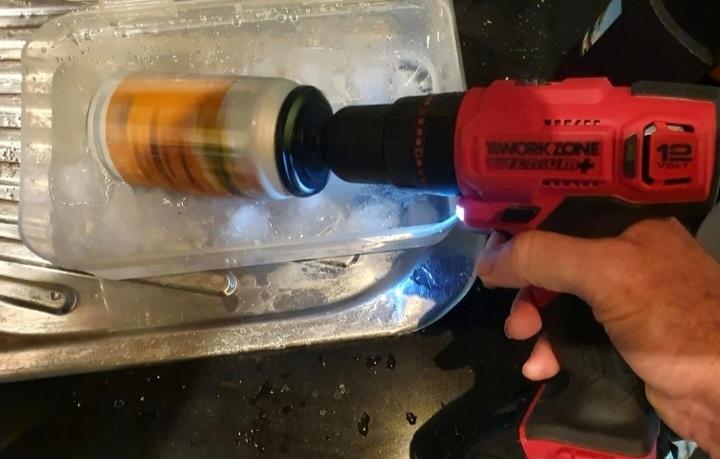

Spin for Three Minutes


The beverage can was spun in the icey salt water for 3 minutes. This cooled the drink down to 4 degrees C.

When another can was tried, it could only be cooled to down to 10 degrees C as the salt water had warmed up from the heat transfer from the cans.
