Bed Frame

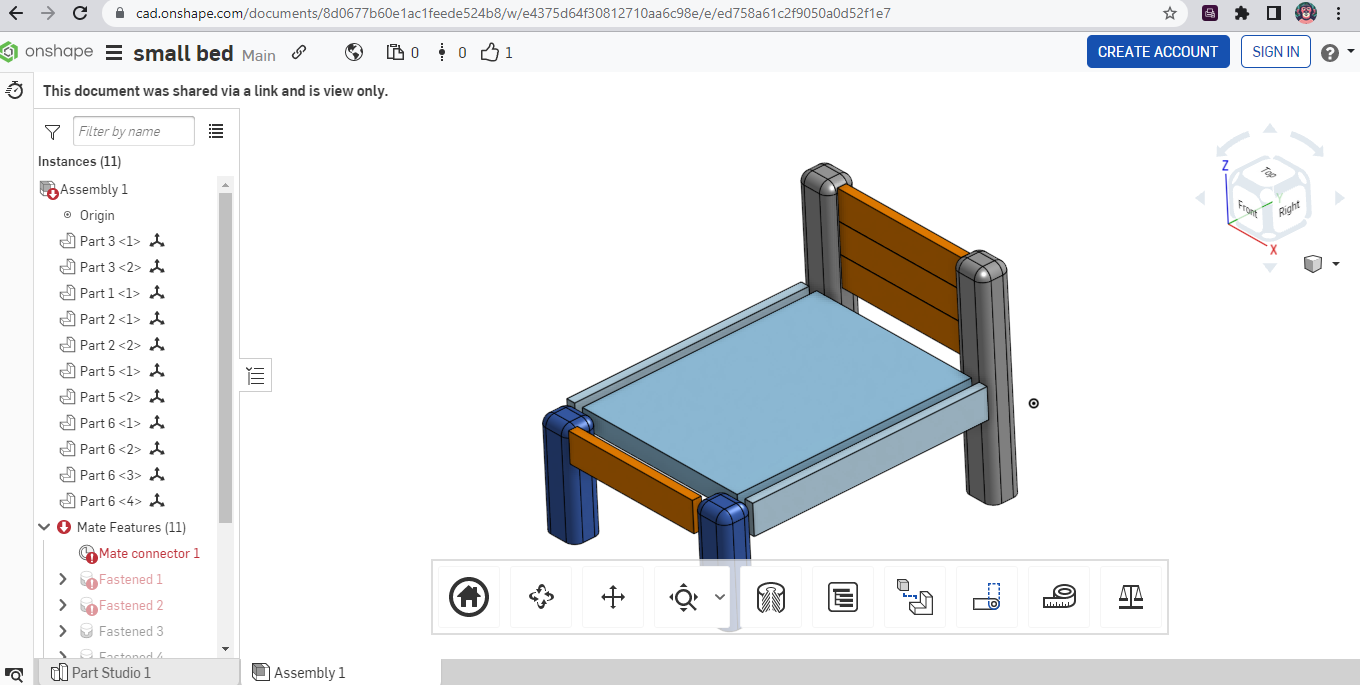

small bed.PNG

I made a small bed for the contest big and small, i did this because it is something everyone uses everyday

Supplies


i used Onshape to make my design

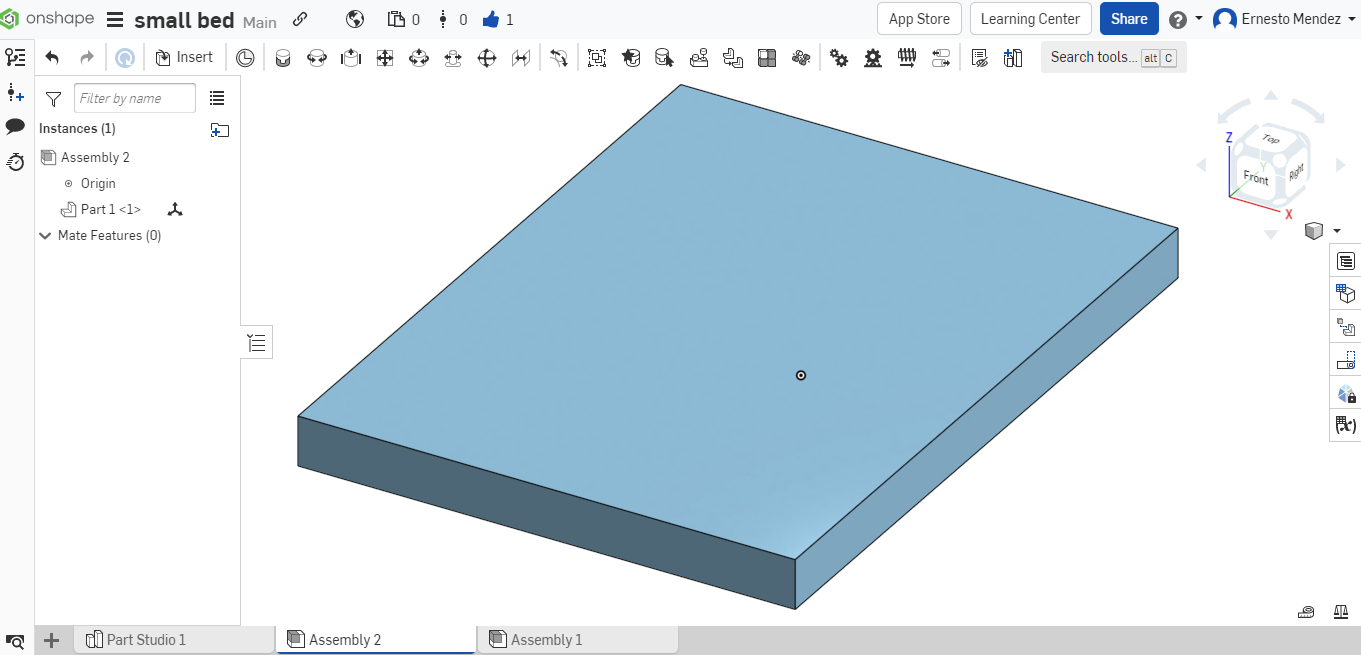

Base


First i made the base, were you would lay the mattress. I made the measurements in inches 4x3, and i made an extrusion by 0.3 inches

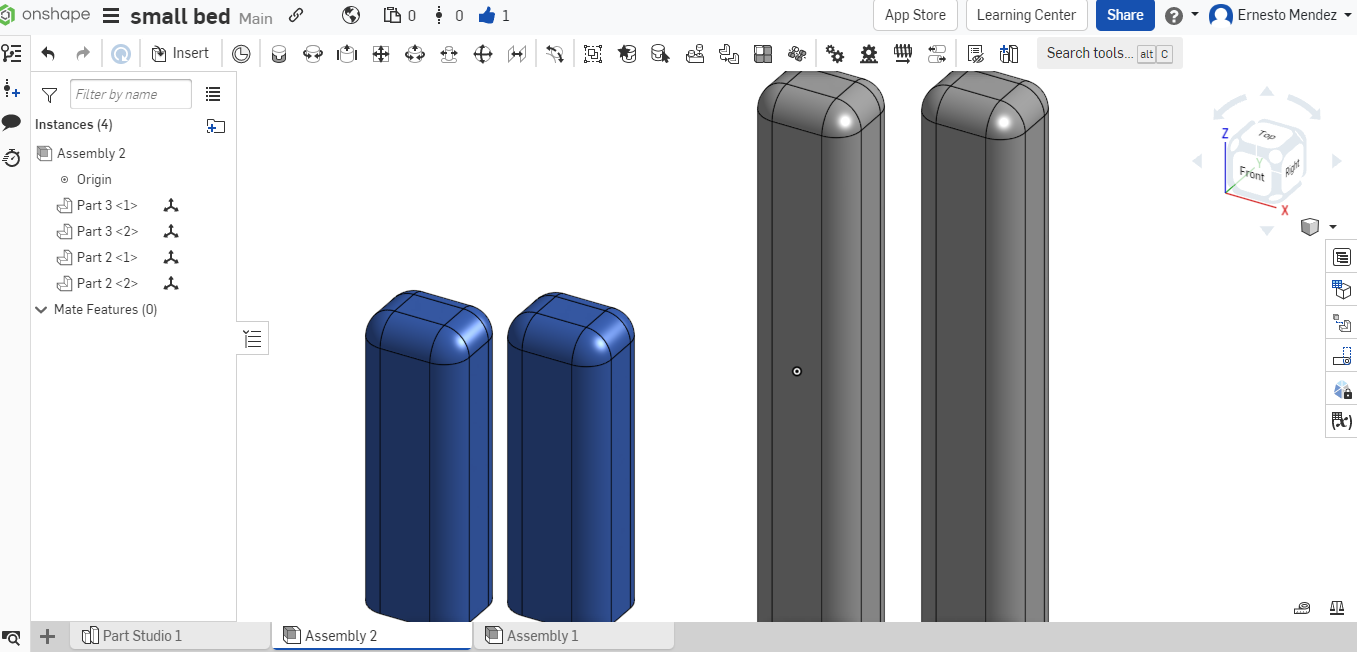

Legs


Second I made the legs for the bed I made a pair of bigger legs and a pair of smaller legs. I made both with a round trim at the tip. The bigger legs are 3.5 inches tall and 0.6 inches wide. The smaller legs are 1.75 inches tall and also 0.6 inches wide.

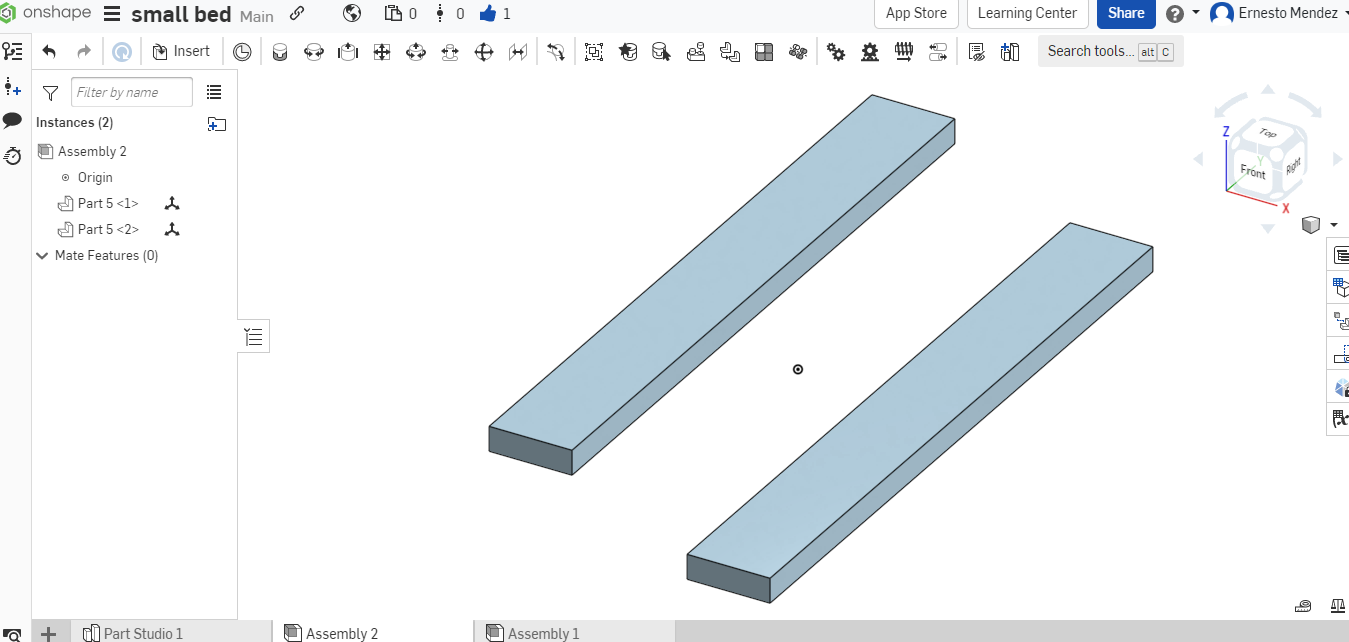

Side Plank

side planks.PNG

I made two side planks to hold the base in place, I made them 4 inches tall and 0.6 inches wide and i extruded them 0.15 inches

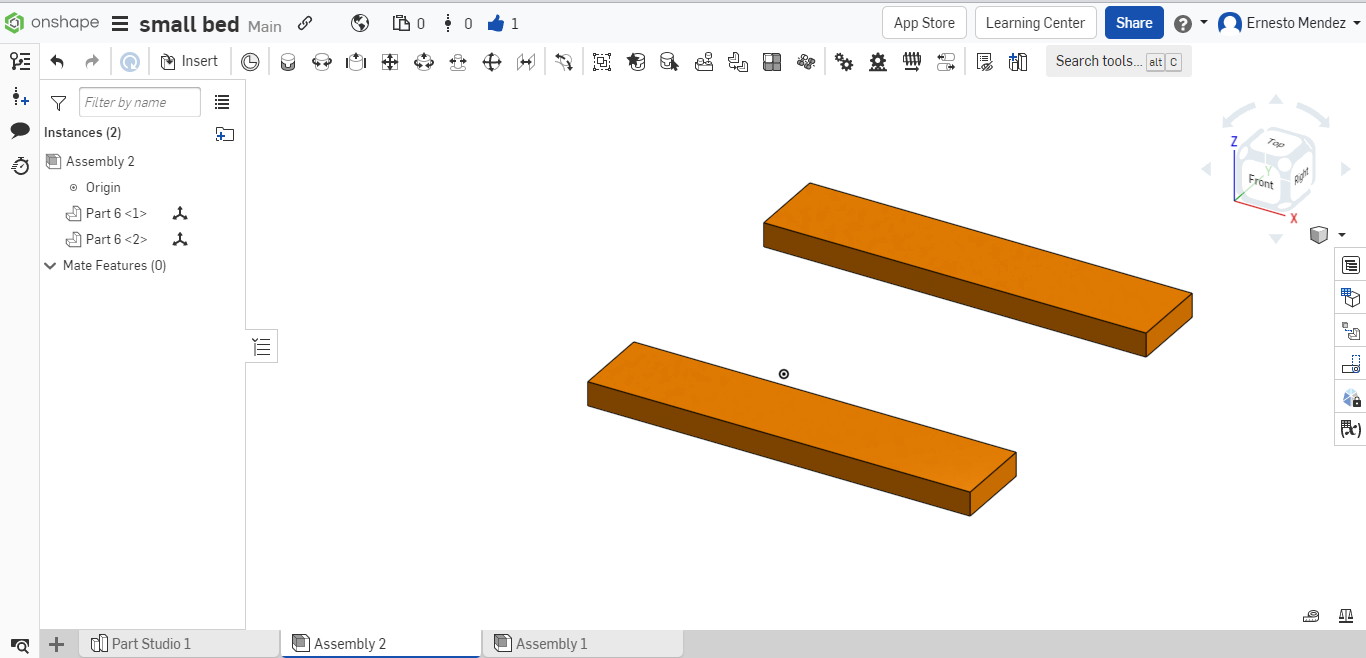

Small Planks

small planks.PNG

i made these smaller planks to hold the legs and base in place. i made them 2.4 inches tall and 0.5 inches wide and i also extruded it by 0.15 inches
