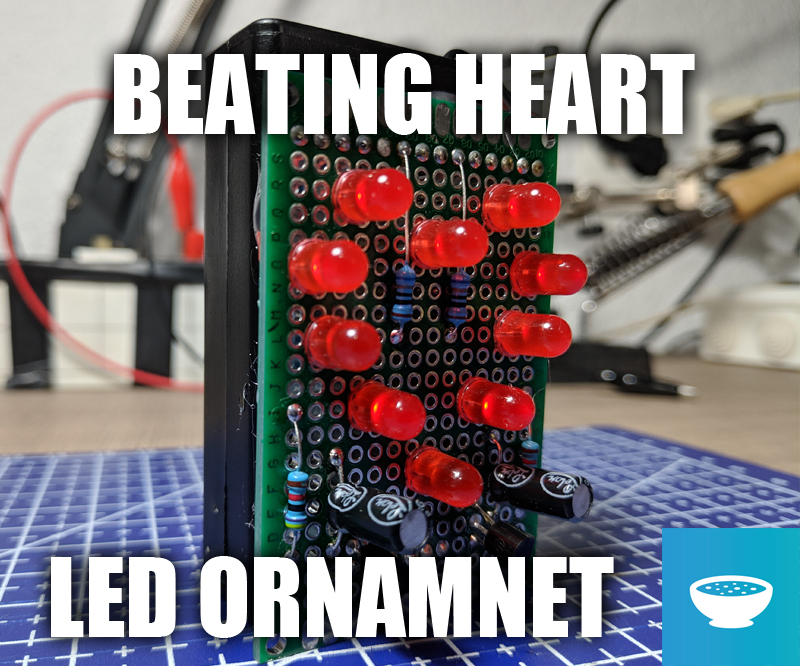

Beating Heart LED Valentine Ornament

In this Instructable I'll show you how I've built an LED ornament for Valentines day that I gave as a gift to my wife.

The circuit is inspired by another Instructable:

https://www.instructables.com/id/Astable-Multivibr...

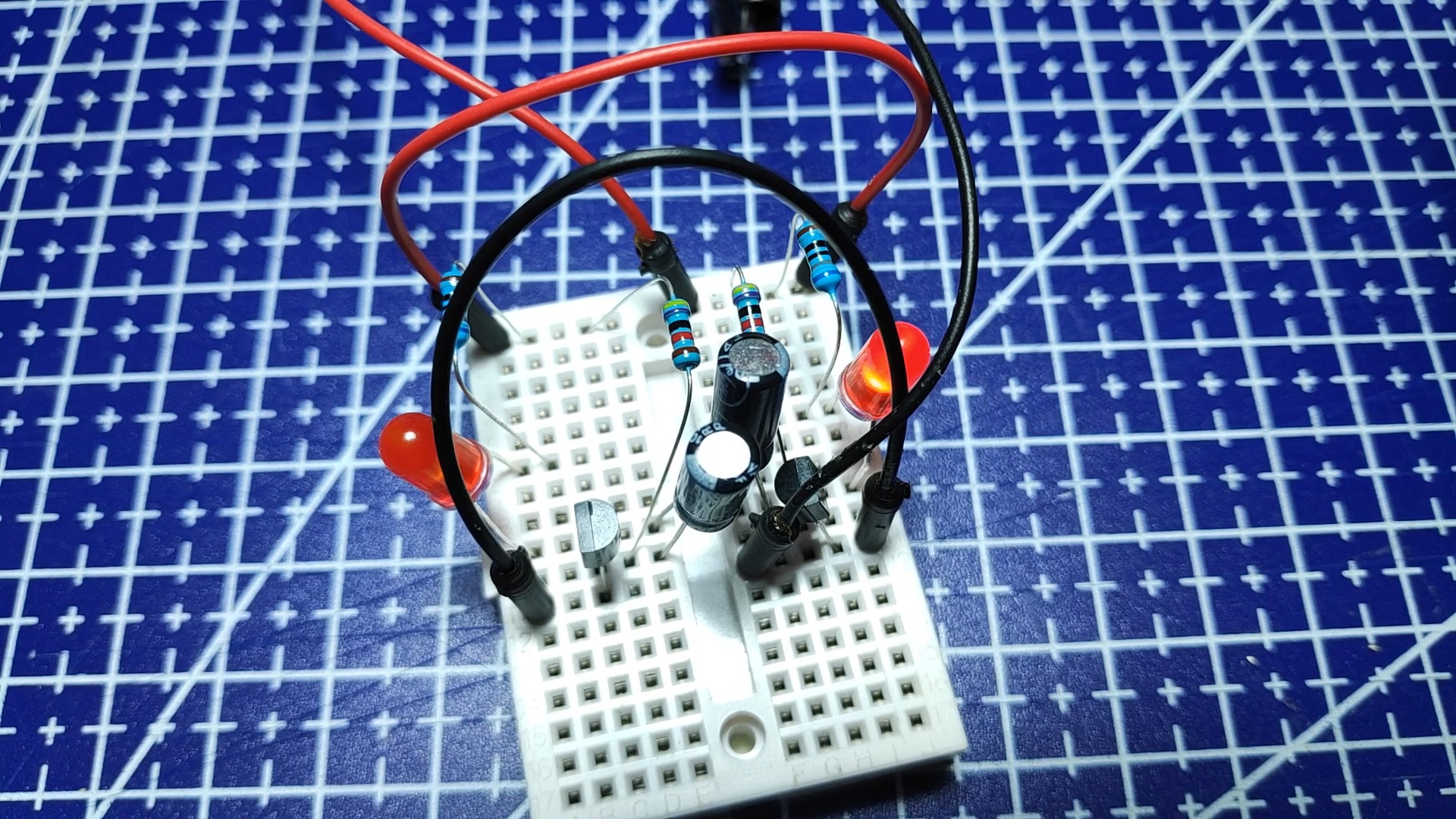

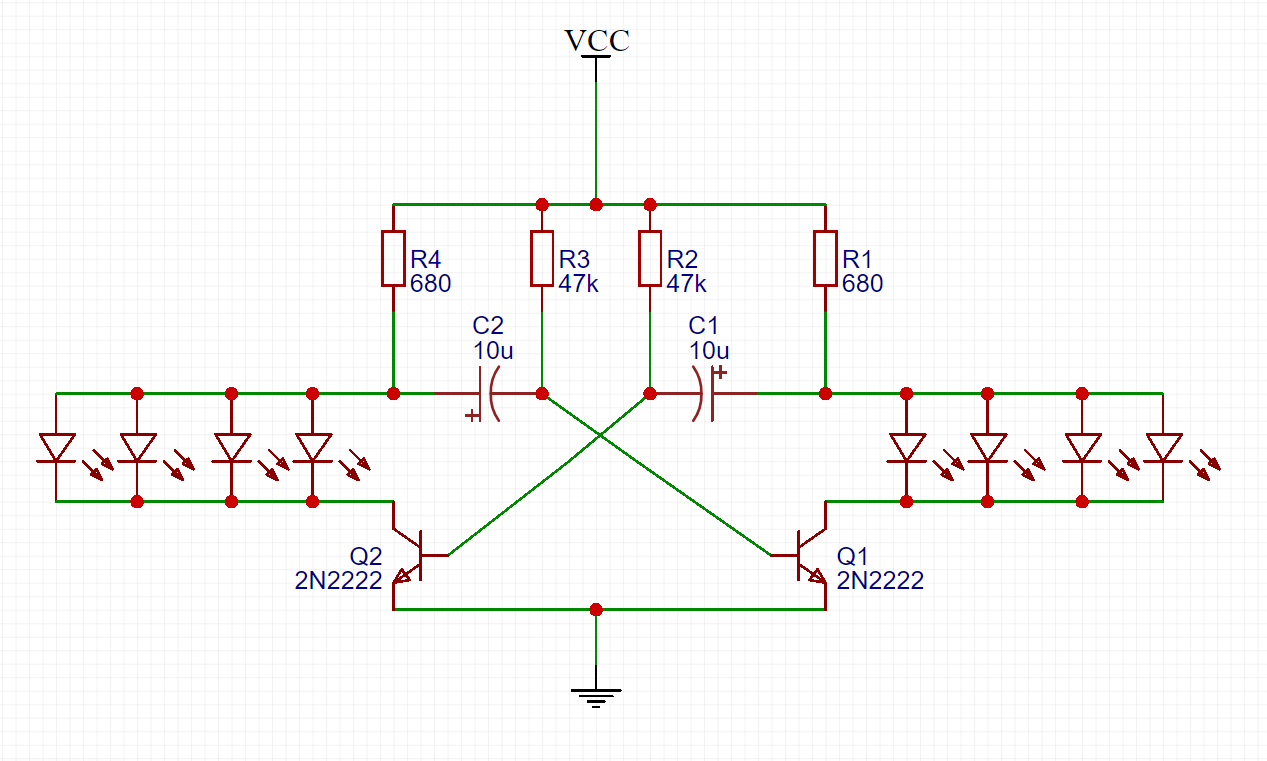

The circuit is very simple and it is based on the classic astible multivibrator that uses two transistors with two capacitors to alternatively flash two sets of LEDs. The circuit is most commonly done with just a single LED per transistor but you can add more without issues. The only difference is that the more LEDs you add the faster those blinks will be but that can also be addressed with bigger capacitors.

The full schematic is available on the link below:

https://easyeda.com/bkolicoski/Valentine-LED-Flash...

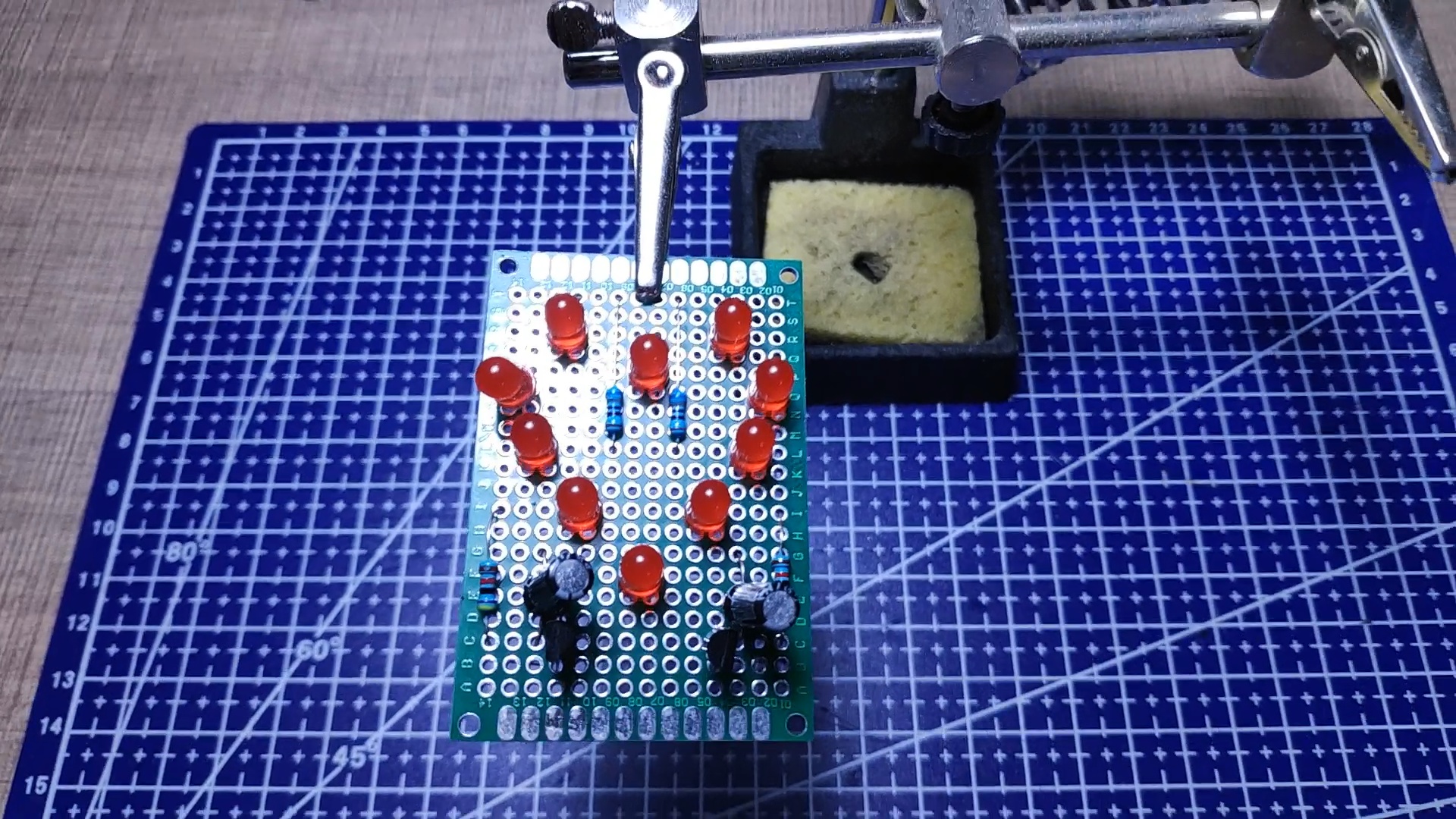

I used a small perforated circuit board as the base for the project where I placed the LEDs in a heart pattern. The rest of the components are placed in the bottom to achieve a better look.

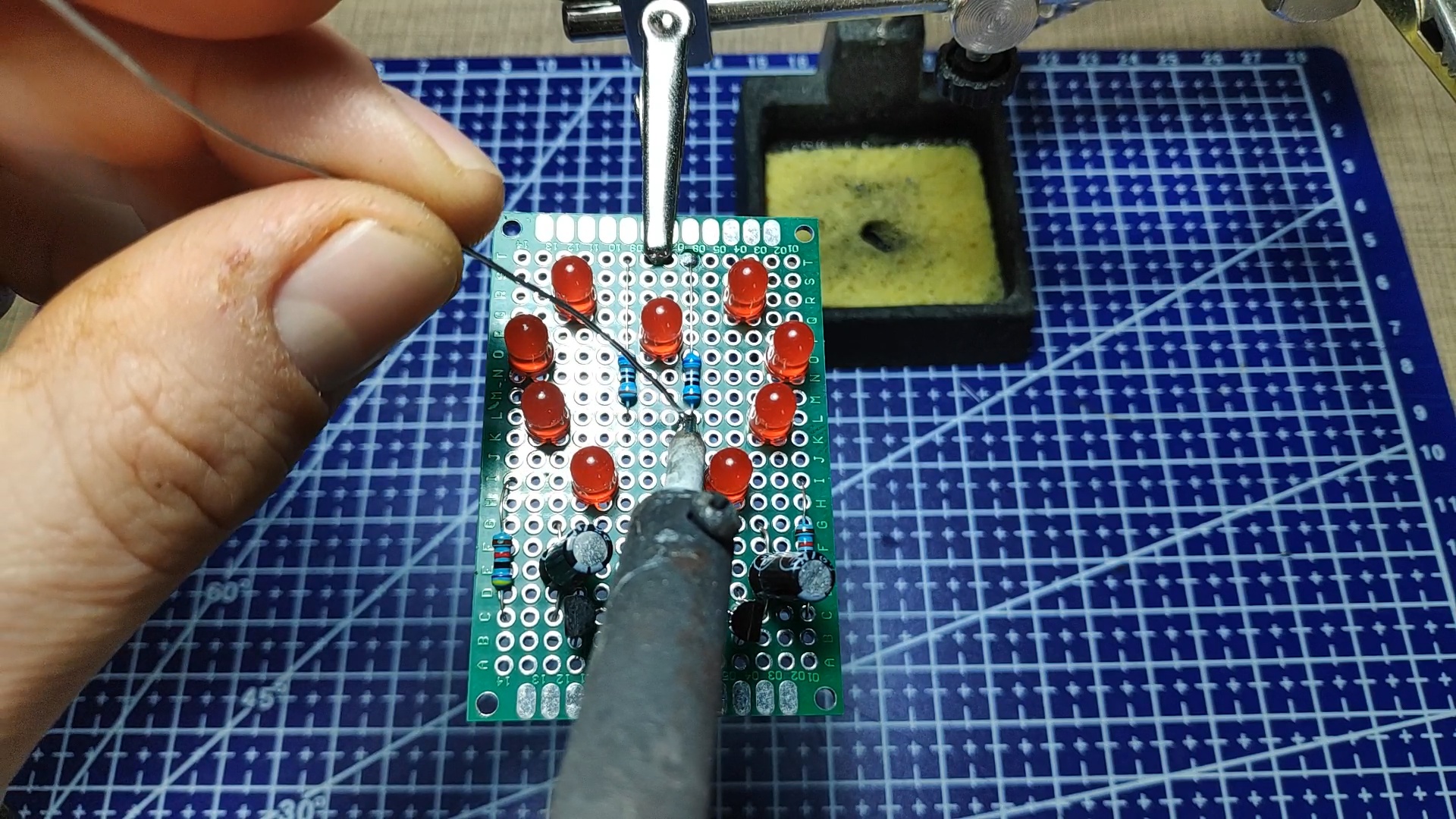

I first soldered all of the components in place from the top. This way I can prevent them from falling out when I turn the board to solder the back side and make all of the connections.

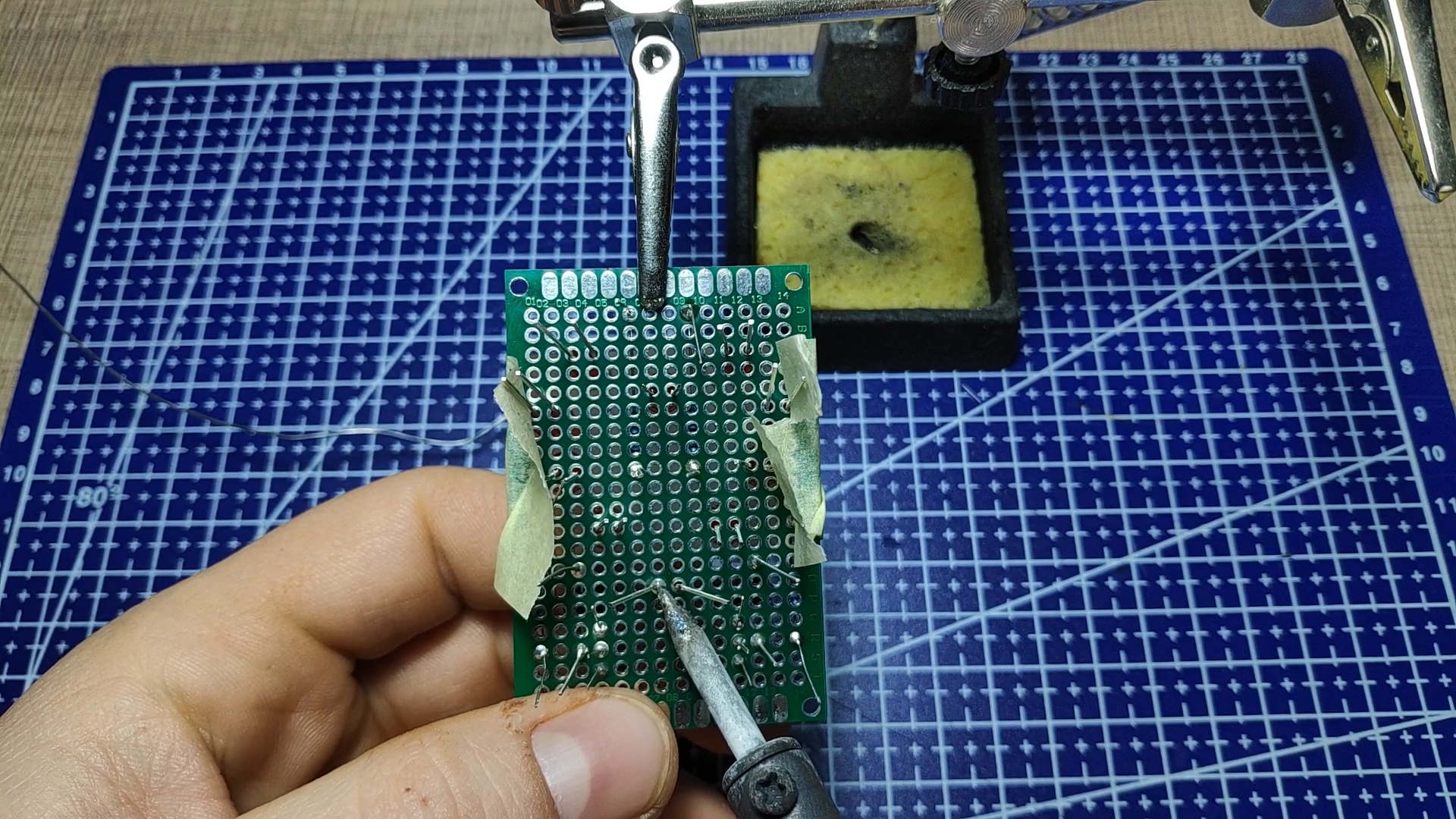

This worked well for most of the components but not for the LEDs as their pins are not exposed on the top side. To solve this, I've used a painters tape to keep the LEDs in place and I only soldered one leg of each. I then removed the tape and by pressing on each LED individually, I re heated the solder to make every LED flush with the board for a cleaner look.

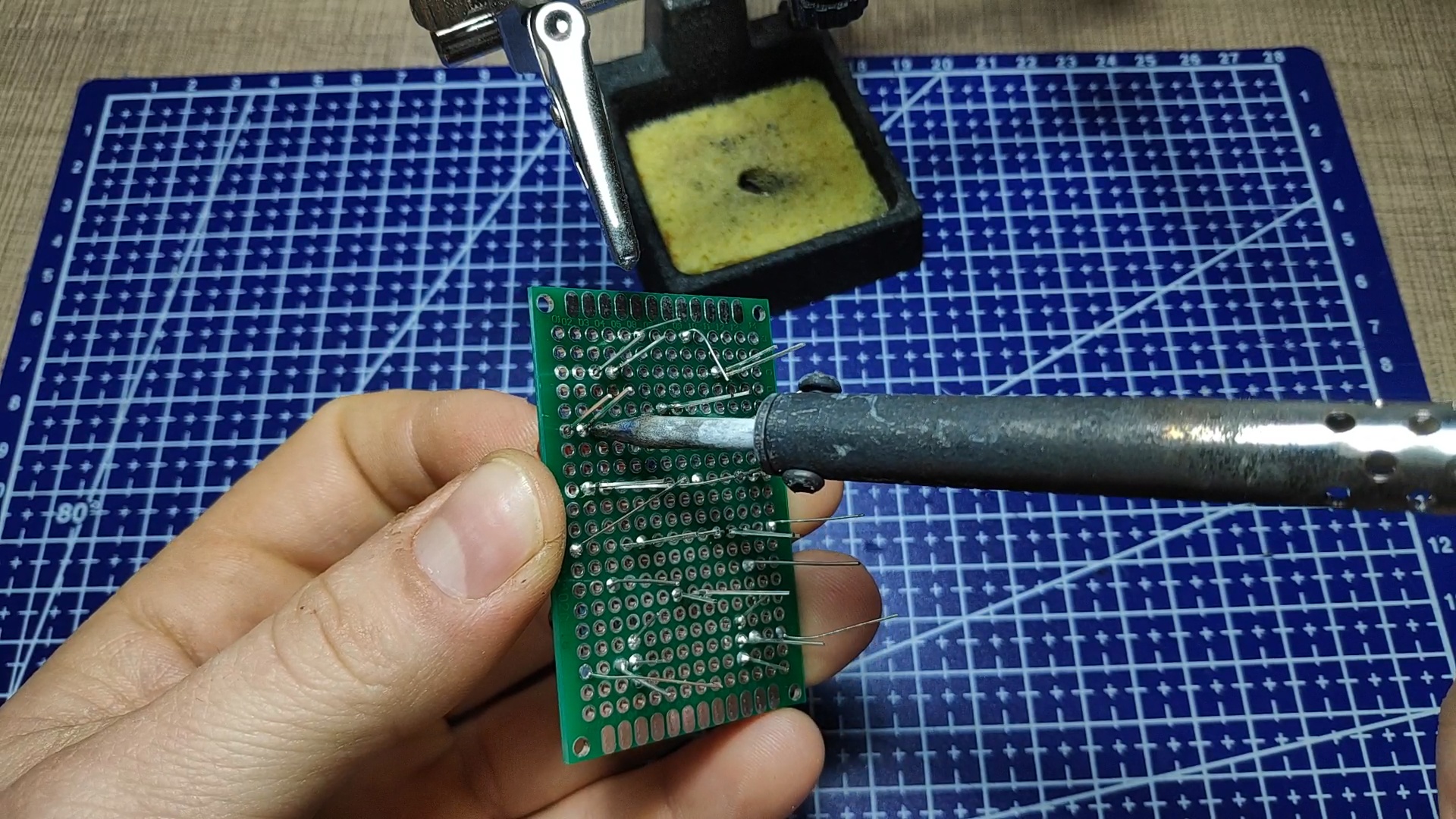

This was really tricky as I did not had a clear plan how to layout all of the connections and I just went with the flow and connected as they came. The interesting trick is that you can use some heat shrink to add over the exposed leads of the components to prevent any shorts.

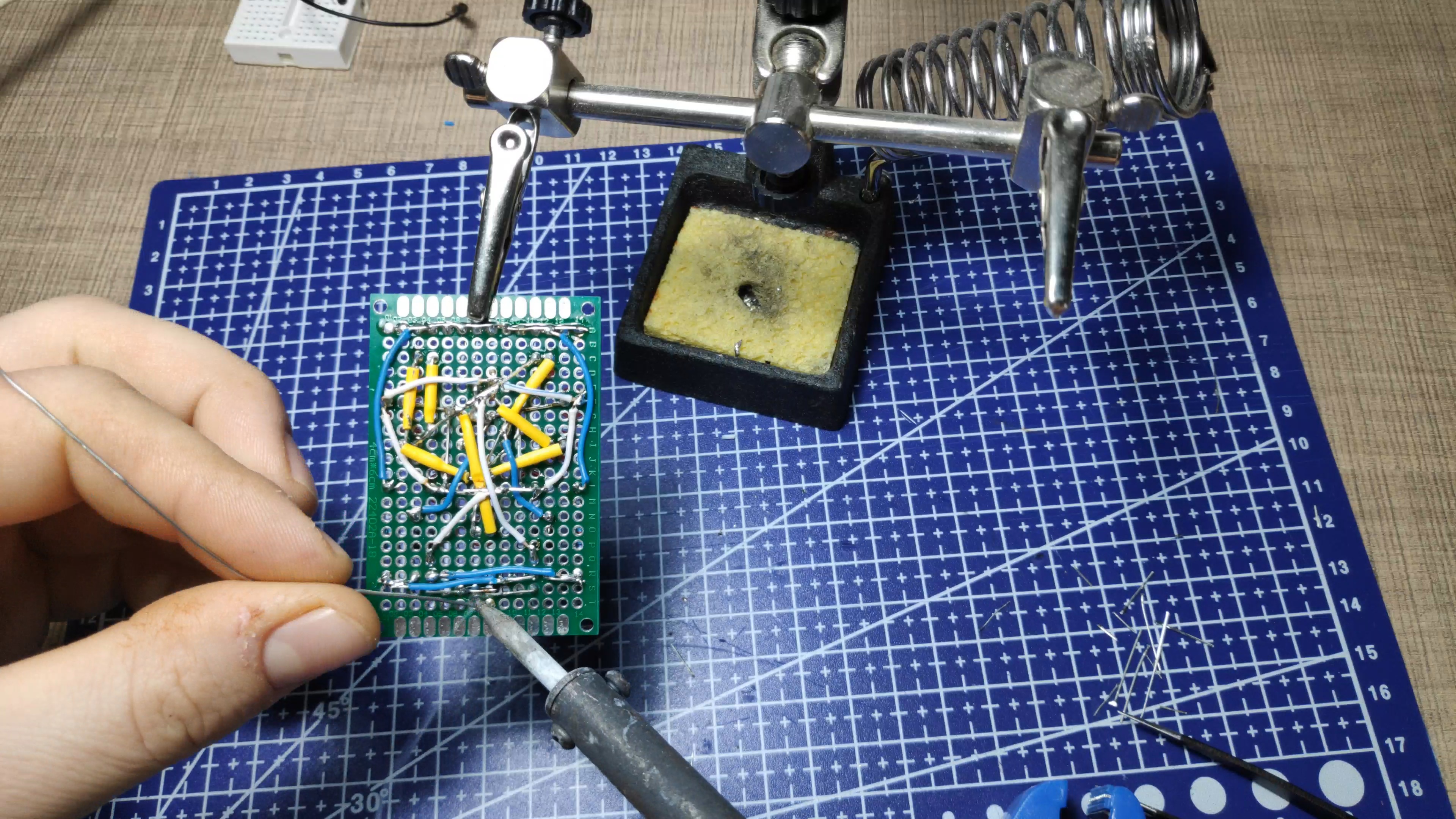

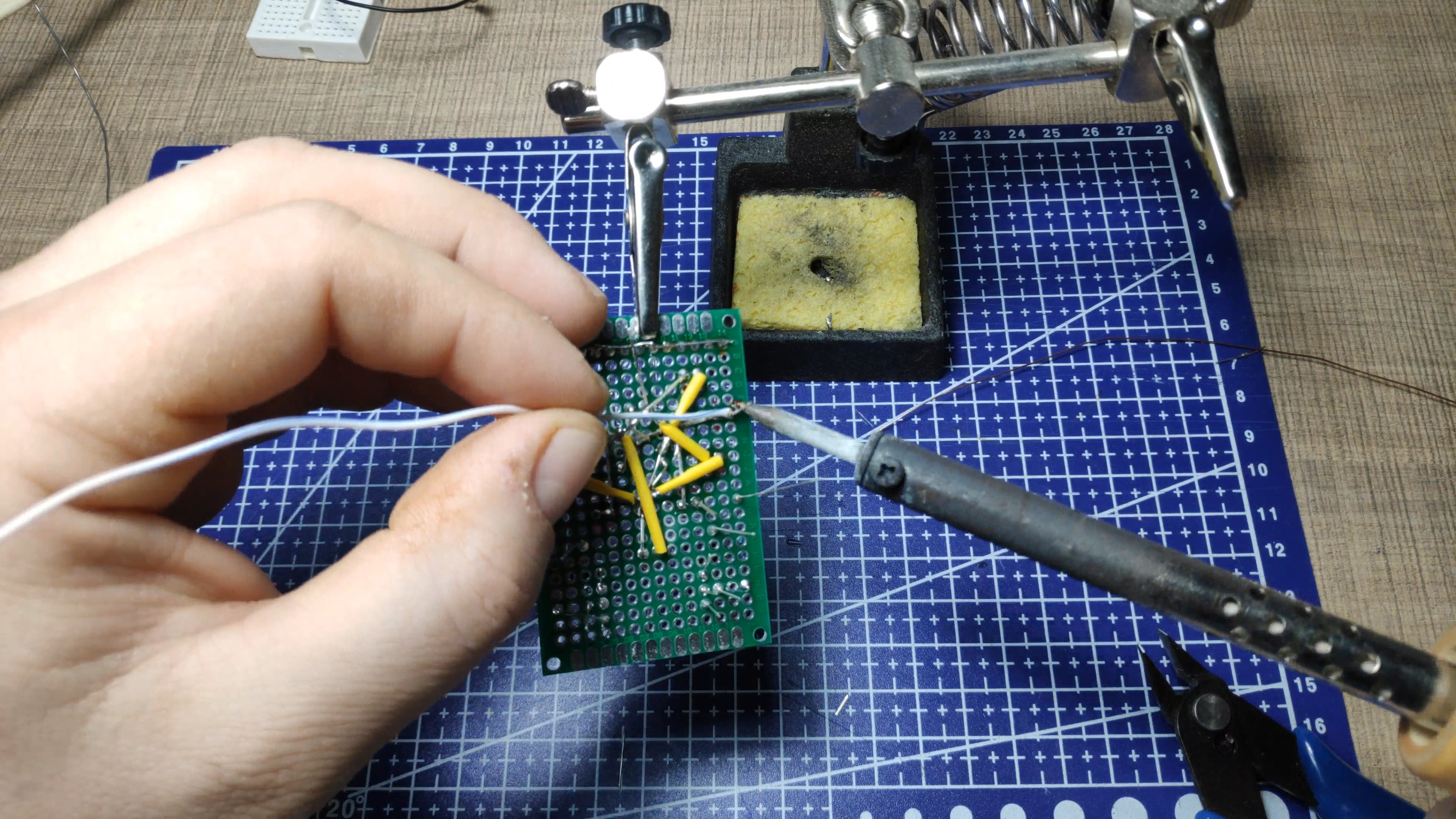

When the mess was too great I continued making the connections using some insulated wire.

I used 2 AA batteries to power the circuit but you can also use a LiPo or a 9V battery.

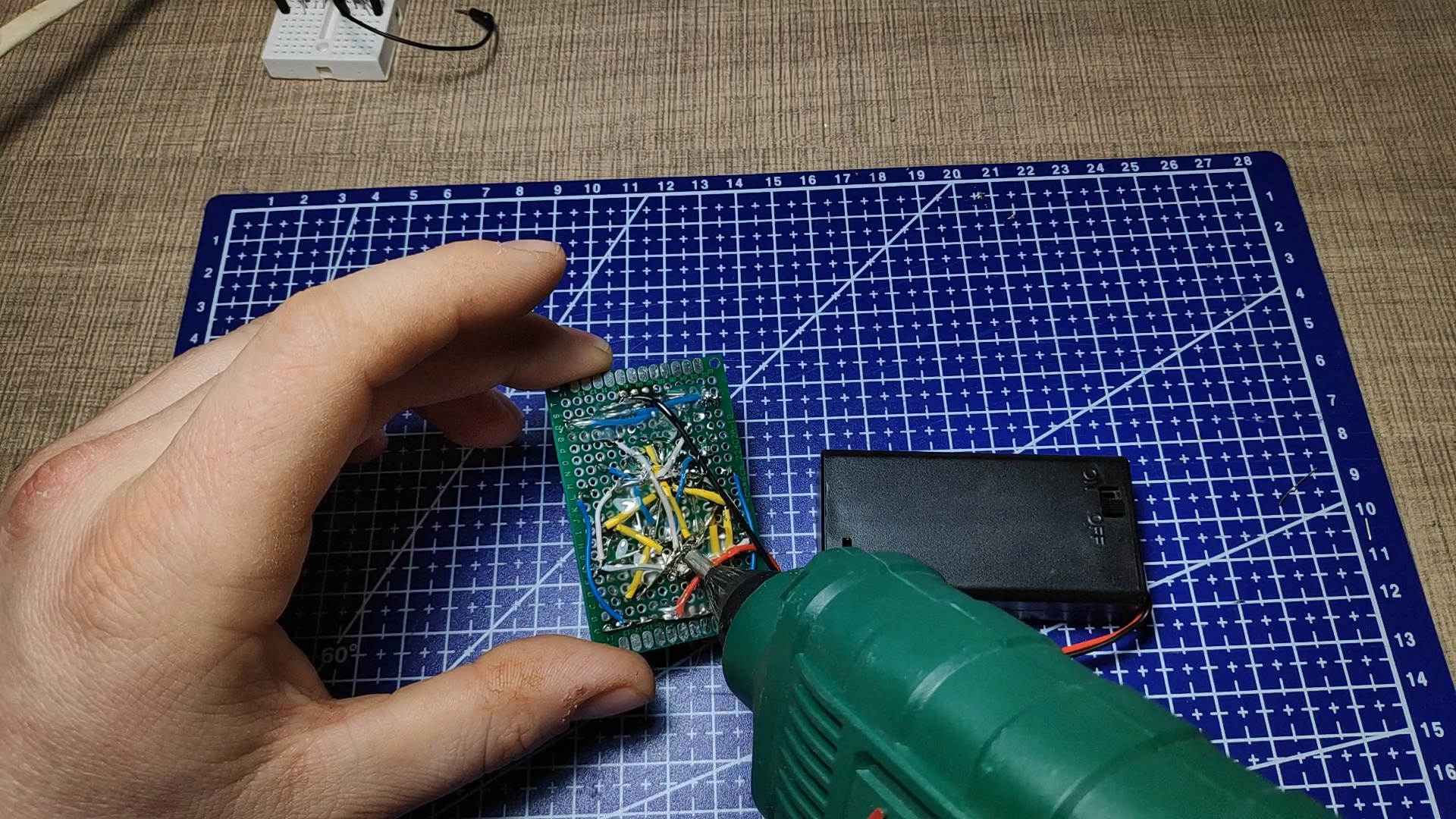

When I finished and tested the circuit to make sure everything works, I used my hot glue gun to flood the back side of the board and prevent any of the connections from moving. This way I know for sure that there won't be any shorts later on with using the ornament.

Also I used hot glue to mount the board to the battery holder so I can place the entire thing up right.

This was a really fun project and I truly recommend it for any electronics beginners that want to practice their soldering skills.
