Battery Size Calculation for DIY Off Grid Solar Power System
by Mugambimoses in Workshop > Energy
625 Views, 7 Favorites, 0 Comments
Battery Size Calculation for DIY Off Grid Solar Power System
![How-to-Size-a-Battery-Battery-Bank-Capacity-Size-Calculator.jpg](/proxy/?url=https://content.instructables.com/FEX/VP8H/L9VD4025/FEXVP8HL9VD4025.jpg&filename=How-to-Size-a-Battery-Battery-Bank-Capacity-Size-Calculator.jpg)
![Battery & Load Sizing Calculation for an Off Grid Solar Power System Design](/proxy/?url=https://content.instructables.com/FKM/BMFT/L9VD401Z/FKMBMFTL9VD401Z.jpg&filename=Battery & Load Sizing Calculation for an Off Grid Solar Power System Design)

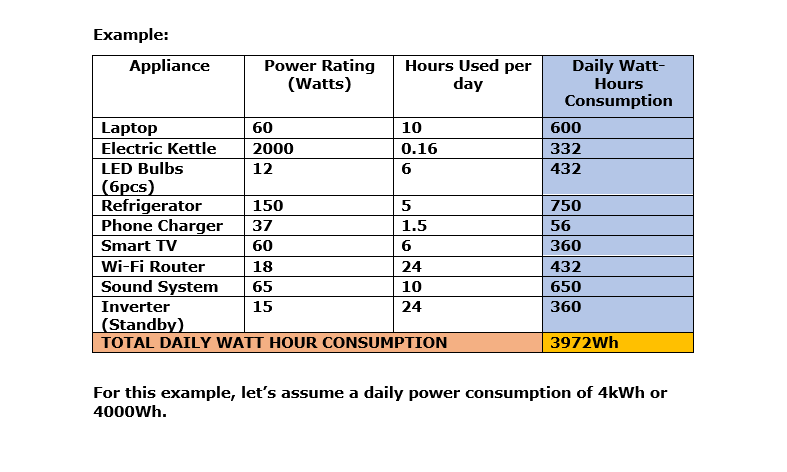

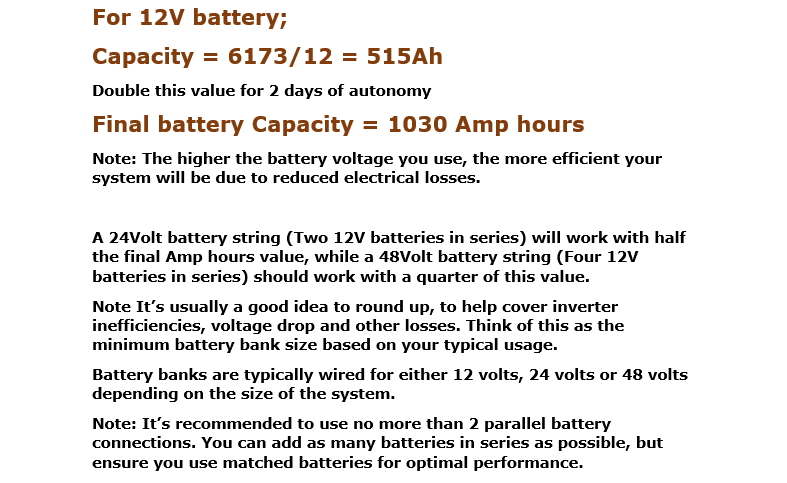

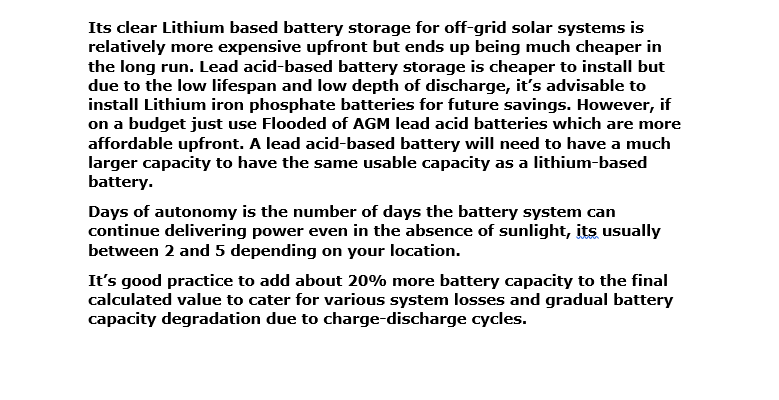

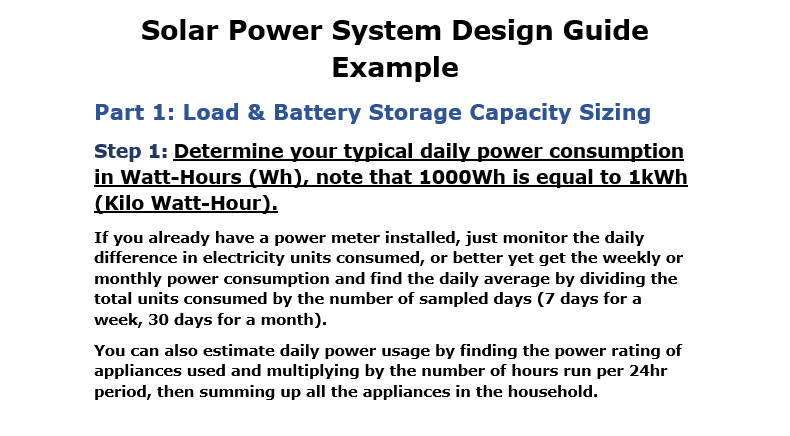

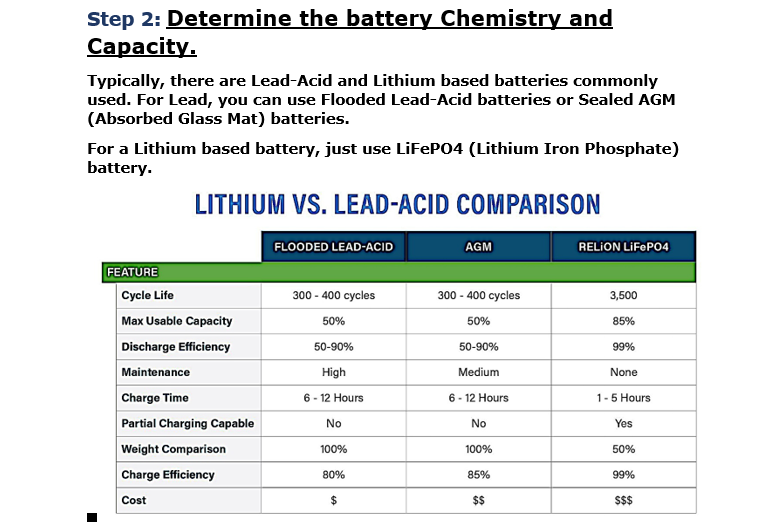

This is a simple Calculation example for a DIY solar power system battery and load sizing.
![1.0.PNG](/proxy/?url=https://content.instructables.com/FJ4/96FC/L9VD4069/FJ496FCL9VD4069.png&filename=1.0.PNG)
![2.0.PNG](/proxy/?url=https://content.instructables.com/F5O/HAXH/L9VD4060/F5OHAXHL9VD4060.png&filename=2.0.PNG)
![3.0.PNG](/proxy/?url=https://content.instructables.com/FZ3/FDRL/L9VD406A/FZ3FDRLL9VD406A.png&filename=3.0.PNG)
![4.0.PNG](/proxy/?url=https://content.instructables.com/FLC/BS6H/L9VD406B/FLCBS6HL9VD406B.png&filename=4.0.PNG)
![5.0.PNG](/proxy/?url=https://content.instructables.com/F62/8BE0/L9VD406C/F628BE0L9VD406C.png&filename=5.0.PNG)
![6.0.PNG](/proxy/?url=https://content.instructables.com/FEH/0VV3/L9VD406D/FEH0VV3L9VD406D.png&filename=6.0.PNG)
![7.0.PNG](/proxy/?url=https://content.instructables.com/FGQ/A1RB/L9VD406E/FGQA1RBL9VD406E.png&filename=7.0.PNG)
![8.0.PNG](/proxy/?url=https://content.instructables.com/F6P/97MG/L9VD406F/F6P97MGL9VD406F.png&filename=8.0.PNG)
Design Steps:
