Battery Powered Hovercraft
You need a hover craft.
You don't need to be tethered by a cord.
You definitely don't want gas powered.
Let's build a lithium battery powered hovercraft
You don't need to be tethered by a cord.
You definitely don't want gas powered.
Let's build a lithium battery powered hovercraft
Gather Supplies
You are going to need
Gaffers tape (don't skimp)
Two plywood boards (we went all out , you can use what you have)
PVC pipe foam insulator
Two 120 hp lithium battery powered leaf blowers (1 actually worked, but don't play around)
2 shower curtains (again, 1 might work for a bit... But we are serious)
Staples
A screw
A coffee can lid
Begin by cutting 2 four foot circles out of plywood. We used a router with jig. Using a flat blade we cut our circles perfectly.
Gaffers tape (don't skimp)
Two plywood boards (we went all out , you can use what you have)
PVC pipe foam insulator
Two 120 hp lithium battery powered leaf blowers (1 actually worked, but don't play around)
2 shower curtains (again, 1 might work for a bit... But we are serious)
Staples
A screw
A coffee can lid
Begin by cutting 2 four foot circles out of plywood. We used a router with jig. Using a flat blade we cut our circles perfectly.

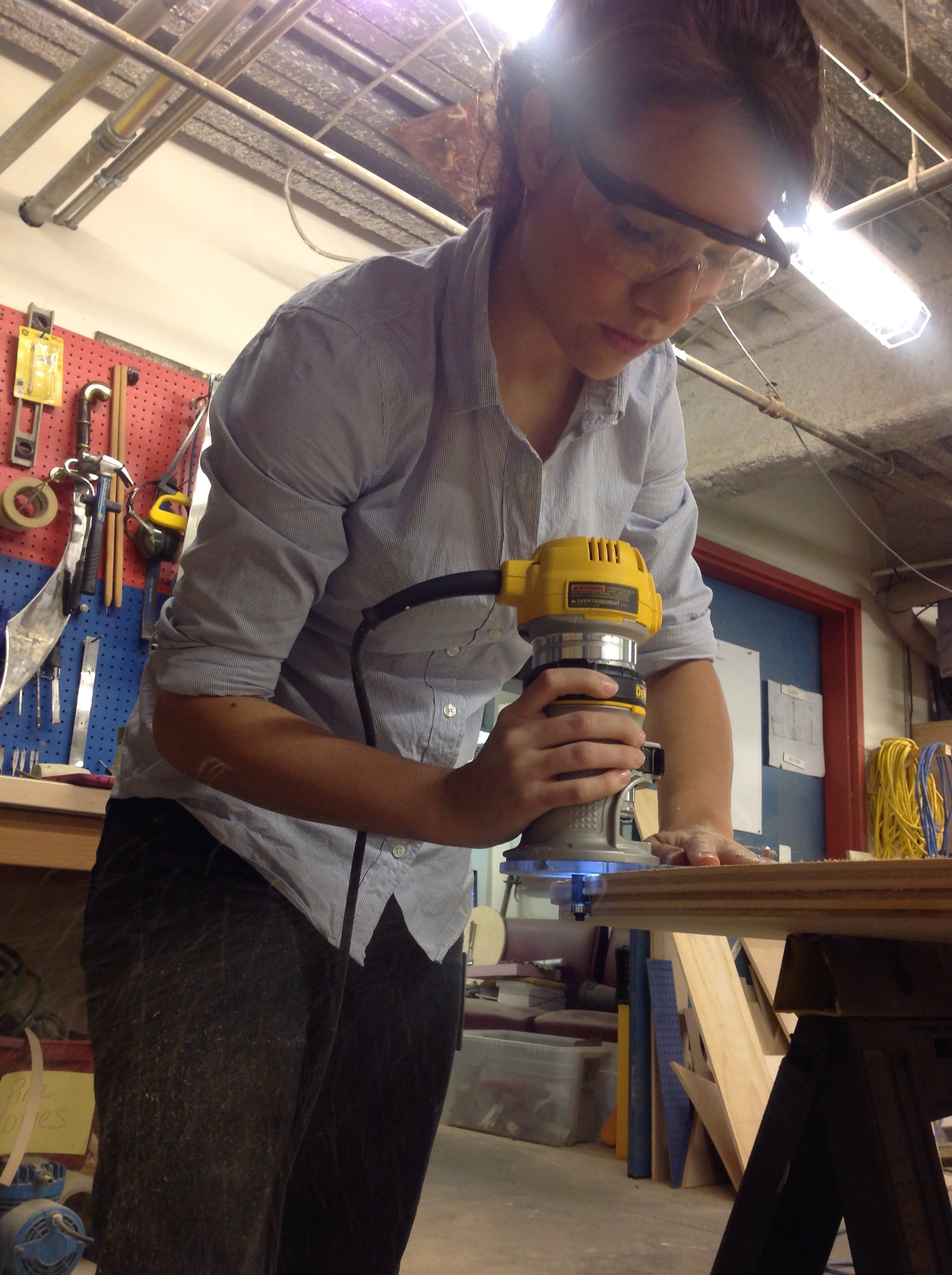

Use a Router or a Jig Saw
We used a bit of both to get the circles perfect. The better the circle, the better your ride.
Stare at Your Circles
Sometimes it's a good idea just to look at it.
A Little Tip
We used the router to cut both circles to match. Do you know how to do this? Google it. Or just trace and use a jig saw.

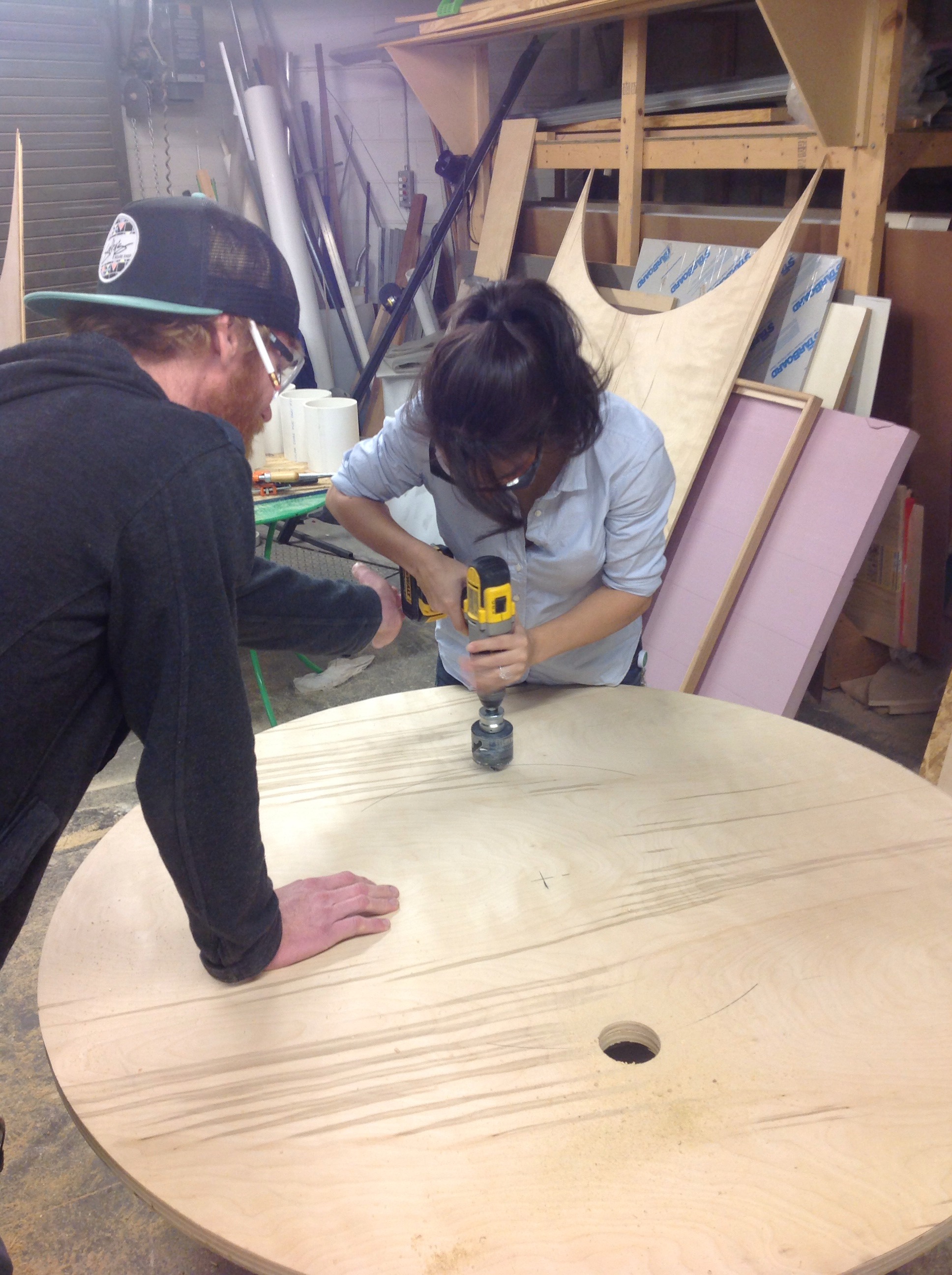

Leaf Blower Holes
So, you need holes for the air to blow through. Measure your leaf blower outputs. Cut holes to match. You want a very tight fit.
Leaf Blowers
Our black and decker leaf blowers had little clips and bits we chopped off for a better fit.

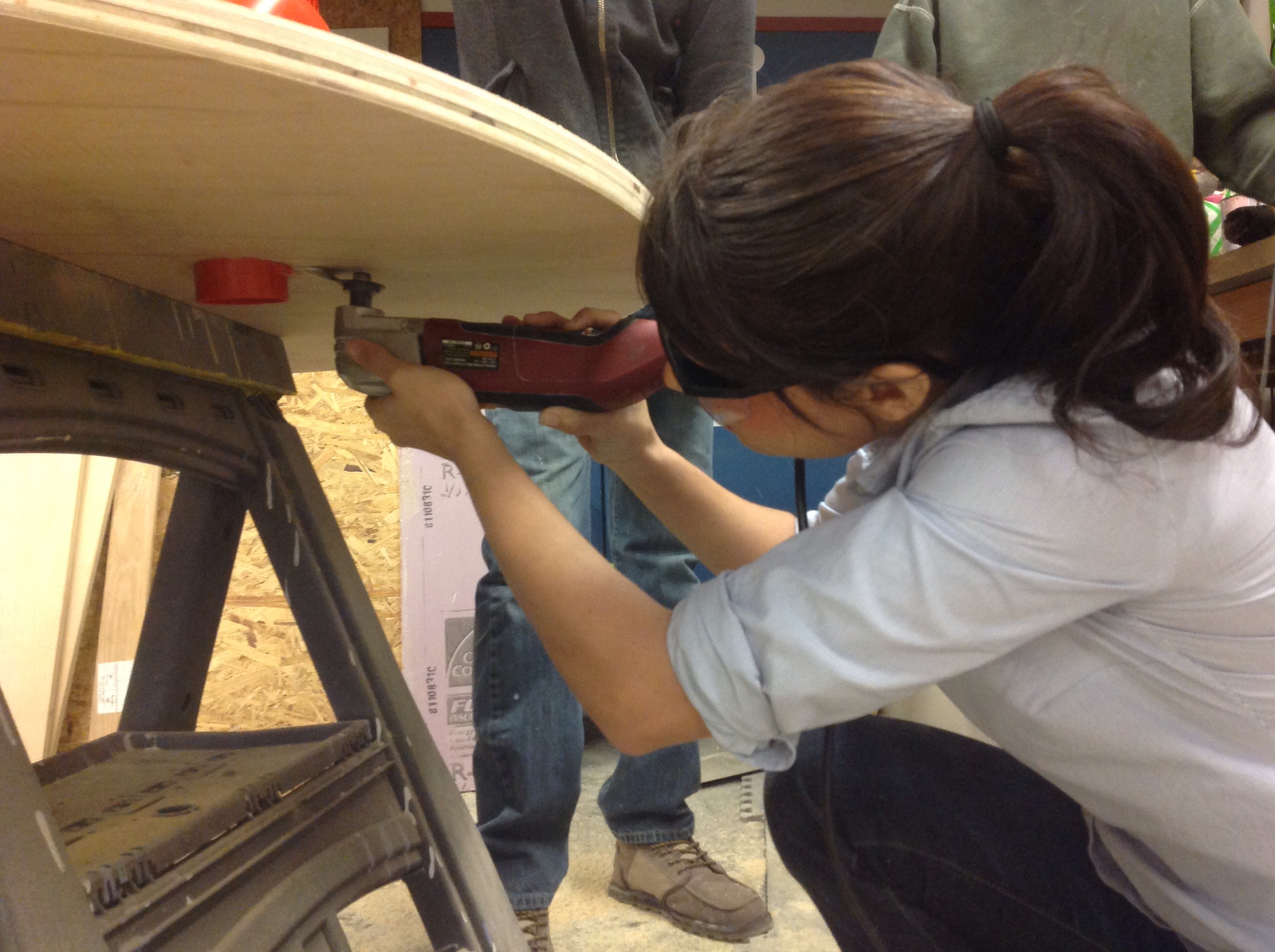

Chop Off the Overage
You want the bottom of your craft to be very flat. No sharp edges.
Sand
Sand smooth your discs. No sharp edges or your shower curtain will rip.

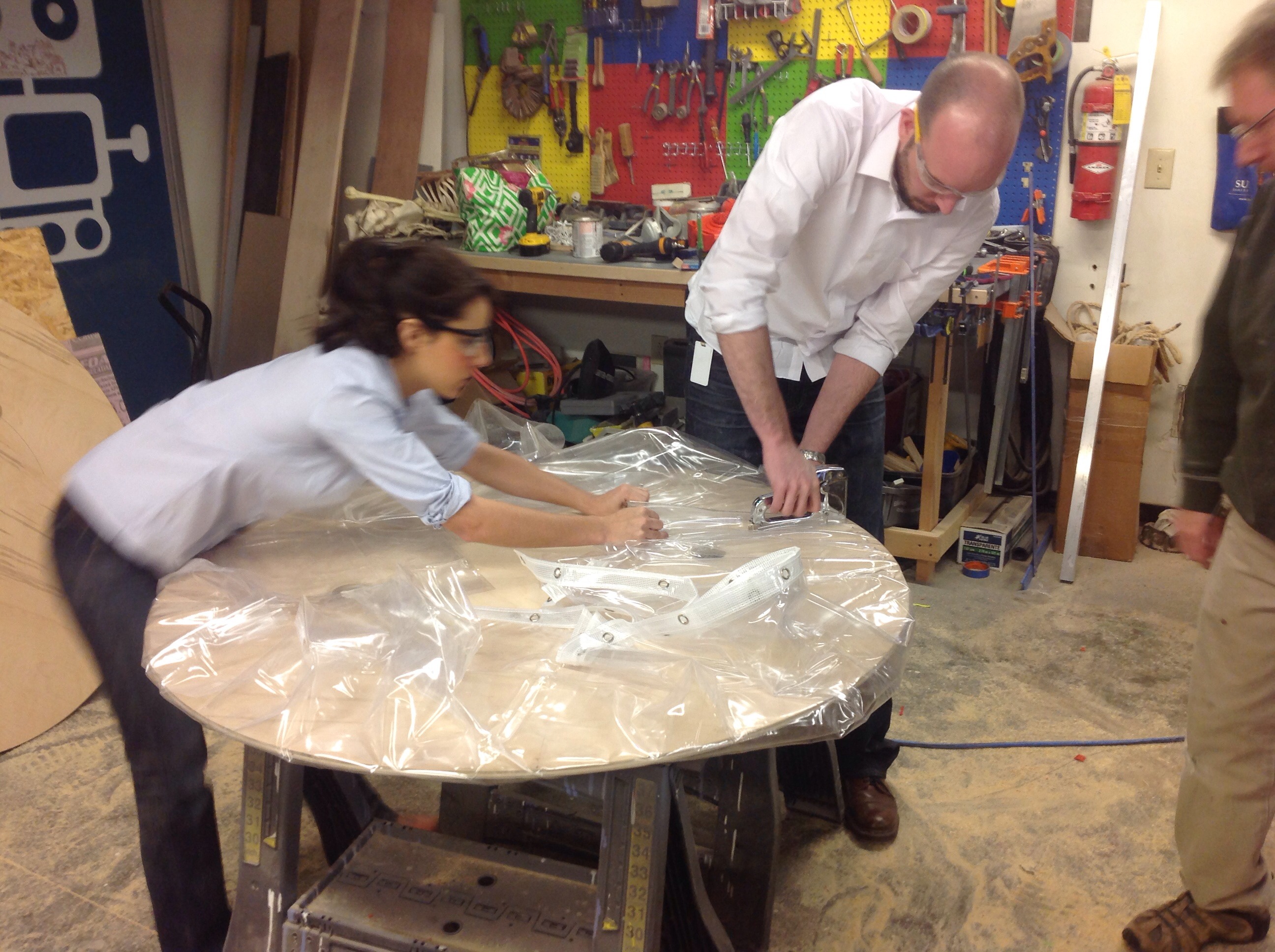

Shower Curtain
Wrap your doubled up shower curtains over a single disc. Staple the shower curtain flat. Pull it as taught as possible.
Cut the Excess Shower Curtain
Cut the excess. Keep it neat. We are also using a hammer to make sure all the staples are down tight.
Tape the Edge Down
We used gaffers tape. Duct tape is not adequate. It is not key. Use gaffers tape. It's for the pros. Be a pro.
Tape
Keep taping. Don't stop until you smile like this.
Flip It
Is it tight? Is it beautiful? Good. If not. Start over. You have failed.
Sandwich
Put the discs together. The taped side in the middle, the shower curtain flat on bottom.
Coffee Can Lid
Screw a coffee can lid dead center.
Staple It
Staple that coffee can lid for extra professional points.
Holes
Ok. Now, cut some 1 inch holes around the coffee can lid and reinforce them with gaffers tape. This allows the shower curtain to fill with air and escape out the holes.
Tape
The more tape the better. You don't want rips while you are hovering around.
PVC Pipe Foam Insulator
Wrap the outside of the disc with the foam tubing. Tape it down. Don't staple. Just use gaffers tape. Don't skimp. Your very life may be at stake.
Foam Bumper
This bumper is very important. Make sure it is fully taped.
Blower Time!
Install your blowers. We started with gaffers tape and ended up with 5 min epoxy. Keep it tight whatever you do.
Mount
We made sweet wooden mounts so we could use the blower handles as good hand holds when hovering.
Mounts
Look at those mounts. Just make something up like ours. You are a pro now. You don't need instructions for that!

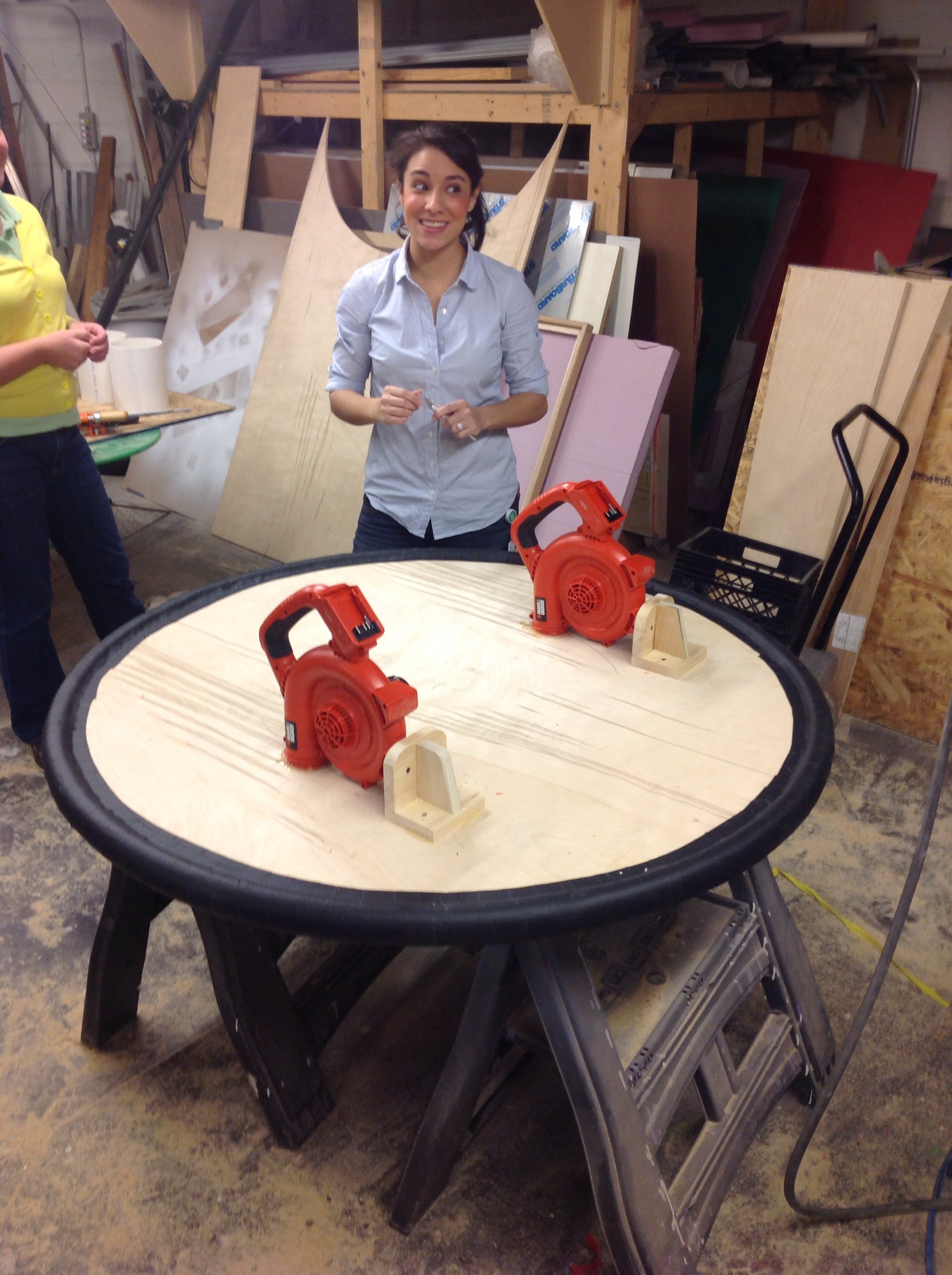

Finished
You are done.
Float Time
Get on. Sit down. Install batteries. Hit the switches and hover like there is no tomorrow.
You Go Girl
We are ready for maker faire!
