Battery Holder From a CD Jewel Case

I recently made a Useless Machine, and was shocked at the price of the battery holder. It was about $5 from the Source (which has replaced Radio Shack in Canada). I think you can get them for about $1.20 online, but unless you're placing a big order, the shipping is prohibitive and the delay is annoying if you haven't planned ahead. So I decided to make one from one of the many defunct jewel cases I have lying around. This 'ible contains my misses as well as my hits.

You'll need:

Jewel case
2 nuts
wire
2 small springs (you could probably use thin folded metal if you don't have the right type on hand)
solder
hot glue
scrap wood

Tools:

sharp utility knife
soldering iron
hot glue gun
small torch
pliers
needlenose pliers
batteries of the number and size you want to hold
some means of drilling a small hole (I used a Dremel)

Getting Started
First, put the number of batteries you want on some paper, and trace around them. Leave about 1/4" at the front and back of the batteries. This will be room for the positive and negative terminals.

Leave enough on the sides to wrap around the left and right batteries (this will be the sides of the holder. Note that I tried to get fancy and make front and back tabs from the same piece. I advise you not to try this. I messed it up and had to cut them off.

NOTE: When cutting this plastic, you need to score it pretty deeply in order to have it snap clean. This is somewhat dangerous. Make sure you cut it in such a way that, if the knife slips, it will cut away from you (and other people).

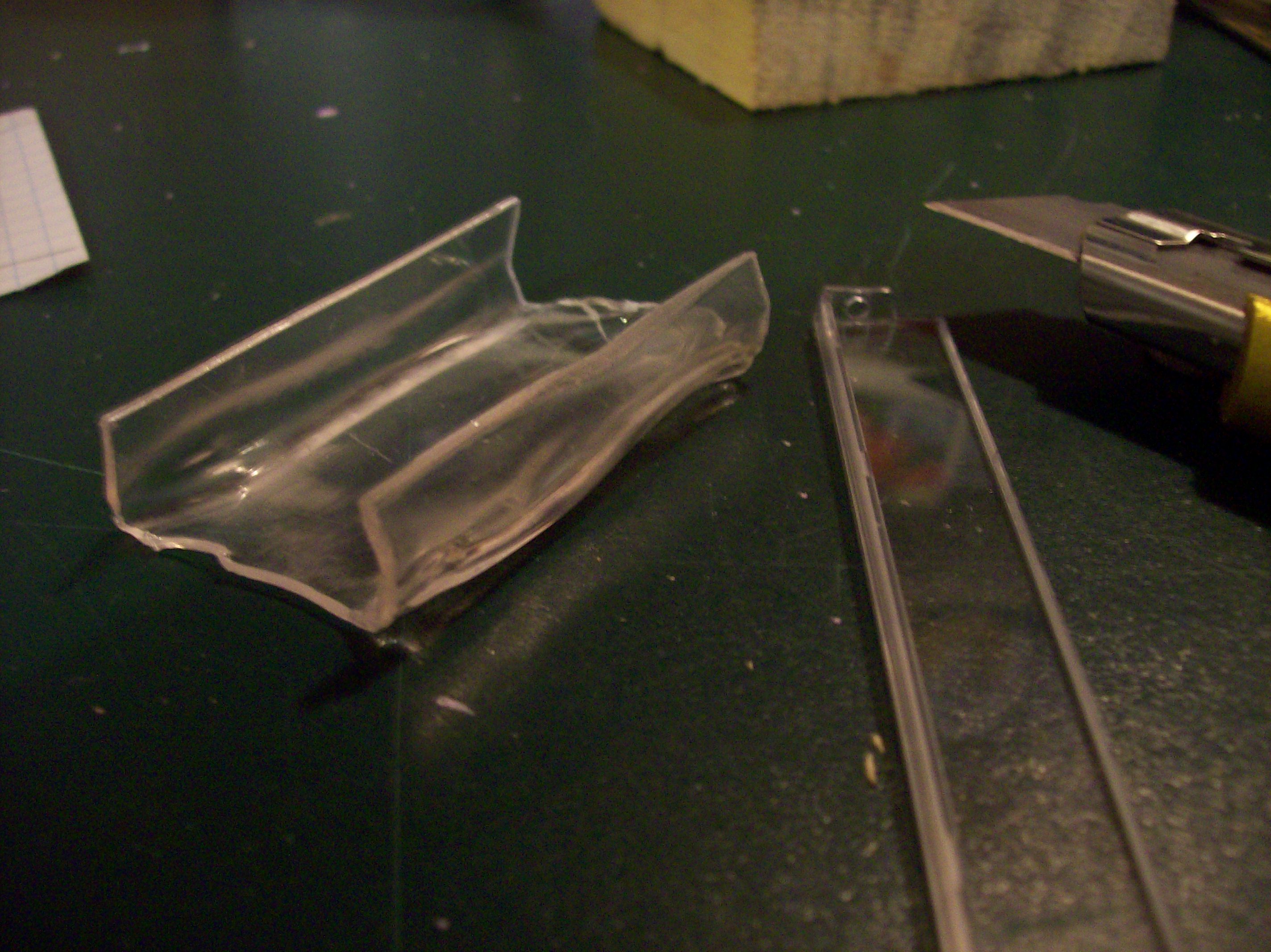

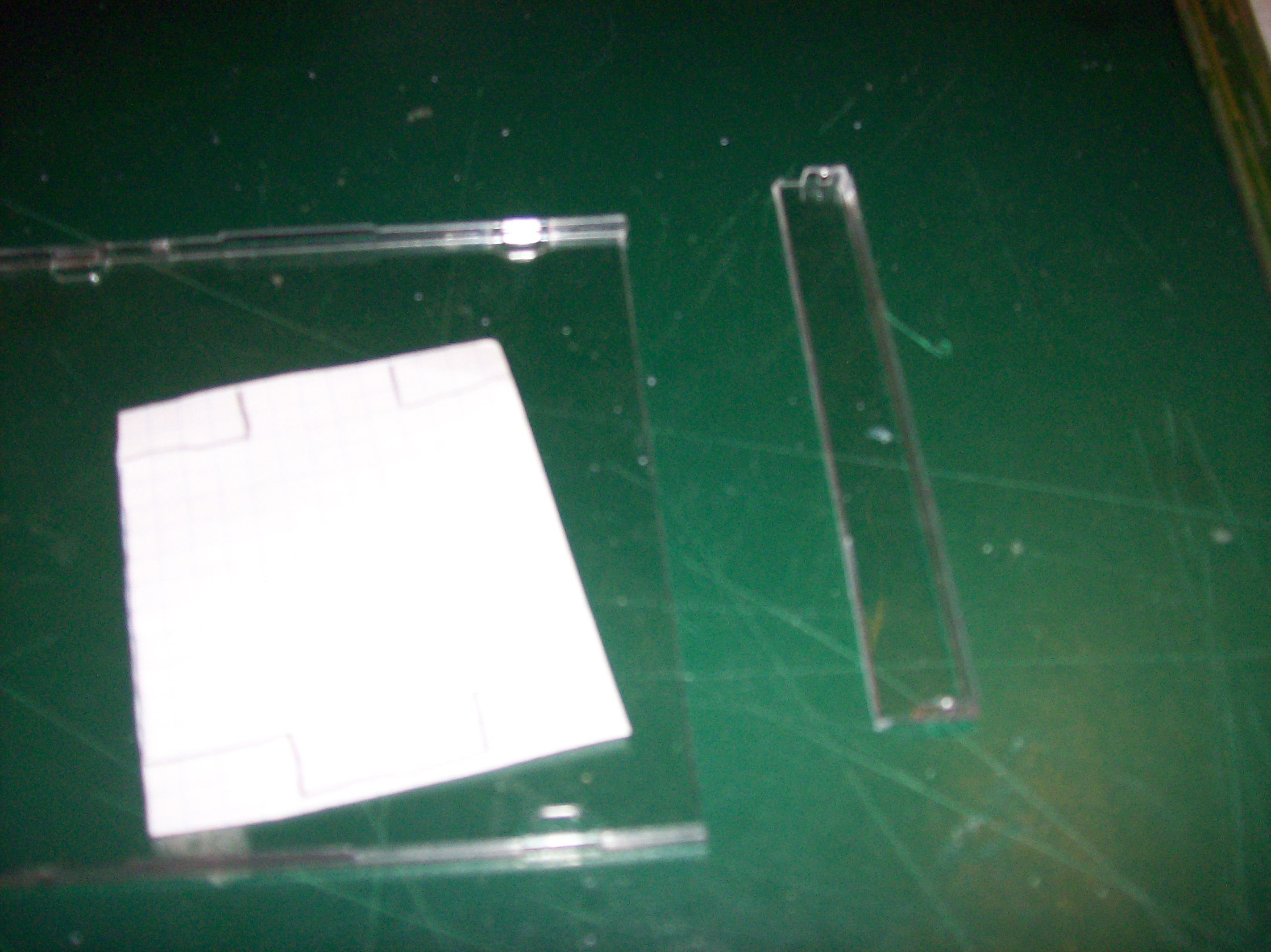

Cut the edges from a jewel case cover, so you have nice, flat stock to work with. Once it's scored, snap it off. If it didn't snap cleanly, trim very carefully with the knife. Put the template under the plastic to guide your cuts. Score and snap the piece you need.

Forming the Battery Compartment

The battery compartment sides are formed by making a form of the batteries. Hot glue the batteries side by side on a scrap piece of wood (I used dead batteries, but they should be easy to cut back off when you're done).

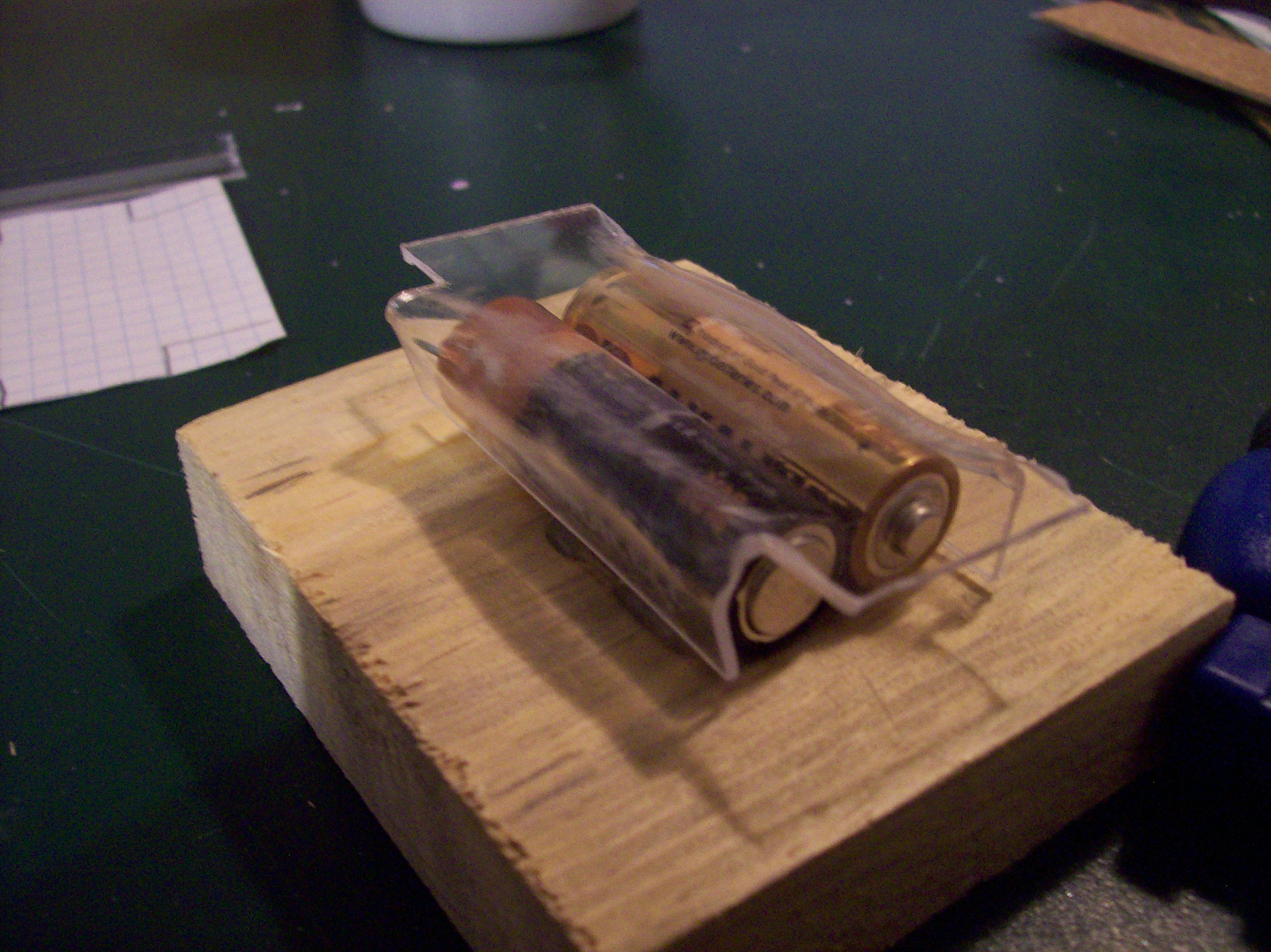

Place the piece of plastic over the top so that the same amount of plastic is hanging over each side. Use your torch to melt along one edge enough to bend the plastic. The plastic has a tendency to curl under the battery form a bit, which is handy for snap-fitting the batteries once it's done.

WARNING: my plastic caught fire once, so you should probably be prepared for that. Don't have any other flammables around and keep a fire extinguisher handy. But I was just able to blow it out)

Now you have a 2-sided battery holder.

Forming the Front and Back

Because my tabs didn't work, I had to use another method for forming the front and back. I found the first piece I trimmed from the jewel case to be perfect because:

It was exactly the right height
It had a lip that I could use to align to the bottom of the holder. The lip also added strength.
By cutting one side from the left and one from the right, I actually had 2 sides worth of lip that was useful for aligning and marking

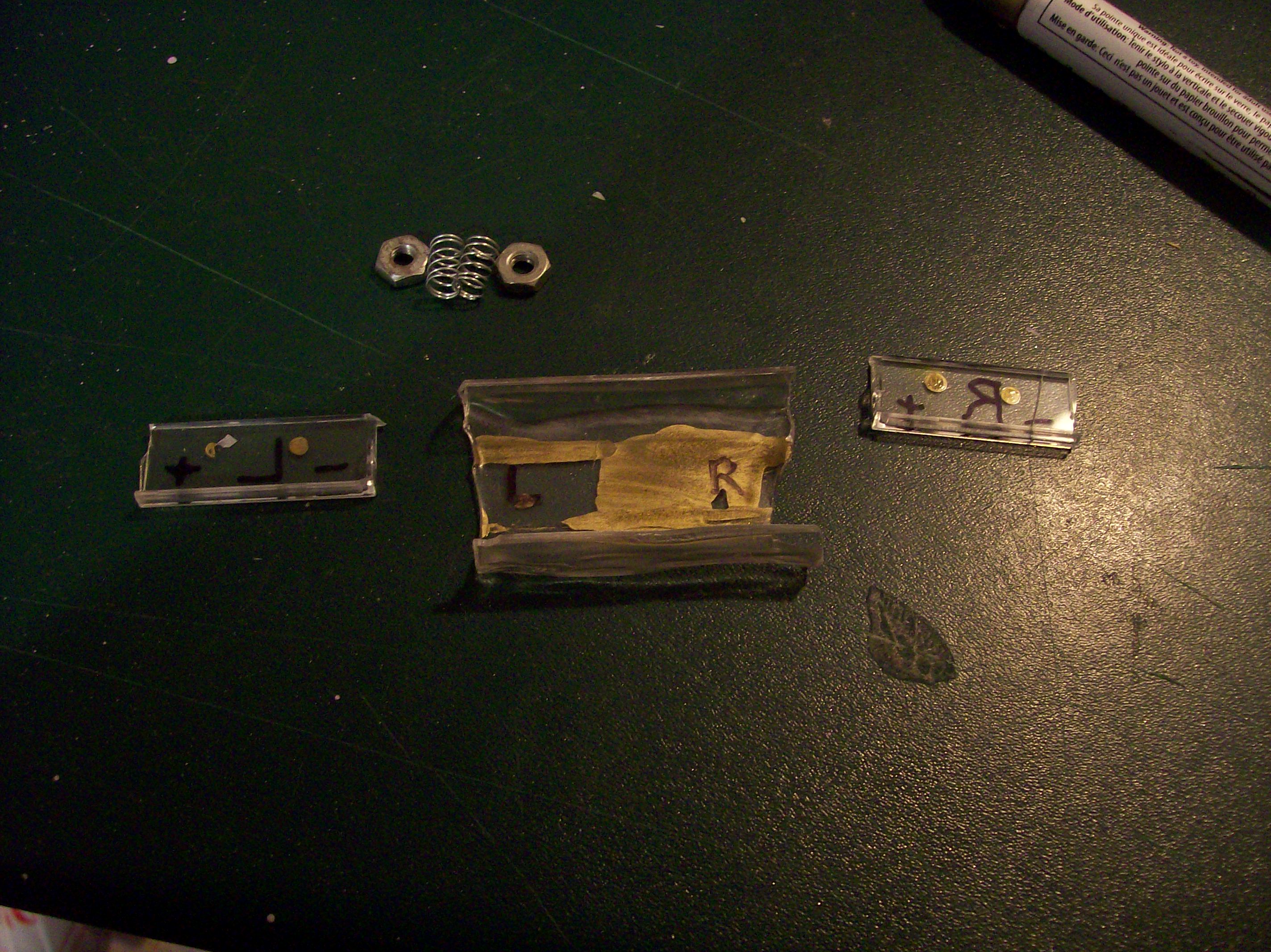

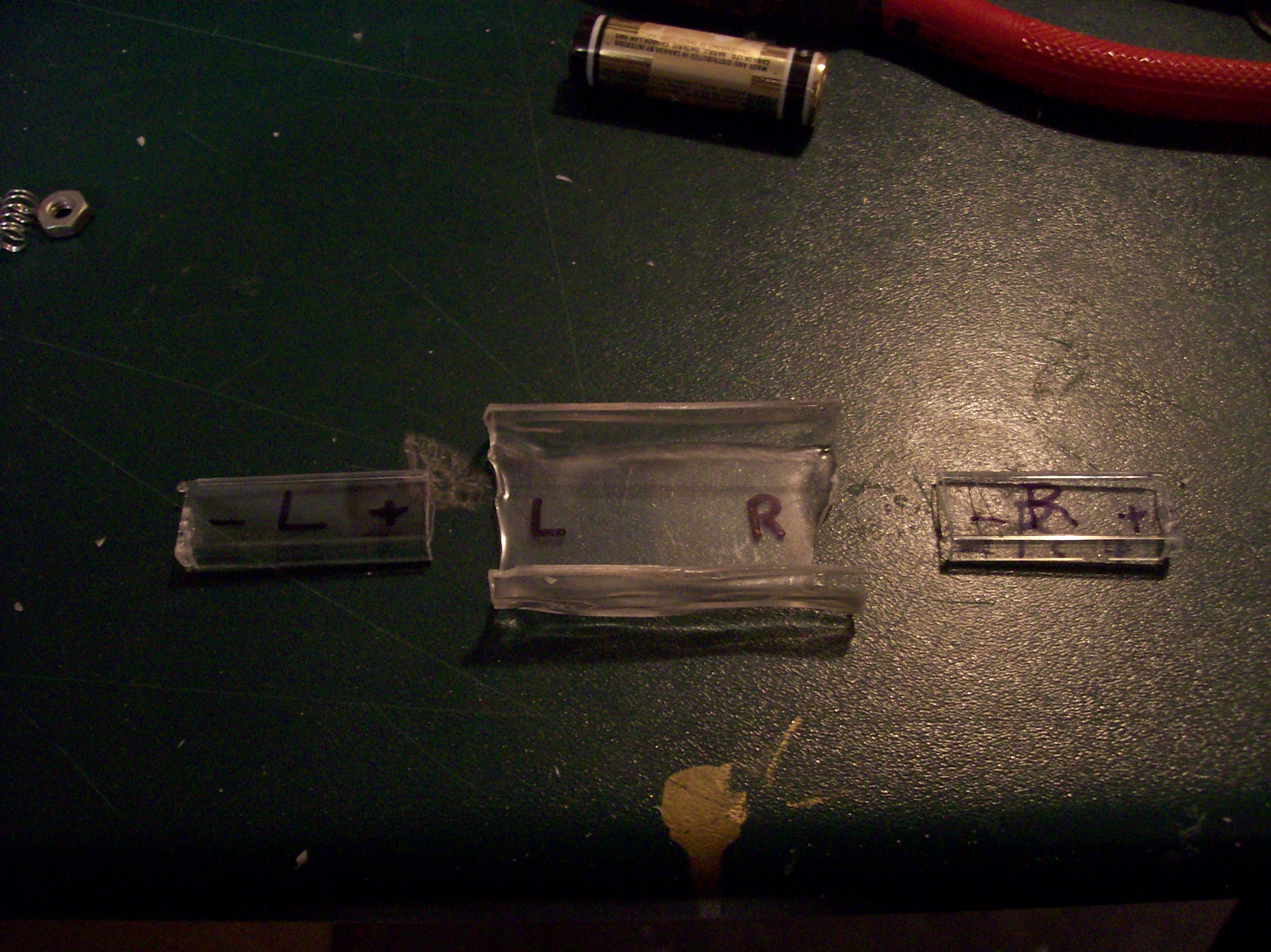

Dry fit the front/back stock and cut it to fit. Decide which is left/right and which way to orient your batteries. Mark all of this so you don't get confused.

Next we'll put the metal components in place.

Adding the Terminals

To find the center of the terminals, dab a battery's positive terminal with paint (you might want a dead battery). Dry fit an end onto the holder and press a battery in place to transfer a dab of paint. Do this twice for each battery. Drill a hole big enough to feed a wire through each marking. I used a Dremel with a fine diamond point bit to do this.

The positive terminals will be our nuts. The negative are our springs.

Positive

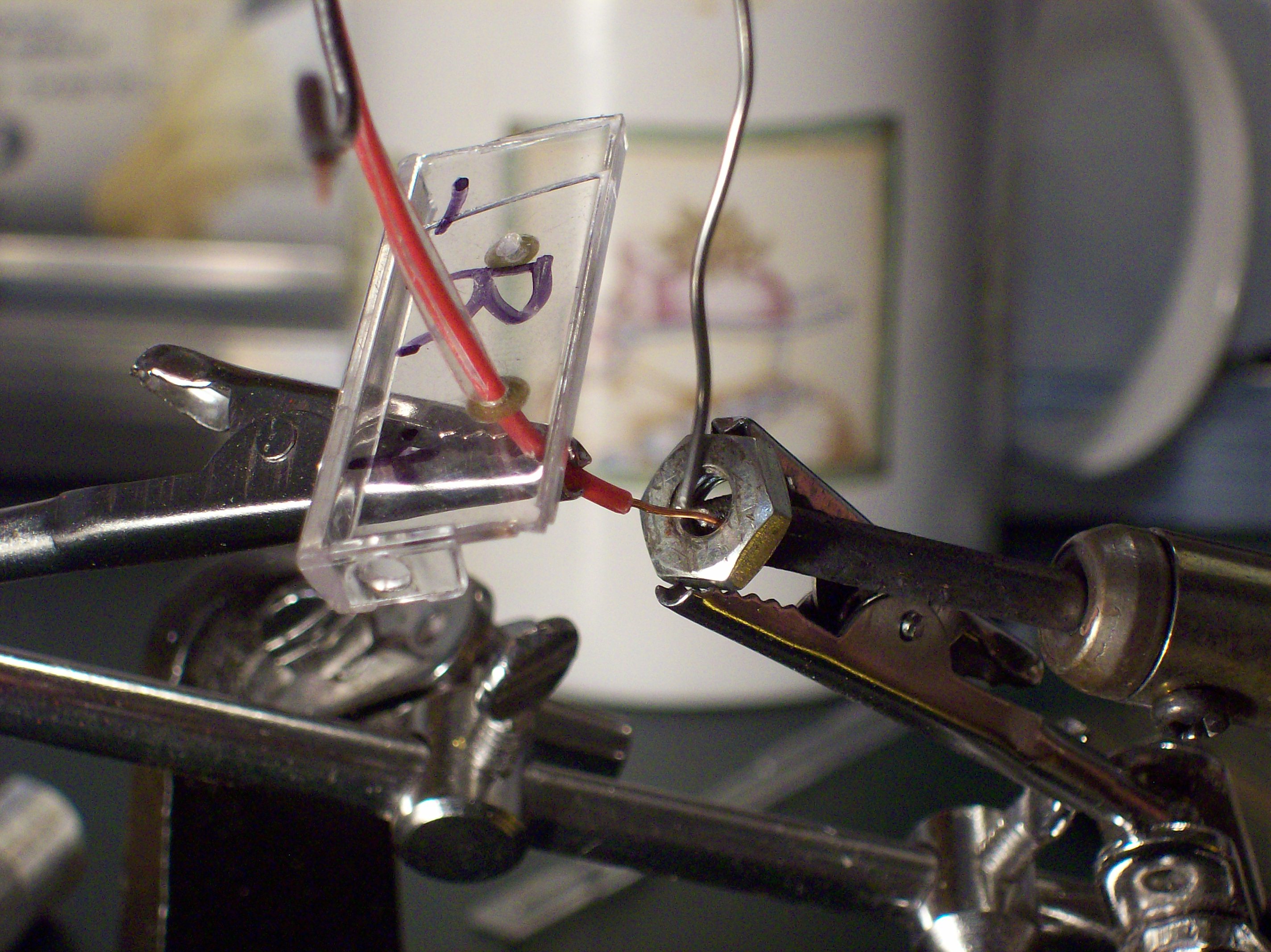

Feed a wire through an end at the positive terminal. Wrap the wire around the nut a few times and solder to itself (in the picture, I first tried to solder the wire to the nut. It didn't work. Leave enough wire so you can attach to whatever project for one positive terminal. For the other, leave enough to connect to the negative terminal of the other battery. Use a small dab of hot glue to glue this in place.

Negative

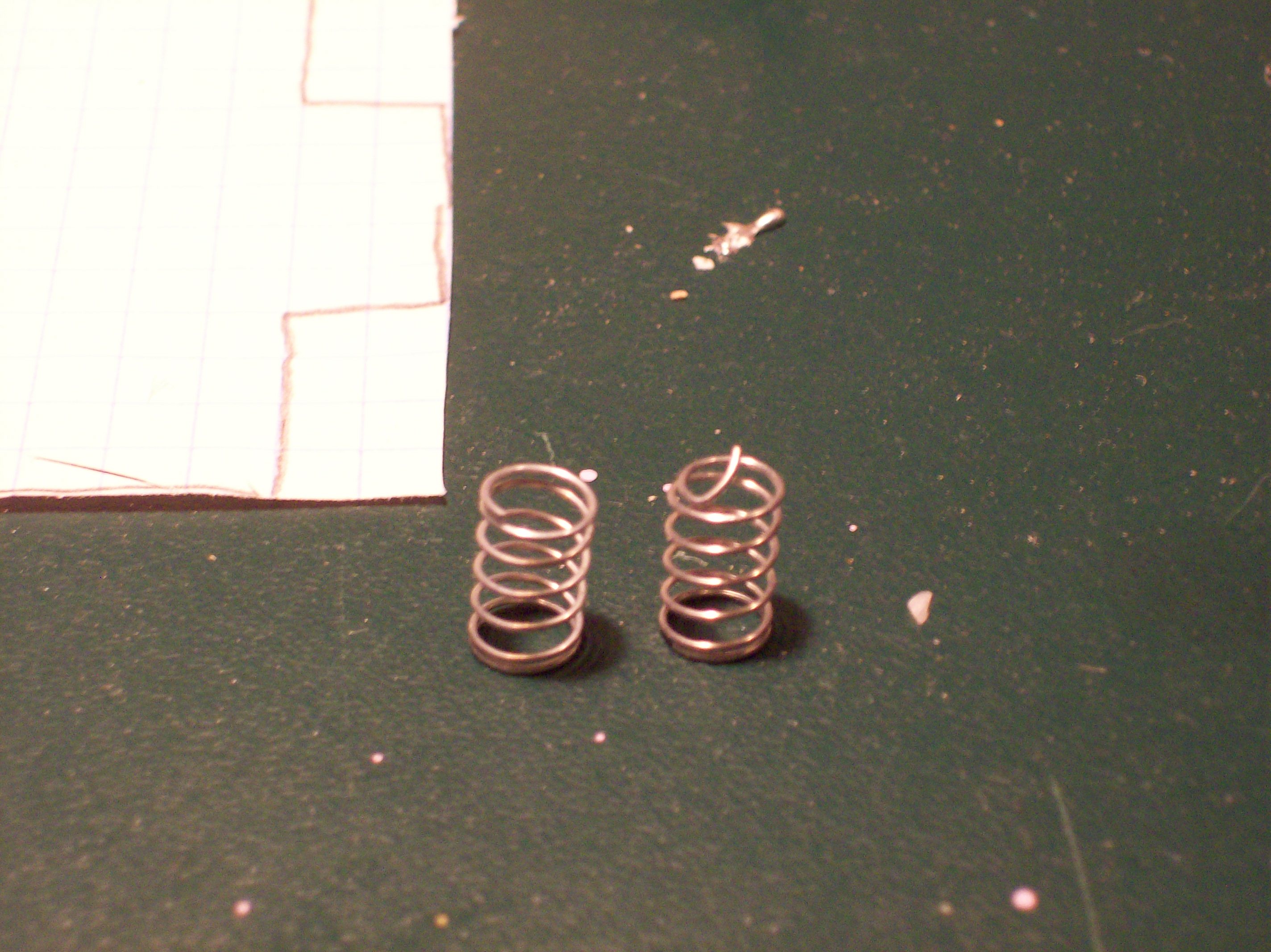

Bend one end of each spring so it can be fed through the plastic. Bend a bit of the other end in to increase the area in contact with the battery. Feed the long end of each spring through the hole in the plastic. Secure the spring on the inside with a small dab of hot glue. Wrap your wires around the spring ends and solder.

Finishing Touches

Hot glue the front and back plates in place and cover over any exposed wire with hot glue. Give it a final test, and you're done!
