Battery Eliminator With Voltage Regulator (2,4,6,8,10,12)
This instructable will help to make a battery Eliminator i.e., we can split or reduce the high voltage to required voltage and maintain constantly
Collect the Required Items
The required items are
1-Voltage regulators(2,4,6,8,10,12)
2-12 v adapter
3-12 v jack
4-Switch
5-Card board

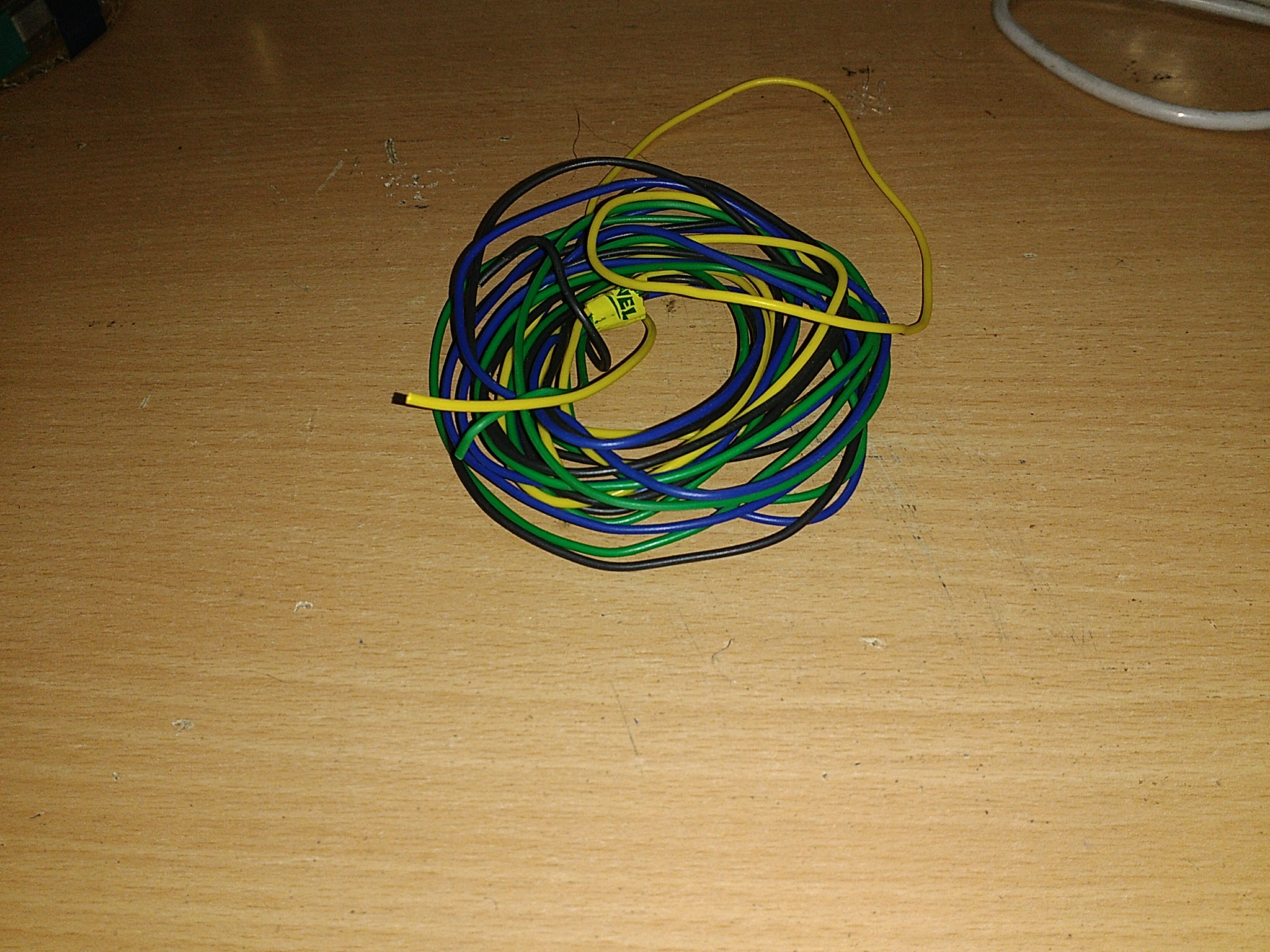

6- Wires
7-Rotary Switch
8-Soldering gun
9- Some solder
1-Voltage regulators(2,4,6,8,10,12)
2-12 v adapter
3-12 v jack
4-Switch
5-Card board
6- Wires
7-Rotary Switch
8-Soldering gun
9- Some solder
Theory
Voltage regulators are nothing but which regulates the voltage constantly
It has three pins
1- input
2-Gnd
3-output
we have different voltage regulators for different voltage we need
It has three pins
1- input
2-Gnd
3-output
we have different voltage regulators for different voltage we need
Making
Make the connections as shown in circuit Diagram
on a PCB if available or else any thin wood. I have used a card board to connect and to build the circuit
Congratulations.!!!!
your battery Eliminator is ready as u switch from one point to another the voltage is going to vary and will be constant
if you like my instructable please like and follow me for the out put video
Thank You. :D
on a PCB if available or else any thin wood. I have used a card board to connect and to build the circuit
Congratulations.!!!!
your battery Eliminator is ready as u switch from one point to another the voltage is going to vary and will be constant
if you like my instructable please like and follow me for the out put video
Thank You. :D
