Batman Night Lamp
![IMG_20190706_154130-01-01.jpeg](/proxy/?url=https://content.instructables.com/F2S/U9DY/JXOYHWRI/F2SU9DYJXOYHWRI.jpg&filename=IMG_20190706_154130-01-01.jpeg)
Hi All,
Few months back I was inspired by Yet another Batman Lamp. I wanted to make one, but I did not want to buy a new plywood or MDF sheet. I wanted to reuse / recycle what I already had.
So I made following changes in my design
- I will use cardboard instead of plywood
- Build smaller
- Lesser LED lights for night lamp
And you do not need any power tools.. safe to replicate at home for any new DIY enthusiast

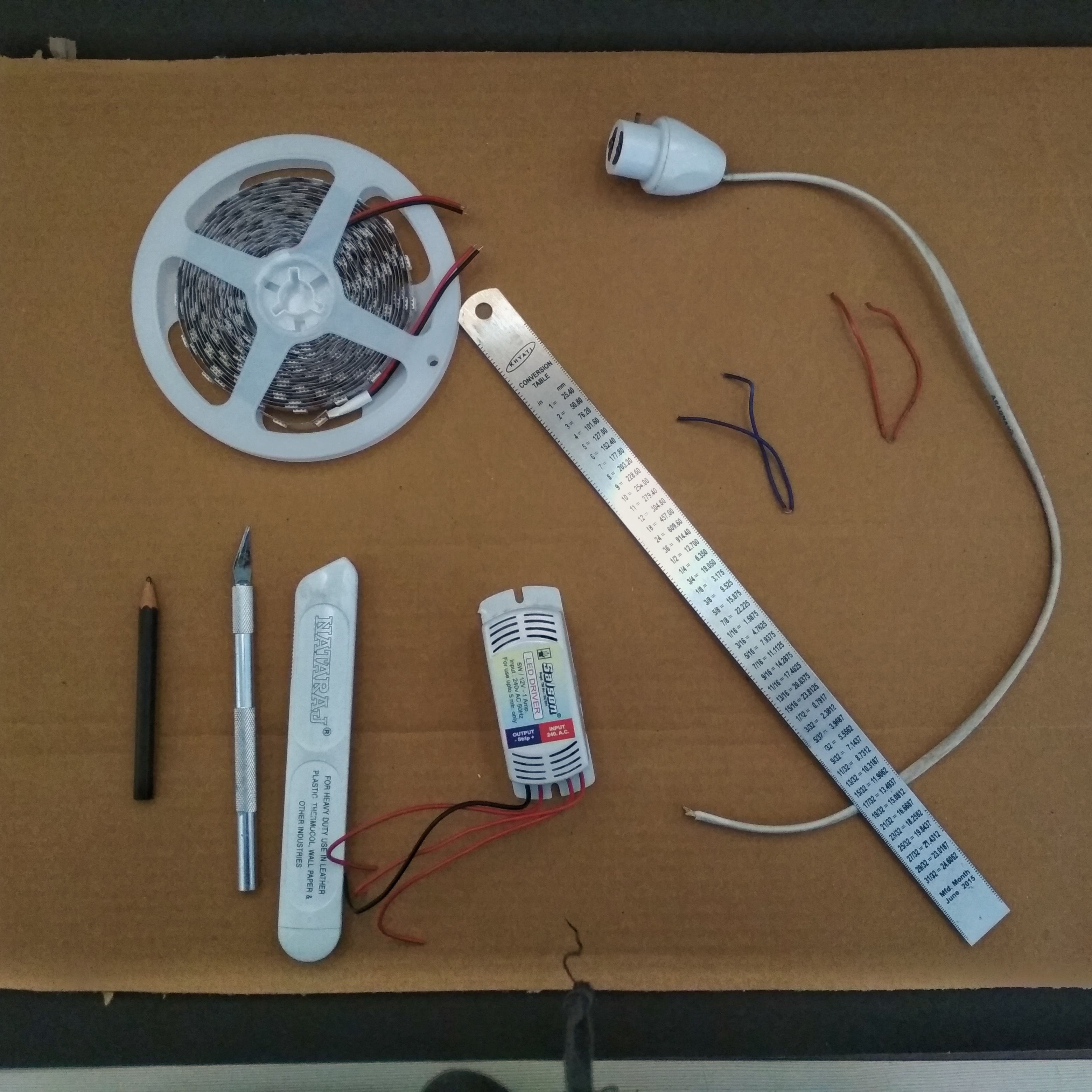

What Do We Need ?
![IMG_20190706_114450-01.jpeg](/proxy/?url=https://content.instructables.com/FSD/CIKI/JXOYHWPA/FSDCIKIJXOYHWPA.jpg&filename=IMG_20190706_114450-01.jpeg)
- A cardboard piece 18" x 7"
- Cutter
- Amber led strip
- Led 12V driver
- Thin wires, suitable for DC
- Electric wire with power socket
- Pencil, scale and eraser
- Black acrylic paint
- Soldering iron
- Hot glue gun
I got my cardboard from one of the Amazon's delivery boxes and the wires from my previous projects

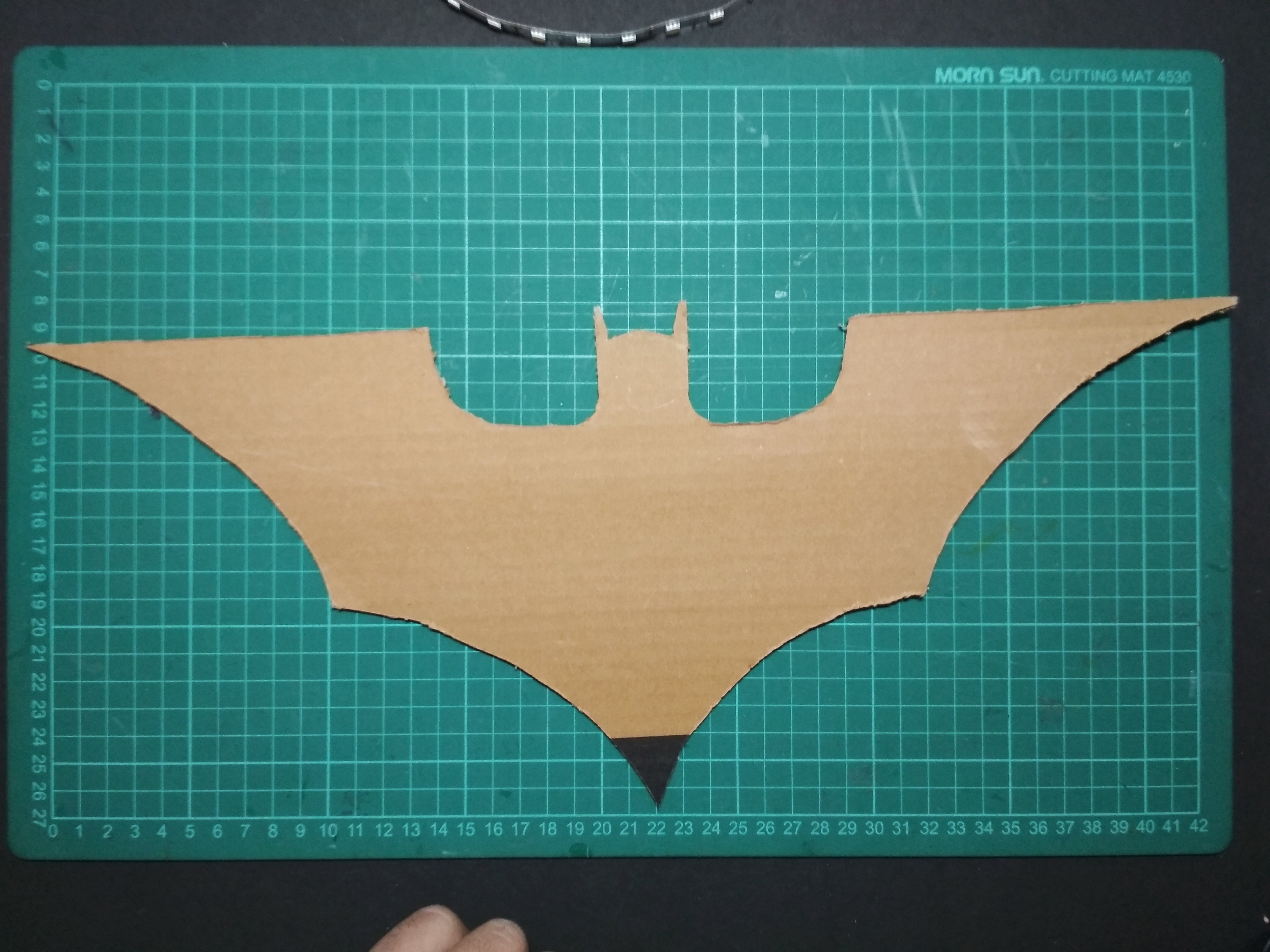

Cutting
![1562409104212-01.jpeg](/proxy/?url=https://content.instructables.com/FH8/VL0L/JXOYHWUN/FH8VL0LJXOYHWUN.jpg&filename=1562409104212-01.jpeg)
![1562409137568-01.jpeg](/proxy/?url=https://content.instructables.com/FVB/2SG3/JXOYHWQK/FVB2SG3JXOYHWQK.jpg&filename=1562409137568-01.jpeg)
![IMG_20190706_161210-01.jpeg](/proxy/?url=https://content.instructables.com/FRJ/1GSF/JXOYHWPJ/FRJ1GSFJXOYHWPJ.jpg&filename=IMG_20190706_161210-01.jpeg)
- One can download batman's logo from internet
- I decided to hand draw it, mine is 18" x 7"
- Carefully cut the batman's logo as shown

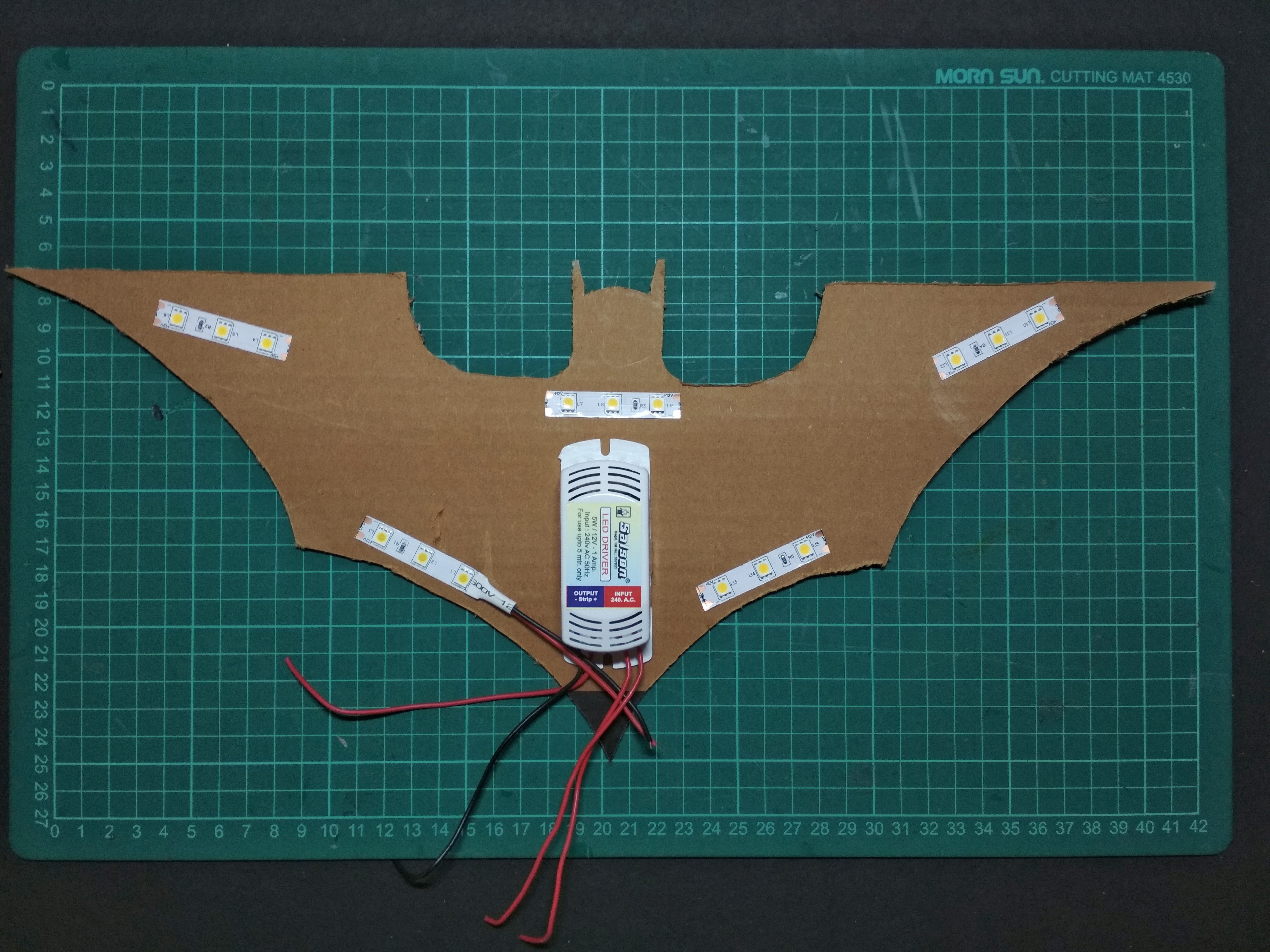

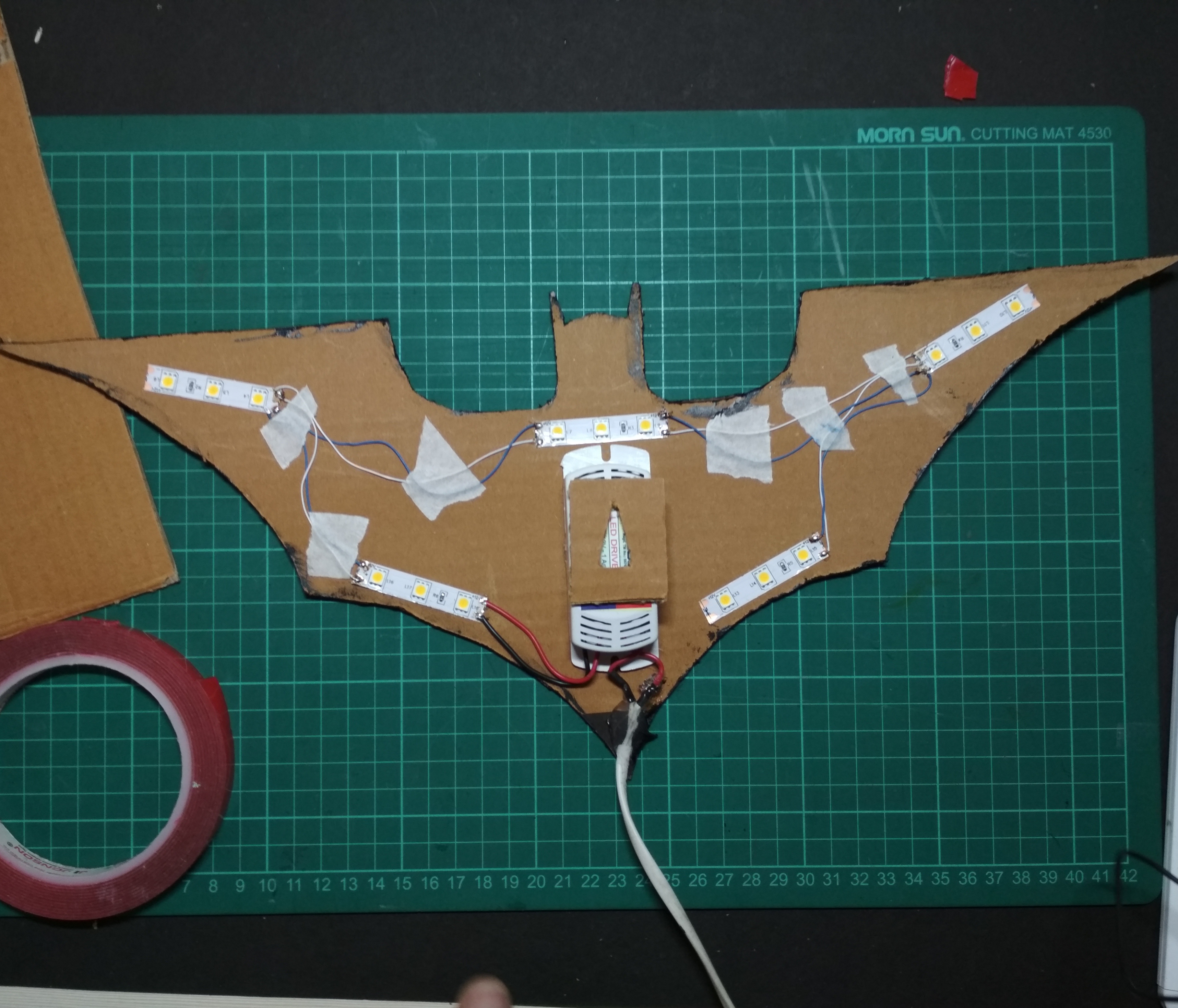

LED
![IMG_20190706_161145-01.jpeg](/proxy/?url=https://content.instructables.com/FRF/OYOY/JXOYHWPY/FRFOYOYJXOYHWPY.jpg&filename=IMG_20190706_161145-01.jpeg)
![IMG_20190706_211017.jpg](/proxy/?url=https://content.instructables.com/FPQ/36OB/JXOYI3FM/FPQ36OBJXOYI3FM.jpg&filename=IMG_20190706_211017.jpg)
- I wanted this lamp as a night lamp
- So to reduce light, I have used just 5 LED strip elements
- Connect all +ve to each other and the LED driver
- Connect all -ve to each other and the LED driver
- Solder all connections
- Connect the 220V input to the LED driver with electrical wire with power socket
- Hot glue the cables in place
Finishing
![IMG_20190706_161023-01.jpeg](/proxy/?url=https://content.instructables.com/FWK/Z1N5/JXOYHWQE/FWKZ1N5JXOYHWQE.jpg&filename=IMG_20190706_161023-01.jpeg)
![IMG_20190706_154130-01.jpeg](/proxy/?url=https://content.instructables.com/FBV/WBPL/JXOYHWY6/FBVWBPLJXOYHWY6.jpg&filename=IMG_20190706_154130-01.jpeg)
- Paint the front side and the edges with black acrylic paint
- You can decorate with stickers or draw on it
- Using double side tape to hang it on the wall

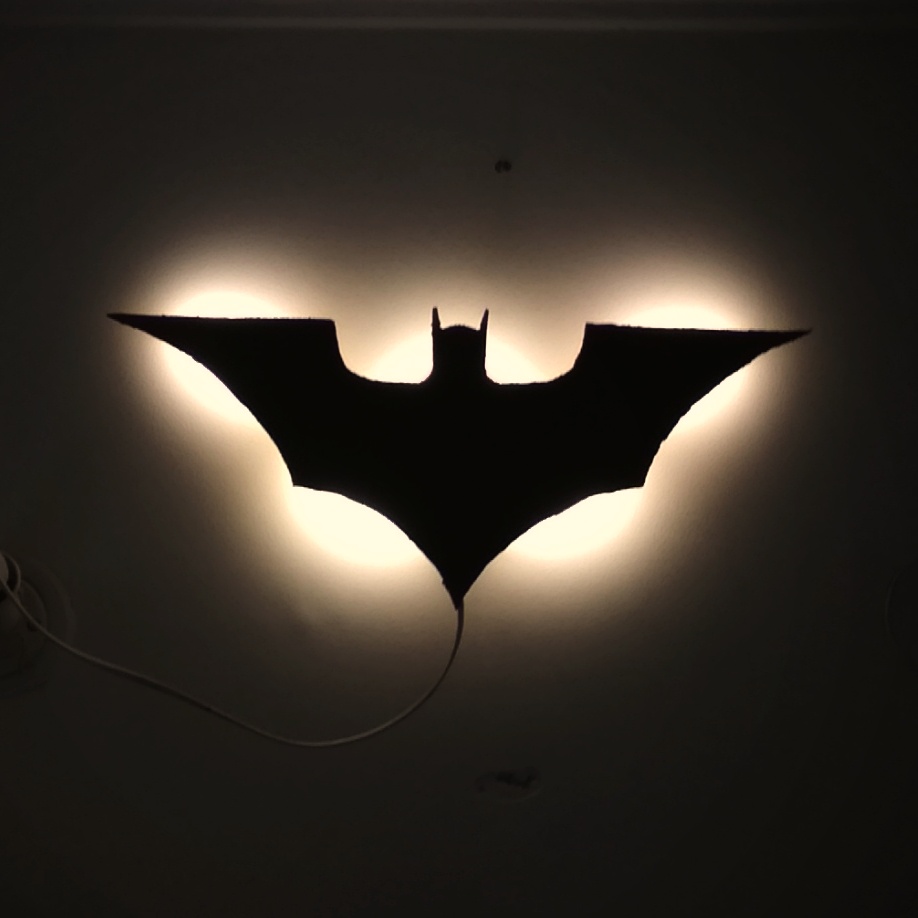

- Switch on the lamp and admire
Thanks for reading my instructable, please share your comments or any suggestion to improve
