Bat Attack! Flying Paper Bats With Micro:bit and Motor

It's spooky decor that really soars.

This simple micro:bit and servo motor project makes a big impact by extending the movement of the motor to the invisible fishing line to make paper bats bounce, flap, and "fly" in mid-air! This decoration is perfect for your next Halloween party to keep the spooky vibe alive!

If you like our projects and want to see more of what we get up to each week please follow us on Instagram, Twitter, Facebook, and YouTube.

• micro:bit
• Crazy Circuits Bit Board
• Brick Compatible 270 Degree Servo
• 2AAA Battery Holder
• LEGO Baseplate
• LEGO Plate 1 x 6 (x4)

Tools:

• Scissors
• Masking Tape
• Maker Tape
• Fishing Line
• Black Paper (8.5 x 11 Cardstock)
• Bone Folder or pen

• Print the template (linked below) on black paper if you can, or print and color the bats black.
• I printed two sheets to make 6 bats, but your project may require more or less depending on the space you have to hang it.

• Use a bone folder or a pen to mark the fold lines as shown.

• Cut out the bat shapes.

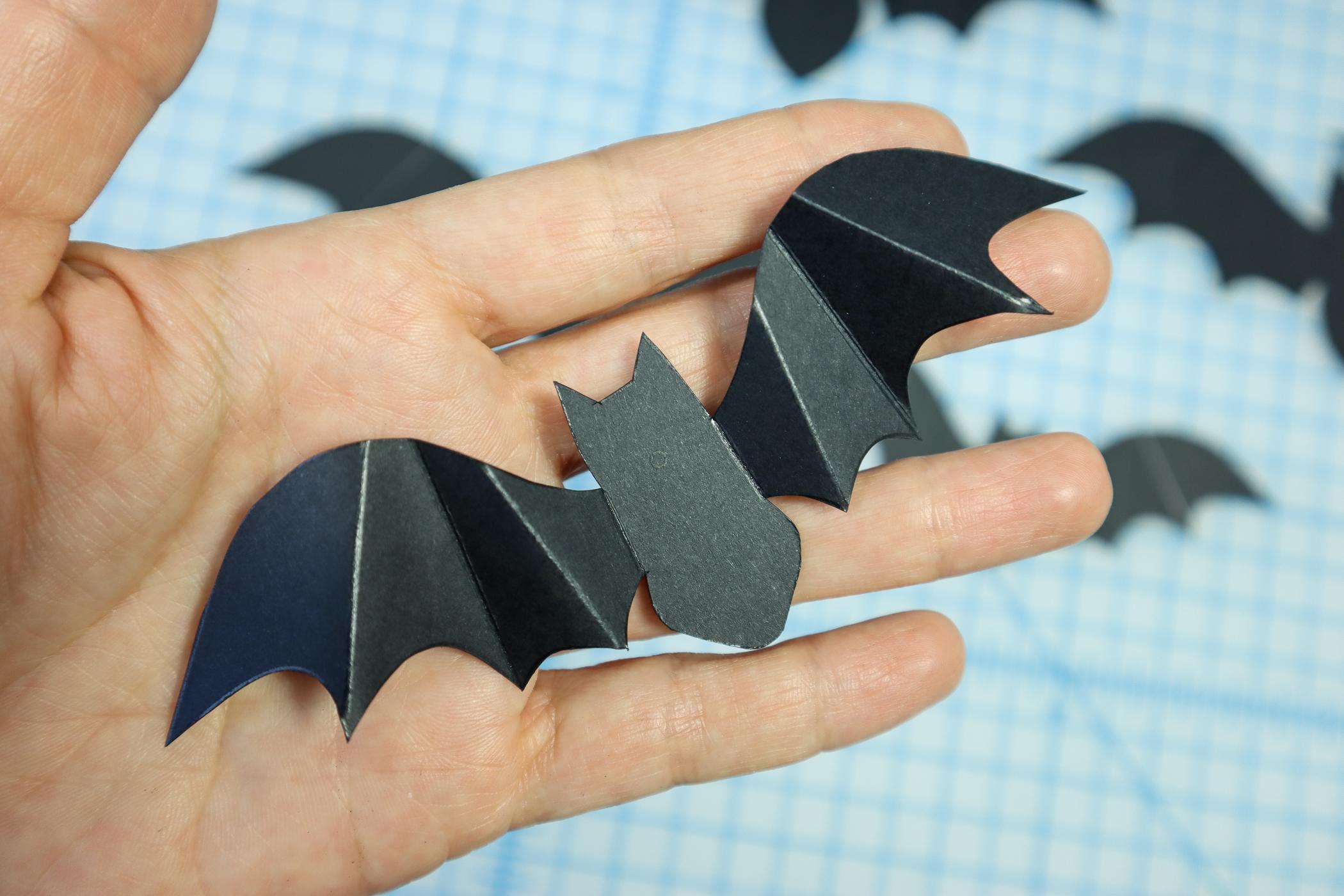

• Fold the bat wings back and forth on every other crease like you would a paper fan.
• Repeat for all the bats.

• Make a hole in each bat where indicated.

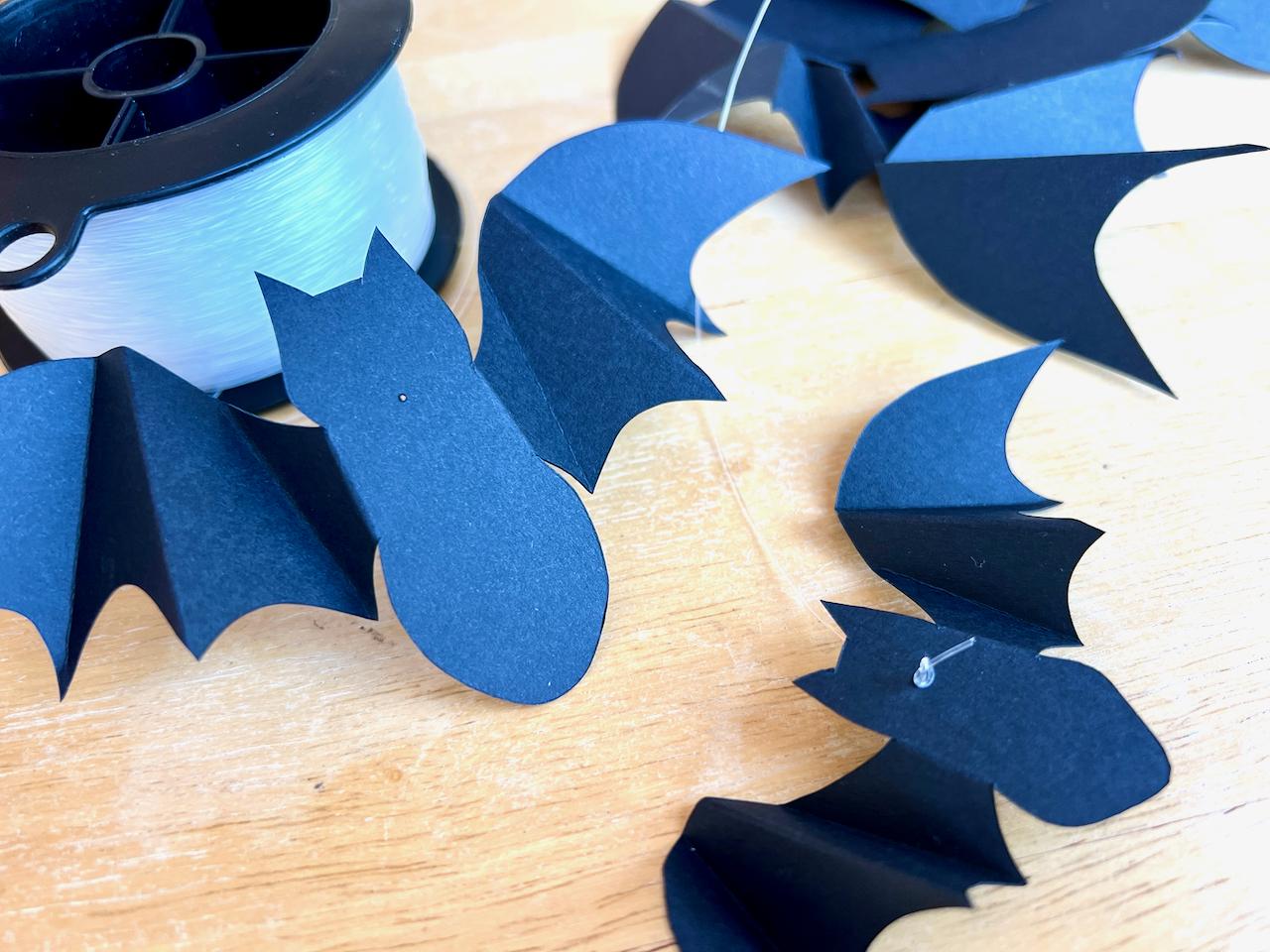

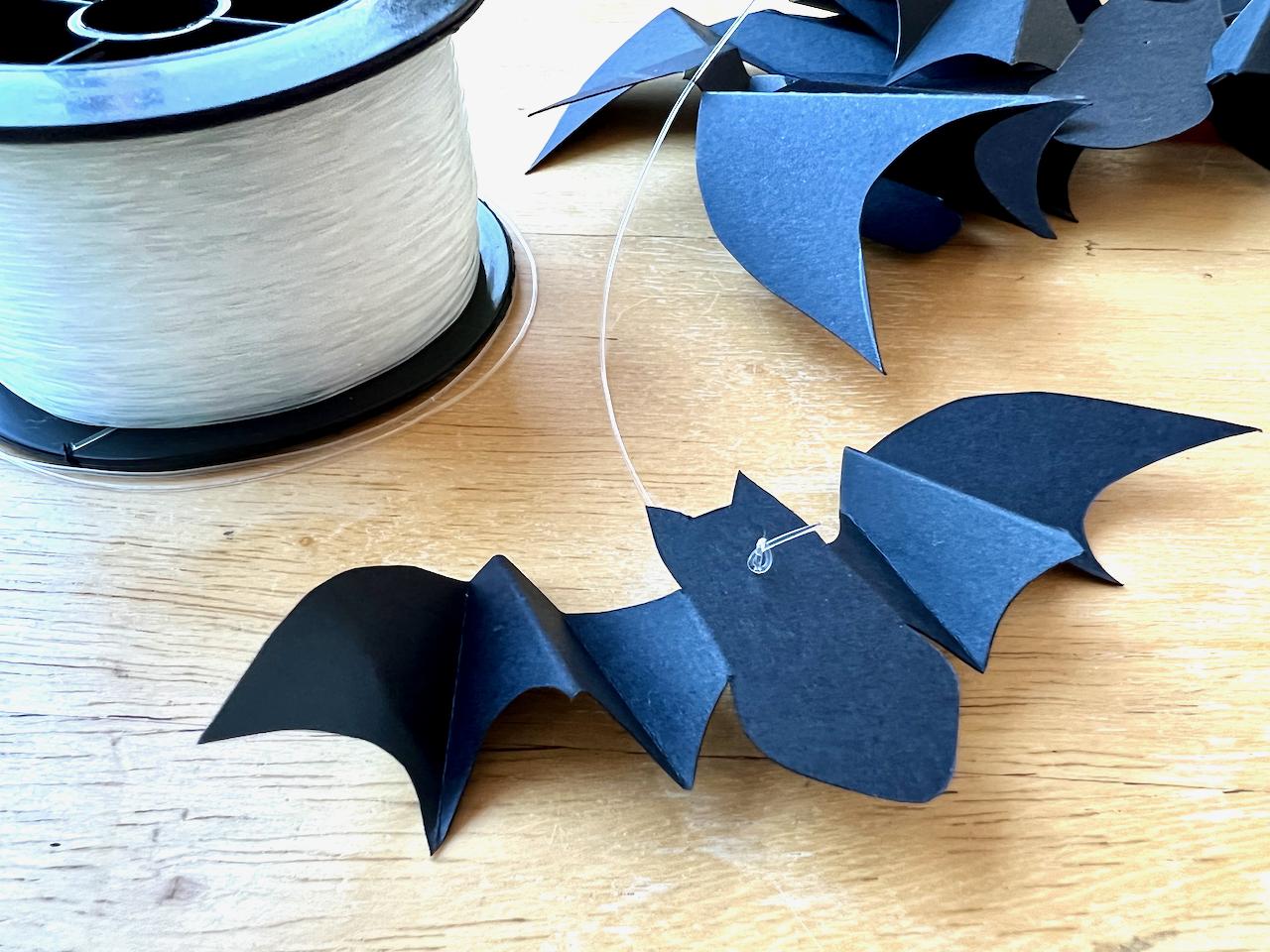

• Thread about 2 feet of fishing line through the hole on each bat and tie a knot to keep it in place.

• Place a small piece of Maker Tape on the bricks under the corners of the Bit Board to make it fit snugly on the pegs. If you don't have Maker Tape, you could also use a strip of masking tape.

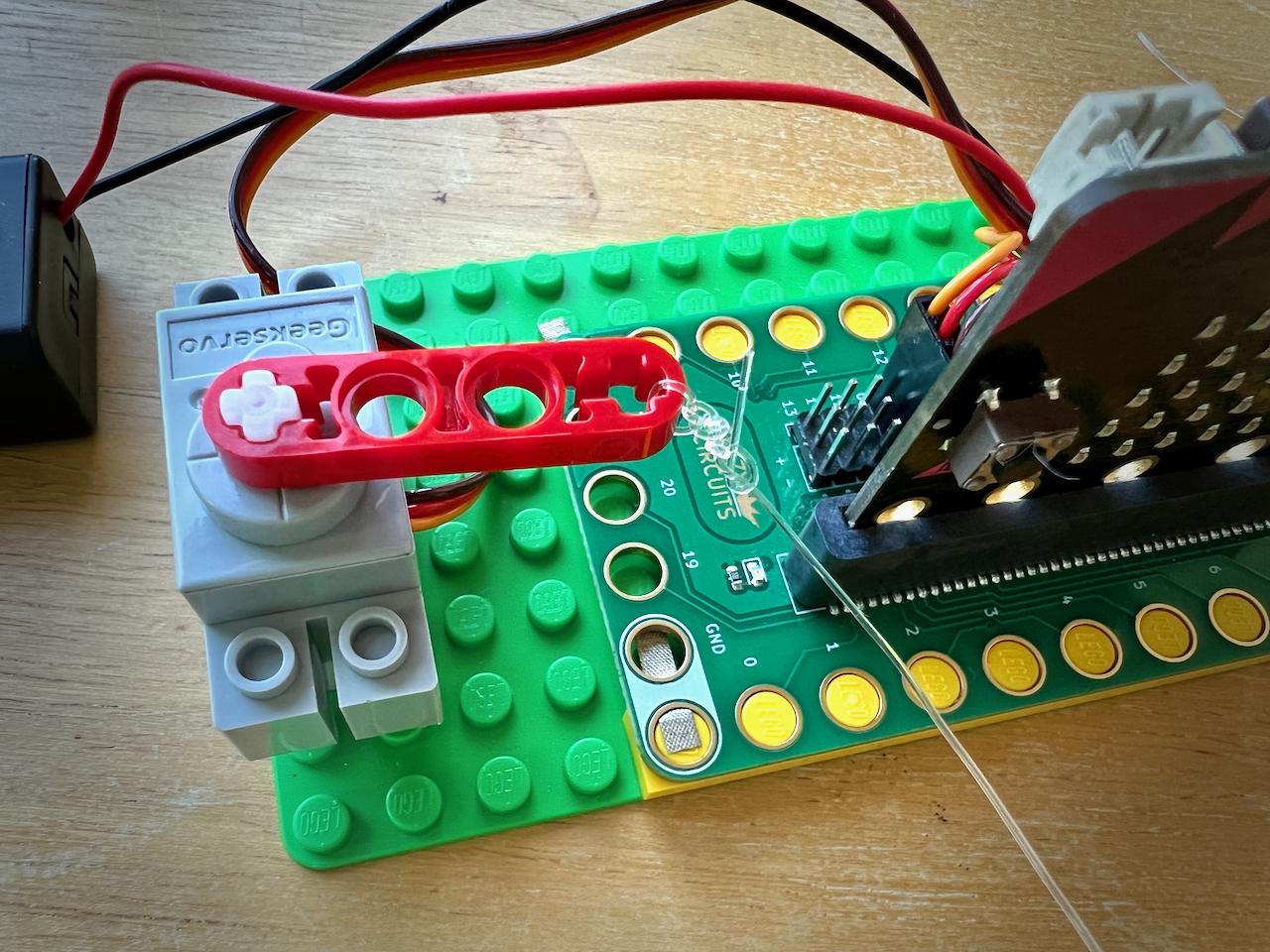

• Connect the battery pack to the battery terminal, the servo motor to pin 0, and place the micro:bit into the edge connector.

• Cut a piece of the fishing line long enough to reach across your room, adding about 6 inches extra.

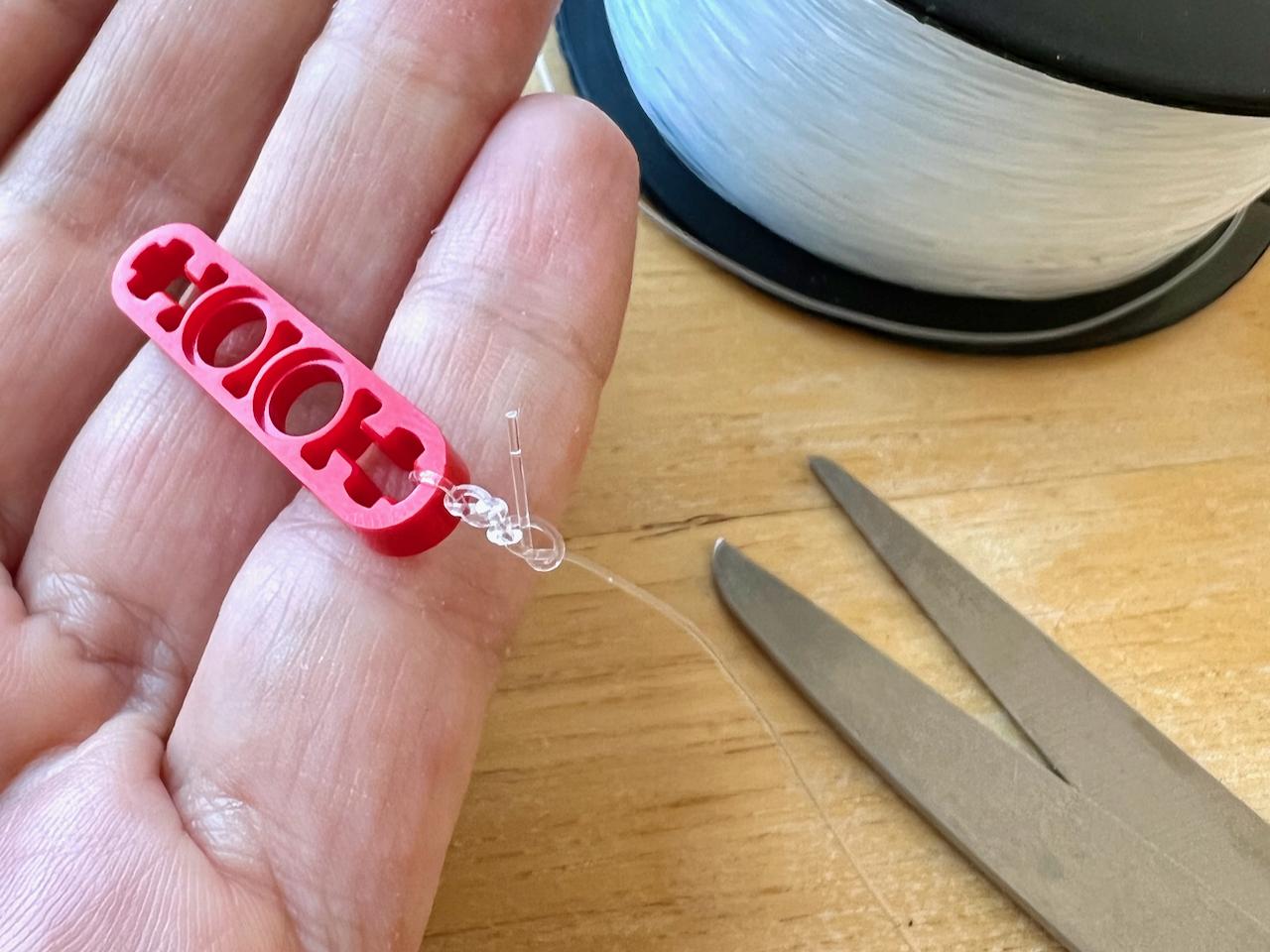

• Tie the end to the motor head.
• Place the motor head with the fishing line on top of the motor.

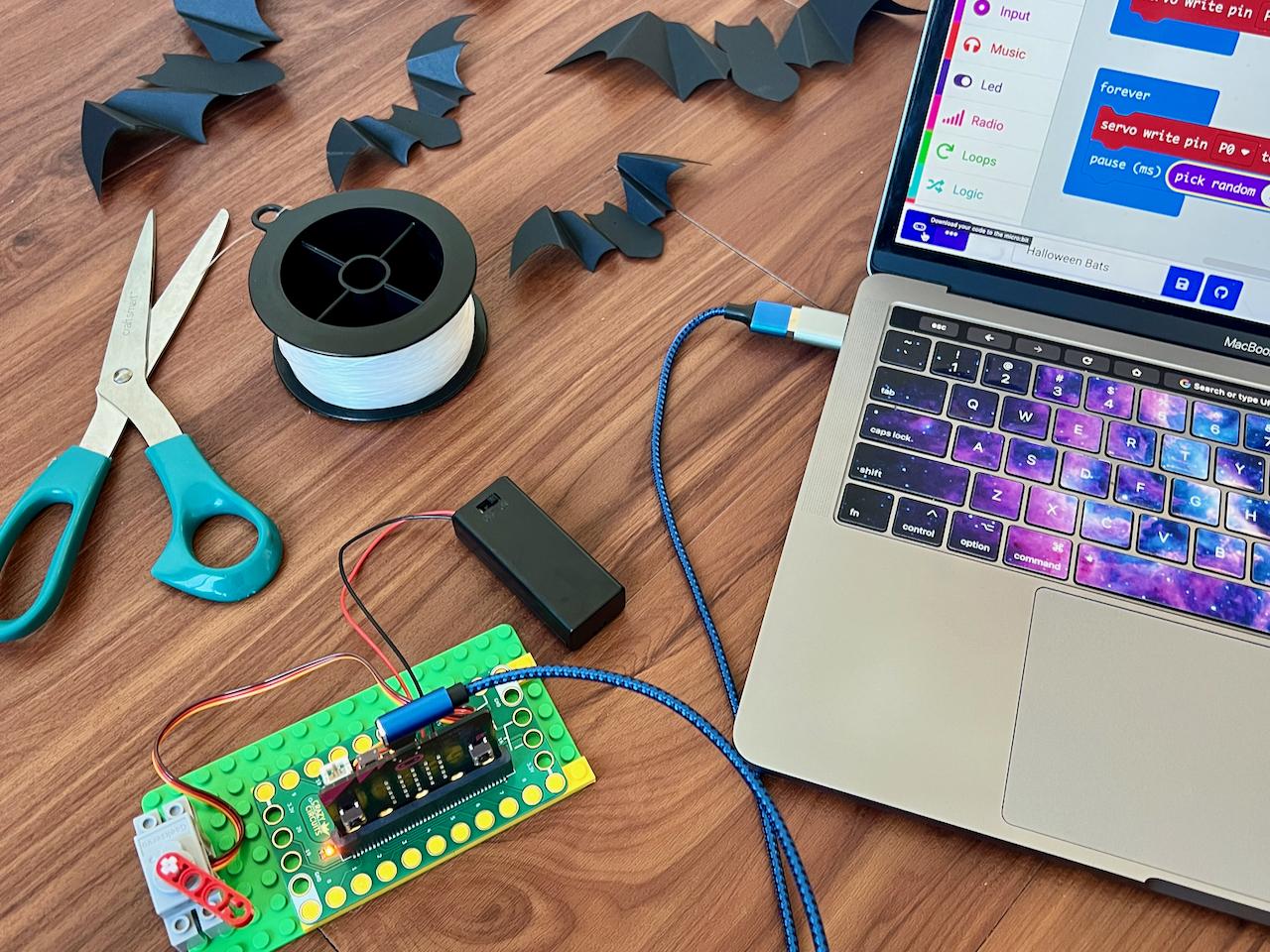

• Upload the code to micro:bit: https://makecode.microbit.org/70738-69096-02057-35753

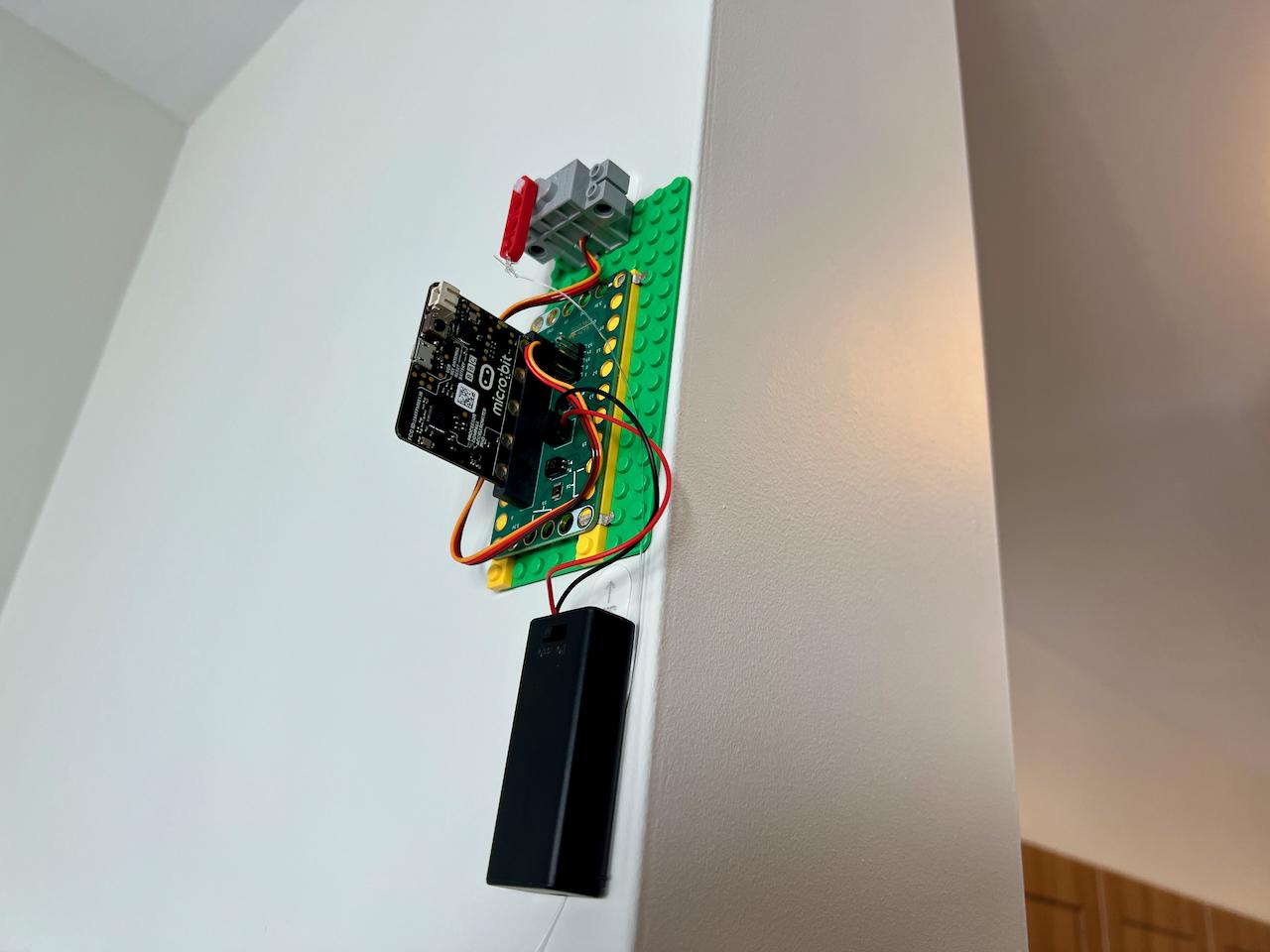

• Use command strips to adhere the baseplate and the battery pack to the wall (so you don't make any permanent marks on the wall).
• Tape the other end of the fishing line to the wall on the other side of the room. There should be about 3 inches of slack left in the line to allow the motor to move.

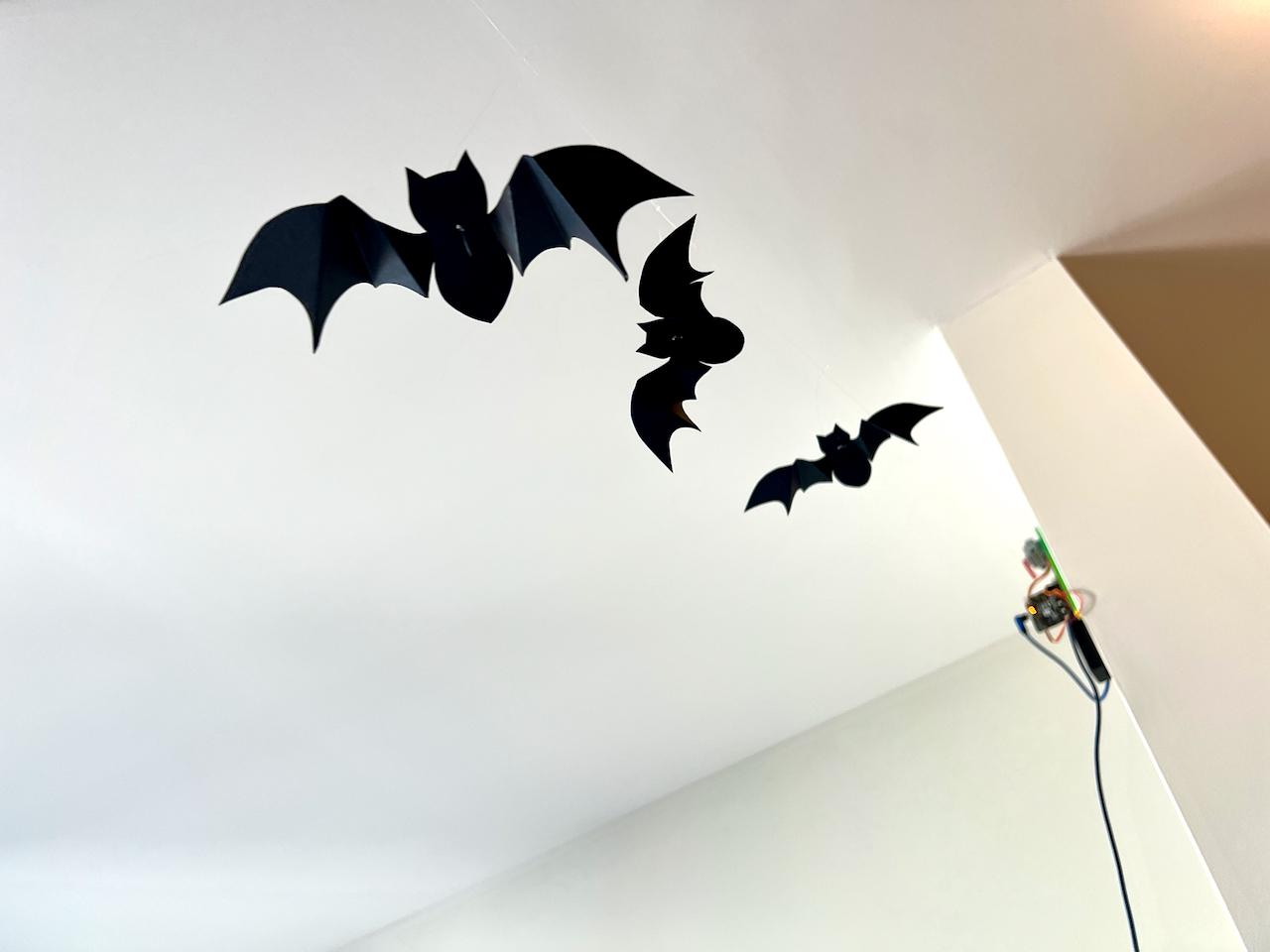

• Tie the bat strings to the main string letting the bats hang at different lengths. Tie the smaller bats higher and the larger bats lower to give the appearance of depth.
• Trim any excess fishing line from the project.

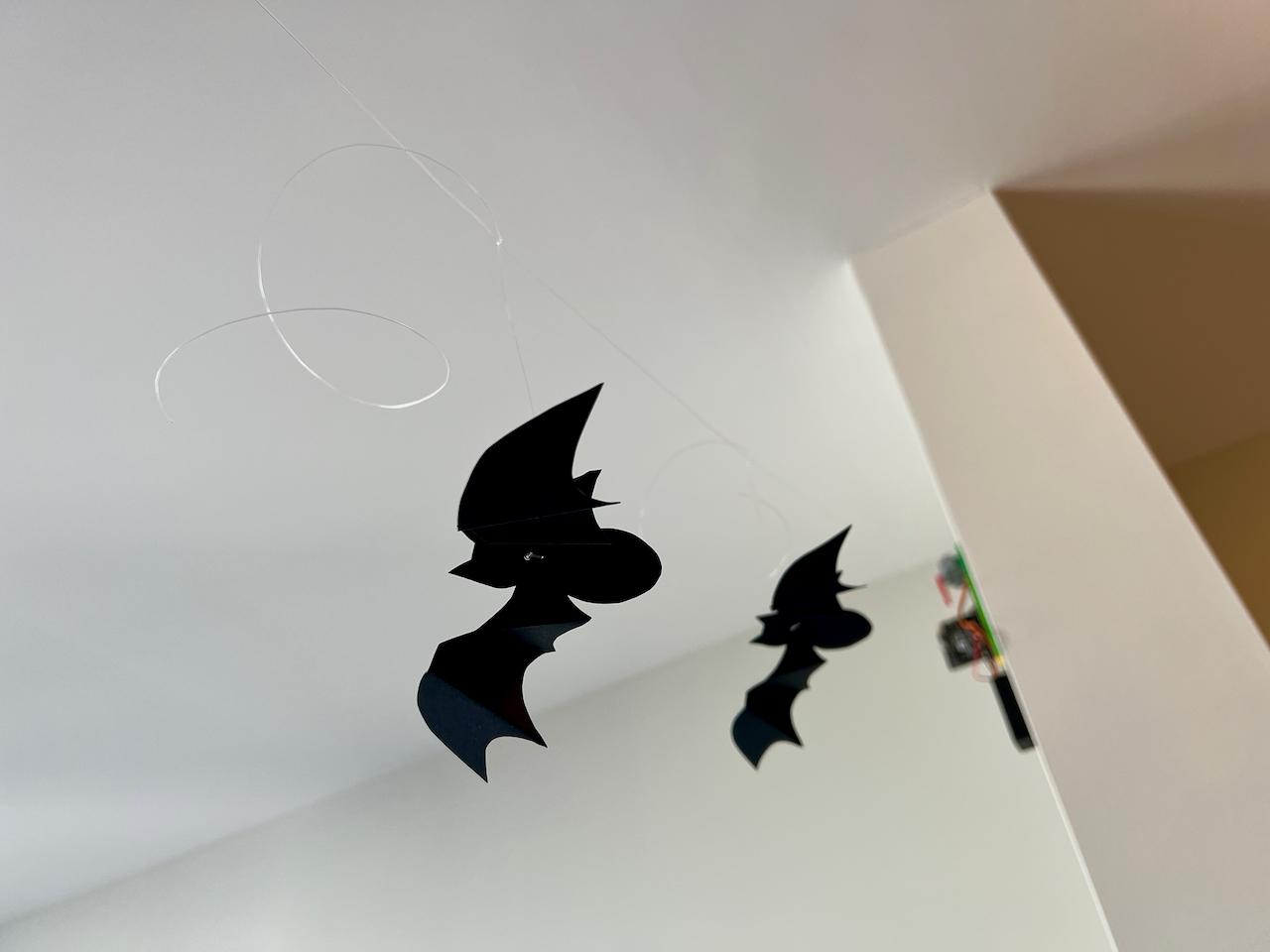

• Turn on the battery pack and watch the bats fly!
• HAVE A HAPPY HALLOWEEN!

It would be fun to use these bats with a smoke machine to make them dance in eerie clouds of smoke! We hope you had fun with this project, and if you make one please add your photo below!
