Basketry Tooling

The tool that I have built is there to make a Basketry for a lampshade and then wrap it around the lamp.

This is based on 2 printed parts and a M6 and some nuts, therefore a specific size can be reached with the tool

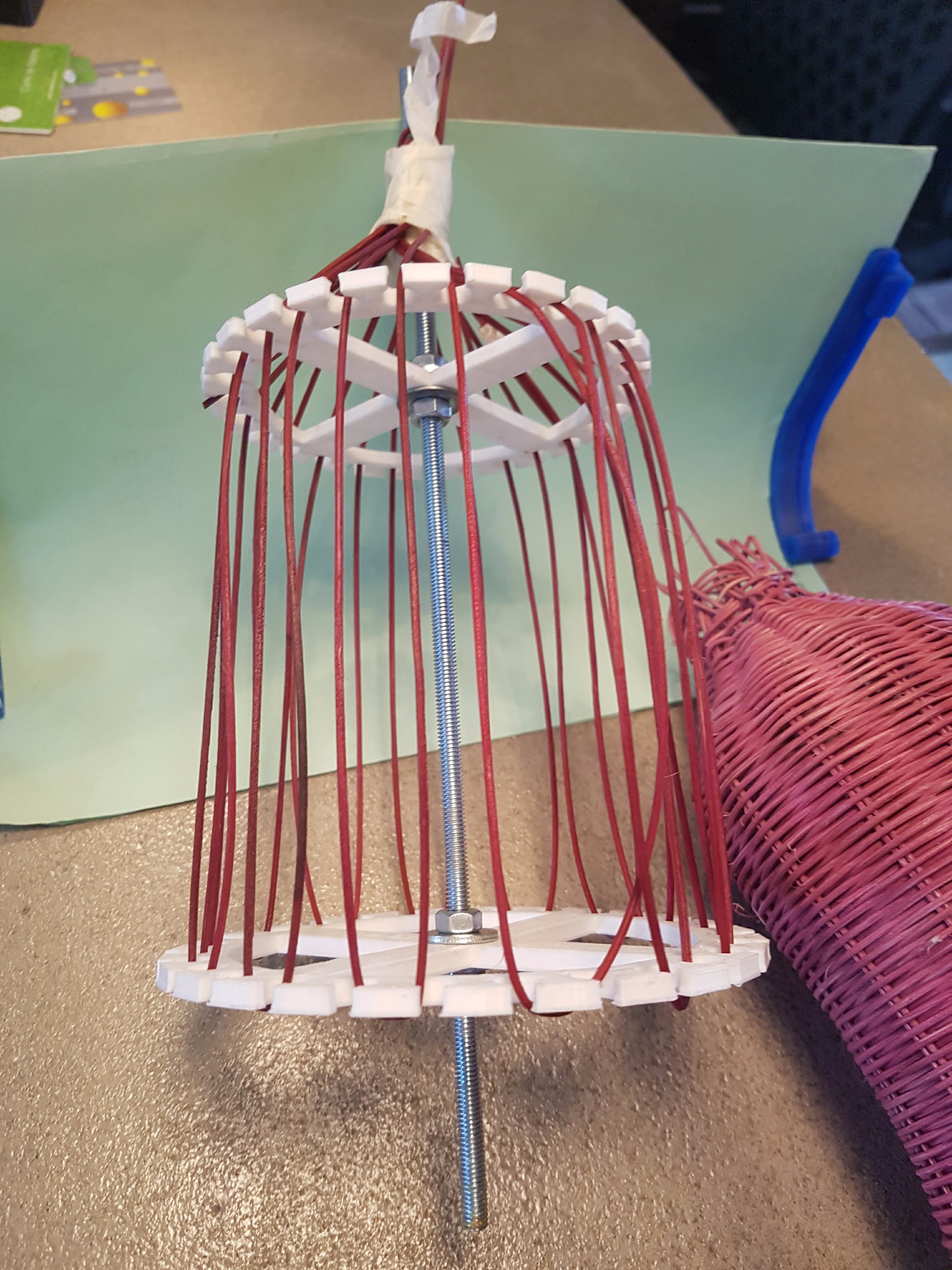

The first thing that you would need to do is to wrap the rattan around it.

This need to be done Up and Down until you have reached to the defined number of vertical sections required

Then you start to turn around with another rattan and keep going until that you reached the final measure.

Then automatically as from the moment that you pass over the 2nd wheel you can reduce the circle revolution. This will close the structure.

Be careful not to wrap it to close, give some loose otherwise it will be difficult to get back the 2 wheels that are inside at the end

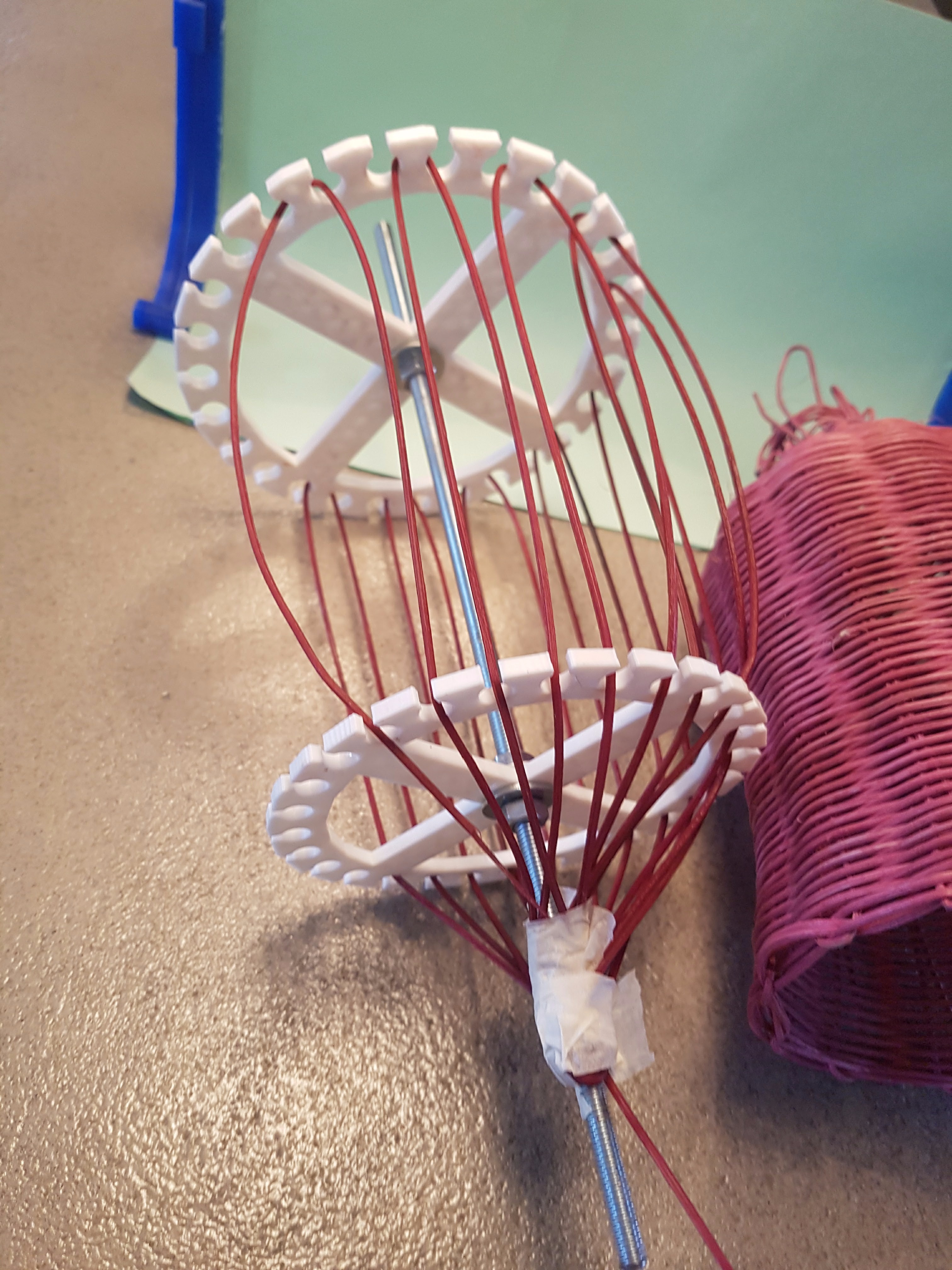

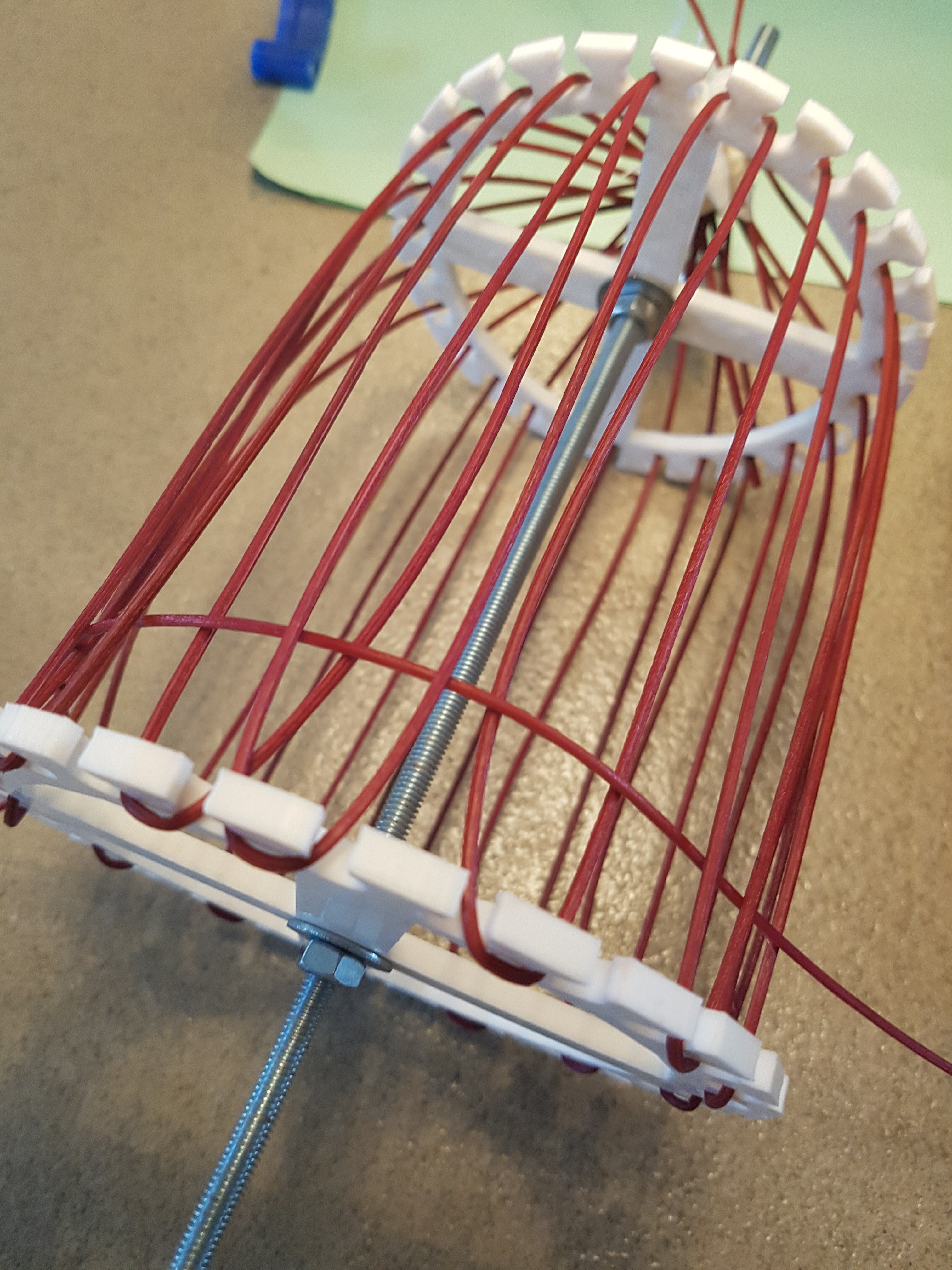

Please find some other pictures from the tool

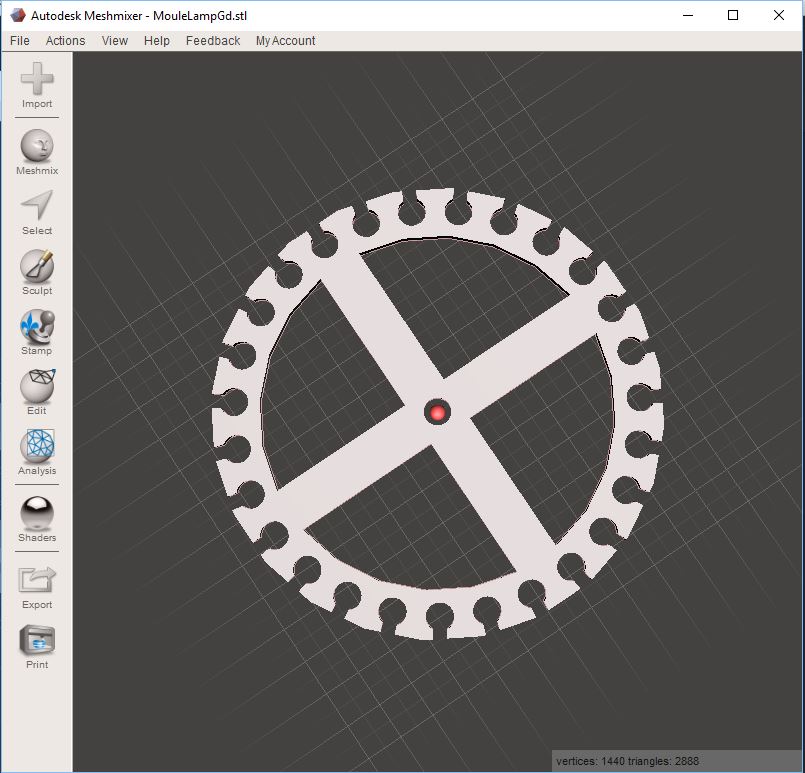

Please find the files to support you in the creation of the tool with the 3d Printer
