Smart Basketball Versus

I am an MCT student from Howest in Kortrijk, Belgium.

My project is 1 vs 1 basketball game using a Raspberry Pi 4. I mostly made this as a fun project that I could play long after my project is over.

Beat your buddies in this fun 1 vs 1 basketball game.

Features:

• Fully functional scoreboard
• Goals with score detection
• Fully realised database
• App that can track match history

Link to my code: https://github.com/howest-mct/2021-2022-projectone-HimpeWout

Rasperry pi 4:

Linux computer that runs all prcesses needed for my project.

Adafruit 7 segment display with backpack:

Display for my clock.

2 digit 7 segment display:

Display scores.

IR-sensor:

Sensors for detecting scores.

RFID:

RFID to go into manual override.

Rotary encoder:

Setting time on scoreboad.

Device:

data of all devices of the froject.

Historiek:

Data of all actions from the hardware.

Acties:

All possible actions the hardware can have.

Spelers:

Saves players.

Matches:

History of all matches.

1. Install raspi OS
2. Enable I2C and SPI
3. Add WIFI
4. Update O
5. Install commands show above
6. Get github code
7. Database
8. Install apache

The entire backend is programmed in Python and can be found here:

https://github.com/howest-mct/2021-2022-projectone-HimpeWout

The frontend was first made in adobe XD and later programmed in html and css.

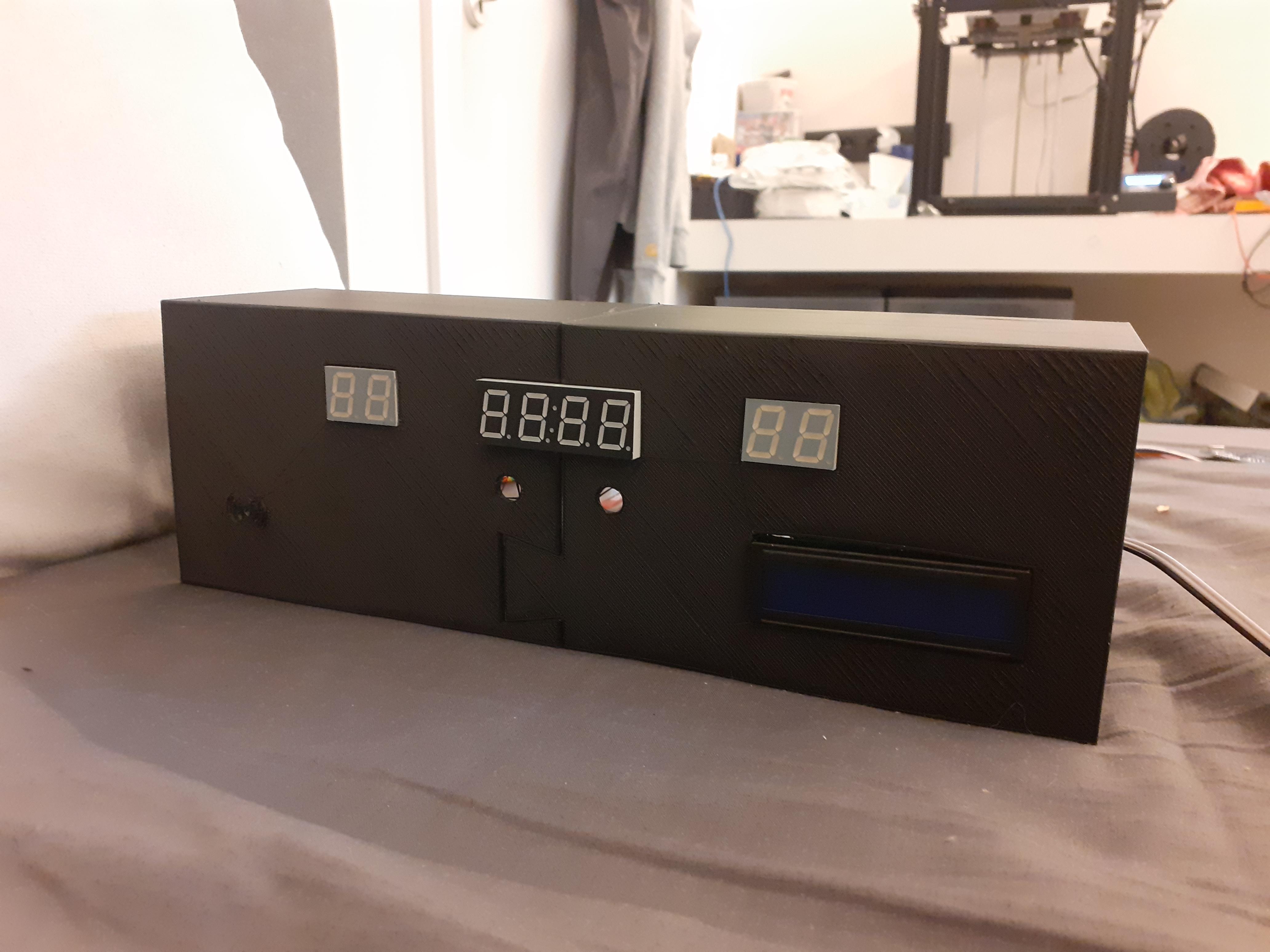

The scoreboard was fully 3D printed at home

Files Found below.
