Basic-Led on Bread Board


Hello this project teaches you how to use LED basic turning it on with a Bread Board.I have used the website-https://www.tinkercad.com/

Supplies


The things we need are-

  1. 9v Battery
  2. Small Bread Board
  3. Led
  4. Register

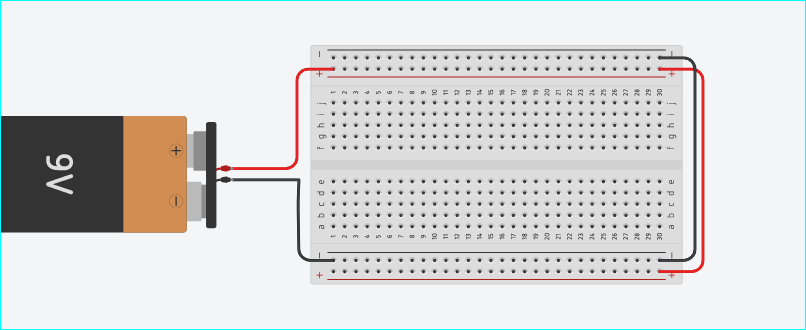

As shown in the figure make setup like in the figure.Here we made this setup as the end of the braed board is made in such a way so we could power the whole line using one point.

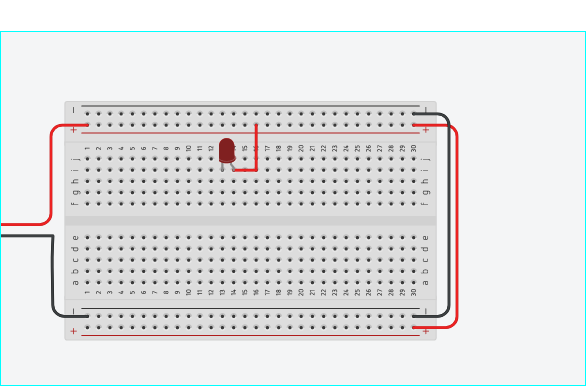

As shown connect the positive terminal of led(Anode) to positive power

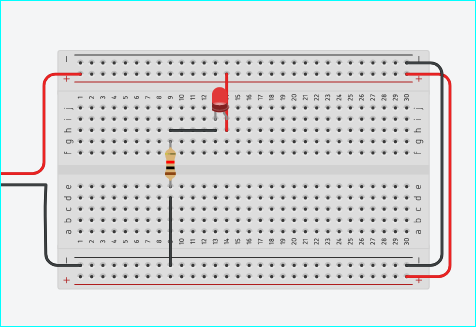

Now add the register.Register helps to control the flow of current . Connect negative power to register and then using the 2nd terminal transfer the power to led's negative terminal(Cathode)
