Bartop Arcade: Two Player, Pandora's Box
by lockelab in Circuits > Electronics
10145 Views, 53 Favorites, 0 Comments
Bartop Arcade: Two Player, Pandora's Box
Check out video of the build.
You'll need:
- plywood
- 19" monitor
- Ipod dock radio with auxiliary input
- two player joystick button kit with 16 buttons
- pandora's box 3 jamma arcade module
- jamma cable harness
- atx power supply
- 12V LED strip
- wire
- arcade T-molding
- acrylic plastic for marquee
- paint
Tools I used:
- jig saw
- wood router
- drill press
- cordless drill
- soldering iron

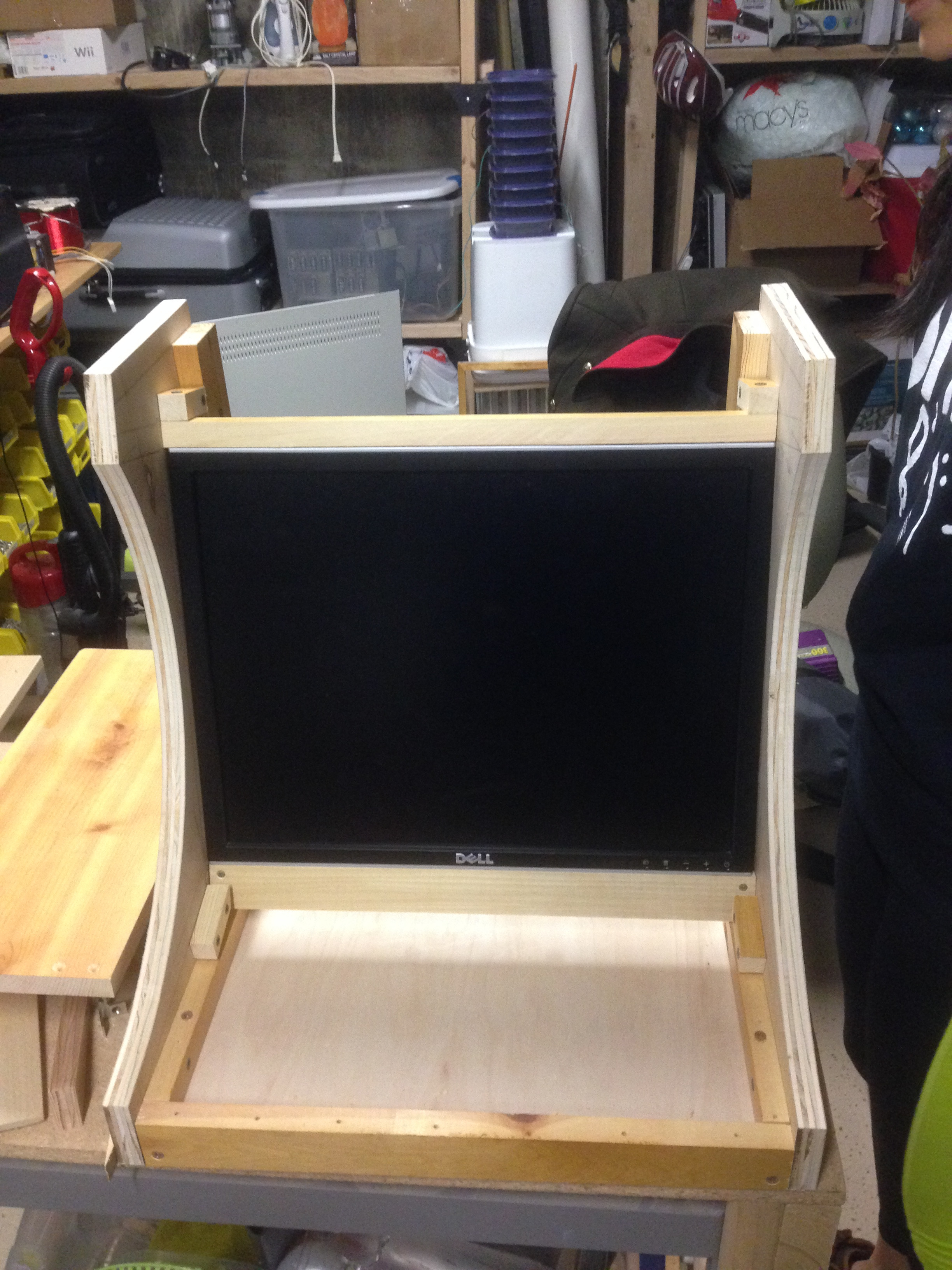

Refer to 3d Sketchup Model for Dimensions, Cut Out Panels, Install Monitor Mounting Blocks, and Secure Monitor
Downloads

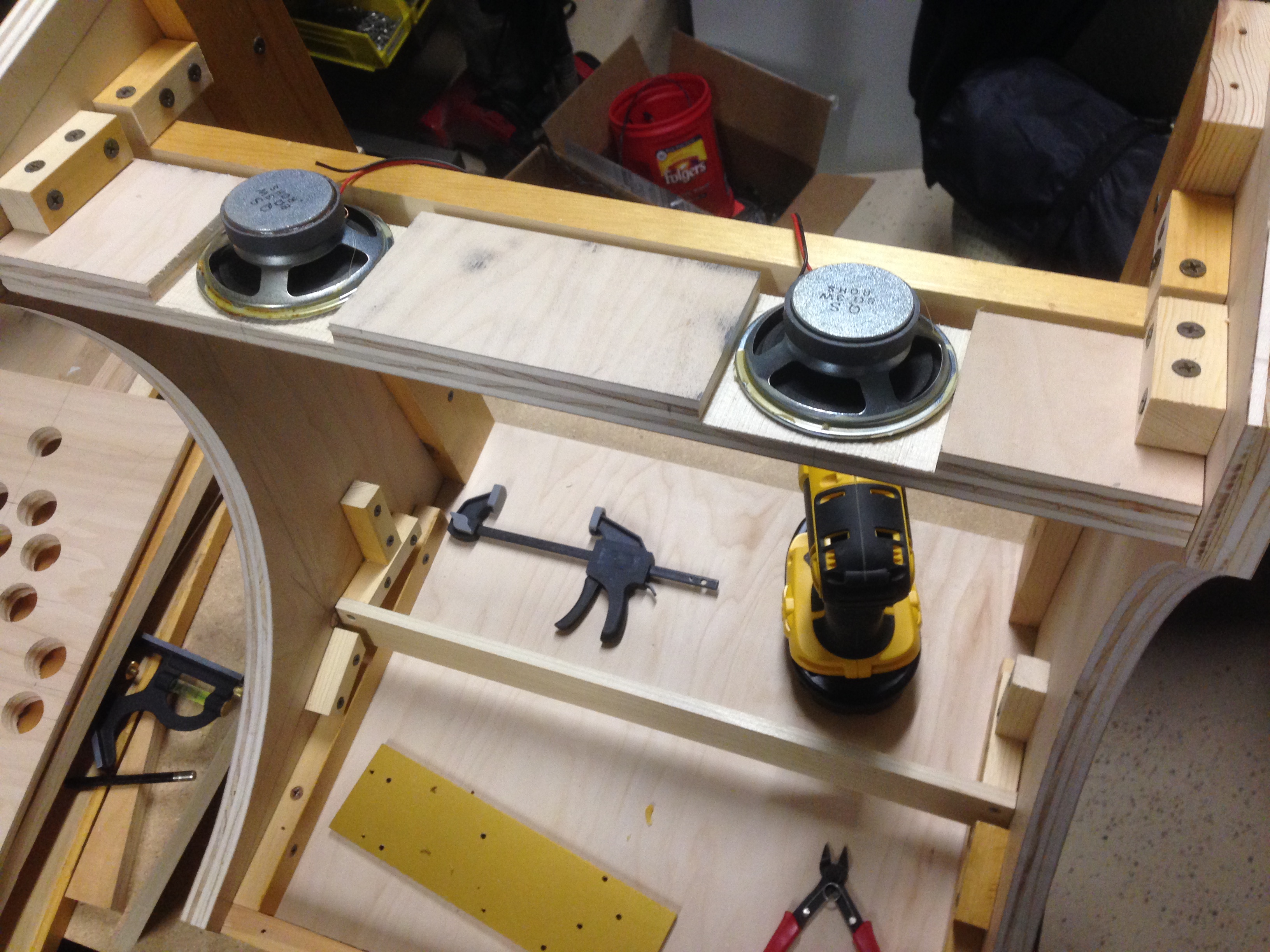

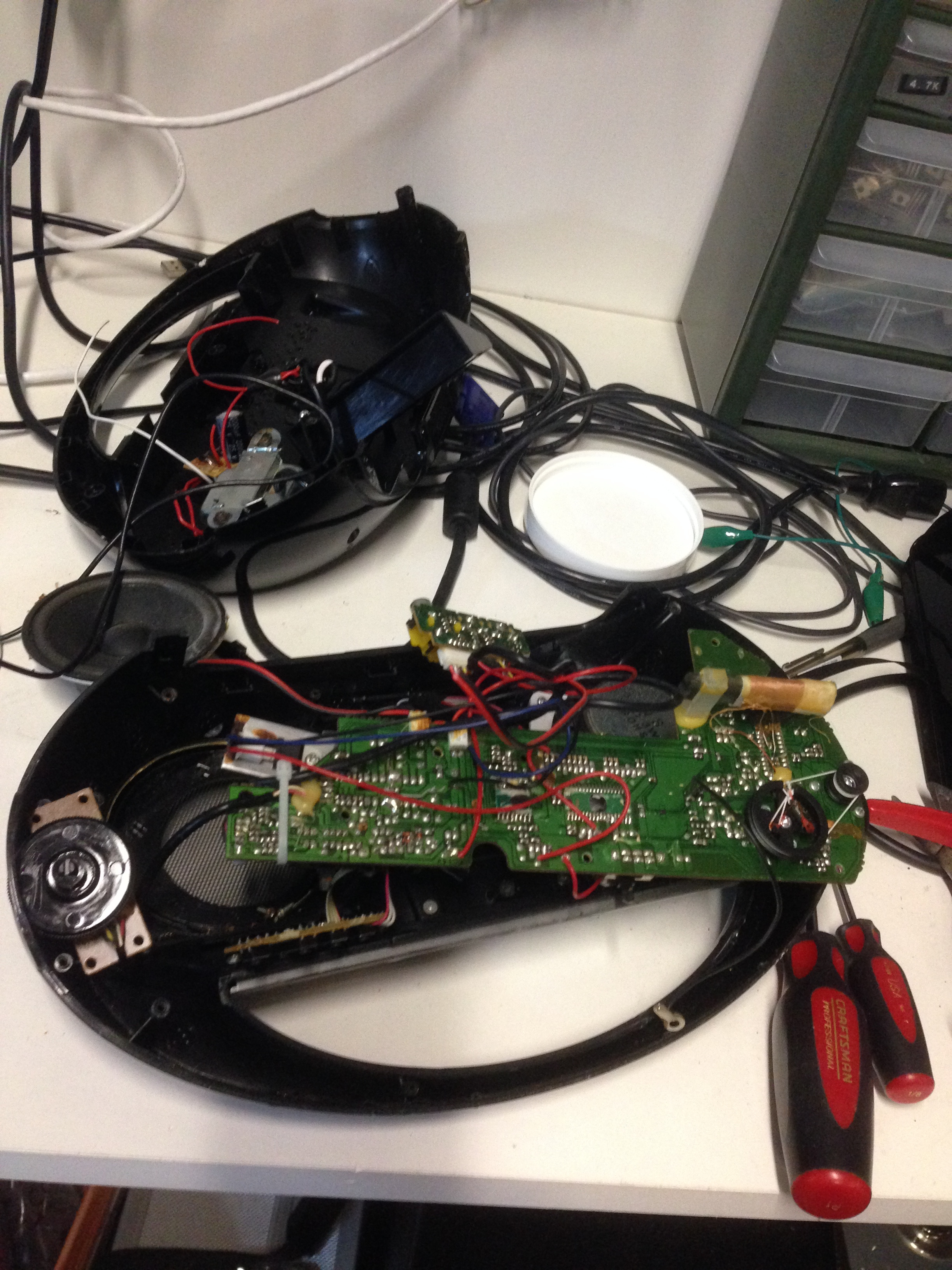

Install Audio Electronics and Speakers

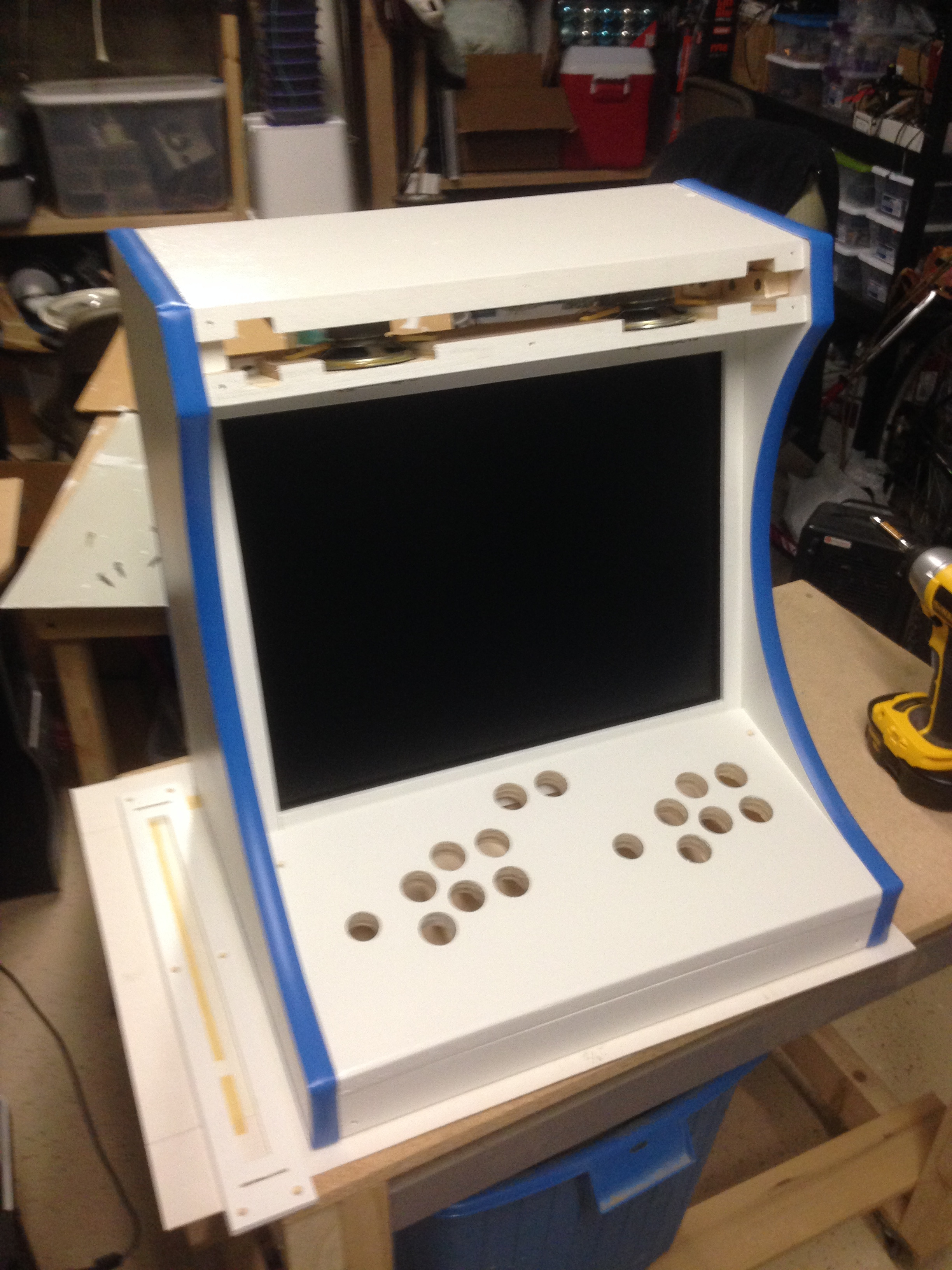

Do a Dry Fit of All the Panels to Ensure Fit, Install AC Power Plug

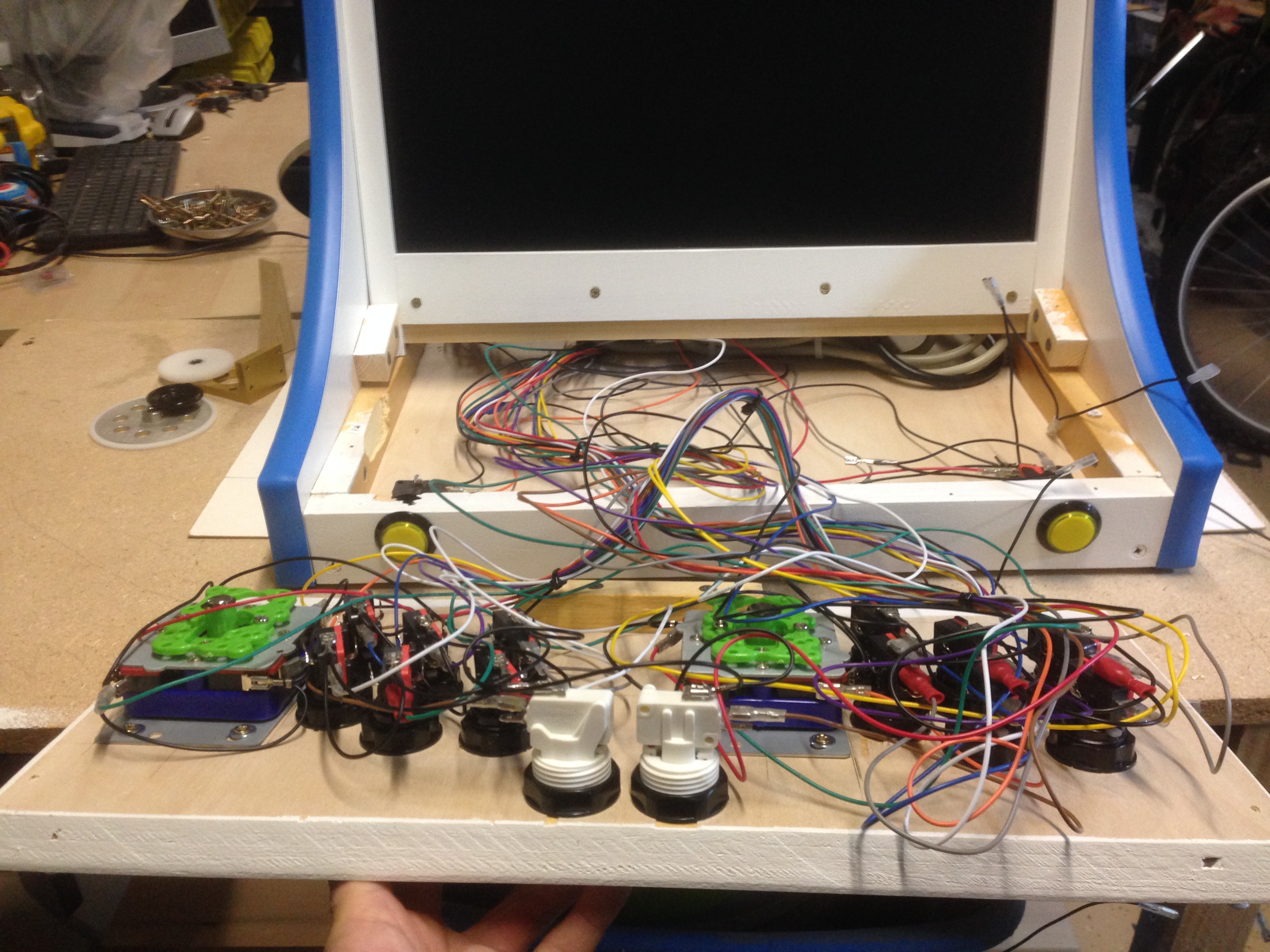

Paint Panels, Install Trim, Install ATX Power Supply, Connect Joystick Buttons Via Jamma Harness to Pandora Box, Connect Marquee Lighting to Power Supply

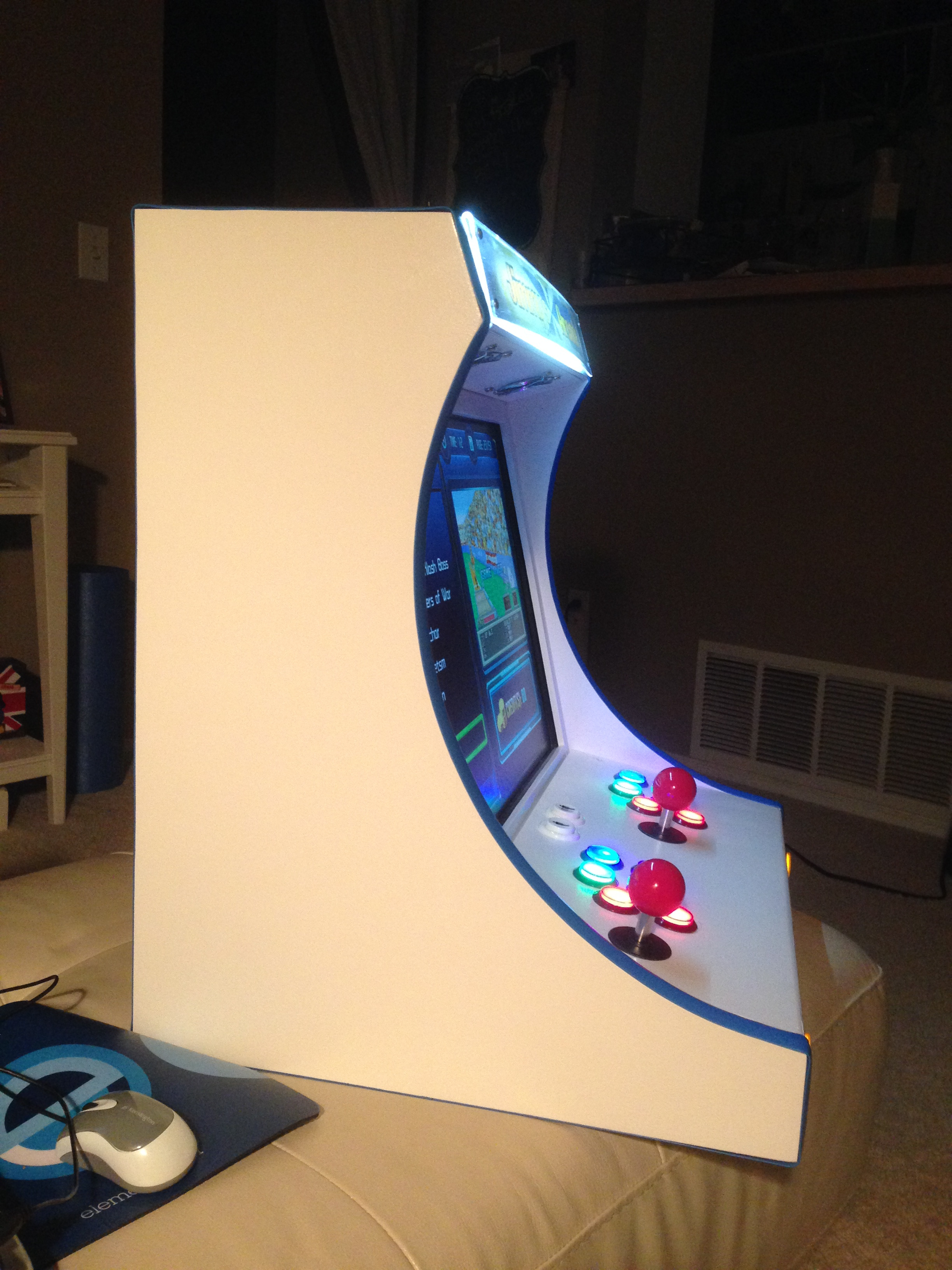

Design and Install Marquee Panel and Fire It Up
