Barbecue Made From Pallet Wood
by Nikita Maree in Workshop > Pallets
3089 Views, 26 Favorites, 0 Comments
Barbecue Made From Pallet Wood
![How to Build a BBQ Cart - DIY Barbecue Grill Bench - Outdoor Kitchen - Portable Cooking -Pallet Wood](/proxy/?url=https://content.instructables.com/FYX/W78V/KE1E3L1B/FYXW78VKE1E3L1B.jpg&filename=How to Build a BBQ Cart - DIY Barbecue Grill Bench - Outdoor Kitchen - Portable Cooking -Pallet Wood)
How to build a portable barbecue from pallet wood.
Supplies
Made from pallet palings, pallet stringers and chipboard screws.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (1).jpg](/proxy/?url=https://content.instructables.com/FUV/XX6A/KE1E3L1G/FUVXX6AKE1E3L1G.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (1).jpg)
I am using pallet stringers for the frame of this build.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (2).jpg](/proxy/?url=https://content.instructables.com/FNO/G8Y2/KE1E3L1I/FNOG8Y2KE1E3L1I.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (2).jpg)
with some of the pallets I work with, the nails loose the head when trying to remove them.
So I just cut them straight off.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (3).jpg](/proxy/?url=https://content.instructables.com/F2B/8BUX/KE1E3L1Q/F2B8BUXKE1E3L1Q.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (3).jpg)

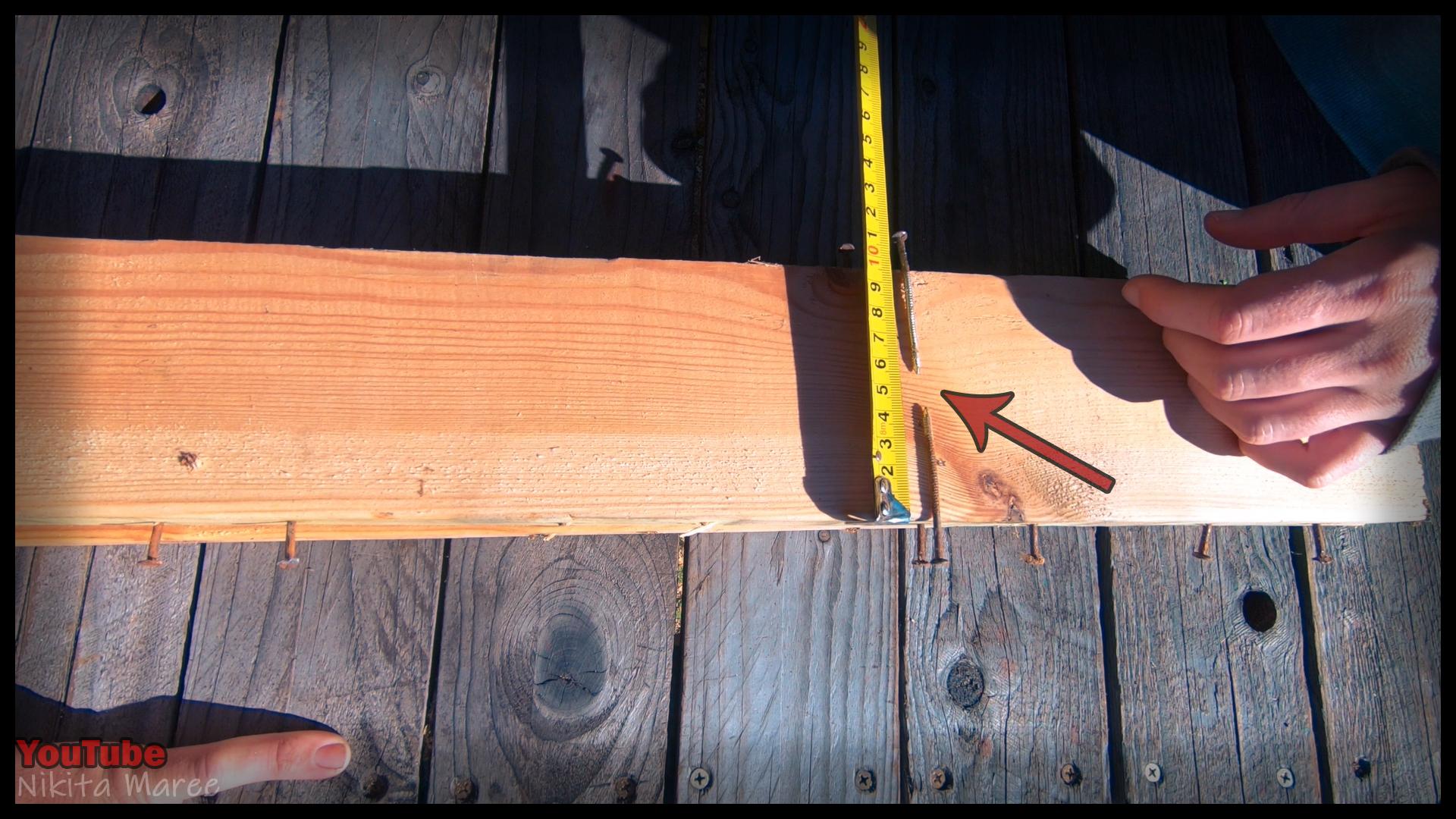

This isn't a problem, because none of the nails reach the middle.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (4).jpg](/proxy/?url=https://content.instructables.com/FO1/6DC9/KE1E3L1R/FO16DC9KE1E3L1R.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (4).jpg)
I rip all the stringers down the center, so I have more material to work with.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (5).jpg](/proxy/?url=https://content.instructables.com/F0E/DGKS/KE1E3L1T/F0EDGKSKE1E3L1T.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (5).jpg)

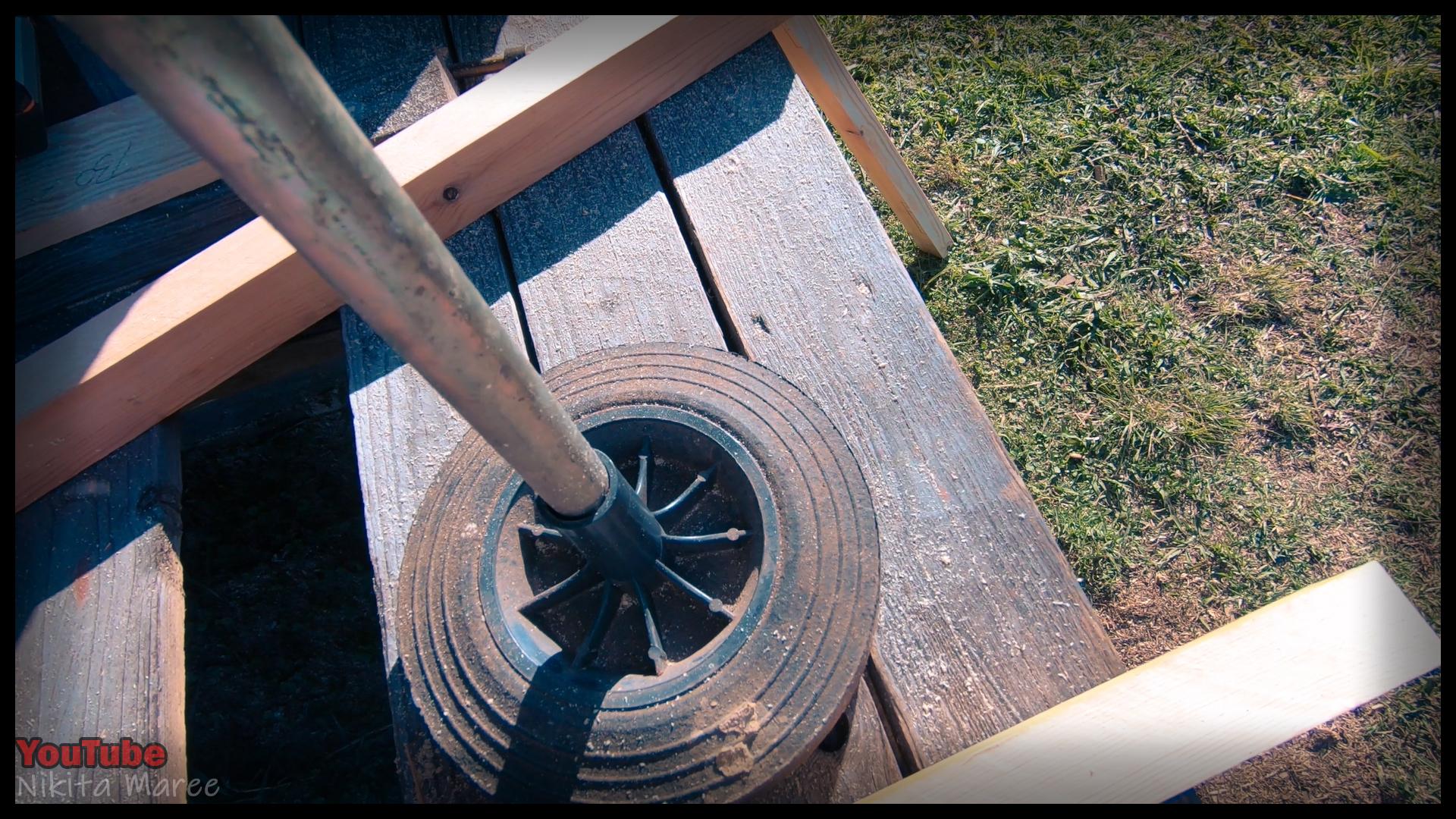

to make it portable, I am using Wizbin wheels and an axle.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (6).jpg](/proxy/?url=https://content.instructables.com/F7N/E9JY/KE1E3L1W/F7NE9JYKE1E3L1W.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (6).jpg)
First up for the frame, is to support it directly underneath.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (7).jpg](/proxy/?url=https://content.instructables.com/F4J/E7RP/KE1E3L1Y/F4JE7RPKE1E3L1Y.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (7).jpg)

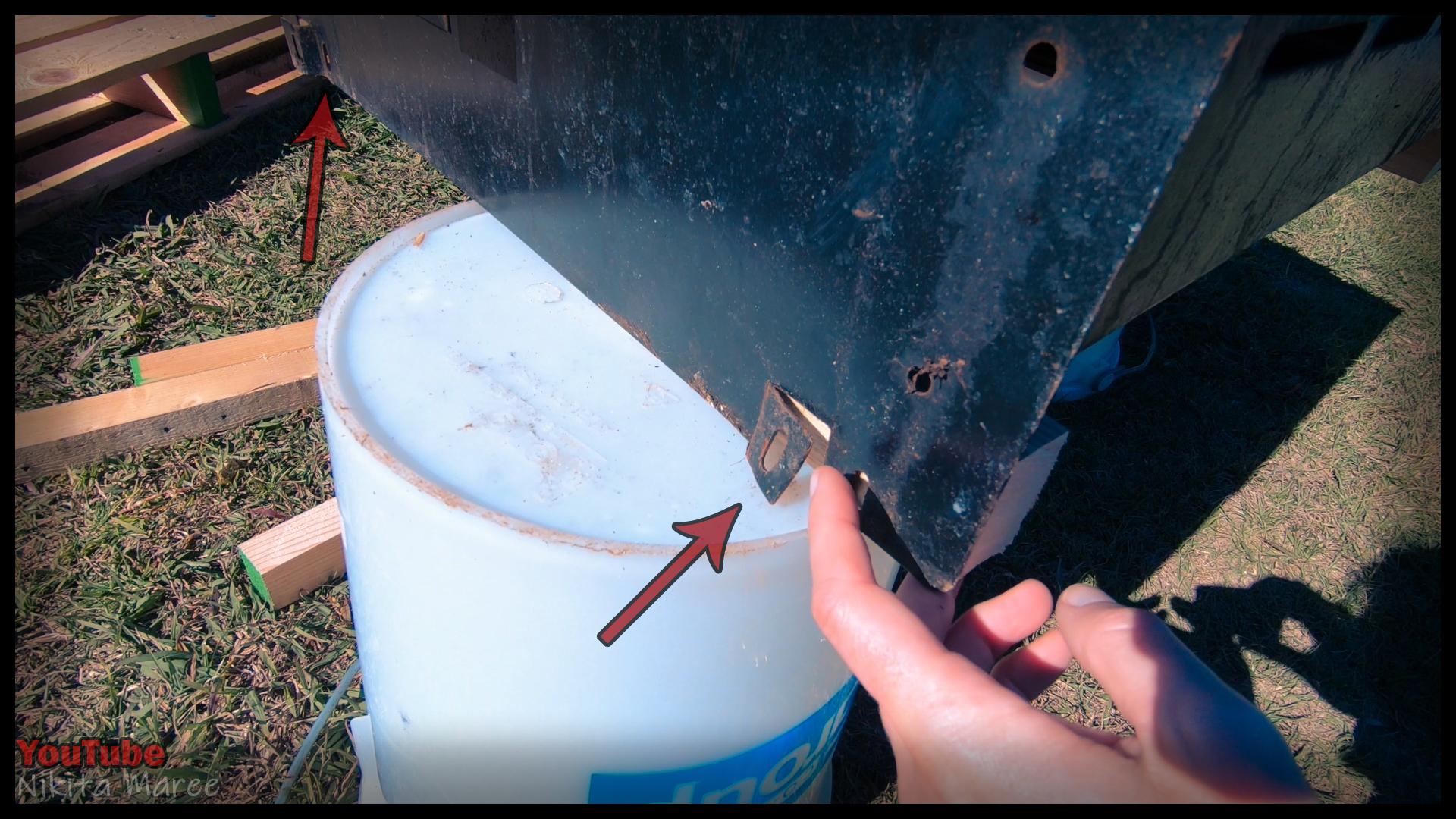

I am attaching from the outside with the holes that are already there.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (8).jpg](/proxy/?url=https://content.instructables.com/F64/CRPT/KE1E3L1Z/F64CRPTKE1E3L1Z.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (8).jpg)

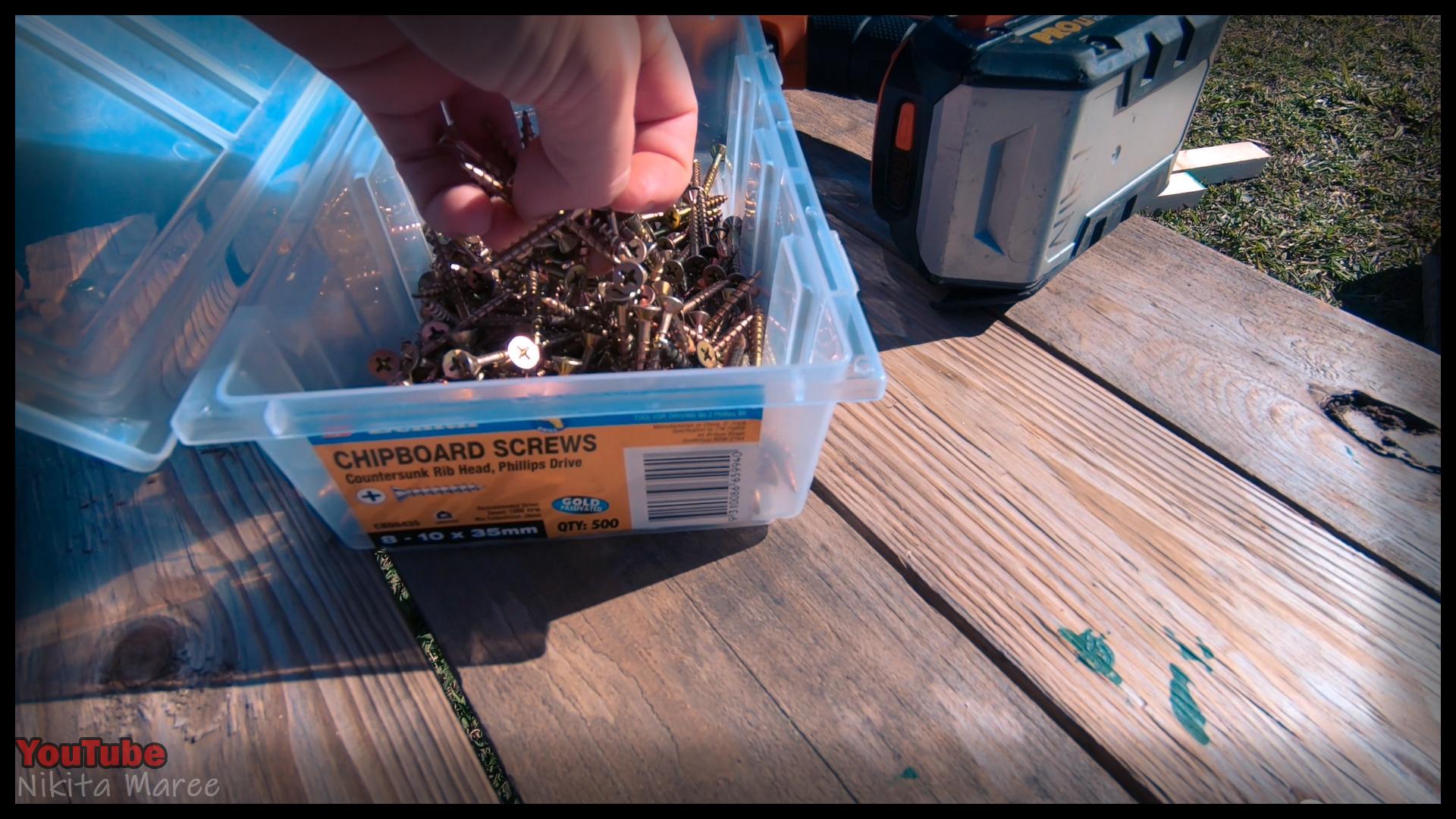

I am using chipboard screws for this build. because they are affordable.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (9).jpg](/proxy/?url=https://content.instructables.com/FME/B3MV/KE1E3L21/FMEB3MVKE1E3L21.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (9).jpg)

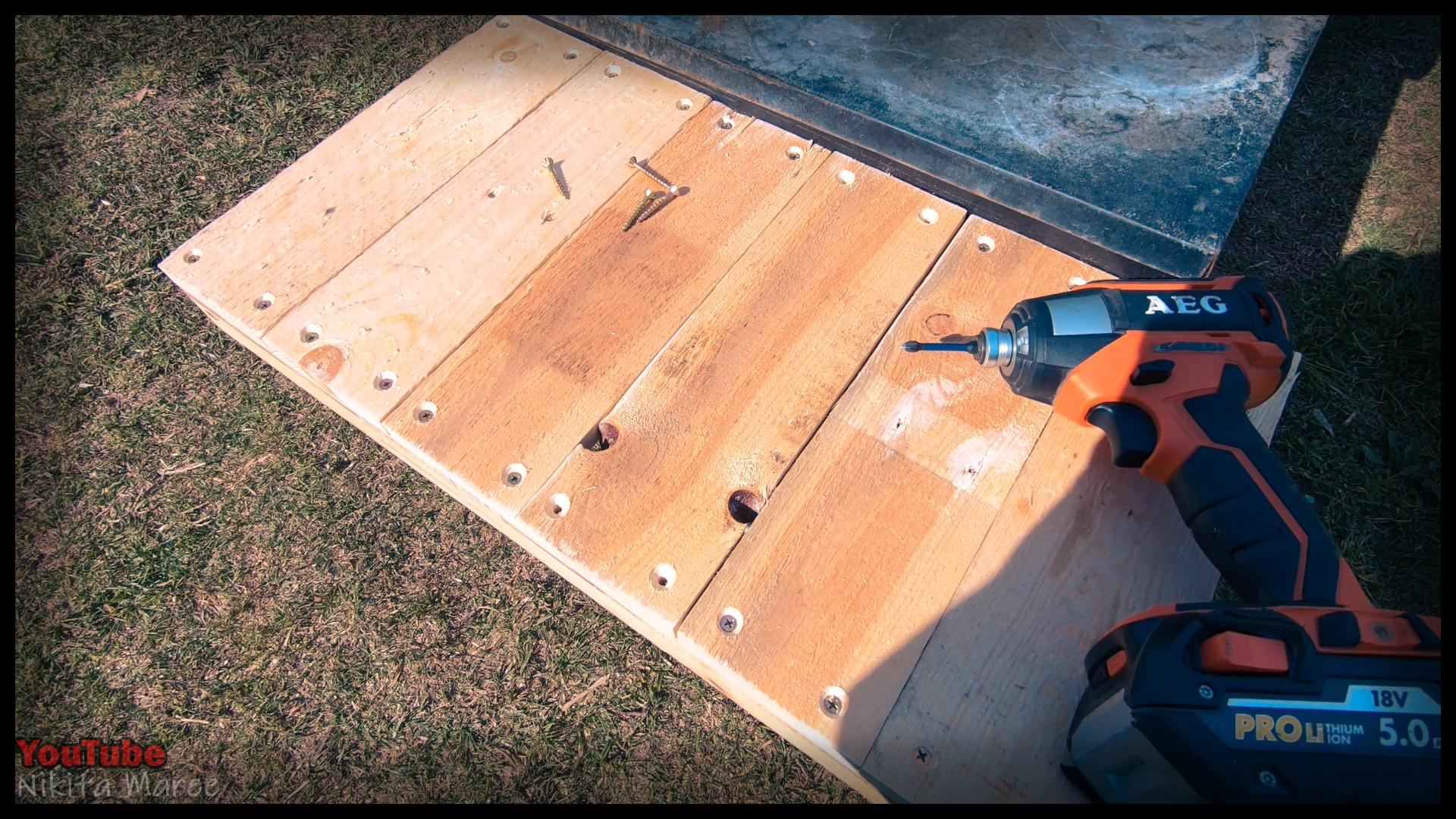

tying the 2 underneath supports together with a paling.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (10).jpg](/proxy/?url=https://content.instructables.com/FK7/AZOO/KE1E3L27/FK7AZOOKE1E3L27.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (10).jpg)
Set the table saw to 45° and rip a small amount off the entire length of your paling.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (11).jpg](/proxy/?url=https://content.instructables.com/FH4/FD31/KE1E3L29/FH4FD31KE1E3L29.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (11).jpg)
This makes it sit nicer, up against the face of the BBQ.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (12).jpg](/proxy/?url=https://content.instructables.com/FPS/S890/KE1E3L2A/FPSS890KE1E3L2A.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (12).jpg)
Attaching a length to the outer sides. I left them overhanging at the back. so they are ready for latter on.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (13).jpg](/proxy/?url=https://content.instructables.com/F8T/NEOK/KE1E3L2B/F8TNEOKKE1E3L2B.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (13).jpg)
Moving onto the sides.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (14).jpg](/proxy/?url=https://content.instructables.com/FSD/XX56/KE1E3L2C/FSDXX56KE1E3L2C.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (14).jpg)
I am attaching the handles via pocket holes.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (15).jpg](/proxy/?url=https://content.instructables.com/FW2/9C5D/KE1E3L2E/FW29C5DKE1E3L2E.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (15).jpg)
With an 80 grit flappy disk on the angle grinder. I am rounding off the sides of the handles.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (16).jpg](/proxy/?url=https://content.instructables.com/FJI/0TK9/KE1E3L2F/FJI0TK9KE1E3L2F.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (16).jpg)
Attach them about shoulder width apart. Then add a spacer piece.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (17).jpg](/proxy/?url=https://content.instructables.com/F4P/57GE/KE1E3L2I/F4P57GEKE1E3L2I.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (17).jpg)
Pre-drill and attach a paling top.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (18).jpg](/proxy/?url=https://content.instructables.com/F4P/FCLN/KE1E3L2K/F4PFCLNKE1E3L2K.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (18).jpg)
Give the handles an oil to prevent them from splintering in your hands while wheeling it around.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (19).jpg](/proxy/?url=https://content.instructables.com/FTO/C0BA/KE1E3L2O/FTOC0BAKE1E3L2O.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (19).jpg)
Flip the BBQ upside down, remove some of the burners. And attach the Stationary legs.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (20).jpg](/proxy/?url=https://content.instructables.com/FCZ/ICAI/KE1E3L2R/FCZICAIKE1E3L2R.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (20).jpg)
Push the Wizbin axle into one of the wheels.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (21).jpg](/proxy/?url=https://content.instructables.com/FJ3/Y8HA/KE1E3L2U/FJ3Y8HAKE1E3L2U.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (21).jpg)
Grab a spade bit that is a little larger than the axle.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (22).jpg](/proxy/?url=https://content.instructables.com/FSV/FXX0/KE1E3L2V/FSVFXX0KE1E3L2V.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (22).jpg)
Work out how low you want the wheels to be on the legs.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (23).jpg](/proxy/?url=https://content.instructables.com/F2L/LEG1/KE1E3L2X/F2LLEG1KE1E3L2X.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (23).jpg)

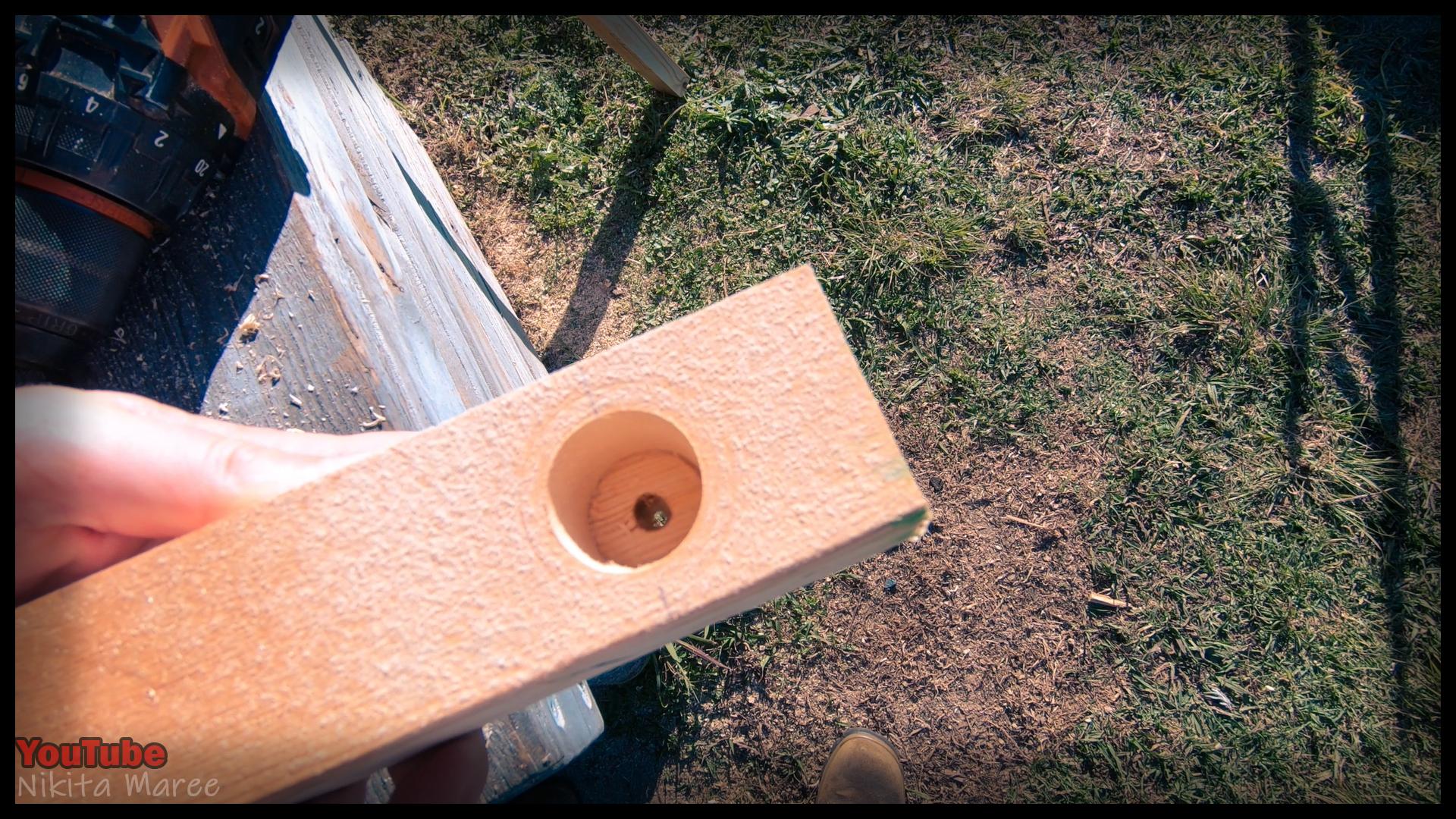

Drill until you start to see the center point come through the other side.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (24).jpg](/proxy/?url=https://content.instructables.com/F2G/7KMO/KE1E3L2Y/F2G7KMOKE1E3L2Y.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (24).jpg)
Then flip it over and finish the hole.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (26).jpg](/proxy/?url=https://content.instructables.com/FAJ/Q23K/KE1E3L32/FAJQ23KKE1E3L32.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (26).jpg)
Slide both legs over the axle before locking the other wheel into position.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (27).jpg](/proxy/?url=https://content.instructables.com/FIE/XC4M/KE1E3L34/FIEXC4MKE1E3L34.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (27).jpg)
Add a spacer at the top and bottom, between the 2 legs.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (28).jpg](/proxy/?url=https://content.instructables.com/FLP/UDN0/KE1E3L37/FLPUDN0KE1E3L37.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (28).jpg)
Then attach it to the BBQ frame.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (29).jpg](/proxy/?url=https://content.instructables.com/FGD/GV3A/KE1E3L38/FGDGV3AKE1E3L38.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (29).jpg)
Build another bench on the opposite end. in the sane manner as the other side. But this time without the handles.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (30).jpg](/proxy/?url=https://content.instructables.com/F8A/BM5I/KE1E3L3B/F8ABM5IKE1E3L3B.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (30).jpg)
Using palings to box in the side. giving the wheels a bit of clearance.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (31).jpg](/proxy/?url=https://content.instructables.com/F1O/G5L1/KE1E3L3C/F1OG5L1KE1E3L3C.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (31).jpg)
Adding additional uprights to give us more to attach to latter on.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (32).jpg](/proxy/?url=https://content.instructables.com/F2F/ELSY/KE1E3L3G/F2FELSYKE1E3L3G.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (32).jpg)
Box in the stationary side.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (33).jpg](/proxy/?url=https://content.instructables.com/FWR/N7SS/KE1E3L3I/FWRN7SSKE1E3L3I.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (33).jpg)
Attaching a horizontal length between the fixed wall and the wall with the wheels.
This is when the build really starts to become solid.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (34).jpg](/proxy/?url=https://content.instructables.com/FLU/QI6O/KE1E3L3J/FLUQI6OKE1E3L3J.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (34).jpg)
Do the same thing for the front edge.
But since this face will be covered in, I am framing up a bit of a feeder for the wheel.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (36).jpg](/proxy/?url=https://content.instructables.com/FWS/YTAJ/KE1E3L3R/FWSYTAJKE1E3L3R.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (36).jpg)
I am putting in the shelf while I still have plenty of access.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (35).jpg](/proxy/?url=https://content.instructables.com/F0A/YFL5/KE1E3L3L/F0AYFL5KE1E3L3L.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (35).jpg)
I use the jigsaw to cut away the areas for the legs.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (37).jpg](/proxy/?url=https://content.instructables.com/FI7/MYHW/KE1E3L3S/FI7MYHWKE1E3L3S.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (37).jpg)
Moving onto the gas bottle housing.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (38).jpg](/proxy/?url=https://content.instructables.com/F0W/74TU/KE1E3L3U/F0W74TUKE1E3L3U.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (38).jpg)
Simple square frame.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (39).jpg](/proxy/?url=https://content.instructables.com/FMU/NCF9/KE1E3L3W/FMUNCF9KE1E3L3W.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (39).jpg)
covered it in palings and marked out a circle.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (40).jpg](/proxy/?url=https://content.instructables.com/FB0/23VZ/KE1E3L3X/FB023VZKE1E3L3X.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (40).jpg)
cut it out with a jig saw, and frame the perimeter with some ripped lengths of palings.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (41).jpg](/proxy/?url=https://content.instructables.com/FBE/BGC3/KE1E3L3Y/FBEBGC3KE1E3L3Y.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (41).jpg)
Screw it to the wall.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (42).jpg](/proxy/?url=https://content.instructables.com/FNC/RCFB/KE1E3L40/FNCRCFBKE1E3L40.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (42).jpg)
Then start to attach the 45 degree angle side.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (44).jpg](/proxy/?url=https://content.instructables.com/FUK/YK9R/KE1E3L49/FUKYK9RKE1E3L49.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (44).jpg)
For the other side, I pre-drill some holes through the wall . . .
![How to build a barbecue. DIY pallet projects. Outdoor grilling (43).jpg](/proxy/?url=https://content.instructables.com/FID/SAH6/KE1E3L48/FIDSAH6KE1E3L48.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (43).jpg)
and attach them from the inside.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (45).jpg](/proxy/?url=https://content.instructables.com/F8E/AWPX/KE1E3L4A/F8EAWPXKE1E3L4A.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (45).jpg)
Finish covering in the front face.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (46).jpg](/proxy/?url=https://content.instructables.com/FFI/0L3R/KE1E3L4C/FFI0L3RKE1E3L4C.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (46).jpg)
Now I am working on the splash back and utensil holder.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (47).jpg](/proxy/?url=https://content.instructables.com/FMK/TTWL/KE1E3L4E/FMKTTWLKE1E3L4E.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (47).jpg)
A simple up right on either side.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (48).jpg](/proxy/?url=https://content.instructables.com/FHX/V0HA/KE1E3L4H/FHXV0HAKE1E3L4H.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (48).jpg)
Start with the top paling first to keep the correct spacing between the 2 up rights.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (49).jpg](/proxy/?url=https://content.instructables.com/FNE/JO5Z/KE1E3L4J/FNEJO5ZKE1E3L4J.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (49).jpg)
I am putting an edge around the entire BBQ.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (50).jpg](/proxy/?url=https://content.instructables.com/FNJ/T1ZV/KE1E3L4N/FNJT1ZVKE1E3L4N.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (50).jpg)
I still wasn't liking the front. So I added one more length across the top edge.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (51).jpg](/proxy/?url=https://content.instructables.com/FGD/FEZR/KE1E3L4O/FGDFEZRKE1E3L4O.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (51).jpg)
Added a couple of hooks for the utensils.
![How to build a barbecue. DIY pallet projects. Outdoor grilling (52).jpg](/proxy/?url=https://content.instructables.com/FQ7/OPQC/KE1E3L4Q/FQ7OPQCKE1E3L4Q.jpg&filename=How to build a barbecue. DIY pallet projects. Outdoor grilling (52).jpg)
And it is done. It is not the prettiest barbecue stand I have ever seen. But it would have to be the cheapest.
