Bandsaw Box With Pencil Holder

Bandsaw boxes are the items that really got me hooked on woodworking. I even wrote a how-to book on making them! This bandsaw box comes directly from that book.

Unlike the other boxes, this one requires you to cut out the pencil holder area before the initial glue up. You’ll need to start with a piece that’s at least 6" x 5" and at least 1 1/2" thick. I’m using 2" thick walnut.

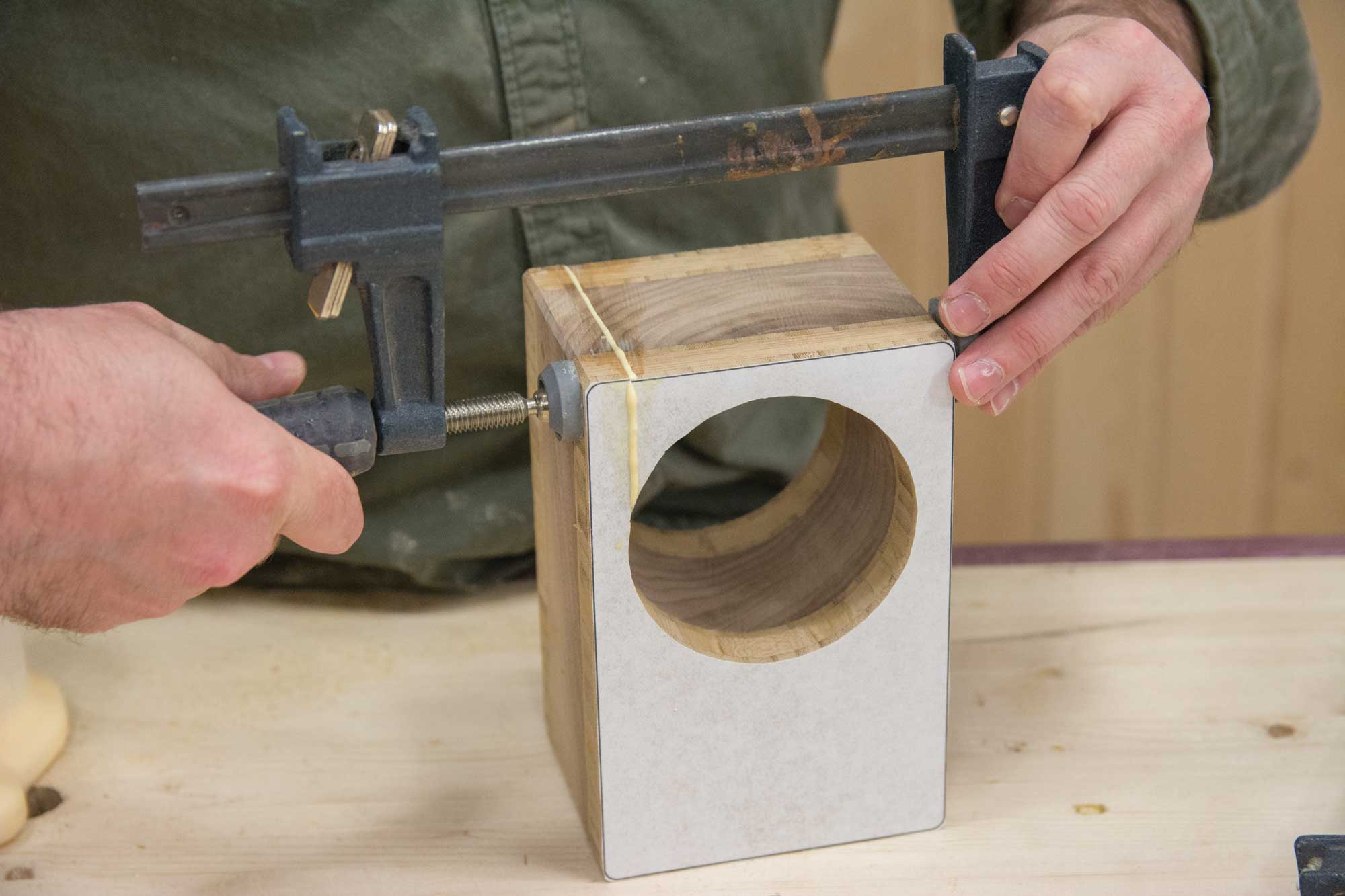

Lay on the glue and clamp up the two bamboo faces to the walnut core.

Draw up your box in. your favorite vector program. I used Adobe Illustrator. Print it out and use spray adhesive to apply it to your blank.

When the glue dries bandsaw the outer shape, staying close to the line but without cutting into it. In a later step you’ll sand down to the line.

Unlike the other boxes in this book the drawer will open from both sides. Start by cutting the shape of the drawer by following the grain and entering from the nearest side.

Here’s what your box should look like with the drawer cut out.

Remove the front and back of the drawer at the bandsaw. Because the drawer has no flat bottom it’s safer and easier to use a handclamp to aid the cutting process.

After completing both cuts on the drawer you can separate the front and back and focus on the center section.

Draw out the waste area on the center of the drawer. Drawing it out freehand is fine—just aim for sides about 3/8" thick.

Head back to the bandsaw to remove the waste area of the drawer.

Use yellow glue and plenty of clamps to re-attach the front and back of the drawer to the center section.

Add a bead of glue to the kerf left from when you started cutting out the drawer. Then clamp it closed with a clamp or two.

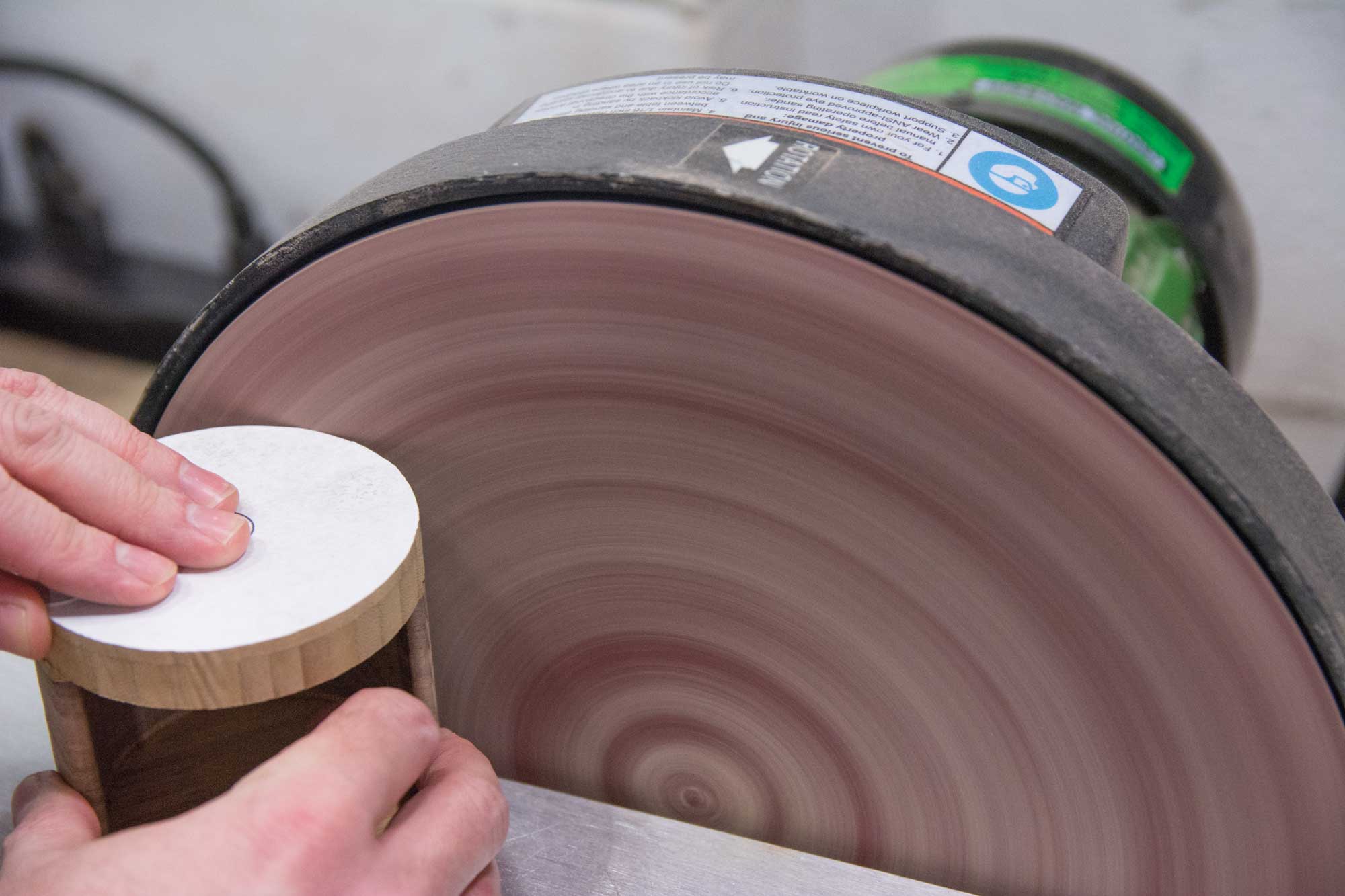

Once the glue dries, take the outer shell to the disc sander and sand down to the line. The same thing can be done manually using a sheet of sandpaper set flat on your bench.

Template lines on the drawer may not be visible. To make sure the drawer doesn’t fit too loose, just sand it smooth without removing too much material.

Using a 1/8" round over bit mounted in your router table, smooth the edges of the shell and drawer. If you don’t have a router table, this can be done using sandpaper or a rasp.

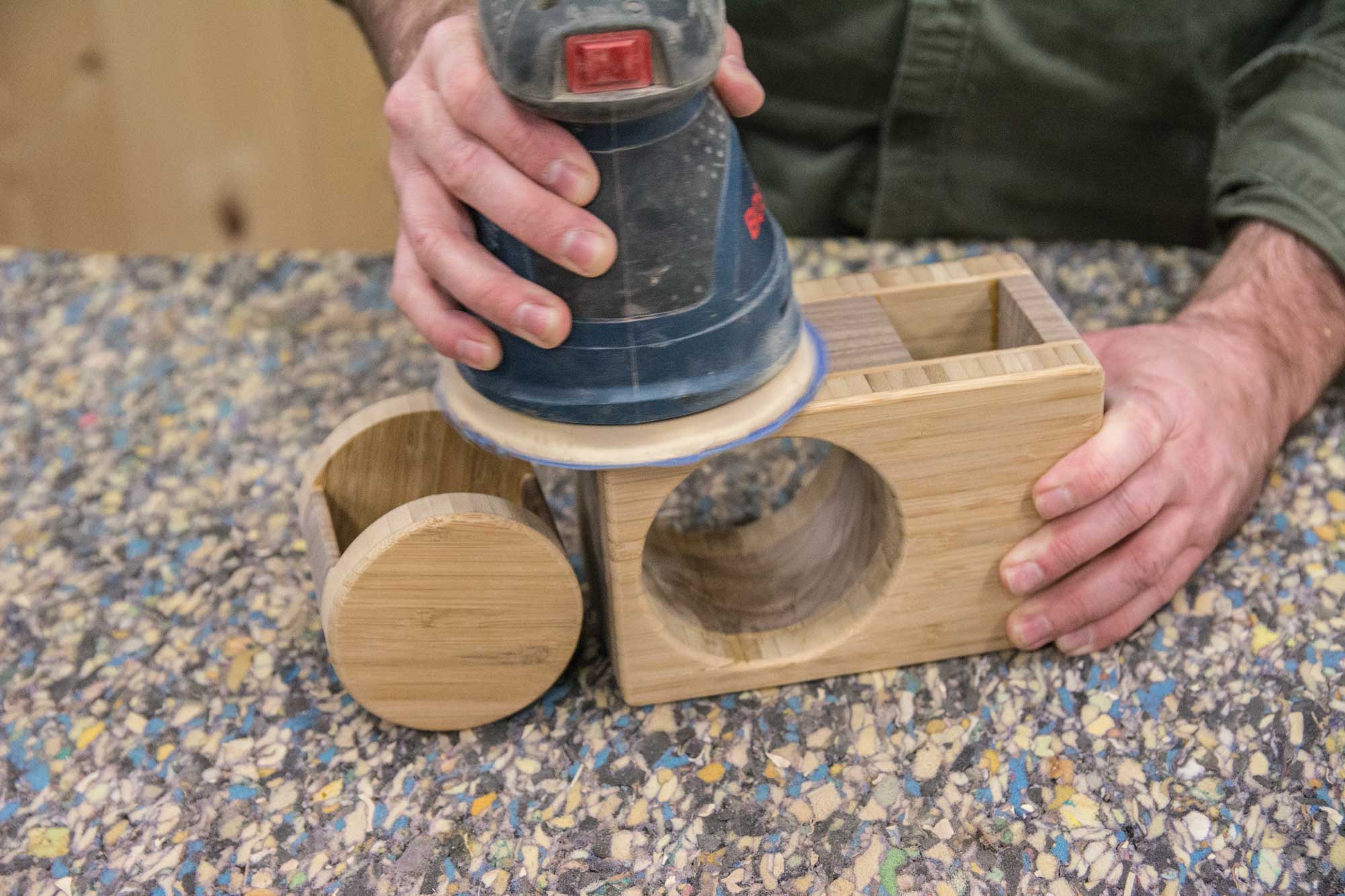

For a smooth box that invites touch and feels good to your hands, progress sand through sandpaper grits to 320.

Only the shell and drawer need to be finished. The inside of the drawer and shell are flocked instead.

You can make your own drawer pulls if you prefer, but I found drawer pulls at my local hardware store. They mount easily through a hole drilled in the drawer fronts.

For simple store bought pulls like the one seen here, just add a thin layer of epoxy to the pull and slide it in place.

That's it!! Be sure to watch the video tutorial on YouTube for added tips and if you're looking for the book you can get it here.
