BandSaw Modification for a Streching Belt

by revain in Workshop > Repair

376 Views, 0 Favorites, 0 Comments

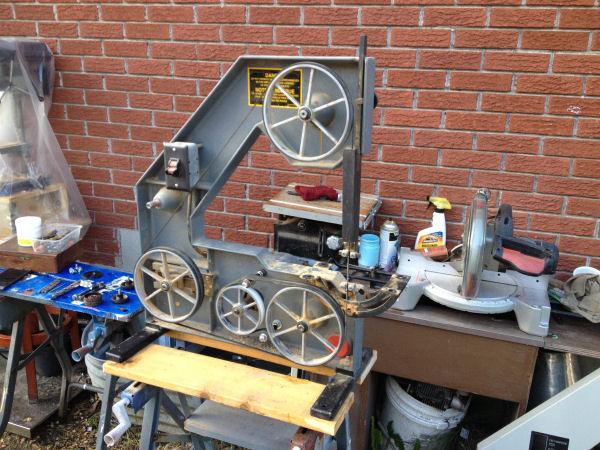

BandSaw Modification for a Streching Belt


This model of BandSaw seems to have stretching problem, probably do to it's 3 wheel configuration,

So this is like a secondary saw, Don't want to spend any thing on it at the moment,

My solution is to had 2 pulley, both made from 4 Rollerblade bearing, This model has a wide Belt,

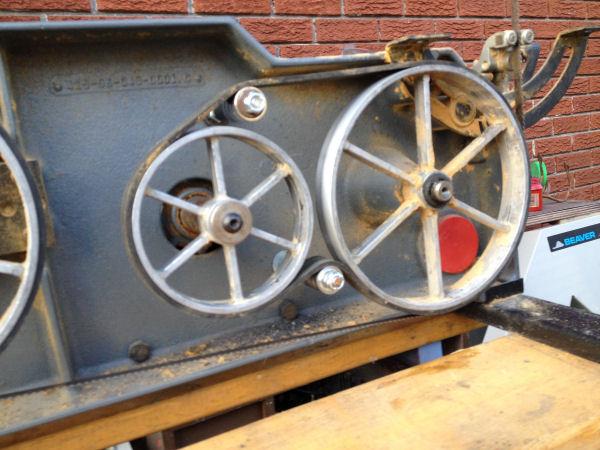

Drilling 2 hole in the cast iron casing, did not hurt it at all, :)

Supplies

So I need 8 bearing, That's one pair of used Rollerblade, (Yard sale)

2 long bolt, and some washer..

That's it,


Drill and ratchet, :)

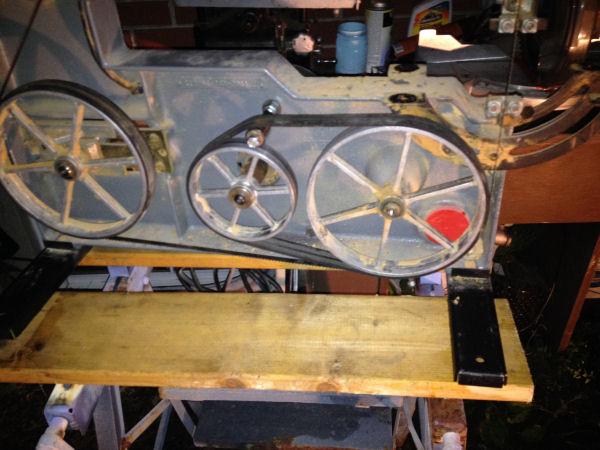

First Try, One Pulley, Was Not Enough,

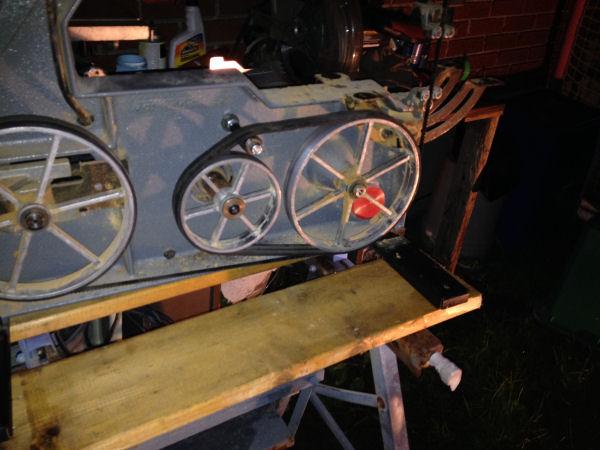

2nd Try, 2 Inside Pulley, No, Not Working, Belt Does Not Stay in Place,

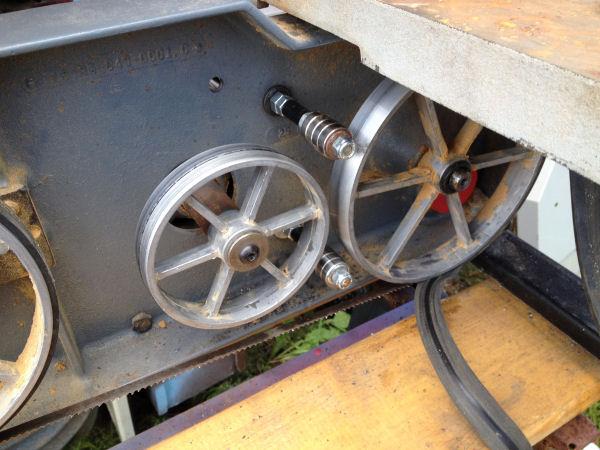

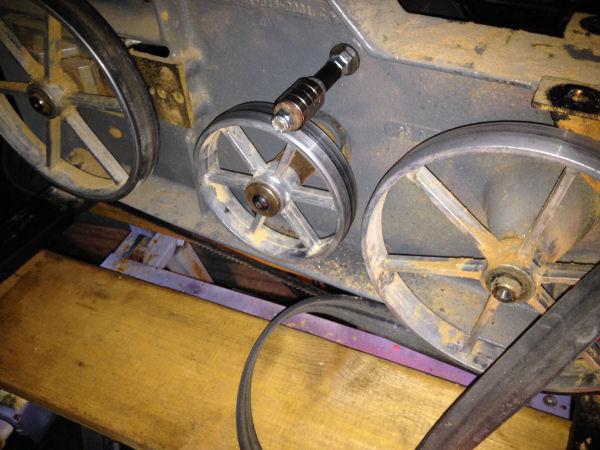

3rd Try, One Inside Ans One Outside Pulley,

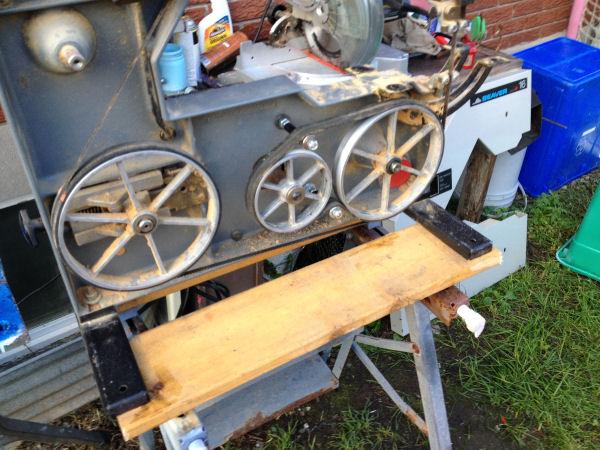

Look at It Roll. :)

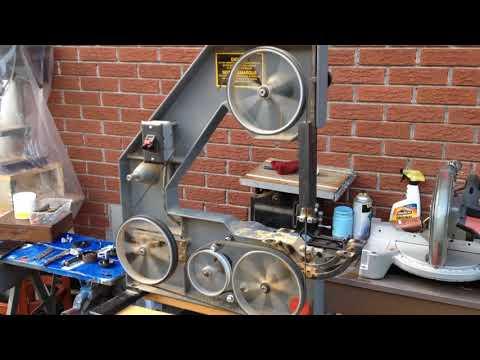

Bandsaw stretching belt modification


Tank's for watching,

Revain :)
