Ballet Pointe Shoe

For my Extended Essay in Design Technology, I made a ballet pointe shoe to carry out the finite element analysis to support my research regarding ballet pointe shoes and how they can be made more user centred.

Fusion 360

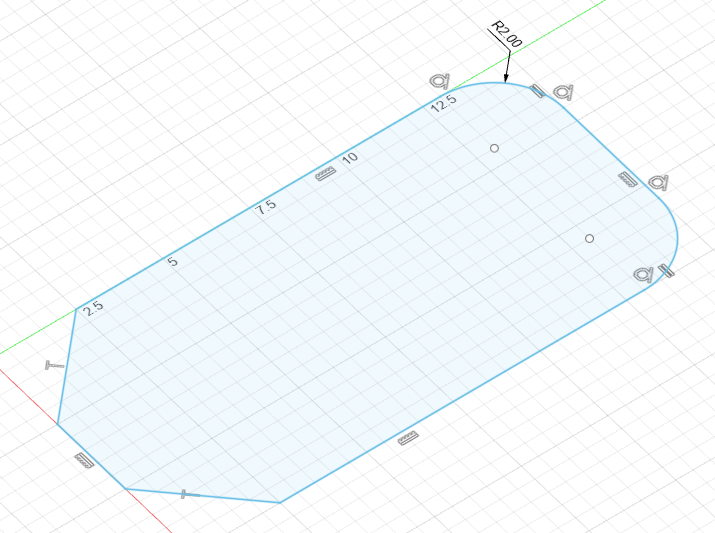

Select Sketch on the top plane, make a 2-point rectangle and using fillet, curve its edges.

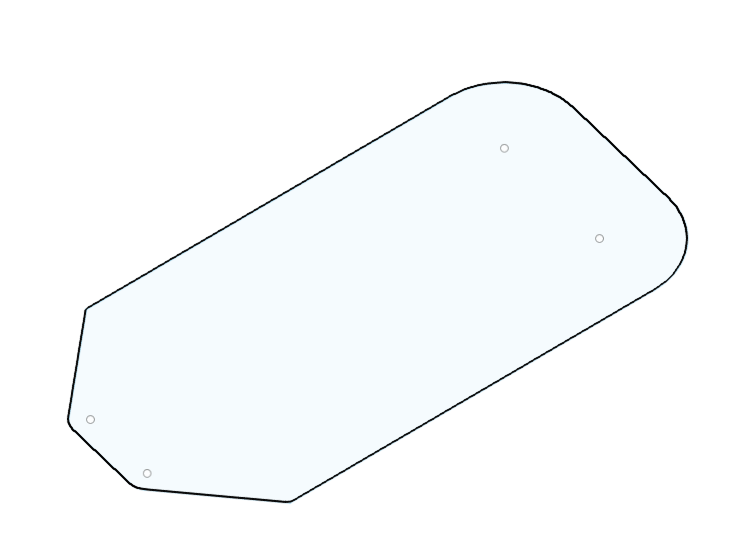

After filleting and sharpening the edges, this is what it will look like

Make a circle and an ellipse

Then extrude the edges

To not make it clear from the base, extrude the base by a small margin

Create an offset plane from the bottom of the shoe that is 1.2cm above the base. Create a rectangle and make diagonal lines

Extrude it and you're done!
