Ball Launcher
Ball launcher is a hands-on activity designed to introduce you guys to something exciting and interesting, the concept of projectiles. Projectiles are the objects thrown by exerting a force.
You can now build your own launchers using servo motors to have projectiles swinging just by the push of a button! Challenge your friends to this fun filled engineering task besides testing accuracy of various materials. Have a go and set up your own carnival!
Supplies Required
1. Dream Kit
2. Paper cups
3. Cardboard sheet
4. Colourful pens
5. Fevicol
How It Works

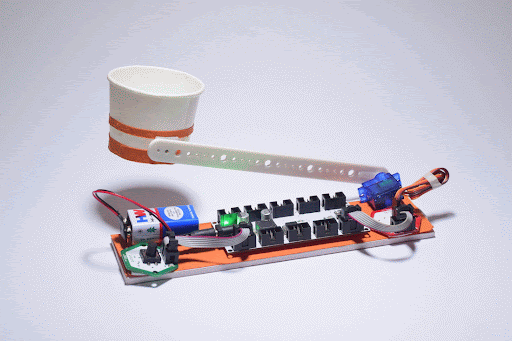

One end of the rectangular cardboard piece is attached to the servo motor while the other end is attached with the paper cup that holds the ball to be shot.
At the push of a button, the servo motor will make 180° rotation and the ball is released.

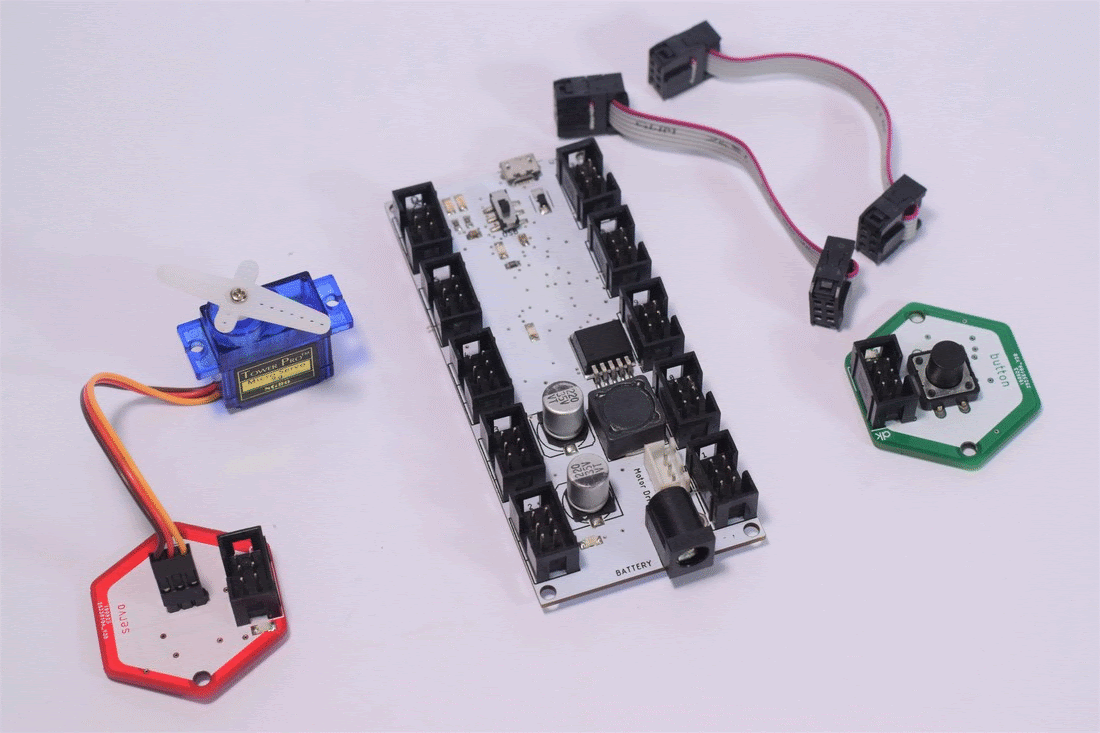

Connections
Programming Dream Kit With DK Studio

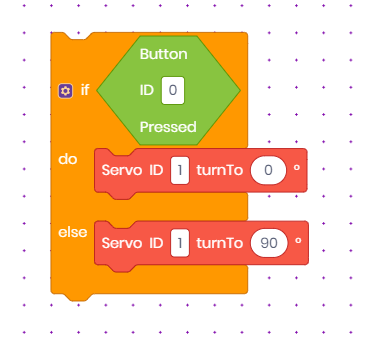

Connect the HUB to your computer using a USB cable and make sure the HUB is in USB mode. Open DK studio software in your computer choosing the correct port number and click on ‘Connect’. Place the blocks as shown below and click on ‘Upload’.
Click here to download the DK Studio Software
Build Your Model

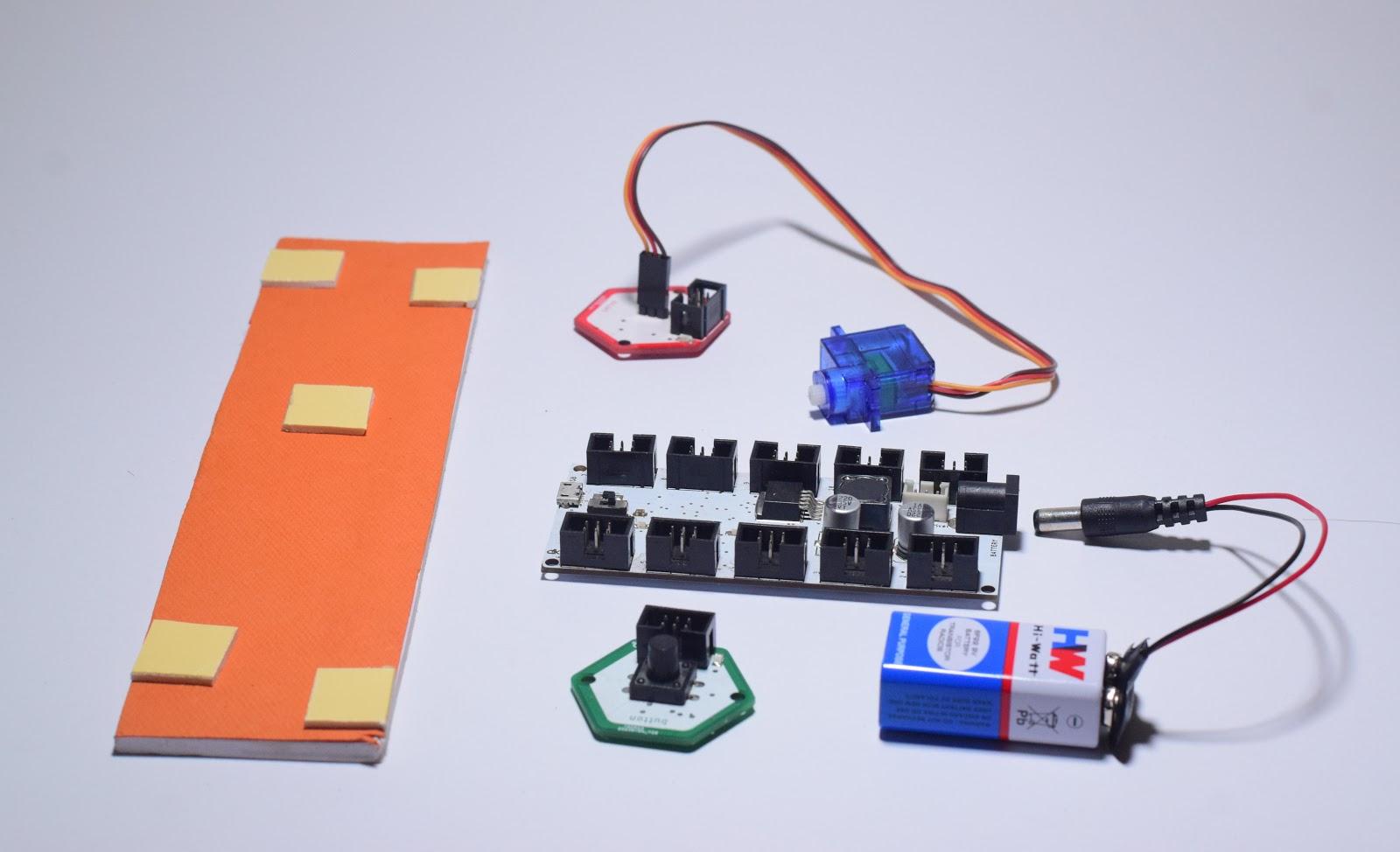

Cut a rectangular cardboard and chart paper as shown above.

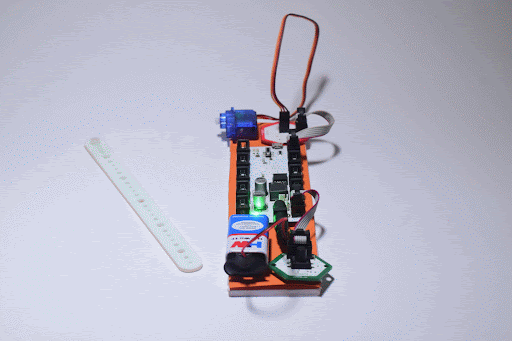

Place the modules and do the connections as shown above.

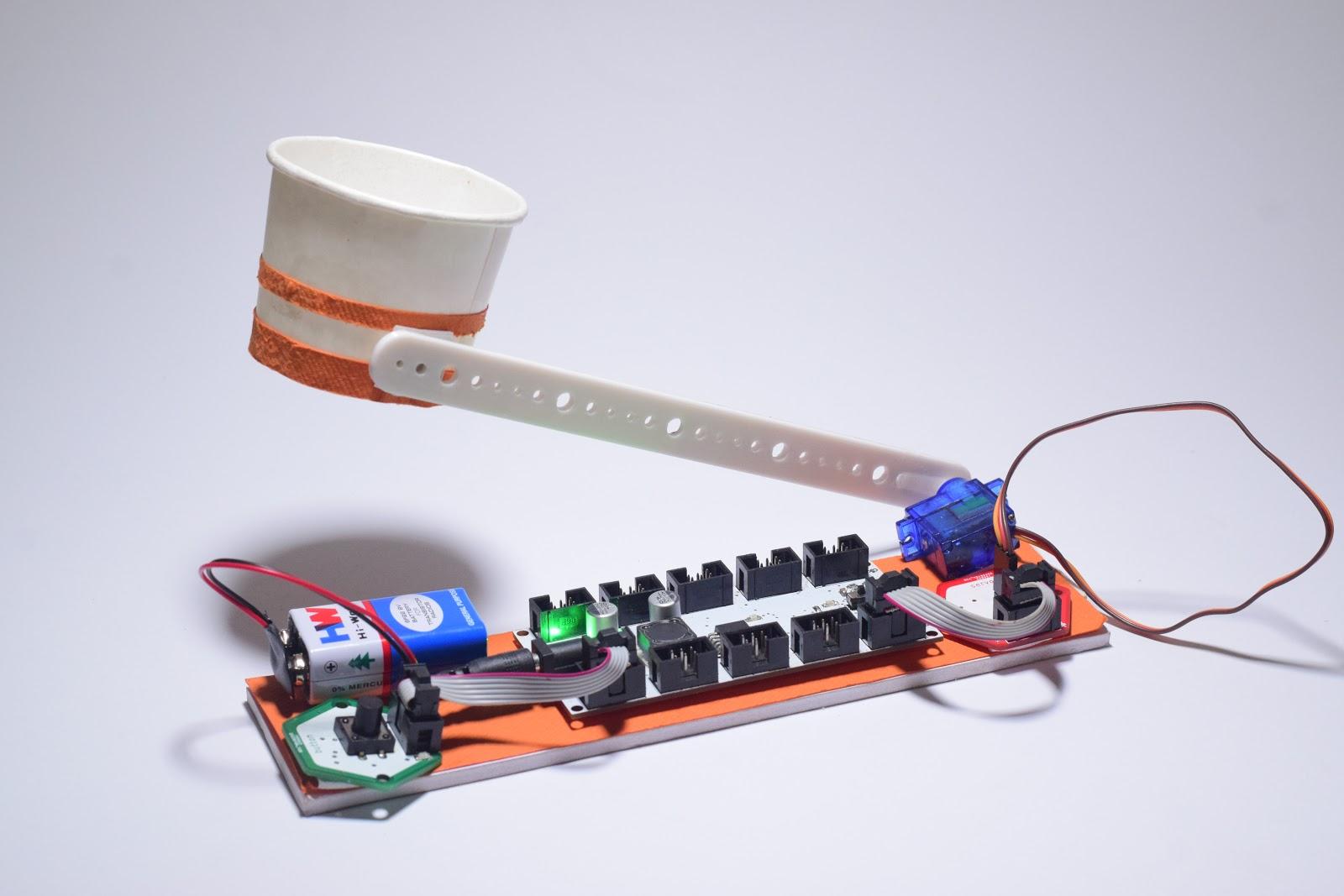

Connect One End of the Servo Horn Extender to the Servo and Attach the Paper Cup to the Other End of the Extender As Shown Below .

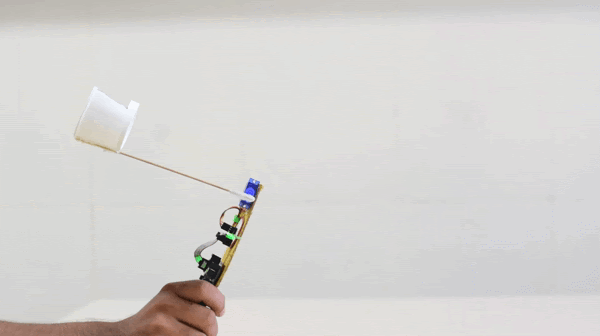

Upload the Program and Challenge Your Friend for Launching the Ball As Far As Possible
Once you complete the project share it on Instagram with Tag #dreamkit and #CreatedWithDreamKit
Happy creating !!!
