Balancer Tools for Self Tightening Propeller (using Unused Tamiya Rollers)
by MusaW in Workshop > 3D Printing
3107 Views, 19 Favorites, 0 Comments
Balancer Tools for Self Tightening Propeller (using Unused Tamiya Rollers)
![IMG_20170221_063238.jpg](/proxy/?url=https://content.instructables.com/FDU/2WEF/IZ6CRGZC/FDU2WEFIZ6CRGZC.jpg&filename=IMG_20170221_063238.jpg)
I wonder, how many of u ever playing a tamiya... and how many unused spare part of it left behind... i just found my tamiya bumper roller and i tough i could make it for a balancer tools for self tightening propeller such a DJI 9450 prop or else... i need this balancing tools to reduce jello effect on my Quadcopter and basically it work like a dubro balancer...
what u need is:
4 x tamiya roller like http://www.tamiya.com/english/products/94739rolle...
and 4 x sort 4mm diameter screw...
Prepare Your Tamiya Roller
![IMG_20170219_204238.jpg](/proxy/?url=https://content.instructables.com/FRV/RT78/IZ6CGIA0/FRVRT78IZ6CGIA0.jpg&filename=IMG_20170219_204238.jpg)
![e4191a5f69b6dafa6c49cfe3478e0b2f.jpg](/proxy/?url=https://content.instructables.com/FOK/3K6C/IZ6CS7Q5/FOK3K6CIZ6CS7Q5.jpg&filename=e4191a5f69b6dafa6c49cfe3478e0b2f.jpg)
Take out your tamiya roller from bumper...
try spin the roller, if it not smooth than don't use it...
File to Print
![Capture.JPG](/proxy/?url=https://content.instructables.com/FMS/M6ST/IZ6CRGY7/FMSM6STIZ6CRGY7.jpg&filename=Capture.JPG)

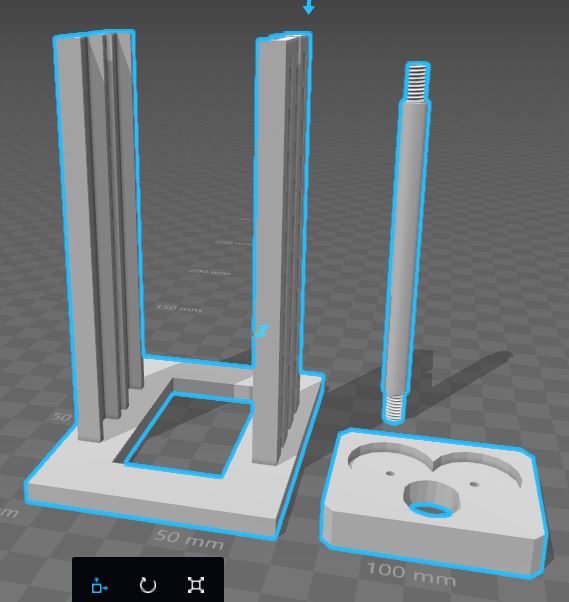

download 3D files from
http://www.thingiverse.com/thing:2122808
and print it.... i use 40% infill for it, that's enough for it...
Roller Holder
![1.gif](/proxy/?url=https://content.instructables.com/FQR/Y4GQ/IZ6CSABZ/FQRY4GQIZ6CSABZ.gif&filename=1.gif)
![IMG_20170219_204246.jpg](/proxy/?url=https://content.instructables.com/FVL/74G9/IZ6CGL5K/FVL74G9IZ6CGL5K.jpg&filename=IMG_20170219_204246.jpg)

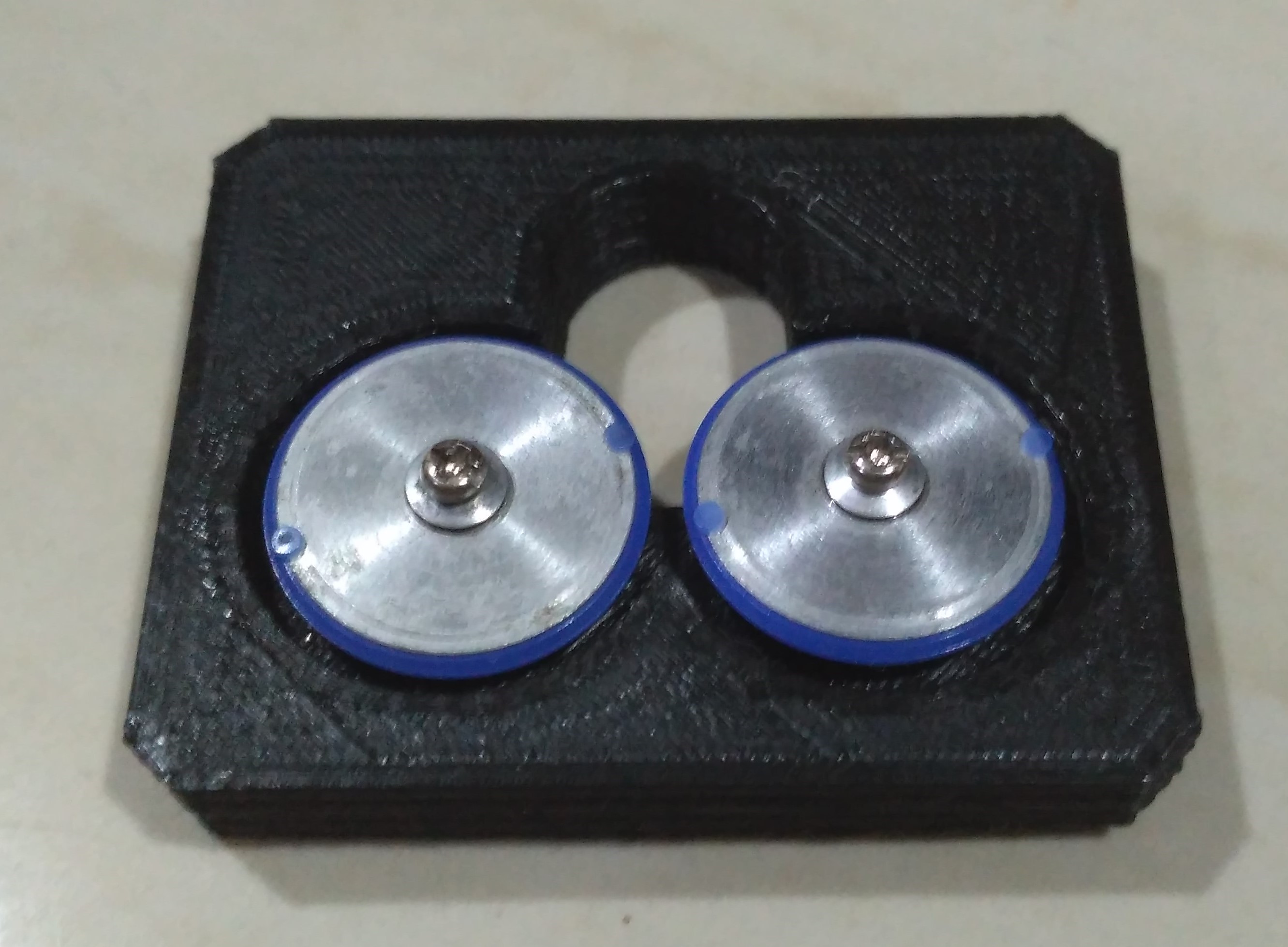

Put the roller to the roller holder.. like picture above...
PS: u need two of this
Balancer Stand
![2.gif](/proxy/?url=https://content.instructables.com/FI8/RFPR/IZ6CSASZ/FI8RFPRIZ6CSASZ.gif&filename=2.gif)
Put the roller holder to the balancer stand, the one of roller holder in the back is upside down (the hole is below the roller)
Propeller Rod
![3.gif](/proxy/?url=https://content.instructables.com/FJM/25SI/IZ6CSARU/FJM25SIIZ6CSARU.gif&filename=3.gif)
Put the rod in the hole and put the propeller on it... one side of the rod is CW and the other side is CCW
PS:Sand paper the surface of the rod which contact to the roller, more smooth are more better.
or u can use any other cylinder tube to replace the rod...

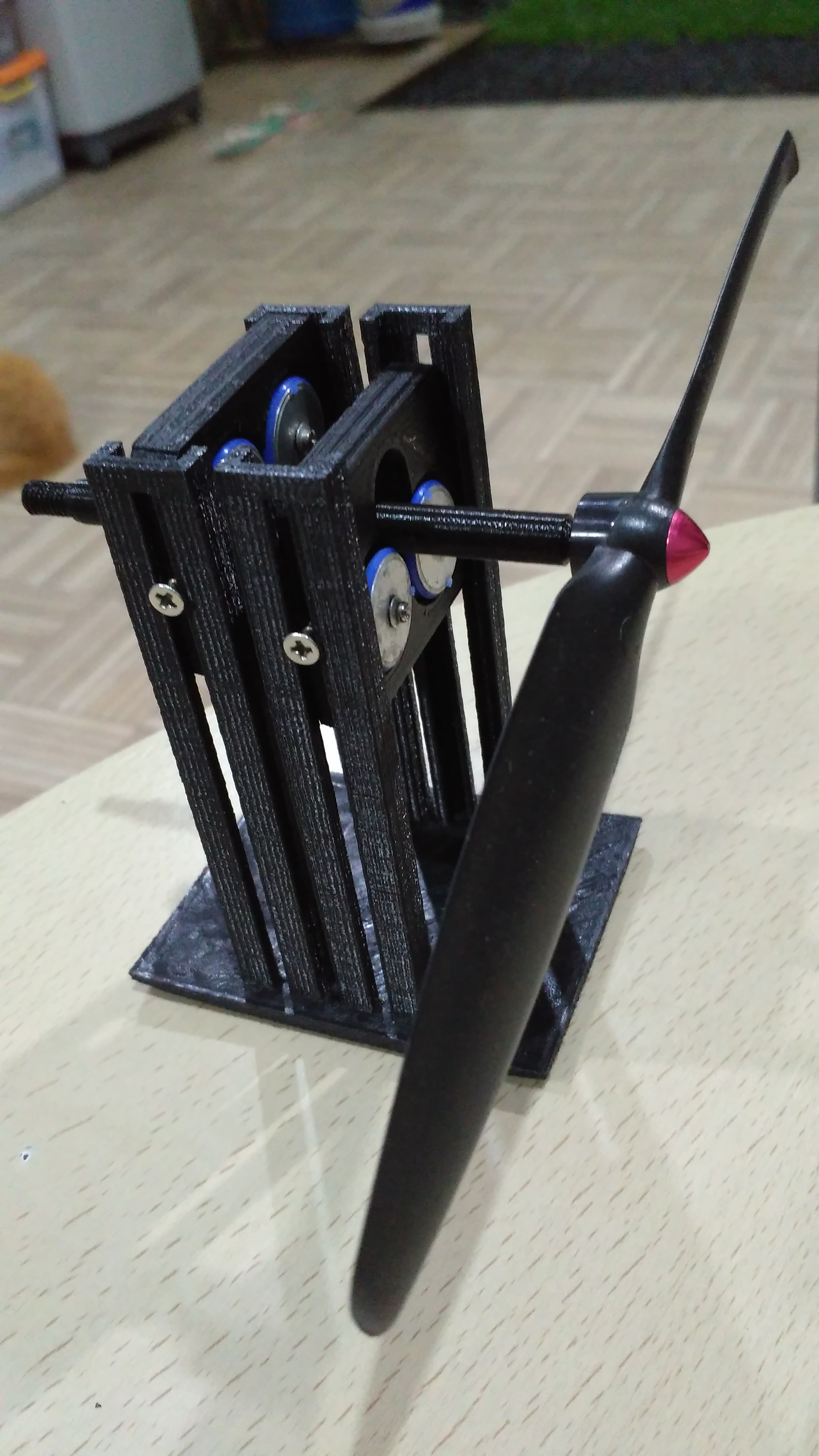

Ready to Use
![IMG_20170221_063143.jpg](/proxy/?url=https://content.instructables.com/FFW/RB47/IZ6CSB0R/FFWRB47IZ6CSB0R.jpg&filename=IMG_20170221_063143.jpg)
Try to move the propeller lightly CW & CCW, if the propeller is falling down than using sand paper try to reduce weight from the falling propeller leaf. than try to lightly move CW & CCW again.
if the propeller is steady or nearly steady enough in the middle than it balance...
