Balance Lamp

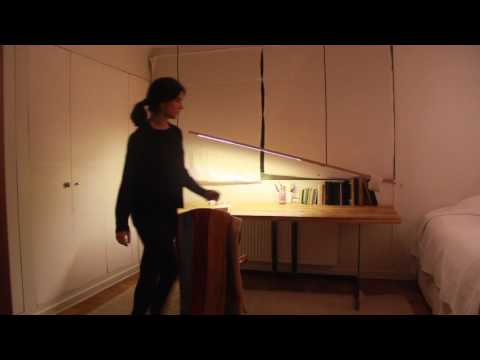

A lighting mobile, were balance is achieved in various positions, letting you use the light for different purposes.

Lamp materials:

1m. LED strip

Gypsum powder

5m. Cable

Power tranformer for LED strip

1''x4''x2.4m Oak plank

Counterweight materials:

Needle

Thread

Fabric

Rice

Tools:

Volcanita screws

N5 plugs

Insulating tape

Plier

Scissors

The lamp is made out of two wooden strips. One is attached to the ceiling and the other has a LED strip.

The cable goes from the light, to the strip on the ceiling, goes throught it, and then down to the wall socket. Strip 1 hangs from strip 2 by the cable.

Strip 1 has a counterweight to change light direction

Cut the plank to two strips of 1inch.

Carve the strips as indicated.

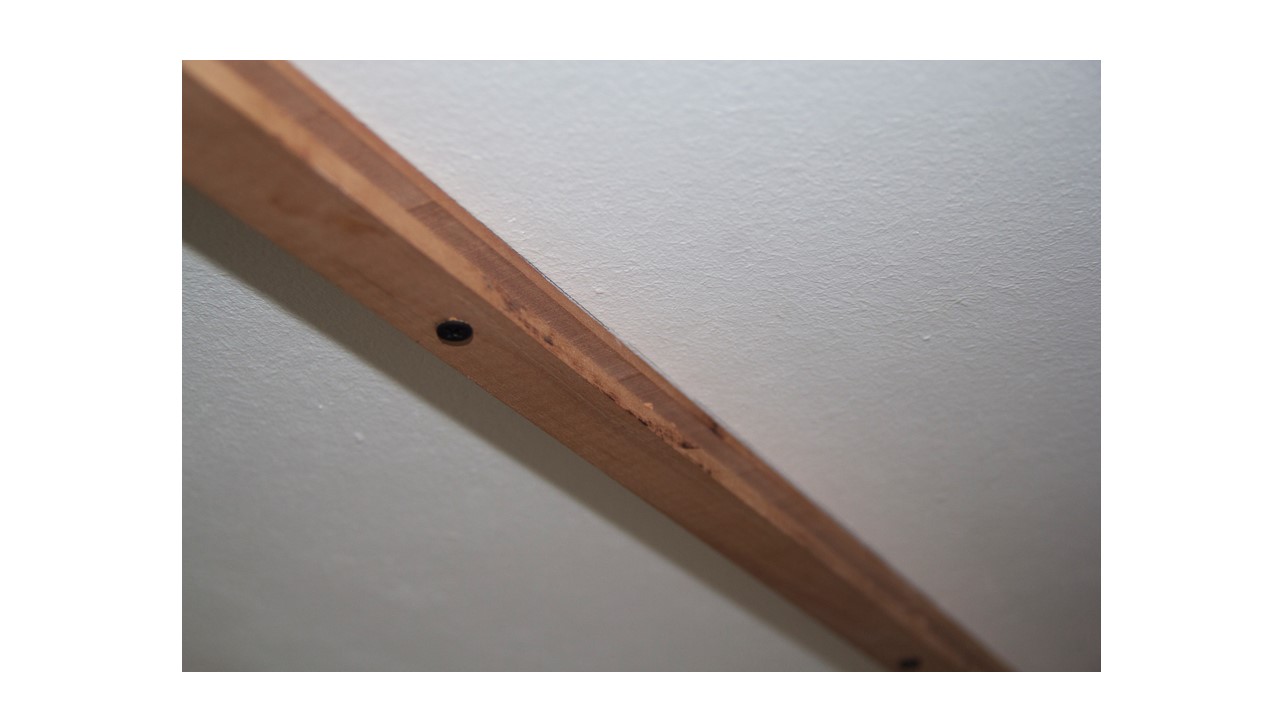

Assure strip 2 to eh ceiling with the help of the screws and the plugs.

Sew the bag with the indicated measures.

Fill with rice.

Note: this dimensions are the result of the calculus of momentun, resulting in a certain weight, that equals that volume in rice. If the materials were changed the weight needed to achieve balance might be different.

Assemble the diferent parts.

Join the cables.

Put the counterweight were you want in order to achieve the desired inclination.
