Backyard Greenhouse From Reclaimed Windows

by Kirklewellen in Living > Gardening

49486 Views, 548 Favorites, 0 Comments

Backyard Greenhouse From Reclaimed Windows

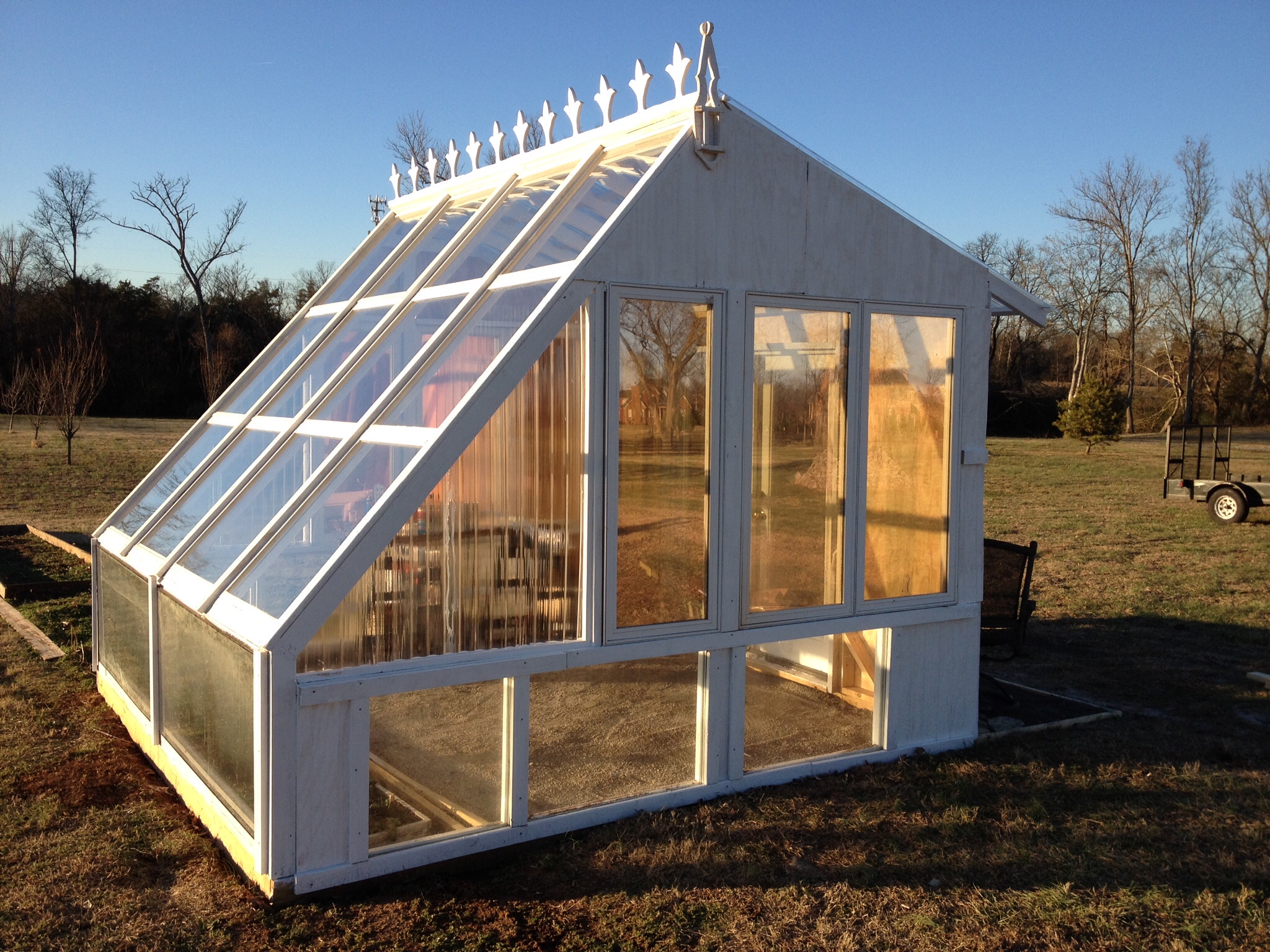

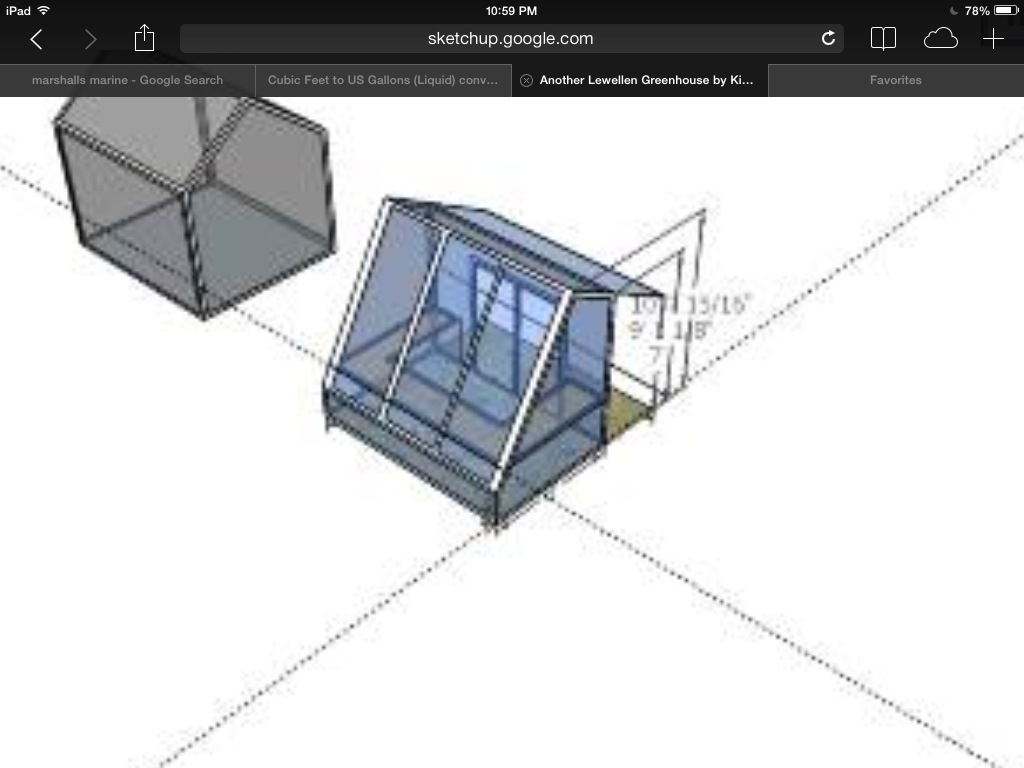

The backyard green house has been a great addition to our way of gardening, it is a great place for us to store our potted plants from around the pool in the winter and a great place to start plants before the growing season. I created the initial design in Tremble Sketchup and a number of my initial green house scale drawings can be found in the Tremble 3D warehouse. The greenhouse measures 12' X 12' and is almost 12' tall at the highest point.

Begin With a Plan.

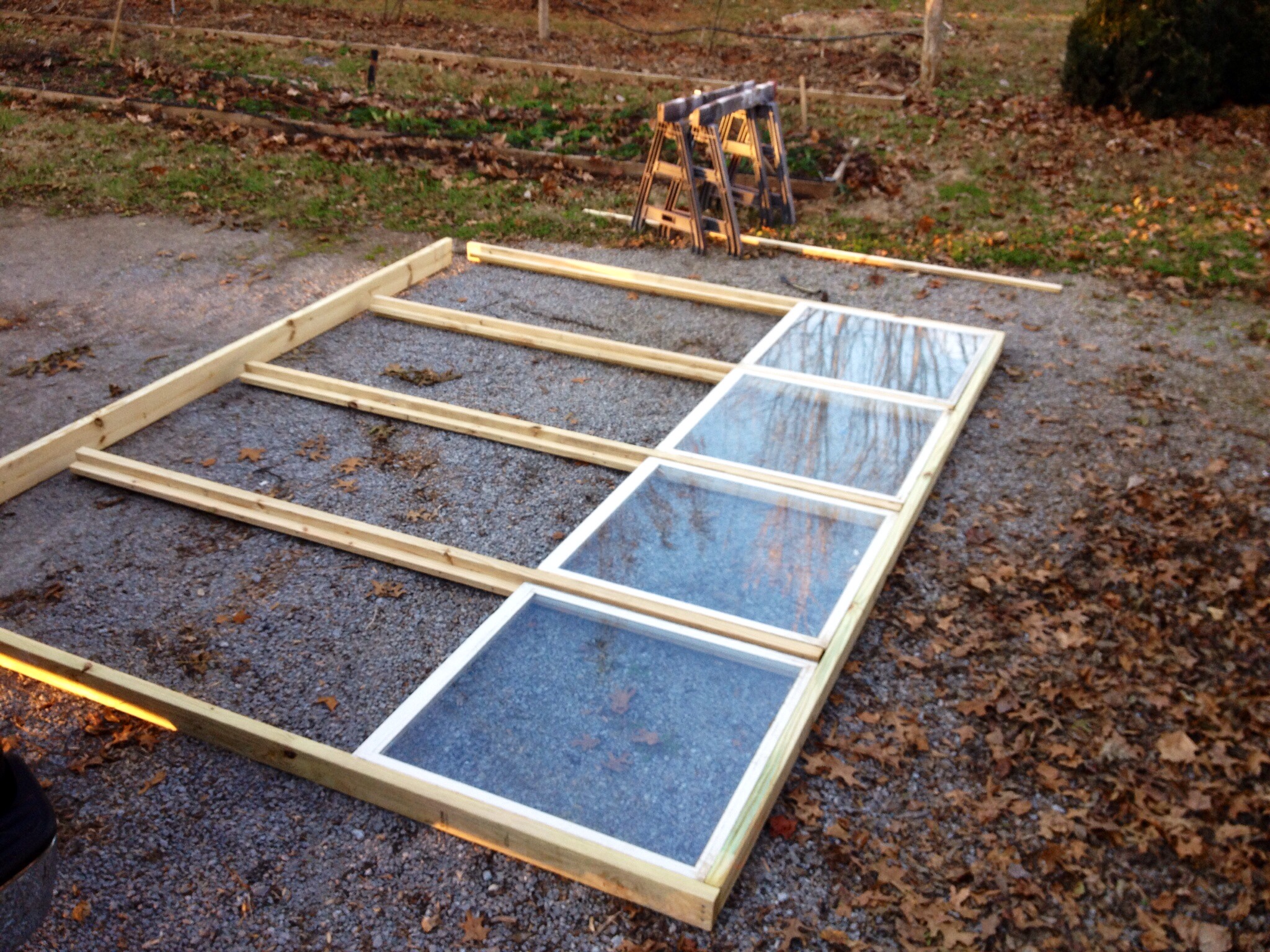

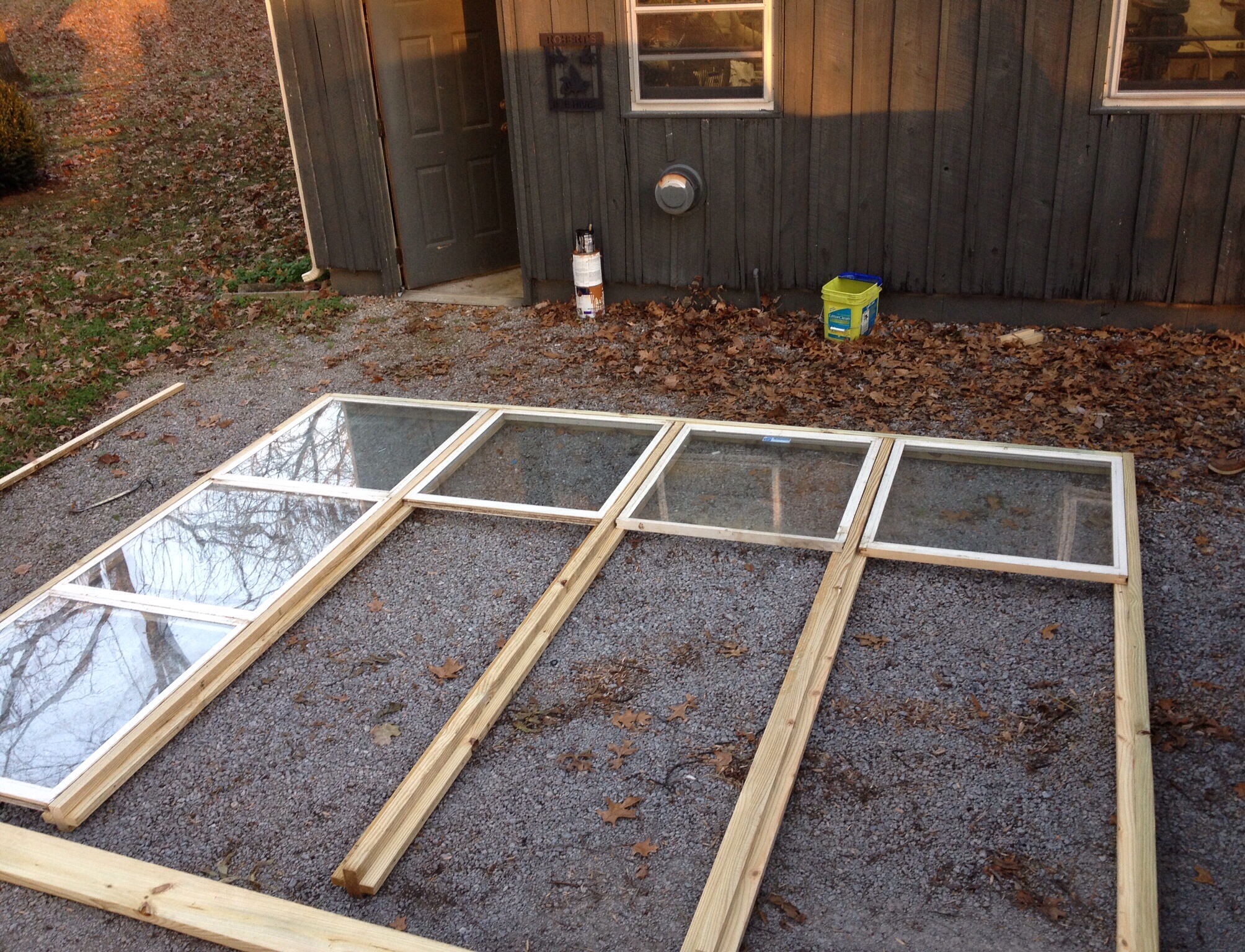

A plan is critical when trying to use reclaimed Windows. Determining a plan, a layout and the utilization of the materials was the most difficult part of the construction process. Luckily I found that the windows with a 2x4 frame work was almost 12' and was the determining factor in the dimensions of the greenhouse.

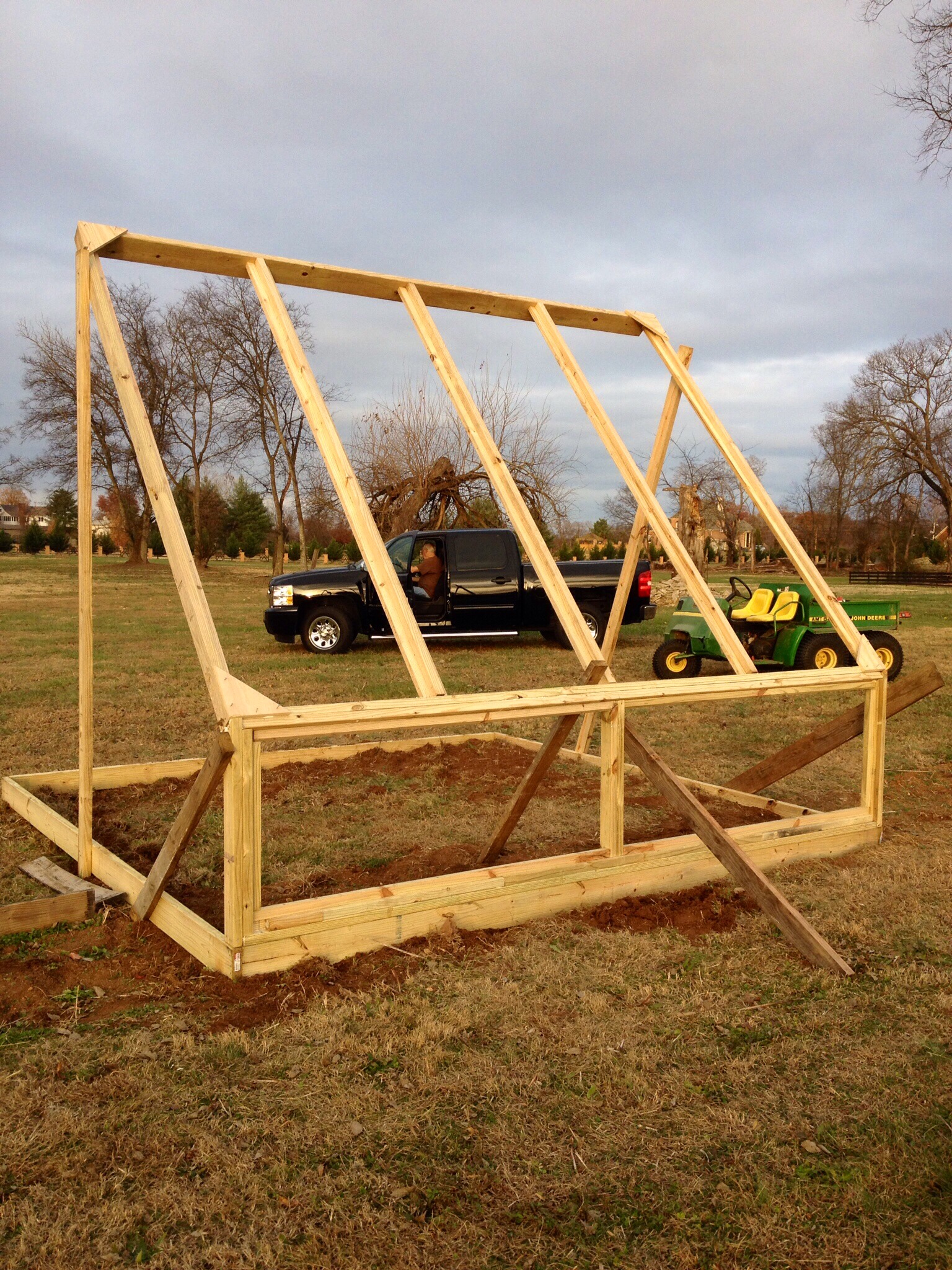

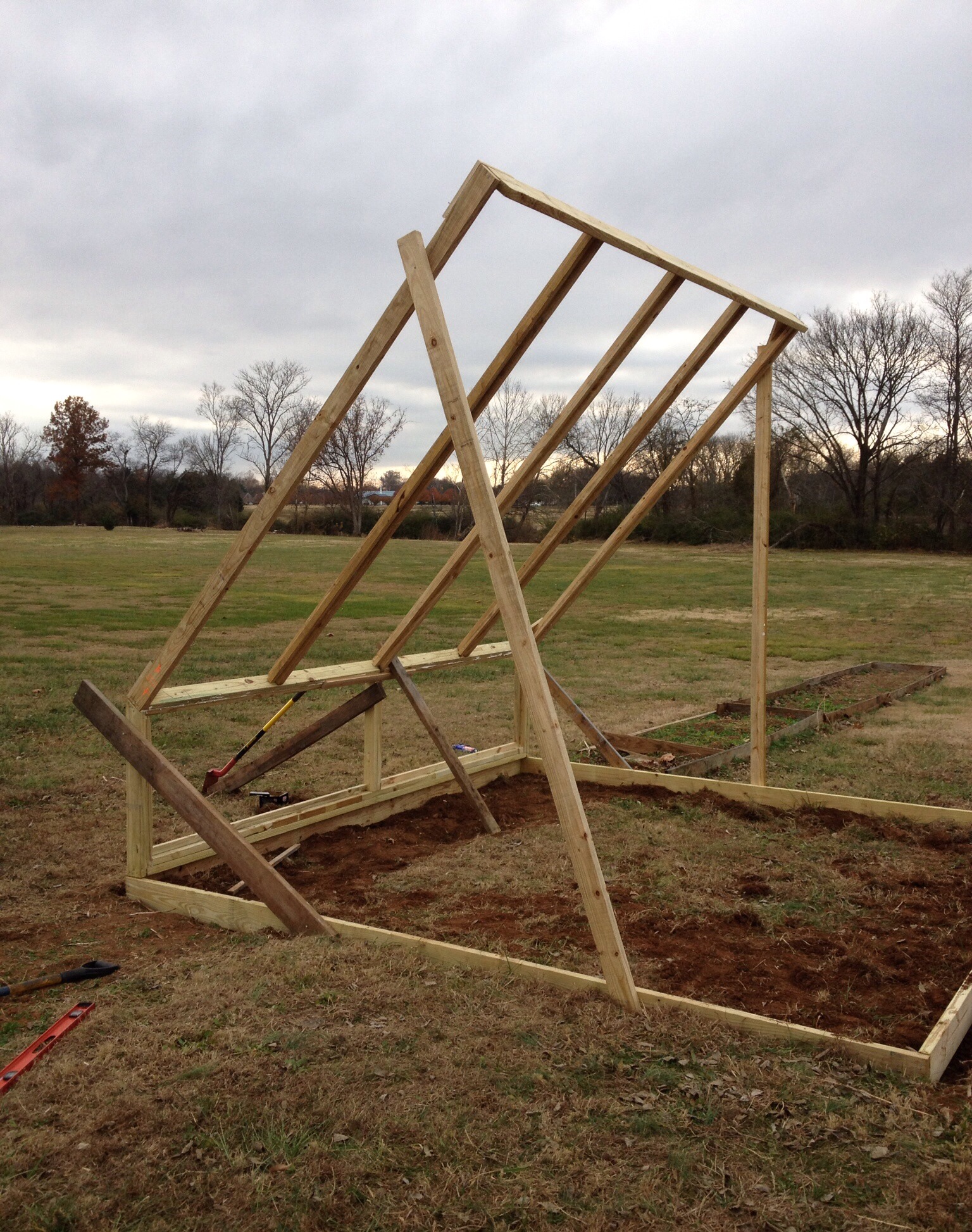

Determine the Proper Window Angle for the Most Solar Collection During the Winter Months.

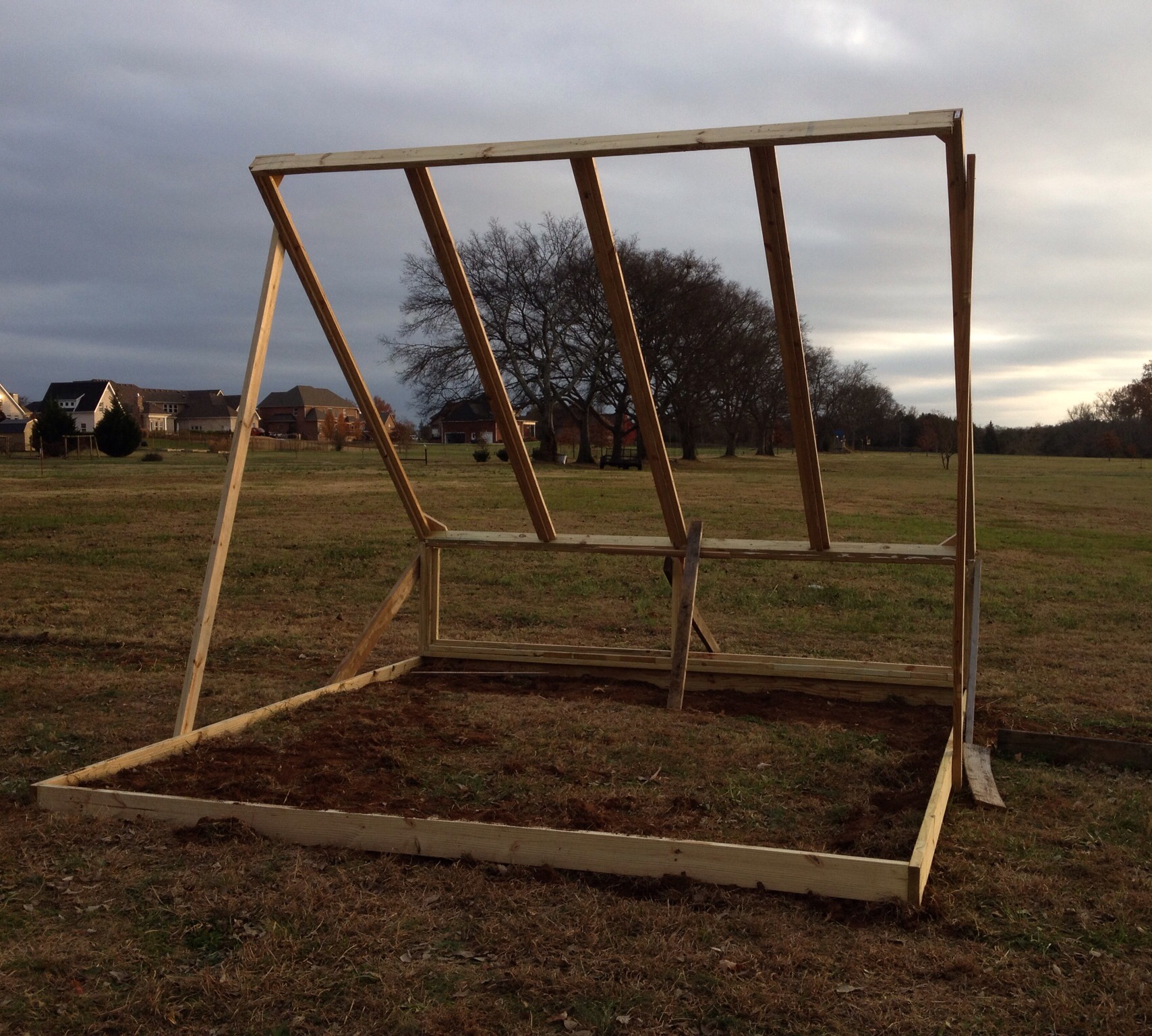

The next stage in planning was the angle at which the primary window wall should be. There is a basic rule of thumb in greenhouse construction that the proper southern facing wall angle should be 10 degrees greater than the latitude of your location. My latitude in Tennessee is 35 degrees so the angle of my primary southern facing window is 45 degrees. This provides the optimum angle for both summer and winter months.

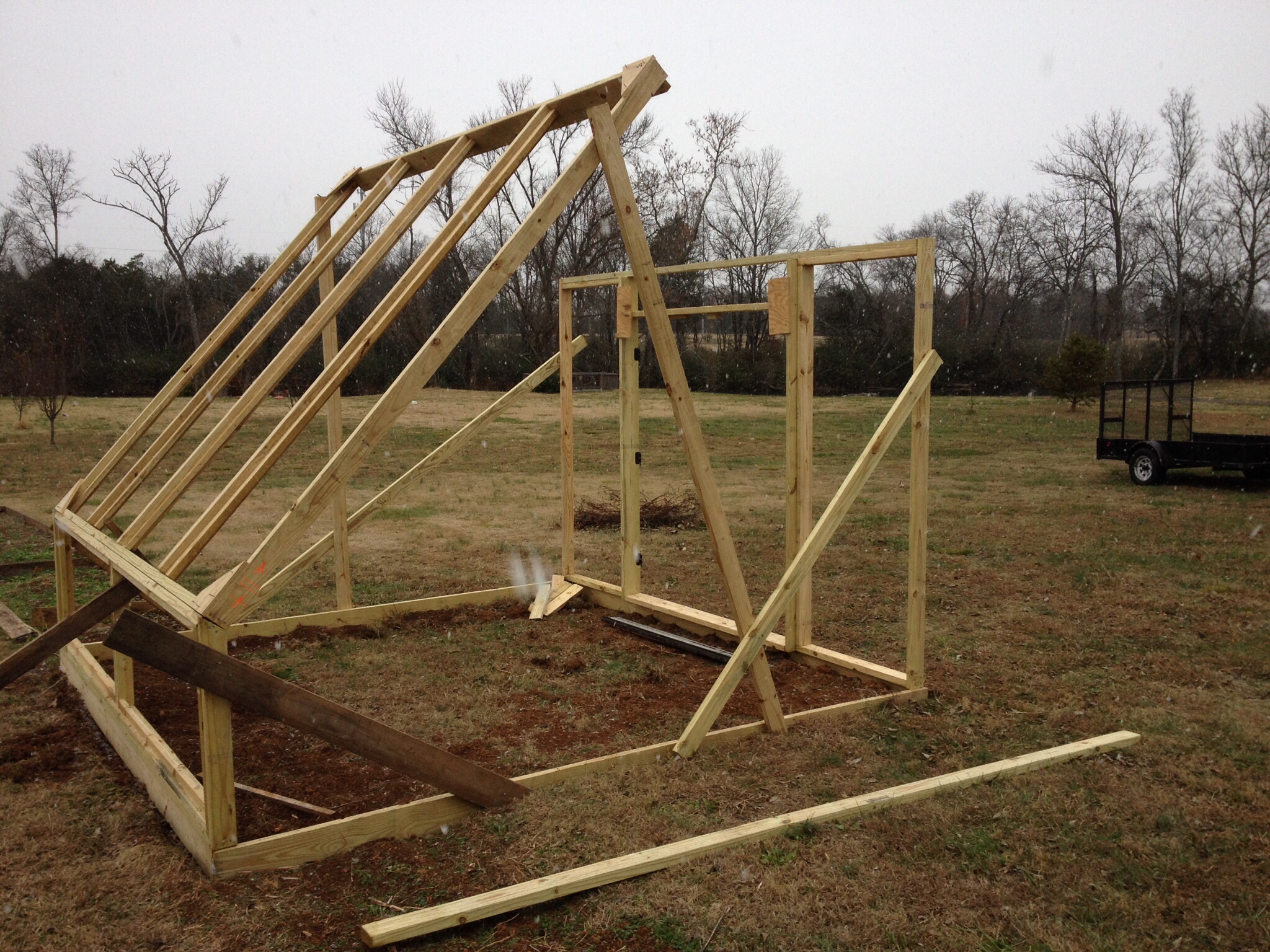

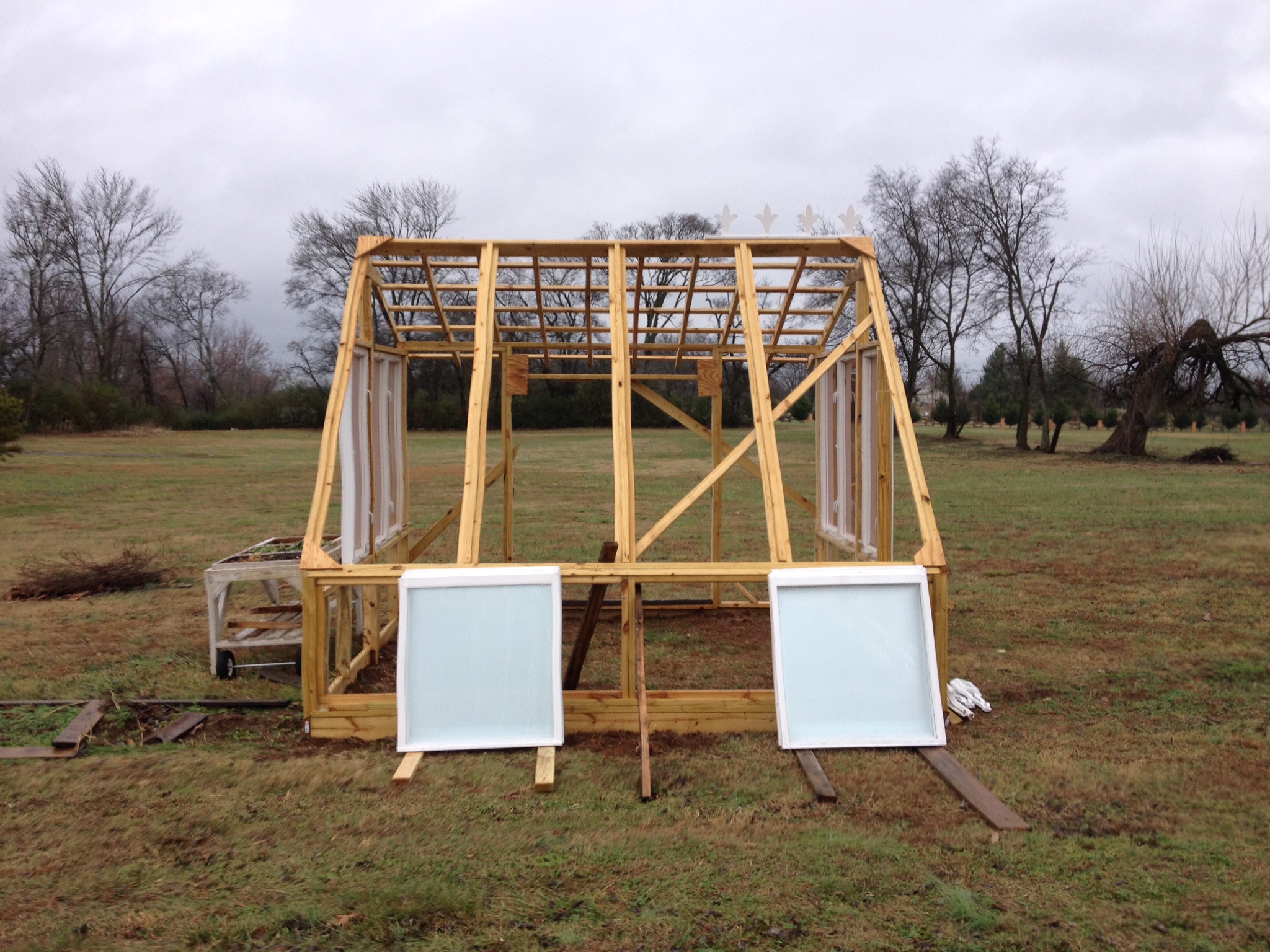

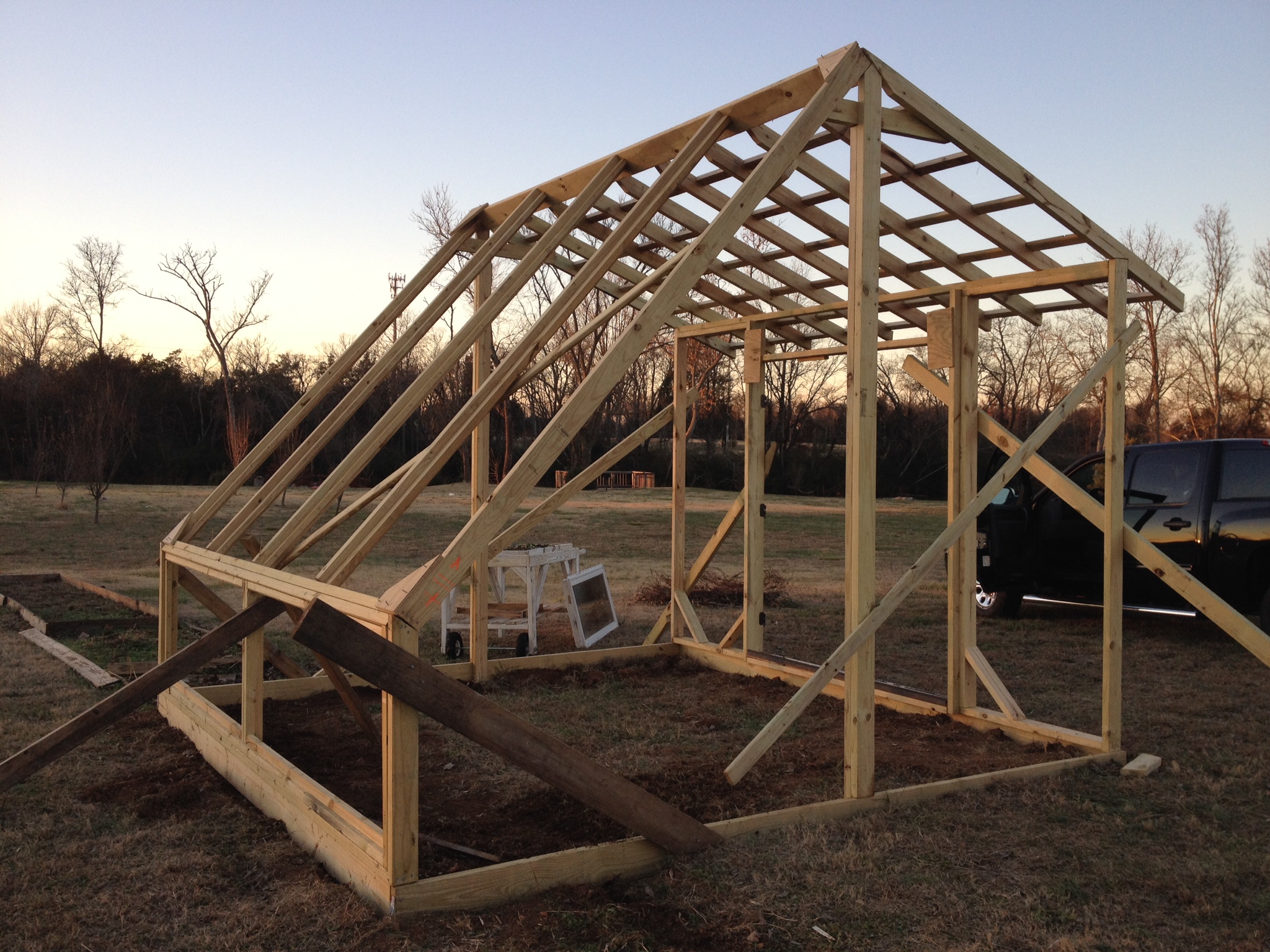

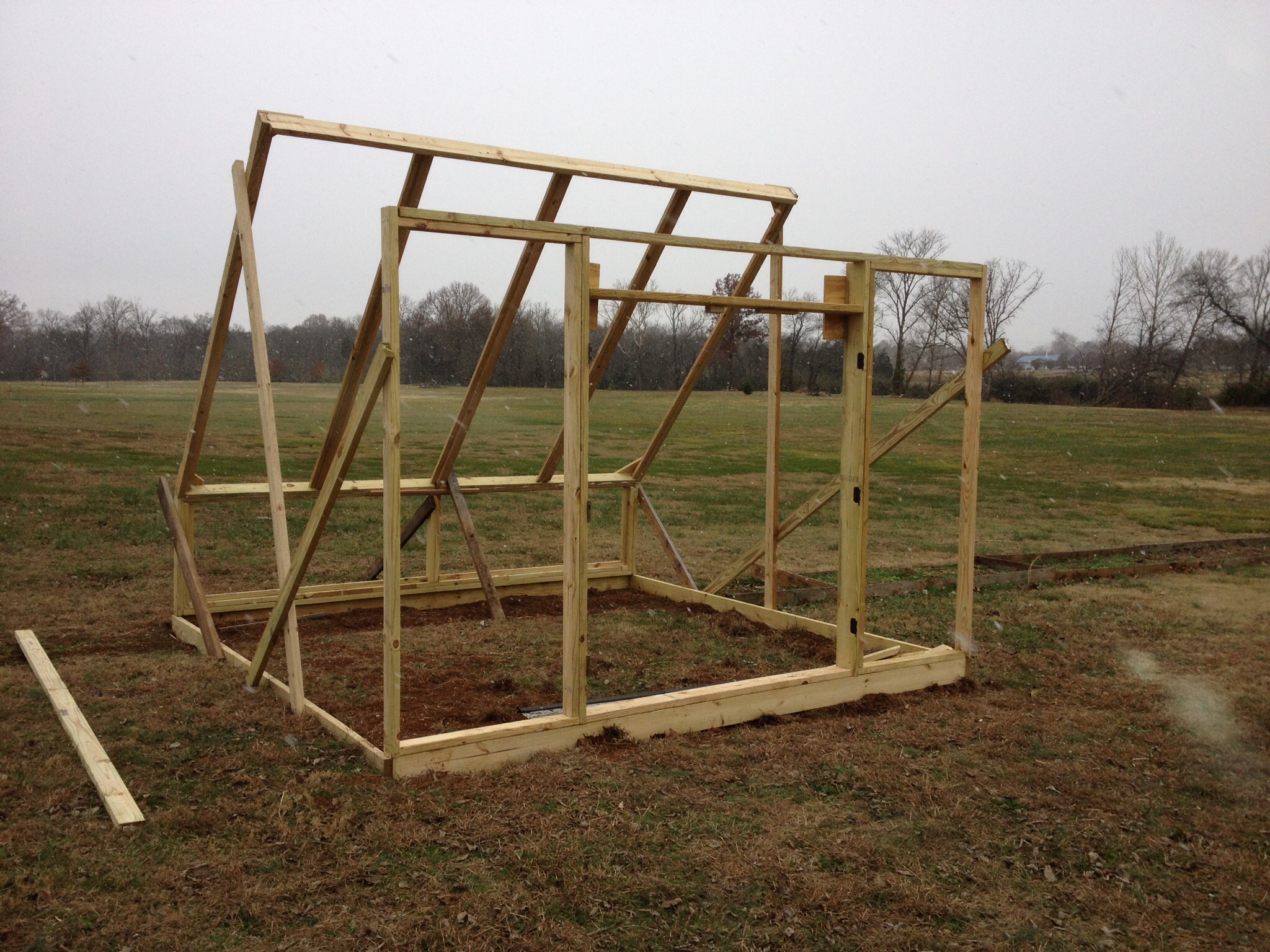

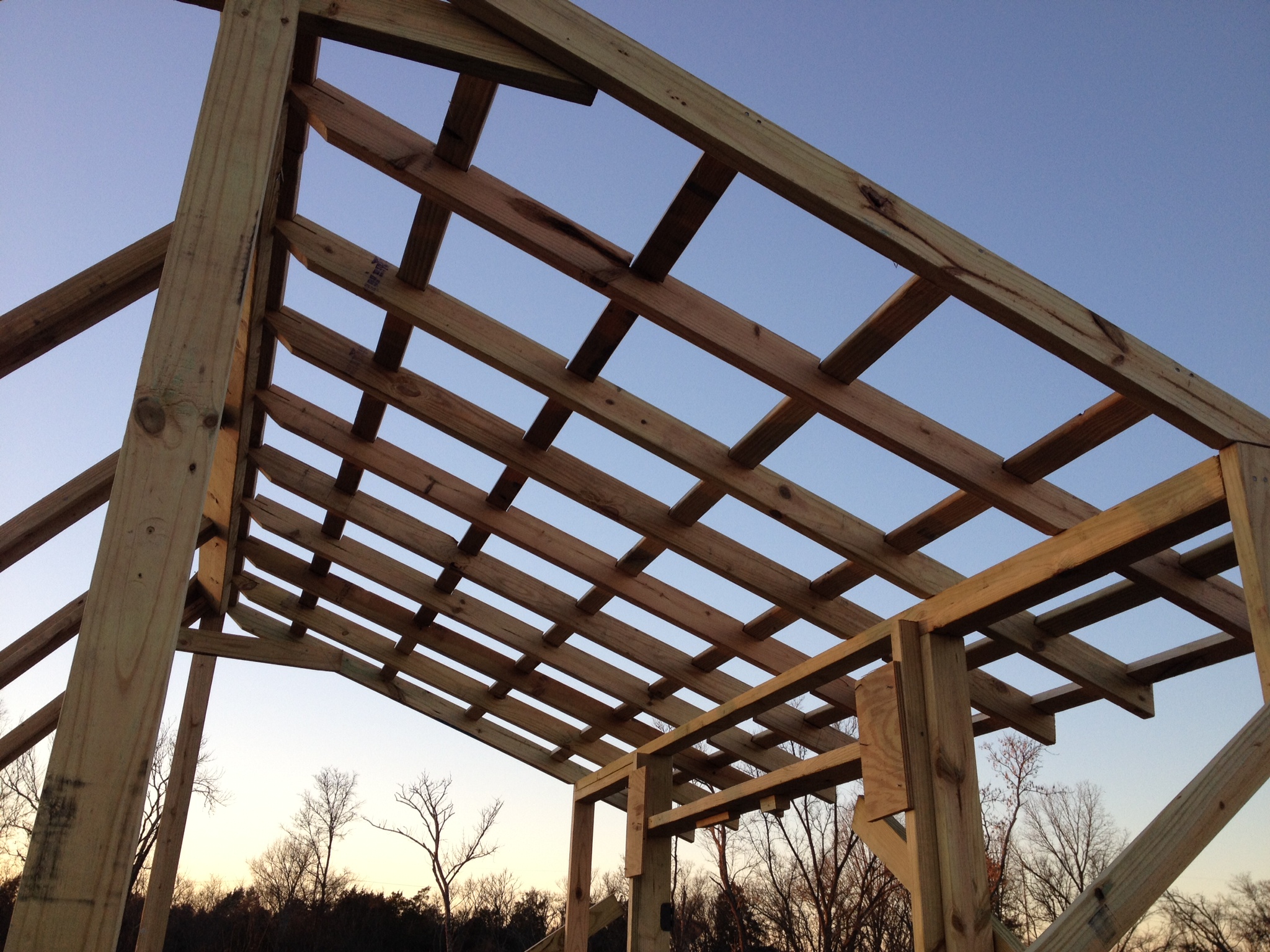

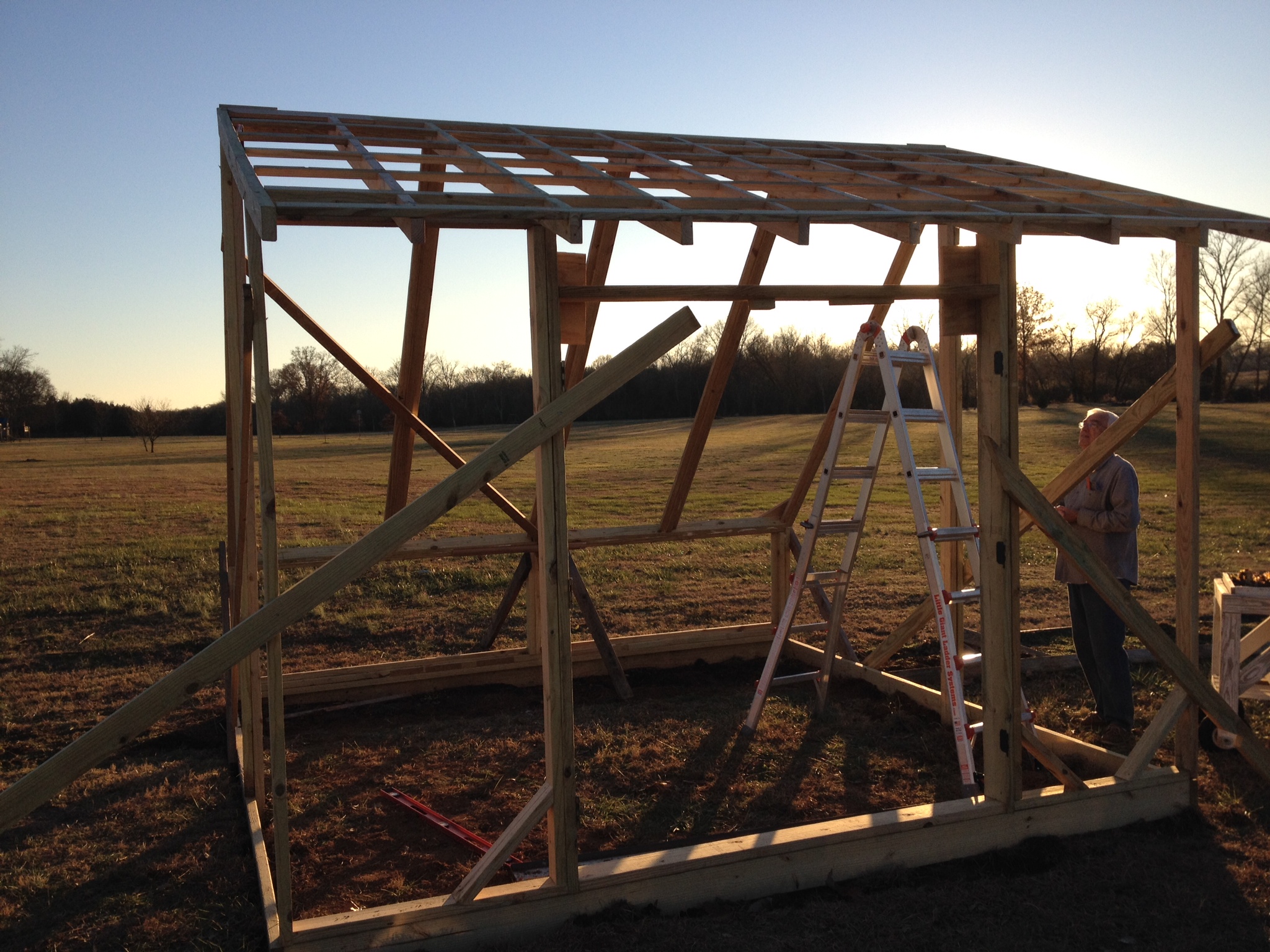

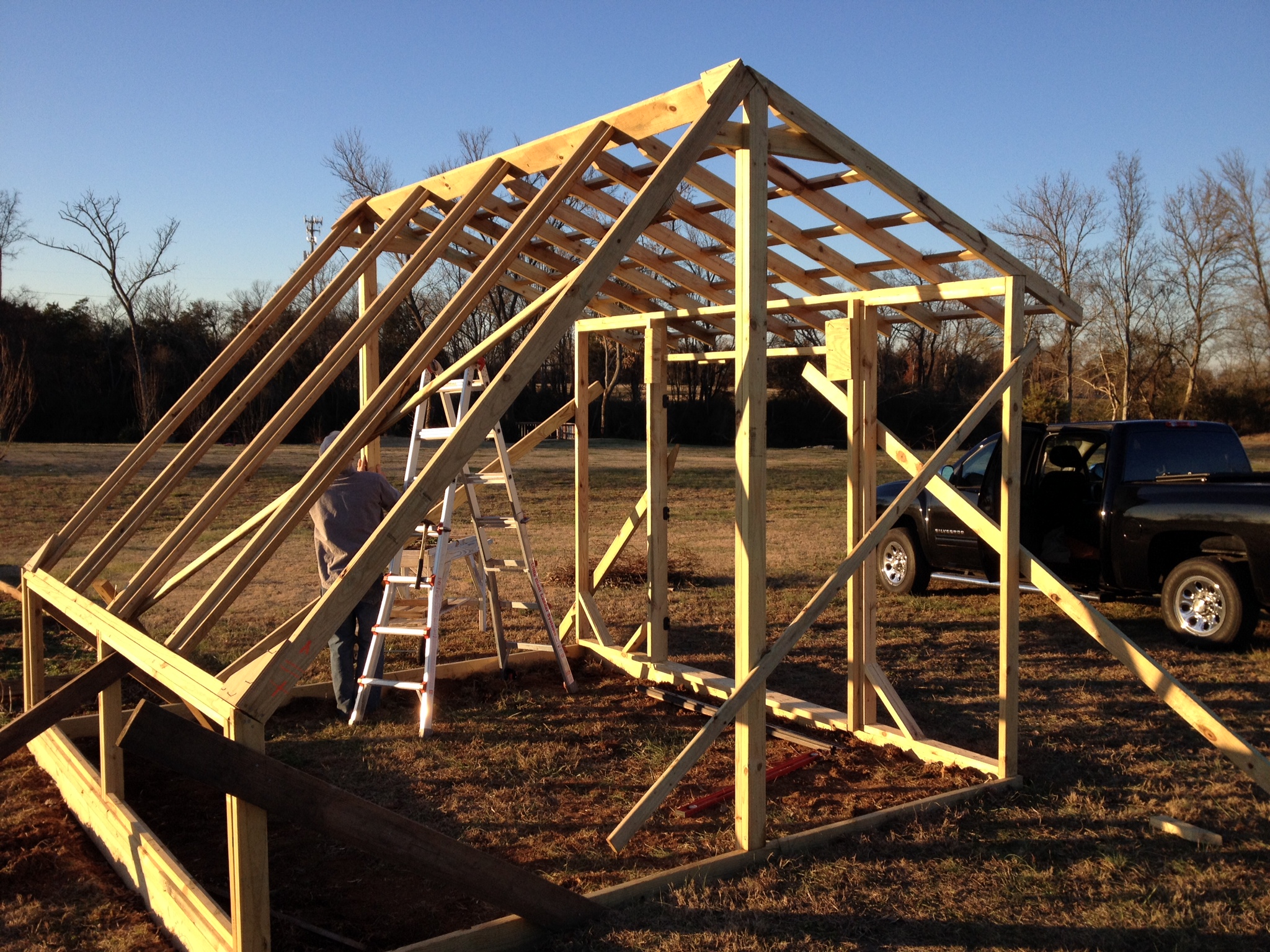

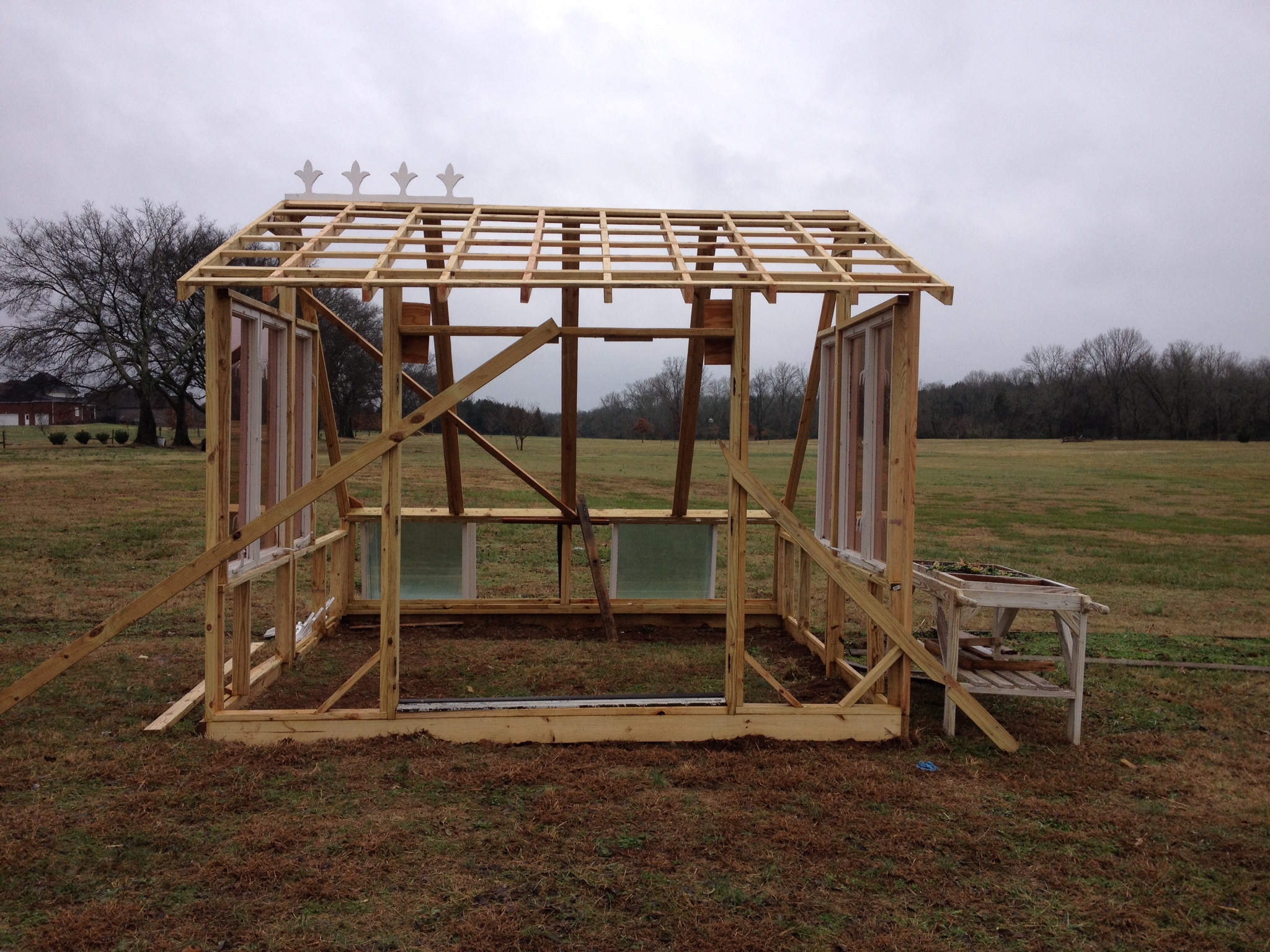

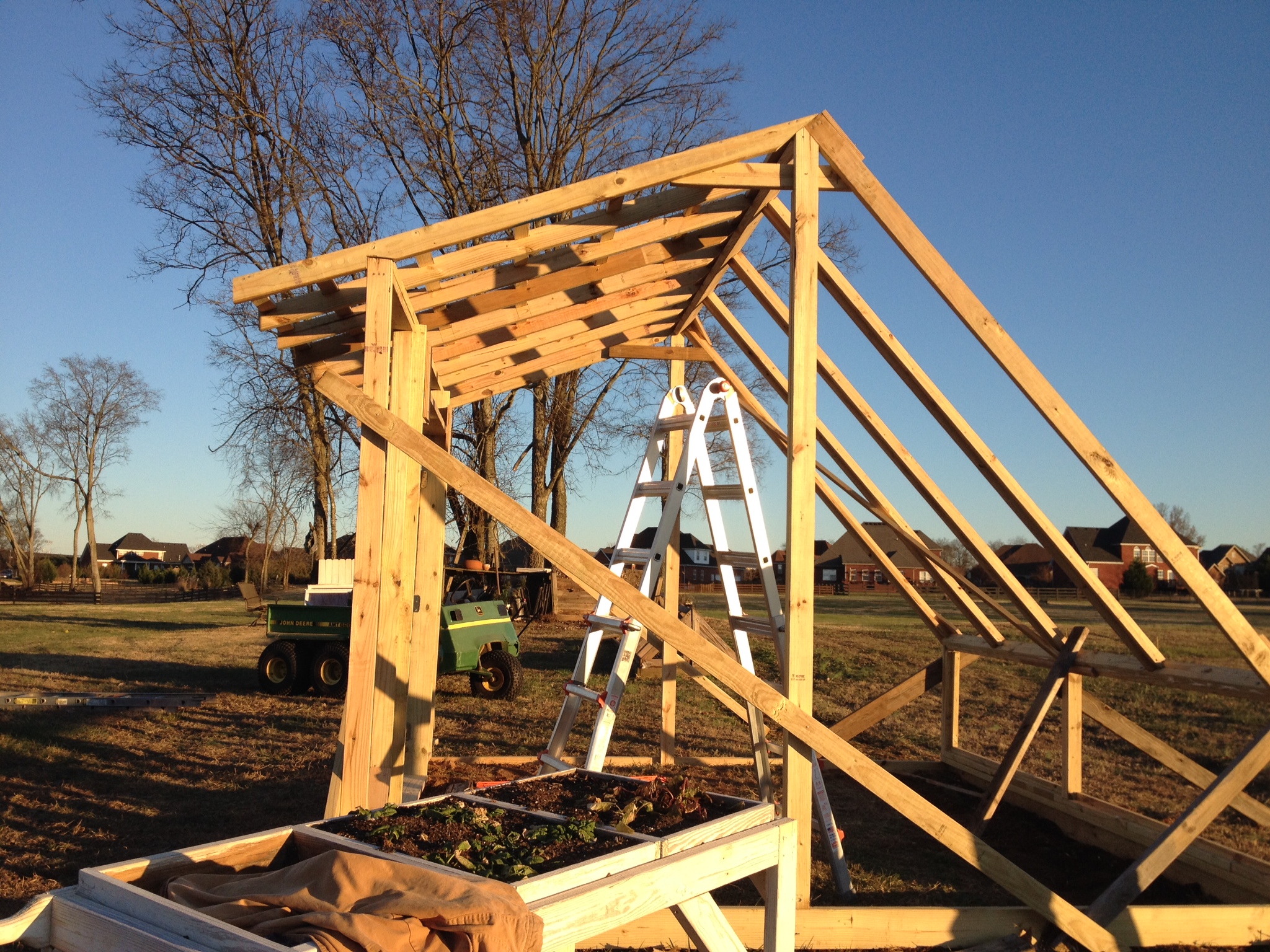

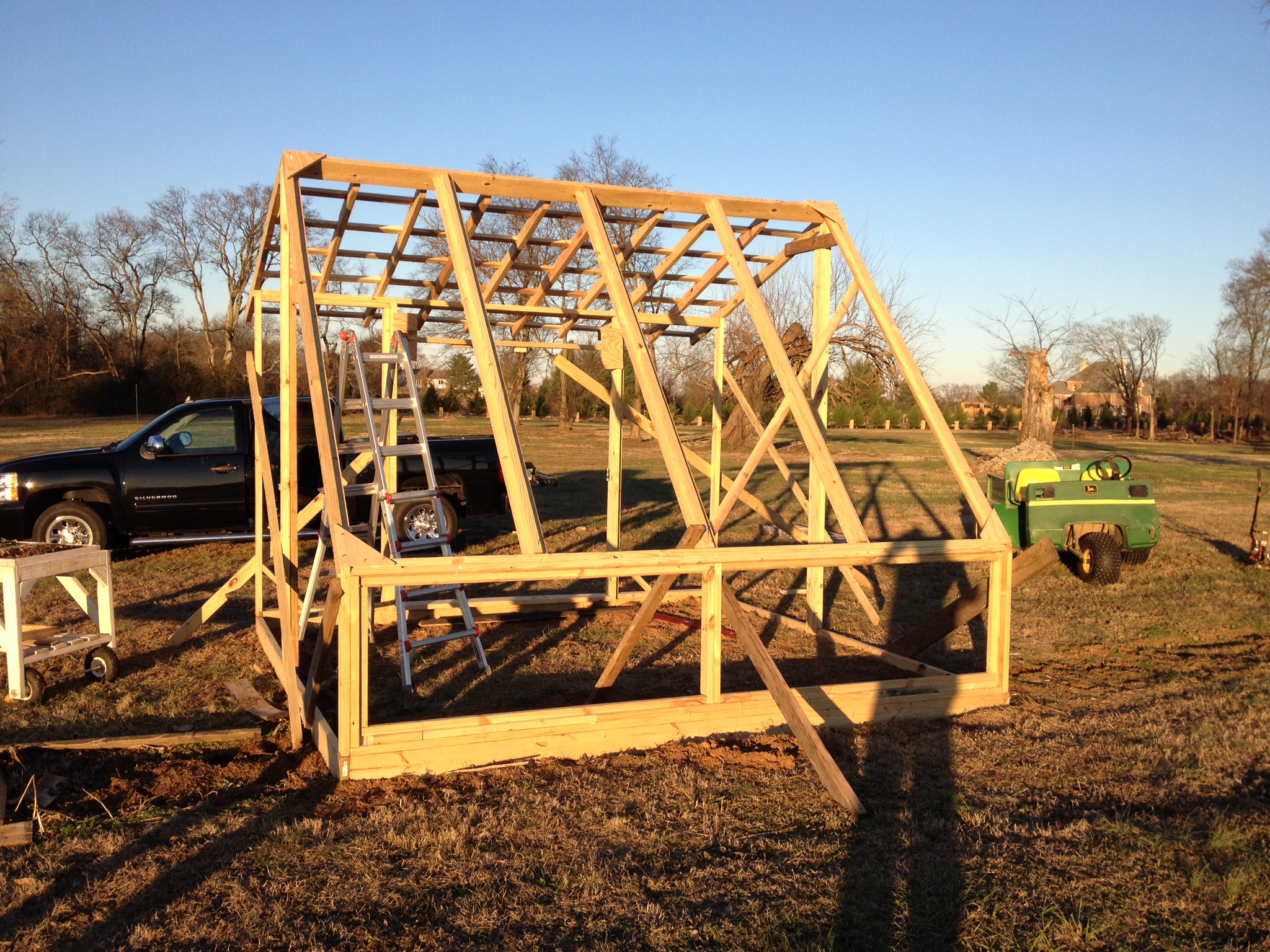

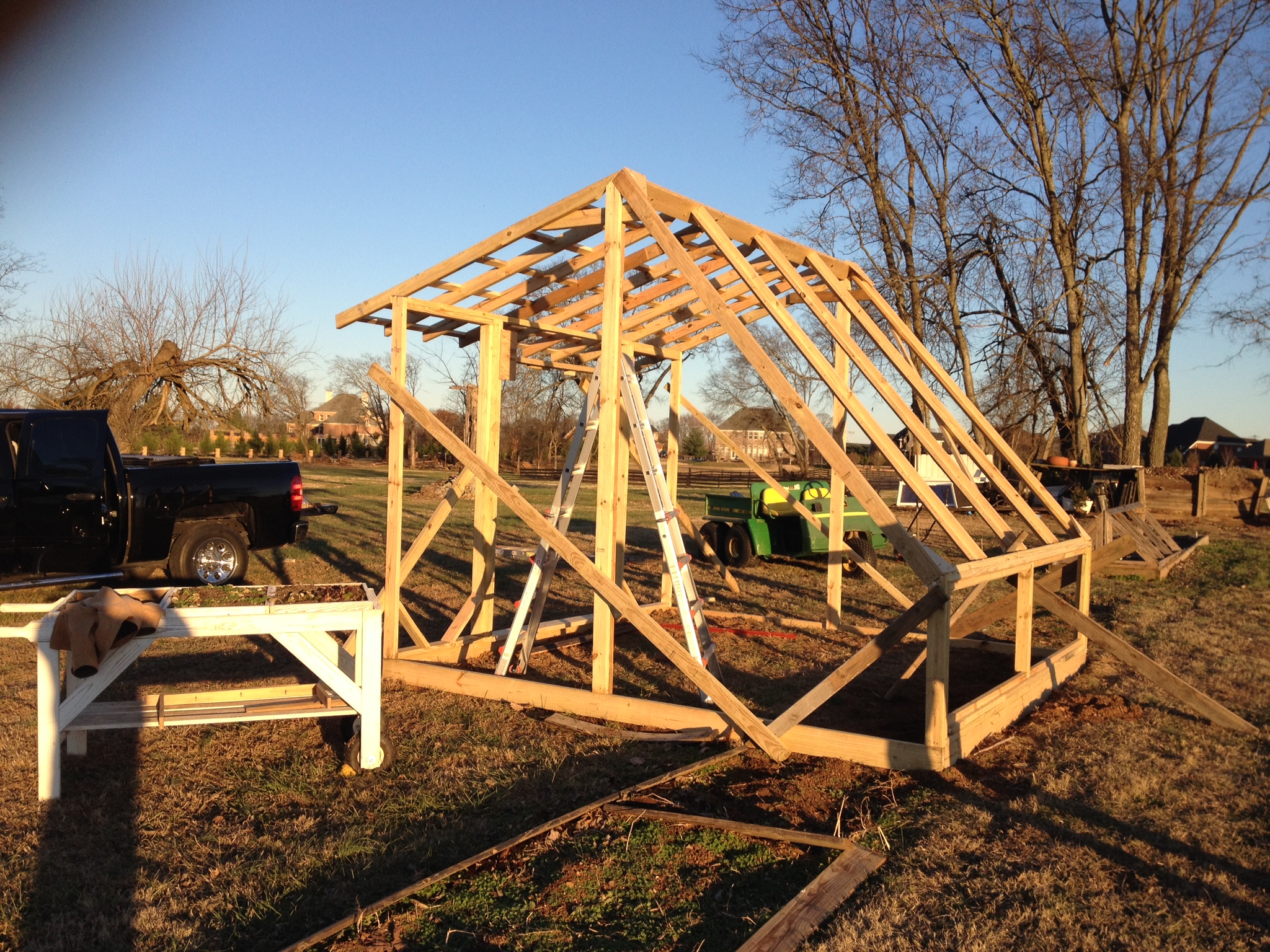

Final Framing, Ridge and Roof Assembly.

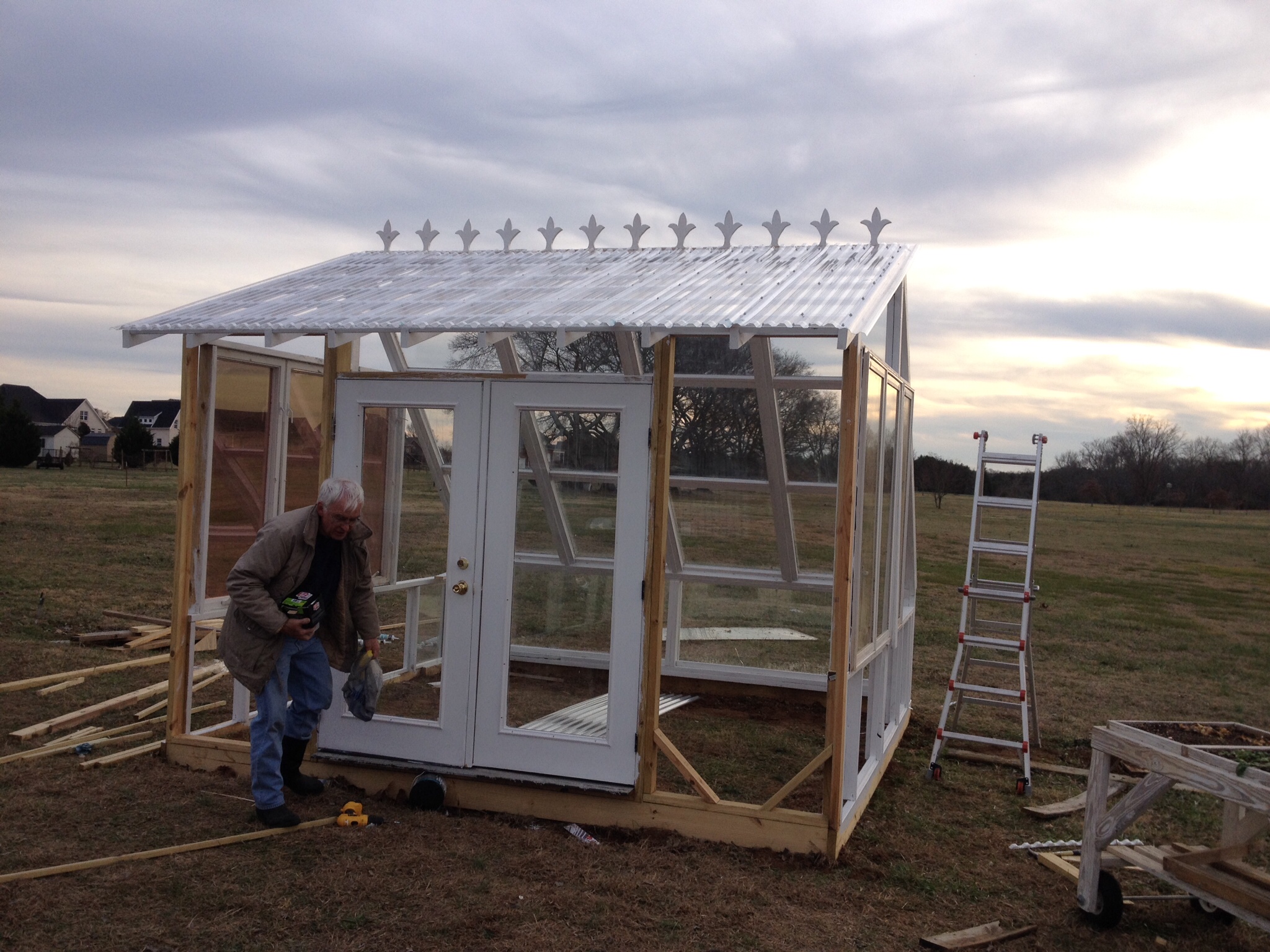

This is the final framing stage before the beginning of window installation. The rear / northern roof section will be covered in a corrugated translucent poly material from a local hardware store. It was constructed in such a way as the corrugated material will sir flush on the lath and seal out any drafts. I will insulate the inside of the northern roof section with clear plastic.

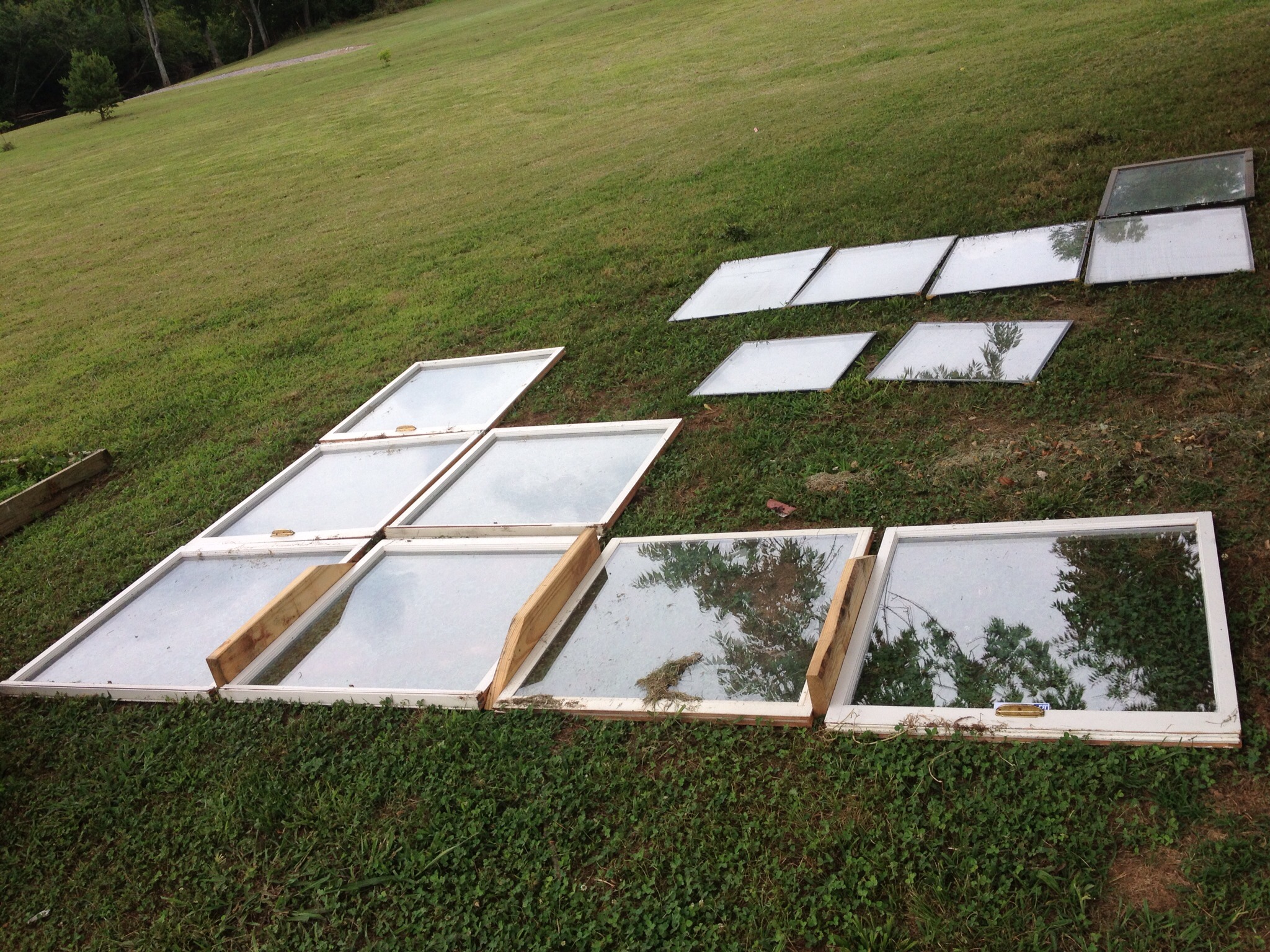

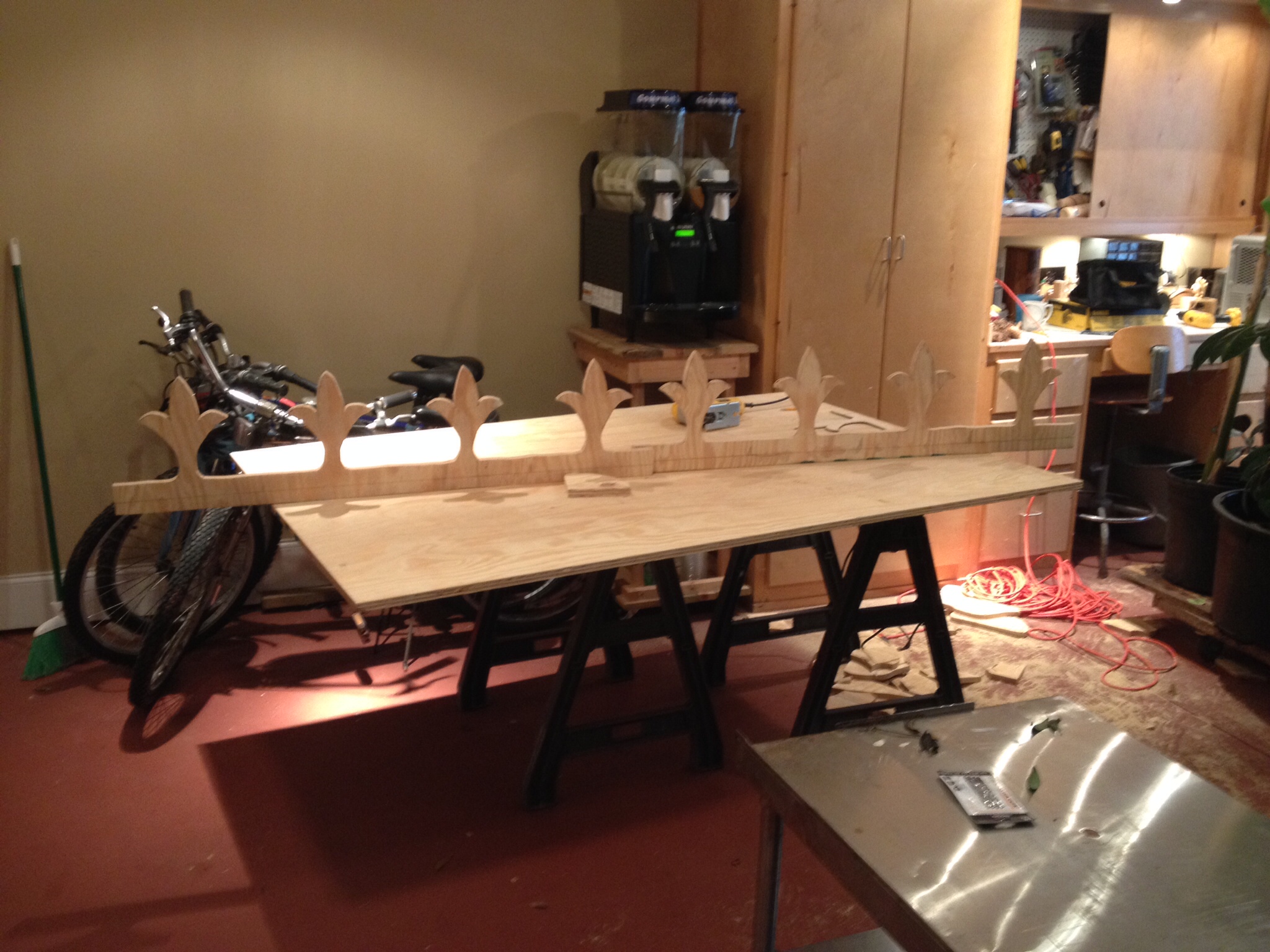

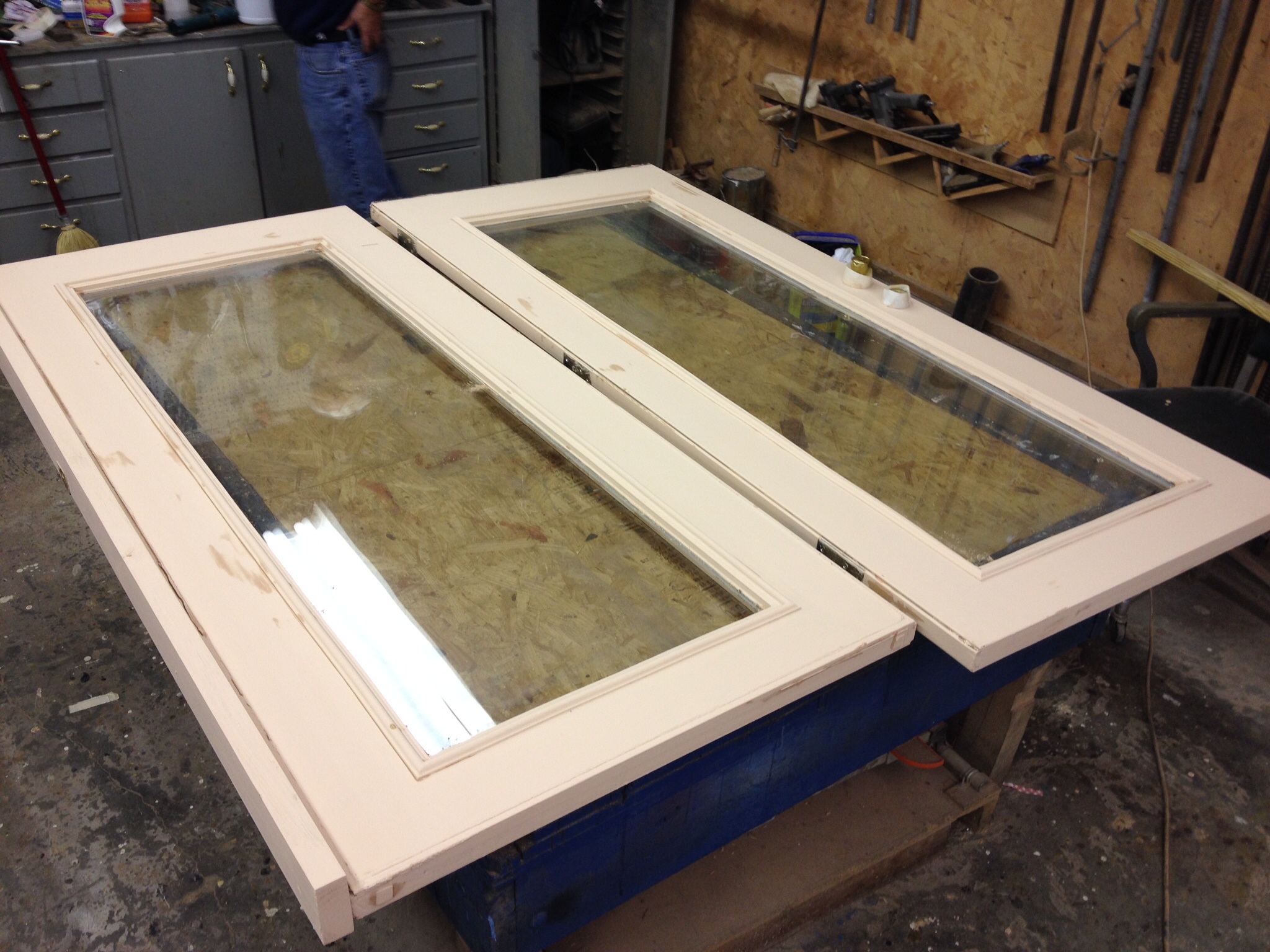

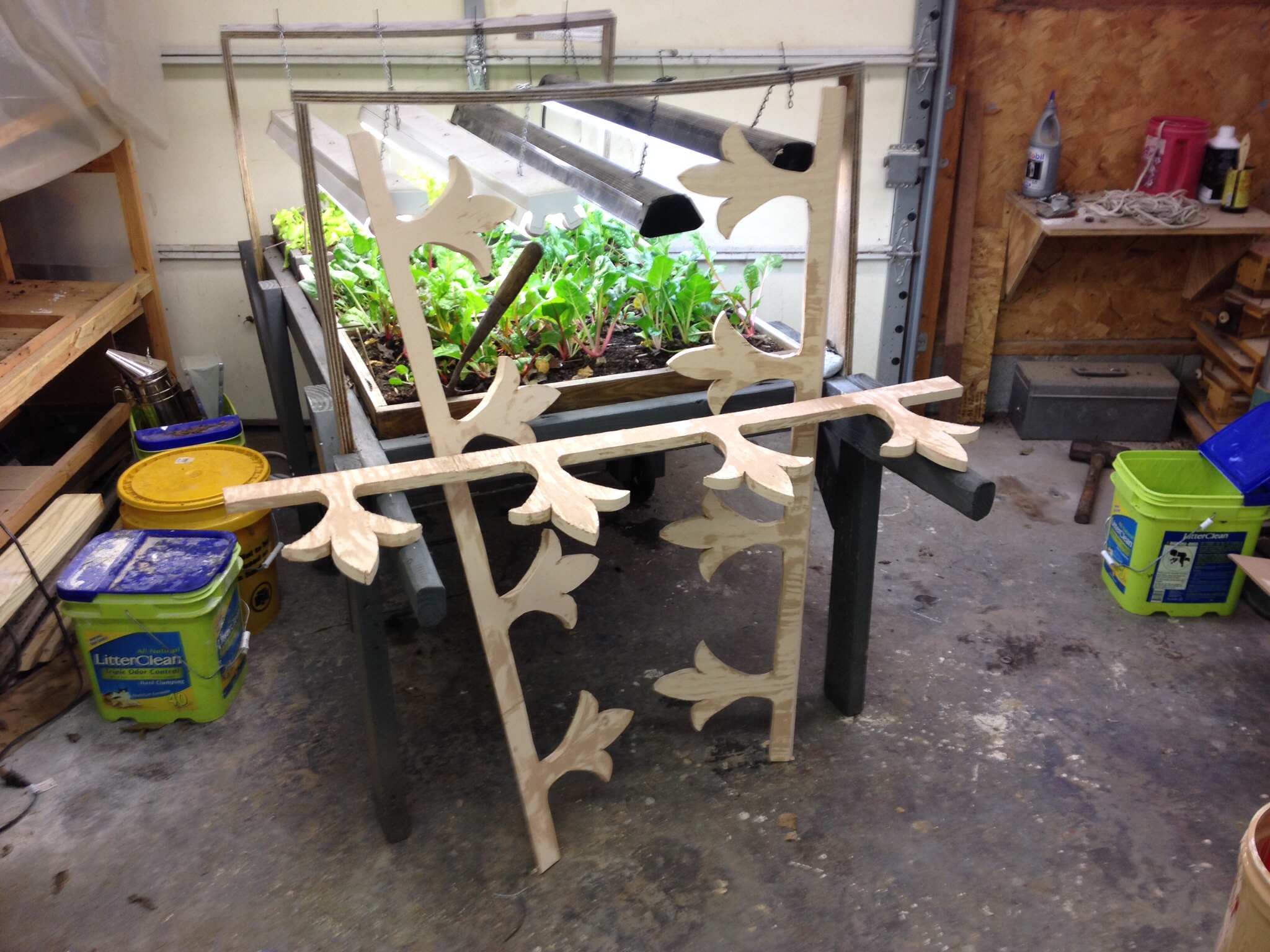

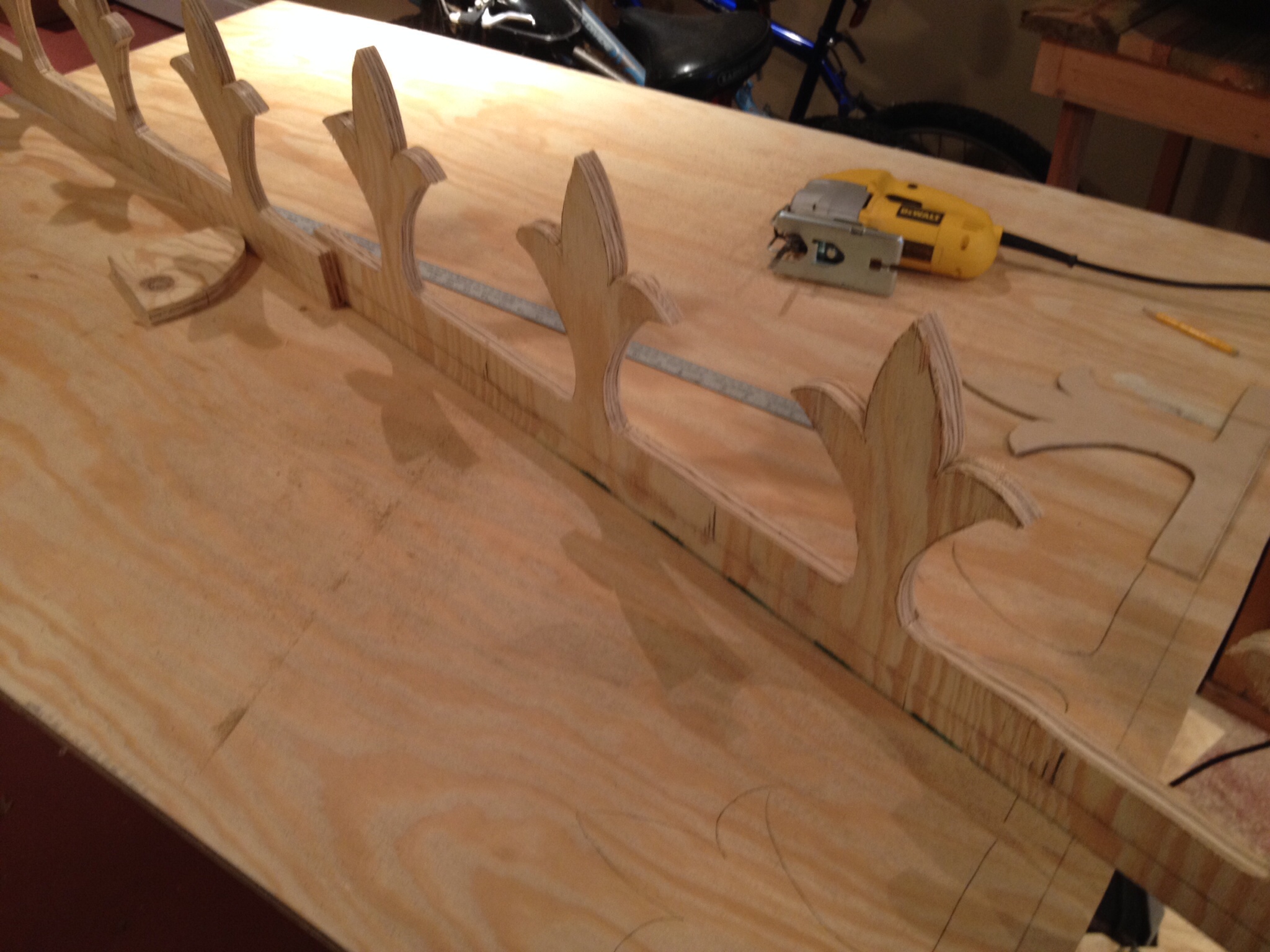

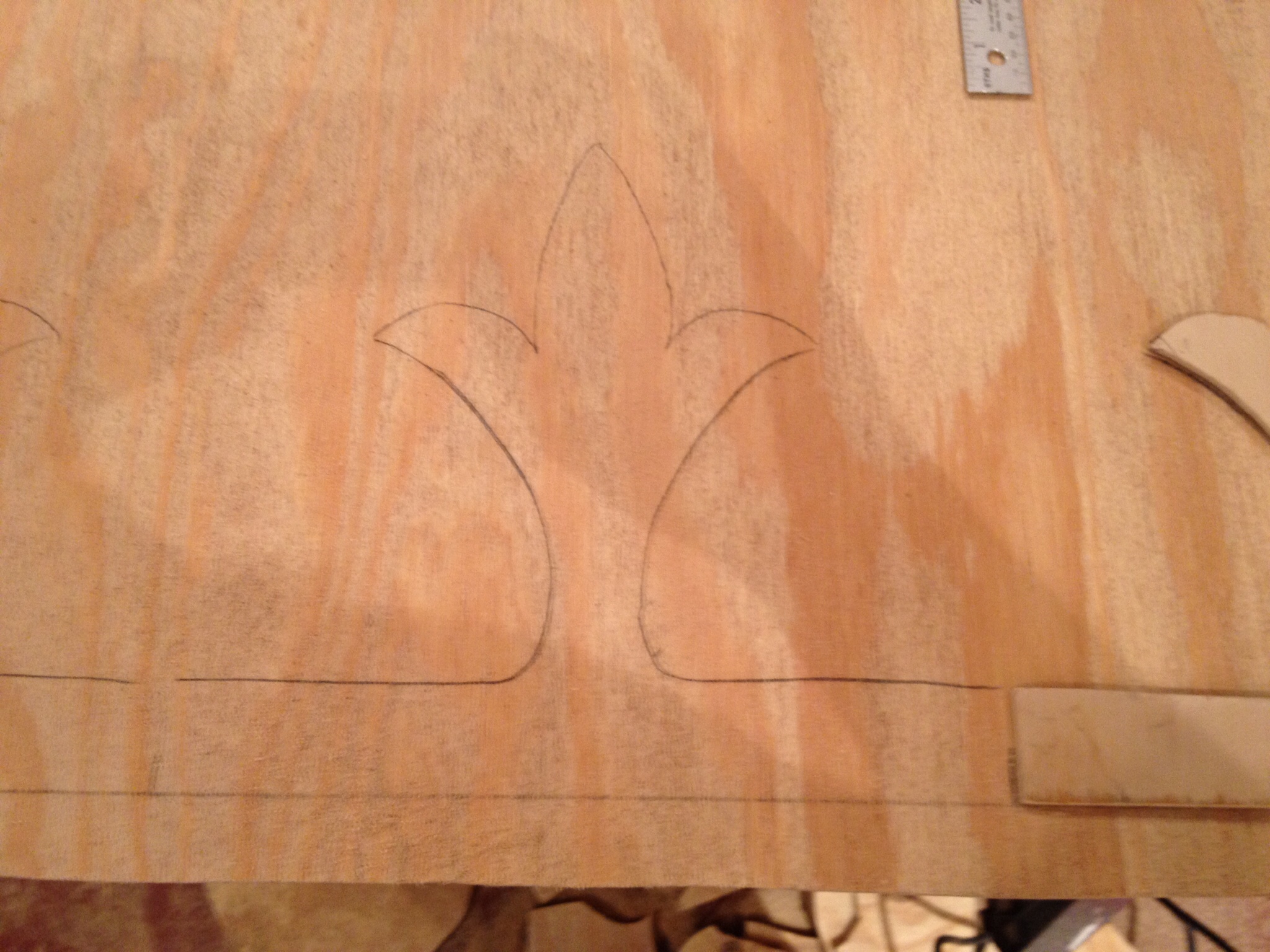

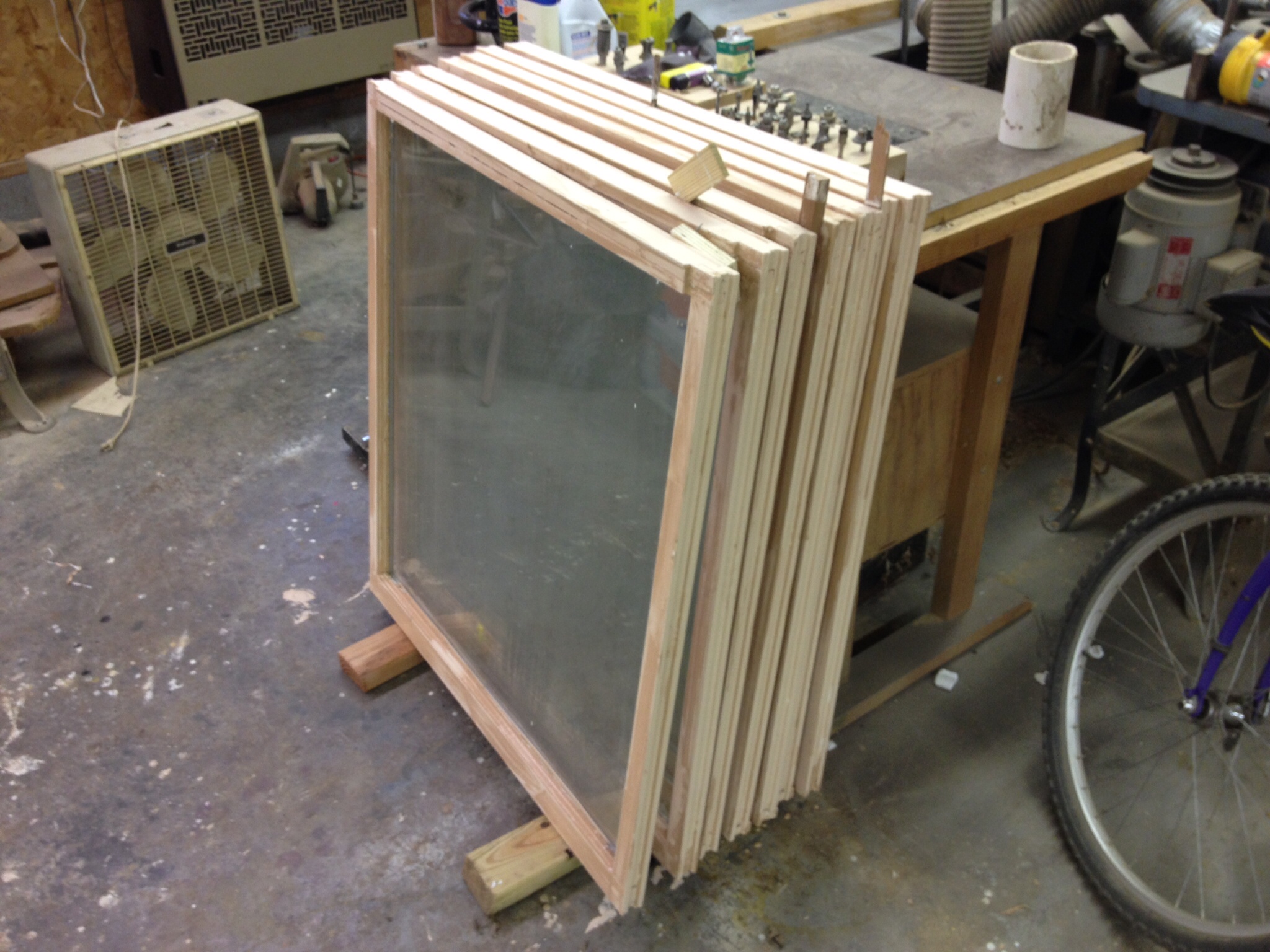

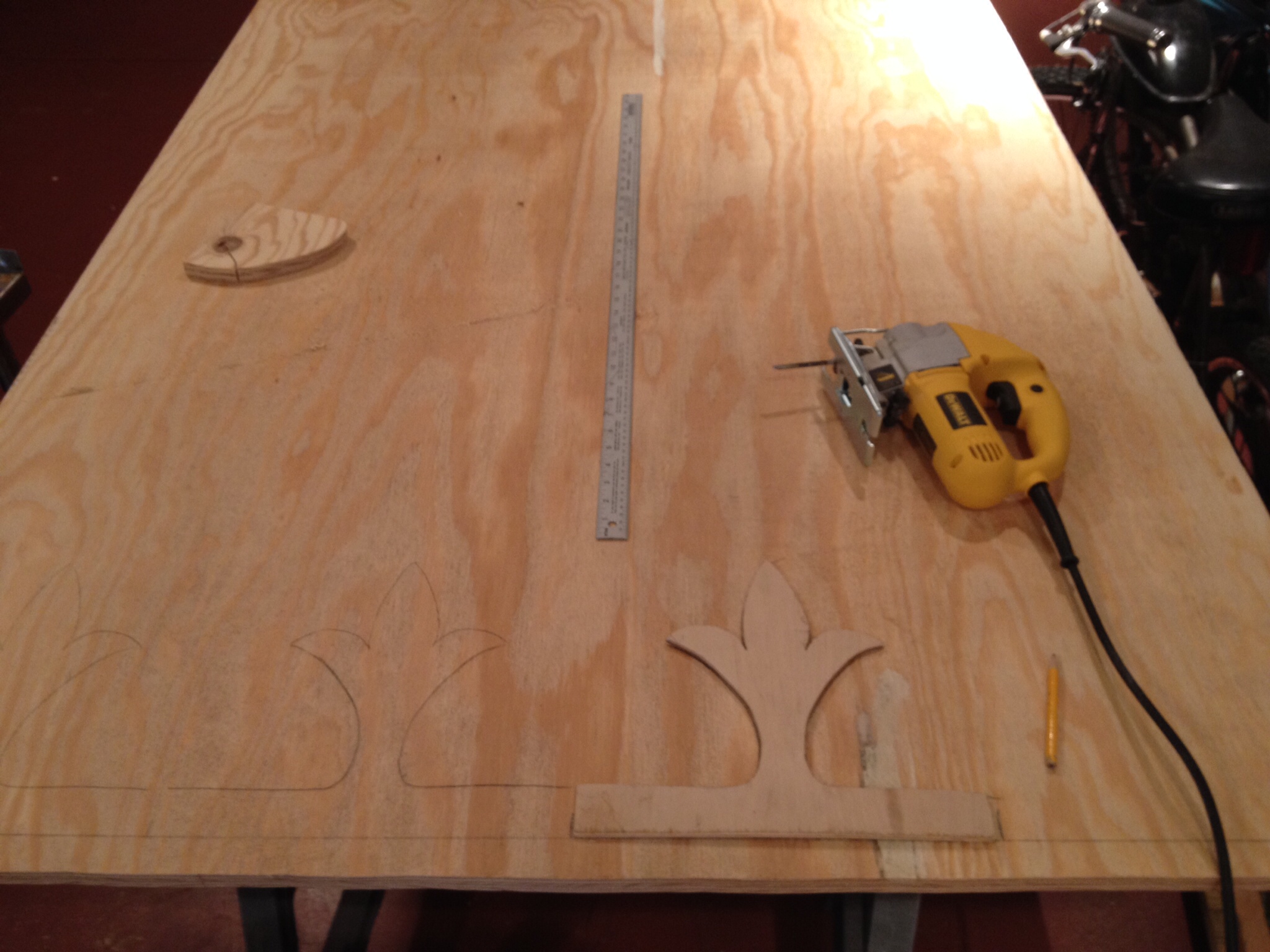

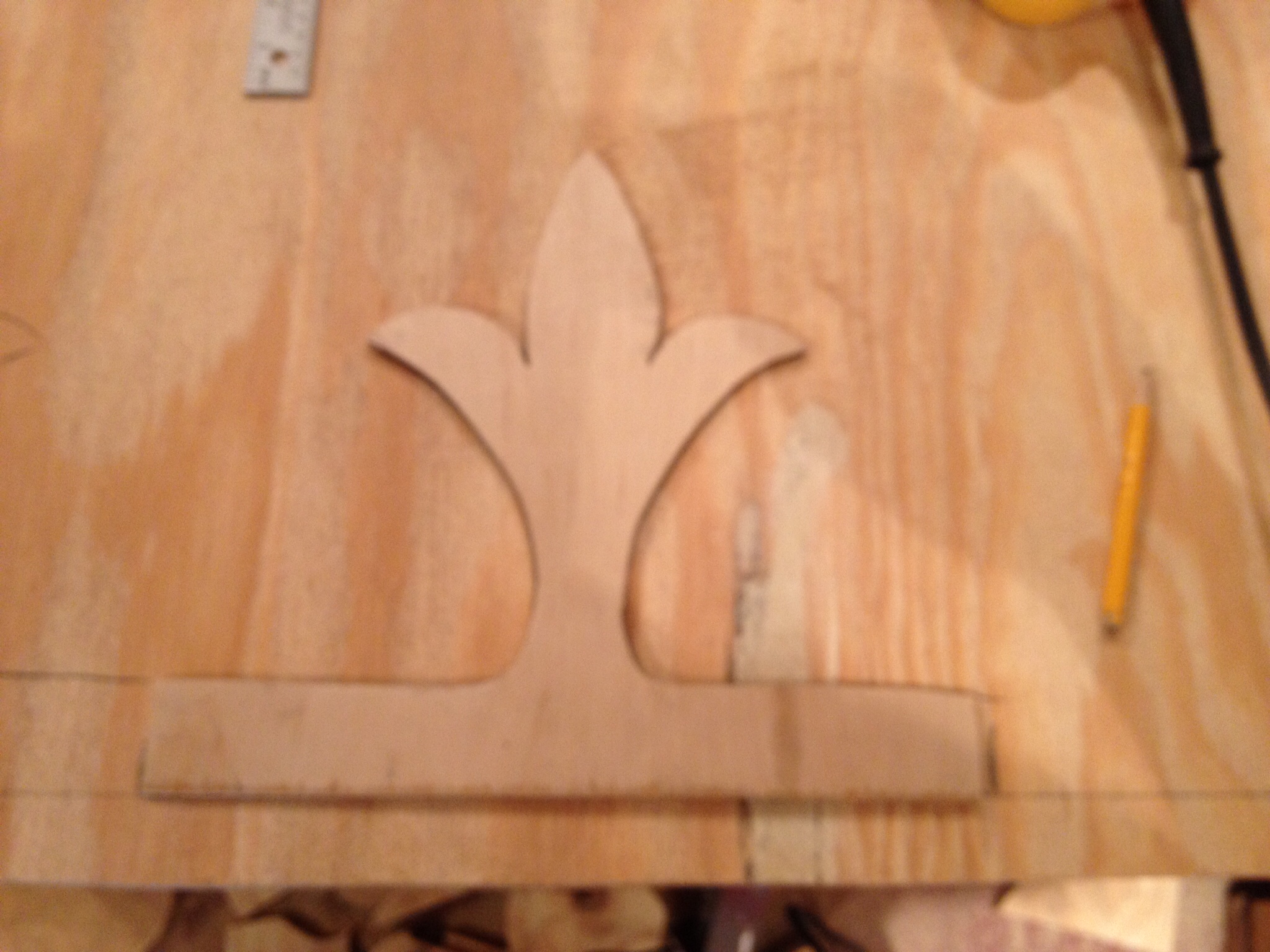

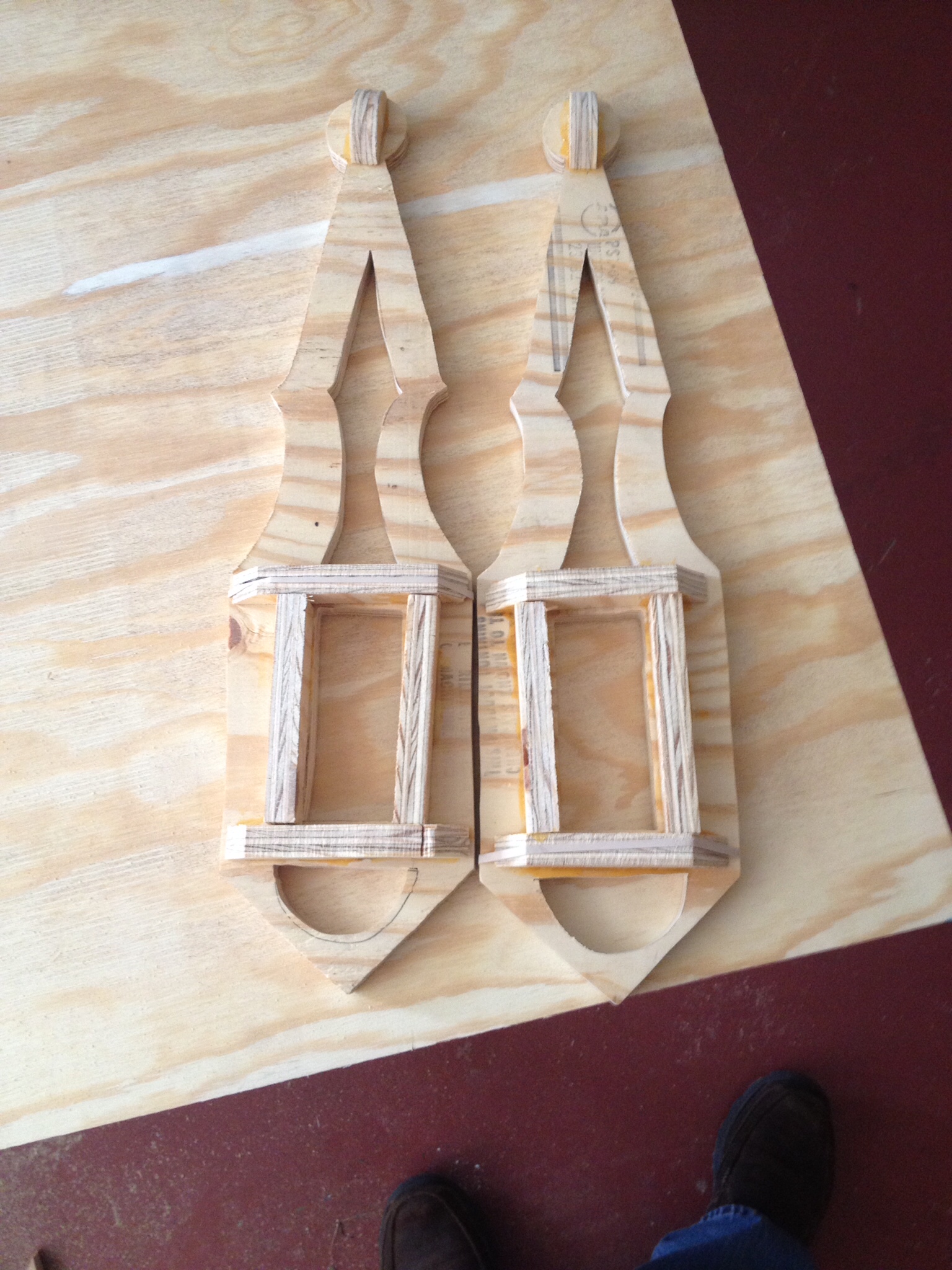

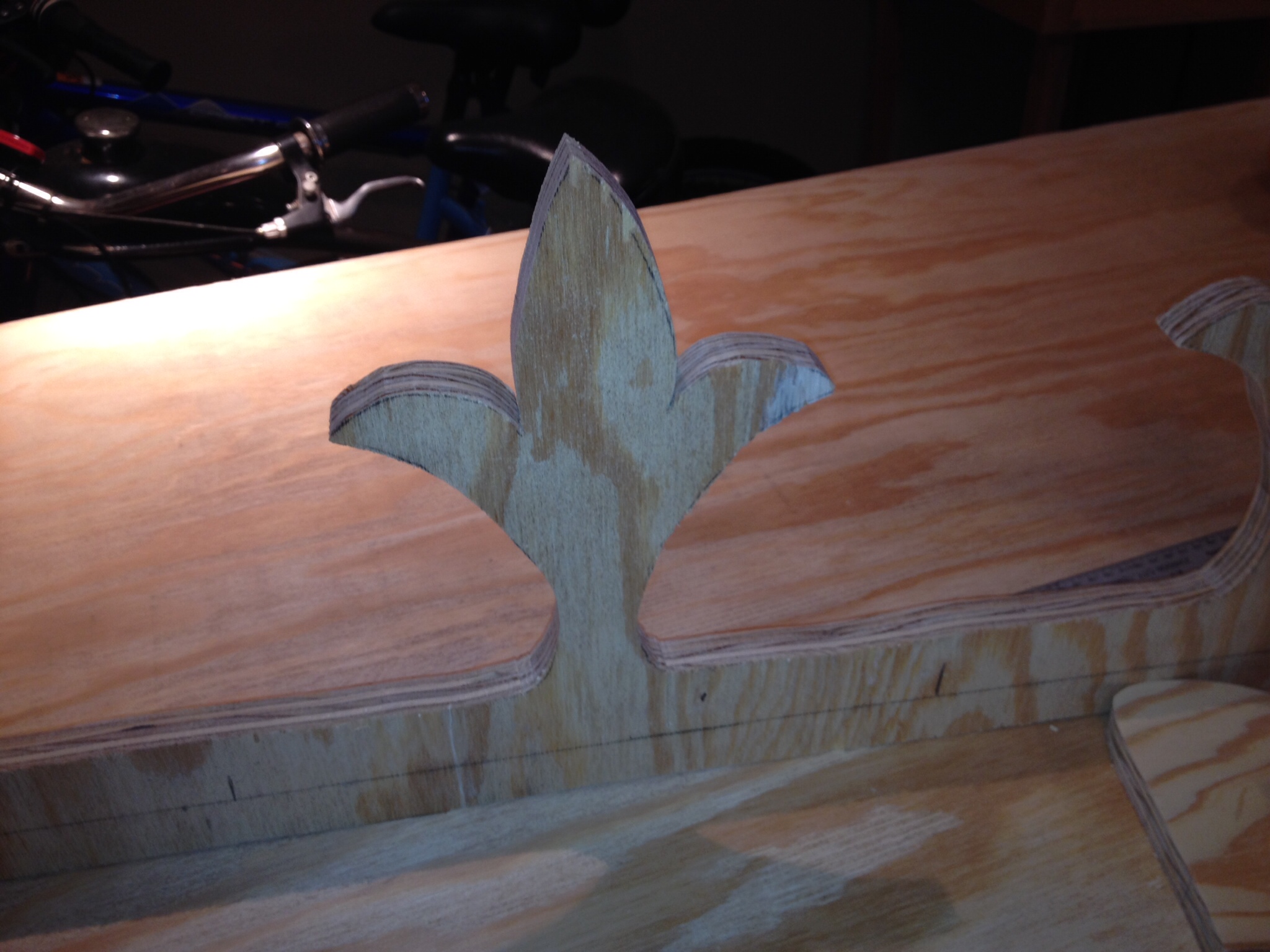

Preparing the Windows, Doors, and Trim Pieces for Installation

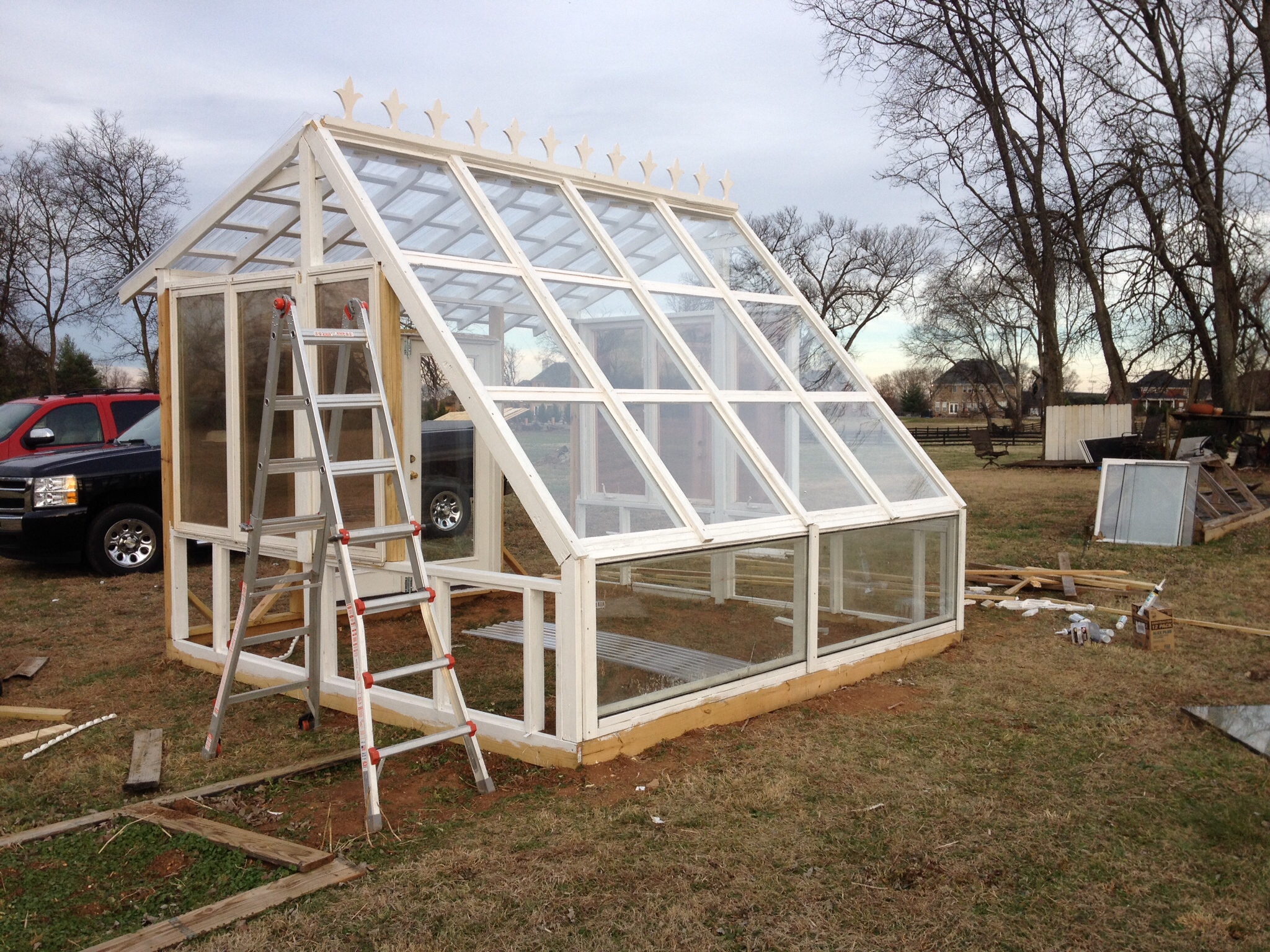

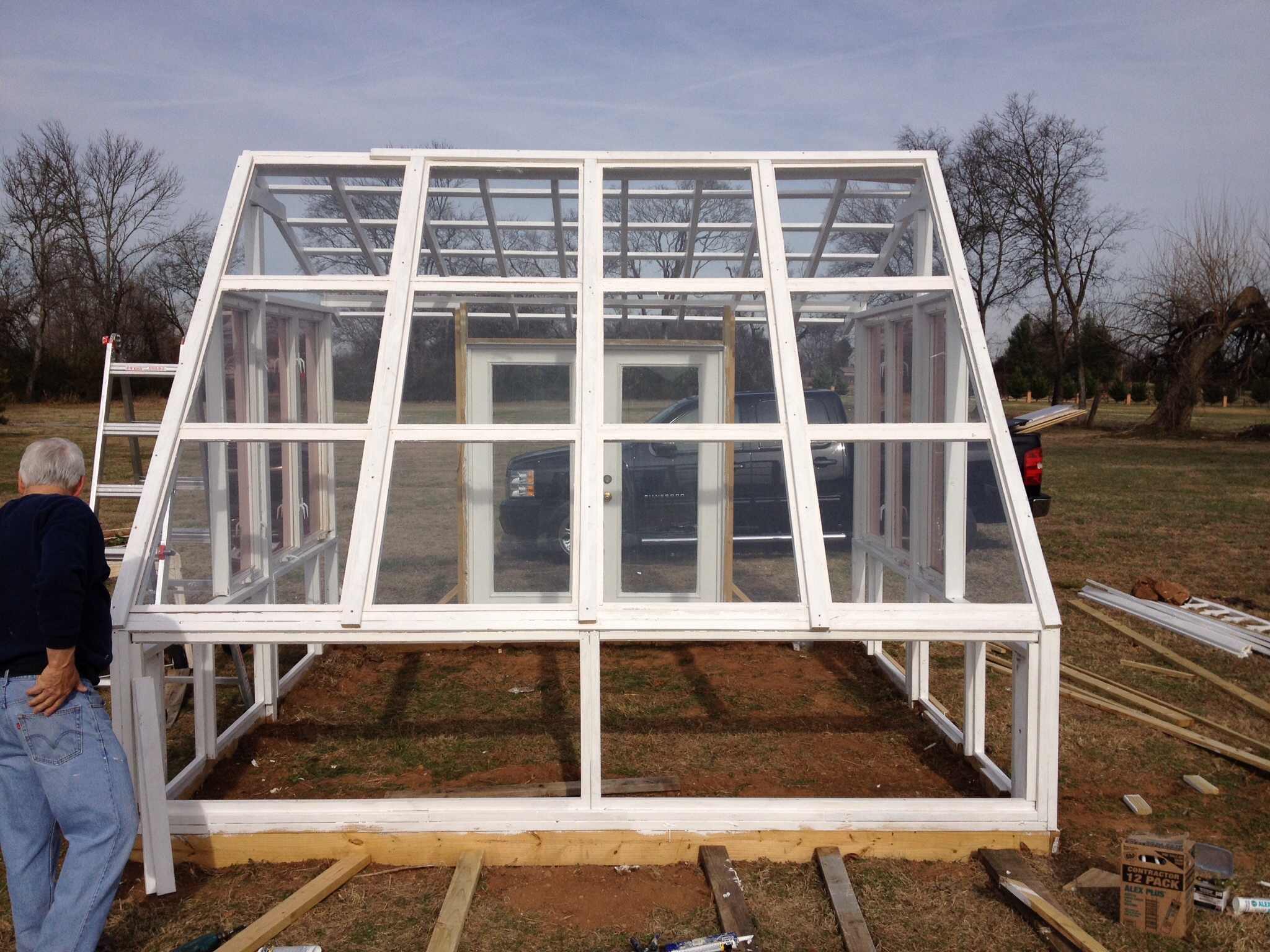

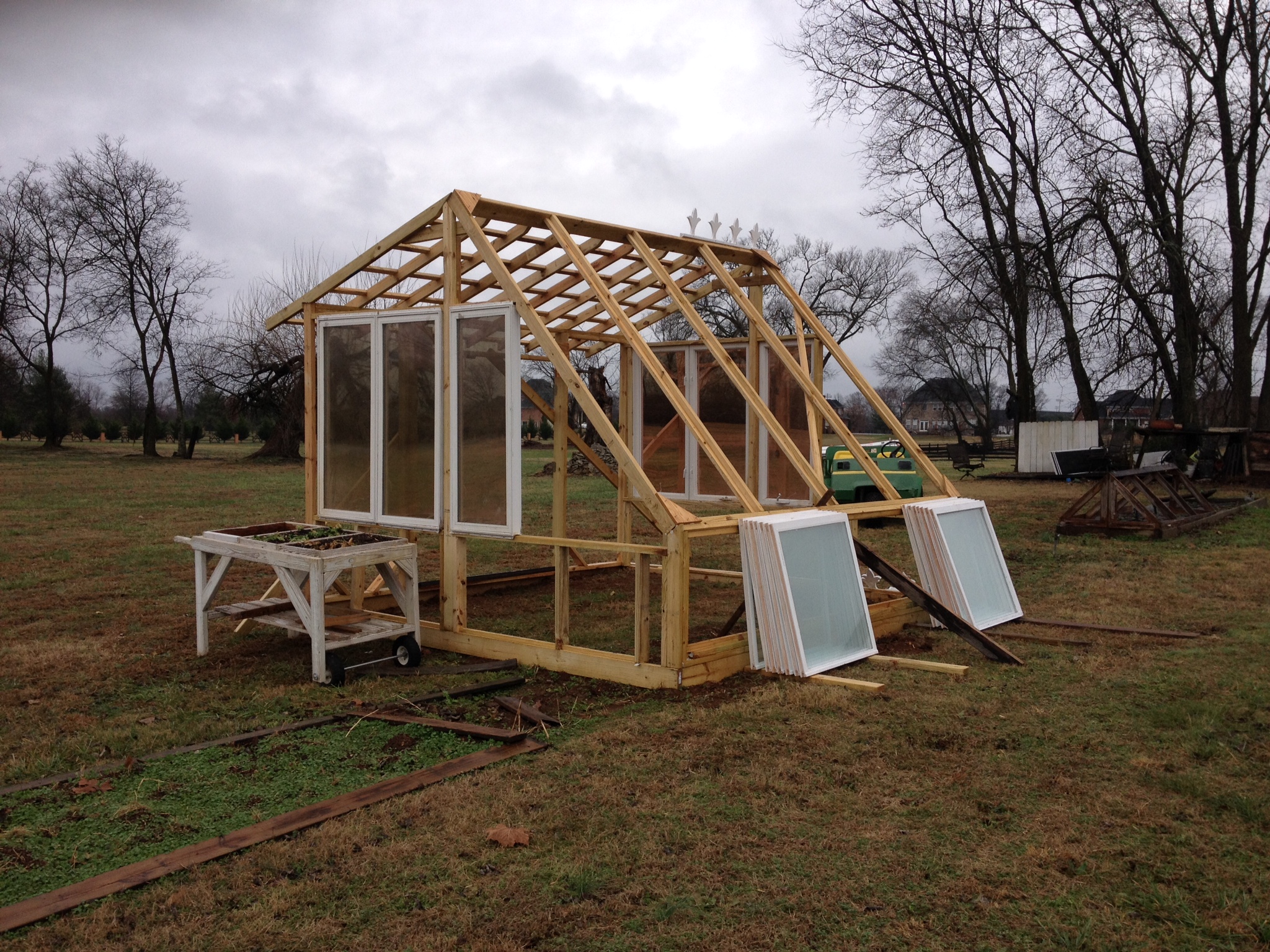

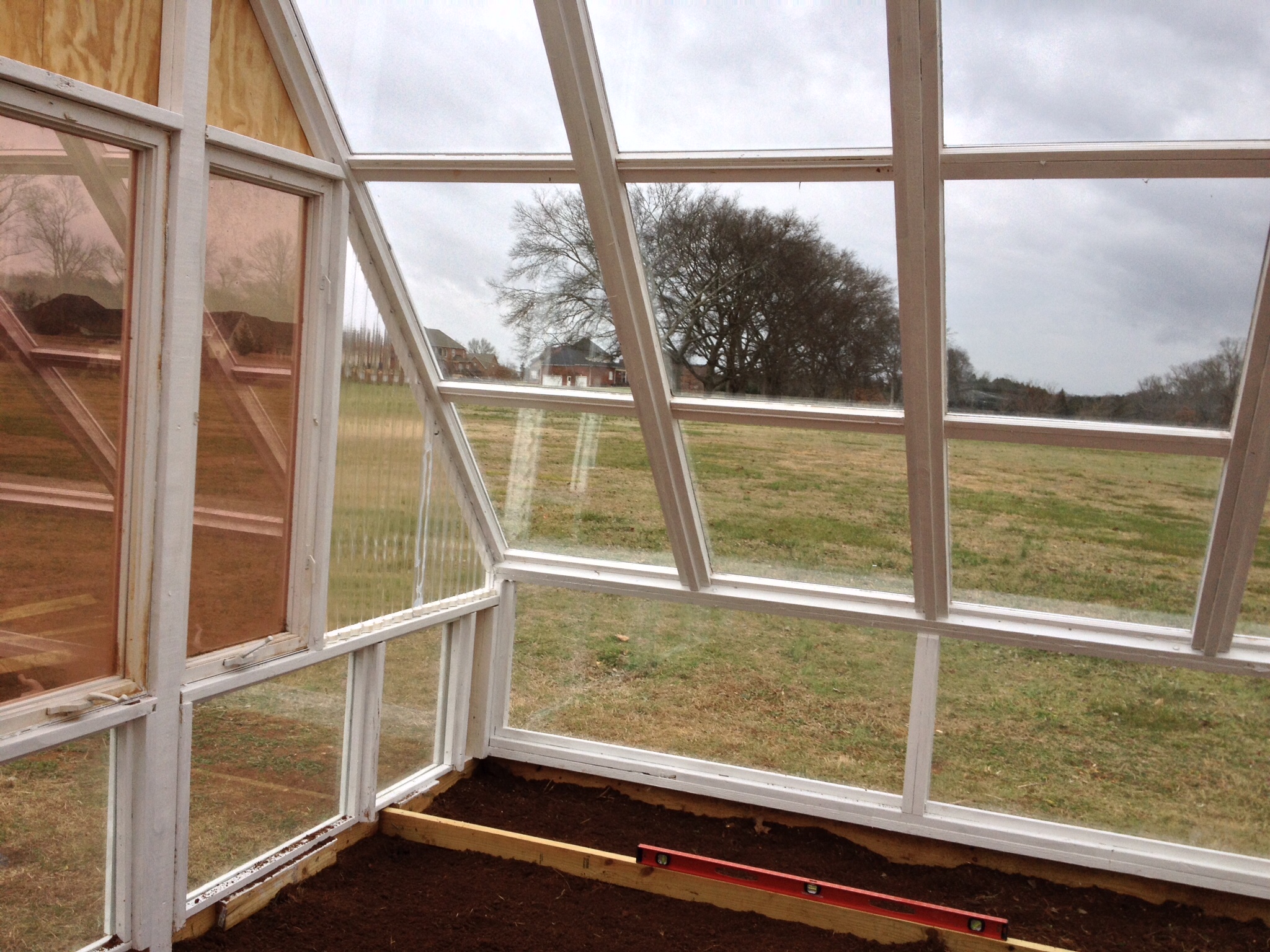

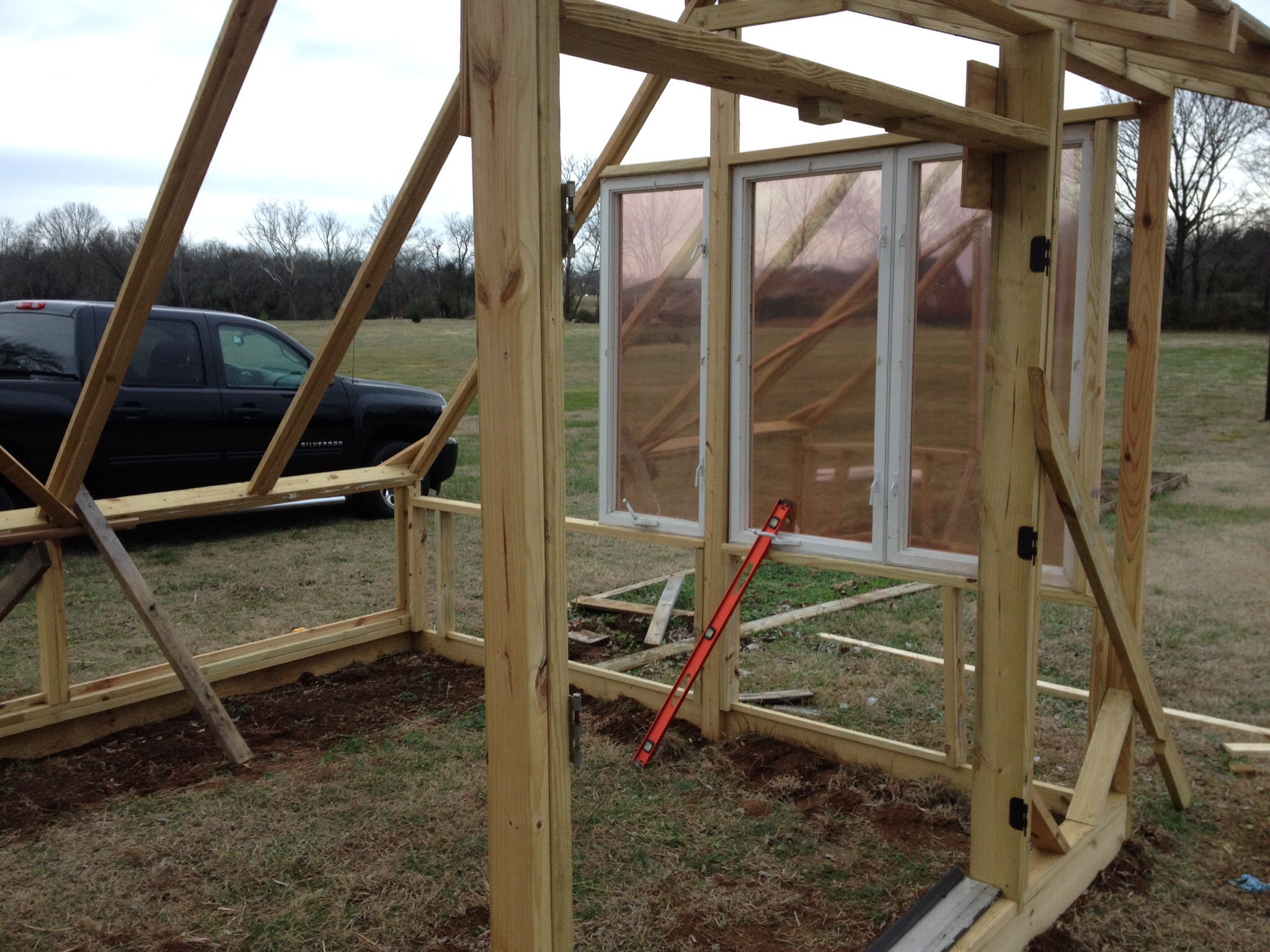

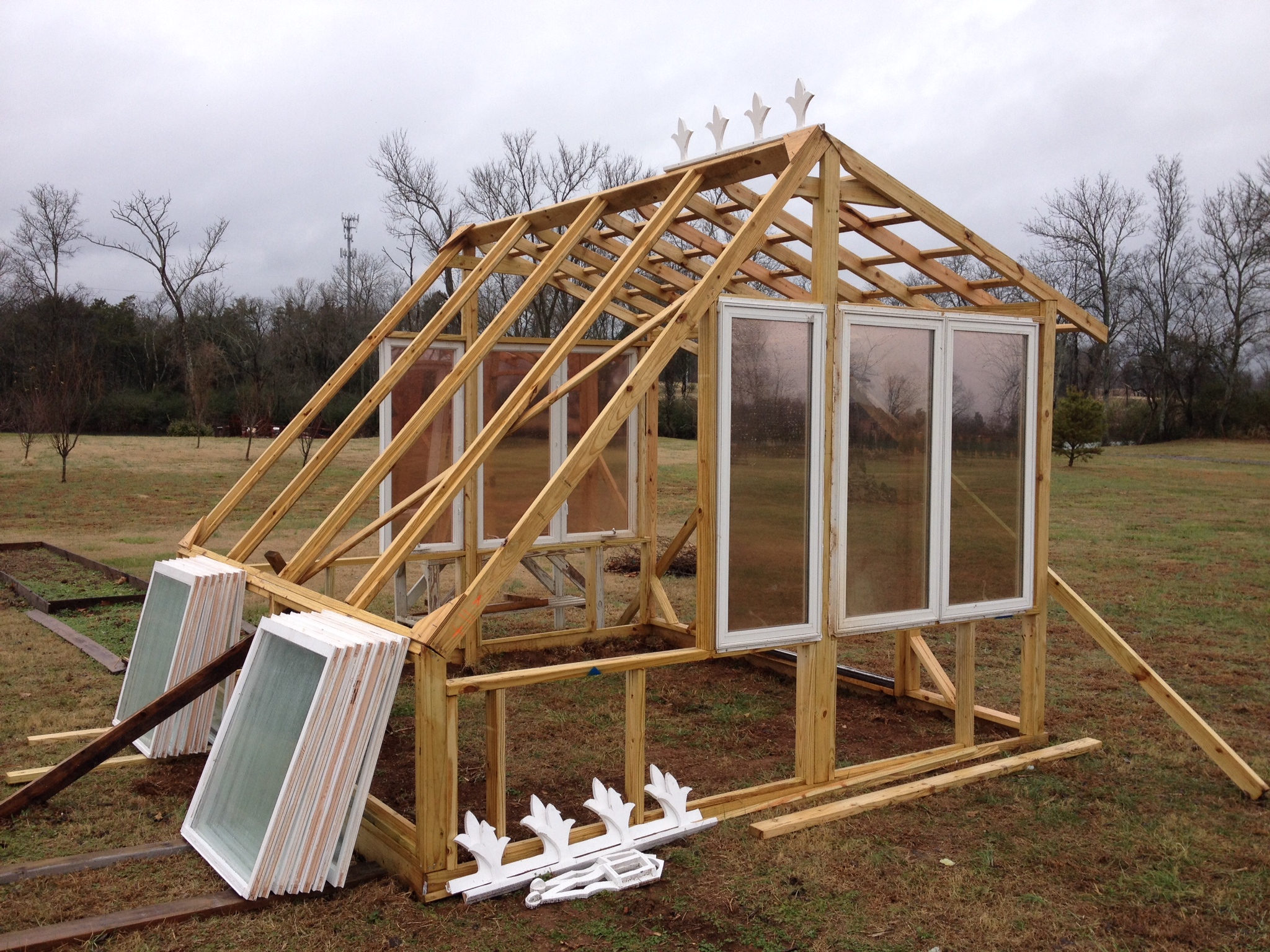

Window Installation Begins

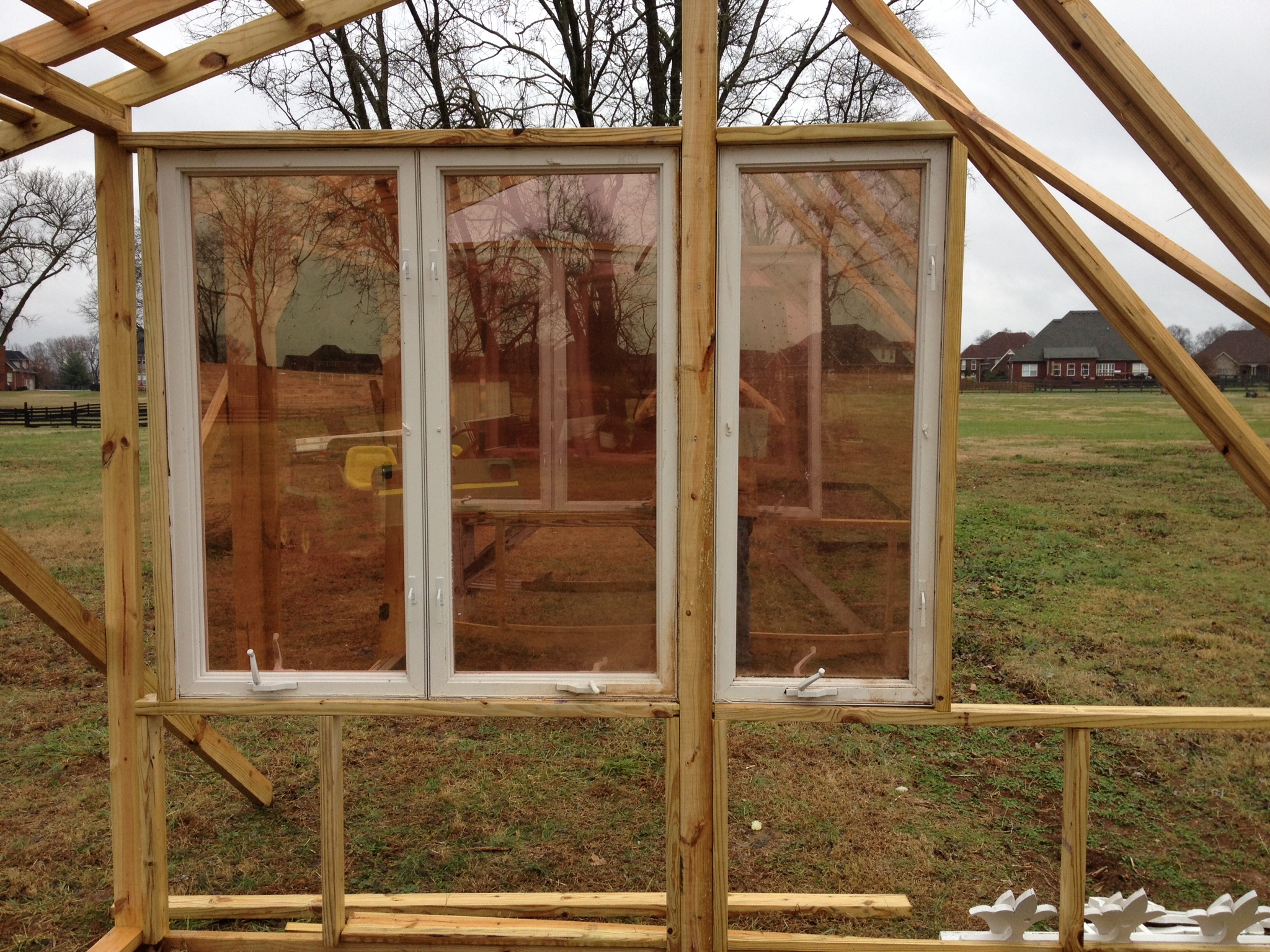

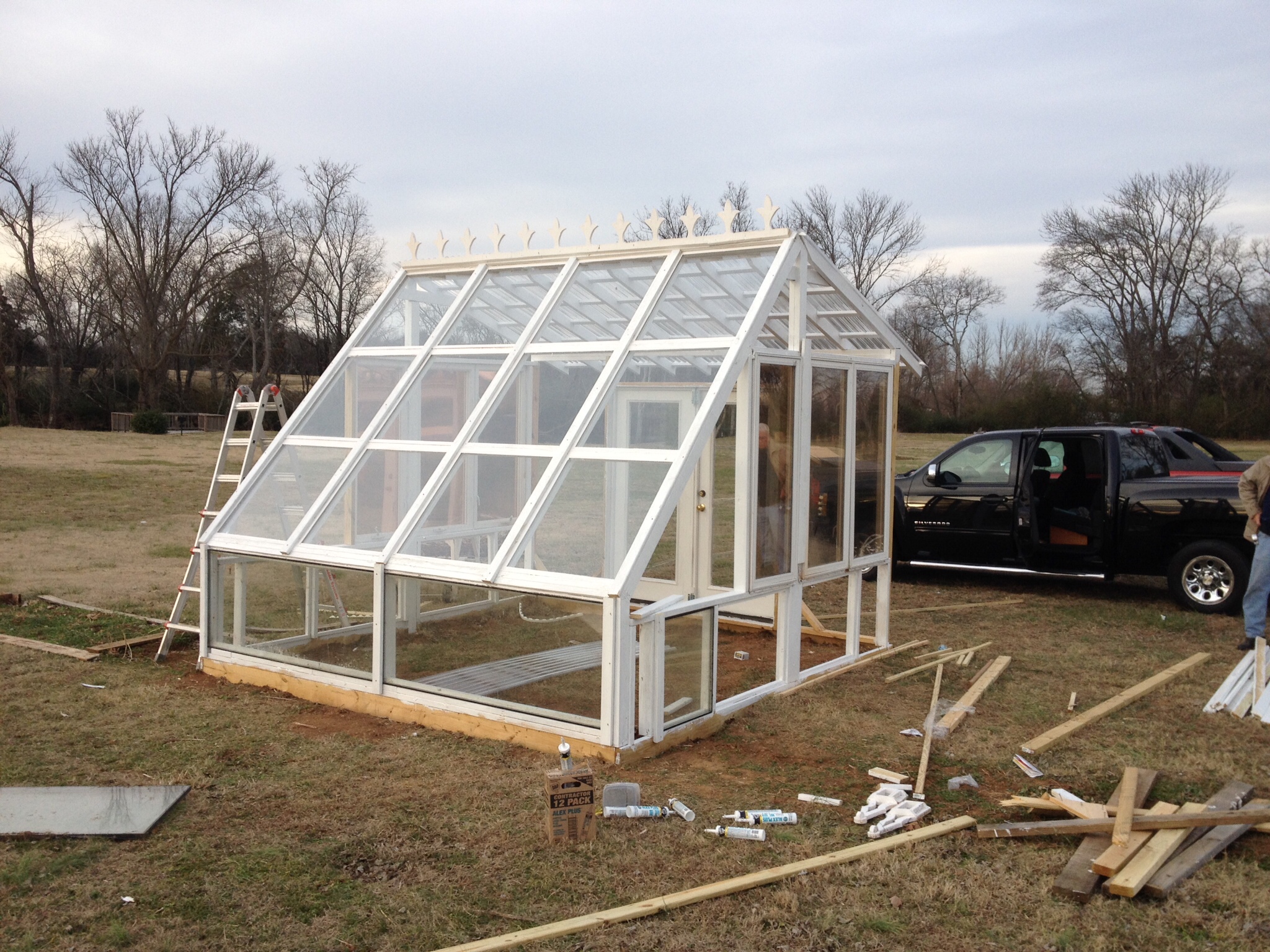

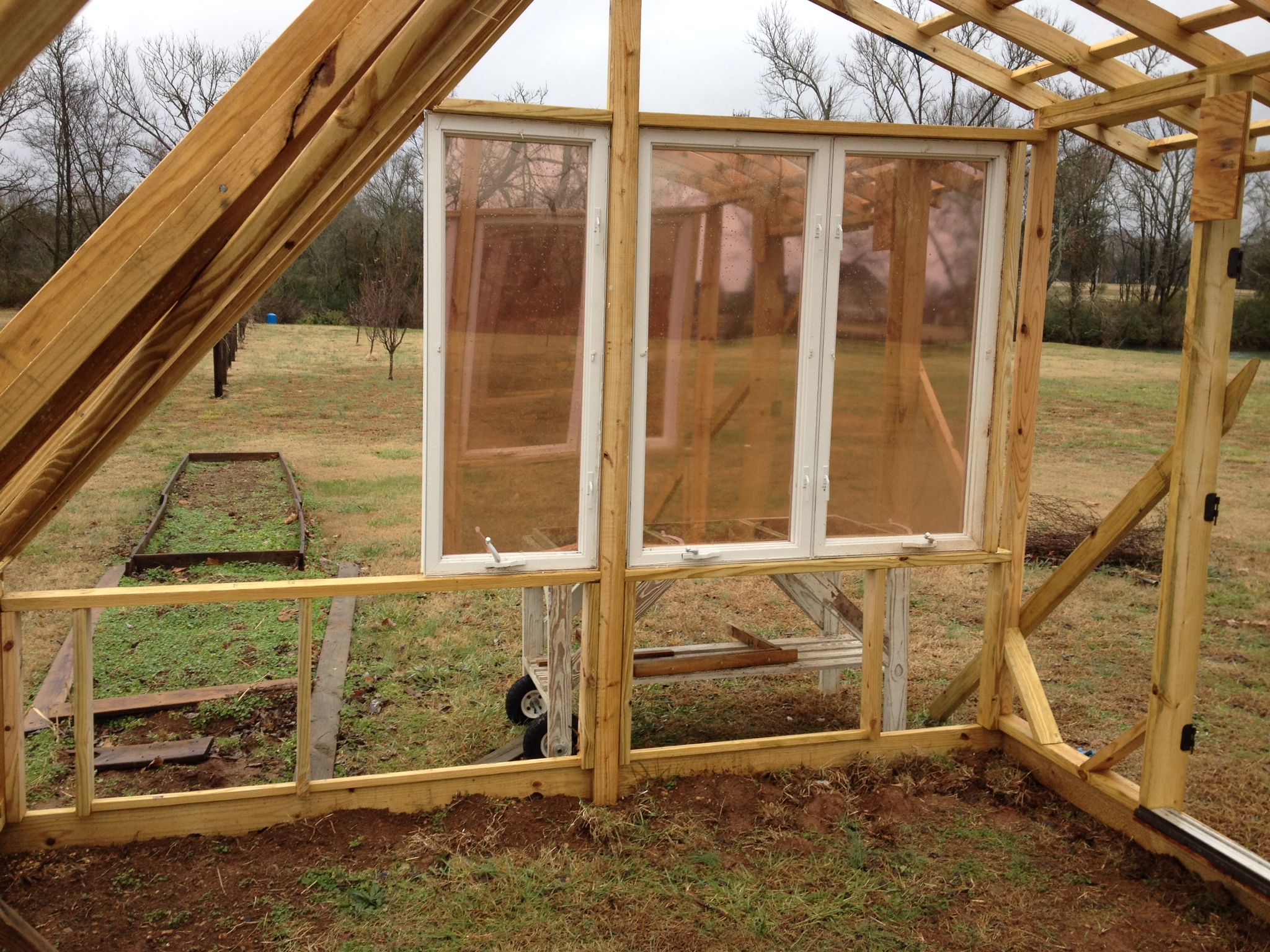

The east and west windows are three panel crank out windows that I acquired from Craigslist and they work excellent. The positioning was determined after I got the windows and figured out how I could use the smaller Windows below. The main front windows were installed in the framework with screws and about 15 tubes of silicone caulk. I opted to paint all the frame work white before installing the Windows.

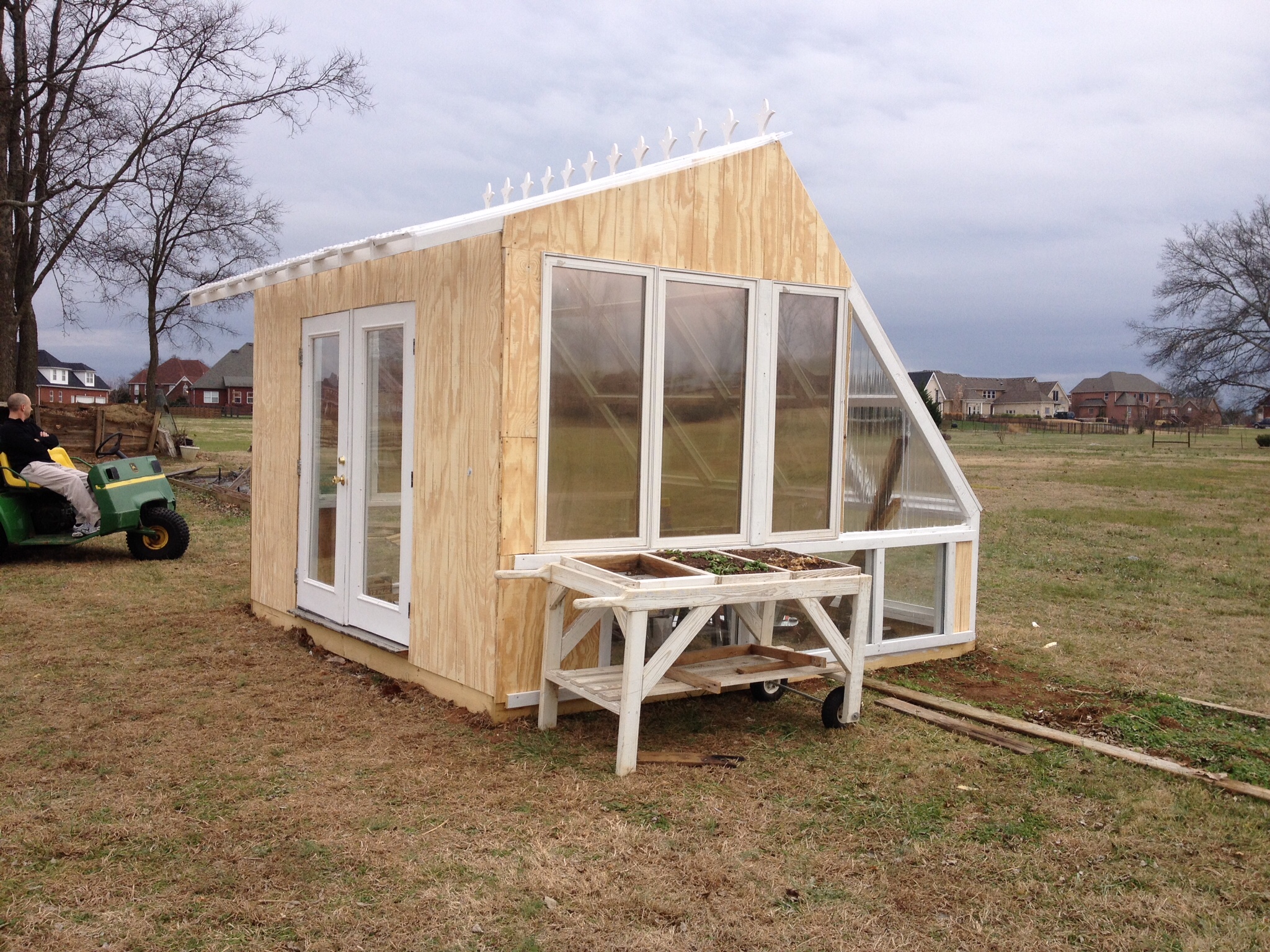

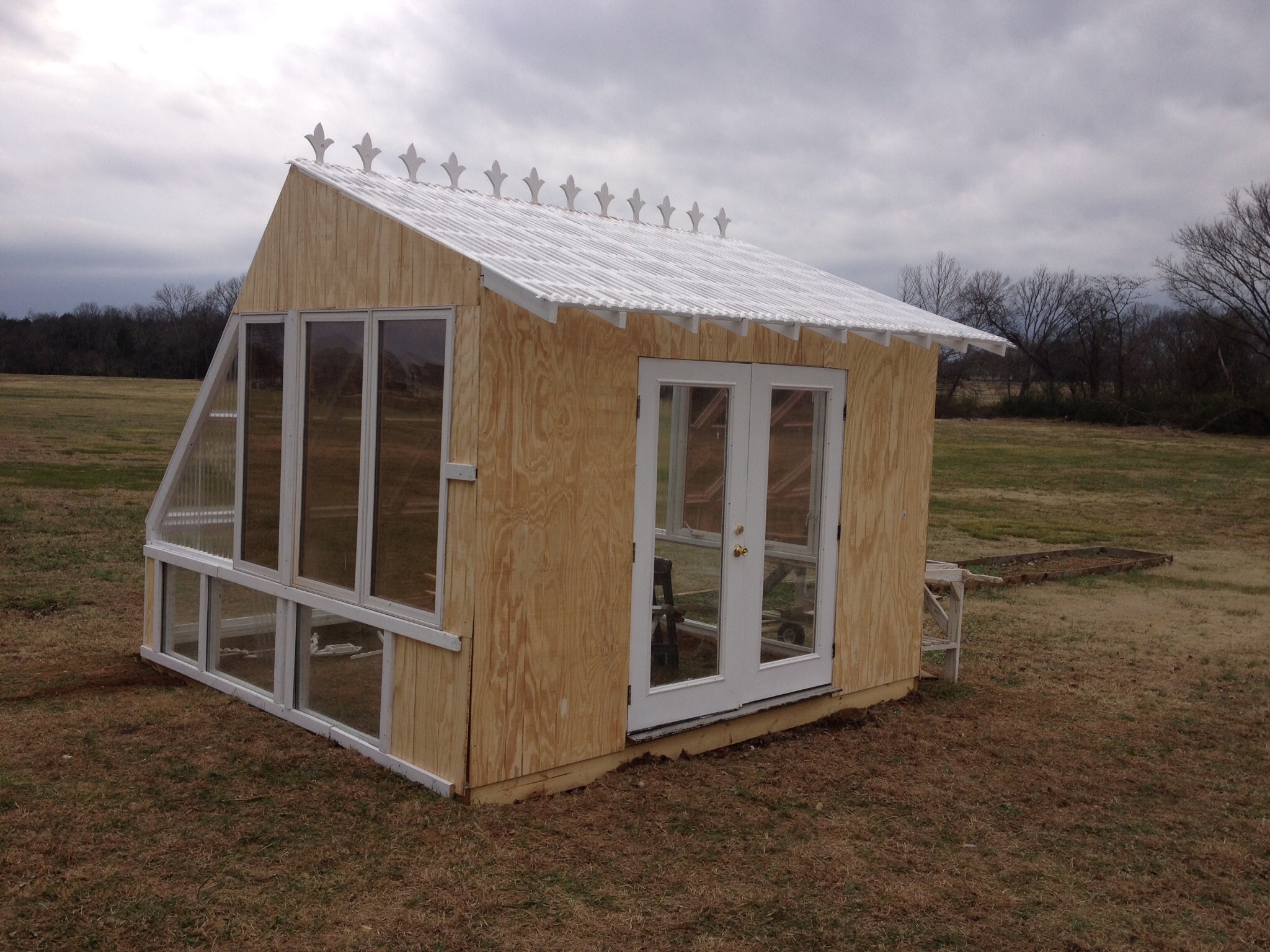

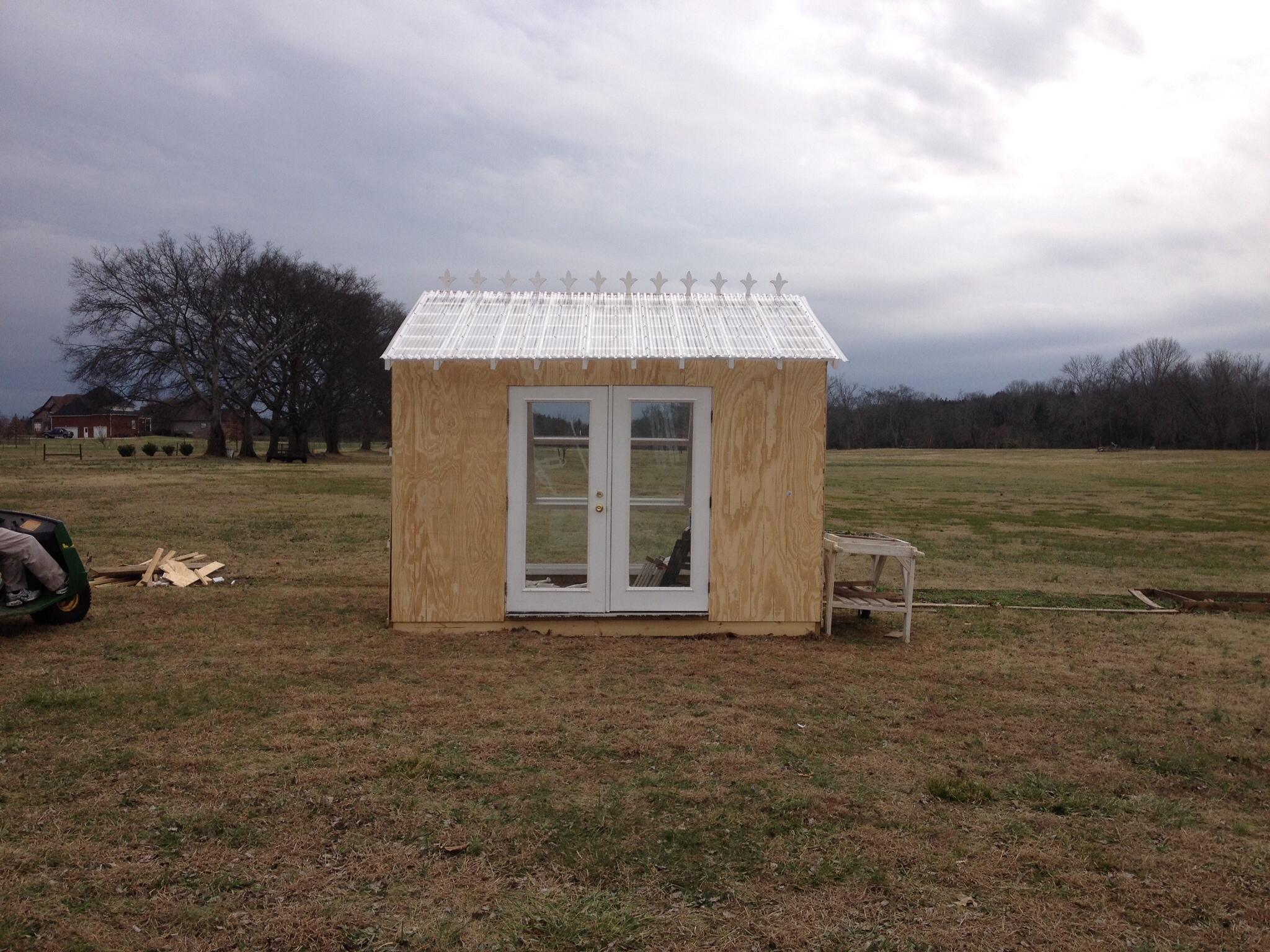

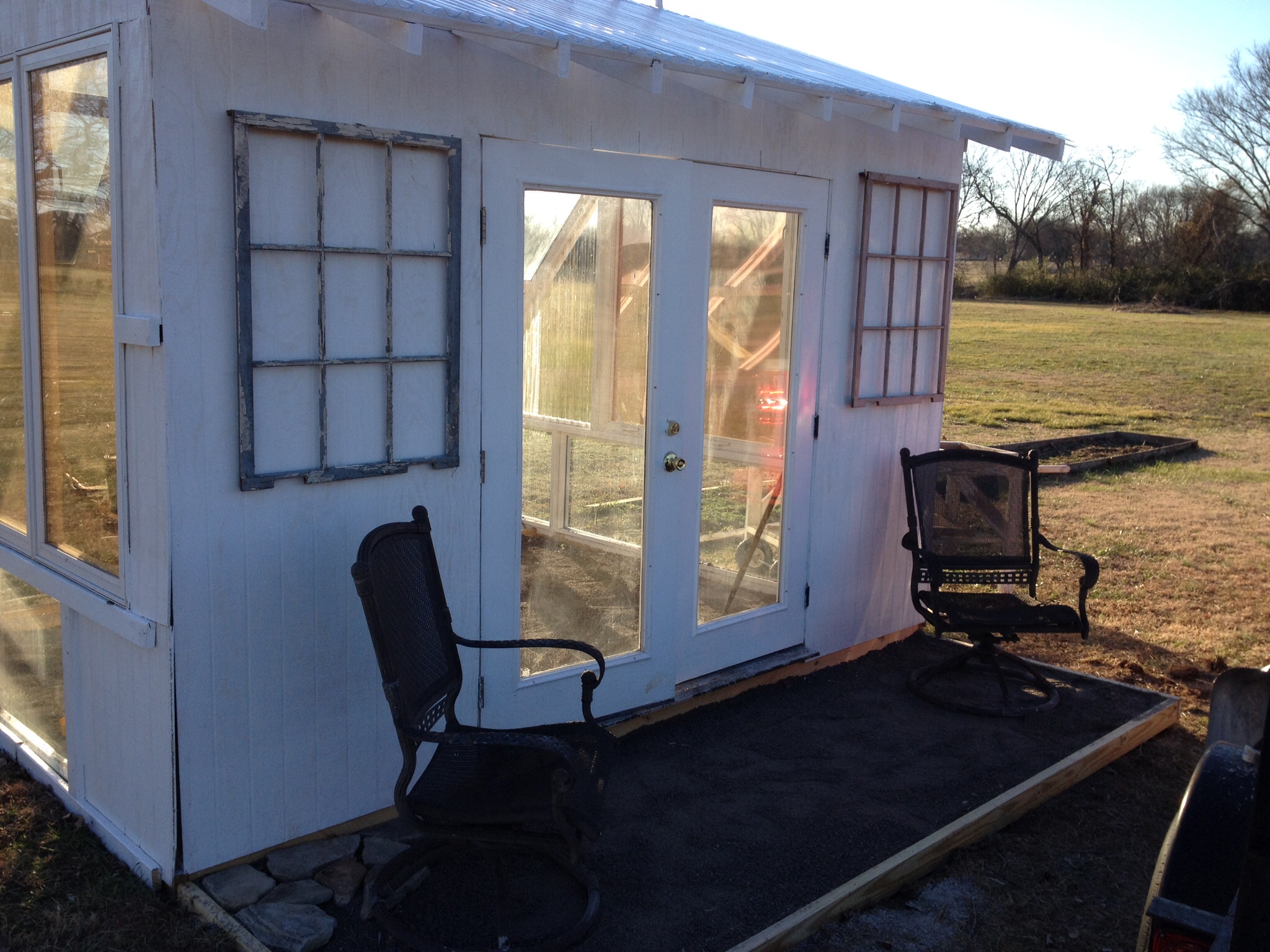

Final Exterior Close Out, Painting and Assmbly

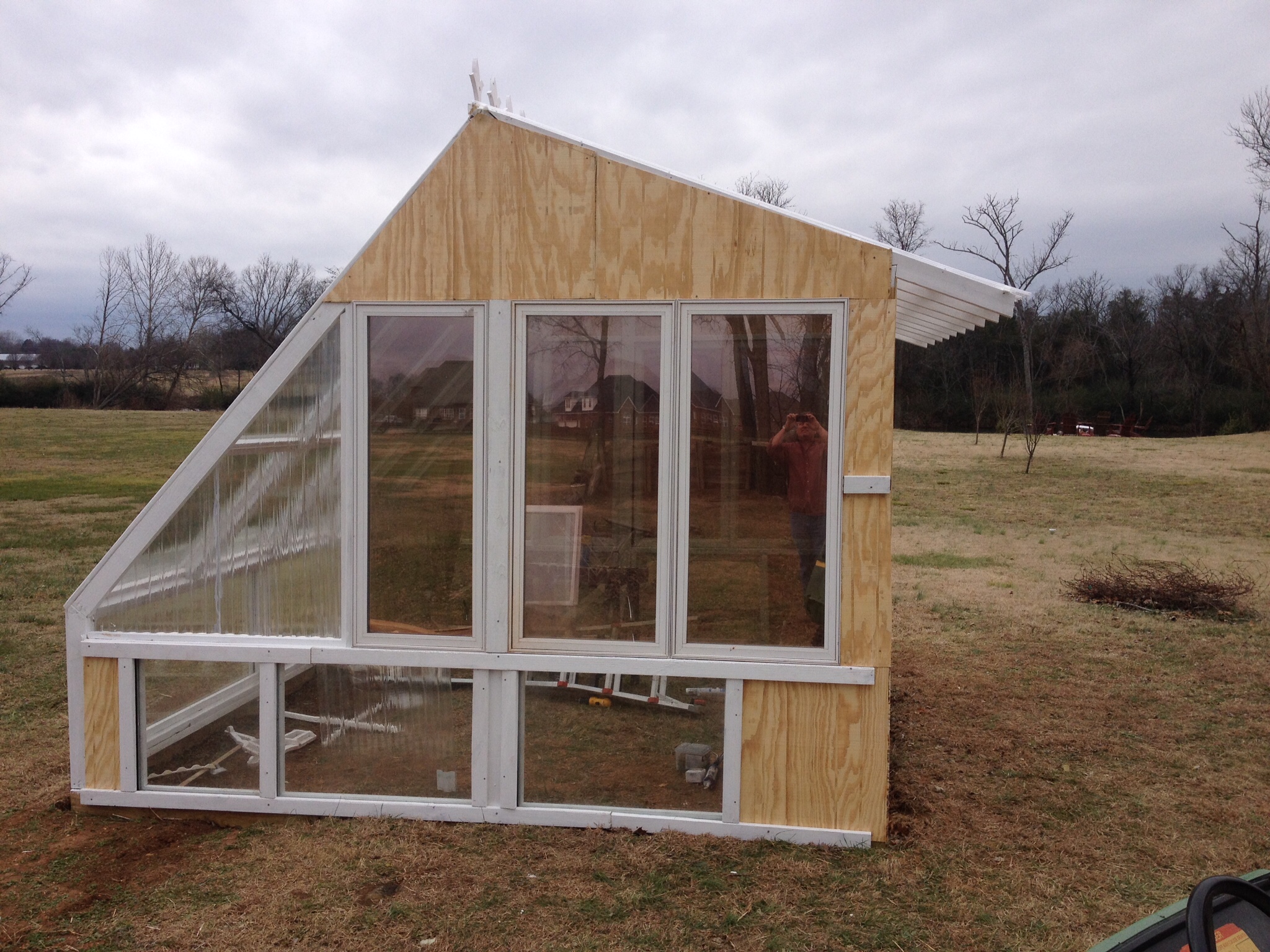

The front corners were filled in with the same poly material used on the ceiling. The side and rear close out is 3/4" plywood.

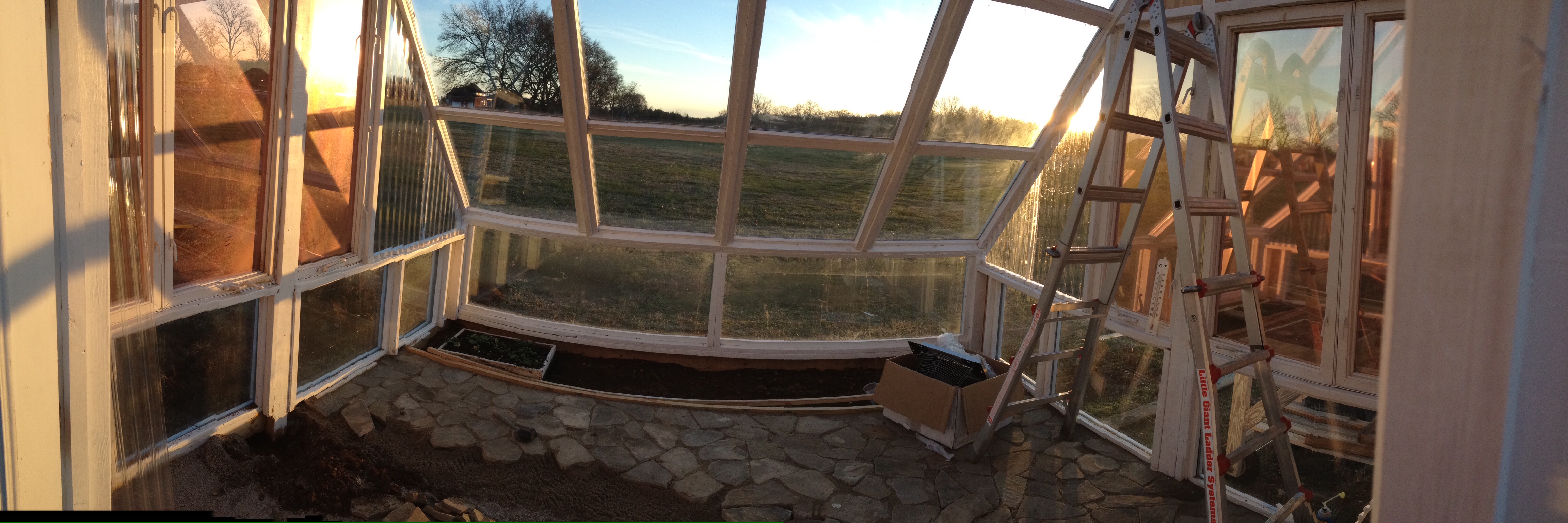

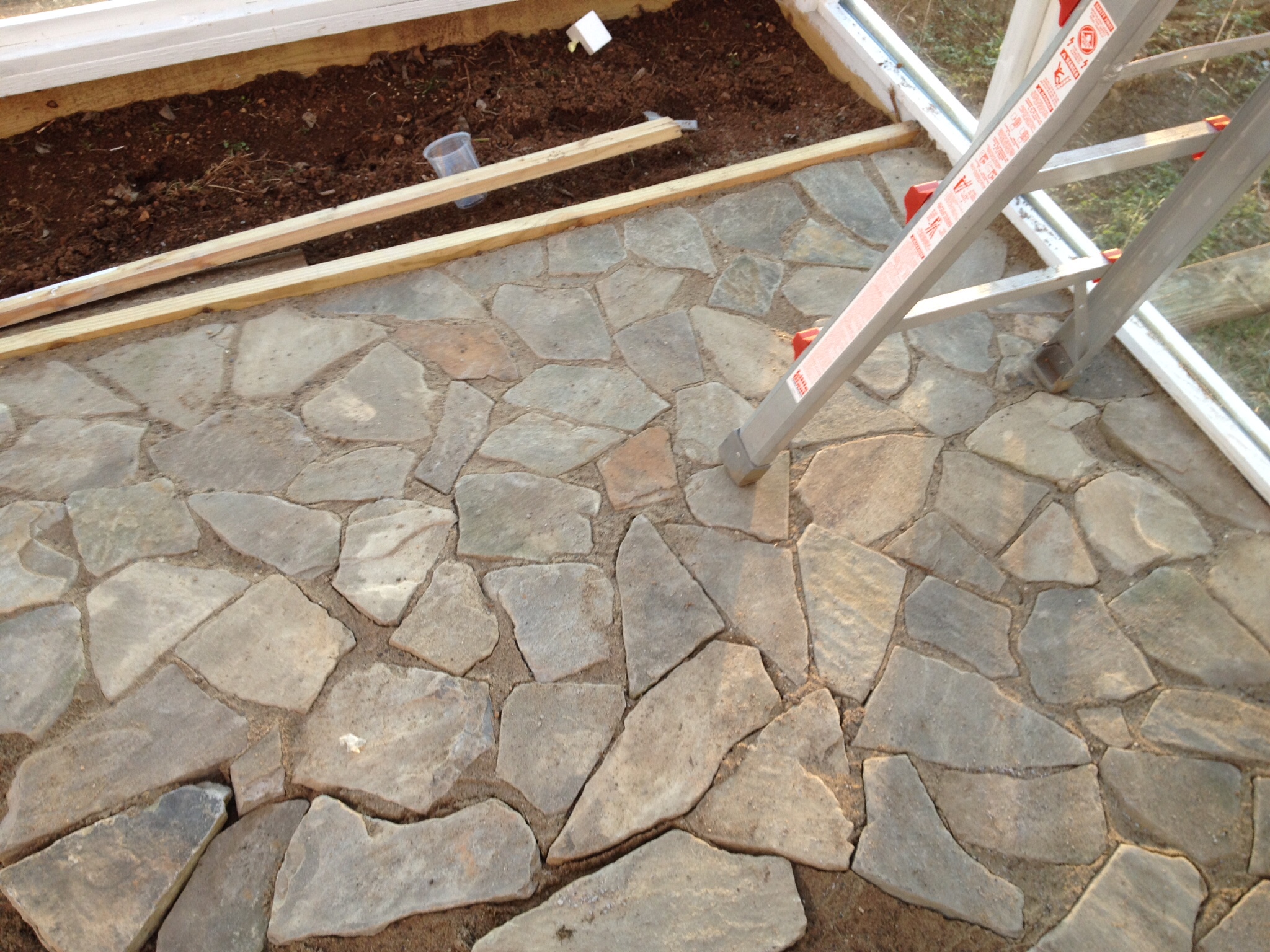

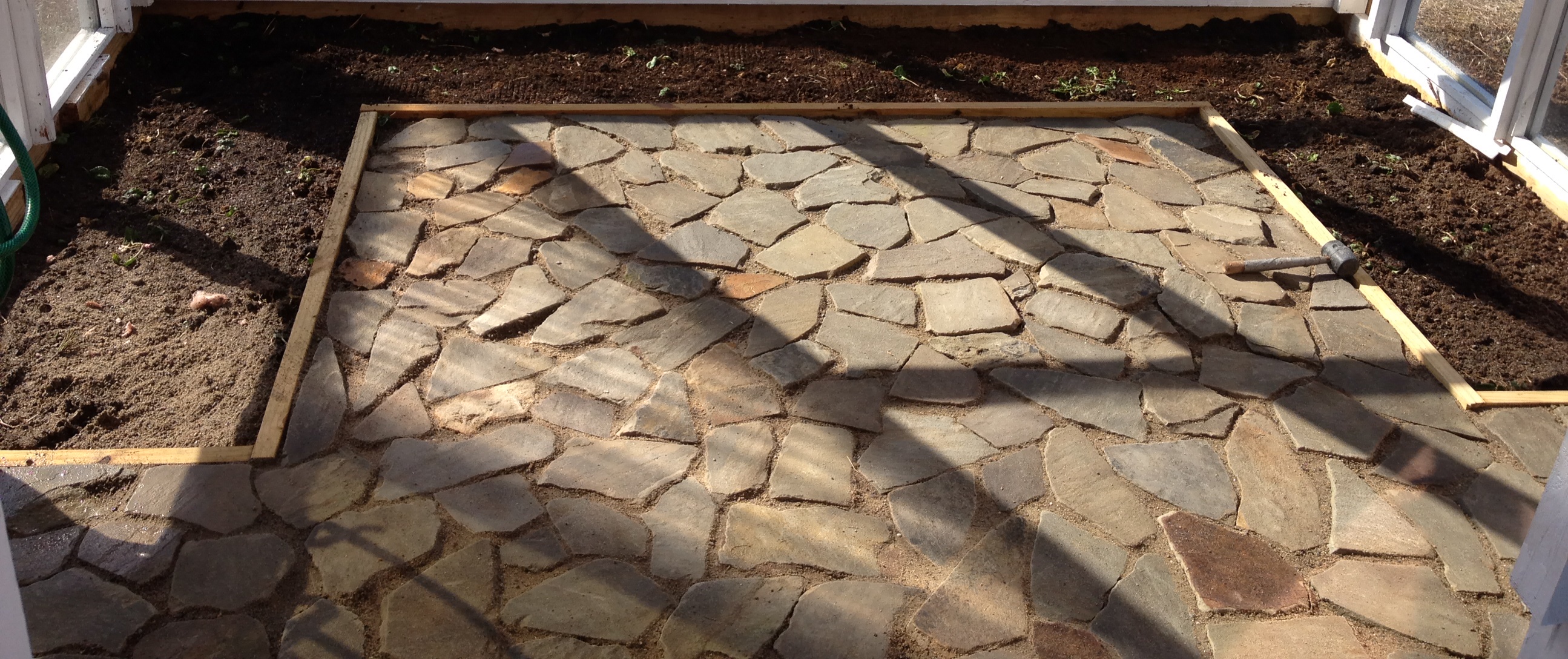

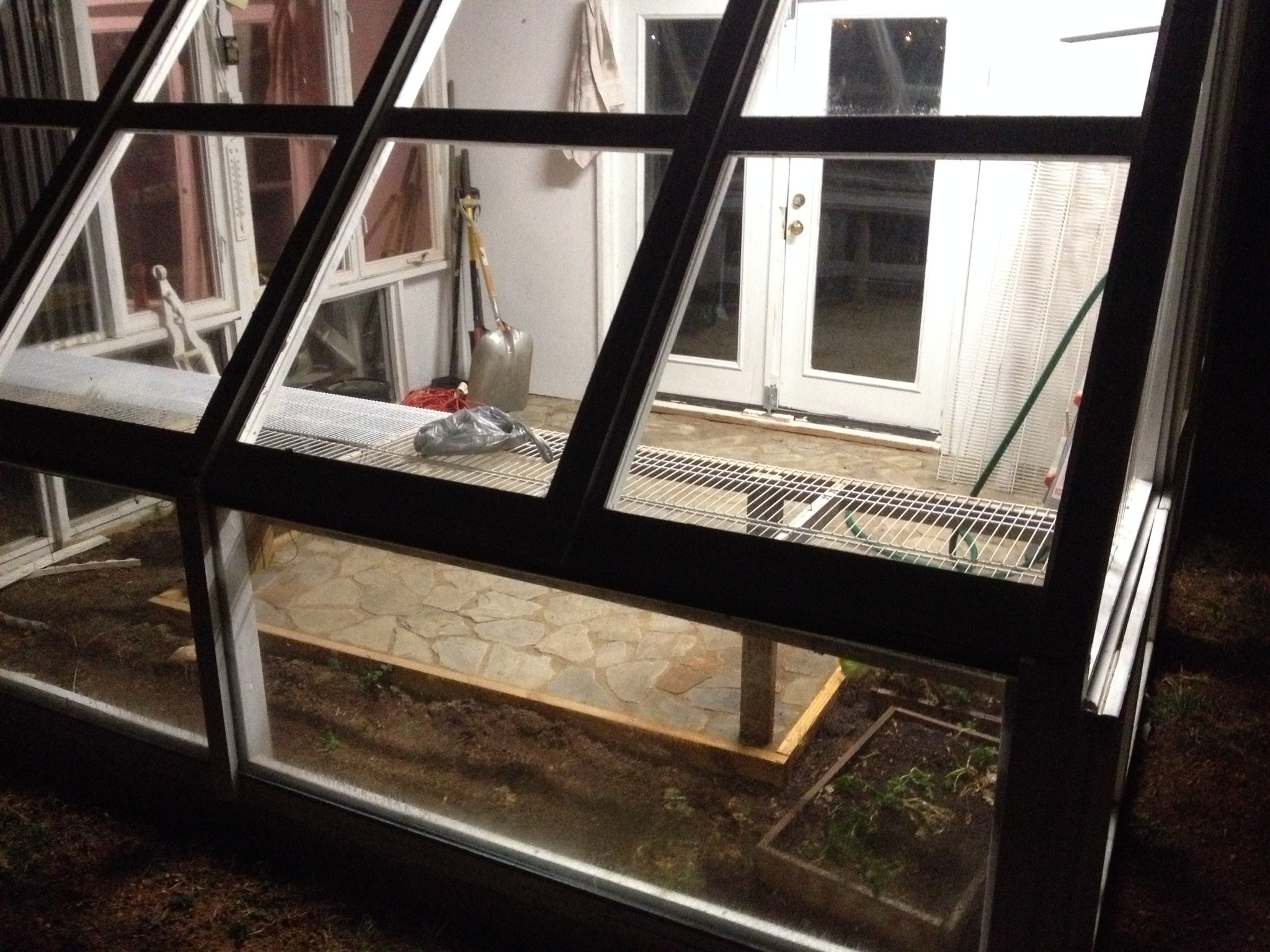

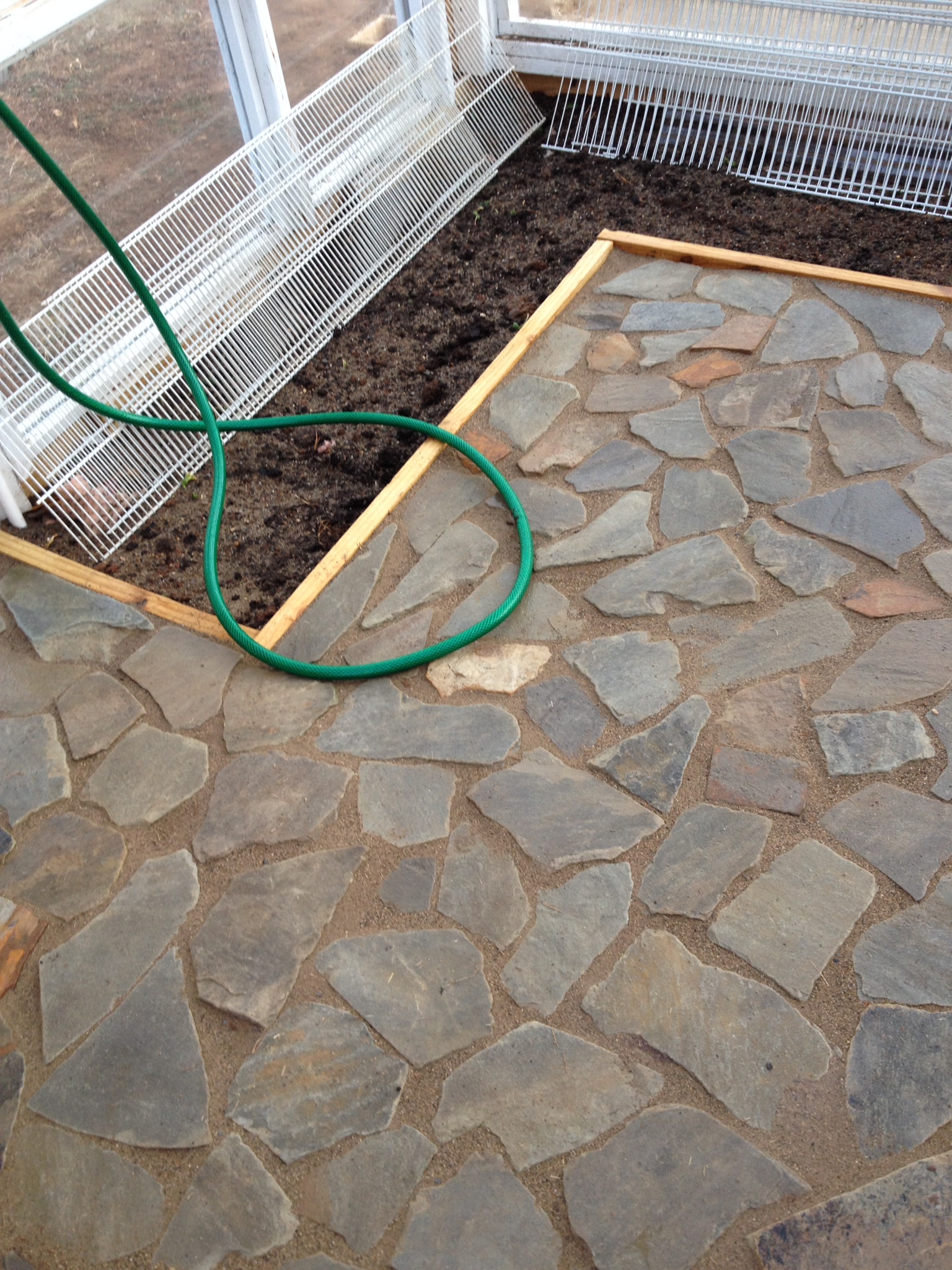

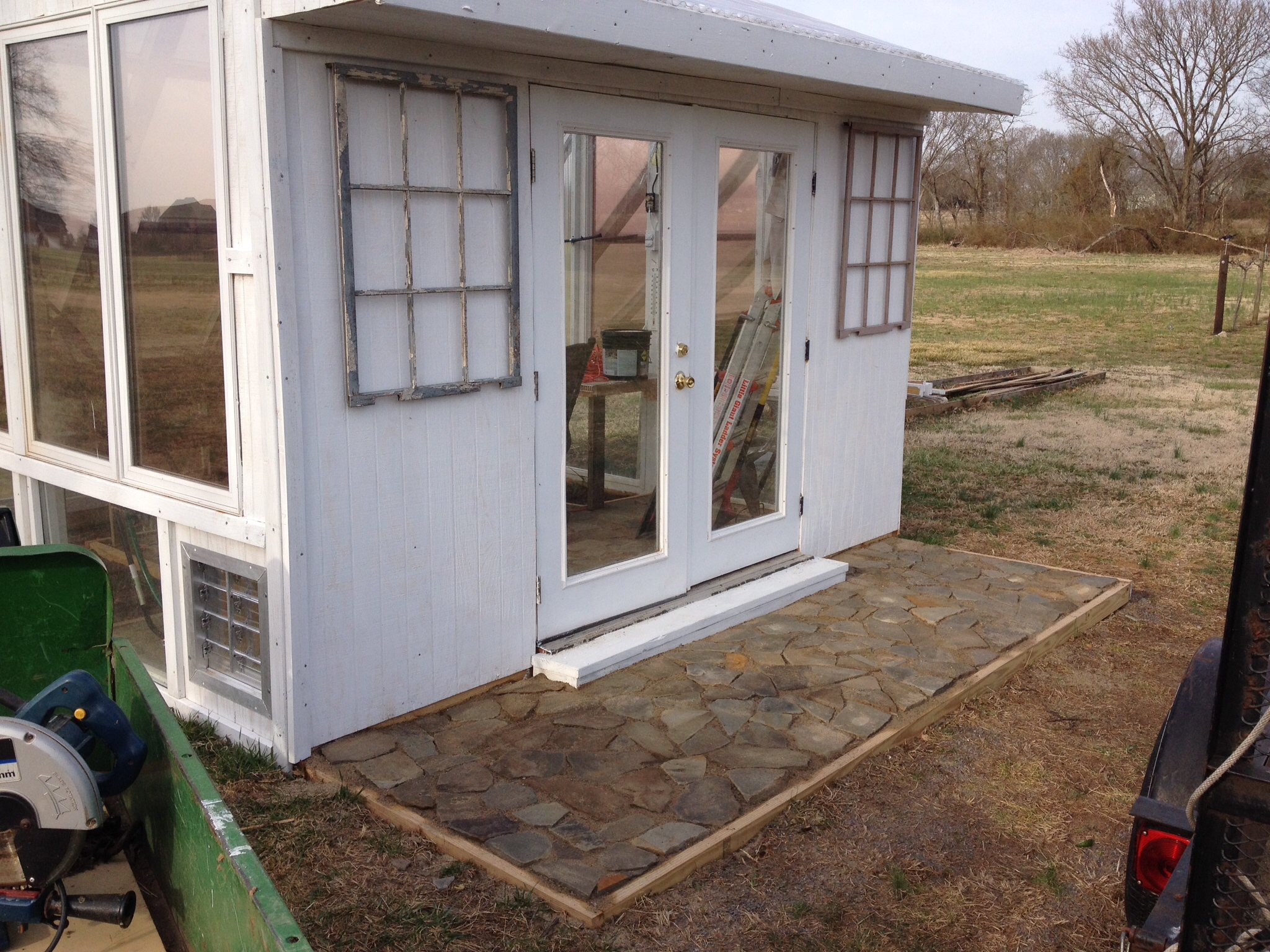

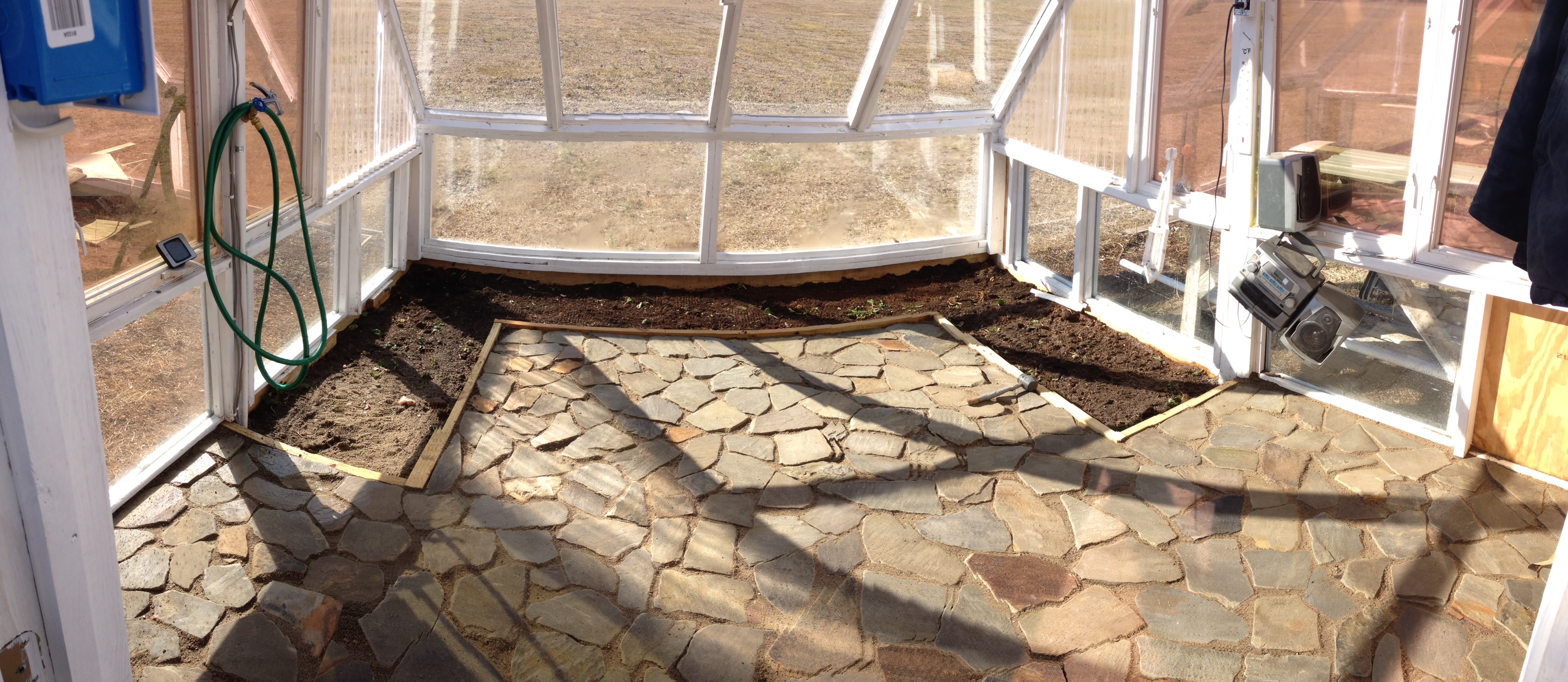

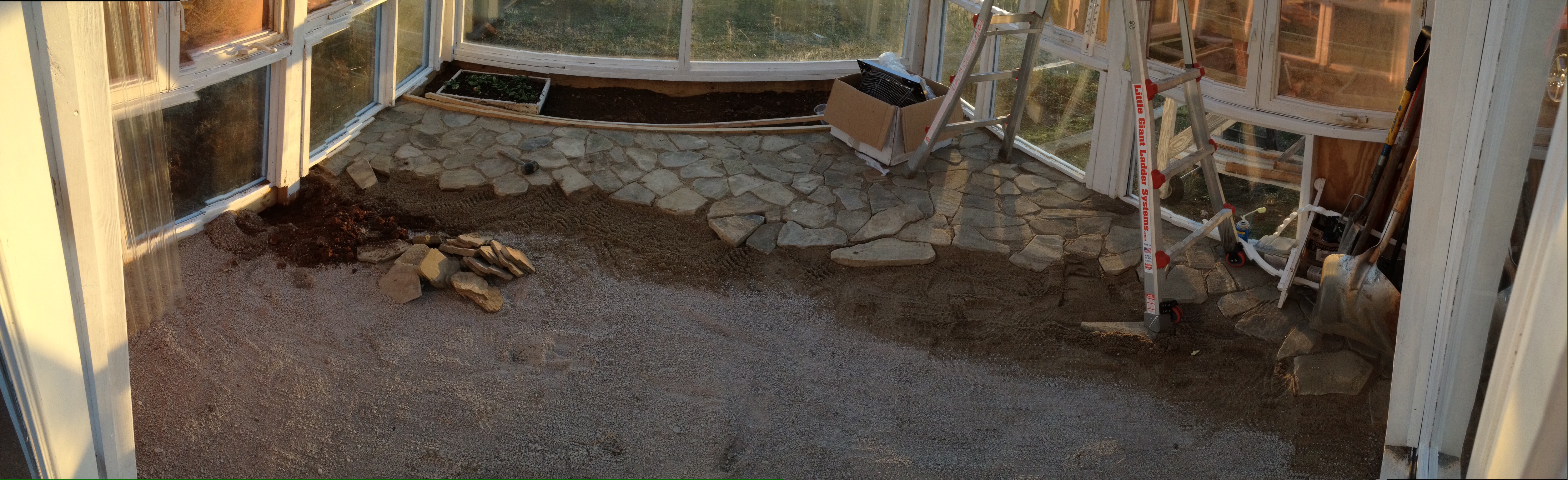

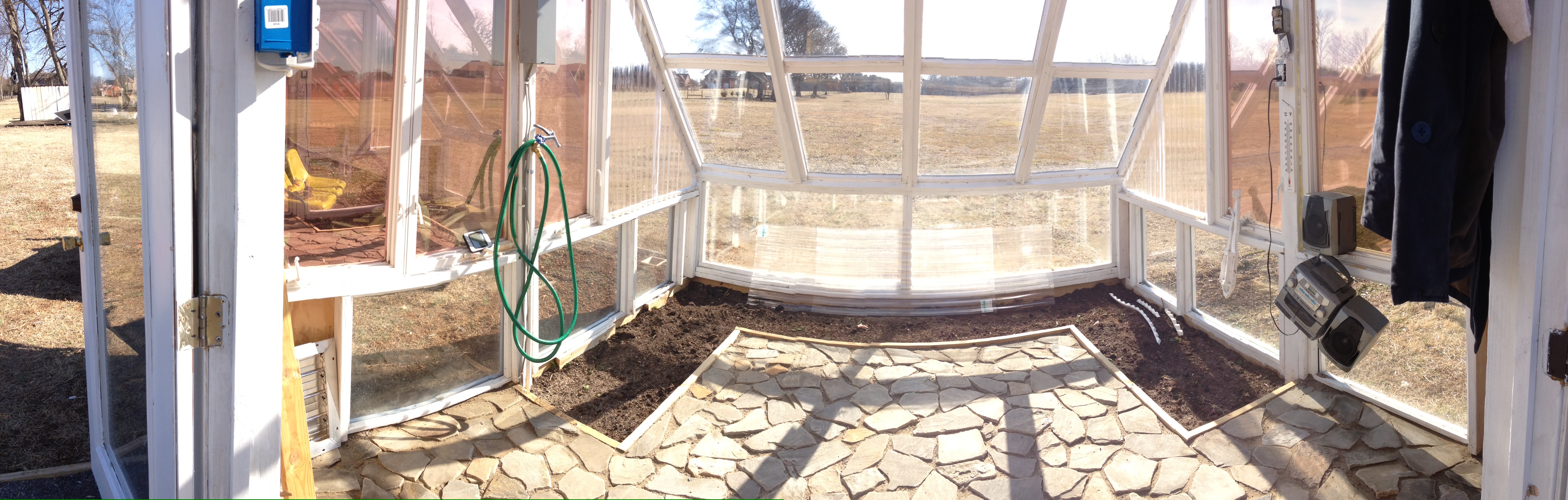

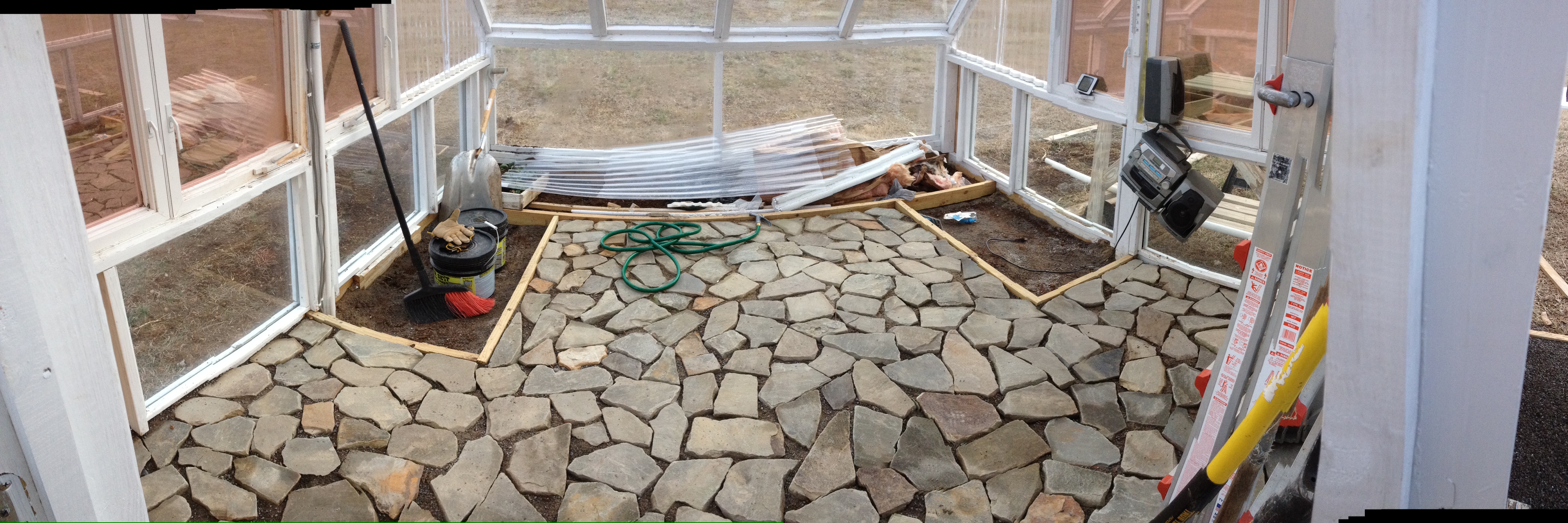

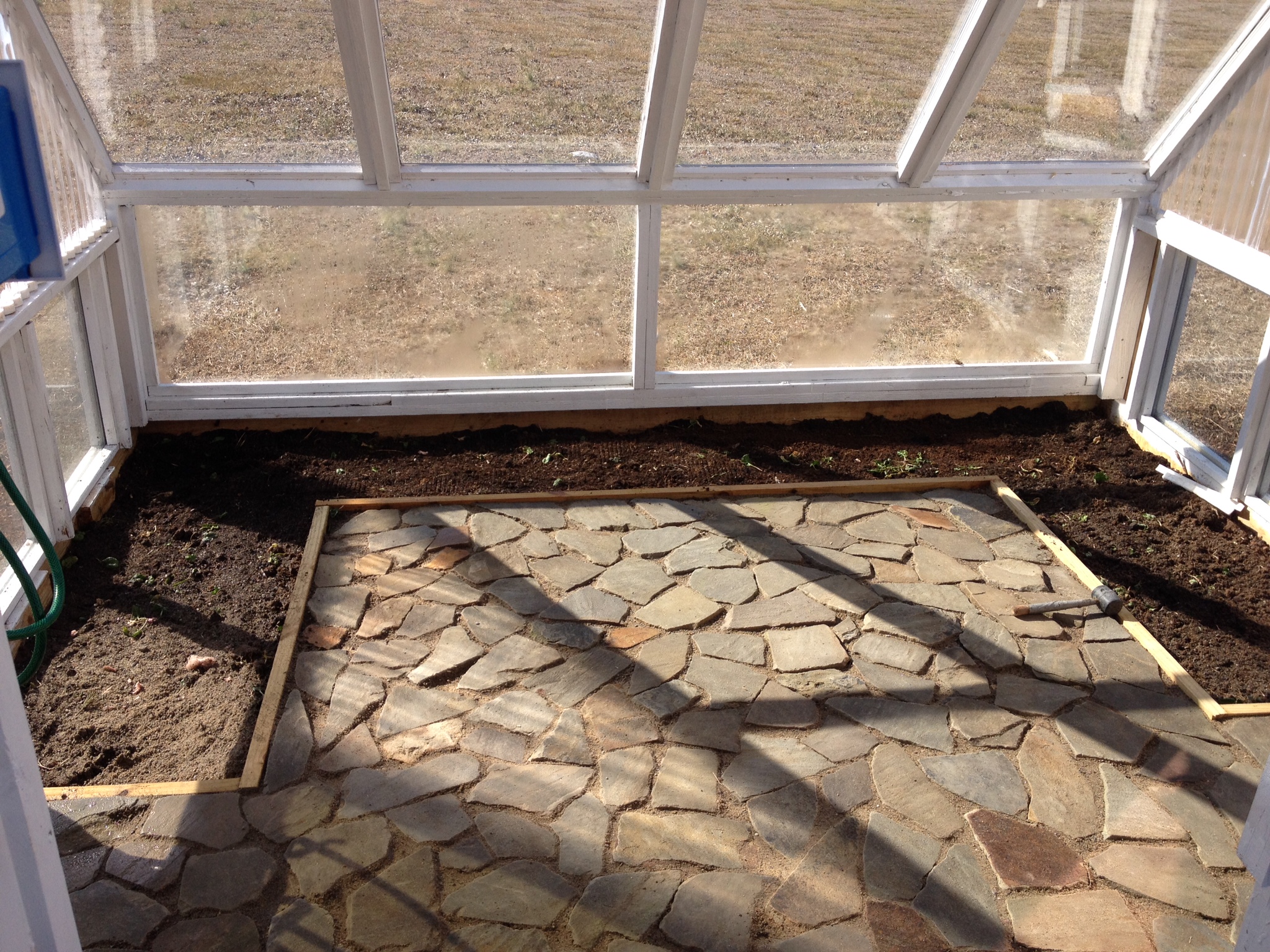

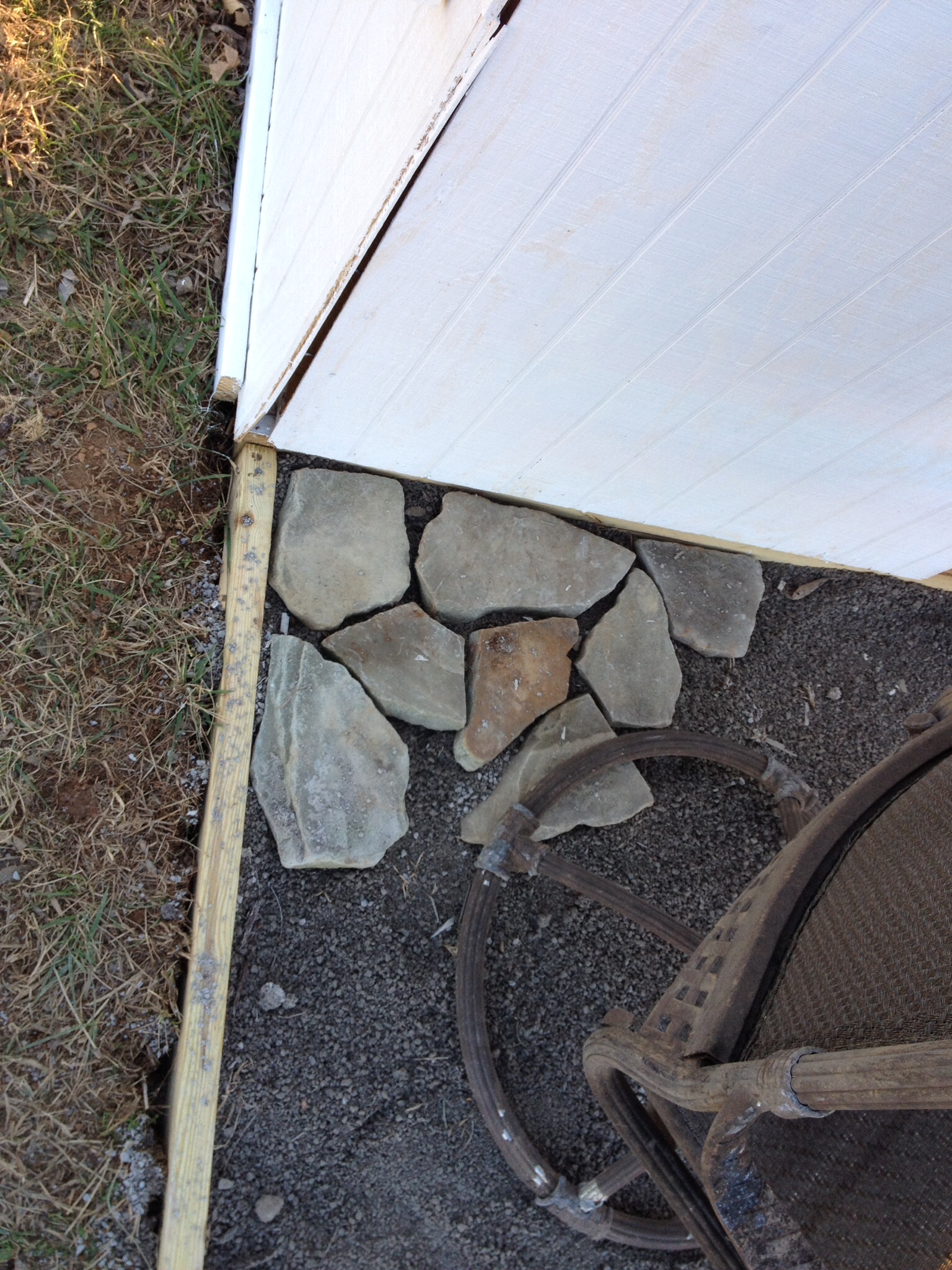

Flagstone Floor Installation - Heat Storage Device.

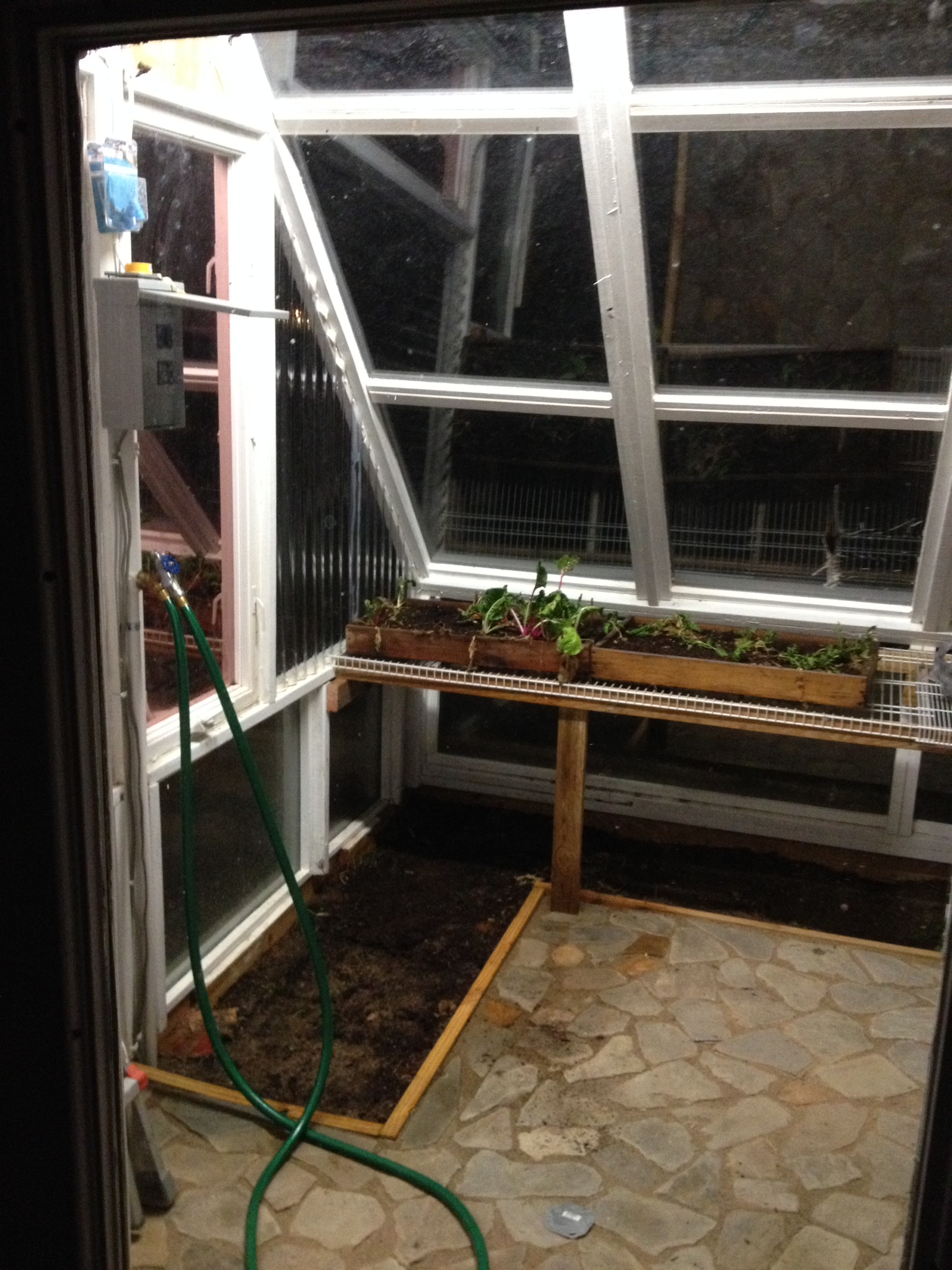

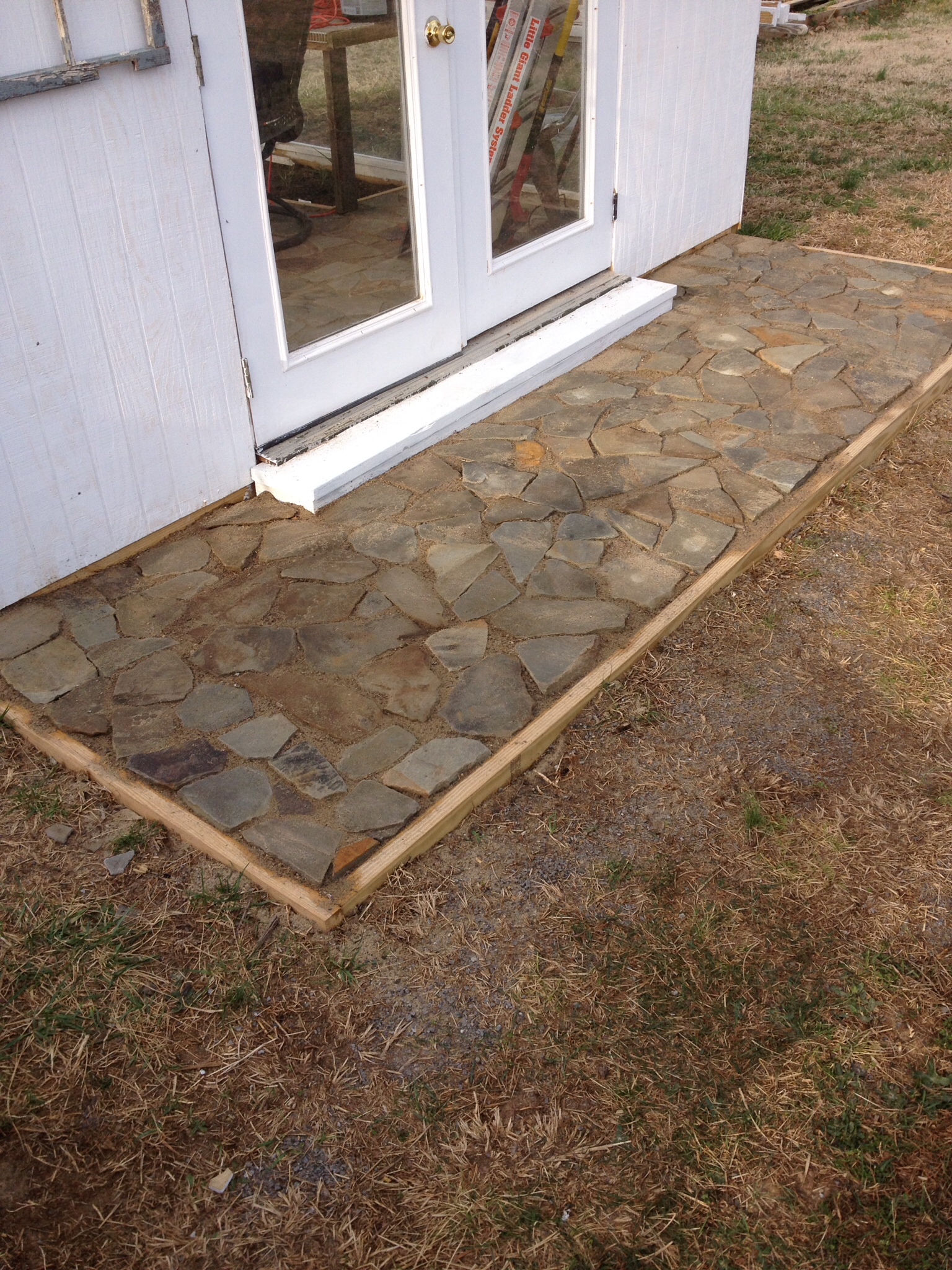

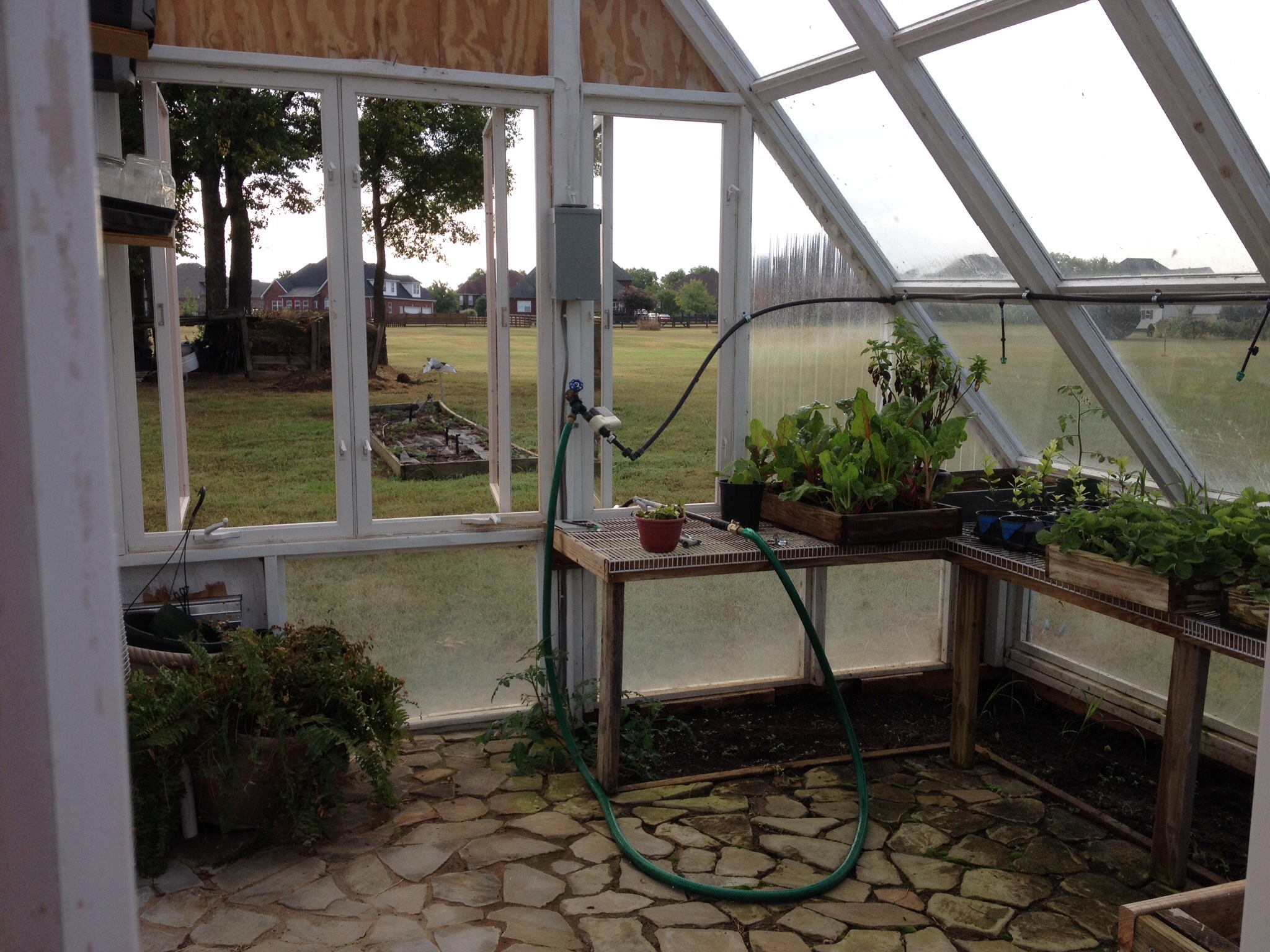

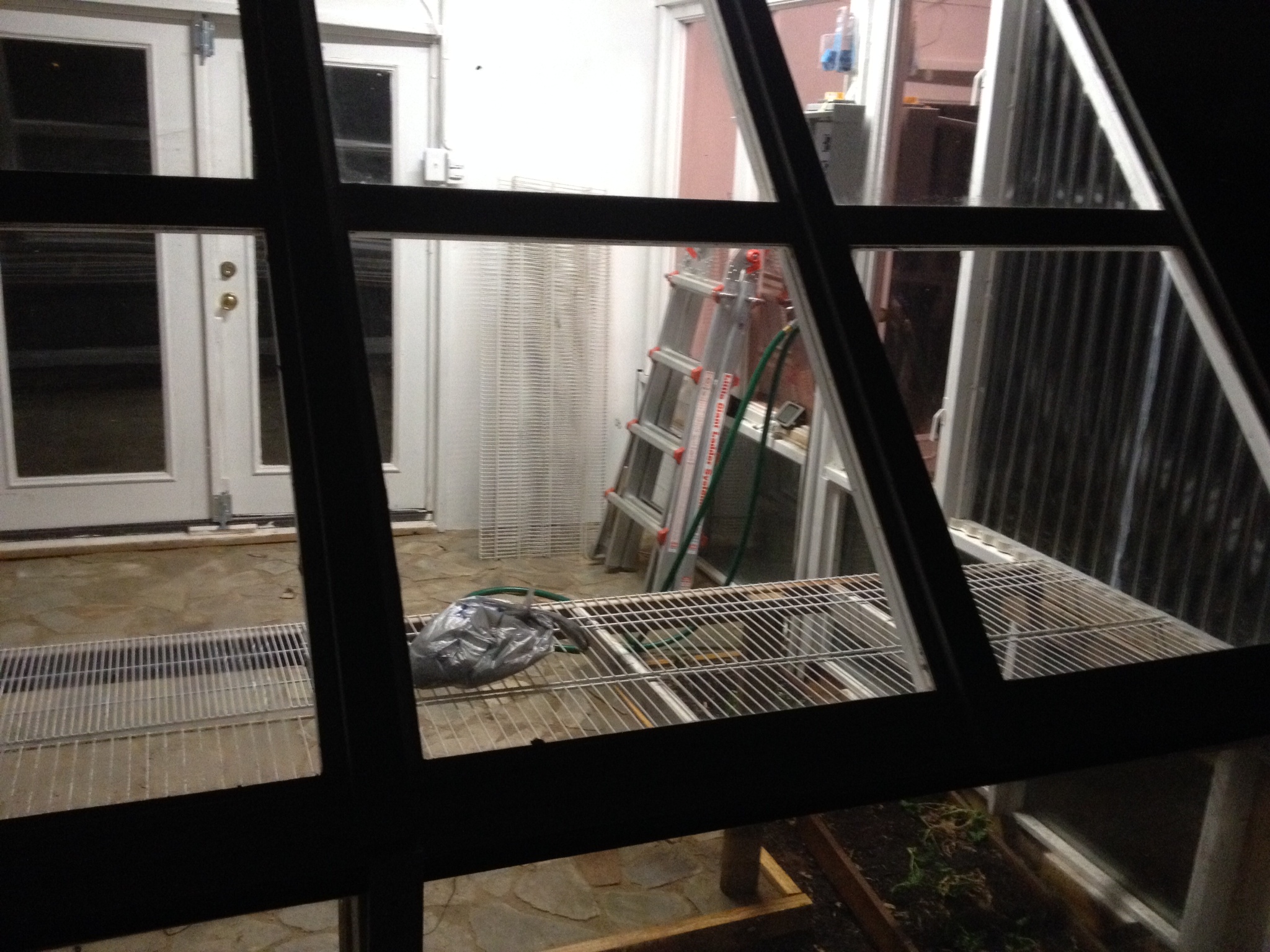

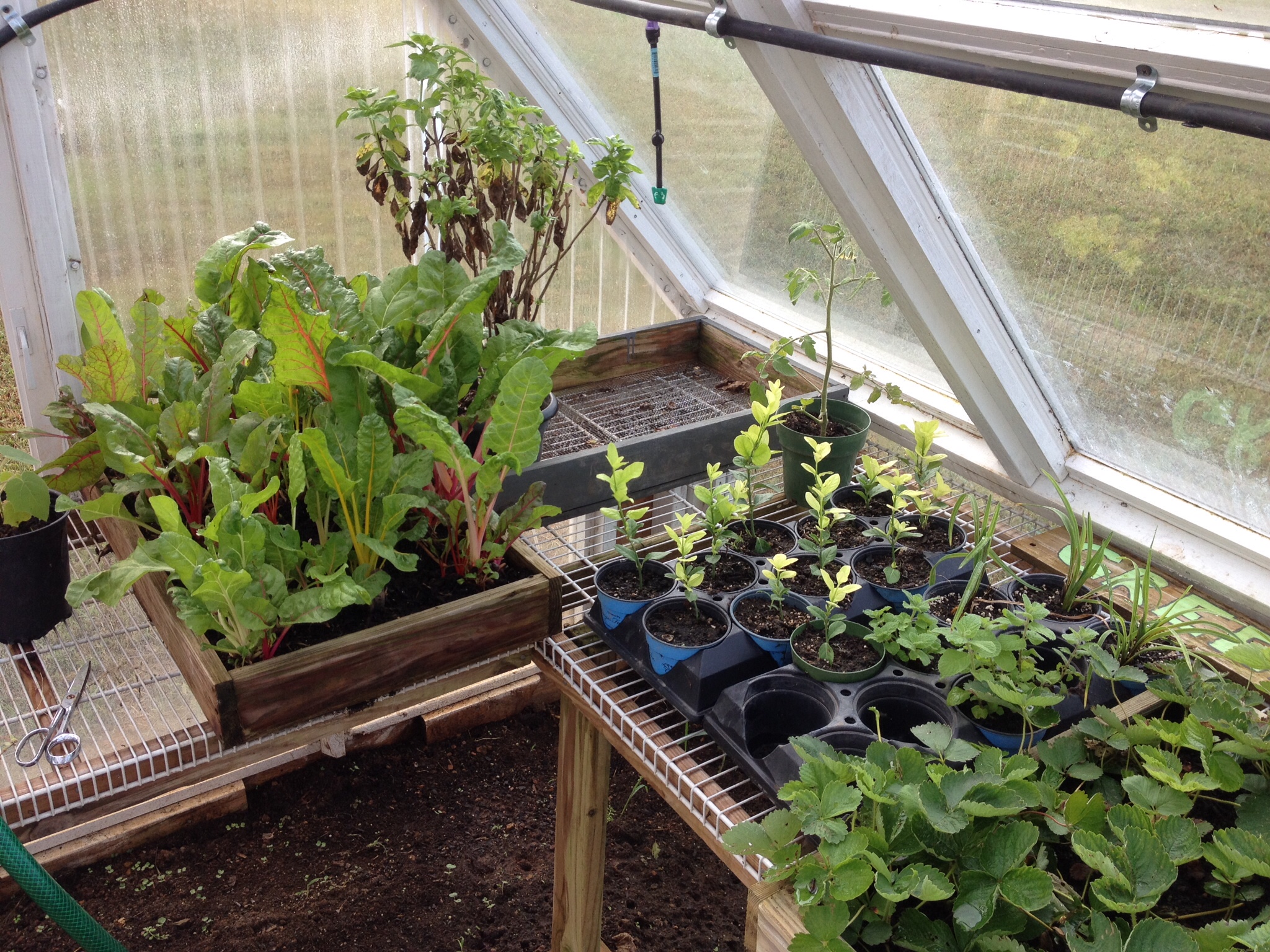

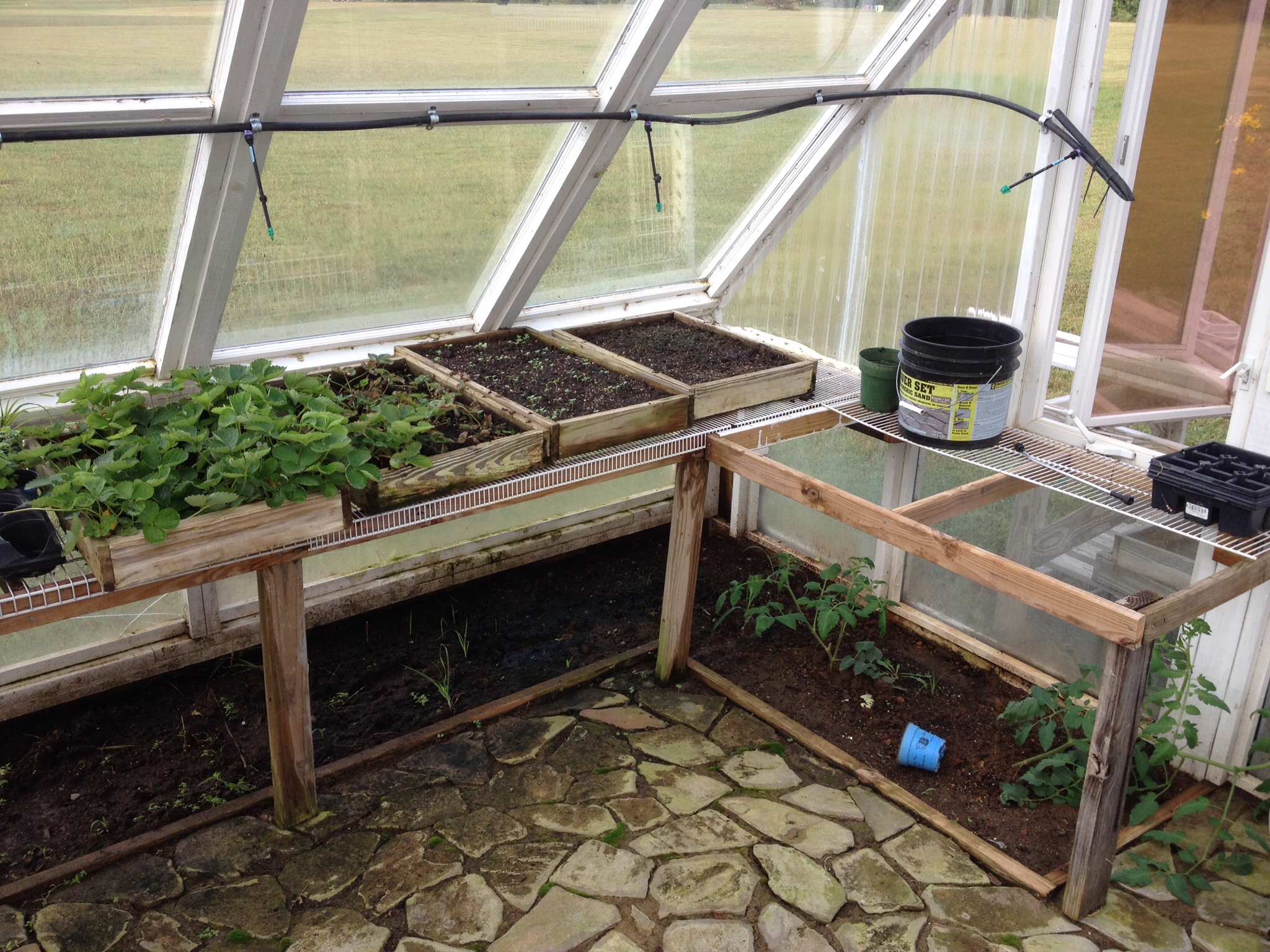

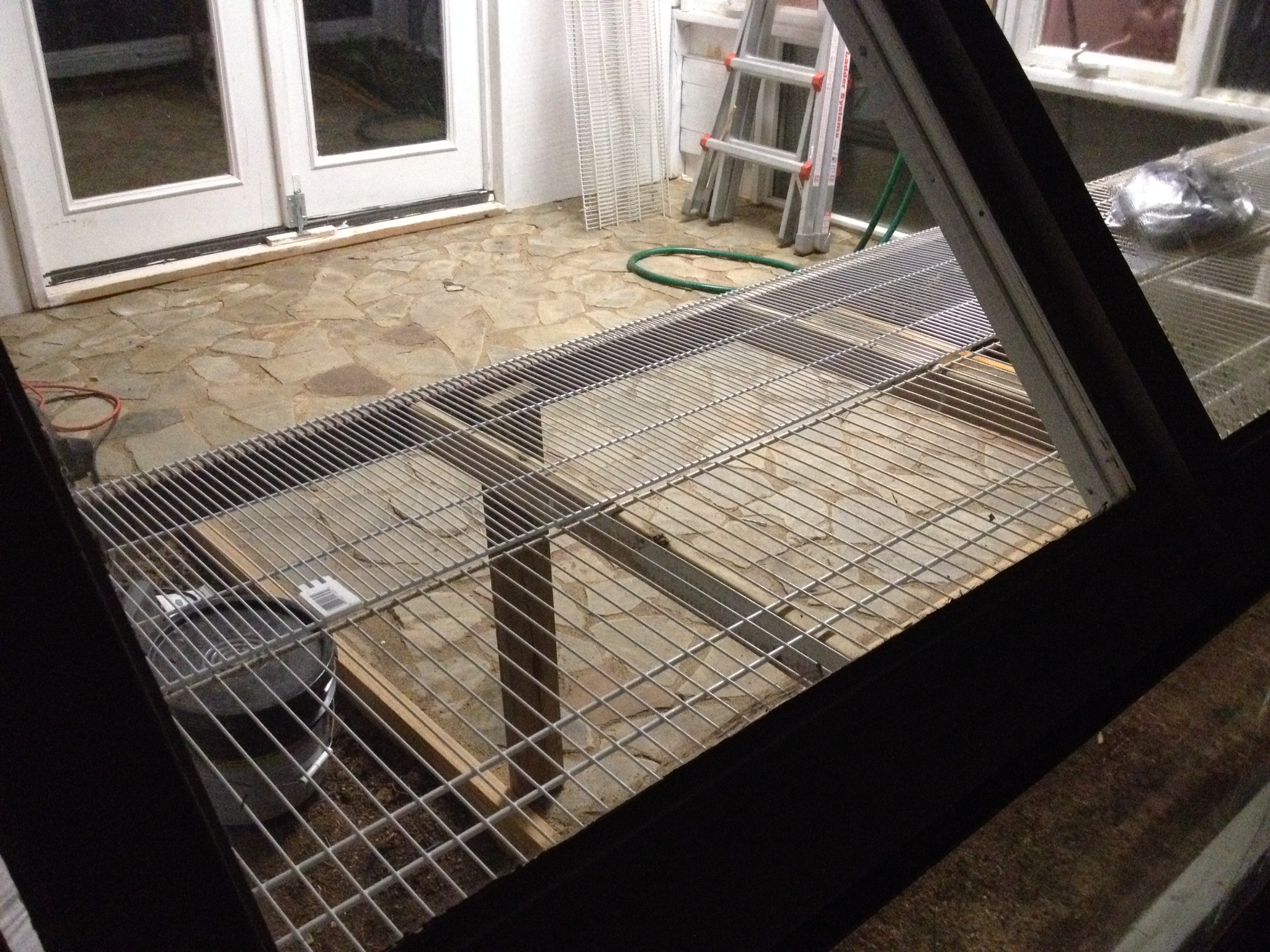

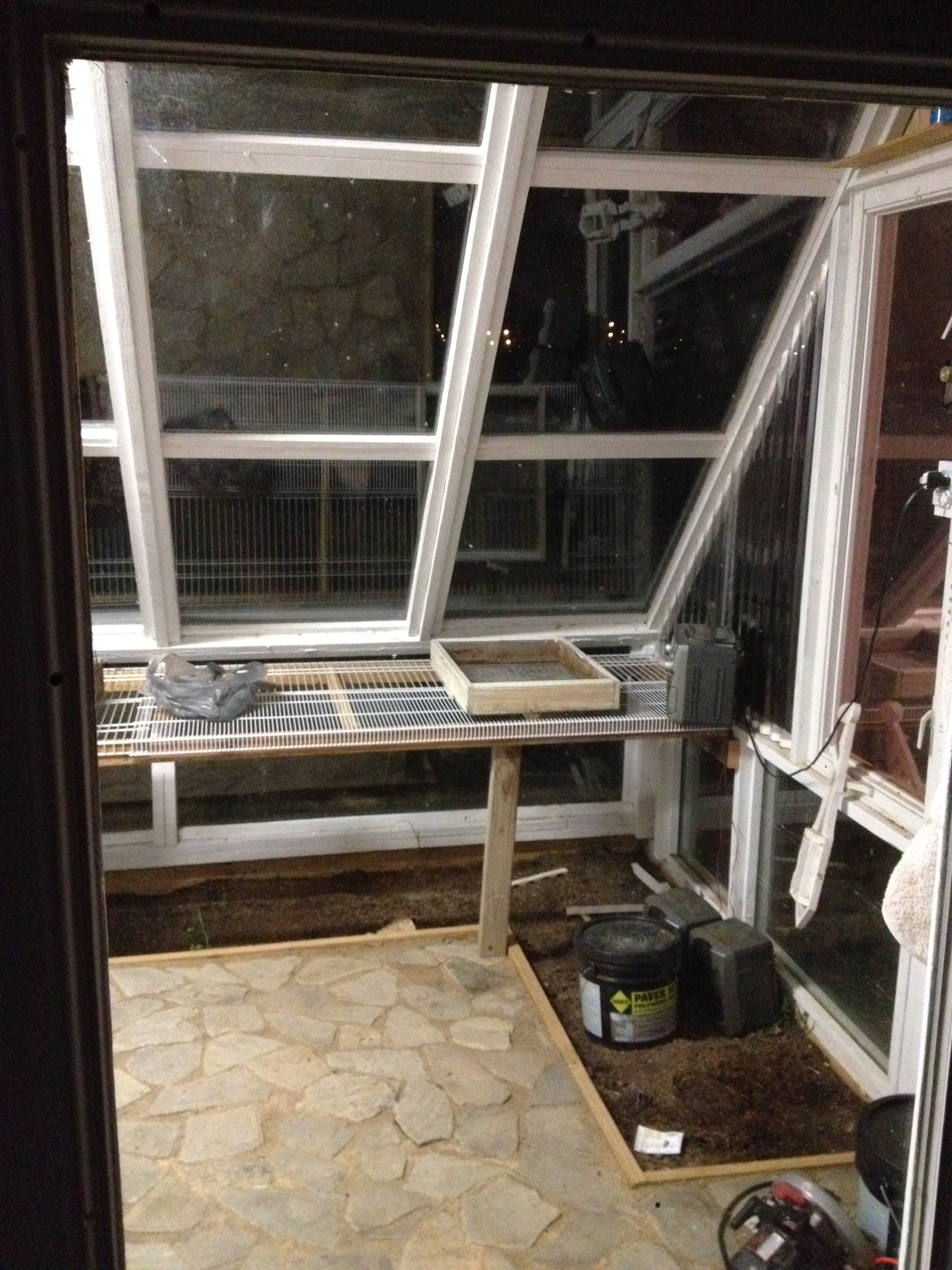

Interior Growing Tables and Porch Installation.

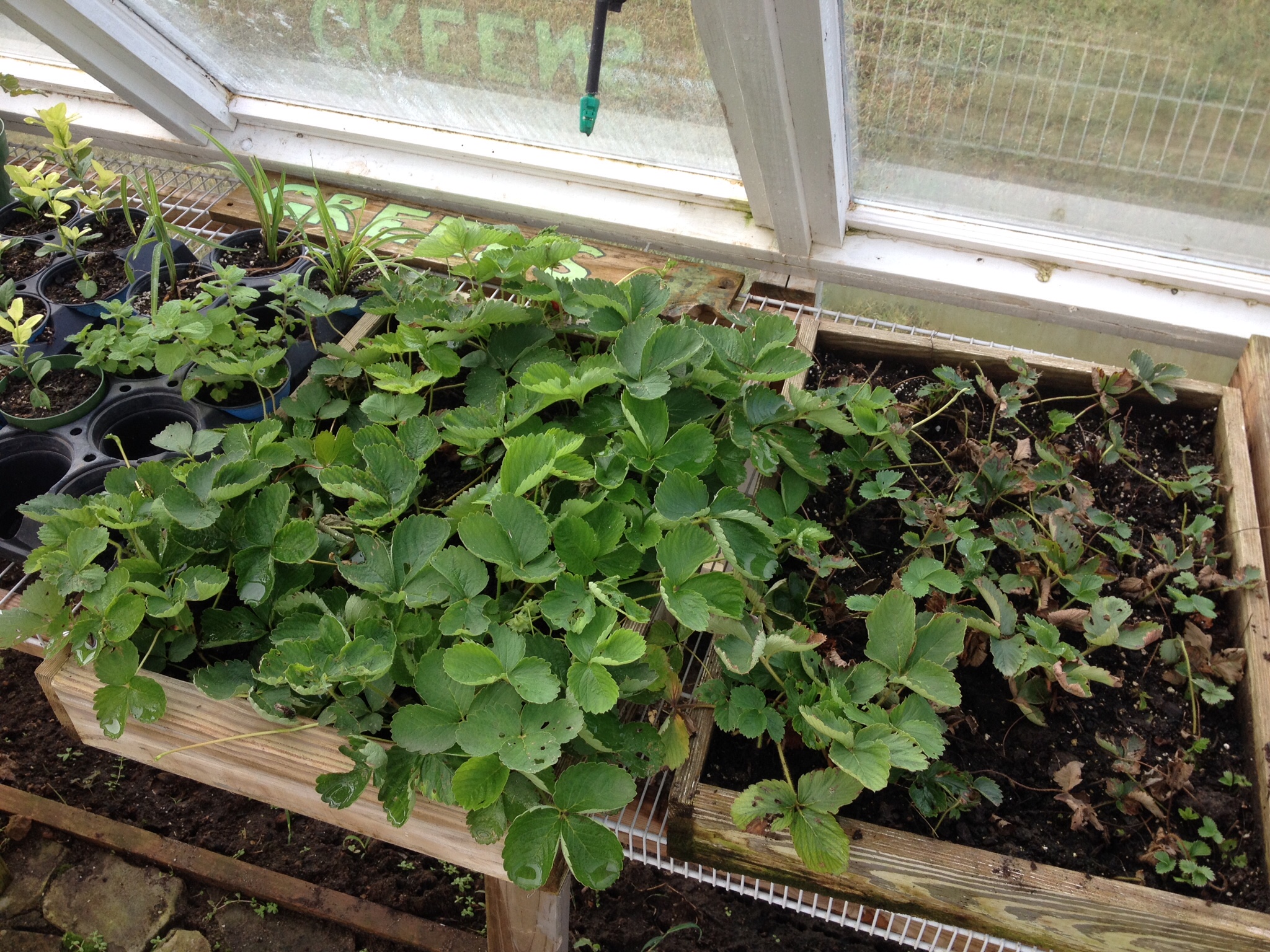

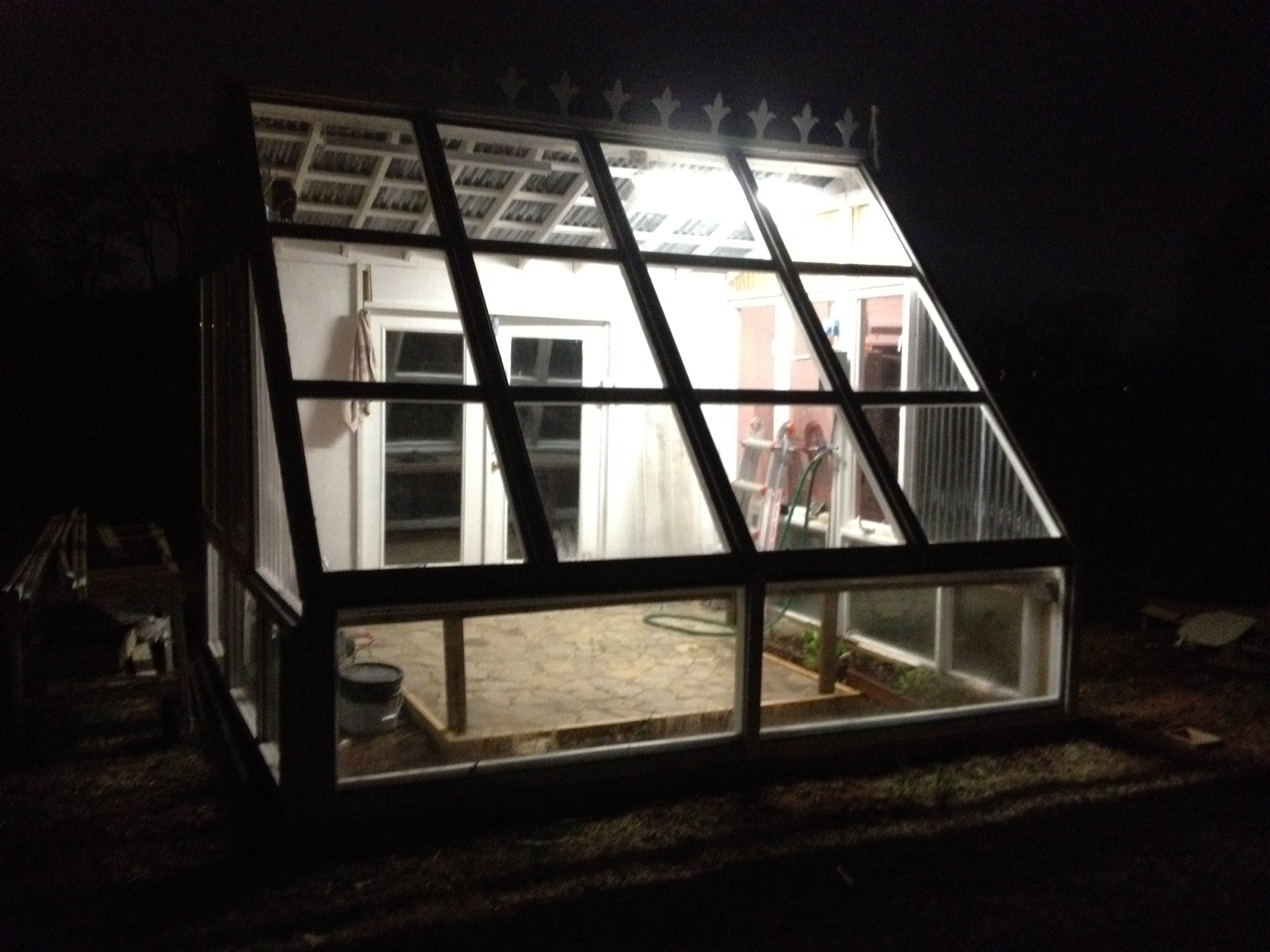

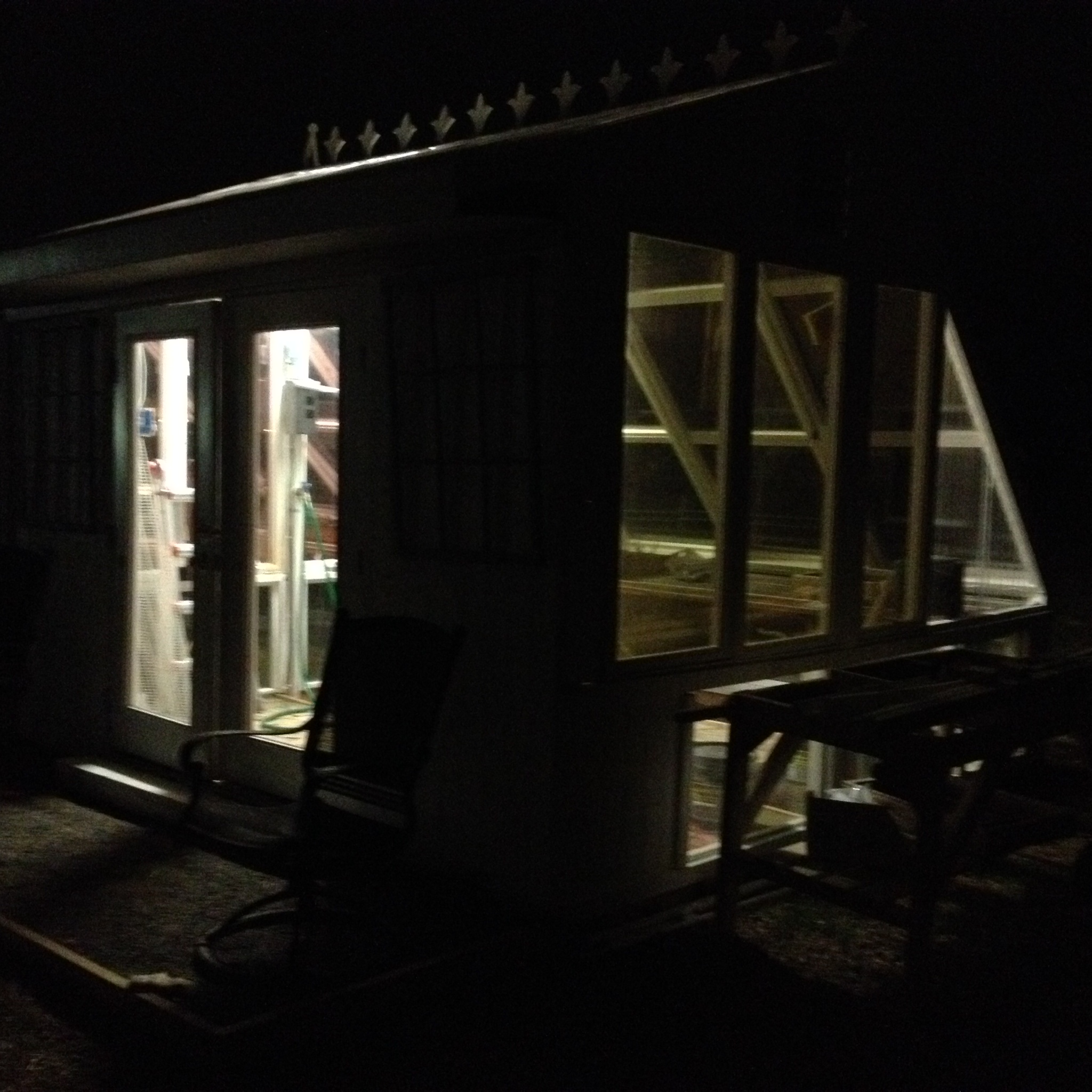

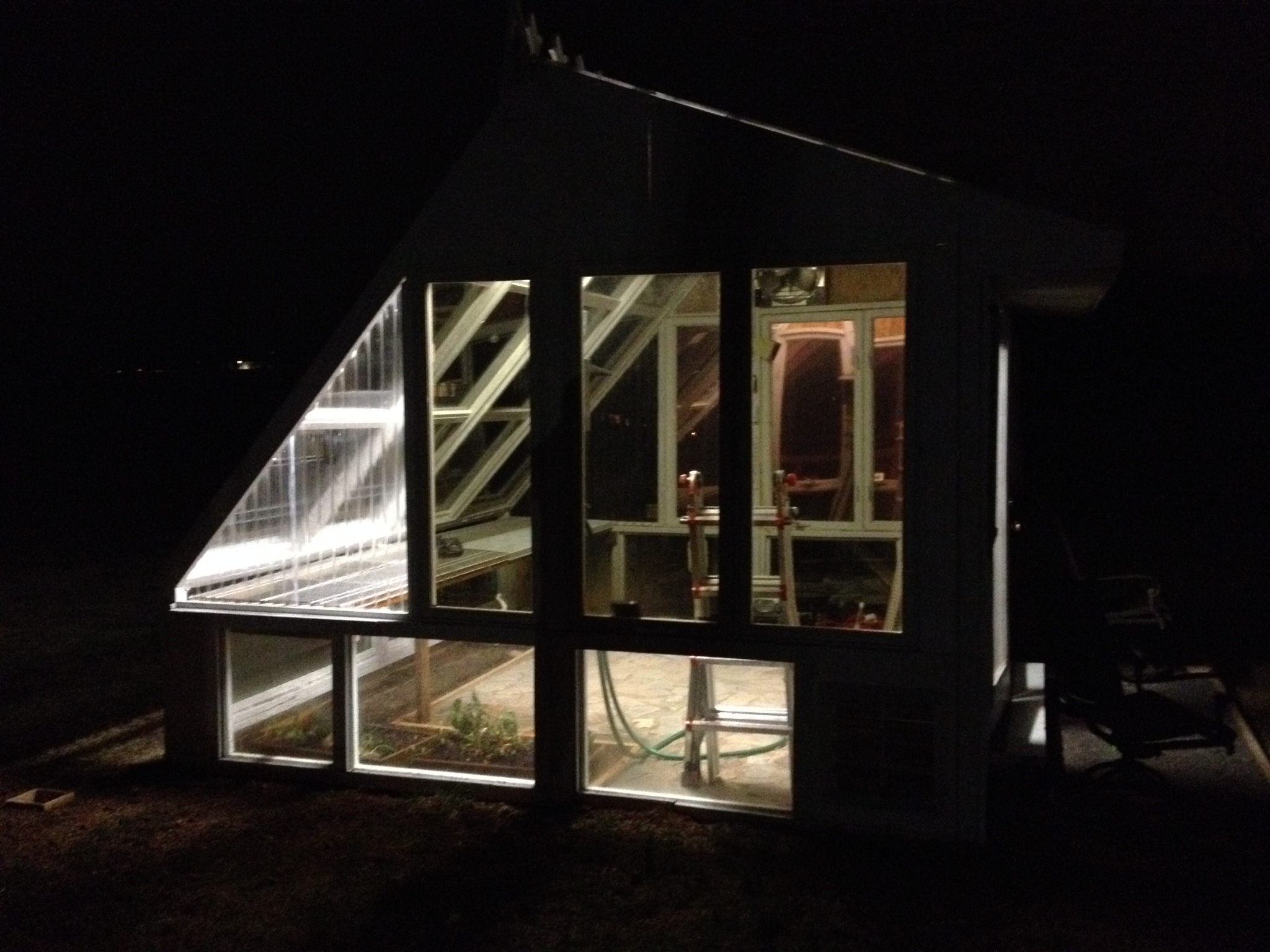

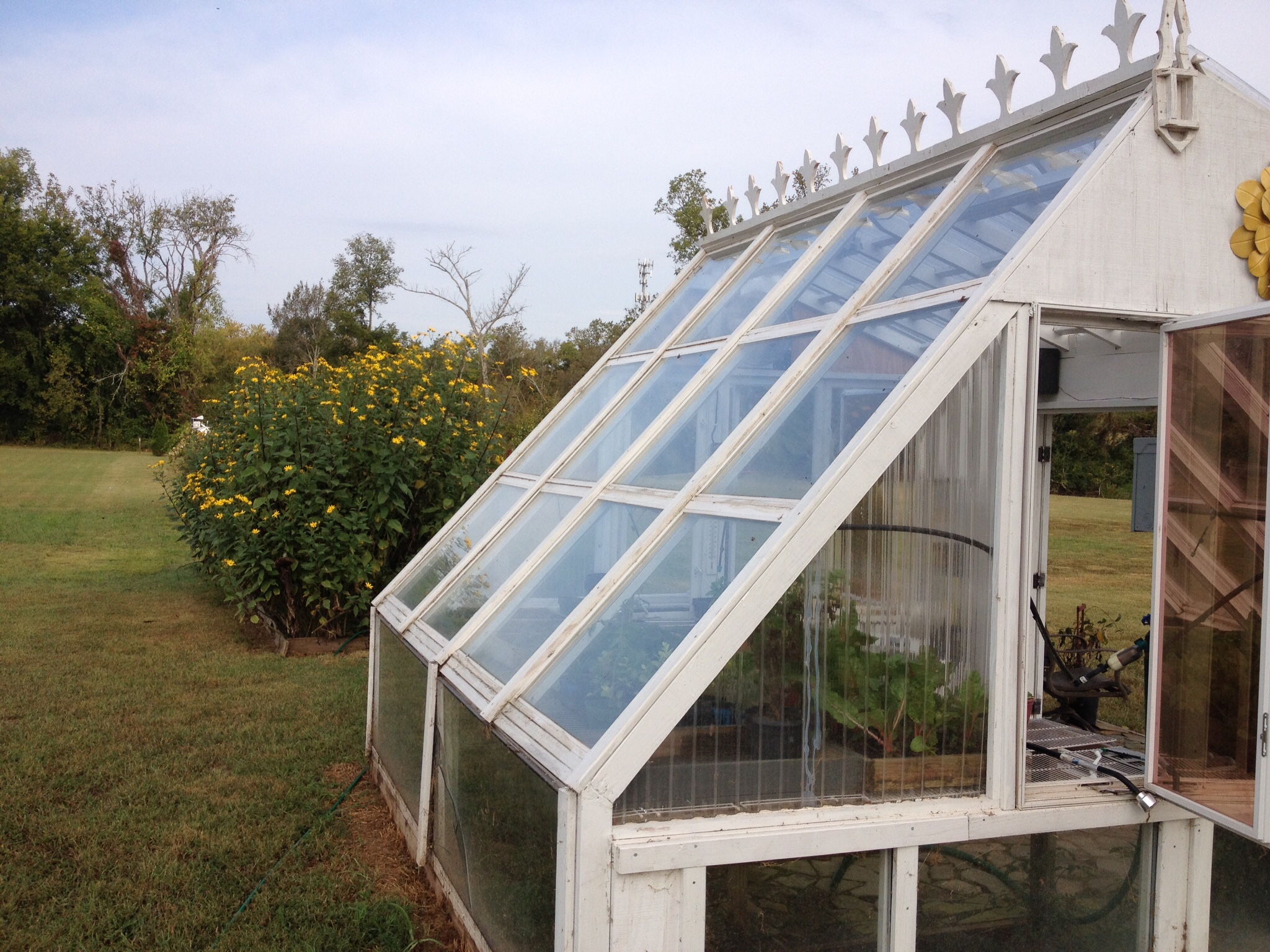

Things Are Growing!

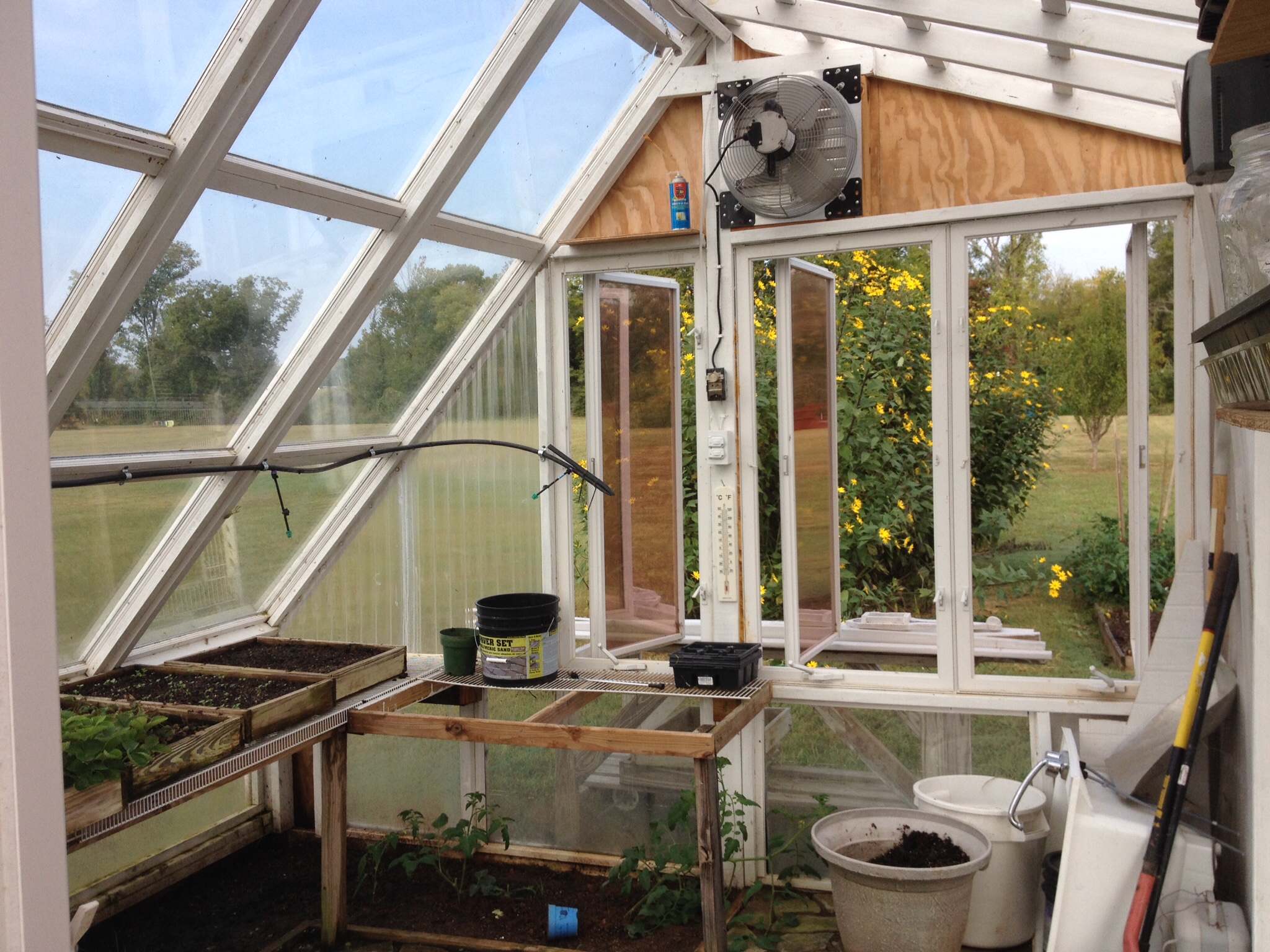

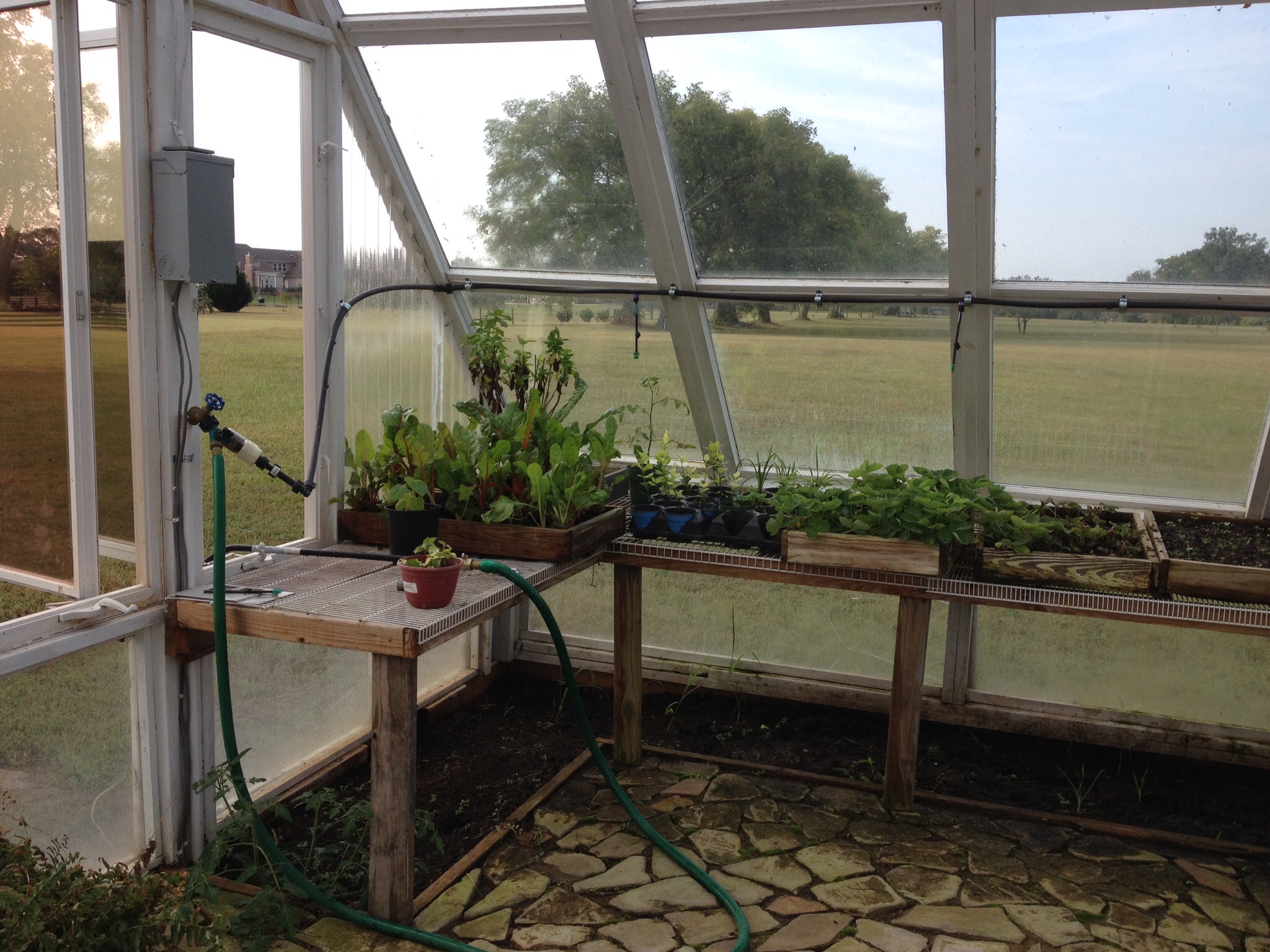

A fan installed in the top of the roof pitch with a vent at the floor line for cross ventilation. Also, installed a 220v electric heater for the cold months in Tennessee as well as an automatic irrigation system to keep it all moist.
