Backlight for Televisions

WE WILL MAKE AN LED LIGHTING SYSTEM WITH A 12V CONTROL FOR THE LED AND 5V FOR THE ON AND OFF CONTROL

Here we will see the schematic diagram made in the easyeda software with all the electronic components and their respective values.

This circuit is powered with 12VDC and the control with 5VDC with indicator LEDs that are at these voltages that come from the electronic card and we can control 2 independent LED strips, a very easy circuit to make and with few electronic components.

• 1 TRANSISTOR MJD112
• 1 DIODE M7 SMD
• 2 RESISTOR 1K SMD 1206
• 1 RESISTOR 3K SMD 1206
• 2 DIODE LED SMD 0805 (GREEN AND RED)
• 1 SPADIN 8 PINS

• VIN 12VDC
• V control 5VDC
• V tira led 12VDC
• I CONTROL TIRA LED 1A

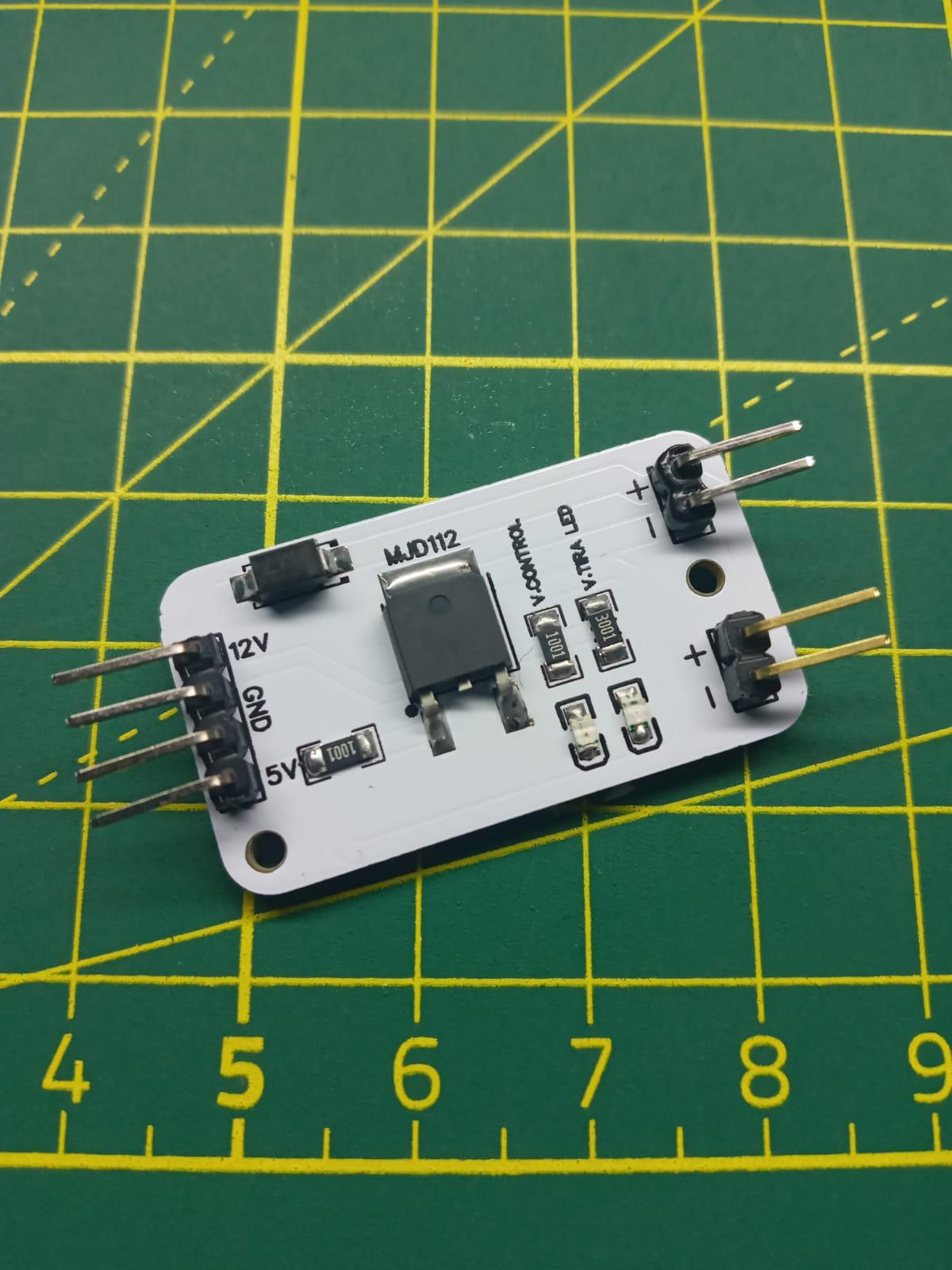

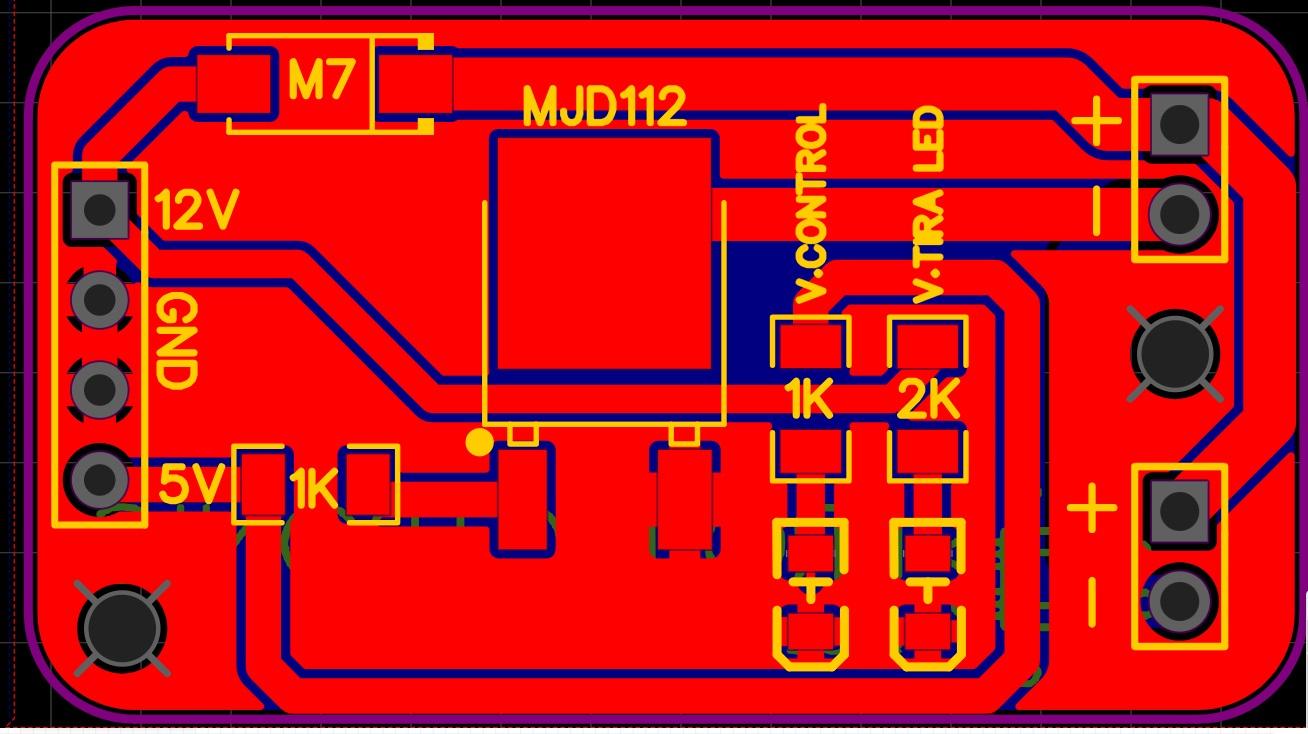

This project was made in the Easyeda software as we can see the tracks and the 3D image of the project working perfectly are no difficulty
