Back to the Future Lamp
![Back To The Future Lamp [ENG SUB]](/proxy/?url=https://content.instructables.com/FSR/WEHD/LKQVUSN4/FSRWEHDLKQVUSN4.jpg&filename=Back To The Future Lamp [ENG SUB])
I got the idea when I saw it on the Internet. There are plenty of models like these on Amazon and elsewhere.
And I said to myself: "Can't I do it with my 3D printer?".
The extra feature I've added compared to the ones you can find on the Internet, is that I've added a button on the back that lets you change the color to suit the mood.
Normally it's pretty simple to make even if you're not an electronics engineer.
Here the components : https://jeje-linge.fr/pages/bttf-lamp
Supplies
![BTTF_LAMP.mp4_snapshot_01.29.574.jpg](/proxy/?url=https://content.instructables.com/FU9/2E2X/LKQVUSQR/FU92E2XLKQVUSQR.jpg&filename=BTTF_LAMP.mp4_snapshot_01.29.574.jpg)
What you need:
1x Arduino nano
1x 2.2k resistor
1m Led strip
1x switch
Here my bundle : https://jeje-linge.fr/pages/bttf-lamp
Printing
![BTTF_LAMP.mp4_snapshot_00.58.622.jpg](/proxy/?url=https://content.instructables.com/FJ2/HD7I/LKQVUSU1/FJ2HD7ILKQVUSU1.jpg&filename=BTTF_LAMP.mp4_snapshot_00.58.622.jpg)
![BTTF_LAMP.mp4_snapshot_00.56.000.jpg](/proxy/?url=https://content.instructables.com/FCN/SN2X/LKQVUSU2/FCNSN2XLKQVUSU2.jpg&filename=BTTF_LAMP.mp4_snapshot_00.56.000.jpg)
Print every part.
I used black PLA but you can totally make it with grey PLA.
White PLA for the letters.
Layer 0.2mm , infill 15% for everything but the letters.
Letters: layer 0.2mm, infill 100%
Put the Letters
![BTTF_LAMP.mp4_snapshot_01.08.000.jpg](/proxy/?url=https://content.instructables.com/FOI/V91T/LKQVUSV4/FOIV91TLKQVUSV4.jpg&filename=BTTF_LAMP.mp4_snapshot_01.08.000.jpg)
![BTTF_LAMP.mp4_snapshot_01.20.000.jpg](/proxy/?url=https://content.instructables.com/F9X/BZ1L/LKQVUSV5/F9XBZ1LLKQVUSV5.jpg&filename=BTTF_LAMP.mp4_snapshot_01.20.000.jpg)

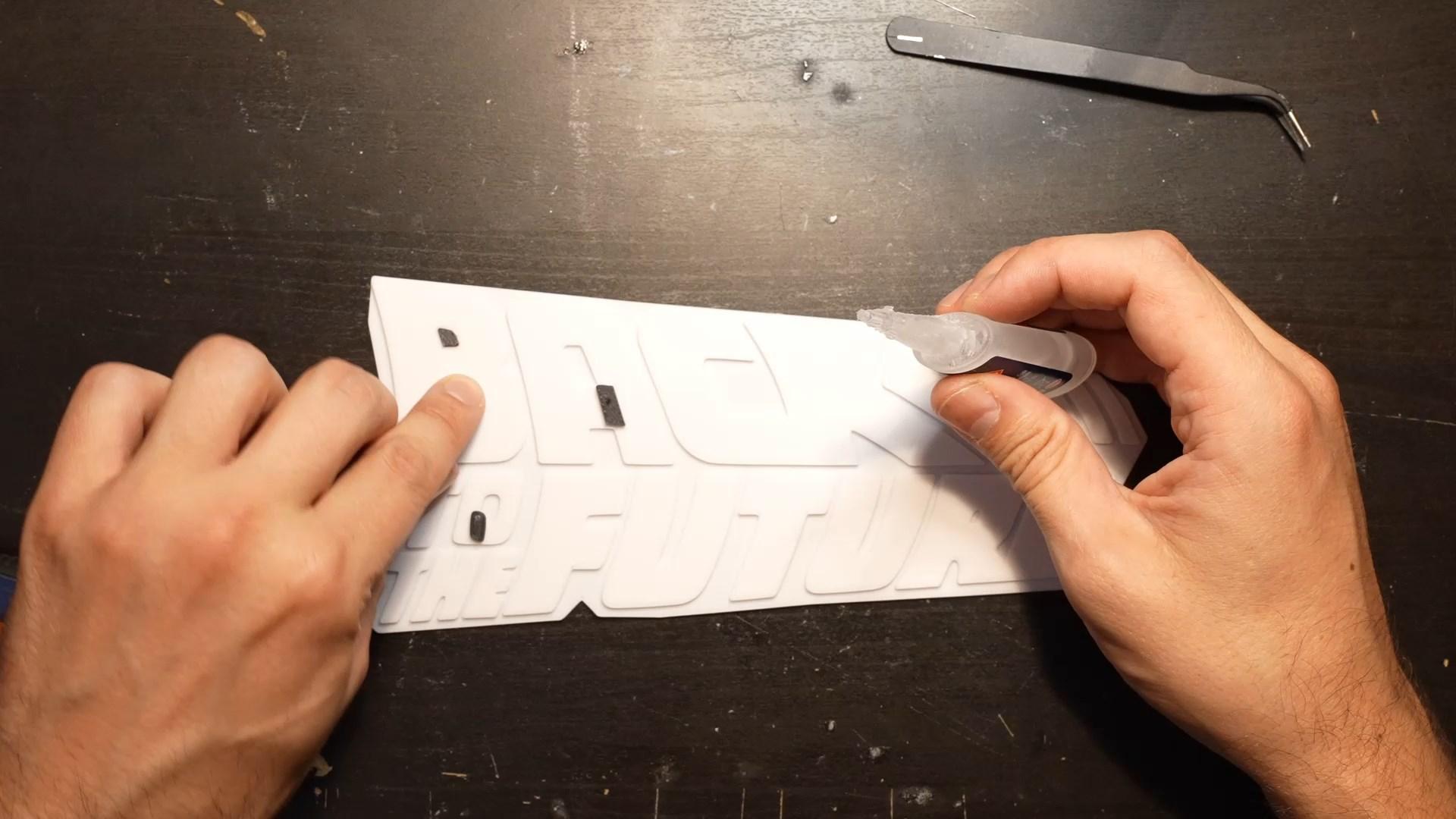

Insert the "caches" in the letters B, A, O and R.
Then place the white plate inside the model.
Glue the Led Strip
![BTTF_LAMP.mp4_snapshot_01.33.000.jpg](/proxy/?url=https://content.instructables.com/FQ6/EPHN/LKQVUSWR/FQ6EPHNLKQVUSWR.jpg&filename=BTTF_LAMP.mp4_snapshot_01.33.000.jpg)
![BTTF_LAMP.mp4_snapshot_02.07.000.jpg](/proxy/?url=https://content.instructables.com/FOV/6K9A/LKQVUSWS/FOV6K9ALKQVUSWS.jpg&filename=BTTF_LAMP.mp4_snapshot_02.07.000.jpg)

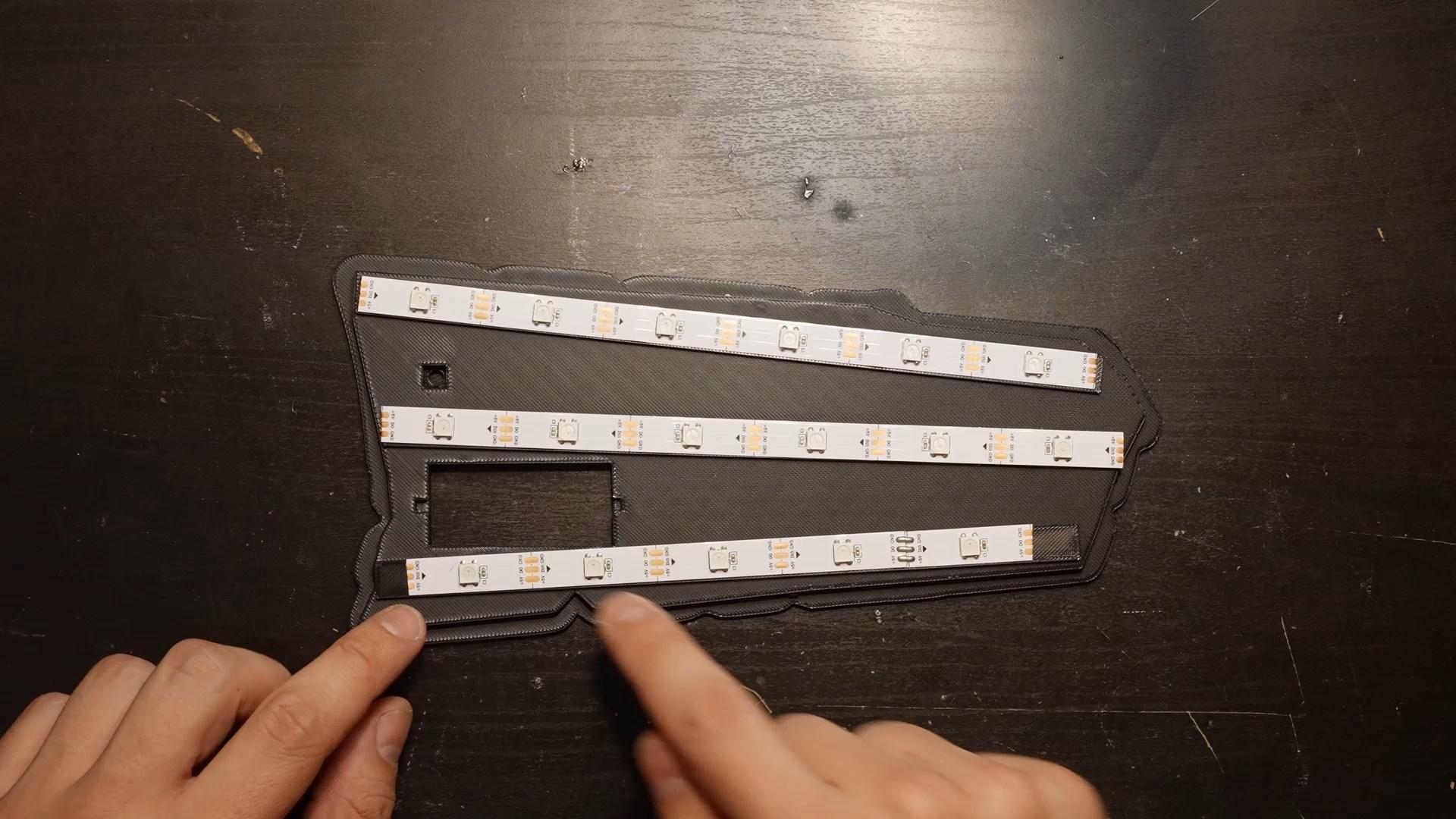

Cut the led strip in 3 parts.
Glue every part.
Make sure you put the DIN of the first part on the left side.
Solder the Led Strip
![BTTF_LAMP.mp4_snapshot_02.12.000.jpg](/proxy/?url=https://content.instructables.com/FEK/AOMK/LKQVUSY3/FEKAOMKLKQVUSY3.jpg&filename=BTTF_LAMP.mp4_snapshot_02.12.000.jpg)
![BTTF_LAMP.mp4_snapshot_02.30.000.jpg](/proxy/?url=https://content.instructables.com/FAU/BSLR/LKQVUSY2/FAUBSLRLKQVUSY2.jpg&filename=BTTF_LAMP.mp4_snapshot_02.30.000.jpg)
Solder the 3 led strip parts together.
Prepare the Wires
![BTTF_LAMP.mp4_snapshot_02.42.906.jpg](/proxy/?url=https://content.instructables.com/FXF/TDM2/LKQVUT2J/FXFTDM2LKQVUT2J.jpg&filename=BTTF_LAMP.mp4_snapshot_02.42.906.jpg)
![BTTF_LAMP.mp4_snapshot_02.36.941.jpg](/proxy/?url=https://content.instructables.com/F8N/T6QY/LKQVUT2M/F8NT6QYLKQVUT2M.jpg&filename=BTTF_LAMP.mp4_snapshot_02.36.941.jpg)
![BTTF_LAMP.mp4_snapshot_03.05.230.jpg](/proxy/?url=https://content.instructables.com/F6Z/2I3J/LKQVUT2L/F6Z2I3JLKQVUT2L.jpg&filename=BTTF_LAMP.mp4_snapshot_03.05.230.jpg)
Solder every wire on the arduino.
Place the Arduino
![BTTF_LAMP.mp4_snapshot_03.07.000.jpg](/proxy/?url=https://content.instructables.com/F7A/ACKE/LKQVUT8Z/F7AACKELKQVUT8Z.jpg&filename=BTTF_LAMP.mp4_snapshot_03.07.000.jpg)
![BTTF_LAMP.mp4_snapshot_03.12.781.jpg](/proxy/?url=https://content.instructables.com/FKD/2L84/LKQVUT90/FKD2L84LKQVUT90.jpg&filename=BTTF_LAMP.mp4_snapshot_03.12.781.jpg)
![BTTF_LAMP.mp4_snapshot_03.17.224.jpg](/proxy/?url=https://content.instructables.com/FXS/X5WZ/LKQVUT91/FXSX5WZLKQVUT91.jpg&filename=BTTF_LAMP.mp4_snapshot_03.17.224.jpg)
Put the arduino in the "Arduino box".
Glue the Box
![BTTF_LAMP.mp4_snapshot_03.29.347.jpg](/proxy/?url=https://content.instructables.com/FYU/DO3T/LKQVUTGB/FYUDO3TLKQVUTGB.jpg&filename=BTTF_LAMP.mp4_snapshot_03.29.347.jpg)
Glue the box on the "led strip plate".
Put the Switch
![BTTF_LAMP.mp4_snapshot_03.33.197.jpg](/proxy/?url=https://content.instructables.com/FB1/A0EJ/LKQVUTO4/FB1A0EJLKQVUTO4.jpg&filename=BTTF_LAMP.mp4_snapshot_03.33.197.jpg)
Put the switch in place. Glue it if it's necessary.
Solder the Wires
![BTTF_LAMP.mp4_snapshot_03.51.486.jpg](/proxy/?url=https://content.instructables.com/FZX/UDBB/LKQVUU3N/FZXUDBBLKQVUU3N.jpg&filename=BTTF_LAMP.mp4_snapshot_03.51.486.jpg)
![BTTF_LAMP.mp4_snapshot_04.03.215.jpg](/proxy/?url=https://content.instructables.com/FBC/UQ39/LKQVUU3O/FBCUQ39LKQVUU3O.jpg&filename=BTTF_LAMP.mp4_snapshot_04.03.215.jpg)

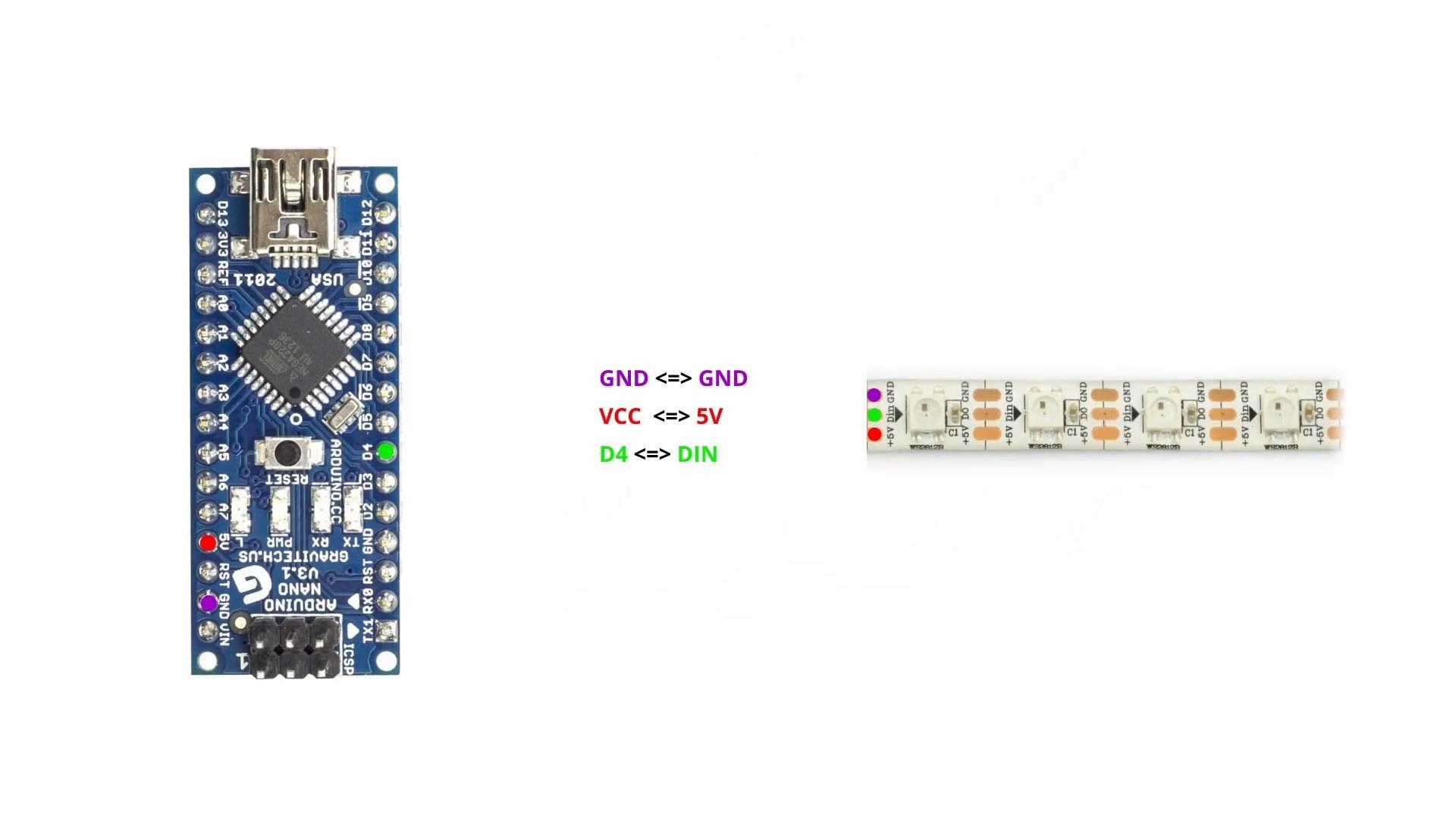

Solder the 5V, GND and D4 from the Arduino to the led strip.
Then solder the switch.
Close It
![BTTF_LAMP.mp4_snapshot_04.09.180.jpg](/proxy/?url=https://content.instructables.com/F1Q/2POU/LKQVUV9A/F1Q2POULKQVUV9A.jpg&filename=BTTF_LAMP.mp4_snapshot_04.09.180.jpg)
![BTTF_LAMP.mp4_snapshot_04.07.233.jpg](/proxy/?url=https://content.instructables.com/F1T/AH0J/LKQVUVAP/F1TAH0JLKQVUVAP.jpg&filename=BTTF_LAMP.mp4_snapshot_04.07.233.jpg)
![BTTF_LAMP.mp4_snapshot_04.15.839.jpg](/proxy/?url=https://content.instructables.com/FBY/GABS/LKQVUVDI/FBYGABSLKQVUVDI.jpg&filename=BTTF_LAMP.mp4_snapshot_04.15.839.jpg)
Close the box and connect the arduino to your computer.
Send the Code
![BTTF_LAMP.mp4_snapshot_04.28.389.jpg](/proxy/?url=https://content.instructables.com/F14/1WDI/LKQVUW47/F141WDILKQVUW47.jpg&filename=BTTF_LAMP.mp4_snapshot_04.28.389.jpg)
Send the code : https://github.com/jejelinge/BTTF_LAMP
Libraries : Adafruit NeoPixel by Adafruit
Great Scott!
![DSC02385.jpg](/proxy/?url=https://content.instructables.com/FTH/CSS0/LKQVUWP5/FTHCSS0LKQVUWP5.jpg&filename=DSC02385.jpg)
![DSC02391.jpg](/proxy/?url=https://content.instructables.com/FNW/H1X7/LKQVUWRW/FNWH1X7LKQVUWRW.jpg&filename=DSC02391.jpg)
![DSC02389.jpg](/proxy/?url=https://content.instructables.com/FKK/ETFK/LKQVUWTA/FKKETFKLKQVUWTA.jpg&filename=DSC02389.jpg)
![DSC02390.jpg](/proxy/?url=https://content.instructables.com/FTI/HWQQ/LKQVUWW1/FTIHWQQLKQVUWW1.jpg&filename=DSC02390.jpg)
I guess you guys aren't ready for that yet. But your kids are gonna love it.
