Baby Gym DIY Under 10 EUR

approx. 2.5 metres of Wooden Rod with diameter 1.5 cm ~ 6.5EUR

2 combi nuts M6 x 50 ~ 0.5 EUR

string ~ 1 EUR

4 beads diameter 1 cm ~ 1 EUR

2 Wing Nuts Diameter M6 ~ 0.5 EUR

2 Lock washers Diameter M6 ~ 0.5 EUR

saw
drilling machine

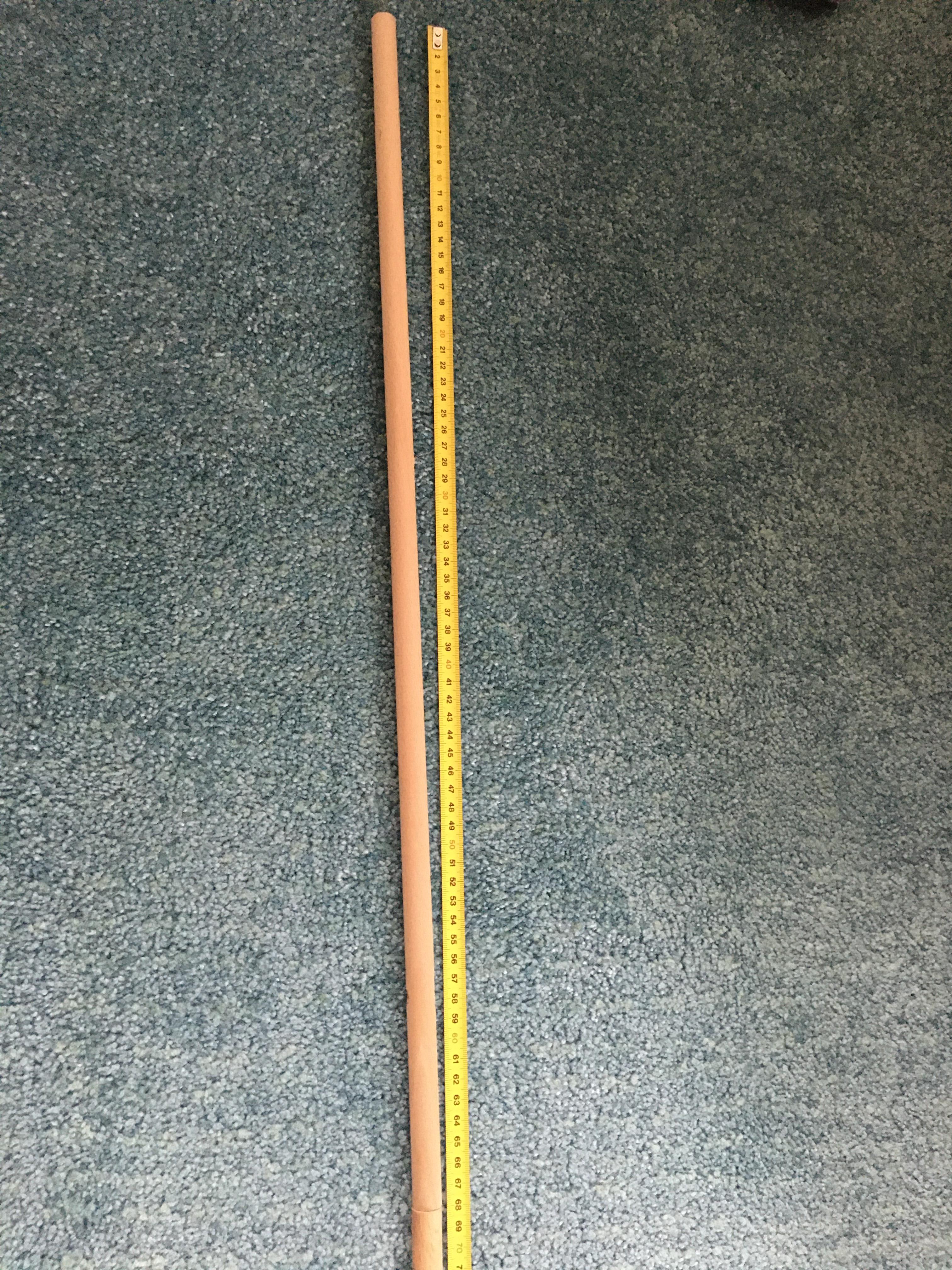

Measure 70 cm on each rod, so that in the end you have 5 pieces of rods.

Put 4 rods aside and measure on them 10 cm from top and 40 cm from the bottom.

Drill hole in the middle through the rod with diameter approx 8 mm.

The fifth hole serves as rod to hang the toys.

Drill holes in the middle on each end, so that you can screw the combi screws to them.

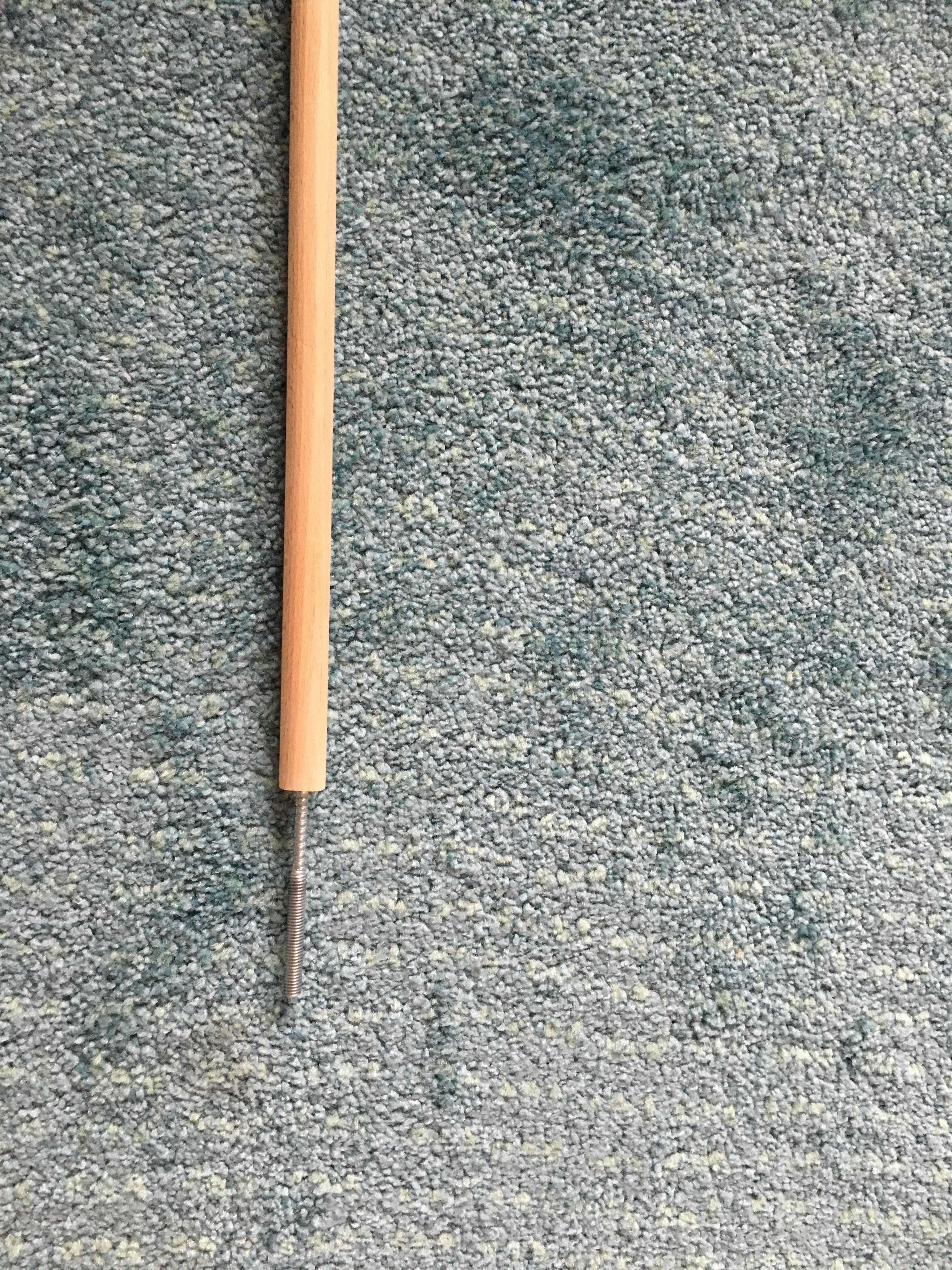

Screw the combi screws to the ends of main rod.

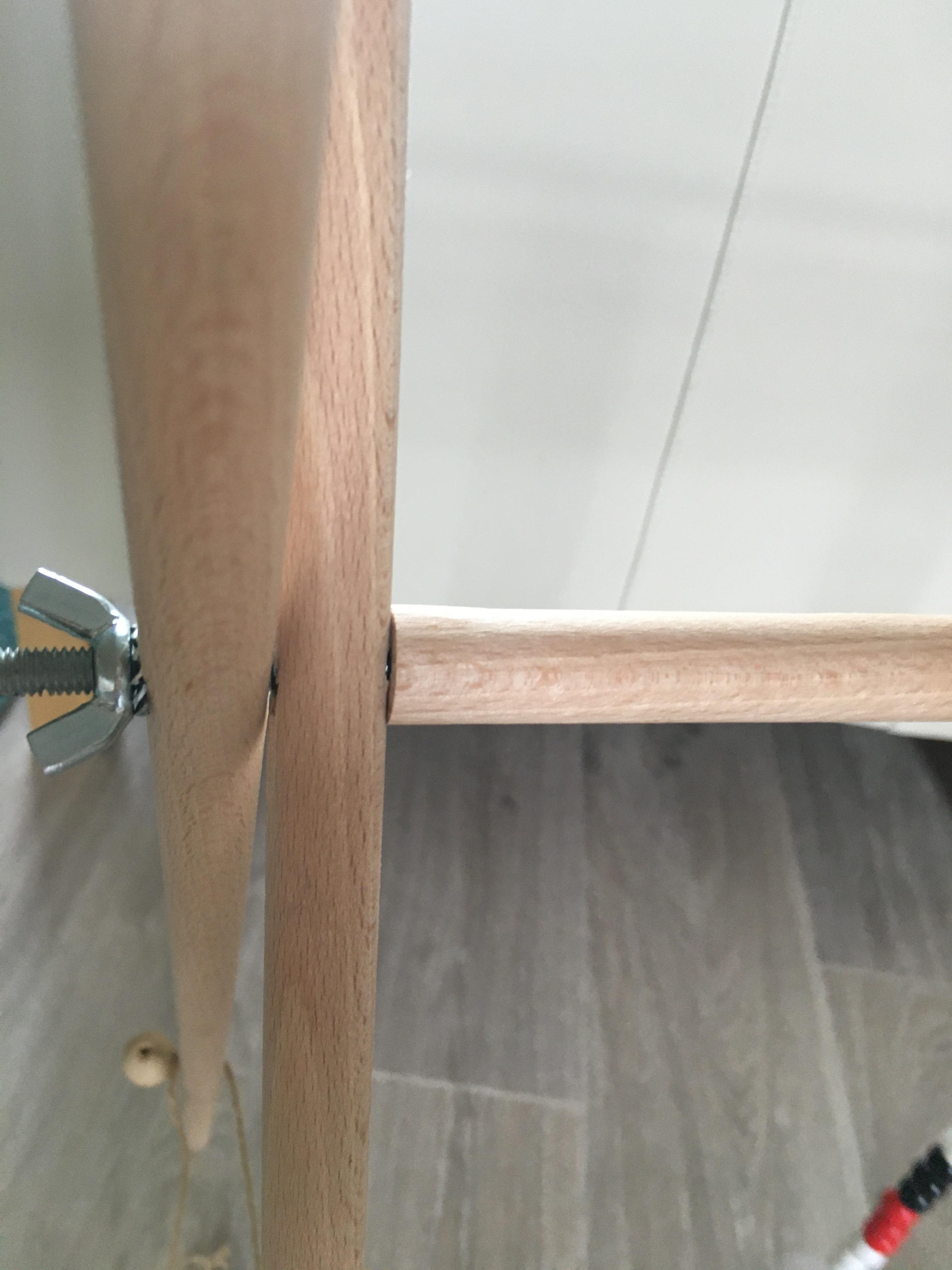

On each side of main rod put 2 rods. And tie them with wing nuts.

On the end of rods strech the string and secure it with 2 beads on each side.

You have got it!
