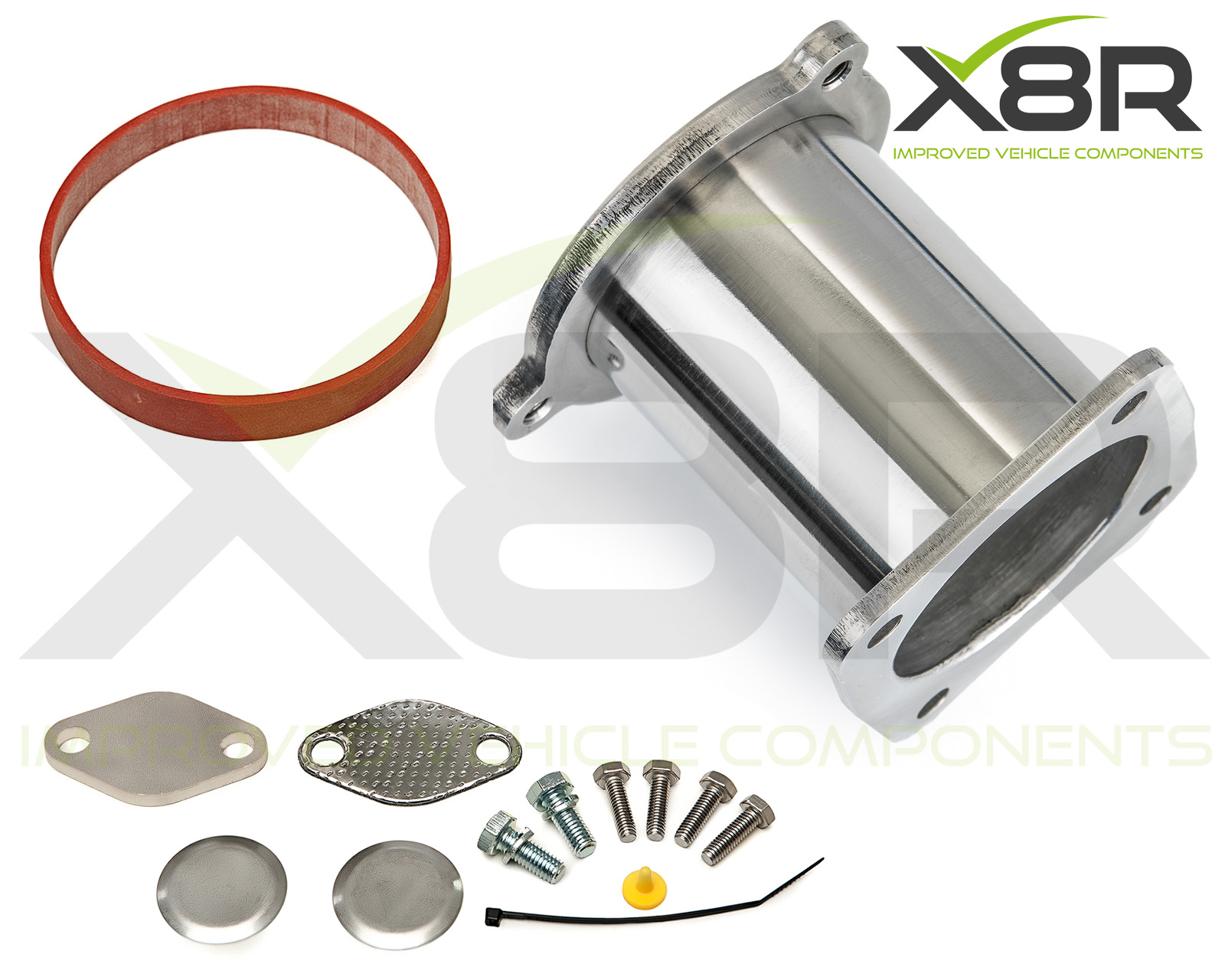

BMW EGR Valve Delete Instructions for Anti Shudder Valve Type EGR

These instructions show how to install our BMW EGR Delete for EGRs fitted with an anti shudder valve, for all other elements of the EGR delete including exhaust manifold blanking and EGR cooler blanking please check out our instructions here:

https://www.instructables.com/id/BMW-EGR-Stainless...

These instructions just show the differences when installing the EGR delete tube on the intake manifold where there is an anti shudder valve fitted.

Lever up the clip on the inter-cooler hose and release hose.

Loosen hose clamp and release EGR cooler pipe.

Remove vacuum hose from side of EGR valve. Insert our yellow plastic bung and secure with cable tie.

Remove electrical connector and 3x bolts and remove anti shudder valve from front of EGR valve.

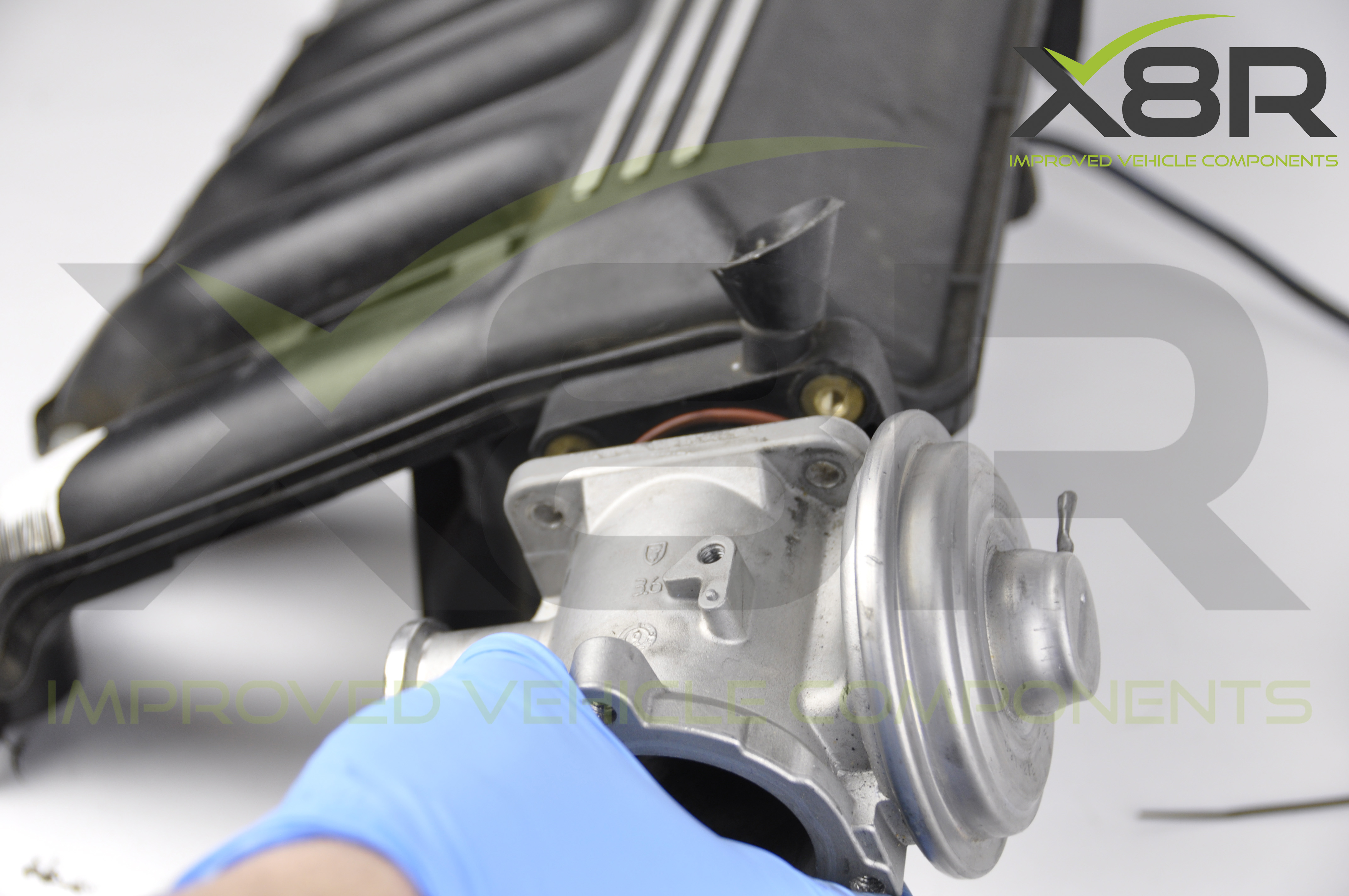

Remove x4 bolts and remove EGR valve from intake manifold.

Clean the intake manifold as best as you can to remove any heavy carbon deposits.

Remove old EGR to intake manifold gasket and insert our new gasket.

Fit our EGR tube, note orientation as shown. Fit using our stainless steel bolts.

Fit anti shudder valve to our EGR tube and refit electrical connector.

Push fit inter-cooler hose to anti shudder valve.

If you need any further guidance on this install or would like to purchase the parts shown please call us on +44 01843 446643 or email us at sales@x8r.co.uk. Please also check out our instruction guide on YouTube. www.x8r.co.uk

Installation is carried out at installers risk, if unsure please contact us or a professional, X8R Ltd cannot be held responsible for any adverse result of installing this product or any injuries caused by install, if in doubt ask a professional. All images and texts are copyright X8R Ltd 2018
